Introspection did not find any typical Config paths. More...

#include "table-based-error-rate-model.h"

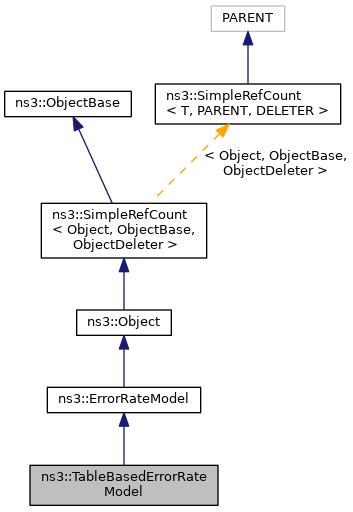

Inheritance diagram for ns3::TableBasedErrorRateModel:

Collaboration diagram for ns3::TableBasedErrorRateModel:

Public Member Functions
	TableBasedErrorRateModel ()

	~TableBasedErrorRateModel ()

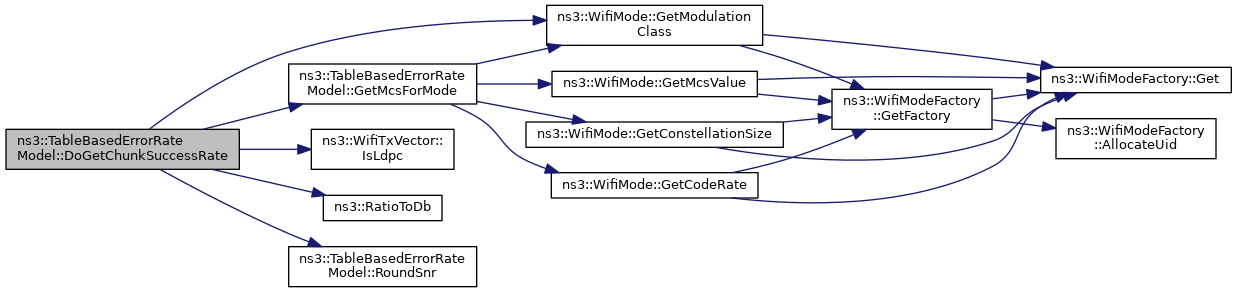

double	DoGetChunkSuccessRate (WifiMode mode, WifiTxVector txVector, double snr, uint64_t nbits) const
	A pure virtual method that must be implemented in the subclass. More...

Public Member Functions inherited from ns3::ErrorRateModel
double	CalculateSnr (WifiTxVector txVector, double ber) const

double	GetChunkSuccessRate (WifiMode mode, WifiTxVector txVector, double snr, uint64_t nbits) const
	This method returns the probability that the given 'chunk' of the packet will be successfully received by the PHY. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

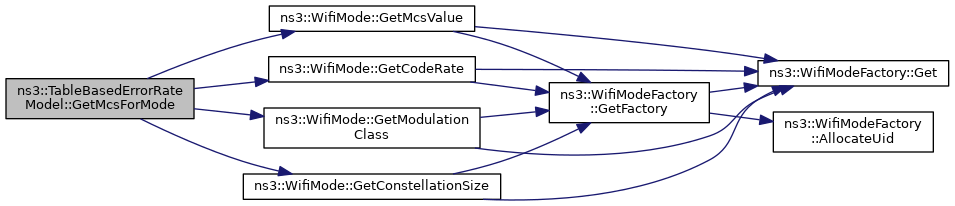

static uint8_t	GetMcsForMode (WifiMode mode)
	Utility function to convert WifiMode to an MCS value. More...

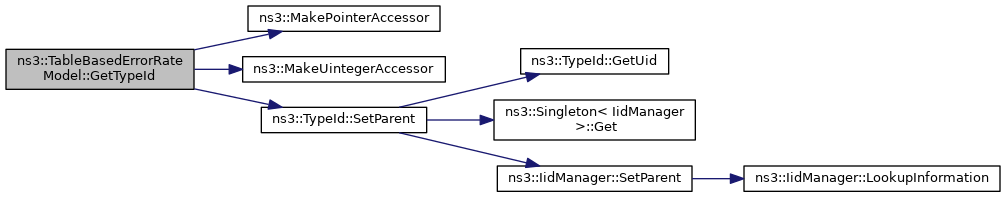

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ErrorRateModel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
double	FetchFsr (WifiMode mode, WifiTxVector txVector, double snr, uint64_t nbits) const
	Fetch the frame success rate for a given Wi-Fi mode, TXVECTOR, SNR and frame size. More...

double	RoundSnr (double snr, double precision) const
	Round SNR (in dB) to the specified precision. More...

Private Attributes
Ptr< ErrorRateModel >	m_fallbackErrorModel
	Error rate model to fallback to if no value is found in the table. More...

uint64_t	m_threshold
	Threshold in bytes over which the table for large size frames is used. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

Attributes

FallbackErrorRateModel: Ptr to the fallback error rate model to be used when no matching value is found in a table
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ErrorRateModel>
- Initial value: 0x1967eb0
- Flags: construct write read
SizeThreshold: Threshold in bytes over which the table for large size frames is used
- Set with class: ns3::UintegerValue
- Underlying type: uint64_t 0:18446744073709551615
- Initial value: 400
- Flags: construct write read
