#include "ns3/core-module.h"
#include "ns3/three-gpp-channel-model.h"
#include "ns3/three-gpp-antenna-array-model.h"
#include <fstream>
#include "ns3/three-gpp-spectrum-propagation-loss-model.h"
#include "ns3/net-device.h"
#include "ns3/simple-net-device.h"
#include "ns3/node.h"
#include "ns3/node-container.h"
#include "ns3/mobility-model.h"
#include "ns3/constant-position-mobility-model.h"
#include "ns3/lte-spectrum-value-helper.h"
#include "ns3/channel-condition-model.h"
#include "ns3/three-gpp-propagation-loss-model.h"

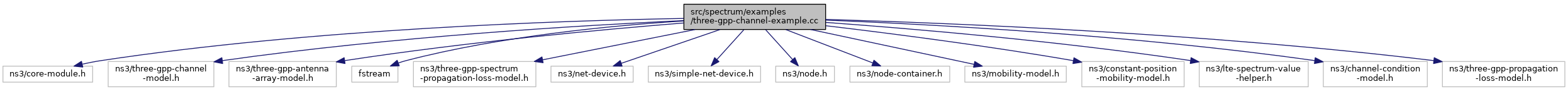

Include dependency graph for three-gpp-channel-example.cc:

Functions
static void	ComputeSnr (Ptr< MobilityModel > txMob, Ptr< MobilityModel > rxMob, double txPow, double noiseFigure)
	Compute the average SNR. More...

static void	DoBeamforming (Ptr< NetDevice > thisDevice, Ptr< ThreeGppAntennaArrayModel > thisAntenna, Ptr< NetDevice > otherDevice)
	Perform the beamforming using the DFT beamforming method. More...

Variables
static Ptr< ThreeGppPropagationLossModel >	m_propagationLossModel
	the PropagationLossModel object More...

static Ptr< ThreeGppSpectrumPropagationLossModel >	m_spectrumLossModel
	the SpectrumPropagationLossModel object More...

Function Documentation

◆ ComputeSnr()

static void ComputeSnr	(	Ptr< MobilityModel >	txMob,
		Ptr< MobilityModel >	rxMob,
		double	txPow,
		double	noiseFigure
	)

static

Compute the average SNR.

Parameters

txMob	the tx mobility model
rxMob	the rx mobility model
txPow	the transmitting power in dBm
noiseFigure	the noise figure in dB

Definition at line 106 of file three-gpp-channel-example.cc.

References ns3::PropagationLossModel::CalcRxPower(), ns3::SpectrumValue::Copy(), ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), f(), ns3::Time::GetSeconds(), m_propagationLossModel, m_spectrumLossModel, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Sum().

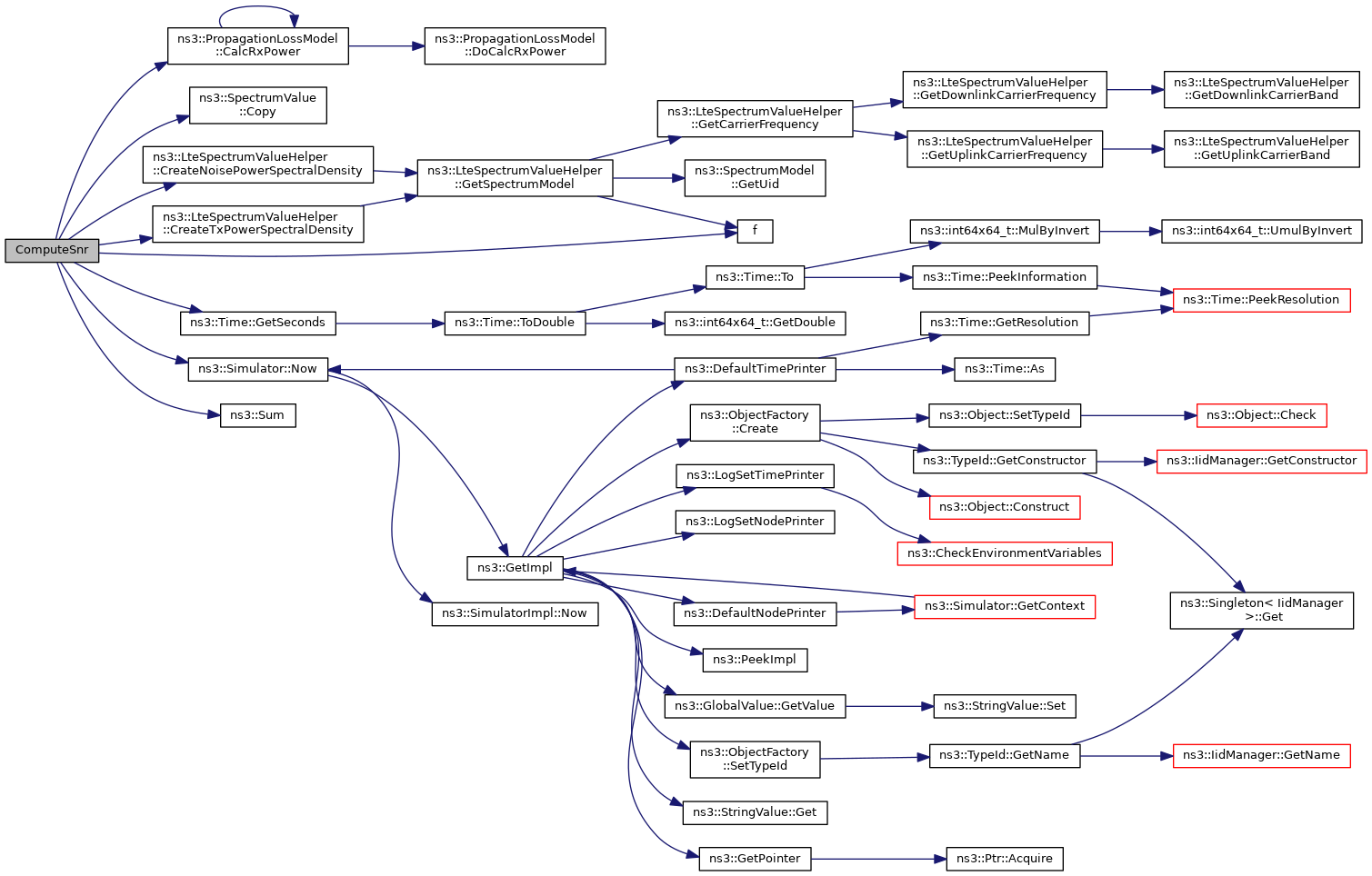

Here is the call graph for this function:

◆ DoBeamforming()

static void DoBeamforming	(	Ptr< NetDevice >	thisDevice,
		Ptr< ThreeGppAntennaArrayModel >	thisAntenna,
		Ptr< NetDevice >	otherDevice
	)

static

Perform the beamforming using the DFT beamforming method.

Parameters

thisDevice	the device performing the beamforming
thisAntenna	the antenna object associated to thisDevice
otherDevice	the device towards which point the beam

Definition at line 60 of file three-gpp-channel-example.cc.

References ns3::ThreeGppAntennaArrayModel::GetElementLocation(), ns3::NetDevice::GetNode(), ns3::ThreeGppAntennaArrayModel::GetNumberOfElements(), ns3::Object::GetObject(), GetPosition(), ns3::Angles::phi, ns3::ThreeGppAntennaArrayModel::SetBeamformingVector(), and ns3::Angles::theta.

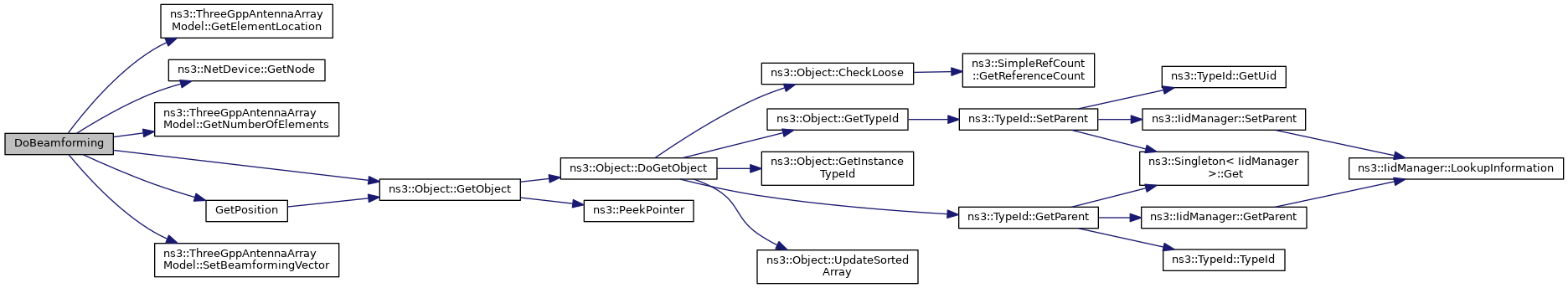

Here is the call graph for this function:
