AnnexC_TestCase Class Reference

The Annex C of IEEE 1609.4 : "Avoiding transmission at scheduled guard intervals" This feature is implemented in WaveMacLow::StartTransmission method. More...

Inheritance diagram for AnnexC_TestCase:

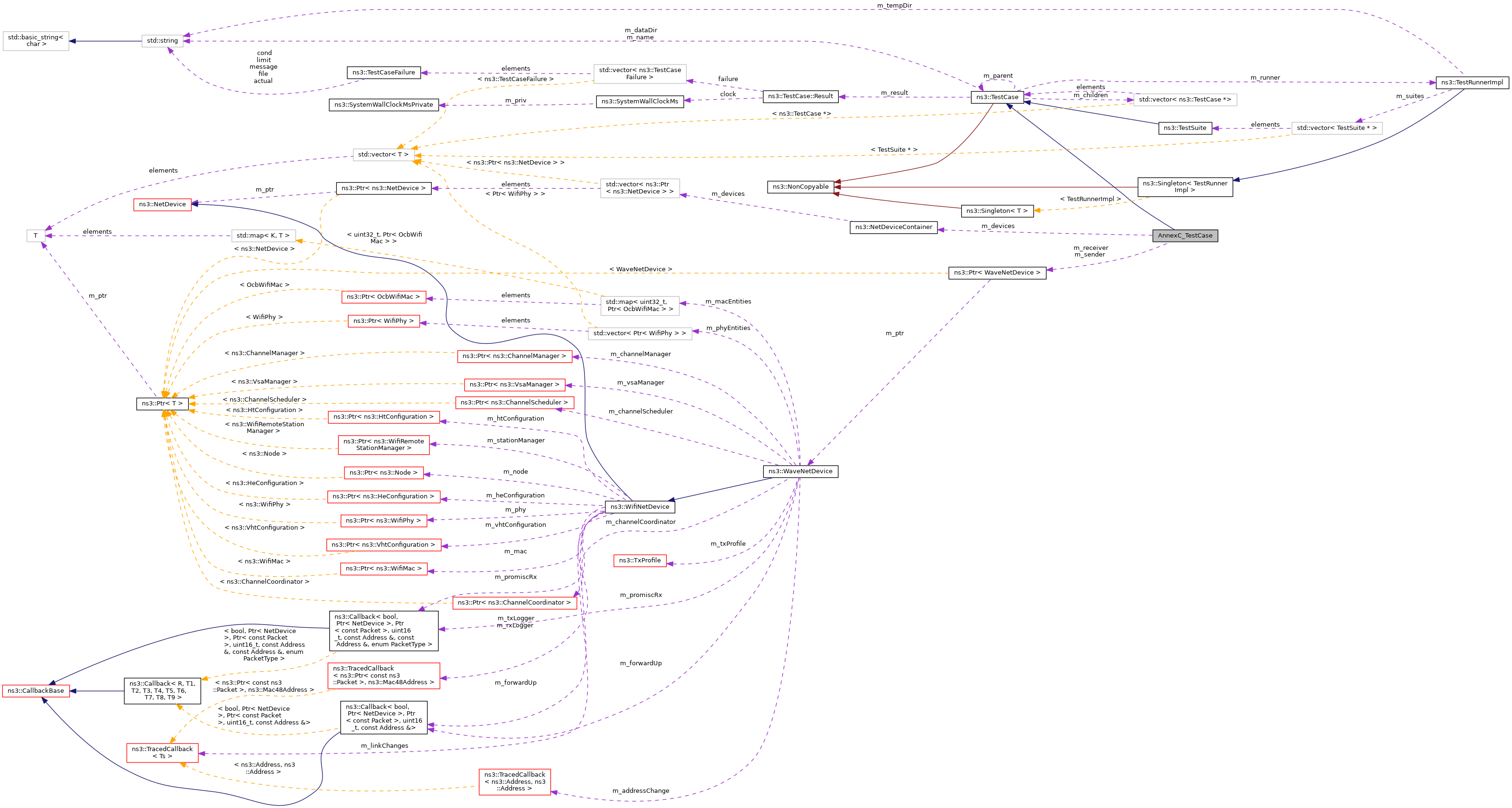

Collaboration diagram for AnnexC_TestCase:

Public Member Functions
	AnnexC_TestCase ()
virtual	~AnnexC_TestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
bool	Receive (Ptr< NetDevice > dev, Ptr< const Packet > pkt, uint16_t mode, const Address &sender)
	Receive function. More...
void	SendPacket (uint32_t packetSize, const TxInfo &txInfo, uint32_t sequence)
	Send packet function. More...

Private Attributes
NetDeviceContainer	m_devices
	devices More...
Ptr< WaveNetDevice >	m_receiver
	receiver More...
Ptr< WaveNetDevice >	m_sender
	sender More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

The Annex C of IEEE 1609.4 : "Avoiding transmission at scheduled guard intervals" This feature is implemented in WaveMacLow::StartTransmission method.

Definition at line 1022 of file mac-extension-test-suite.cc.

Constructor & Destructor Documentation

AnnexC_TestCase()

AnnexC_TestCase::AnnexC_TestCase

(

void

)

Definition at line 1052 of file mac-extension-test-suite.cc.

~AnnexC_TestCase()

AnnexC_TestCase::~AnnexC_TestCase ( void  )

virtual

Definition at line 1057 of file mac-extension-test-suite.cc.

Member Function Documentation

DoRun()

void AnnexC_TestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1146 of file mac-extension-test-suite.cc.

References CCH, TestCaseHelper::CreatWaveDevice(), EXTENDED_ALTERNATING, ns3::NetDeviceContainer::Get(), m_devices, m_receiver, m_sender, ns3::MakeCallback(), ns3::MilliSeconds(), Receive(), SCH1, ns3::Seconds(), SendPacket(), ns3::WaveNetDevice::SetReceiveCallback(), and ns3::WIFI_PREAMBLE_LONG.

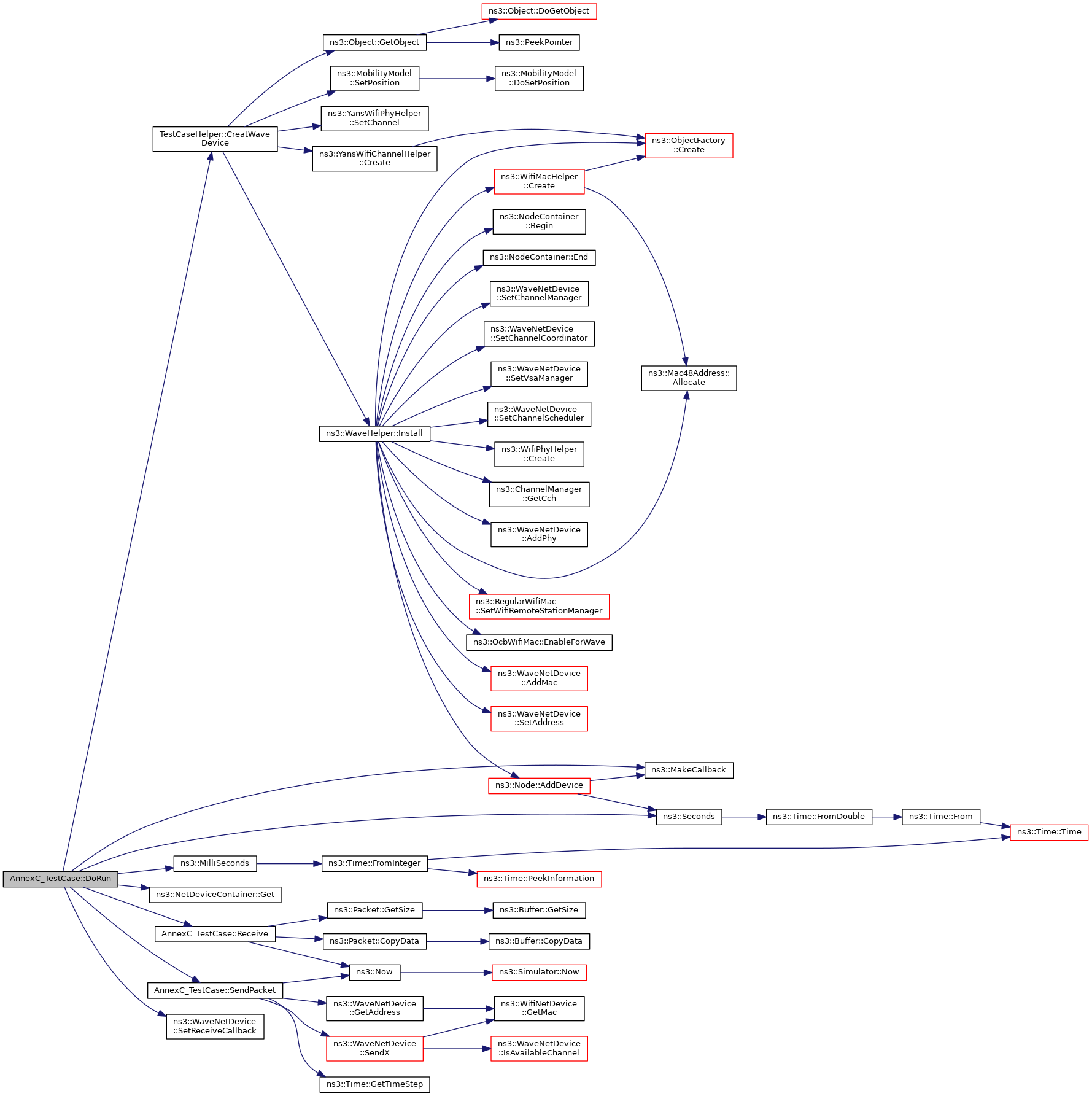

Here is the call graph for this function:

Receive()

bool AnnexC_TestCase::Receive ( Ptr< NetDevice >  dev, Ptr< const Packet >  pkt, uint16_t  mode, const Address &  sender  )

private

Receive function.

Parameters

dev	the device
pkt	the packet
mode	the mode
sender	the sender address

Returns

true if successful

Definition at line 1091 of file mac-extension-test-suite.cc.

References ns3::Packet::CopyData(), data, ns3::Packet::GetSize(), ns3::Now(), NS_TEST_EXPECT_MSG_GT, and NS_TEST_EXPECT_MSG_LT.

Referenced by DoRun().

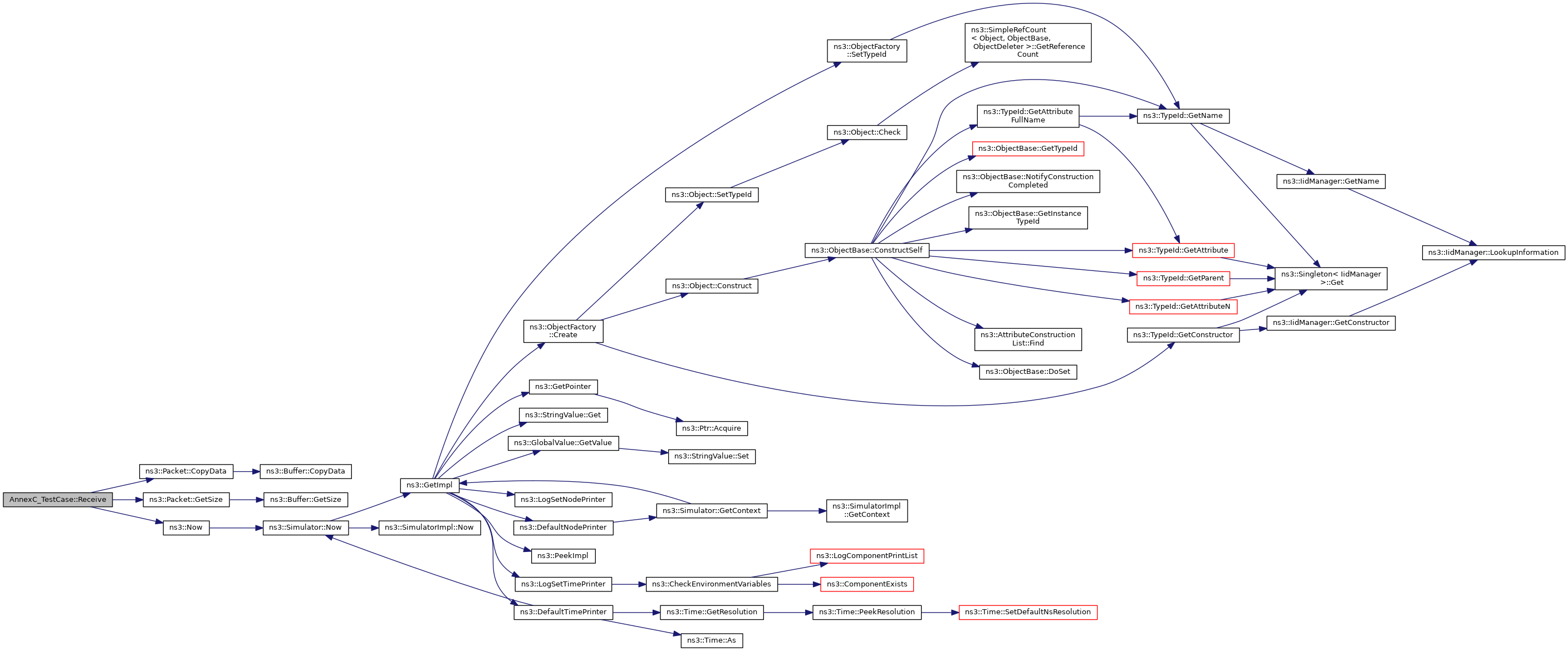

Here is the call graph for this function:

Here is the caller graph for this function:

SendPacket()

void AnnexC_TestCase::SendPacket ( uint32_t  packetSize, const TxInfo &  txInfo, uint32_t  sequence  )

private

Send packet function.

Parameters

packetSize	the packet size
txInfo	the transmit info
sequence	the sequence

Definition at line 1062 of file mac-extension-test-suite.cc.

References data, ns3::WaveNetDevice::GetAddress(), ns3::Time::GetTimeStep(), m_receiver, m_sender, ns3::Now(), packetSize, and ns3::WaveNetDevice::SendX().

Referenced by DoRun().

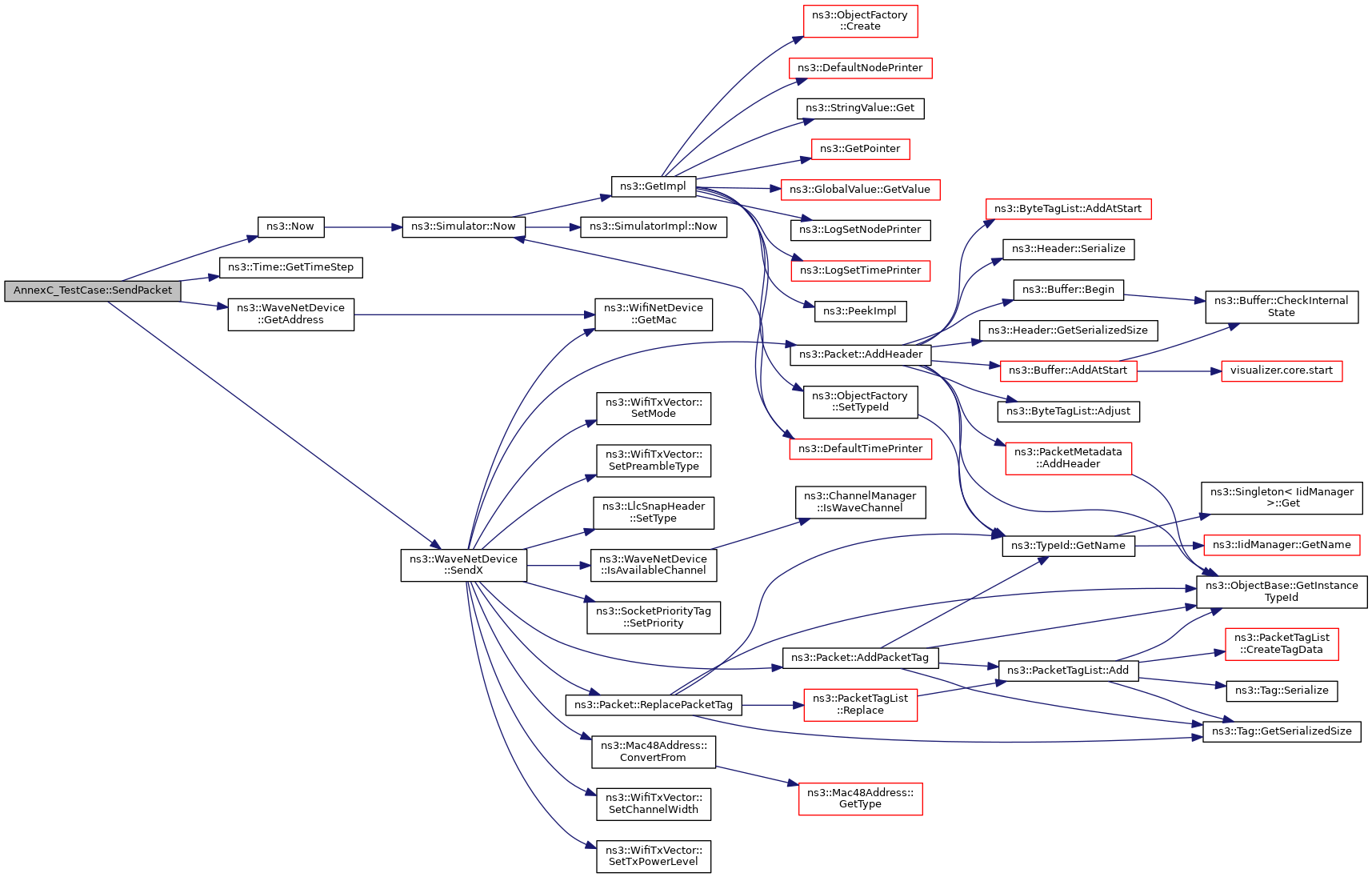

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_devices

NetDeviceContainer AnnexC_TestCase::m_devices

private

devices

Definition at line 1047 of file mac-extension-test-suite.cc.

Referenced by DoRun().

m_receiver

Ptr<WaveNetDevice> AnnexC_TestCase::m_receiver

private

receiver

Definition at line 1049 of file mac-extension-test-suite.cc.

Referenced by DoRun(), and SendPacket().

m_sender

Ptr<WaveNetDevice> AnnexC_TestCase::m_sender

private

sender

Definition at line 1048 of file mac-extension-test-suite.cc.

Referenced by DoRun(), and SendPacket().

---

The documentation for this class was generated from the following file:

• src/wave/test/mac-extension-test-suite.cc
