Make sure that when changing the fragmentation threshold during the simulation, the TCP transmission does not unexpectedly stop. More...

Inheritance diagram for Bug730TestCase:

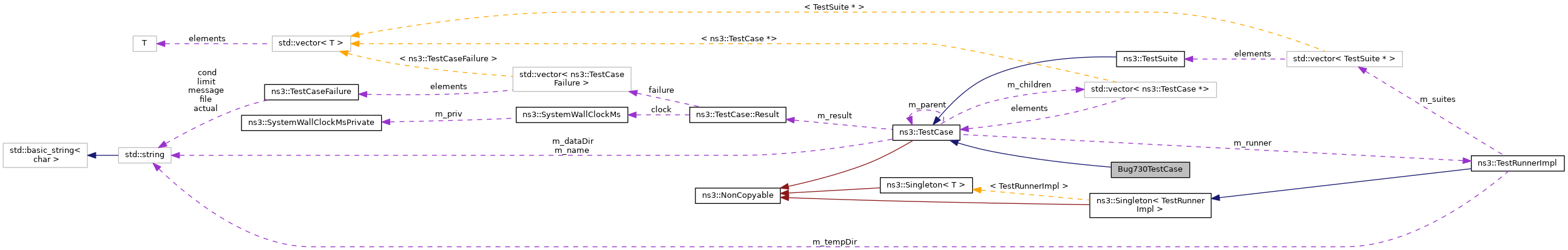

Collaboration diagram for Bug730TestCase:

Public Member Functions
	Bug730TestCase ()

virtual	~Bug730TestCase ()

void	DoRun (void) override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	Receive (std::string context, Ptr< const Packet > p, const Address &adr)
	Receive function. More...

Private Attributes
uint32_t	m_received
	received More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Make sure that when changing the fragmentation threshold during the simulation, the TCP transmission does not unexpectedly stop.

The scenario considers a TCP transmission between a 802.11b station and a 802.11b access point. After the simulation has begun, the fragmentation threshold is set at a value lower than the packet size. It then checks whether the TCP transmission continues after the fragmentation threshold modification.

See Bug 730

Definition at line 596 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ Bug730TestCase()

Bug730TestCase::Bug730TestCase ( )

Definition at line 618 of file wifi-test.cc.

◆ ~Bug730TestCase()

Bug730TestCase::~Bug730TestCase ( )

virtual

Definition at line 624 of file wifi-test.cc.

Member Function Documentation

◆ DoRun()

void Bug730TestCase::DoRun ( void )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 639 of file wifi-test.cc.

References ns3::ListPositionAllocator::Add(), ns3::Node::AddApplication(), third::apDevices, third::channel, ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NodeContainer::Get(), ns3::WifiNetDevice::GetAddress(), ns3::PacketSocketHelper::Install(), m_received, third::mac, ns3::MakeCallback(), third::mobility, NS_TEST_ASSERT_MSG_EQ, third::phy, Receive(), ns3::Seconds(), ns3::Config::Set(), ns3::ObjectBase::SetAttribute(), ns3::PacketSocketServer::SetLocal(), ns3::PacketSocketClient::SetRemote(), ns3::PacketSocketAddress::SetSingleDevice(), ns3::Application::SetStartTime(), ns3::Application::SetStopTime(), third::ssid, third::staDevices, third::wifi, ns3::WIFI_STANDARD_80211b, and third::wifiApNode.

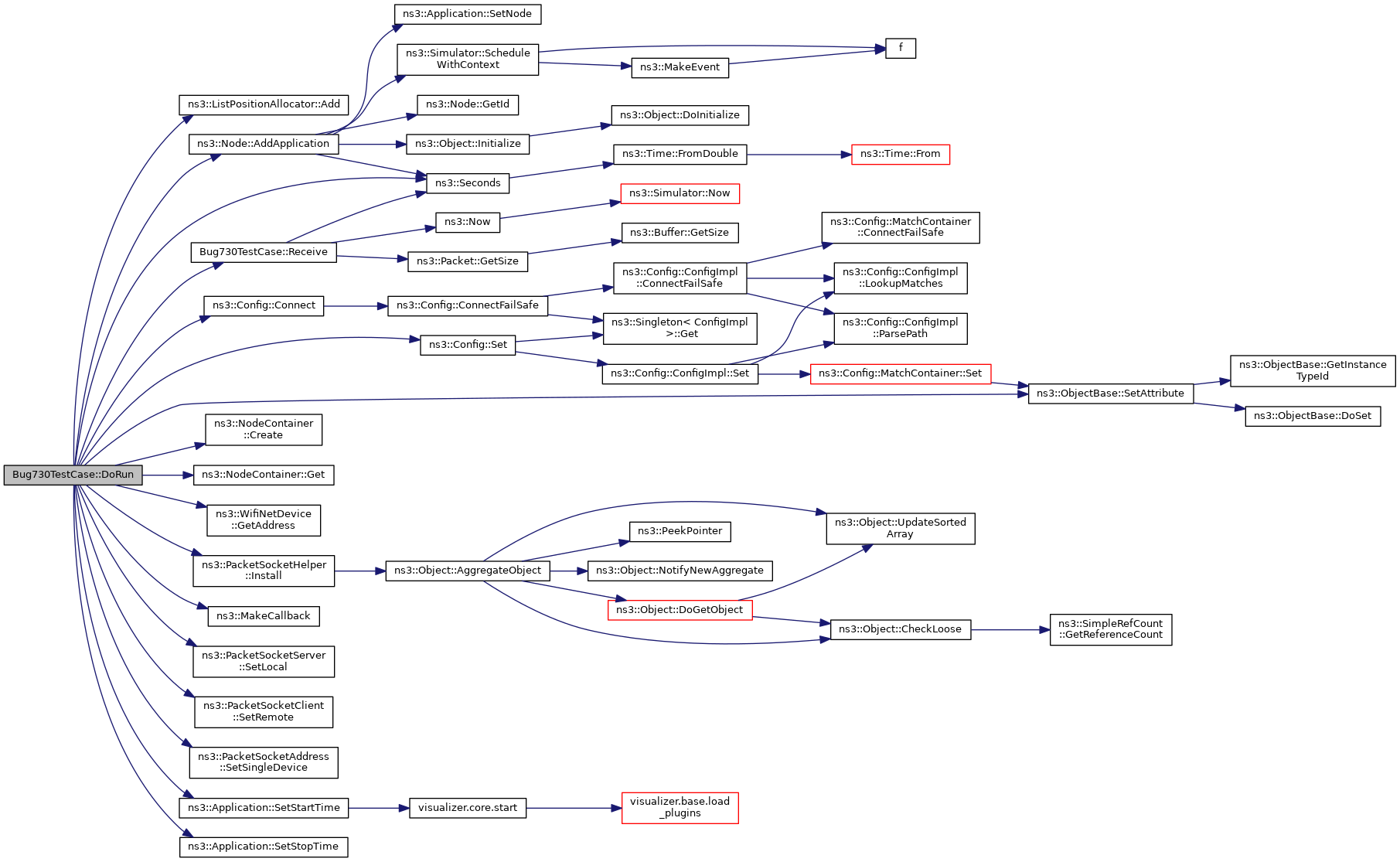

Here is the call graph for this function:

◆ Receive()

void Bug730TestCase::Receive	(	std::string	context,
		Ptr< const Packet >	p,
		const Address &	adr
	)

private

Receive function.

Parameters

context	the context
p	the packet
adr	the address

Definition at line 629 of file wifi-test.cc.

References ns3::Packet::GetSize(), m_received, ns3::Now(), and ns3::Seconds().

Referenced by DoRun().

Here is the call graph for this function:

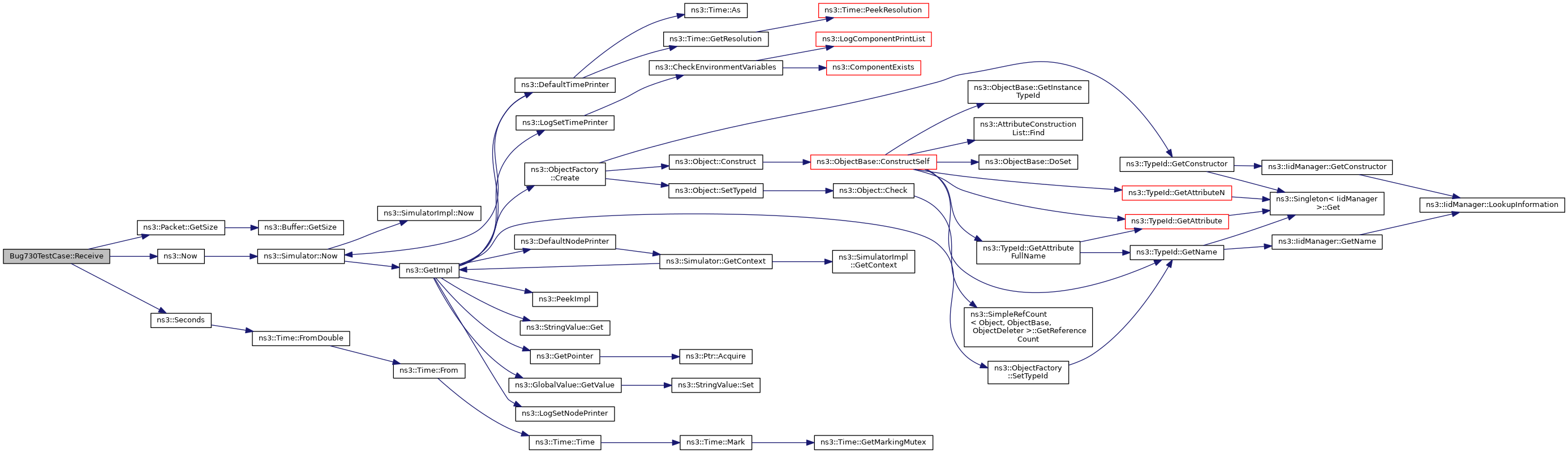

Here is the caller graph for this function:

Member Data Documentation

◆ m_received

uint32_t Bug730TestCase::m_received

private

received

Definition at line 606 of file wifi-test.cc.

Referenced by DoRun(), and Receive().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-test.cc
