A Discrete-Event Network Simulator
API
BurstErrorModelSimple Class Reference

BurstErrorModel unit tests. More...

+ Inheritance diagram for BurstErrorModelSimple:

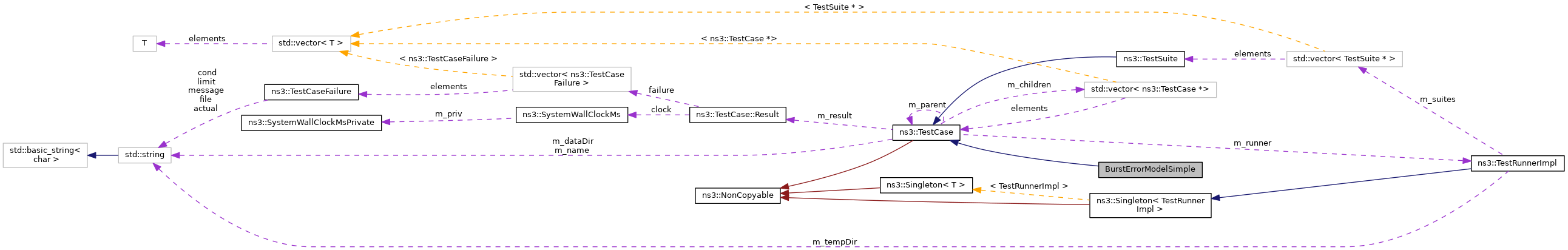

+ Collaboration diagram for BurstErrorModelSimple:

Public Member Functions

 BurstErrorModelSimple ()

virtual ~BurstErrorModelSimple ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

void DropEvent (Ptr< const Packet > p)
 Register a Drop. More...

bool Receive (Ptr< NetDevice > nd, Ptr< const Packet > p, uint16_t protocol, const Address &addr)
 Receive form a NetDevice. More...


Private Attributes

uint32_t m_count
 The received packets counter. More...

uint32_t m_drops
 The dropped packets counter. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

BurstErrorModel unit tests.

Definition at line 179 of file error-model-test-suite.cc.

Constructor & Destructor Documentation

◆ BurstErrorModelSimple()

BurstErrorModelSimple::BurstErrorModelSimple ( )

Definition at line 207 of file error-model-test-suite.cc.

◆ ~BurstErrorModelSimple()

BurstErrorModelSimple::~BurstErrorModelSimple ( )
virtual

Definition at line 212 of file error-model-test-suite.cc.

Member Function Documentation

◆ DoRun()

void BurstErrorModelSimple::DoRun ( void  )
privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 230 of file error-model-test-suite.cc.

References ns3::BurstErrorModel::AssignStreams(), BuildSimpleTopology(), third::channel, DropEvent(), m_count, m_drops, ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, Receive(), ns3::Seconds(), SendPacket(), ns3::ObjectBase::SetAttribute(), ns3::BurstErrorModel::SetRandomVariable(), and ns3::RandomVariableStream::SetStream().

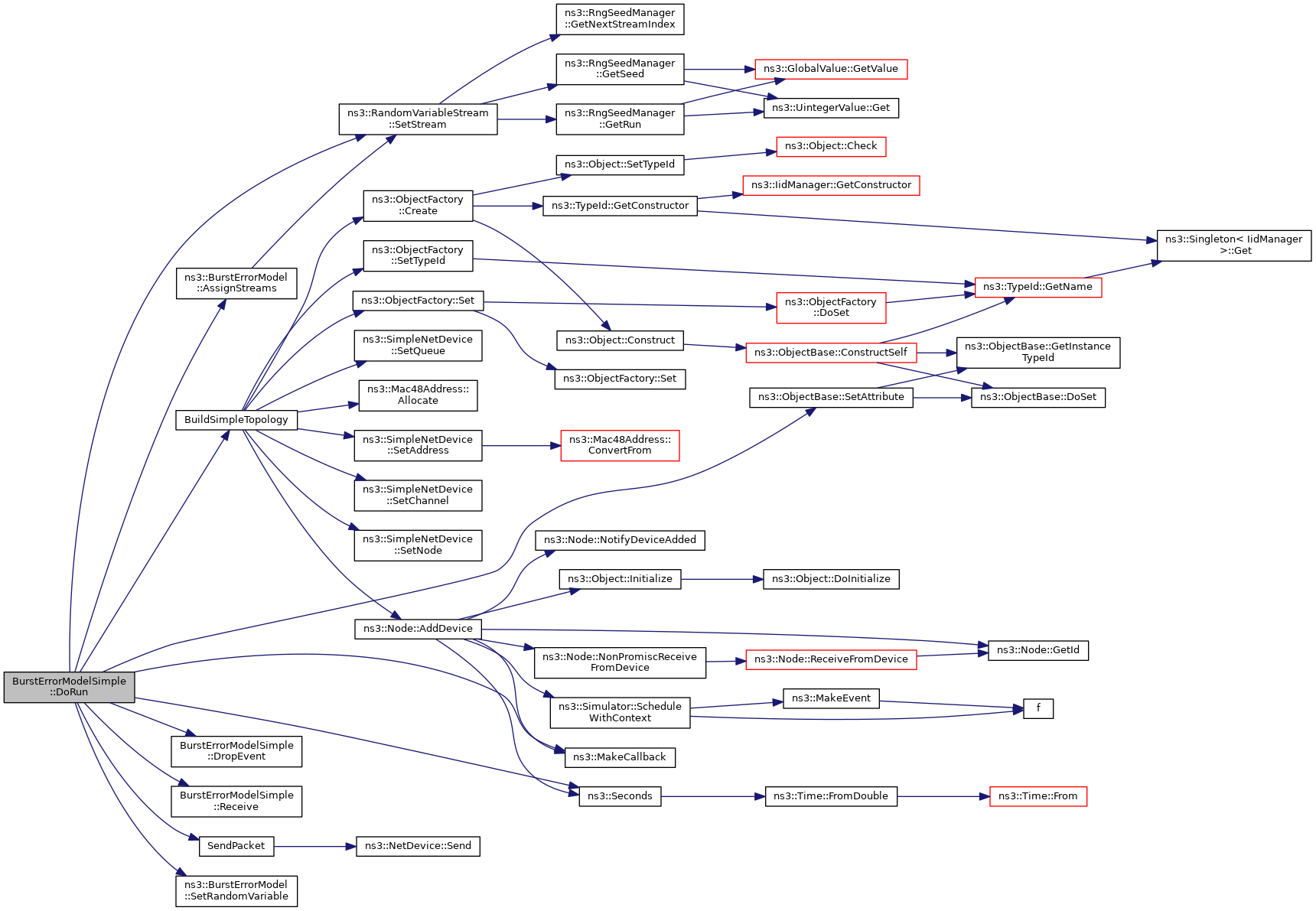

+ Here is the call graph for this function:

◆ DropEvent()

void BurstErrorModelSimple::DropEvent ( Ptr< const Packet p)
private

Register a Drop.

Parameters
pThe dropped packet

Definition at line 224 of file error-model-test-suite.cc.

References m_drops.

Referenced by DoRun().

+ Here is the caller graph for this function:

◆ Receive()

bool BurstErrorModelSimple::Receive ( Ptr< NetDevice nd,
Ptr< const Packet p,
uint16_t  protocol,
const Address addr
)
private

Receive form a NetDevice.

Parameters
ndThe NetDevice.
pThe received packet.
protocolThe protocol received.
addrThe sender address.
Returns
True on success.

Definition at line 217 of file error-model-test-suite.cc.

References m_count.

Referenced by DoRun().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_count

uint32_t BurstErrorModelSimple::m_count
private

The received packets counter.

Definition at line 202 of file error-model-test-suite.cc.

Referenced by DoRun(), and Receive().

◆ m_drops

uint32_t BurstErrorModelSimple::m_drops
private

The dropped packets counter.

Definition at line 203 of file error-model-test-suite.cc.

Referenced by DoRun(), and DropEvent().


The documentation for this class was generated from the following file:
