DHCP basic tests. More...

Inheritance diagram for DhcpTestCase:

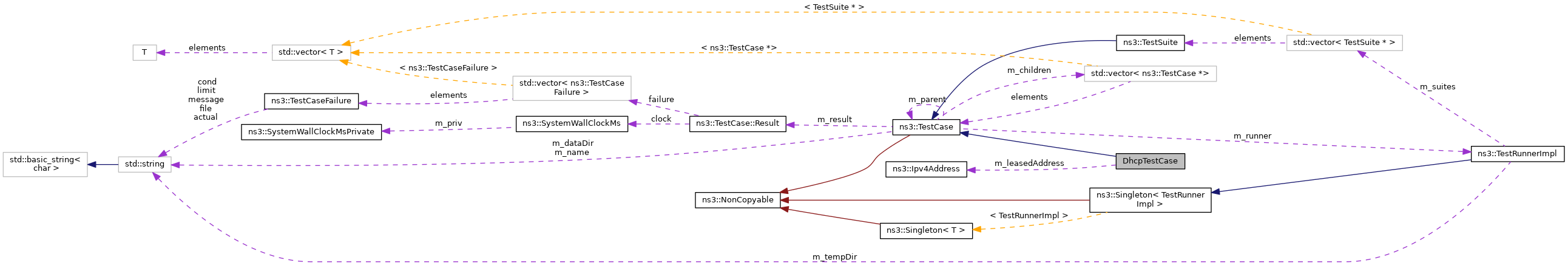

Collaboration diagram for DhcpTestCase:

Public Member Functions
	DhcpTestCase ()

virtual	~DhcpTestCase ()

void	LeaseObtained (std::string context, const Ipv4Address &newAddress)
	Triggered by an address lease on a client. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
Ipv4Address	m_leasedAddress [3]
	Address given to the nodes. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

DHCP basic tests.

Definition at line 47 of file dhcp-test.cc.

Constructor & Destructor Documentation

◆ DhcpTestCase()

DhcpTestCase::DhcpTestCase ( )

Definition at line 63 of file dhcp-test.cc.

◆ ~DhcpTestCase()

DhcpTestCase::~DhcpTestCase ( )

virtual

Definition at line 68 of file dhcp-test.cc.

Member Function Documentation

◆ DoRun()

void DhcpTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 84 of file dhcp-test.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Create(), ns3::ApplicationContainer::Get(), ns3::NetDeviceContainer::Get(), ns3::SimpleNetDeviceHelper::Install(), ns3::InternetStackHelper::Install(), ns3::DhcpHelper::InstallDhcpClient(), ns3::DhcpHelper::InstallDhcpServer(), LeaseObtained(), m_leasedAddress, ns3::MakeCallback(), ns3::MilliSeconds(), first::nodes, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::SimpleNetDeviceHelper::SetChannelAttribute(), ns3::SimpleNetDeviceHelper::SetDeviceAttribute(), ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and ns3::ObjectBase::TraceConnect().

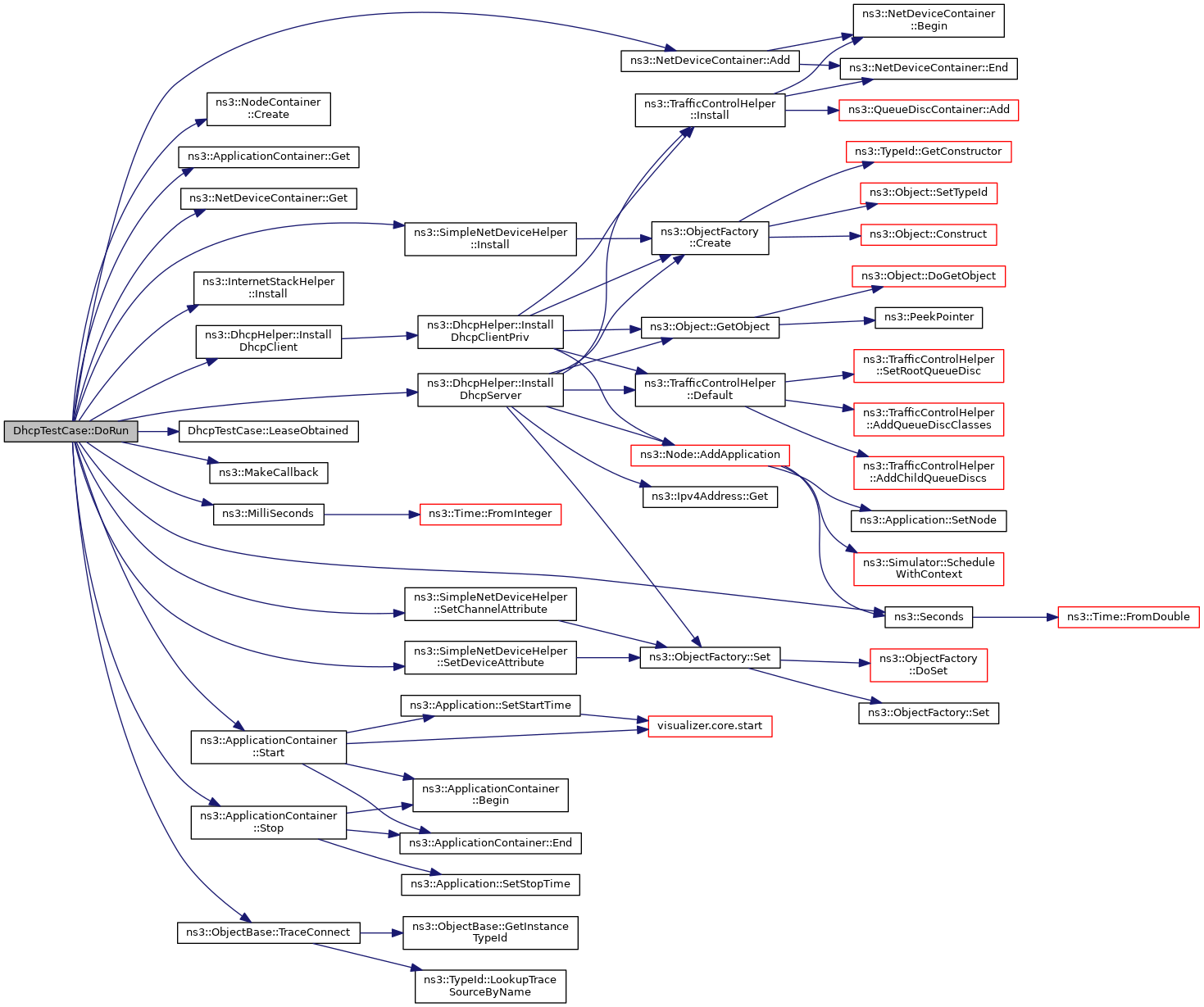

Here is the call graph for this function:

◆ LeaseObtained()

void DhcpTestCase::LeaseObtained	(	std::string	context,
		const Ipv4Address &	newAddress
	)

Triggered by an address lease on a client.

Parameters

context	The test name.
newAddress	The leased address.

Definition at line 73 of file dhcp-test.cc.

References m_leasedAddress.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_leasedAddress

Ipv4Address DhcpTestCase::m_leasedAddress[3]

private

Address given to the nodes.

Definition at line 60 of file dhcp-test.cc.

Referenced by DoRun(), and LeaseObtained().

The documentation for this class was generated from the following file:

src/internet-apps/test/dhcp-test.cc
