HeSigBDurationTest Class Reference

HE-SIG-B duration test. More...

+ Inheritance diagram for HeSigBDurationTest:

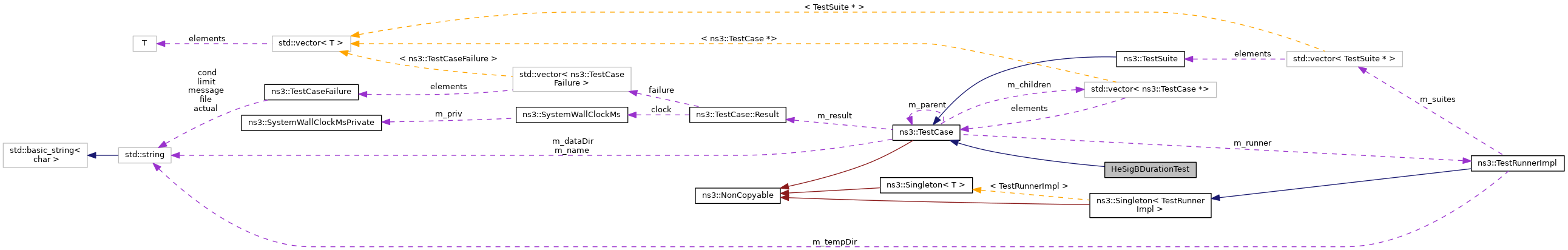

+ Collaboration diagram for HeSigBDurationTest:

Public Member Functions

 HeSigBDurationTest ()
virtual ~HeSigBDurationTest ()
void DoRun (void) override
 Implementation to actually run this TestCase. More...
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...
std::string GetName (void) const

Static Private Member Functions

static WifiTxVector BuildTxVector (uint16_t bw, std::list< HeMuUserInfo > userInfos)
 Build a TXVECTOR for HE MU with the given bandwith and user informations. More...

Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...
- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...
void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...
TestCaseGetParent () const
 Get the parent of this TestCsse. More...
bool IsStatusFailure (void) const
 Check if any tests failed. More...
bool IsStatusSuccess (void) const
 Check if all tests passed. More...
void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...
bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...
bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...
std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...
std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...

Detailed Description

HE-SIG-B duration test.

Definition at line 568 of file tx-duration-test.cc.

Constructor & Destructor Documentation

◆ HeSigBDurationTest()

HeSigBDurationTest::HeSigBDurationTest ( )

Definition at line 587 of file tx-duration-test.cc.

◆ ~HeSigBDurationTest()

HeSigBDurationTest::~HeSigBDurationTest ( )

Definition at line 592 of file tx-duration-test.cc.

Member Function Documentation

◆ BuildTxVector()

WifiTxVector HeSigBDurationTest::BuildTxVector ( uint16_t  bw,
std::list< HeMuUserInfo userInfos

Build a TXVECTOR for HE MU with the given bandwith and user informations.

bwthe channel width of the PPDU in MHz
userInfosthe list of HE MU specific user transmission parameters
the configured HE MU TXVECTOR

Definition at line 597 of file tx-duration-test.cc.

References ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), and ns3::WIFI_PREAMBLE_HE_MU.

Referenced by DoRun().

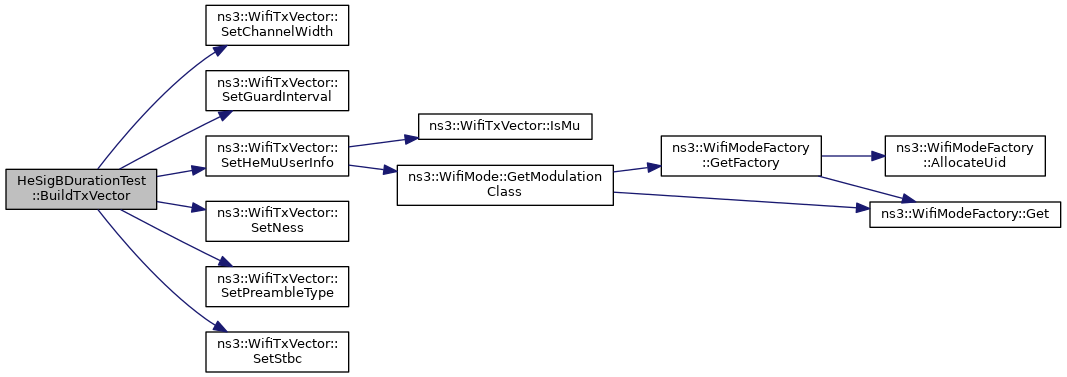

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoRun()

void HeSigBDurationTest::DoRun ( void  )

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 616 of file tx-duration-test.cc.

References BuildTxVector(), ns3::WifiTxVector::GetNumRusPerHeSigBContentChannel(), ns3::MicroSeconds(), NS_TEST_EXPECT_MSG_EQ, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_FIELD_SIG_B.

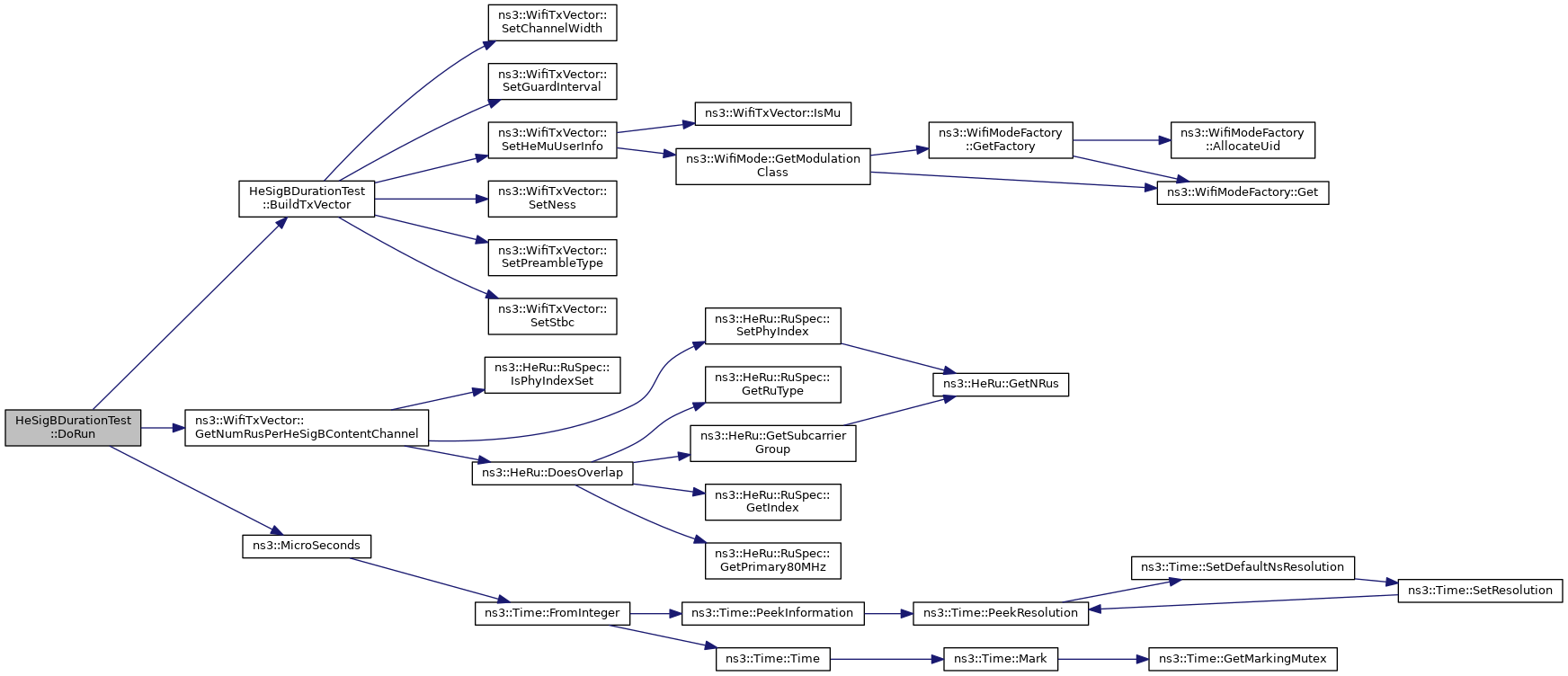

+ Here is the call graph for this function:

The documentation for this class was generated from the following file:
