Make sure that Ideal rate manager properly selects MCS based on the configured channel width. More...

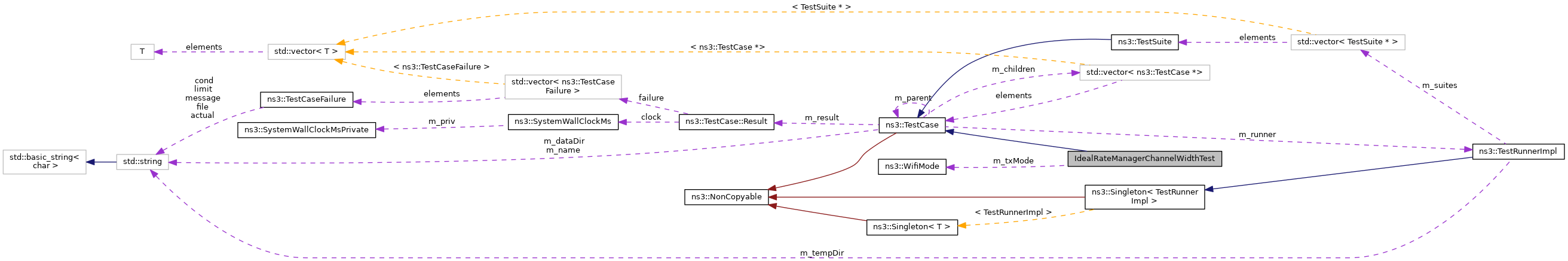

Inheritance diagram for IdealRateManagerChannelWidthTest: Collaboration diagram for IdealRateManagerChannelWidthTest:Public Member Functions | |
| IdealRateManagerChannelWidthTest () | |
| virtual | ~IdealRateManagerChannelWidthTest () |
| void | DoRun (void) override |
| Implementation to actually run this TestCase. More... | |
| Public Member Functions inherited from ns3::TestCase | |
| virtual | ~TestCase () |
| Destructor. More... | |
| std::string | GetName (void) const |
Private Member Functions | |
| void | ChangeChannelWidth (uint16_t channelWidth) |
| Change the configured channel width for all nodes. More... | |
| void | CheckLastSelectedMode (WifiMode expectedMode) |
| Check if the selected WifiMode is correct. More... | |
| void | SendPacket (Ptr< NetDevice > sourceDevice, Address &destination) |
| Triggers the transmission of a 1000 Byte-long data packet from the source device. More... | |
| void | TxCallback (std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW) |
| Callback that indicates a PSDU is being transmitted. More... | |
Private Attributes | |
| WifiMode | m_txMode |
| Store the last selected mode to send data packet. More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::TestCase | |
| enum | TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 } |
| How long the test takes to execute. More... | |
| Protected Member Functions inherited from ns3::TestCase | |
| TestCase (std::string name) | |
| Constructor. More... | |
| void | AddTestCase (TestCase *testCase, TestDuration duration=QUICK) |
| Add an individual child TestCase to this test suite. More... | |
| TestCase * | GetParent () const |
| Get the parent of this TestCsse. More... | |
| bool | IsStatusFailure (void) const |
| Check if any tests failed. More... | |
| bool | IsStatusSuccess (void) const |
| Check if all tests passed. More... | |
| void | SetDataDir (std::string directory) |
| Set the data directory where reference trace files can be found. More... | |
| void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
| Log the failure of this TestCase. More... | |
| bool | MustAssertOnFailure (void) const |
| Check if this run should assert on failure. More... | |
| bool | MustContinueOnFailure (void) const |
| Check if this run should continue on failure. More... | |
| std::string | CreateDataDirFilename (std::string filename) |
| Construct the full path to a file in the data directory. More... | |
| std::string | CreateTempDirFilename (std::string filename) |
| Construct the full path to a file in a temporary directory. More... | |
Make sure that Ideal rate manager properly selects MCS based on the configured channel width.
The scenario considers an access point and a fixed station. The access point first sends a 80 MHz PPDU to the station, for which Ideal rate manager should select VH-MCS 0 based on the distance (no interference generated in this test). Then, the access point sends a 20 MHz PPDU to the station, which corresponds to a SNR 6 dB higher than previously, hence VHT-MCS 2 should be selected. Finally, the access point sends a 40 MHz PPDU to the station, which means corresponds to a SNR 3 dB lower than previously, hence VHT-MCS 1 should be selected.
Definition at line 2618 of file wifi-test.cc.
| IdealRateManagerChannelWidthTest::IdealRateManagerChannelWidthTest | ( | ) |
Definition at line 2657 of file wifi-test.cc.
|
virtual |
Definition at line 2662 of file wifi-test.cc.
|
private |
Change the configured channel width for all nodes.
| channelWidth | the channel width (in MHz) |
Definition at line 2667 of file wifi-test.cc.
References ns3::Config::Set().
Referenced by DoRun().

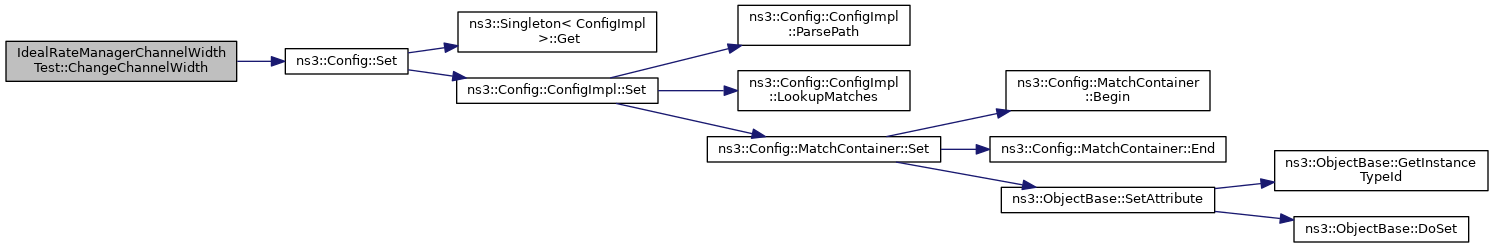

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Check if the selected WifiMode is correct.
| expectedMode | the expected WifiMode |
Definition at line 2706 of file wifi-test.cc.
References m_txMode, and NS_TEST_ASSERT_MSG_EQ.
Referenced by DoRun().
Here is the caller graph for this function:
|
overridevirtual |
Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Implements ns3::TestCase.
Definition at line 2712 of file wifi-test.cc.
References ns3::ListPositionAllocator::Add(), ChangeChannelWidth(), third::channel, CheckLastSelectedMode(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), third::mac, ns3::MakeCallback(), third::mobility, third::phy, ns3::Seconds(), SendPacket(), TxCallback(), third::wifi, ns3::WIFI_STANDARD_80211ac, and third::wifiApNode.

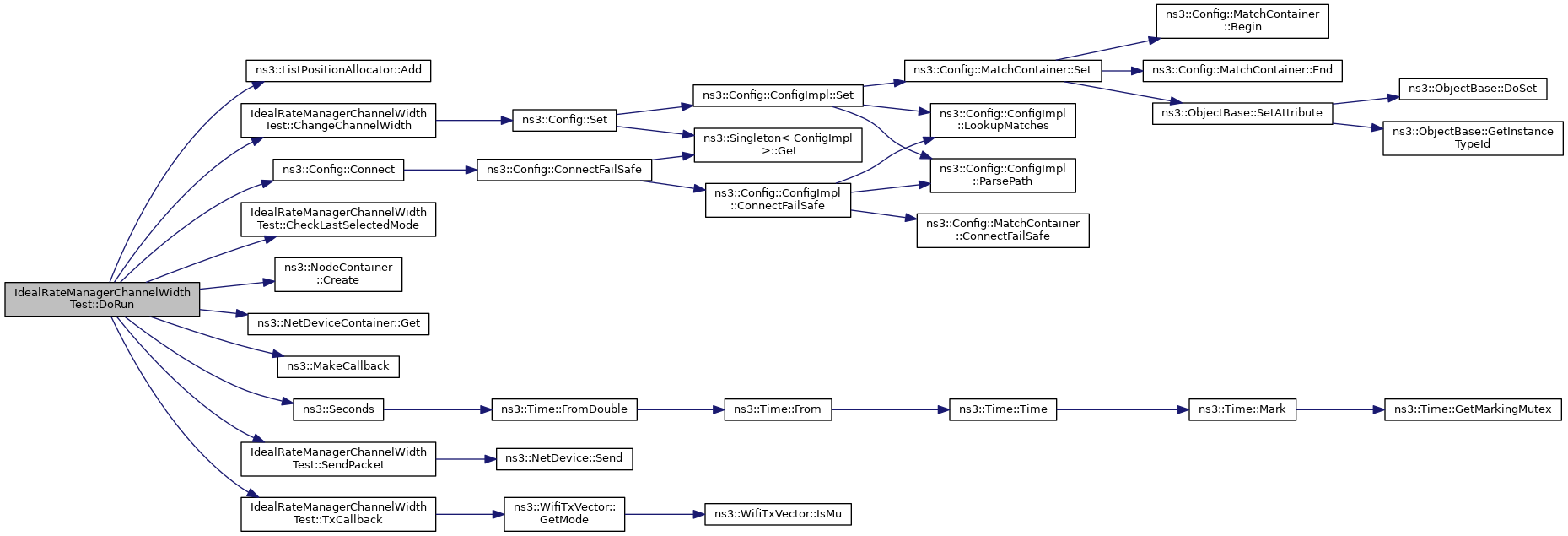

Here is the call graph for this function:
|
private |
Triggers the transmission of a 1000 Byte-long data packet from the source device.
| sourceDevice | pointer to the source NetDevice |
| destination | address of the destination device |
Definition at line 2690 of file wifi-test.cc.
References ns3::NetDevice::Send().
Referenced by DoRun().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Callback that indicates a PSDU is being transmitted.
| context | the context |
| psduMap | the PSDU map to transmit |
| txVector | the TX vector |
| txPowerW | the TX power (W) |
Definition at line 2697 of file wifi-test.cc.
References ns3::WifiTxVector::GetMode(), and m_txMode.
Referenced by DoRun().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Store the last selected mode to send data packet.
Definition at line 2654 of file wifi-test.cc.
Referenced by CheckLastSelectedMode(), and TxCallback().
