This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...
#include "lte-test-phy-error-model.h"

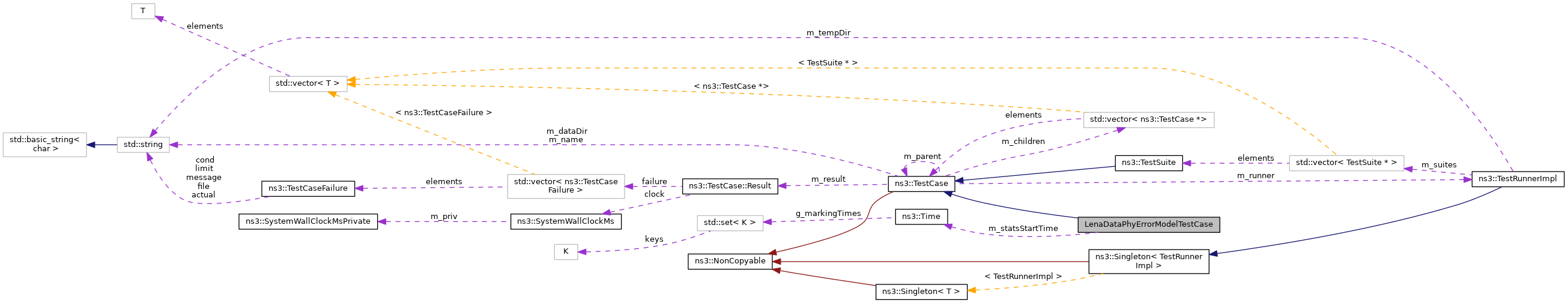

Inheritance diagram for LenaDataPhyErrorModelTestCase: Collaboration diagram for LenaDataPhyErrorModelTestCase:Public Member Functions | |
| LenaDataPhyErrorModelTestCase (uint16_t nUser, uint16_t dist, double blerRef, uint16_t toleranceRxPackets, Time statsStartTime, uint32_t rngRun) | |
| Constructor. More... | |
| virtual | ~LenaDataPhyErrorModelTestCase () |
| Public Member Functions inherited from ns3::TestCase | |
| virtual | ~TestCase () |
| Destructor. More... | |
| std::string | GetName (void) const |
Private Member Functions | |
| virtual void | DoRun (void) |
| Implementation to actually run this TestCase. More... | |
Static Private Member Functions | |
| static std::string | BuildNameString (uint16_t nUser, uint16_t dist, uint32_t rngRun) |
| Builds the test name string based on provided parameter values. More... | |
Private Attributes | |
| double | m_blerRef |
| the expected BLER More... | |
| double | m_dist |
| the distance between nodes More... | |
| uint16_t | m_nUser |
| number of UE nodes More... | |
| uint32_t | m_rngRun |
| the rng run More... | |
| Time | m_statsStartTime |
| Extra time in the beginning of simulation to allow RRC connection establishment + SRS. More... | |
| uint16_t | m_toleranceRxPackets |
| receive packet tolerance loss More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::TestCase | |
| enum | TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 } |
| How long the test takes to execute. More... | |
| Protected Member Functions inherited from ns3::TestCase | |
| TestCase (std::string name) | |
| Constructor. More... | |
| void | AddTestCase (TestCase *testCase, TestDuration duration=QUICK) |
| Add an individual child TestCase to this test suite. More... | |
| TestCase * | GetParent () const |
| Get the parent of this TestCsse. More... | |
| bool | IsStatusFailure (void) const |
| Check if any tests failed. More... | |
| bool | IsStatusSuccess (void) const |
| Check if all tests passed. More... | |
| void | SetDataDir (std::string directory) |
| Set the data directory where reference trace files can be found. More... | |
| void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
| Log the failure of this TestCase. More... | |
| bool | MustAssertOnFailure (void) const |
| Check if this run should assert on failure. More... | |
| bool | MustContinueOnFailure (void) const |
| Check if this run should continue on failure. More... | |
| std::string | CreateDataDirFilename (std::string filename) |
| Construct the full path to a file in the data directory. More... | |
| std::string | CreateTempDirFilename (std::string filename) |
| Construct the full path to a file in a temporary directory. More... | |
This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.
In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on ...
Definition at line 42 of file lte-test-phy-error-model.h.
| LenaDataPhyErrorModelTestCase::LenaDataPhyErrorModelTestCase | ( | uint16_t | nUser, |
| uint16_t | dist, | ||
| double | blerRef, | ||
| uint16_t | toleranceRxPackets, | ||
| Time | statsStartTime, | ||
| uint32_t | rngRun | ||
| ) |
Constructor.
| nUser | the number of UE nodes |
| dist | the distance between nodes |
| blerRef | expected BLER |
| toleranceRxPackets | receive packet loss tolerance |
| statsStartTime | the start time for collecting statistics |
| rngRun | rng run |
Definition at line 142 of file lte-test-phy-error-model.cc.
|
virtual |
Definition at line 155 of file lte-test-phy-error-model.cc.
|
staticprivate |
Builds the test name string based on provided parameter values.
| nUser | the number of UE nodes |
| dist | the distance between nodes |
| rngRun | the rng run |
Definition at line 135 of file lte-test-phy-error-model.cc.
|
privatevirtual |
Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Implements ns3::TestCase.
Definition at line 160 of file lte-test-phy-error-model.cc.
References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::AssignStreams(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxPackets(), ns3::RadioBearerStatsCalculator::GetDlTxPackets(), ns3::Time::GetMilliSeconds(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteUeNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_blerRef, m_dist, m_nUser, m_rngRun, m_statsStartTime, m_toleranceRxPackets, third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, NS_UNUSED, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::Config::SetGlobal(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

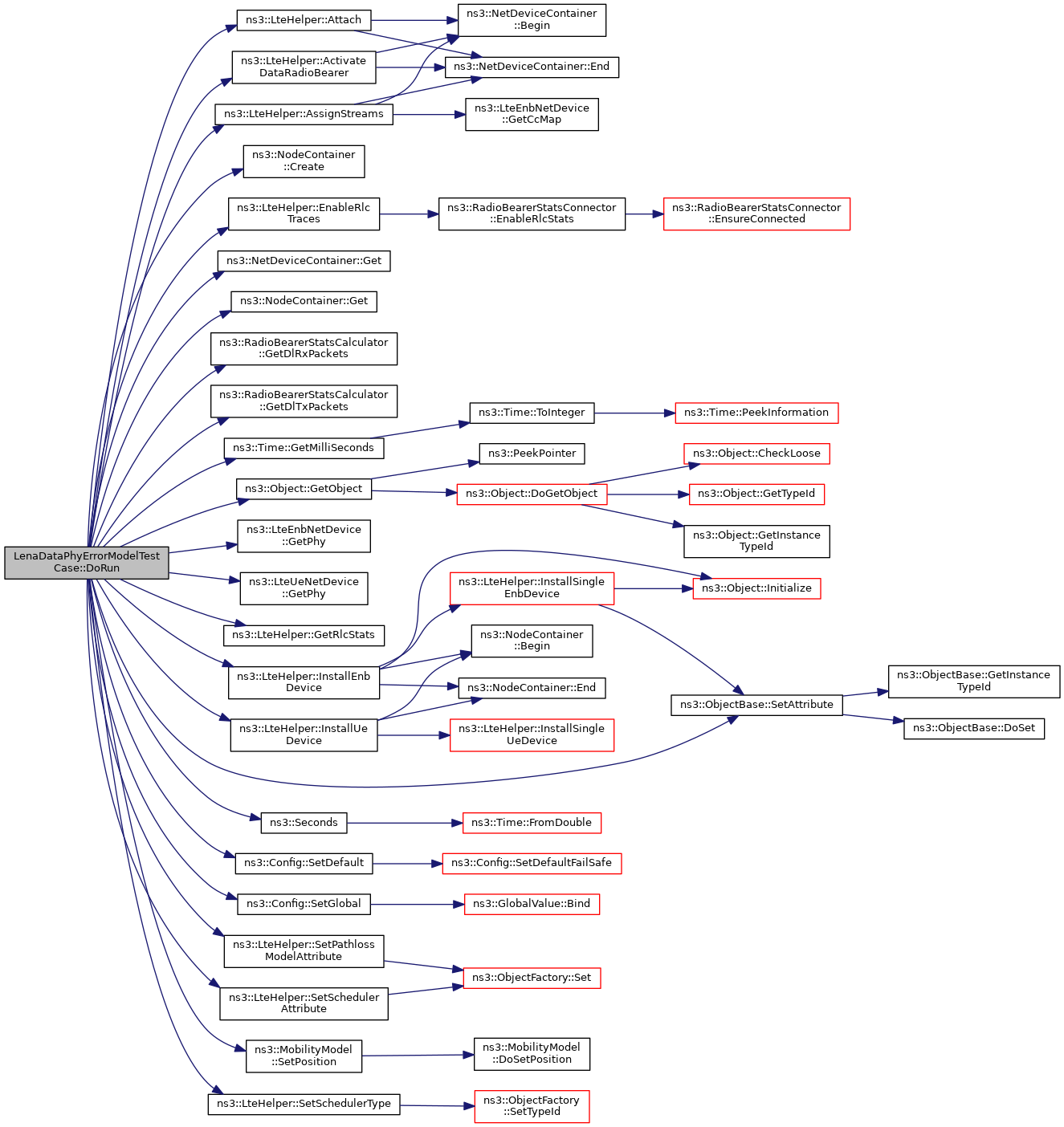

Here is the call graph for this function:
|
private |
|
private |
the distance between nodes
Definition at line 71 of file lte-test-phy-error-model.h.
Referenced by DoRun().
|
private |
|
private |
|
private |
Extra time in the beginning of simulation to allow RRC connection establishment + SRS.
Definition at line 74 of file lte-test-phy-error-model.h.
Referenced by DoRun().
|
private |
receive packet tolerance loss
Definition at line 73 of file lte-test-phy-error-model.h.
Referenced by DoRun().
