Test case is simillar to the one defined in LenaFdBetFfMacSchedulerTestCase1, with the difference that UEs are placed in such a way to experience different SINRs from eNodeB. More...

#include "lte-test-fdbet-ff-mac-scheduler.h"

Inheritance diagram for LenaFdBetFfMacSchedulerTestCase2:

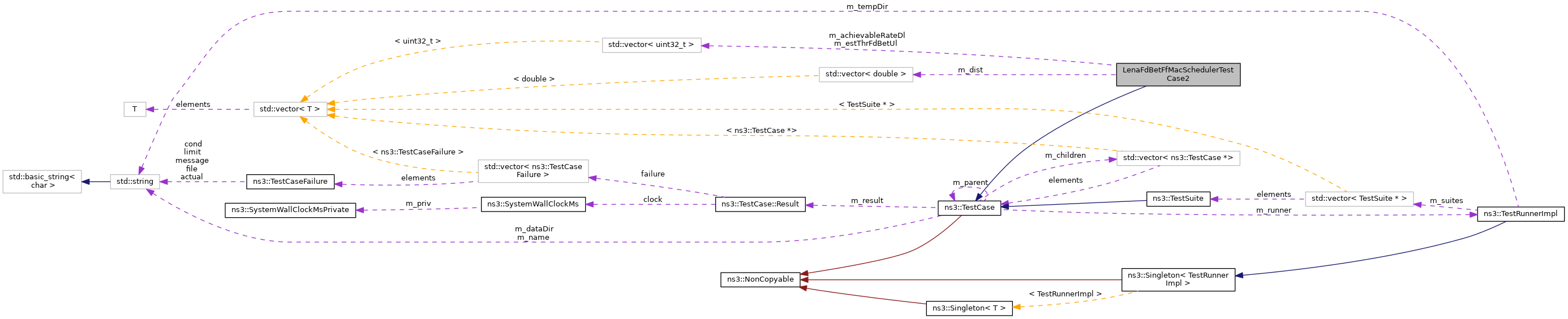

Collaboration diagram for LenaFdBetFfMacSchedulerTestCase2:

Public Member Functions
	LenaFdBetFfMacSchedulerTestCase2 (std::vector< double > dist, std::vector< uint32_t > achievableRateDl, std::vector< uint32_t > estThrFdBetUl, bool errorModelEnabled)
	Constructor. More...

virtual	~LenaFdBetFfMacSchedulerTestCase2 ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, std::vector< double > dist)
	Builds the test name string based on provided parameter values. More...

Private Attributes
std::vector< uint32_t >	m_achievableRateDl
	DL achievable rate. More...

std::vector< double >	m_dist
	distance between the nodes More...

bool	m_errorModelEnabled
	specifies whether the error model is enabled More...

std::vector< uint32_t >	m_estThrFdBetUl
	estimated throughput FDBET UL More...

uint16_t	m_nUser
	number of UE nodes More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case is simillar to the one defined in LenaFdBetFfMacSchedulerTestCase1, with the difference that UEs are placed in such a way to experience different SINRs from eNodeB.

Definition at line 86 of file lte-test-fdbet-ff-mac-scheduler.h.

Constructor & Destructor Documentation

◆ LenaFdBetFfMacSchedulerTestCase2()

LenaFdBetFfMacSchedulerTestCase2::LenaFdBetFfMacSchedulerTestCase2	(	std::vector< double >	dist,
		std::vector< uint32_t >	achievableRateDl,
		std::vector< uint32_t >	estThrFdBetUl,
		bool	errorModelEnabled
	)

Constructor.

Parameters

dist	distance between nodes
achievableRateDl	DL achievable rate
estThrFdBetUl	UL estimated throughput bet UL
errorModelEnabled	error model enabled?

Definition at line 357 of file lte-test-fdbet-ff-mac-scheduler.cc.

◆ ~LenaFdBetFfMacSchedulerTestCase2()

LenaFdBetFfMacSchedulerTestCase2::~LenaFdBetFfMacSchedulerTestCase2 ( )

virtual

Definition at line 367 of file lte-test-fdbet-ff-mac-scheduler.cc.

Member Function Documentation

◆ BuildNameString()

std::string LenaFdBetFfMacSchedulerTestCase2::BuildNameString	(	uint16_t	nUser,
		std::vector< double >	dist
	)

staticprivate

Builds the test name string based on provided parameter values.

Parameters

nUser	number of UE nodes
dist	distance between nodes

Returns: name string

Definition at line 344 of file lte-test-fdbet-ff-mac-scheduler.cc.

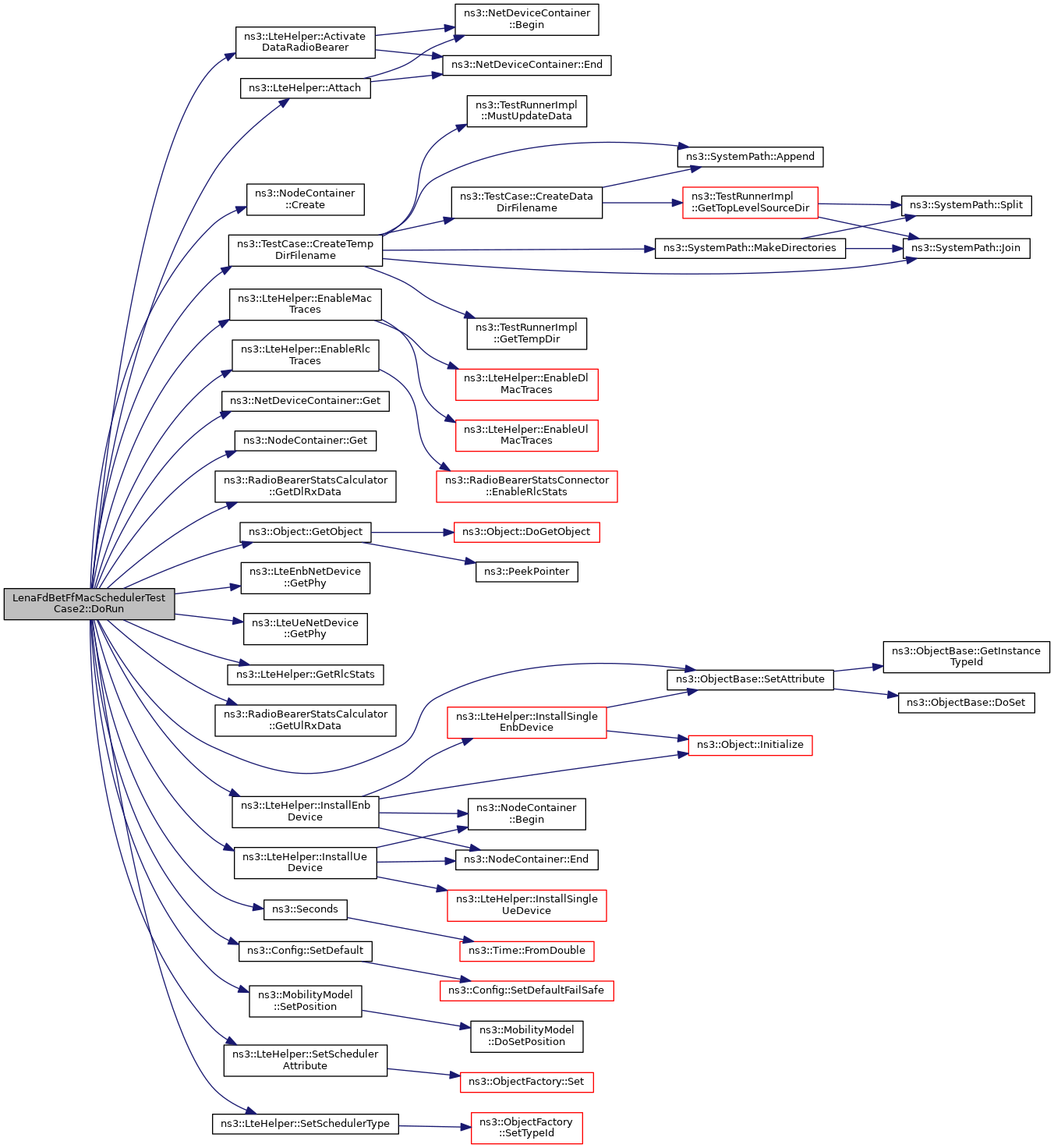

◆ DoRun()

void LenaFdBetFfMacSchedulerTestCase2::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignment is done in a "FD blind equal throughput" manner among users with different SINRs: the bandwidth should be distributed equally in long term

Check that the assignment in uplink is done in a round robin manner.

Implements ns3::TestCase.

Definition at line 372 of file lte-test-fdbet-ff-mac-scheduler.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteUeNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::RadioBearerStatsCalculator::GetUlRxData(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_achievableRateDl, m_dist, m_errorModelEnabled, m_estThrFdBetUl, m_nUser, third::mobility, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().
