LenaFdTbfqFfMacSchedulerTestCase2 Class Reference

Test case is simillar to the one defined in LenaFdTbfqFfMacSchedulerTestCase1, with the difference that UEs are placed in such a way to experience different SINRs from eNodeB. More...

#include "lte-test-fdtbfq-ff-mac-scheduler.h"

Inheritance diagram for LenaFdTbfqFfMacSchedulerTestCase2:

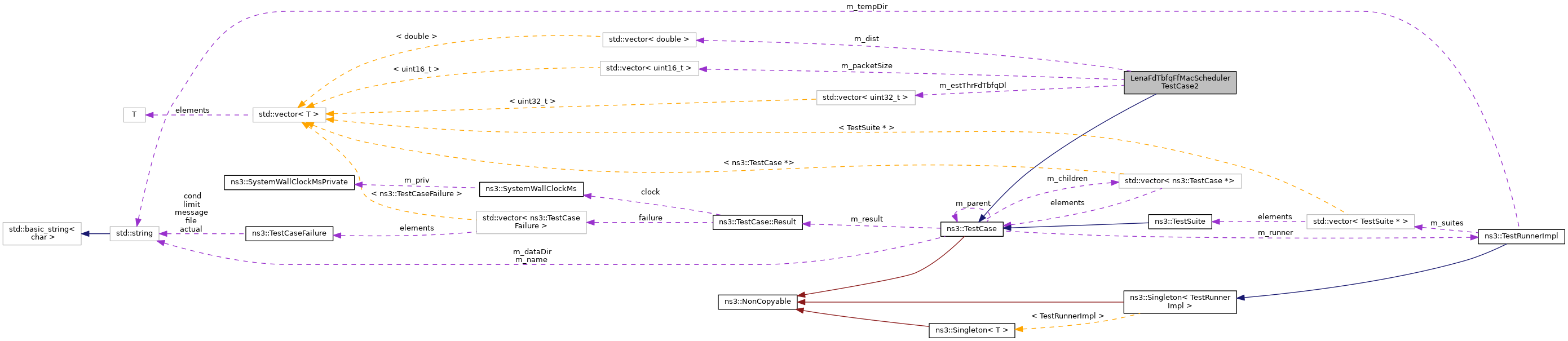

Collaboration diagram for LenaFdTbfqFfMacSchedulerTestCase2:

Public Member Functions
	LenaFdTbfqFfMacSchedulerTestCase2 (std::vector< double > dist, std::vector< uint32_t > estThrFdTbfqDl, std::vector< uint16_t > packetSize, uint16_t interval, bool errorModelEnabled)
	Constructor. More...
virtual	~LenaFdTbfqFfMacSchedulerTestCase2 ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, std::vector< double > dist)
	Builds the test name string based on provided parameter values. More...

Private Attributes
std::vector< double >	m_dist
	distance between the nodes More...
bool	m_errorModelEnabled
	error model enabled? More...
std::vector< uint32_t >	m_estThrFdTbfqDl
	estimated thrpughput FDTBFQ DL More...
uint16_t	m_interval
	interval time in ms More...
uint16_t	m_nUser
	number of UE nodes More...
std::vector< uint16_t >	m_packetSize
	packet size in bytes More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case is simillar to the one defined in LenaFdTbfqFfMacSchedulerTestCase1, with the difference that UEs are placed in such a way to experience different SINRs from eNodeB.

Definition at line 90 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Constructor & Destructor Documentation

LenaFdTbfqFfMacSchedulerTestCase2()

LenaFdTbfqFfMacSchedulerTestCase2::LenaFdTbfqFfMacSchedulerTestCase2	(	std::vector< double >	dist,
		std::vector< uint32_t >	estThrFdTbfqDl,
		std::vector< uint16_t >	packetSize,
		uint16_t	interval,
		bool	errorModelEnabled
	)

Constructor.

Parameters

dist	distance between nodes
estThrFdTbfqDl	estimated DL throughput
packetSize	packet size
interval	time interval
errorModelEnabled	indicates whether the error model is enabled

Definition at line 501 of file lte-test-fdtbfq-ff-mac-scheduler.cc.

~LenaFdTbfqFfMacSchedulerTestCase2()

LenaFdTbfqFfMacSchedulerTestCase2::~LenaFdTbfqFfMacSchedulerTestCase2 ( )

virtual

Definition at line 512 of file lte-test-fdtbfq-ff-mac-scheduler.cc.

Member Function Documentation

BuildNameString()

std::string LenaFdTbfqFfMacSchedulerTestCase2::BuildNameString ( uint16_t  nUser, std::vector< double >  dist  )

staticprivate

Builds the test name string based on provided parameter values.

Parameters

nUser	number of UE nodes
dist	distance between nodes

Returns

name string

Definition at line 488 of file lte-test-fdtbfq-ff-mac-scheduler.cc.

DoRun()

void LenaFdTbfqFfMacSchedulerTestCase2::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Check that the downlink assignment is done in a "token bank fair queue" manner

Implements ns3::TestCase.

Definition at line 517 of file lte-test-fdtbfq-ff-mac-scheduler.cc.

References ns3::LteHelper::ActivateDedicatedEpsBearer(), ns3::Ipv4StaticRouting::AddNetworkRouteTo(), ns3::Ipv4AddressHelper::Assign(), ns3::LteHelper::Attach(), first::clientApps, ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::EnableRlcTraces(), ns3::GbrQosInformation::gbrDl, ns3::GbrQosInformation::gbrUl, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteUeNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::PacketSinkHelper::Install(), ns3::PointToPointHelper::Install(), ns3::UdpClientHelper::Install(), ns3::InternetStackHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_dist, m_errorModelEnabled, m_estThrFdTbfqDl, m_interval, m_nUser, m_packetSize, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::MilliSeconds(), third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), first::serverApps, ns3::UdpClientHelper::SetAttribute(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::Ipv4StaticRouting::SetDefaultRoute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::LteHelper::SetEpcHelper(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

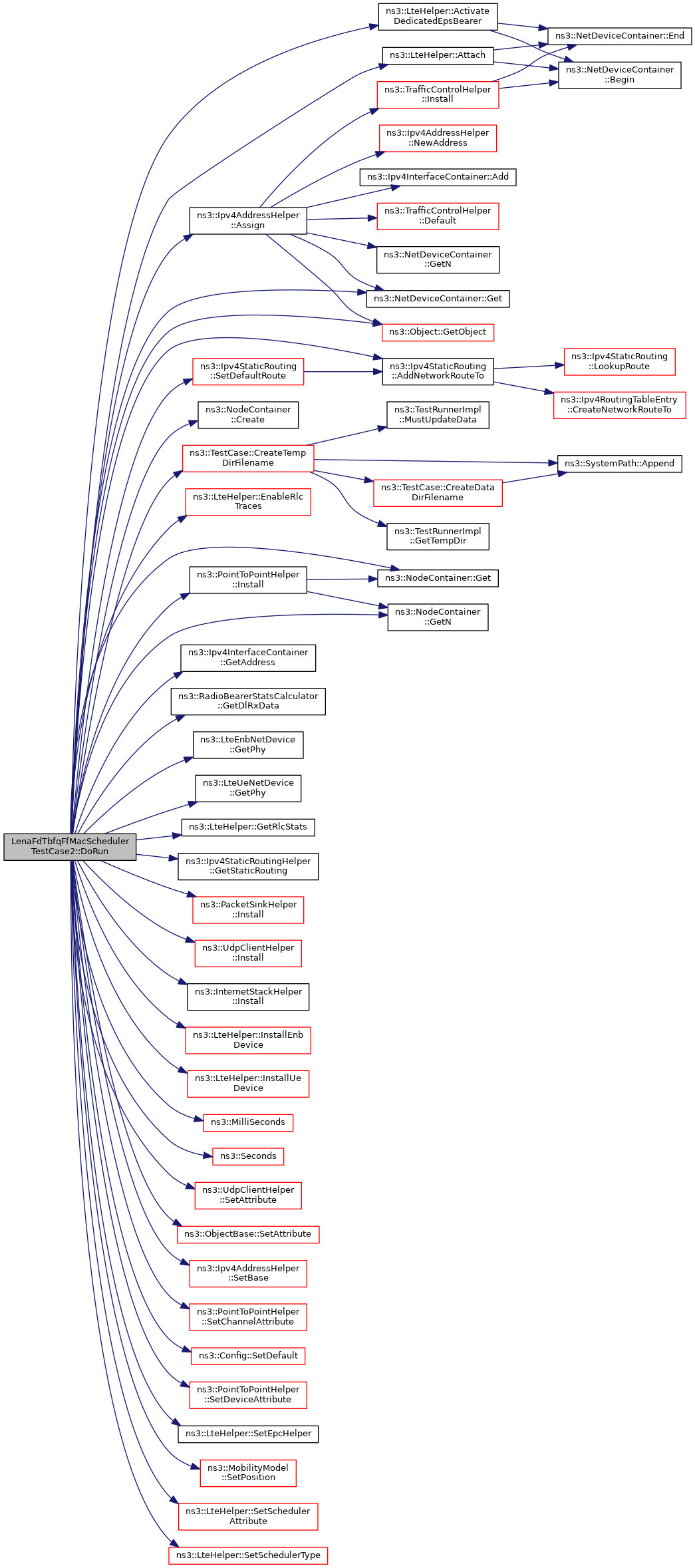

Here is the call graph for this function:

Member Data Documentation

m_dist

std::vector<double> LenaFdTbfqFfMacSchedulerTestCase2::m_dist

private

distance between the nodes

Definition at line 116 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

m_errorModelEnabled

bool LenaFdTbfqFfMacSchedulerTestCase2::m_errorModelEnabled

private

error model enabled?

Definition at line 120 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

m_estThrFdTbfqDl

std::vector<uint32_t> LenaFdTbfqFfMacSchedulerTestCase2::m_estThrFdTbfqDl

private

estimated thrpughput FDTBFQ DL

Definition at line 119 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

m_interval

uint16_t LenaFdTbfqFfMacSchedulerTestCase2::m_interval

private

interval time in ms

Definition at line 118 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

m_nUser

uint16_t LenaFdTbfqFfMacSchedulerTestCase2::m_nUser

private

number of UE nodes

Definition at line 115 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

m_packetSize

std::vector<uint16_t> LenaFdTbfqFfMacSchedulerTestCase2::m_packetSize

private

packet size in bytes

Definition at line 117 of file lte-test-fdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-fdtbfq-ff-mac-scheduler.h
• src/lte/test/lte-test-fdtbfq-ff-mac-scheduler.cc
