LteEnbAntennaTestCase Class Reference

Tests that the propagation model and the antenna parameters are generate the correct values. More...

+ Inheritance diagram for LteEnbAntennaTestCase:

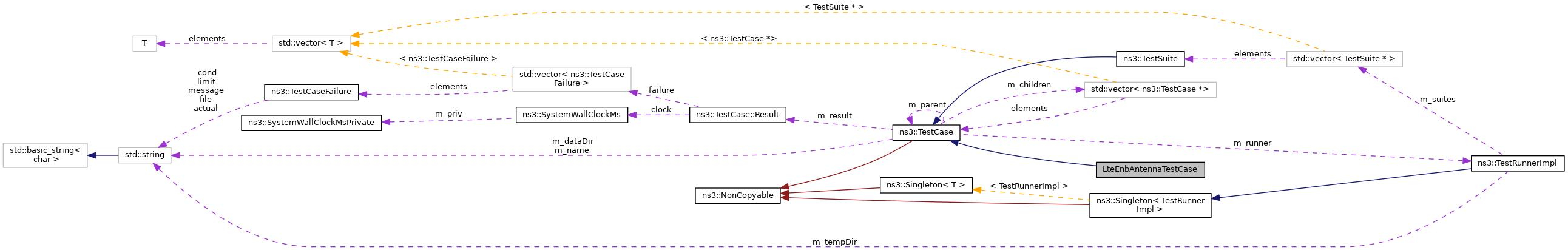

+ Collaboration diagram for LteEnbAntennaTestCase:

Public Member Functions

 LteEnbAntennaTestCase (double orientationDegrees, double beamwidthDegrees, double x, double y, double antennaGainDb)
 Constructor. More...

 LteEnbAntennaTestCase ()

virtual ~LteEnbAntennaTestCase ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Static Public Member Functions

static std::string BuildNameString (double orientationDegrees, double beamwidthDegrees, double x, double y)
 Build name string. More...


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Private Attributes

double m_antennaGainDb
 antenna gain in dB More...

double m_beamwidthDegrees
 antenna beamwidth in degrees More...

double m_orientationDegrees
 antenna orientation in degrees More...

double m_x
 x position of the UE More...

double m_y
 y position of the UE More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Tests that the propagation model and the antenna parameters are generate the correct values.

Different test cases are created by specifying different antenna configurations and it is tested if for the given information the pathloss value is as expected.

Definition at line 57 of file test-lte-antenna.cc.

Constructor & Destructor Documentation

◆ LteEnbAntennaTestCase() [1/2]

LteEnbAntennaTestCase::LteEnbAntennaTestCase ( double  orientationDegrees,
double  beamwidthDegrees,
double  x,
double  y,
double  antennaGainDb
)

Constructor.

Parameters
orientationDegreesthe orientation in degrees
beamwidthDegreesthe beam width in degrees
xposition of UE
yposition of UE
antennaGainDbthe antenna gain in dB

Definition at line 106 of file test-lte-antenna.cc.

References NS_LOG_FUNCTION.

◆ LteEnbAntennaTestCase() [2/2]

LteEnbAntennaTestCase::LteEnbAntennaTestCase ( )

◆ ~LteEnbAntennaTestCase()

LteEnbAntennaTestCase::~LteEnbAntennaTestCase ( )
virtual

Definition at line 117 of file test-lte-antenna.cc.

Member Function Documentation

◆ BuildNameString()

std::string LteEnbAntennaTestCase::BuildNameString ( double  orientationDegrees,
double  beamwidthDegrees,
double  x,
double  y
)
static

Build name string.

Parameters
orientationDegreesthe orientation in degrees
beamwidthDegreesthe beam width in degrees
xposition of UE
yposition of UE
Returns
the name string

Definition at line 95 of file test-lte-antenna.cc.

References sample-rng-plot::x.

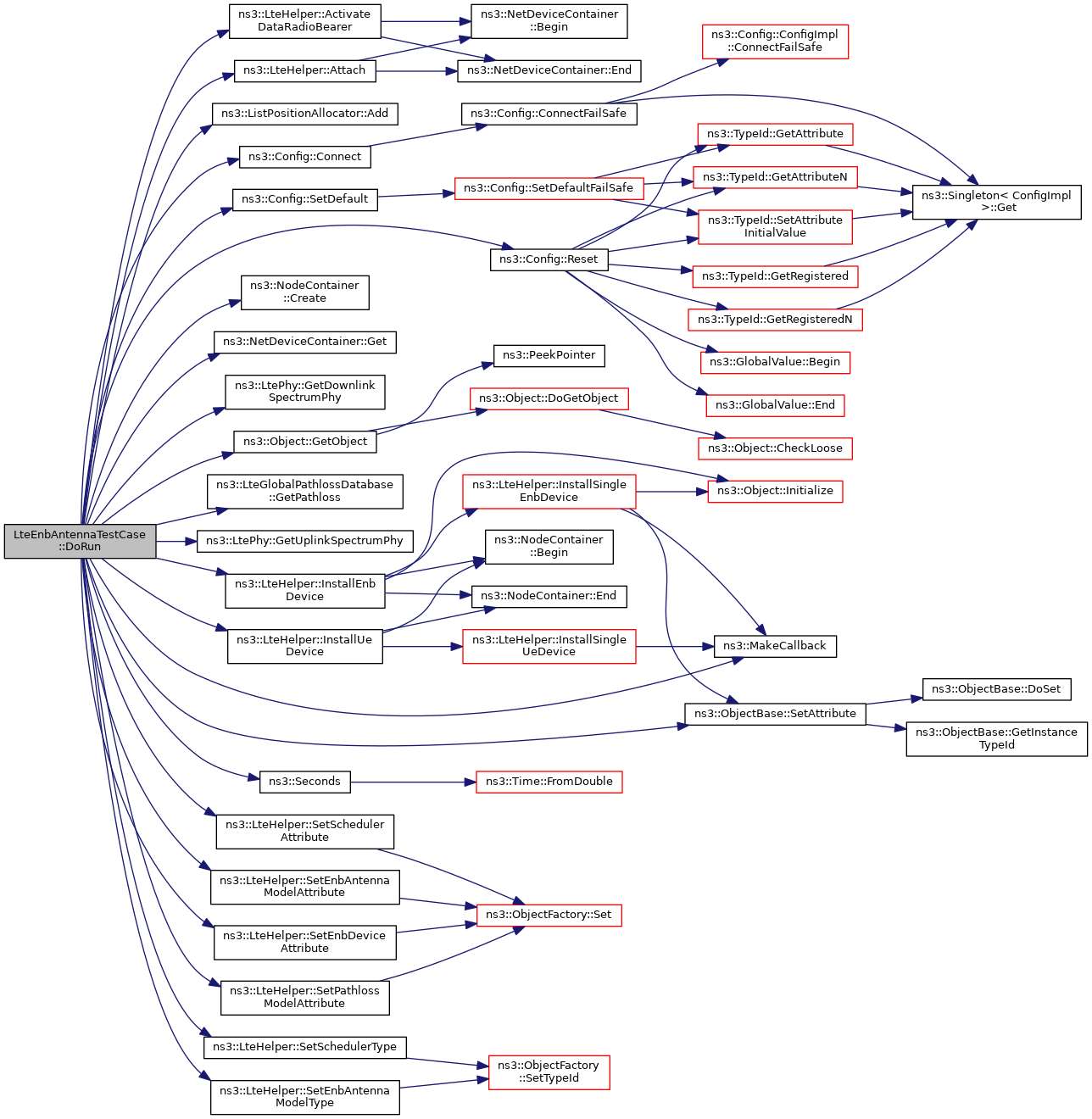

◆ DoRun()

Member Data Documentation

◆ m_antennaGainDb

double LteEnbAntennaTestCase::m_antennaGainDb
private

antenna gain in dB

Definition at line 89 of file test-lte-antenna.cc.

Referenced by DoRun().

◆ m_beamwidthDegrees

double LteEnbAntennaTestCase::m_beamwidthDegrees
private

antenna beamwidth in degrees

Definition at line 86 of file test-lte-antenna.cc.

Referenced by DoRun().

◆ m_orientationDegrees

double LteEnbAntennaTestCase::m_orientationDegrees
private

antenna orientation in degrees

Definition at line 85 of file test-lte-antenna.cc.

Referenced by DoRun().

◆ m_x

double LteEnbAntennaTestCase::m_x
private

x position of the UE

Definition at line 87 of file test-lte-antenna.cc.

Referenced by DoRun().

◆ m_y

double LteEnbAntennaTestCase::m_y
private

y position of the UE

Definition at line 88 of file test-lte-antenna.cc.

Referenced by DoRun().


The documentation for this class was generated from the following file:
