Lte interference test when using hard frequency reuse algorithm. More...

#include "lte-test-interference-fr.h"

Inheritance diagram for LteInterferenceHardFrTestCase:

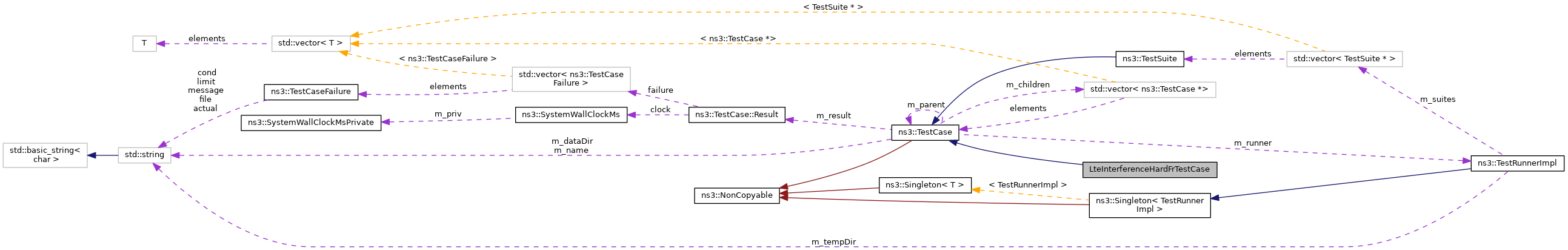

Collaboration diagram for LteInterferenceHardFrTestCase:

Public Member Functions
	LteInterferenceHardFrTestCase (std::string name, double d1, double d2, double dlSinr, double ulSinr)
	Constructor. More...

virtual	~LteInterferenceHardFrTestCase ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
double	m_d1
	distance between UE and ENB More...

double	m_d2
	distance between UE and other ENB More...

double	m_expectedDlSinrDb
	expected DL SINR in dB More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Lte interference test when using hard frequency reuse algorithm.

Check if the interfence values correspond to theoretical values.

Definition at line 54 of file lte-test-interference-fr.h.

Constructor & Destructor Documentation

◆ LteInterferenceHardFrTestCase()

LteInterferenceHardFrTestCase::LteInterferenceHardFrTestCase	(	std::string	name,
		double	d1,
		double	d2,
		double	dlSinr,
		double	ulSinr
	)

Constructor.

TestCase Data.

Parameters

name	the reference name
d1	distance between ENB and UE
d2	distnace between ENB and other UE
dlSinr	the DL SINR
ulSinr	the UL SINR

Definition at line 83 of file lte-test-interference-fr.cc.

References NS_LOG_INFO.

◆ ~LteInterferenceHardFrTestCase()

LteInterferenceHardFrTestCase::~LteInterferenceHardFrTestCase ( )

virtual

Definition at line 92 of file lte-test-interference-fr.cc.

Member Function Documentation

◆ DoRun()

void LteInterferenceHardFrTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 97 of file lte-test-interference-fr.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::ListPositionAllocator::Add(), ns3::NetDeviceContainer::Add(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LtePhy::GetUplinkSpectrumPhy(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_d1, m_d2, m_expectedDlSinrDb, ns3::MakeCallback(), third::mobility, NS_LOG_DEBUG, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Config::Reset(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetFfrAlgorithmAttribute(), ns3::LteHelper::SetFfrAlgorithmType(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

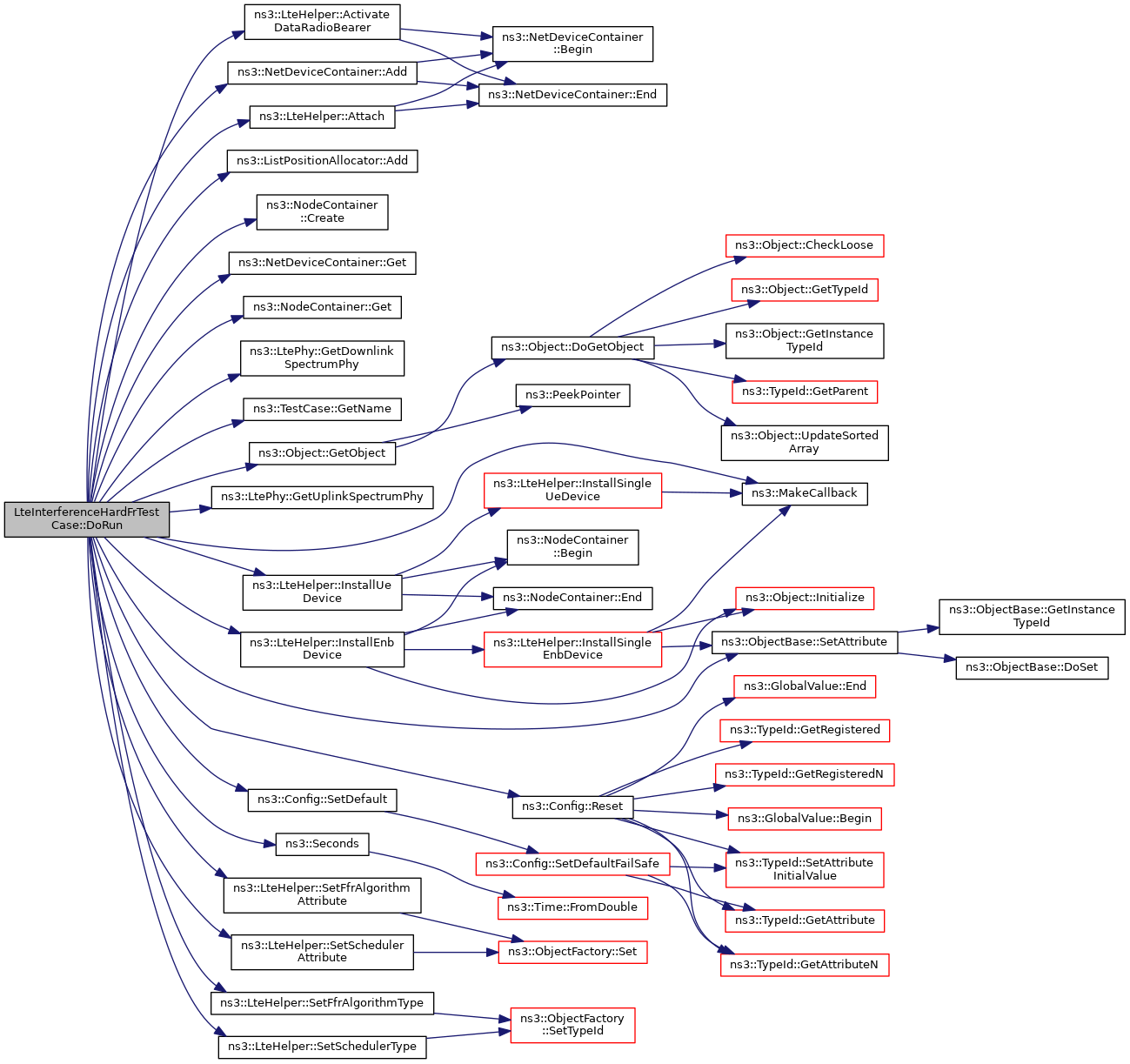

Here is the call graph for this function:

Member Data Documentation

◆ m_d1

double LteInterferenceHardFrTestCase::m_d1

private

distance between UE and ENB

Definition at line 72 of file lte-test-interference-fr.h.

Referenced by DoRun().

◆ m_d2

double LteInterferenceHardFrTestCase::m_d2

private

distance between UE and other ENB

Definition at line 73 of file lte-test-interference-fr.h.

Referenced by DoRun().

◆ m_expectedDlSinrDb

double LteInterferenceHardFrTestCase::m_expectedDlSinrDb

private

expected DL SINR in dB

Definition at line 74 of file lte-test-interference-fr.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-interference-fr.h
src/lte/test/lte-test-interference-fr.cc
