LtePathlossModelSystemTestCase Class Reference

Tests that the BuildingPathlossModel works according to the expected theoretical values. More...

#include "lte-test-pathloss-model.h"

+ Inheritance diagram for LtePathlossModelSystemTestCase:

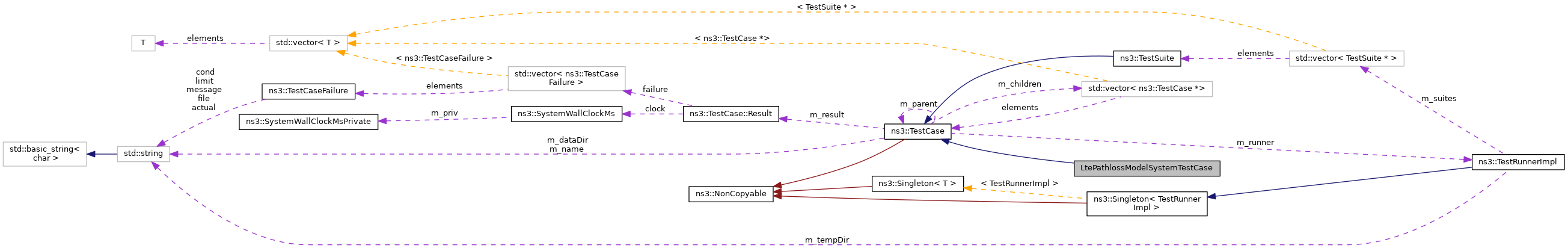

+ Collaboration diagram for LtePathlossModelSystemTestCase:

Public Member Functions

 LtePathlossModelSystemTestCase (std::string name, double snrDb, double dist, uint16_t mcsIndex)
 Constructor. More...

 LtePathlossModelSystemTestCase ()

virtual ~LtePathlossModelSystemTestCase ()

void DlScheduling (DlSchedulingCallbackInfo dlInfo)
 DL scheduling function. More...

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Private Attributes

double m_distance
 the distance More...

uint16_t m_mcsIndex
 the MCS index More...

double m_snrDb
 the SNR in dB More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Tests that the BuildingPathlossModel works according to the expected theoretical values.

Theoretical reference values are obtained with the octave script src/lte/test/reference/lte_pathloss.m

Definition at line 55 of file lte-test-pathloss-model.h.

Constructor & Destructor Documentation

◆ LtePathlossModelSystemTestCase() [1/2]

LtePathlossModelSystemTestCase::LtePathlossModelSystemTestCase ( std::string  name,
double  snrDb,
double  dist,
uint16_t  mcsIndex
)

Constructor.

Parameters
namethe reference name
snrDbthe SNR in dB
distthe distance
mcsIndexthe MCS index

Definition at line 176 of file lte-test-pathloss-model.cc.

References NS_LOG_INFO.

◆ LtePathlossModelSystemTestCase() [2/2]

LtePathlossModelSystemTestCase::LtePathlossModelSystemTestCase ( )

◆ ~LtePathlossModelSystemTestCase()

LtePathlossModelSystemTestCase::~LtePathlossModelSystemTestCase ( )
virtual

Definition at line 189 of file lte-test-pathloss-model.cc.

Member Function Documentation

◆ DlScheduling()

void LtePathlossModelSystemTestCase::DlScheduling ( DlSchedulingCallbackInfo  dlInfo)

DL scheduling function.

Parameters
dlInfothe DL info

Definition at line 290 of file lte-test-pathloss-model.cc.

References m_mcsIndex, m_snrDb, ns3::DlSchedulingCallbackInfo::mcsTb1, ns3::MilliSeconds(), ns3::Now(), NS_LOG_INFO, and NS_TEST_ASSERT_MSG_EQ.

Referenced by LteTestPathlossDlSchedCallback().

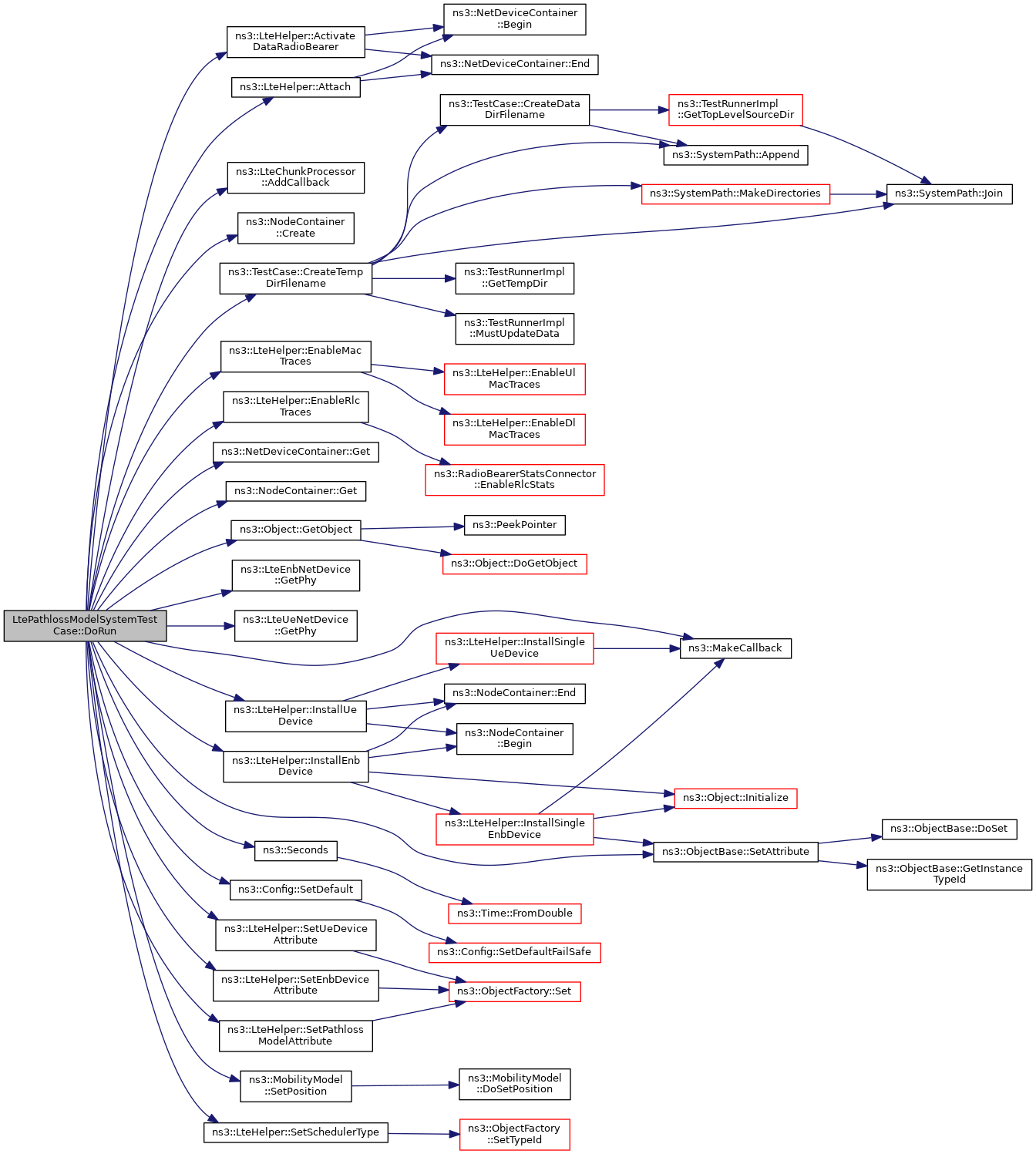

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoRun()

Member Data Documentation

◆ m_distance

double LtePathlossModelSystemTestCase::m_distance
private

the distance

Definition at line 80 of file lte-test-pathloss-model.h.

Referenced by DoRun().

◆ m_mcsIndex

uint16_t LtePathlossModelSystemTestCase::m_mcsIndex
private

the MCS index

Definition at line 81 of file lte-test-pathloss-model.h.

Referenced by DlScheduling().

◆ m_snrDb

double LtePathlossModelSystemTestCase::m_snrDb
private

the SNR in dB

Definition at line 79 of file lte-test-pathloss-model.h.

Referenced by DlScheduling(), and DoRun().


The documentation for this class was generated from the following files:
