Test end-to-end flow when RLC UM is being used. More...

#include "lte-test-rlc-um-e2e.h"

Inheritance diagram for LteRlcUmE2eTestCase:

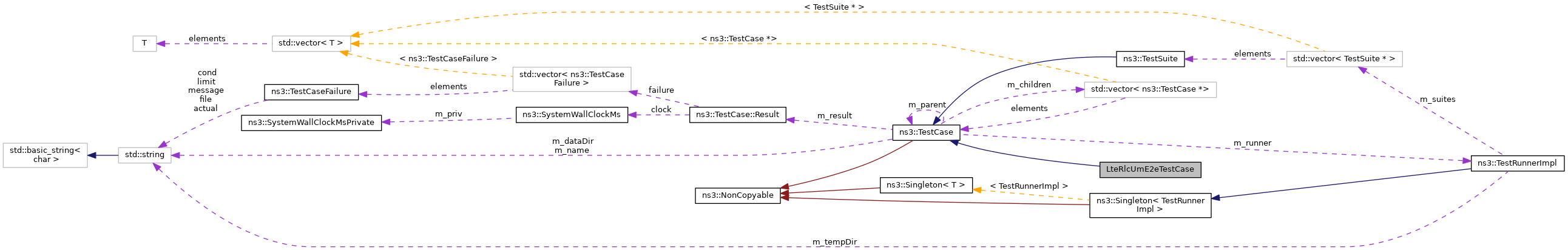

Collaboration diagram for LteRlcUmE2eTestCase:

Public Member Functions
	LteRlcUmE2eTestCase (std::string name, uint32_t seed, double losses)
	Constructor. More...

	LteRlcUmE2eTestCase ()

virtual	~LteRlcUmE2eTestCase ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	DlDropEvent (Ptr< const Packet > p)
	DL drop event. More...

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	UlDropEvent (Ptr< const Packet > p)
	UL drop event. More...

Private Attributes
uint32_t	m_dlDrops
	number of Dl drops More...

double	m_losses
	error rate More...

uint32_t	m_seed
	random number seed More...

uint32_t	m_ulDrops
	number of UL drops More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test end-to-end flow when RLC UM is being used.

Definition at line 49 of file lte-test-rlc-um-e2e.h.

Constructor & Destructor Documentation

◆ LteRlcUmE2eTestCase() [1/2]

LteRlcUmE2eTestCase::LteRlcUmE2eTestCase	(	std::string	name,
		uint32_t	seed,
		double	losses
	)

Constructor.

TestCase.

Parameters

name	the reference name
seed	the random variable seed
losses	the error rate

Definition at line 86 of file lte-test-rlc-um-e2e.cc.

References m_dlDrops, m_losses, m_seed, and m_ulDrops.

◆ LteRlcUmE2eTestCase() [2/2]

LteRlcUmE2eTestCase::LteRlcUmE2eTestCase ( )

◆ ~LteRlcUmE2eTestCase()

LteRlcUmE2eTestCase::~LteRlcUmE2eTestCase ( )

virtual

Definition at line 98 of file lte-test-rlc-um-e2e.cc.

Member Function Documentation

◆ DlDropEvent()

void LteRlcUmE2eTestCase::DlDropEvent ( Ptr< const Packet > p )

private

DL drop event.

Parameters

p	the packet

Definition at line 104 of file lte-test-rlc-um-e2e.cc.

References m_dlDrops.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void LteRlcUmE2eTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 118 of file lte-test-rlc-um-e2e.cc.

References ns3::NodeContainer::Create(), DlDropEvent(), ns3::NetDeviceContainer::Get(), ns3::LteSimpleHelper::InstallEnbDevice(), ns3::LteSimpleHelper::InstallUeDevice(), m_dlDrops, ns3::LteSimpleHelper::m_enbMac, ns3::LteSimpleHelper::m_enbRrc, m_losses, m_seed, ns3::LteSimpleHelper::m_ueMac, ns3::LteSimpleHelper::m_ueRrc, m_ulDrops, ns3::MakeCallback(), NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::LteTestMac::SetTxOpportunityMode(), ns3::LteTestMac::SetTxOppSize(), ns3::LteTestMac::SetTxOppTime(), and UlDropEvent().

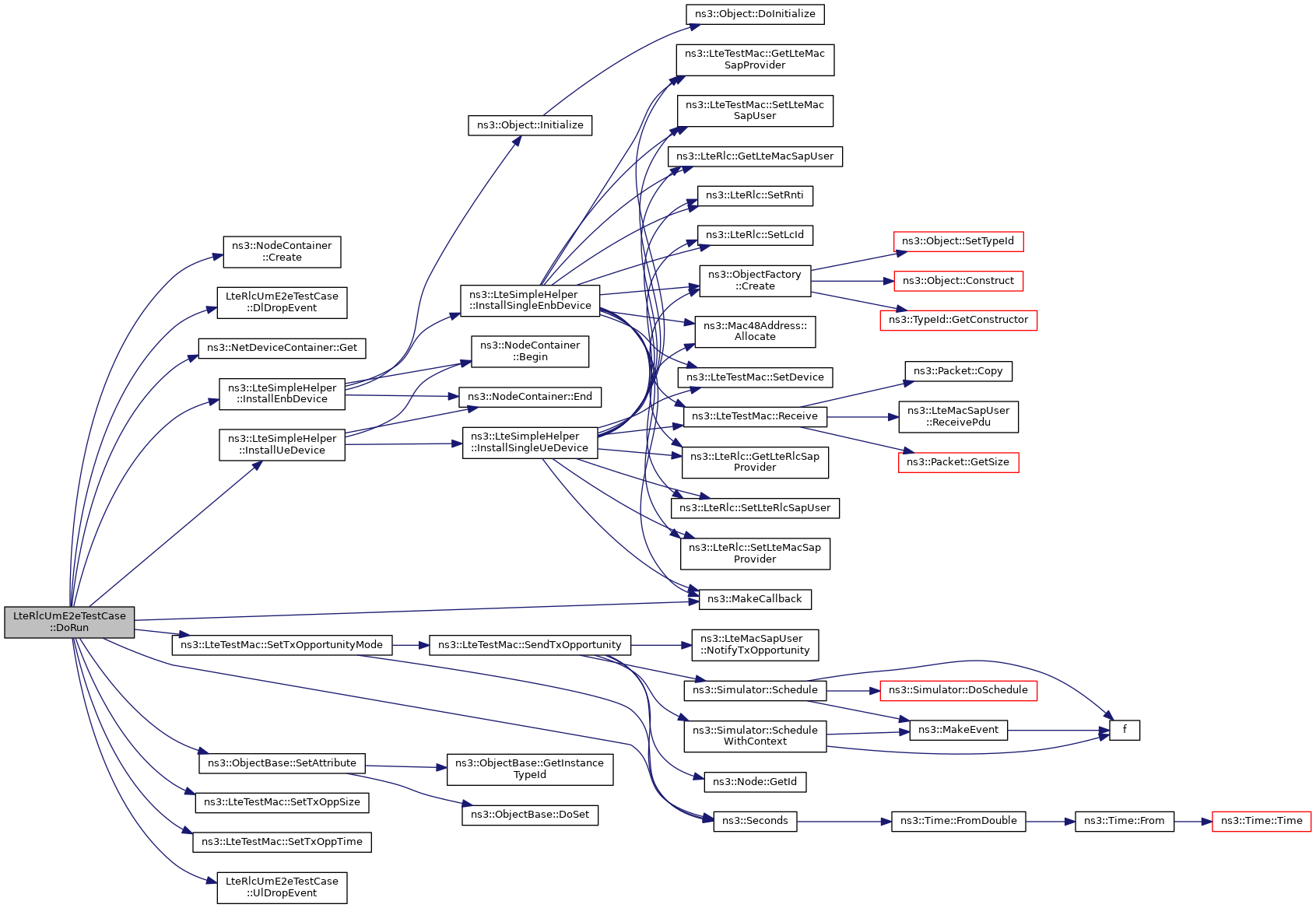

Here is the call graph for this function:

◆ UlDropEvent()

void LteRlcUmE2eTestCase::UlDropEvent ( Ptr< const Packet > p )

private

UL drop event.

Parameters

p	the packet

Definition at line 111 of file lte-test-rlc-um-e2e.cc.

References m_ulDrops.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_dlDrops

uint32_t LteRlcUmE2eTestCase::m_dlDrops

private

number of Dl drops

Definition at line 77 of file lte-test-rlc-um-e2e.h.

Referenced by DlDropEvent(), DoRun(), and LteRlcUmE2eTestCase().

◆ m_losses

double LteRlcUmE2eTestCase::m_losses

private

error rate

Definition at line 81 of file lte-test-rlc-um-e2e.h.

Referenced by DoRun(), and LteRlcUmE2eTestCase().

◆ m_seed

uint32_t LteRlcUmE2eTestCase::m_seed

private

random number seed

Definition at line 80 of file lte-test-rlc-um-e2e.h.

Referenced by DoRun(), and LteRlcUmE2eTestCase().

◆ m_ulDrops

uint32_t LteRlcUmE2eTestCase::m_ulDrops

private

number of UL drops

Definition at line 78 of file lte-test-rlc-um-e2e.h.

Referenced by DoRun(), LteRlcUmE2eTestCase(), and UlDropEvent().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-rlc-um-e2e.h
src/lte/test/lte-test-rlc-um-e2e.cc
