Test stric frequency reuse algorithm. More...

#include "lte-test-frequency-reuse.h"

Inheritance diagram for LteStrictFrTestCase:

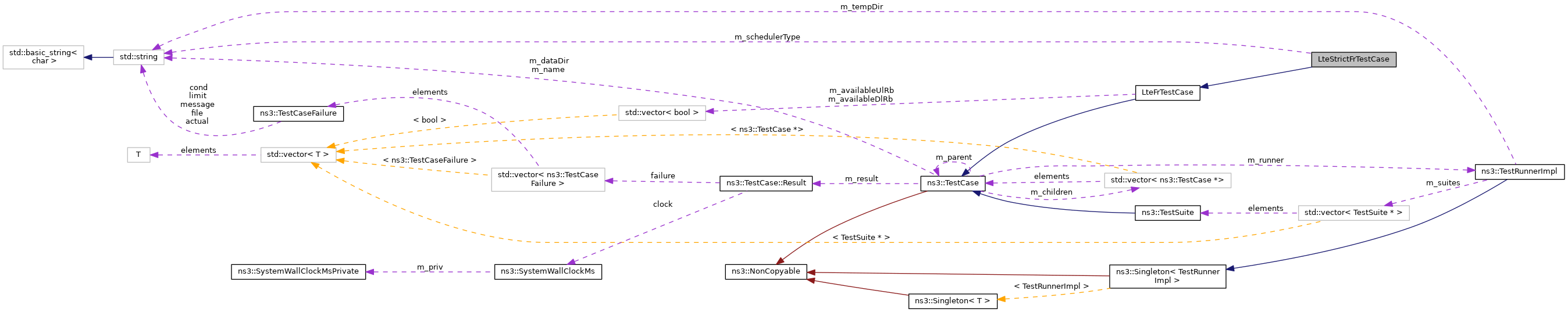

Collaboration diagram for LteStrictFrTestCase:

Public Member Functions
	LteStrictFrTestCase (std::string name, uint32_t userNum, std::string schedulerType, uint16_t dlBandwidth, uint16_t ulBandwidth, uint16_t dlCommonSubBandwidth, uint8_t dlEdgeSubBandOffset, uint16_t dlEdgeSubBandwidth, uint16_t ulCommonSubBandwidth, uint8_t ulEdgeSubBandOffset, uint16_t ulEdgeSubBandwidth, std::vector< bool > availableDlRb, std::vector< bool > availableUlRb)
	Constructor. More...

virtual	~LteStrictFrTestCase ()

Public Member Functions inherited from LteFrTestCase
	LteFrTestCase (std::string name, uint32_t userNum, uint16_t dlBandwidth, uint16_t ulBandwidth, std::vector< bool > availableDlRb, std::vector< bool > availableUlRb)
	Constructor. More...

virtual	~LteFrTestCase ()

void	DlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	DL data receive start function. More...

void	UlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	UL data receive start function. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions

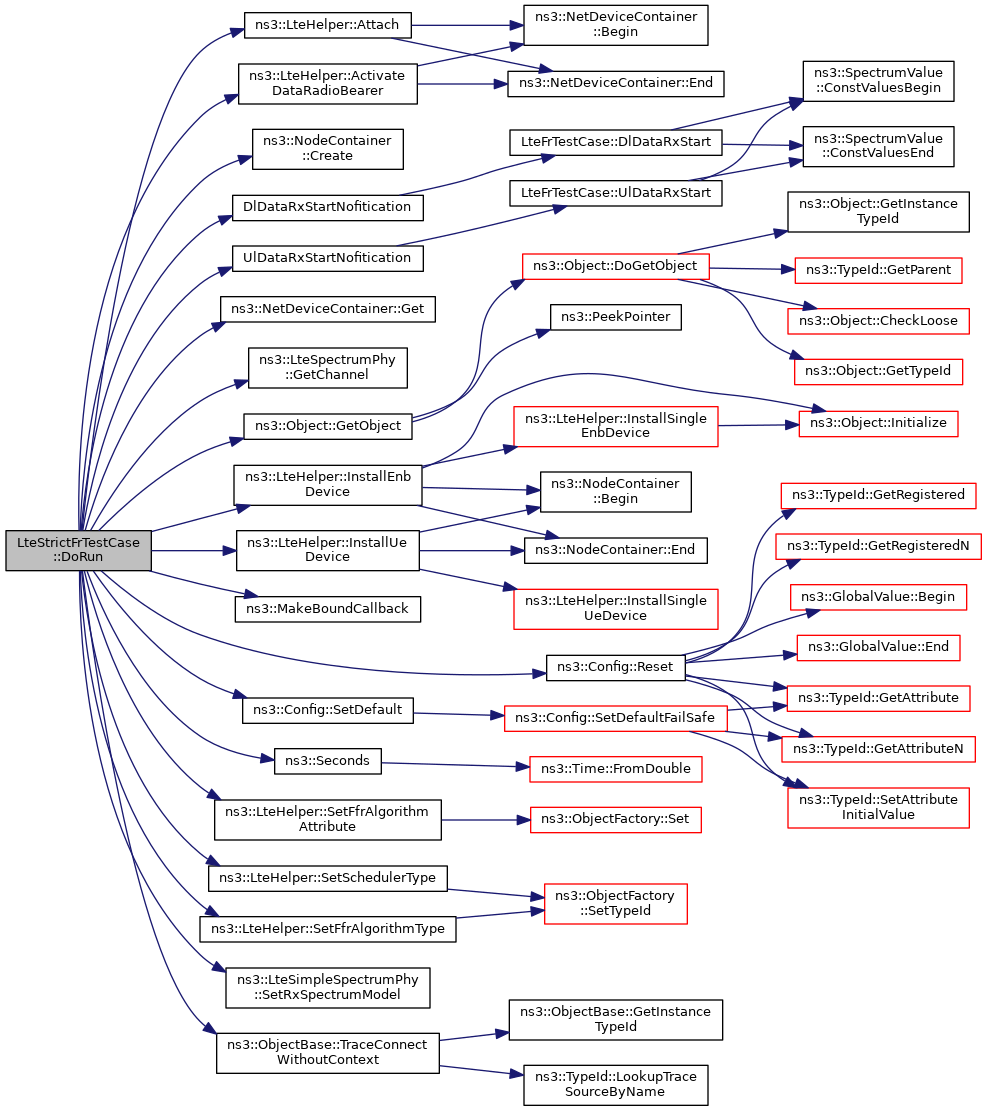

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
uint16_t	m_dlCommonSubBandwidth
	DL common subbandwidth. More...

uint8_t	m_dlEdgeSubBandOffset
	DL edge subband offset. More...

uint16_t	m_dlEdgeSubBandwidth
	DL edge subbandwidth. More...

std::string	m_schedulerType
	scheduler type More...

uint16_t	m_ulCommonSubBandwidth
	UL common subbandwidth. More...

uint8_t	m_ulEdgeSubBandOffset
	UL edge subband offset. More...

uint16_t	m_ulEdgeSubBandwidth
	UL edge subbandwidth. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes inherited from LteFrTestCase
std::vector< bool >	m_availableDlRb
	the available DL for each RB More...

std::vector< bool >	m_availableUlRb
	the available UL for each RB More...

uint16_t	m_dlBandwidth
	the DL bandwidth More...

uint16_t	m_ulBandwidth
	the UL bandwidth More...

bool	m_usedMutedDlRbg
	used muted DL RBG? More...

bool	m_usedMutedUlRbg
	used muted UL RBG? More...

uint32_t	m_userNum
	the number of UE nodes More...

Detailed Description

Test stric frequency reuse algorithm.

Test fails if the muted frequencies are being used.

Definition at line 149 of file lte-test-frequency-reuse.h.

Constructor & Destructor Documentation

◆ LteStrictFrTestCase()

LteStrictFrTestCase::LteStrictFrTestCase	(	std::string	name,
		uint32_t	userNum,
		std::string	schedulerType,
		uint16_t	dlBandwidth,
		uint16_t	ulBandwidth,
		uint16_t	dlCommonSubBandwidth,
		uint8_t	dlEdgeSubBandOffset,
		uint16_t	dlEdgeSubBandwidth,
		uint16_t	ulCommonSubBandwidth,
		uint8_t	ulEdgeSubBandOffset,
		uint16_t	ulEdgeSubBandwidth,
		std::vector< bool >	availableDlRb,
		std::vector< bool >	availableUlRb
	)

Constructor.

Parameters

name	the reference name
userNum	the number of UE nodes
schedulerType	the scheduler type
dlBandwidth	the DL bandwidth
ulBandwidth	the UL bandwidth
dlCommonSubBandwidth	DL common bandwidth
dlEdgeSubBandOffset	DL edge subband offset
dlEdgeSubBandwidth	DL edge subbandwidth
ulCommonSubBandwidth	UL common subbandwidth
ulEdgeSubBandOffset	UL subband offset
ulEdgeSubBandwidth	UL subbandwidth
availableDlRb	the available DL per RB
availableUlRb	the avaialbel UL per RB
