TcpHeaderWithRFC793OptionTestCase Class Reference

TCP header with RFC793 Options test. More...

Inheritance diagram for TcpHeaderWithRFC793OptionTestCase:

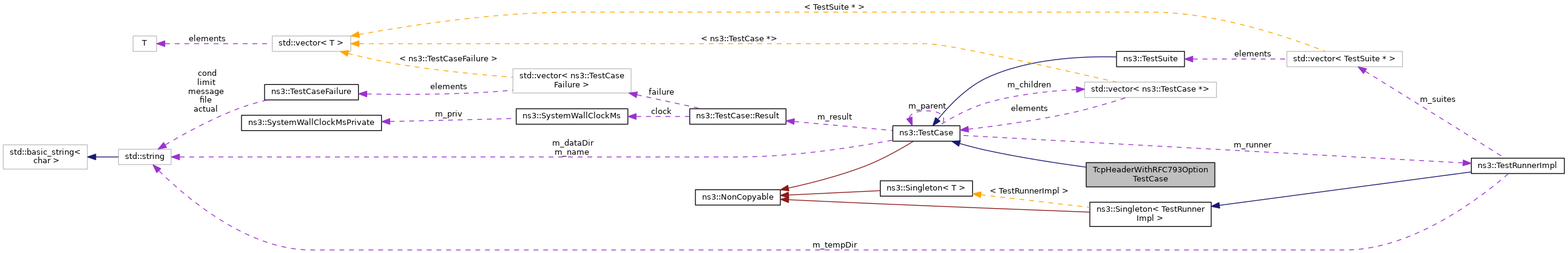

Collaboration diagram for TcpHeaderWithRFC793OptionTestCase:

Public Member Functions
	TcpHeaderWithRFC793OptionTestCase (std::string name)
	Constructor. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CheckCorrectDeserialize ()
	Check the correct header deserialization. More...
void	CheckNoPadding ()
	Check an header for the correct padding. More...
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
virtual void	DoTeardown (void)
	Implementation to do any local setup required for this TestCase. More...
void	OneOptionAtTime ()
	Check an header with only one kind of option. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

TCP header with RFC793 Options test.

Definition at line 155 of file tcp-header-test.cc.

Constructor & Destructor Documentation

TcpHeaderWithRFC793OptionTestCase()

TcpHeaderWithRFC793OptionTestCase::TcpHeaderWithRFC793OptionTestCase

(

std::string

name

)

Constructor.

Parameters

name	Test description.

Definition at line 183 of file tcp-header-test.cc.

Member Function Documentation

CheckCorrectDeserialize()

void TcpHeaderWithRFC793OptionTestCase::CheckCorrectDeserialize ( )

private

Check the correct header deserialization.

Definition at line 198 of file tcp-header-test.cc.

References ns3::Buffer::AddAtStart(), ns3::TcpHeader::AppendOption(), ns3::Buffer::Begin(), ns3::TcpHeader::Deserialize(), ns3::TcpHeader::HasOption(), NS_TEST_ASSERT_MSG_EQ, ns3::Buffer::Iterator::ReadU8(), ns3::TcpHeader::Serialize(), and ns3::Buffer::Iterator::WriteU8().

Referenced by DoRun().

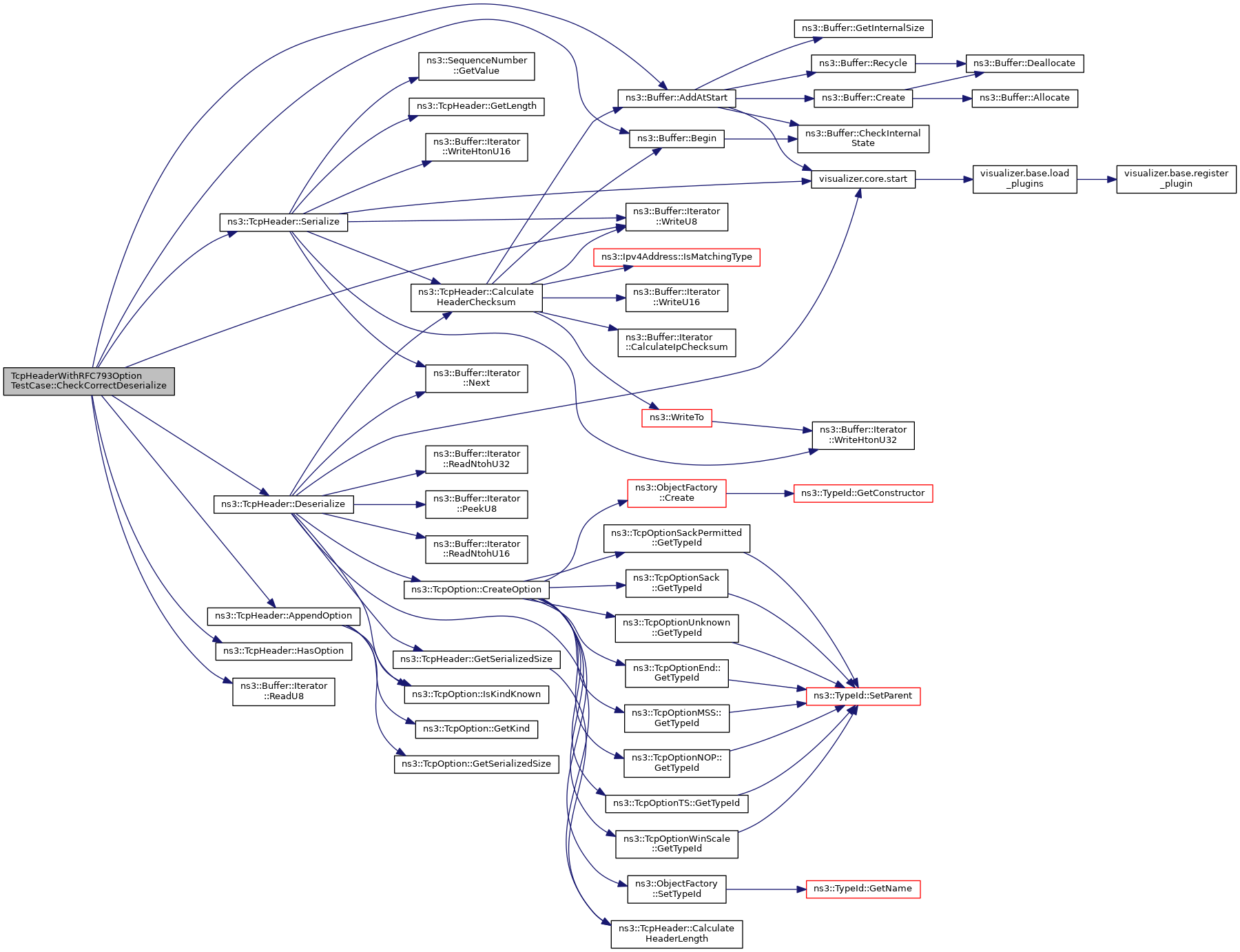

Here is the call graph for this function:

Here is the caller graph for this function:

CheckNoPadding()

void TcpHeaderWithRFC793OptionTestCase::CheckNoPadding ( )

private

Check an header for the correct padding.

Definition at line 220 of file tcp-header-test.cc.

References ns3::Buffer::AddAtStart(), ns3::TcpHeader::AppendOption(), ns3::Buffer::Begin(), ns3::TcpHeader::GetLength(), ns3::TcpHeader::GetSerializedSize(), ns3::Buffer::GetSize(), ns3::Buffer::Iterator::Next(), NS_TEST_ASSERT_MSG_EQ, and ns3::TcpHeader::Serialize().

Referenced by DoRun().

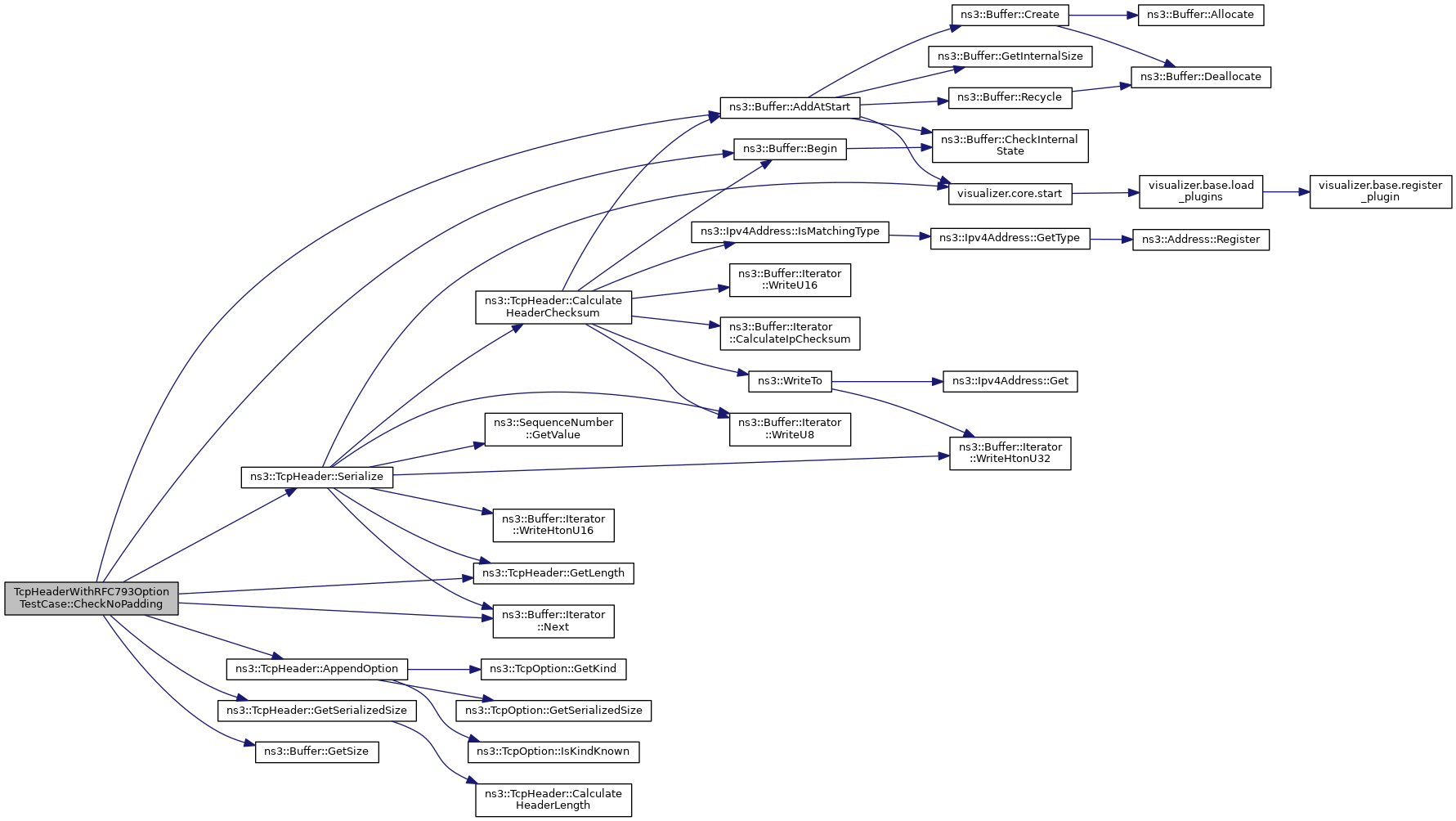

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void TcpHeaderWithRFC793OptionTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 190 of file tcp-header-test.cc.

References CheckCorrectDeserialize(), CheckNoPadding(), and OneOptionAtTime().

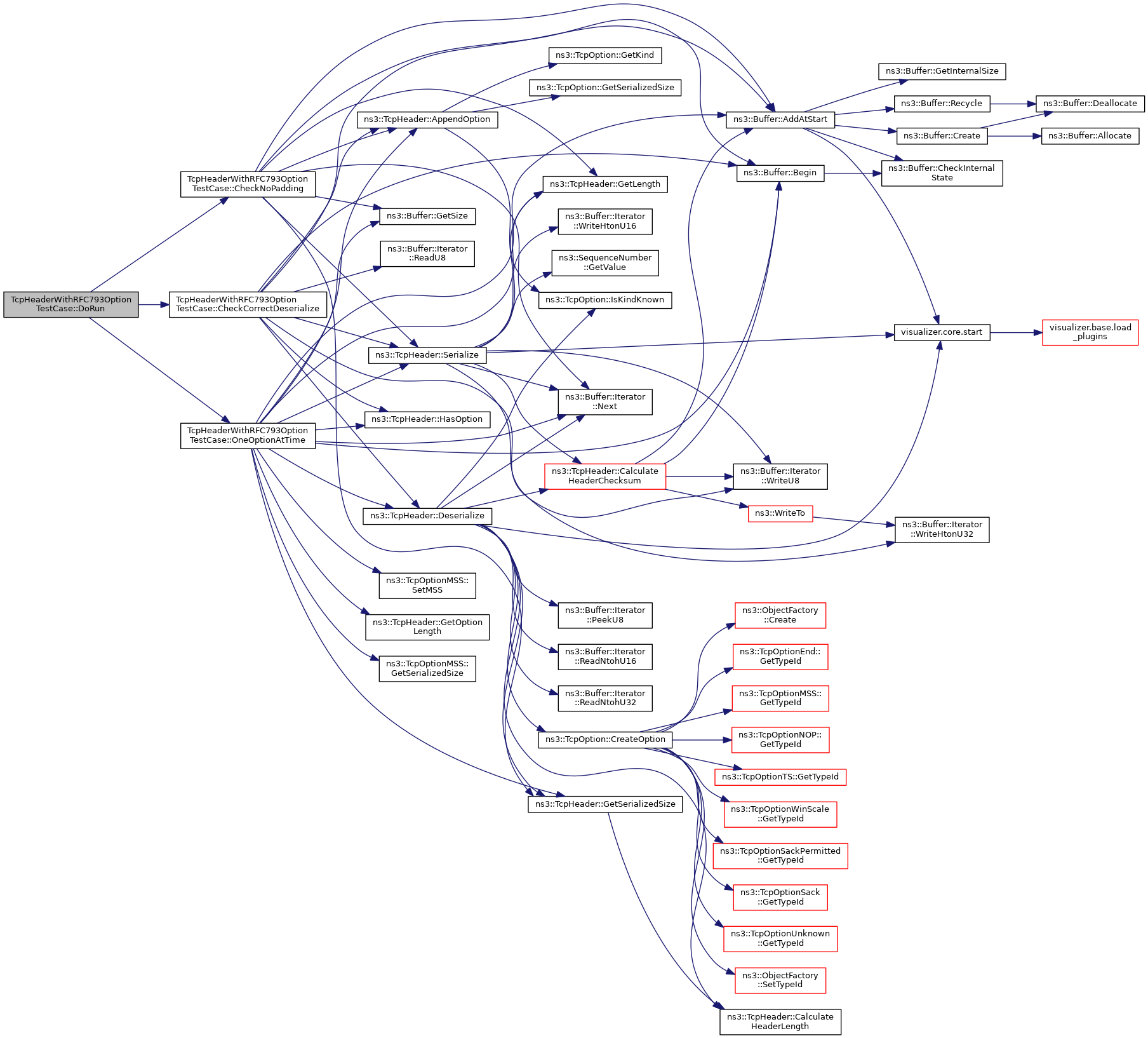

Here is the call graph for this function:

DoTeardown()

void TcpHeaderWithRFC793OptionTestCase::DoTeardown ( void  )

privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 346 of file tcp-header-test.cc.

OneOptionAtTime()

void TcpHeaderWithRFC793OptionTestCase::OneOptionAtTime ( )

private

Check an header with only one kind of option.

Definition at line 261 of file tcp-header-test.cc.

References ns3::Buffer::AddAtStart(), ns3::TcpHeader::AppendOption(), ns3::Buffer::Begin(), ns3::TcpHeader::Deserialize(), END, ns3::TcpHeader::GetLength(), ns3::TcpHeader::GetOptionLength(), ns3::TcpOptionMSS::GetSerializedSize(), ns3::TcpHeader::GetSerializedSize(), ns3::Buffer::GetSize(), ns3::TcpHeader::HasOption(), ns3::Buffer::Iterator::Next(), NS_TEST_ASSERT_MSG_EQ, ns3::TcpHeader::Serialize(), and ns3::TcpOptionMSS::SetMSS().

Referenced by DoRun().

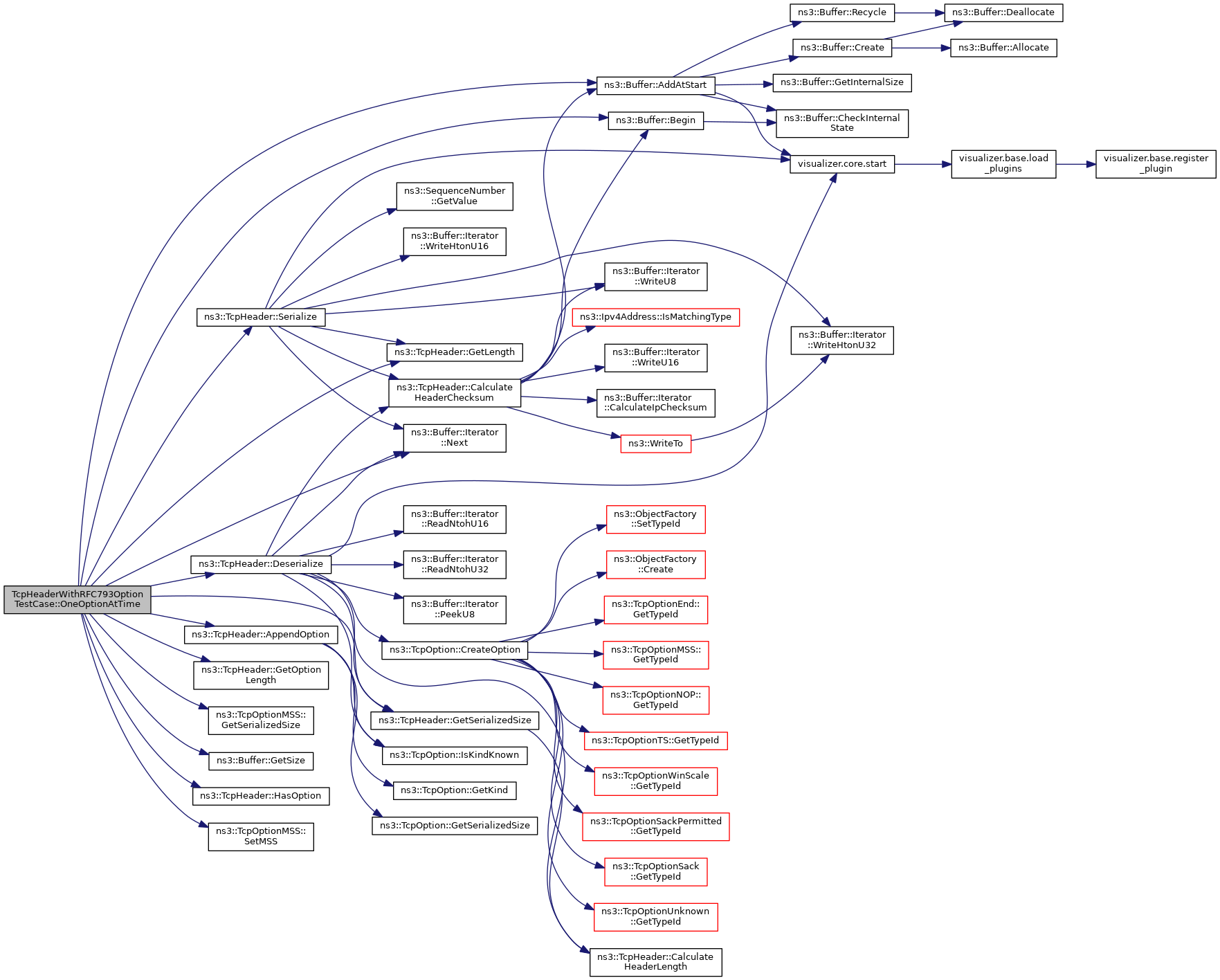

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/internet/test/tcp-header-test.cc
