UL-OFDMA power control test. More...

Inheritance diagram for TestUlOfdmaPowerControl:

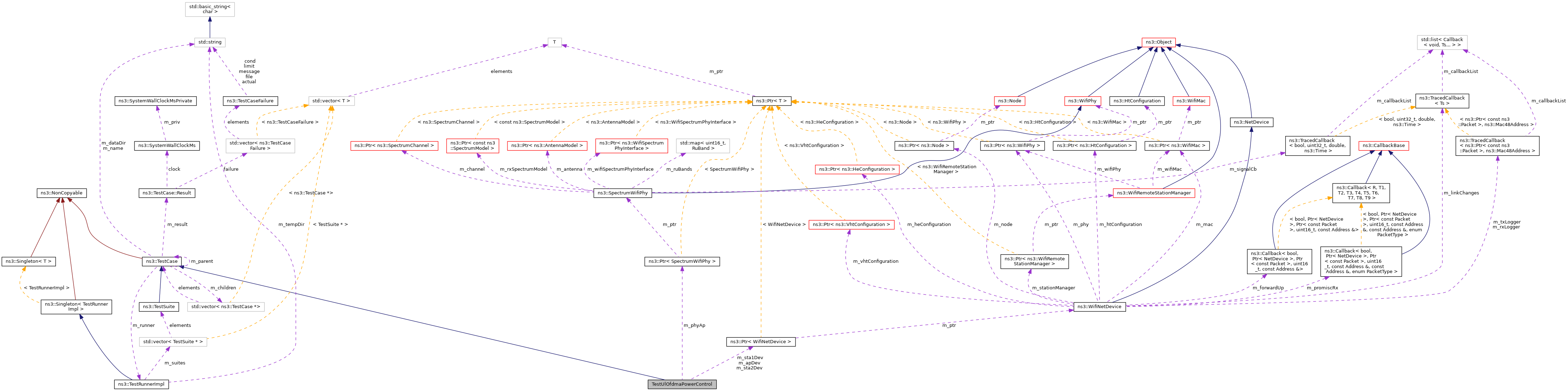

Collaboration diagram for TestUlOfdmaPowerControl:

Public Member Functions
	TestUlOfdmaPowerControl ()

virtual	~TestUlOfdmaPowerControl ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	DoRun (void) override
	Implementation to actually run this TestCase. More...

void	DoSetup (void) override
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown (void) override
	Implementation to do any local setup required for this TestCase. More...

void	ReceiveOkCallbackAtAp (Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
	Receive OK callback function at AP. More...

void	ReplaceReceiveOkCallbackOfAp (void)
	Replace the AP's MacLow callback on its PHY's ReceiveOkCallback by the ReceiveOkCallbackAtAp method. More...

void	RunOne (bool setupBa)
	Run one simulation with an optional BA session set up phase. More...

void	SendMuBar (std::vector< uint16_t > staIds)
	Send a MU BAR through the AP to the STAs listed in the provided vector. More...

void	SetupBa (Address destination)
	Send a QoS Data packet to the destination station in order to set up a block Ack session (so that the MU-BAR may have a reply). More...

Private Attributes
Ptr< WifiNetDevice >	m_apDev
	network device of AP More...

uint8_t	m_bssColor
	BSS color. More...

Ptr< SpectrumWifiPhy >	m_phyAp
	PHY of AP. More...

double	m_requestedRssiSta1
	requested RSSI (in dBm) from STA 1 at AP for HE TB PPDUs More...

double	m_requestedRssiSta2
	requested RSSI (in dBm) from STA 2 at AP for HE TB PPDUs More...

double	m_rssiSta1
	expected RSSI (in dBm) from STA 1 at AP for HE TB PPDUs More...

double	m_rssiSta2
	expected RSSI (in dBm) from STA 2 at AP for HE TB PPDUs More...

Ptr< WifiNetDevice >	m_sta1Dev
	network device of STA 1 More...

Ptr< WifiNetDevice >	m_sta2Dev
	network device of STA 2 More...

double	m_tol
	tolerance (in dB) between received and expected RSSIs More...

double	m_txPowerAp
	transmit power (in dBm) of AP More...

double	m_txPowerEnd
	maximum transmission power (in dBm) for STAs More...

uint8_t	m_txPowerLevels
	number of transmission power levels for STAs More...

double	m_txPowerStart
	minimum transmission power (in dBm) for STAs More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

UL-OFDMA power control test.

Definition at line 3200 of file wifi-phy-ofdma-test.cc.

Constructor & Destructor Documentation

◆ TestUlOfdmaPowerControl()

TestUlOfdmaPowerControl::TestUlOfdmaPowerControl ( )

Definition at line 3274 of file wifi-phy-ofdma-test.cc.

◆ ~TestUlOfdmaPowerControl()

TestUlOfdmaPowerControl::~TestUlOfdmaPowerControl ( )

virtual

Definition at line 3289 of file wifi-phy-ofdma-test.cc.

References m_apDev, m_phyAp, m_sta1Dev, and m_sta2Dev.

Member Function Documentation

◆ DoRun()

void TestUlOfdmaPowerControl::DoRun ( void )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 3571 of file wifi-phy-ofdma-test.cc.

References m_requestedRssiSta1, m_requestedRssiSta2, m_rssiSta1, m_rssiSta2, m_txPowerAp, m_txPowerEnd, m_txPowerLevels, m_txPowerStart, and RunOne().

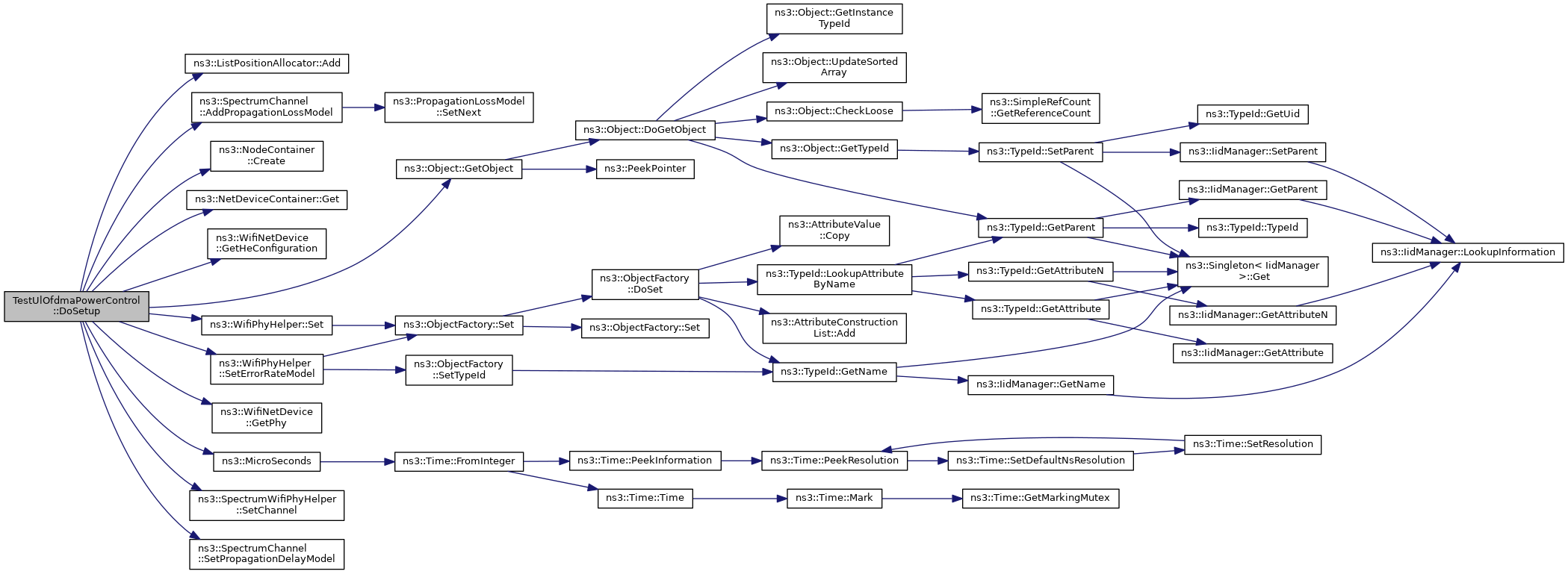

Here is the call graph for this function:

◆ DoSetup()

void TestUlOfdmaPowerControl::DoSetup ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 3429 of file wifi-phy-ofdma-test.cc.

References ns3::ListPositionAllocator::Add(), ns3::SpectrumChannel::AddPropagationLossModel(), ns3::NodeContainer::Create(), DEFAULT_CHANNEL_WIDTH, DEFAULT_FREQUENCY, ns3::NetDeviceContainer::Get(), ns3::WifiNetDevice::GetHeConfiguration(), ns3::Object::GetObject(), ns3::WifiNetDevice::GetPhy(), m_apDev, m_bssColor, m_phyAp, m_sta1Dev, m_sta2Dev, third::mac, ns3::MicroSeconds(), third::mobility, NS_ASSERT, ns3::WifiPhyHelper::Set(), ns3::SpectrumWifiPhyHelper::SetChannel(), ns3::WifiPhyHelper::SetErrorRateModel(), ns3::SpectrumChannel::SetPropagationDelayModel(), third::wifi, and ns3::WIFI_STANDARD_80211ax_5GHZ.

Here is the call graph for this function:

◆ DoTeardown()

void TestUlOfdmaPowerControl::DoTeardown ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 3492 of file wifi-phy-ofdma-test.cc.

References ns3::Object::Dispose(), m_apDev, m_phyAp, m_sta1Dev, and m_sta2Dev.

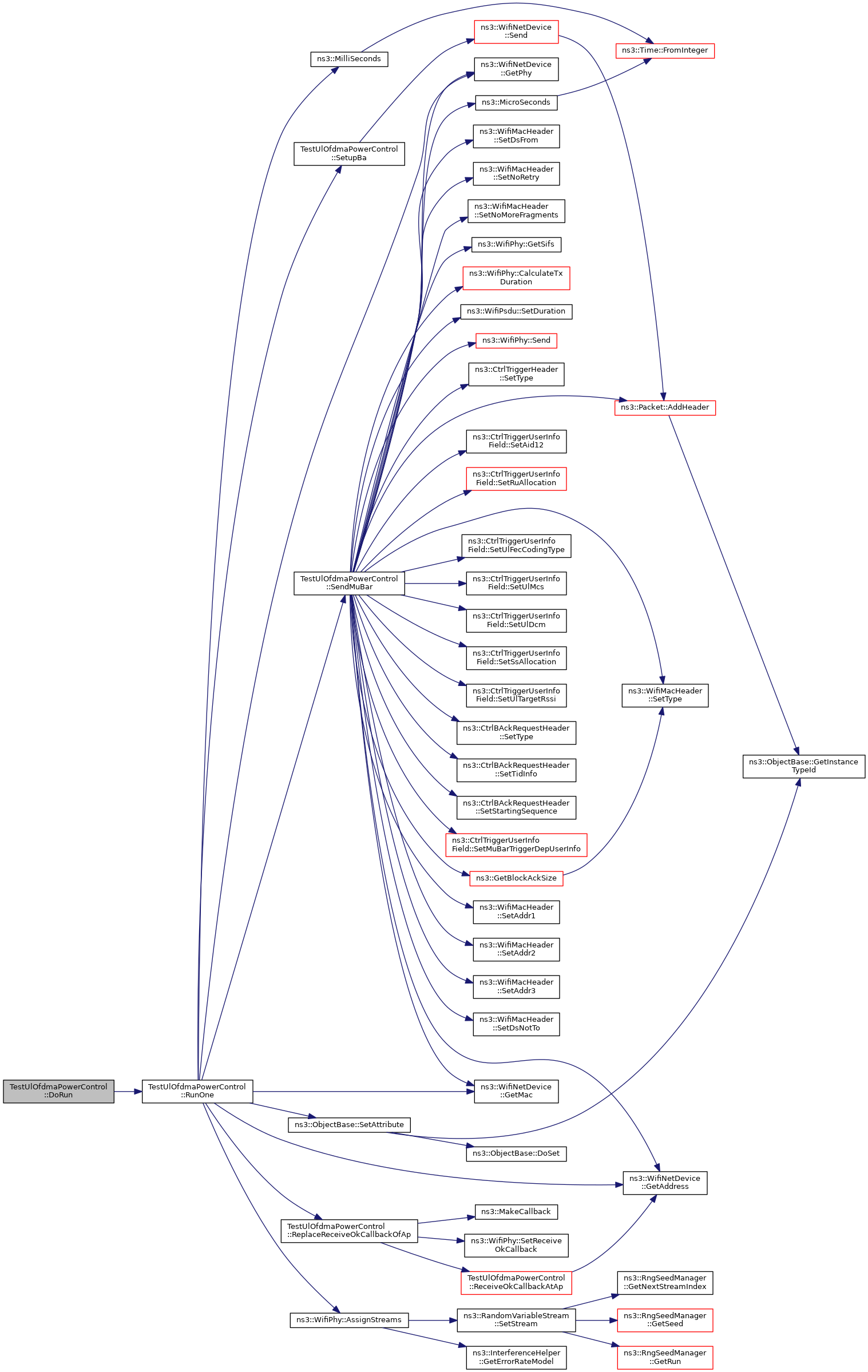

Here is the call graph for this function:

◆ ReceiveOkCallbackAtAp()

void TestUlOfdmaPowerControl::ReceiveOkCallbackAtAp	(	Ptr< WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)

private

Receive OK callback function at AP.

This method will be plugged into the AP PHY's ReceiveOkCallback once the block Ack session has been set up. This is done in the Reset function.

Parameters

psdu	the PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	the TXVECTOR used for the packet
statusPerMpdu	reception status per MPDU

Definition at line 3399 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPsdu::GetAddr2(), ns3::WifiNetDevice::GetAddress(), ns3::WifiPsdu::GetHeader(), ns3::WifiPsdu::GetNMpdus(), ns3::WifiTxVector::GetPreambleType(), m_rssiSta1, m_rssiSta2, m_sta1Dev, m_sta2Dev, m_tol, NS_ABORT_MSG, NS_ASSERT, NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::RxSignalInfo::rssi, ns3::WIFI_MAC_CTL_BACKRESP, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by ReplaceReceiveOkCallbackOfAp().

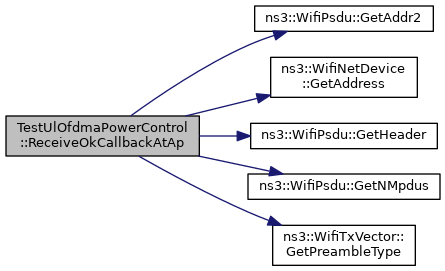

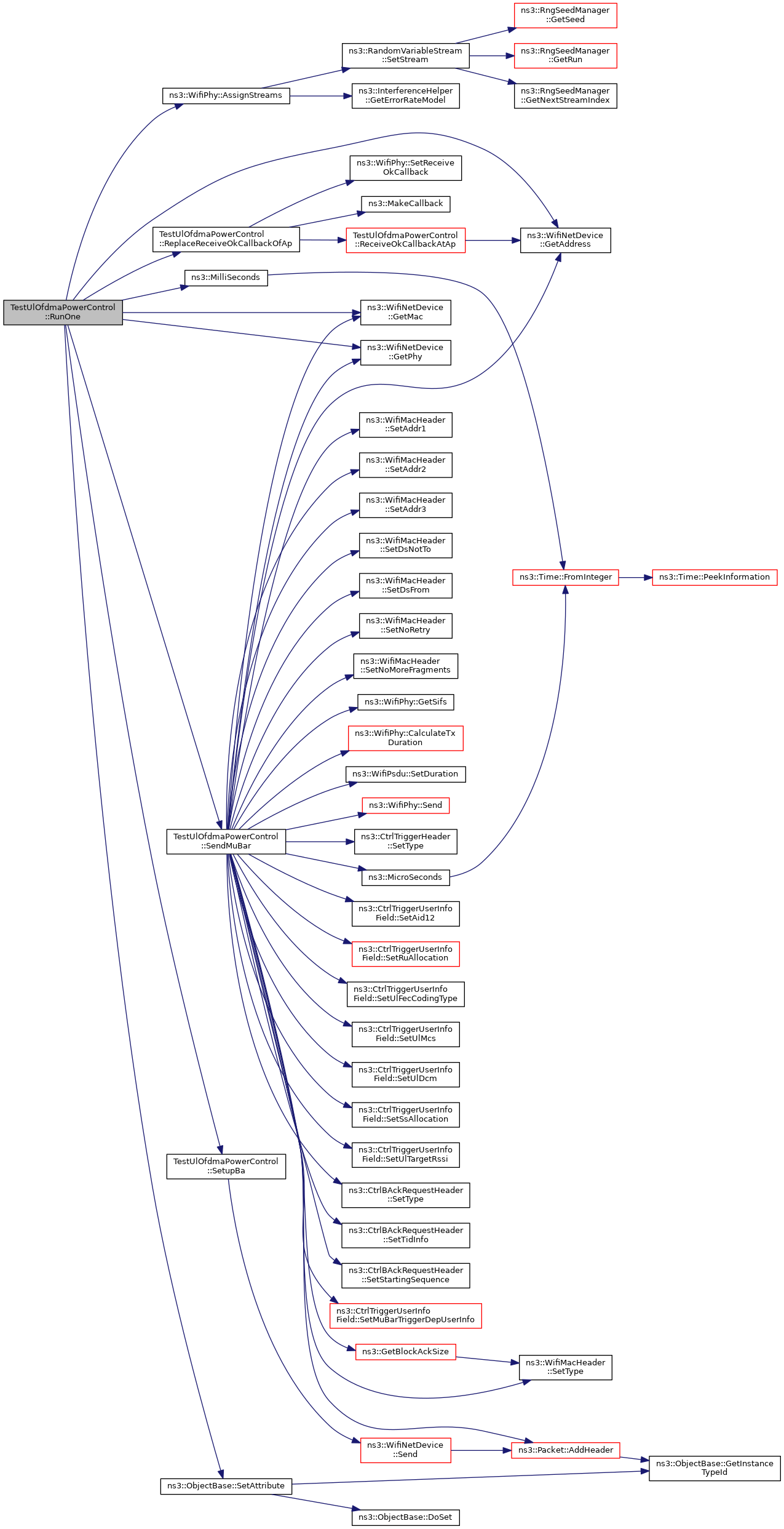

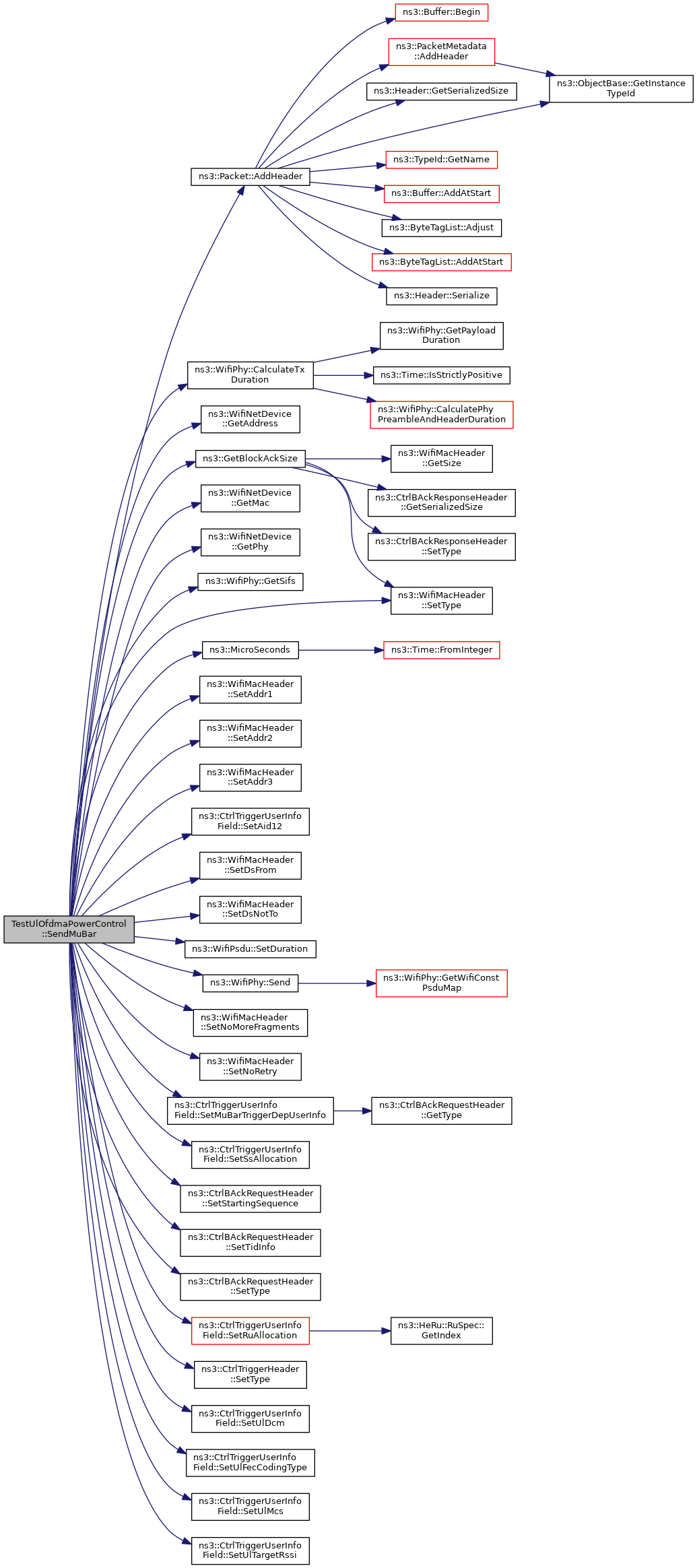

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReplaceReceiveOkCallbackOfAp()

void TestUlOfdmaPowerControl::ReplaceReceiveOkCallbackOfAp ( void )

private

Replace the AP's MacLow callback on its PHY's ReceiveOkCallback by the ReceiveOkCallbackAtAp method.

Definition at line 3422 of file wifi-phy-ofdma-test.cc.

References m_phyAp, ns3::MakeCallback(), ReceiveOkCallbackAtAp(), and ns3::WifiPhy::SetReceiveOkCallback().

Referenced by RunOne().

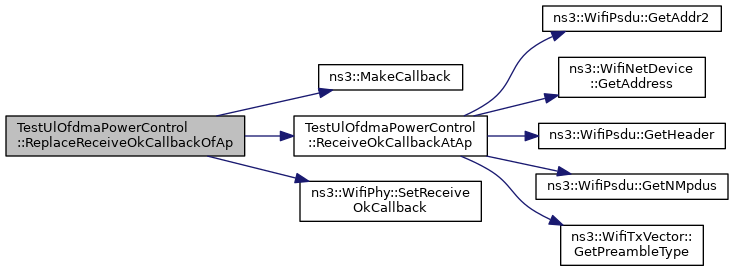

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunOne()

void TestUlOfdmaPowerControl::RunOne ( bool setupBa )

private

Run one simulation with an optional BA session set up phase.

Parameters

setupBa true if BA session should be set up (i.e. upon first run), false otherwise

Definition at line 3505 of file wifi-phy-ofdma-test.cc.

References ns3::WifiPhy::AssignStreams(), ns3::WifiNetDevice::GetAddress(), ns3::WifiNetDevice::GetMac(), ns3::WifiNetDevice::GetPhy(), m_apDev, m_phyAp, m_sta1Dev, m_sta2Dev, m_txPowerAp, m_txPowerEnd, m_txPowerLevels, m_txPowerStart, ns3::MilliSeconds(), NS_ASSERT, ReplaceReceiveOkCallbackOfAp(), SendMuBar(), ns3::ObjectBase::SetAttribute(), and SetupBa().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMuBar()

void TestUlOfdmaPowerControl::SendMuBar ( std::vector< uint16_t > staIds )

private

Send a MU BAR through the AP to the STAs listed in the provided vector.

Parameters

staIds the vector of STA-IDs of STAs to address the MU-BAR to

Definition at line 3306 of file wifi-phy-ofdma-test.cc.

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupBa()

void TestUlOfdmaPowerControl::SetupBa ( Address destination )

private

Send a QoS Data packet to the destination station in order to set up a block Ack session (so that the MU-BAR may have a reply).

Parameters

destination the address of the destination station

Definition at line 3298 of file wifi-phy-ofdma-test.cc.

References m_apDev, and ns3::WifiNetDevice::Send().

Referenced by RunOne().

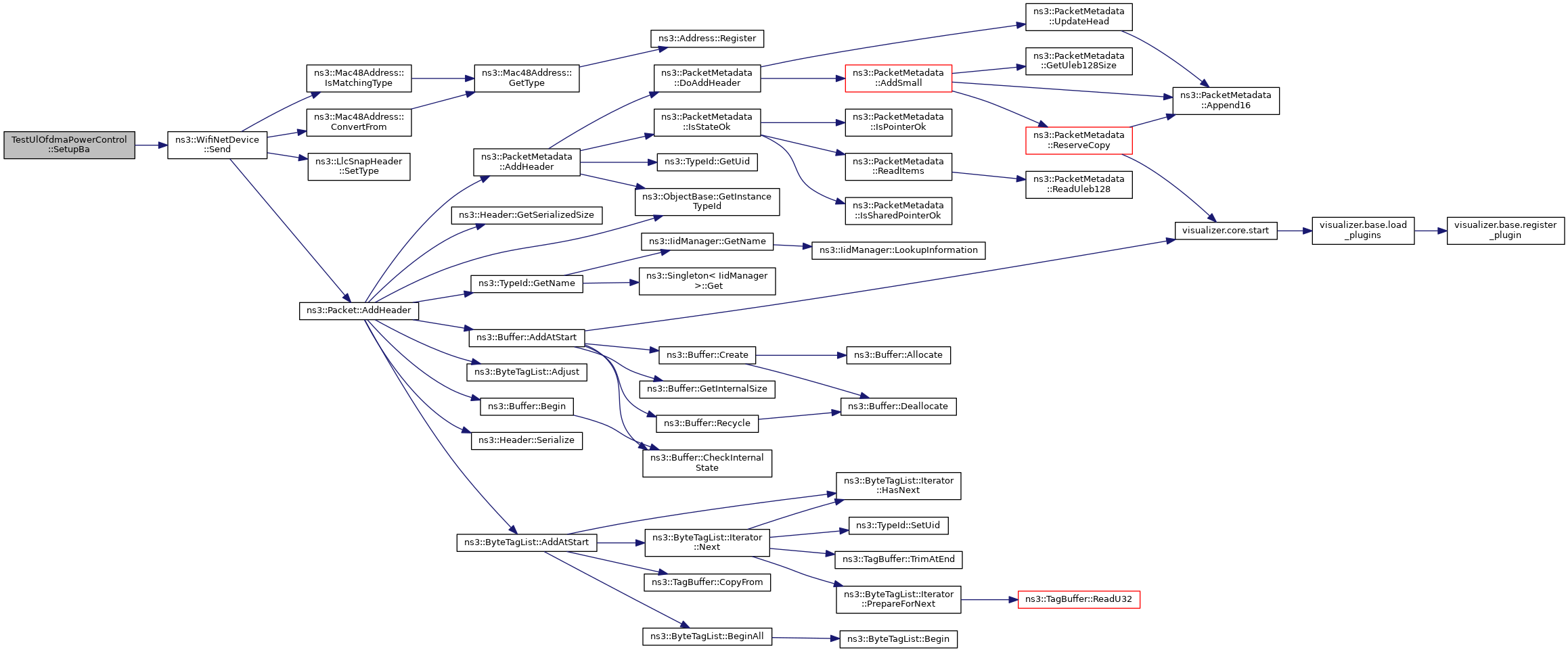

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_apDev

Ptr<WifiNetDevice> TestUlOfdmaPowerControl::m_apDev

private

network device of AP

Definition at line 3254 of file wifi-phy-ofdma-test.cc.

Referenced by DoSetup(), DoTeardown(), RunOne(), SendMuBar(), SetupBa(), and ~TestUlOfdmaPowerControl().

◆ m_bssColor

uint8_t TestUlOfdmaPowerControl::m_bssColor

private

BSS color.

Definition at line 3252 of file wifi-phy-ofdma-test.cc.

Referenced by DoSetup(), and SendMuBar().

◆ m_phyAp

Ptr<SpectrumWifiPhy> TestUlOfdmaPowerControl::m_phyAp

private

PHY of AP.

Definition at line 3258 of file wifi-phy-ofdma-test.cc.

Referenced by DoSetup(), DoTeardown(), ReplaceReceiveOkCallbackOfAp(), RunOne(), SendMuBar(), and ~TestUlOfdmaPowerControl().

◆ m_requestedRssiSta1

double TestUlOfdmaPowerControl::m_requestedRssiSta1

private

requested RSSI (in dBm) from STA 1 at AP for HE TB PPDUs

Definition at line 3265 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and SendMuBar().

◆ m_requestedRssiSta2

double TestUlOfdmaPowerControl::m_requestedRssiSta2

private

requested RSSI (in dBm) from STA 2 at AP for HE TB PPDUs

Definition at line 3266 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and SendMuBar().

◆ m_rssiSta1

double TestUlOfdmaPowerControl::m_rssiSta1

private

expected RSSI (in dBm) from STA 1 at AP for HE TB PPDUs

Definition at line 3268 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and ReceiveOkCallbackAtAp().

◆ m_rssiSta2

double TestUlOfdmaPowerControl::m_rssiSta2

private

expected RSSI (in dBm) from STA 2 at AP for HE TB PPDUs

Definition at line 3269 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and ReceiveOkCallbackAtAp().

◆ m_sta1Dev

Ptr<WifiNetDevice> TestUlOfdmaPowerControl::m_sta1Dev

private

network device of STA 1

Definition at line 3255 of file wifi-phy-ofdma-test.cc.

Referenced by DoSetup(), DoTeardown(), ReceiveOkCallbackAtAp(), RunOne(), SendMuBar(), and ~TestUlOfdmaPowerControl().

◆ m_sta2Dev

Ptr<WifiNetDevice> TestUlOfdmaPowerControl::m_sta2Dev

private

network device of STA 2

Definition at line 3256 of file wifi-phy-ofdma-test.cc.

Referenced by DoSetup(), DoTeardown(), ReceiveOkCallbackAtAp(), RunOne(), SendMuBar(), and ~TestUlOfdmaPowerControl().

◆ m_tol

double TestUlOfdmaPowerControl::m_tol

private

tolerance (in dB) between received and expected RSSIs

Definition at line 3271 of file wifi-phy-ofdma-test.cc.

Referenced by ReceiveOkCallbackAtAp().

◆ m_txPowerAp

double TestUlOfdmaPowerControl::m_txPowerAp

private

transmit power (in dBm) of AP

Definition at line 3260 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), RunOne(), and SendMuBar().

◆ m_txPowerEnd

double TestUlOfdmaPowerControl::m_txPowerEnd

private

maximum transmission power (in dBm) for STAs

Definition at line 3262 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and RunOne().

◆ m_txPowerLevels

uint8_t TestUlOfdmaPowerControl::m_txPowerLevels

private

number of transmission power levels for STAs

Definition at line 3263 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and RunOne().

◆ m_txPowerStart

double TestUlOfdmaPowerControl::m_txPowerStart

private

minimum transmission power (in dBm) for STAs

Definition at line 3261 of file wifi-phy-ofdma-test.cc.

Referenced by DoRun(), and RunOne().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-phy-ofdma-test.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TestUlOfdmaPowerControl()

◆ ~TestUlOfdmaPowerControl()

Member Function Documentation

◆ DoRun()

◆ DoSetup()

◆ DoTeardown()

◆ ReceiveOkCallbackAtAp()

◆ ReplaceReceiveOkCallbackOfAp()

◆ RunOne()

◆ SendMuBar()

◆ SetupBa()

Member Data Documentation

◆ m_apDev

◆ m_bssColor

◆ m_phyAp

◆ m_requestedRssiSta1

◆ m_requestedRssiSta2

◆ m_rssiSta1

◆ m_rssiSta2

◆ m_sta1Dev

◆ m_sta2Dev

◆ m_tol

◆ m_txPowerAp

◆ m_txPowerEnd

◆ m_txPowerLevels

◆ m_txPowerStart
