Inheritance diagram for ThreeGppShadowingTestCase:

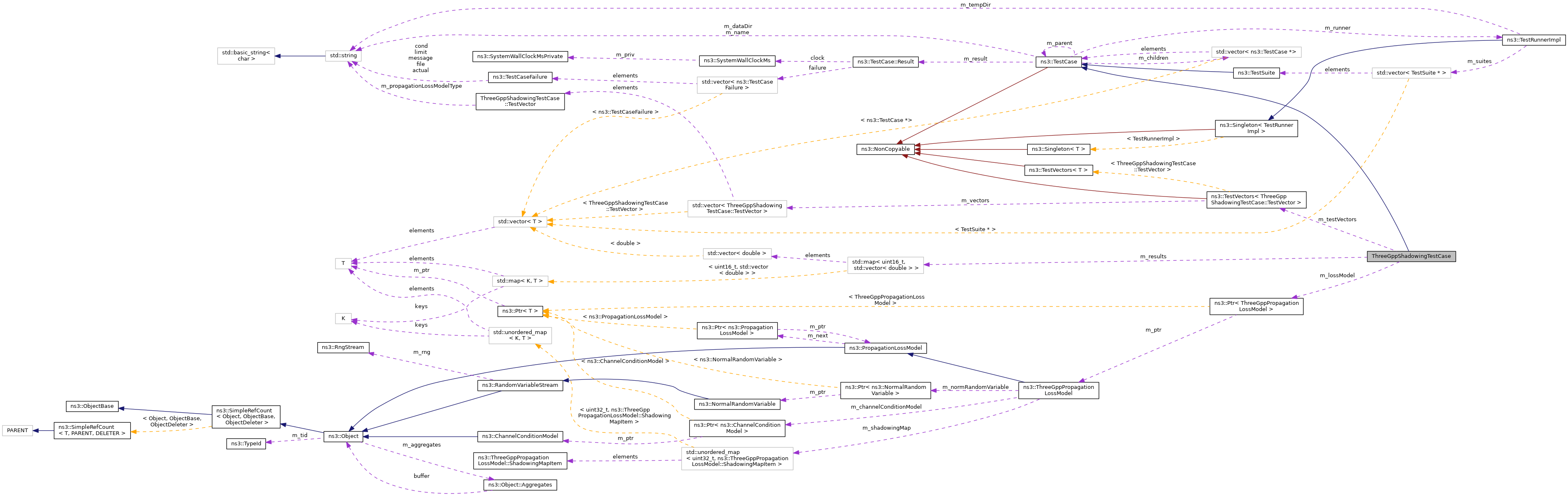

Collaboration diagram for ThreeGppShadowingTestCase:

Classes
struct	TestVector
	Struct containing the parameters for each test. More...

Public Member Functions
	ThreeGppShadowingTestCase ()

virtual	~ThreeGppShadowingTestCase ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	ChangeChannelCondition (Ptr< ChannelConditionModel > ccm)

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	EvaluateLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b, uint8_t testNum)
	Compute the propagation loss. More...

void	RunTest (uint16_t testNum, std::string propagationLossModelType, double hBs, double hUt, double distance, bool shadowingEnabled)
	Run the experiment. More...

Private Attributes
Ptr< ThreeGppPropagationLossModel >	m_lossModel
	the propagation loss model More...

std::map< uint16_t, std::vector< double > >	m_results
	used to store the test results More...

TestVectors< TestVector >	m_testVectors
	array containing all the test vectors More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 967 of file three-gpp-propagation-loss-model-test-suite.cc.

Constructor & Destructor Documentation

◆ ThreeGppShadowingTestCase()

ThreeGppShadowingTestCase::ThreeGppShadowingTestCase ( )

Definition at line 1016 of file three-gpp-propagation-loss-model-test-suite.cc.

◆ ~ThreeGppShadowingTestCase()

ThreeGppShadowingTestCase::~ThreeGppShadowingTestCase ( )

virtual

Definition at line 1021 of file three-gpp-propagation-loss-model-test-suite.cc.

Member Function Documentation

◆ ChangeChannelCondition()

void ThreeGppShadowingTestCase::ChangeChannelCondition ( Ptr< ChannelConditionModel > ccm )

private

Definition at line 1033 of file three-gpp-propagation-loss-model-test-suite.cc.

References m_lossModel, and ns3::ThreeGppPropagationLossModel::SetChannelConditionModel().

Referenced by RunTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void ThreeGppShadowingTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1086 of file three-gpp-propagation-loss-model-test-suite.cc.

References bianchi11ax::k, ThreeGppShadowingTestCase::TestVector::m_distance, ThreeGppShadowingTestCase::TestVector::m_hBs, ThreeGppShadowingTestCase::TestVector::m_hUt, ThreeGppShadowingTestCase::TestVector::m_propagationLossModelType, m_results, ThreeGppShadowingTestCase::TestVector::m_shadowingStdLos, ThreeGppShadowingTestCase::TestVector::m_shadowingStdNlos, m_testVectors, NS_TEST_EXPECT_MSG_EQ_TOL, and RunTest().

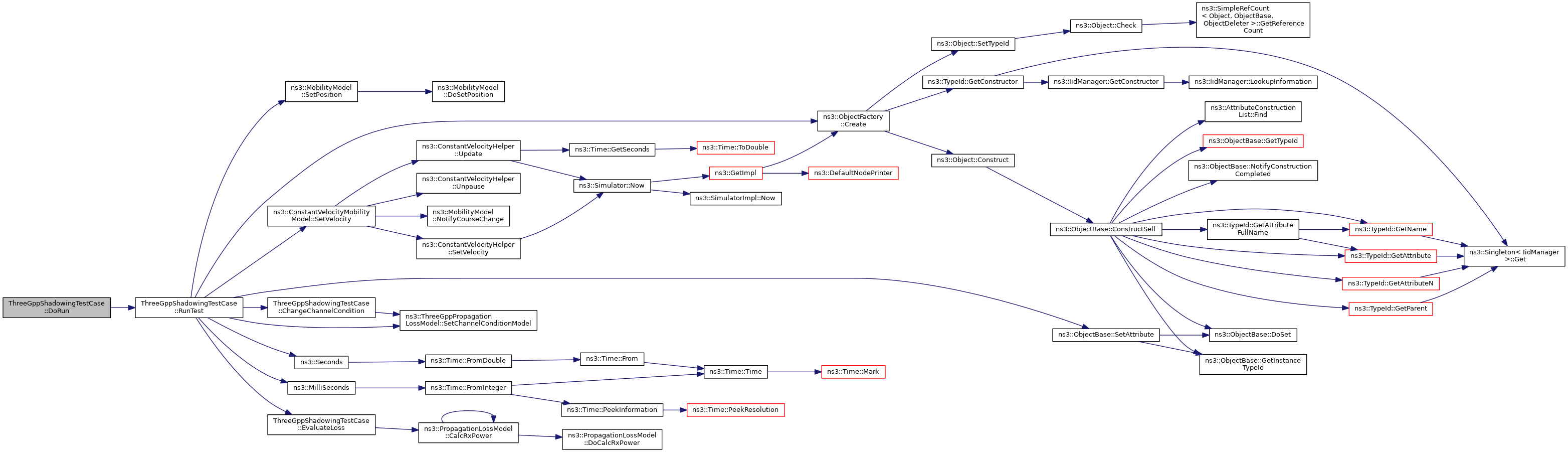

Here is the call graph for this function:

◆ EvaluateLoss()

void ThreeGppShadowingTestCase::EvaluateLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		uint8_t	testNum
	)

private

Compute the propagation loss.

Parameters

a	the first mobility model
b	the second mobility model
testNum	the index of the experiment

Definition at line 1026 of file three-gpp-propagation-loss-model-test-suite.cc.

References ns3::PropagationLossModel::CalcRxPower(), m_lossModel, and m_results.

Referenced by RunTest().

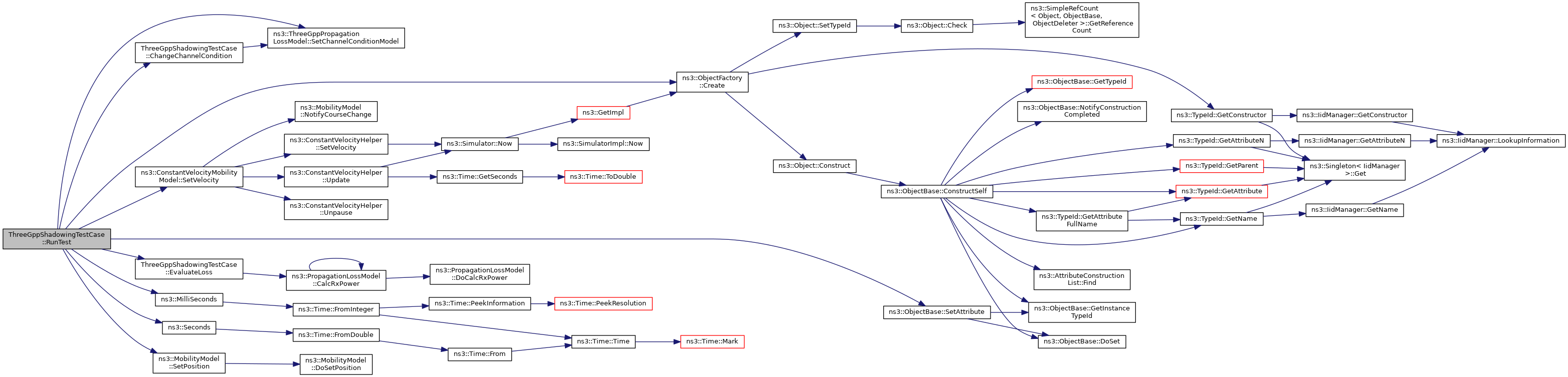

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunTest()

void ThreeGppShadowingTestCase::RunTest	(	uint16_t	testNum,
		std::string	propagationLossModelType,
		double	hBs,
		double	hUt,
		double	distance,
		bool	shadowingEnabled
	)

private

Run the experiment.

Parameters

testNum	the index of the experiment
propagationLossModelType	the type id of the propagation loss model to be used
hBs	the BS height in meters
hUt	the UT height in meters
distance	the intial distance between the BS and the UT
