Test case for the class ThreeGppV2vUrbanPropagationLossModel. More...

Inheritance diagram for ThreeGppV2vUrbanPropagationLossModelTestCase:

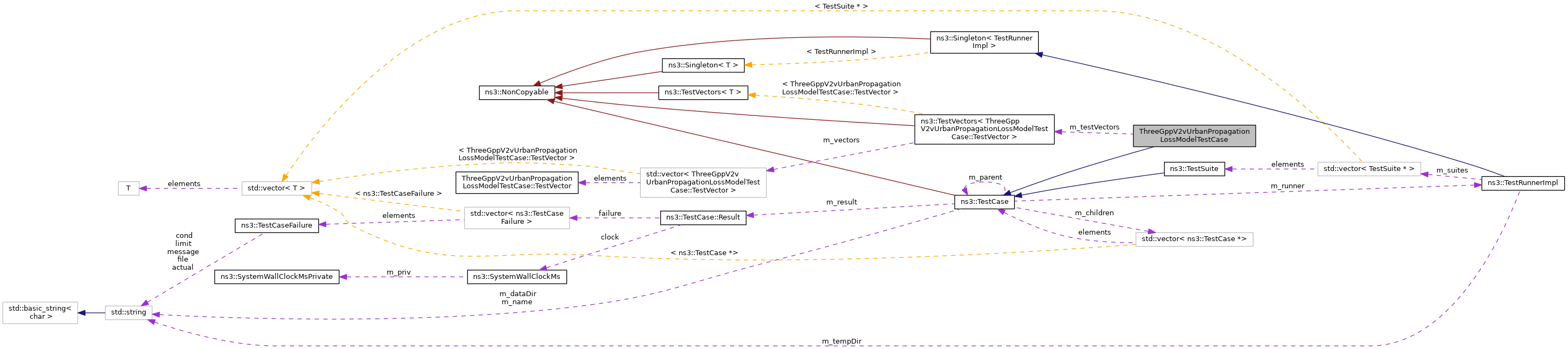

Collaboration diagram for ThreeGppV2vUrbanPropagationLossModelTestCase:

Classes
struct	TestVector
	Struct containing the parameters for each test. More...

Public Member Functions
	ThreeGppV2vUrbanPropagationLossModelTestCase ()
	Constructor. More...

virtual	~ThreeGppV2vUrbanPropagationLossModelTestCase ()
	Destructor. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions

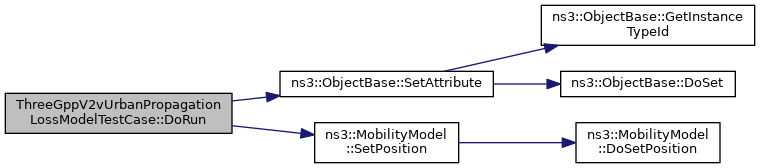

virtual void	DoRun (void)
	Build the simulation scenario and run the tests. More...

Private Attributes
TestVectors< TestVector >	m_testVectors
	array containing all the test vectors More...

double	m_tolerance
	tolerance More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case for the class ThreeGppV2vUrbanPropagationLossModel.

It computes the pathloss between two nodes and compares it with the value obtained using the formula in 3GPP TR 37.885 Table 6.2.1-1 for v2v communications (sidelink).

Note that 3GPP TR 37.885 defines 3 different channel states for vehicular environments: LOS, NLOS, and NLOSv, the latter representing the case in which the LOS path is blocked by other vehicles in the scenario. However, for computing the pathloss, only the two states are considered: LOS/NLOSv or NLOS (see TR 37.885 Section 6.2.1). In case of NLOSv, an additional vehicle blockage loss may be added, according to a log-normal random variable. Here, we test both conditions: LOS/NLOSv (without vehicle blockage loss) and NLOS.

Definition at line 675 of file three-gpp-propagation-loss-model-test-suite.cc.
