TimeSimpleTestCase Class Reference

time simple test case, Checks the basic operations on time More...

Inheritance diagram for TimeSimpleTestCase:

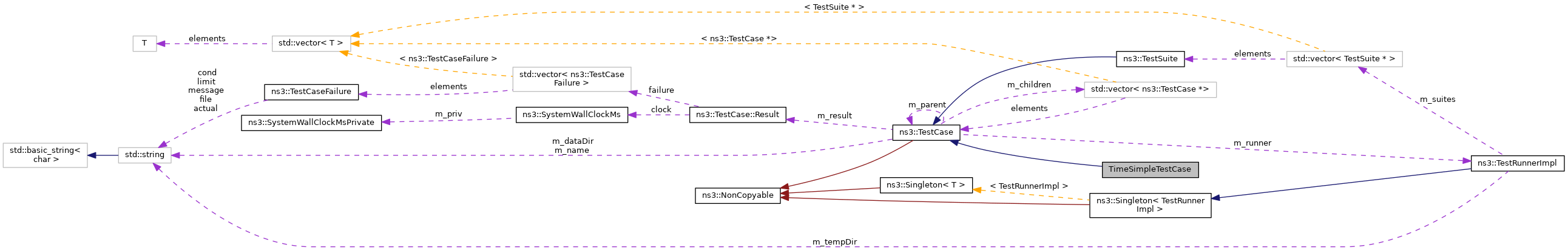

Collaboration diagram for TimeSimpleTestCase:

Public Member Functions
	TimeSimpleTestCase ()
	constructor for TimeSimpleTestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Runs the Simple Time test case. More...
virtual void	DoSetup (void)
	setup function for TimeSimpleTestCase. More...
virtual void	DoTeardown (void)
	Does the tear down for TimeSimpleTestCase. More...
virtual void	DoTimeOperations (void)
	Tests the Time Operations. More...
template<typename T >
void	TestDivision (Time t, Time expected, T val, const std::string &msg)
	Helper function to handle boilerplate code for division tests. More...
void	TestDivisionByDecimalTypes ()
	Test dividing a Time instance by various decimal types. More...
void	TestDivisionByIntegerTypes ()
	Test dividing a Time instance by various integer types. More...
template<typename T >
void	TestMultiplication (Time t, Time expected, T val, const std::string &msg)
	Helper function to handle boilerplate code for multiplication tests. More...
void	TestMultiplicationByDecimalTypes ()
	Test multiplying a Time instance by various decimal types. More...
void	TestMultiplicationByIntegerTypes ()
	Test multiplying a Time instance by various integer types. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

time simple test case, Checks the basic operations on time

Definition at line 39 of file time-test-suite.cc.

Constructor & Destructor Documentation

TimeSimpleTestCase()

TimeSimpleTestCase::TimeSimpleTestCase

(

)

constructor for TimeSimpleTestCase.

Definition at line 115 of file time-test-suite.cc.

Member Function Documentation

DoRun()

void TimeSimpleTestCase::DoRun ( void  )

privatevirtual

Runs the Simple Time test case.

Implements ns3::TestCase.

Definition at line 158 of file time-test-suite.cc.

References ns3::Days(), DoTimeOperations(), ns3::FemtoSeconds(), ns3::Time::GetInteger(), ns3::Time::GetNanoSeconds(), ns3::Hours(), ns3::MicroSeconds(), ns3::MilliSeconds(), ns3::Minutes(), ns3::NanoSeconds(), NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::PicoSeconds(), ns3::Seconds(), and ns3::Years().

Here is the call graph for this function:

DoSetup()

void TimeSimpleTestCase::DoSetup ( void  )

privatevirtual

setup function for TimeSimpleTestCase.

Reimplemented from ns3::TestCase.

Definition at line 120 of file time-test-suite.cc.

DoTeardown()

void TimeSimpleTestCase::DoTeardown ( void  )

privatevirtual

Does the tear down for TimeSimpleTestCase.

Reimplemented from ns3::TestCase.

Definition at line 207 of file time-test-suite.cc.

DoTimeOperations()

void TimeSimpleTestCase::DoTimeOperations ( void  )

privatevirtual

Tests the Time Operations.

Definition at line 123 of file time-test-suite.cc.

References ns3::Div(), NS_TEST_ASSERT_MSG_EQ, ns3::Rem(), TestDivisionByDecimalTypes(), TestDivisionByIntegerTypes(), TestMultiplicationByDecimalTypes(), and TestMultiplicationByIntegerTypes().

Referenced by DoRun().

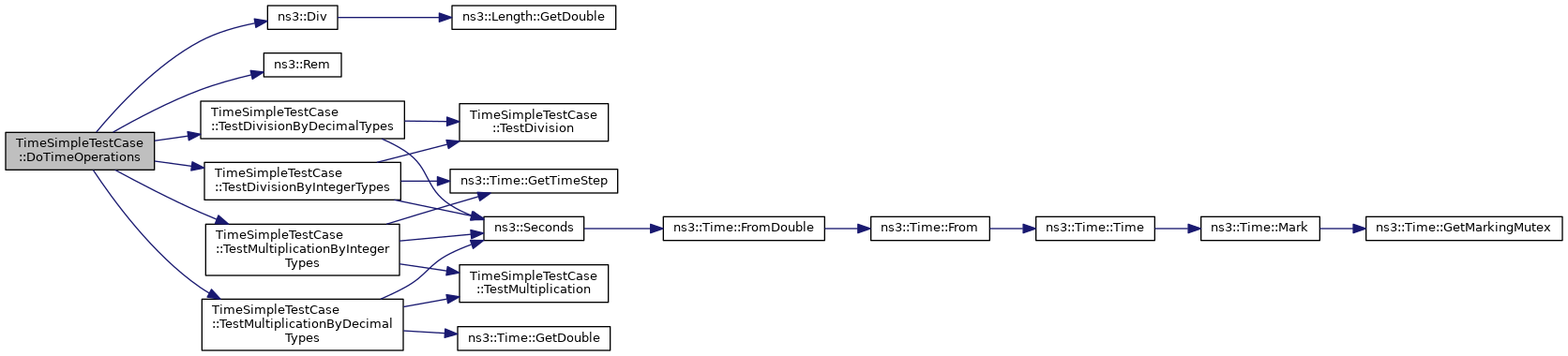

Here is the call graph for this function:

Here is the caller graph for this function:

TestDivision()

template<typename T >

void TimeSimpleTestCase::TestDivision ( Time  t, Time  expected, T  val, const std::string &  msg  )

private

Helper function to handle boilerplate code for division tests.

Template Parameters

T	type of division value

Parameters

t	Time value to divide
expected	Expected result of the divsion
val	Value to divide by
msg	Error message to print if test fails

Definition at line 278 of file time-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ.

Referenced by TestDivisionByDecimalTypes(), and TestDivisionByIntegerTypes().

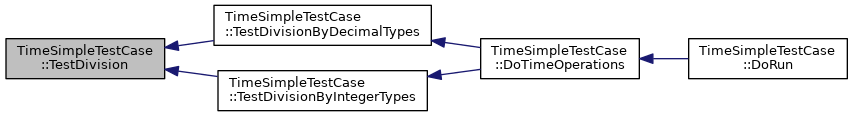

Here is the caller graph for this function:

TestDivisionByDecimalTypes()

void TimeSimpleTestCase::TestDivisionByDecimalTypes ( )

private

Test dividing a Time instance by various decimal types.

Definition at line 318 of file time-test-suite.cc.

References ns3::Seconds(), and TestDivision().

Referenced by DoTimeOperations().

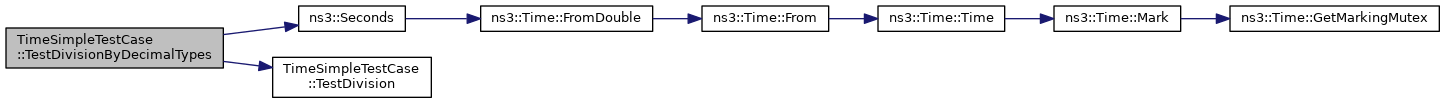

Here is the call graph for this function:

Here is the caller graph for this function:

TestDivisionByIntegerTypes()

void TimeSimpleTestCase::TestDivisionByIntegerTypes ( )

private

Test dividing a Time instance by various integer types.

Definition at line 286 of file time-test-suite.cc.

References ns3::Time::GetTimeStep(), ns3::Seconds(), and TestDivision().

Referenced by DoTimeOperations().

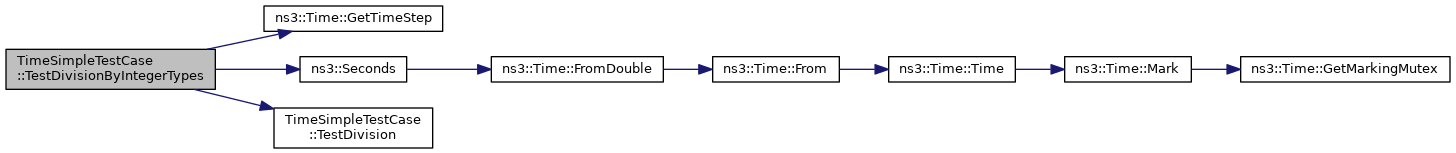

Here is the call graph for this function:

Here is the caller graph for this function:

TestMultiplication()

template<typename T >

void TimeSimpleTestCase::TestMultiplication ( Time  t, Time  expected, T  val, const std::string &  msg  )

private

Helper function to handle boilerplate code for multiplication tests.

Template Parameters

T	type of multiplication value

Parameters

t	Time value to multiply
expected	Expected result of the multiplication
val	Value to multiply by
msg	Error message to print if test fails

Definition at line 212 of file time-test-suite.cc.

Referenced by TestMultiplicationByDecimalTypes(), and TestMultiplicationByIntegerTypes().

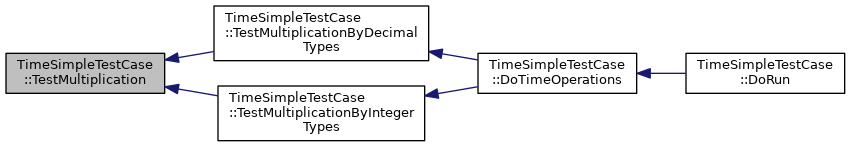

Here is the caller graph for this function:

TestMultiplicationByDecimalTypes()

void TimeSimpleTestCase::TestMultiplicationByDecimalTypes ( )

private

Test multiplying a Time instance by various decimal types.

Definition at line 263 of file time-test-suite.cc.

References ns3::Time::GetDouble(), ns3::Seconds(), and TestMultiplication().

Referenced by DoTimeOperations().

Here is the call graph for this function:

Here is the caller graph for this function:

TestMultiplicationByIntegerTypes()

void TimeSimpleTestCase::TestMultiplicationByIntegerTypes ( )

private

Test multiplying a Time instance by various integer types.

Definition at line 231 of file time-test-suite.cc.

References ns3::Time::GetTimeStep(), ns3::Seconds(), and TestMultiplication().

Referenced by DoTimeOperations().

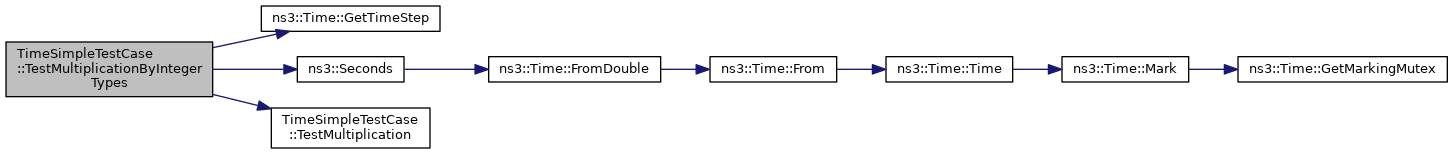

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/core/test/time-test-suite.cc
