WaypointLazyNotifyTrue Class Reference

Waypoint Lazy Notify True. More...

Inheritance diagram for WaypointLazyNotifyTrue:

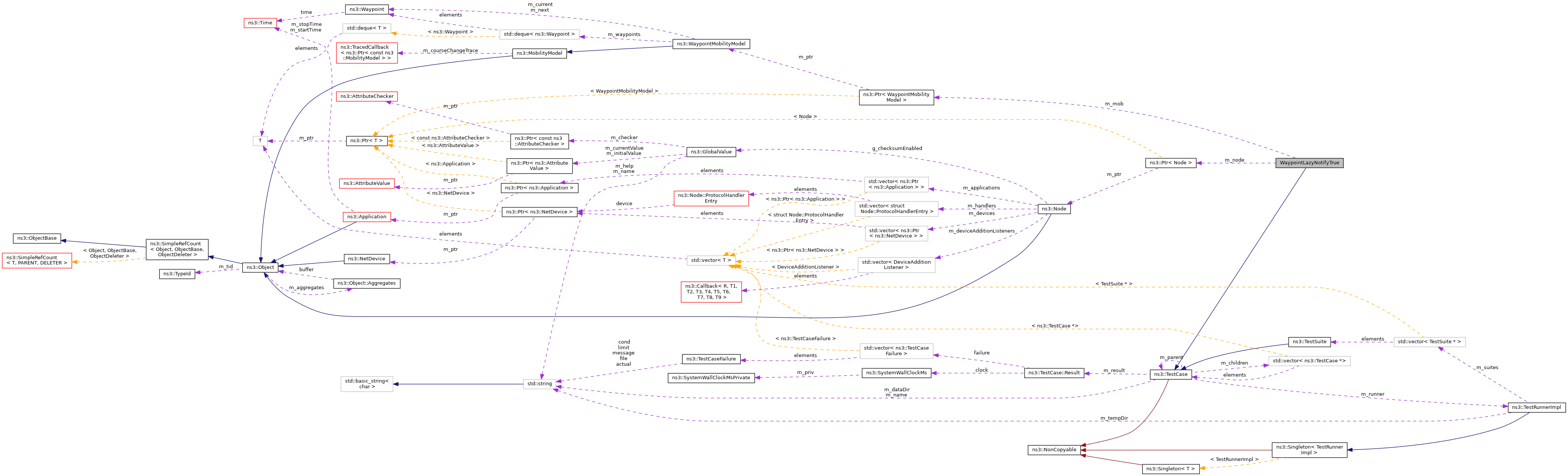

Collaboration diagram for WaypointLazyNotifyTrue:

Public Member Functions
	WaypointLazyNotifyTrue ()
virtual	~WaypointLazyNotifyTrue ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CourseChangeCallback (std::string path, Ptr< const MobilityModel > model)
	Course change callback. More...
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	TestXPosition (double expectedXPos)
	Text X position function. More...

Private Attributes
Ptr< WaypointMobilityModel >	m_mob
	modility model More...
Ptr< Node >	m_node
	node More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Waypoint Lazy Notify True.

Definition at line 118 of file mobility-test-suite.cc.

Constructor & Destructor Documentation

WaypointLazyNotifyTrue()

WaypointLazyNotifyTrue::WaypointLazyNotifyTrue

(

)

Definition at line 141 of file mobility-test-suite.cc.

~WaypointLazyNotifyTrue()

WaypointLazyNotifyTrue::~WaypointLazyNotifyTrue ( )

virtual

Definition at line 146 of file mobility-test-suite.cc.

Member Function Documentation

CourseChangeCallback()

void WaypointLazyNotifyTrue::CourseChangeCallback ( std::string  path, Ptr< const MobilityModel >  model  )

private

Course change callback.

Parameters

path	the path
model	the mobility model

Definition at line 158 of file mobility-test-suite.cc.

References ns3::Now(), and NS_TEST_EXPECT_MSG_EQ_TOL_INTERNAL.

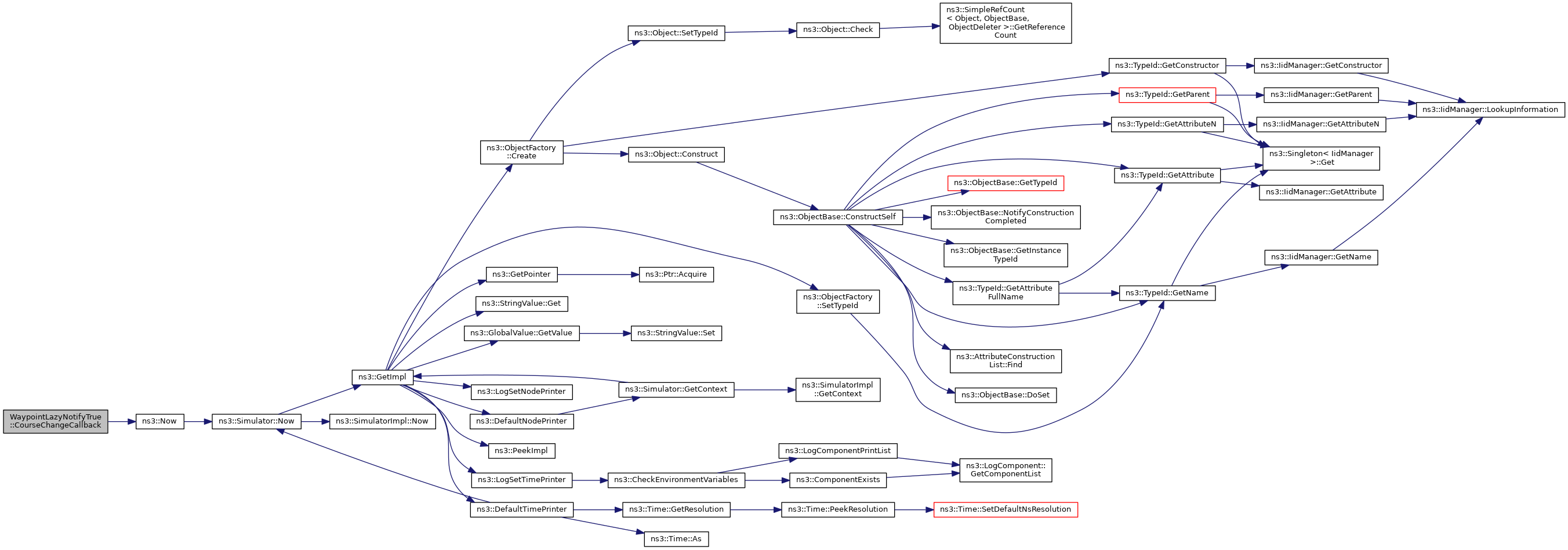

Here is the call graph for this function:

DoRun()

void WaypointLazyNotifyTrue::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 166 of file mobility-test-suite.cc.

References ns3::WaypointMobilityModel::AddWaypoint(), ns3::Object::AggregateObject(), m_mob, m_node, ns3::Seconds(), ns3::ObjectBase::SetAttributeFailSafe(), and TestXPosition().

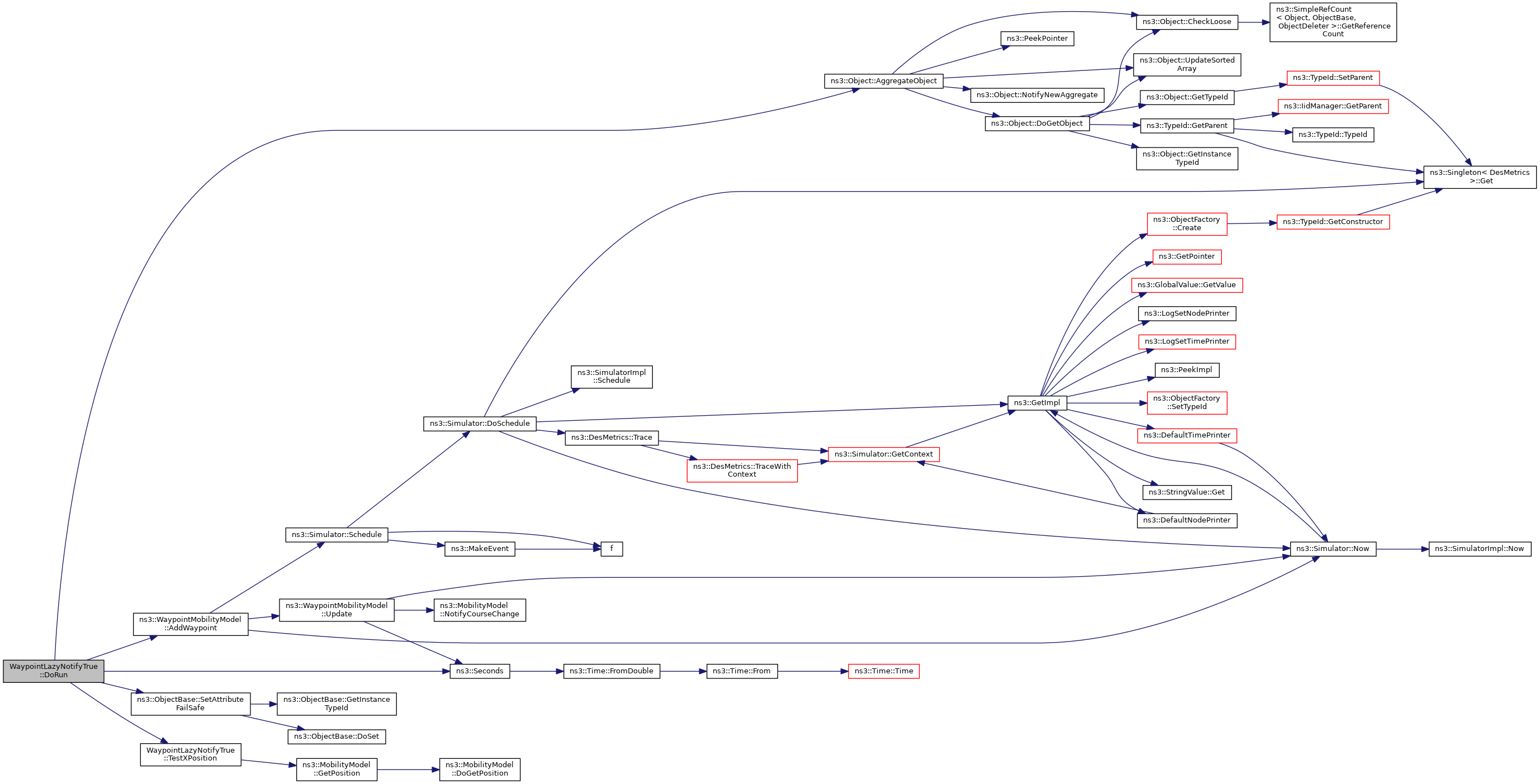

Here is the call graph for this function:

TestXPosition()

void WaypointLazyNotifyTrue::TestXPosition ( double  expectedXPos )

private

Text X position function.

Parameters

expectedXPos

the expected X position

Definition at line 151 of file mobility-test-suite.cc.

References ns3::MobilityModel::GetPosition(), m_mob, and NS_TEST_EXPECT_MSG_EQ_TOL_INTERNAL.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_mob

Ptr<WaypointMobilityModel> WaypointLazyNotifyTrue::m_mob

private

modility model

Definition at line 138 of file mobility-test-suite.cc.

Referenced by DoRun(), and TestXPosition().

m_node

Ptr<Node> WaypointLazyNotifyTrue::m_node

private

node

Definition at line 137 of file mobility-test-suite.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/mobility/test/mobility-test-suite.cc
