Test transmissions under different primary channel settings. More...

Inheritance diagram for WifiPrimaryChannelsTest:

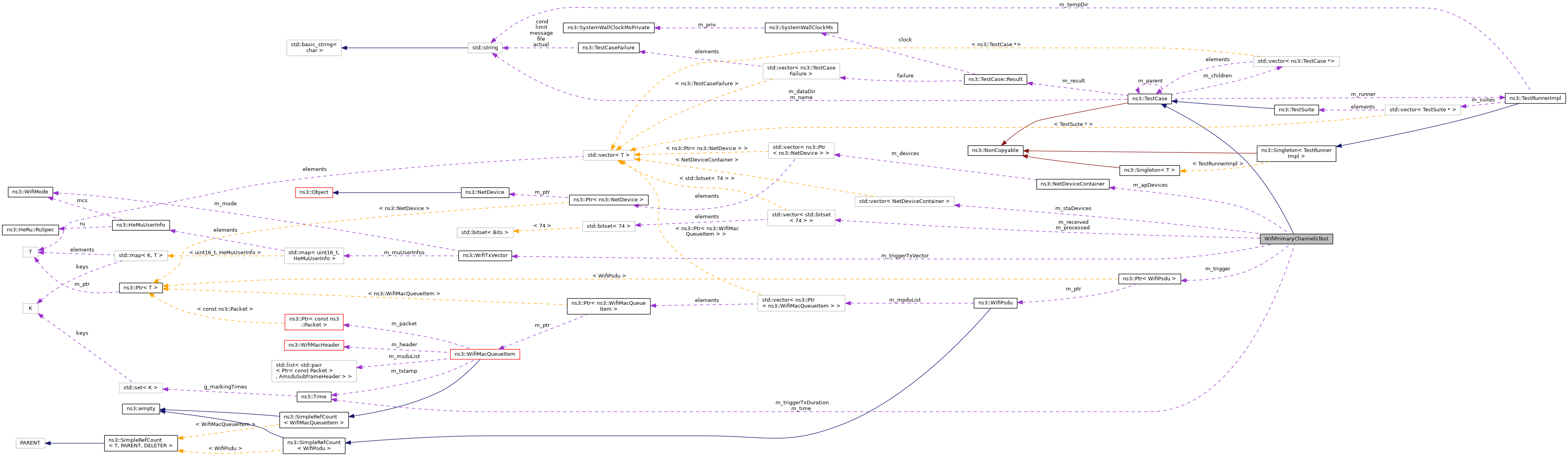

Collaboration diagram for WifiPrimaryChannelsTest:

Public Member Functions
	WifiPrimaryChannelsTest (uint16_t channelWidth, bool useDistinctBssColors)
	Constructor. More...

virtual	~WifiPrimaryChannelsTest ()

void	CheckAssociation (void)
	Check that all stations associated with an AP. More...

void	CheckReceivedMuPpdus (std::set< uint8_t > txBss, uint16_t txChannelWidth, HeRu::RuType ruType, std::size_t nRus, bool isDlMu)
	Check that (i) all stations/APs belonging to the given BSSes received the DL/UL MU PPDUs transmitted over the given channel width and RU width; and (ii) stations/APs belonging to the other BSSes did not receive any frame if BSS Color is set (due to BSS Color filtering) or if no transmission addressed to/from stations with the same AID was performed on a channel adjacent to the one they operate on, otherwise. More...

void	CheckReceivedSuPpdus (std::set< uint8_t > txBss, uint16_t txChannelWidth)
	Check that (i) all stations belonging to the given BSSes received the SU PPDUs transmitted over the given channel width; and (ii) all stations belonging to the other BSSes did not receive any frame if BSS Color is set (due to BSS Color filtering) or if no transmission was performed on a channel adjacent to the one they operate on, otherwise. More...

void	CheckReceivedTriggerFrames (std::set< uint8_t > txBss, uint16_t txChannelWidth)
	Check that (i) all stations belonging to the given BSSes received the transmitted Trigger Frame; and (ii) all stations belonging to the other BSSes did not receive any frame Trigger Frame (given that a Trigger Frame is transmitted on the primary20 channel and all the primary20 channels are distinct). More...

void	DoSendHeTbPpdu (uint8_t bss, uint16_t txChannelWidth, HeRu::RuType ruType, std::size_t nRus)
	Have the STAs of the given BSS transmit an HE TB PPDU using the given transmission channel width and RU type. More...

void	ReceiveDl (uint8_t bss, uint8_t station, Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > perMpduStatus)
	Callback invoked when a station receives a DL PPDU. More...

void	ReceiveUl (uint8_t bss, Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > perMpduStatus)
	Callback invoked when an AP receives an UL PPDU. More...

void	SendDlMuPpdu (uint8_t bss, uint16_t txChannelWidth, HeRu::RuType ruType, std::size_t nRus)
	Have the AP of the given BSS transmit a MU PPDU using the given transmission channel width and RU type. More...

void	SendDlSuPpdu (uint8_t bss, uint16_t txChannelWidth)
	Have the AP of the given BSS transmit a SU PPDU using the given transmission channel width. More...

void	SendHeTbPpdu (uint8_t bss, uint16_t txChannelWidth, HeRu::RuType ruType, std::size_t nRus)
	Have the AP of the given BSS transmit a Basic Trigger Frame. More...

void	Transmit (std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when PHY receives a PSDU to transmit. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	DoRun (void) override
	Implementation to actually run this TestCase. More...

void	DoSetup (void) override
	Implementation to do any local setup required for this TestCase. More...

Private Attributes
NetDeviceContainer	m_apDevices
	container for AP's NetDevice More...

uint16_t	m_channelWidth
	operating channel width in MHz More...

uint8_t	m_nBss
	number of BSSes More...

uint8_t	m_nStationsPerBss
	number of stations per AP More...

std::vector< std::bitset< 74 > >	m_processed
	whether the last packet transmitted to/from each of the (up to 74 per BSS) stations was processed More...

std::vector< std::bitset< 74 > >	m_received
	whether the last packet transmitted to/from each of the (up to 74 per BSS) stations was received More...

std::vector< NetDeviceContainer >	m_staDevices
	containers for stations' NetDevices More...

Time	m_time
	the time when the current action is executed More...

Ptr< WifiPsdu >	m_trigger
	Basic Trigger Frame. More...

Time	m_triggerTxDuration
	TX duration for Basic Trigger Frame. More...

WifiTxVector	m_triggerTxVector
	TX vector for Basic Trigger Frame. More...

bool	m_useDistinctBssColors
	true to set distinct BSS colors to BSSes More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test transmissions under different primary channel settings.

This test can be repeated for different widths of the operating channel. We configure as many BSSes as the number of distinct 20 MHz subchannels in the operating channel, so that each BSS is assigned a distinct primary20 channel. For each BSS, we test the transmission of SU PPDUs, DL MU PPDUs and HE TB PPDUs of all the widths (20 MHz, 40 MHz, etc.) allowed by the operating channel. Transmissions of a given type take place simultaneously in BSSes that do not operate on adjacent primary channels of the considered width (so that transmissions do not interfere with each other). It is also possible to select whether BSSes should be assigned (distinct) BSS colors or not.

Definition at line 58 of file wifi-primary-channels-test.cc.

Constructor & Destructor Documentation

◆ WifiPrimaryChannelsTest()

WifiPrimaryChannelsTest::WifiPrimaryChannelsTest	(	uint16_t	channelWidth,
		bool	useDistinctBssColors
	)

Constructor.

Parameters

channelWidth	the operating channel width (in MHz)
useDistinctBssColors	whether to set distinct BSS colors to BSSes

Definition at line 203 of file wifi-primary-channels-test.cc.

◆ ~WifiPrimaryChannelsTest()

WifiPrimaryChannelsTest::~WifiPrimaryChannelsTest ( )

virtual

Definition at line 210 of file wifi-primary-channels-test.cc.

Member Function Documentation

◆ CheckAssociation()

void WifiPrimaryChannelsTest::CheckAssociation ( void )

Check that all stations associated with an AP.

Definition at line 783 of file wifi-primary-channels-test.cc.

References ns3::NetDeviceContainer::Get(), m_apDevices, m_nBss, m_nStationsPerBss, third::mac, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

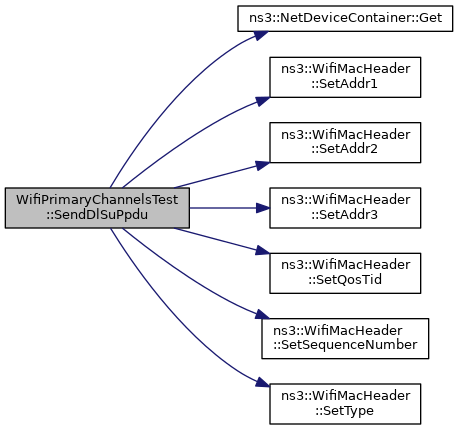

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckReceivedMuPpdus()

void WifiPrimaryChannelsTest::CheckReceivedMuPpdus	(	std::set< uint8_t >	txBss,
		uint16_t	txChannelWidth,
		HeRu::RuType	ruType,
		std::size_t	nRus,
		bool	isDlMu
	)

Check that (i) all stations/APs belonging to the given BSSes received the DL/UL MU PPDUs transmitted over the given channel width and RU width; and (ii) stations/APs belonging to the other BSSes did not receive any frame if BSS Color is set (due to BSS Color filtering) or if no transmission addressed to/from stations with the same AID was performed on a channel adjacent to the one they operate on, otherwise.

Parameters

txBss	the set of BSSes that transmitted an SU PPDU
txChannelWidth	the given transmission channel width in MHz
ruType	the given RU type
nRus	the number of RUs
isDlMu	true for DL MU PPDU, false for HE TB PPDU

Definition at line 857 of file wifi-primary-channels-test.cc.

References m_nBss, m_received, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckReceivedSuPpdus()

void WifiPrimaryChannelsTest::CheckReceivedSuPpdus	(	std::set< uint8_t >	txBss,
		uint16_t	txChannelWidth
	)

Check that (i) all stations belonging to the given BSSes received the SU PPDUs transmitted over the given channel width; and (ii) all stations belonging to the other BSSes did not receive any frame if BSS Color is set (due to BSS Color filtering) or if no transmission was performed on a channel adjacent to the one they operate on, otherwise.

Parameters

txBss	the set of BSSes that transmitted an SU PPDU
txChannelWidth	the given transmission channel width in MHz

Definition at line 795 of file wifi-primary-channels-test.cc.

References m_nBss, m_nStationsPerBss, m_received, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckReceivedTriggerFrames()

void WifiPrimaryChannelsTest::CheckReceivedTriggerFrames	(	std::set< uint8_t >	txBss,
		uint16_t	txChannelWidth
	)

Check that (i) all stations belonging to the given BSSes received the transmitted Trigger Frame; and (ii) all stations belonging to the other BSSes did not receive any frame Trigger Frame (given that a Trigger Frame is transmitted on the primary20 channel and all the primary20 channels are distinct).

Parameters

txBss	the set of BSSes that transmitted a Trigger Frame
txChannelWidth	the given transmission channel width in MHz

Definition at line 965 of file wifi-primary-channels-test.cc.

References m_nBss, m_nStationsPerBss, m_received, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void WifiPrimaryChannelsTest::DoRun ( void )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 430 of file wifi-primary-channels-test.cc.

References CheckAssociation(), CheckReceivedMuPpdus(), CheckReceivedSuPpdus(), CheckReceivedTriggerFrames(), ns3::Config::Connect(), ns3::NetDeviceContainer::Get(), ns3::WifiNetDevice::GetMac(), ns3::WifiNetDevice::GetPhy(), m_apDevices, m_channelWidth, m_nBss, m_nStationsPerBss, m_staDevices, m_time, m_triggerTxDuration, third::mac, ns3::MakeCallback(), ns3::MicroSeconds(), ns3::MilliSeconds(), ReceiveDl(), ReceiveUl(), SendDlMuPpdu(), SendDlSuPpdu(), SendHeTbPpdu(), and Transmit().

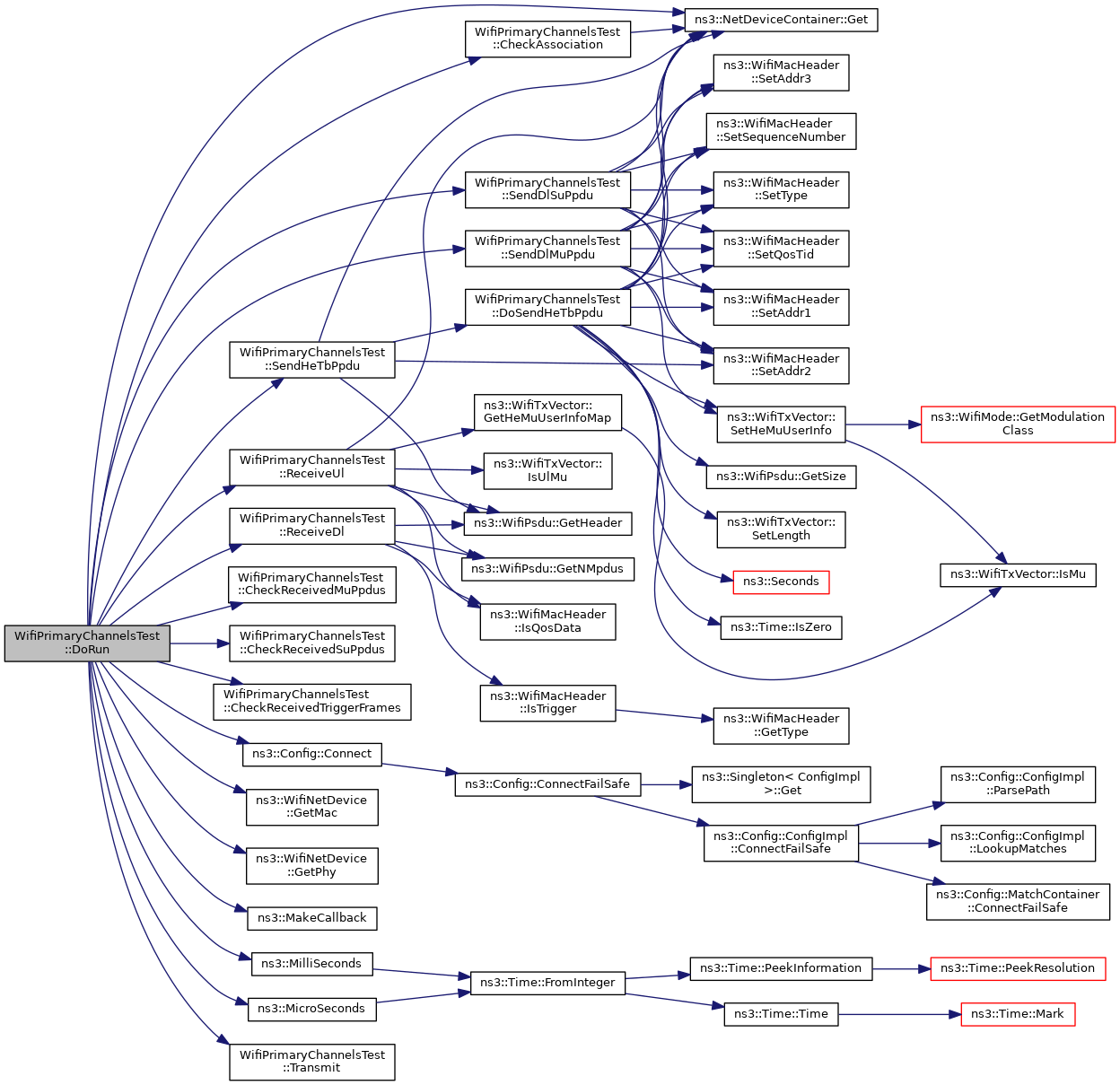

Here is the call graph for this function:

◆ DoSendHeTbPpdu()

void WifiPrimaryChannelsTest::DoSendHeTbPpdu	(	uint8_t	bss,
		uint16_t	txChannelWidth,
		HeRu::RuType	ruType,
		std::size_t	nRus
	)

Have the STAs of the given BSS transmit an HE TB PPDU using the given transmission channel width and RU type.

Parameters

bss	the given BSS
txChannelWidth	the given transmission channel width in MHz
ruType	the given RU type
nRus	the number of RUs

Definition at line 736 of file wifi-primary-channels-test.cc.

References ns3::NetDeviceContainer::Get(), ns3::WifiPsdu::GetSize(), ns3::Time::IsZero(), m_apDevices, m_staDevices, NS_LOG_INFO, ns3::Seconds(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetLength(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetSequenceNumber(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by SendHeTbPpdu().

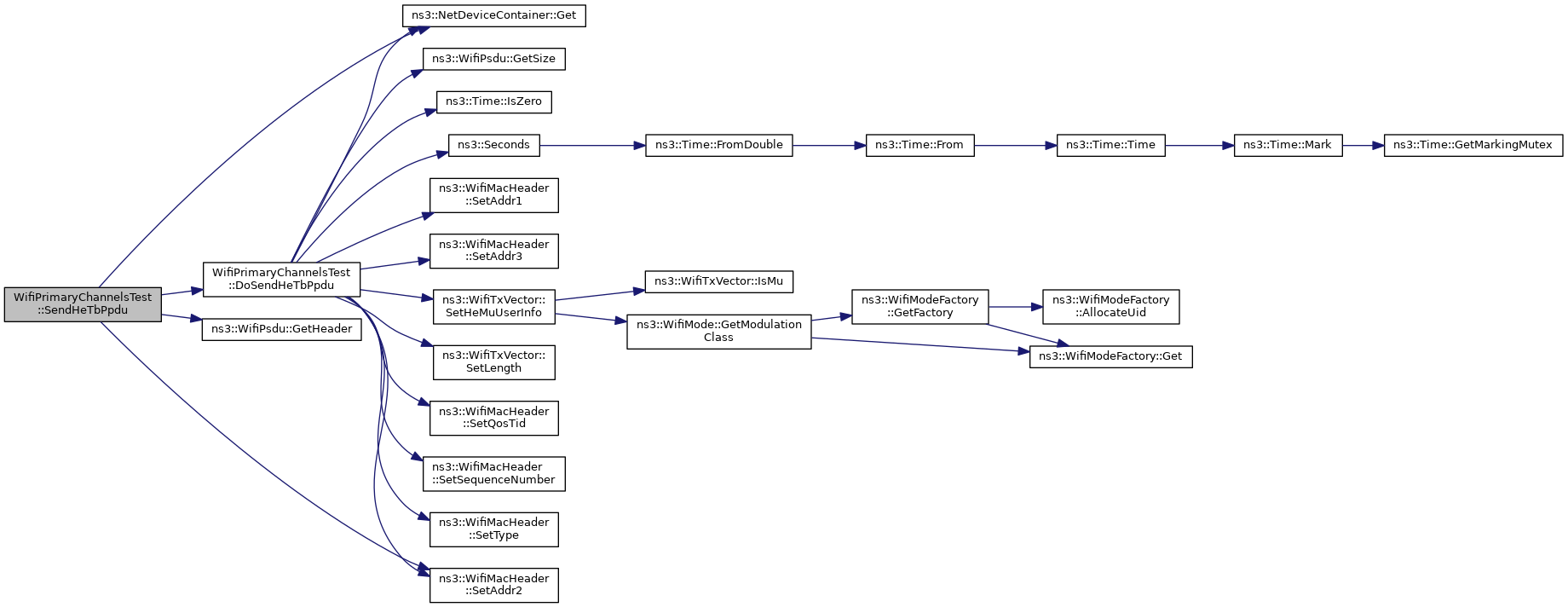

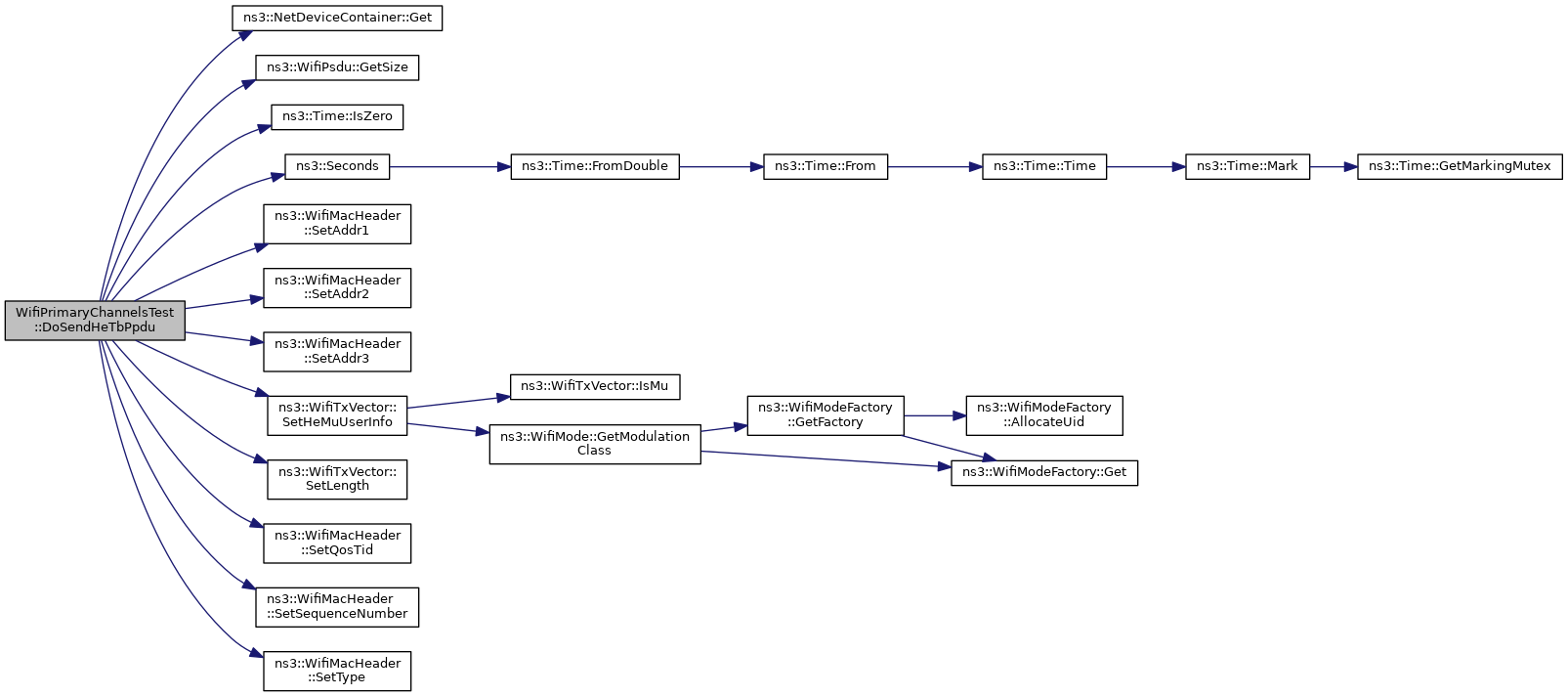

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSetup()

void WifiPrimaryChannelsTest::DoSetup ( void )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 292 of file wifi-primary-channels-test.cc.

References ns3::ListPositionAllocator::Add(), ns3::NetDeviceContainer::Add(), ns3::Packet::AddHeader(), ns3::SpectrumChannel::AddPropagationLossModel(), ns3::BASIC_TRIGGER, ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::WifiPsdu::GetSize(), m_apDevices, m_channelWidth, m_nBss, m_nStationsPerBss, m_processed, m_received, m_staDevices, m_trigger, m_triggerTxDuration, m_triggerTxVector, m_useDistinctBssColors, third::mac, ns3::MicroSeconds(), third::mobility, NS_ABORT_MSG, third::phy, ns3::SpectrumChannel::SetPropagationDelayModel(), ns3::WifiMacHeader::SetType(), ns3::CtrlTriggerHeader::SetType(), third::wifi, ns3::WIFI_MAC_CTL_TRIGGER, ns3::WIFI_PREAMBLE_LONG, ns3::WIFI_STANDARD_80211ax_5GHZ, and third::wifiStaNodes.

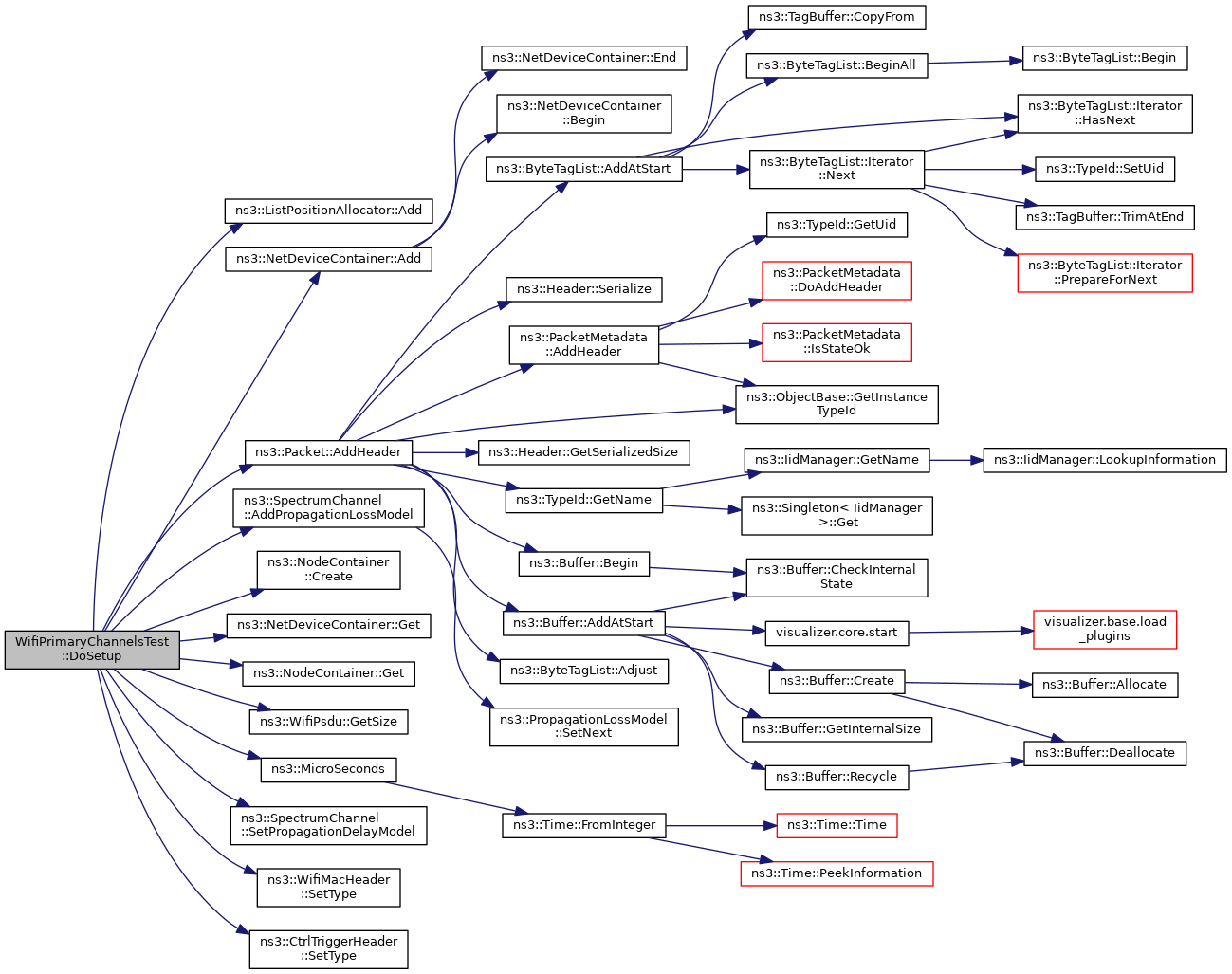

Here is the call graph for this function:

◆ ReceiveDl()

void WifiPrimaryChannelsTest::ReceiveDl	(	uint8_t	bss,
		uint8_t	station,
		Ptr< WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	perMpduStatus
	)

Callback invoked when a station receives a DL PPDU.

Parameters

bss	the BSS the receiving STA belongs to
station	the receiving station
psdu	the received PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	TxVector of the received PSDU
perMpduStatus	per MPDU reception status

Definition at line 235 of file wifi-primary-channels-test.cc.

References ns3::WifiPsdu::GetHeader(), ns3::WifiPsdu::GetNMpdus(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsTrigger(), m_received, NS_LOG_INFO, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

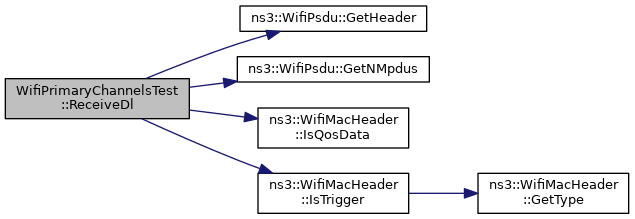

Here is the call graph for this function:

Here is the caller graph for this function:

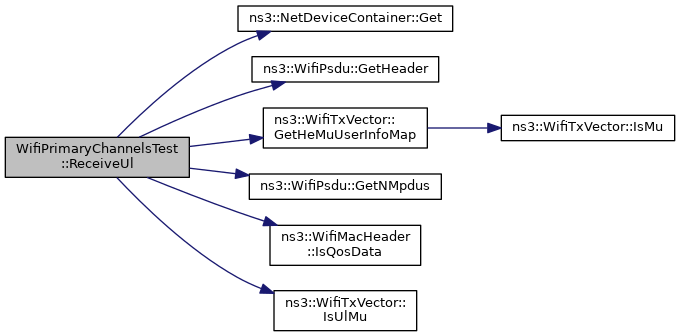

◆ ReceiveUl()

void WifiPrimaryChannelsTest::ReceiveUl	(	uint8_t	bss,
		Ptr< WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	perMpduStatus
	)
