ns3::Angles Class Reference

Class holding the azimuth and inclination angles of spherical coordinates. More...

`#include "angles.h"`

## Public Member Functions

Angles (double azimuth, double inclination)
This constructor allows to specify azimuth and inclination. More...

Angles (Vector v)
This constructor will initialize azimuth and inclination by converting the given 3D vector from cartesian coordinates to spherical coordinates Note: azimuth and inclination angles for a zero-length vector are not defined and are thus initialized to NAN. More...

Angles (Vector v, Vector o)
This constructor initializes an Angles instance with the angles of the spherical coordinates of point v respect to point o. More...

double GetAzimuth (void) const
Getter for azimuth angle. More...

double GetInclination (void) const
Getter for inclination angle. More...

void SetAzimuth (double azimuth)
Setter for azimuth angle. More...

void SetInclination (double inclination)
Setter for inclination angle. More...

## Static Public Attributes

static bool m_printDeg = false
flag for printing in radians or degrees units More...

## Private Member Functions

Angles ()
Default constructor is disabled. More...

void CheckIfValid (void) const
Check if Angle is valid or not Warns the user if the Angle is undefined (non-finite azimuth or inclination), throws an assert if the inclination angle is invalid (not in [0, M_PI]) More...

void NormalizeAngles (void)
Normalize the angle azimuth angle range between in [-M_PI, M_PI) while checking if the angle is valid, i.e., finite and within the bounds. More...

## Private Attributes

double m_azimuth
the azimuth angle in radians More...

double m_inclination
the inclination angle in radians More...

## Friends

std::ostream & operator<< (std::ostream &os, const Angles &a)

std::istream & operator>> (std::istream &is, Angles &a)

## Detailed Description

Class holding the azimuth and inclination angles of spherical coordinates.

The notation is the one used in "Antenna Theory - Analysis and Design", C.A. Balanis, Wiley, 2nd Ed., section 2.2 "Radiation pattern". This notation corresponds to the standard spherical coordinates, with azimuth measured counterclockwise in the x-y plane off the x-axis, and inclination measured off the z-axis. Azimuth is consistently normalized to be in [-M_PI, M_PI).

```     ^
z |
|_ inclination
| \
| /|
|/ |   y
+-------->
/  \|
/___/
x /  azimuth
|/```

Definition at line 118 of file angles.h.

## ◆ Angles() [1/4]

 ns3::Angles::Angles ( double azimuth, double inclination )

This constructor allows to specify azimuth and inclination.

Inclination must be in [0, M_PI], while azimuth is automatically notmalized in [-M_PI, M_PI)

Parameters
 azimuth the azimuth angle in radians inclination the inclination angle in radians

Definition at line 177 of file angles.cc.

References NormalizeAngles(). Here is the call graph for this function:

## ◆ Angles() [2/4]

 ns3::Angles::Angles ( Vector v )

This constructor will initialize azimuth and inclination by converting the given 3D vector from cartesian coordinates to spherical coordinates Note: azimuth and inclination angles for a zero-length vector are not defined and are thus initialized to NAN.

Parameters
 v the 3D vector in cartesian coordinates

Definition at line 185 of file angles.cc.

References m_azimuth, m_inclination, and NormalizeAngles(). Here is the call graph for this function:

## ◆ Angles() [3/4]

 ns3::Angles::Angles ( Vector v, Vector o )

This constructor initializes an Angles instance with the angles of the spherical coordinates of point v respect to point o.

Parameters
 v the point (in cartesian coordinates) for which the angles are determined o the origin (in cartesian coordinates) of the spherical coordinate system

Definition at line 199 of file angles.cc.

## ◆ Angles() [4/4]

 ns3::Angles::Angles ( )
private

Default constructor is disabled.

Definition at line 172 of file angles.cc.

## ◆ CheckIfValid()

 void ns3::Angles::CheckIfValid ( void ) const
private

Check if Angle is valid or not Warns the user if the Angle is undefined (non-finite azimuth or inclination), throws an assert if the inclination angle is invalid (not in [0, M_PI])

Definition at line 251 of file angles.cc.

References m_azimuth, m_inclination, NS_ASSERT_MSG, and NS_LOG_WARN.

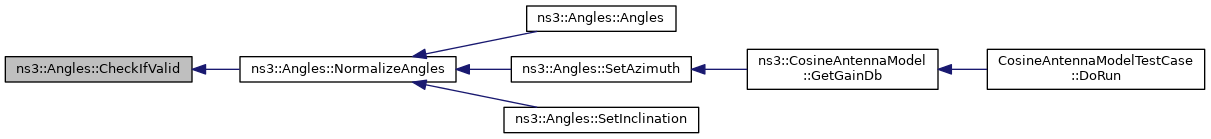

Referenced by NormalizeAngles(). Here is the caller graph for this function:

## ◆ GetAzimuth()

 double ns3::Angles::GetAzimuth ( void ) const

Getter for azimuth angle.

Returns

Definition at line 222 of file angles.cc.

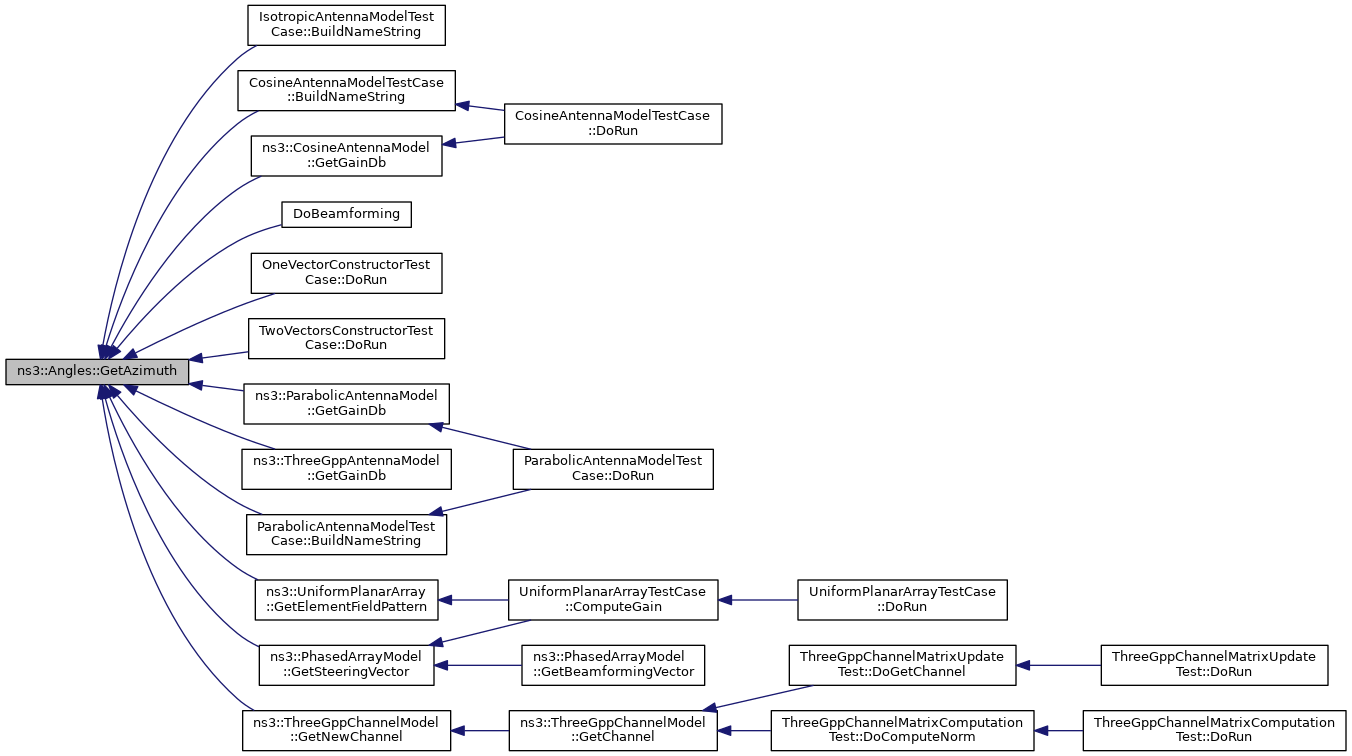

References m_azimuth. Here is the caller graph for this function:

## ◆ GetInclination()

 double ns3::Angles::GetInclination ( void ) const

Getter for inclination angle.

Returns

Definition at line 229 of file angles.cc.

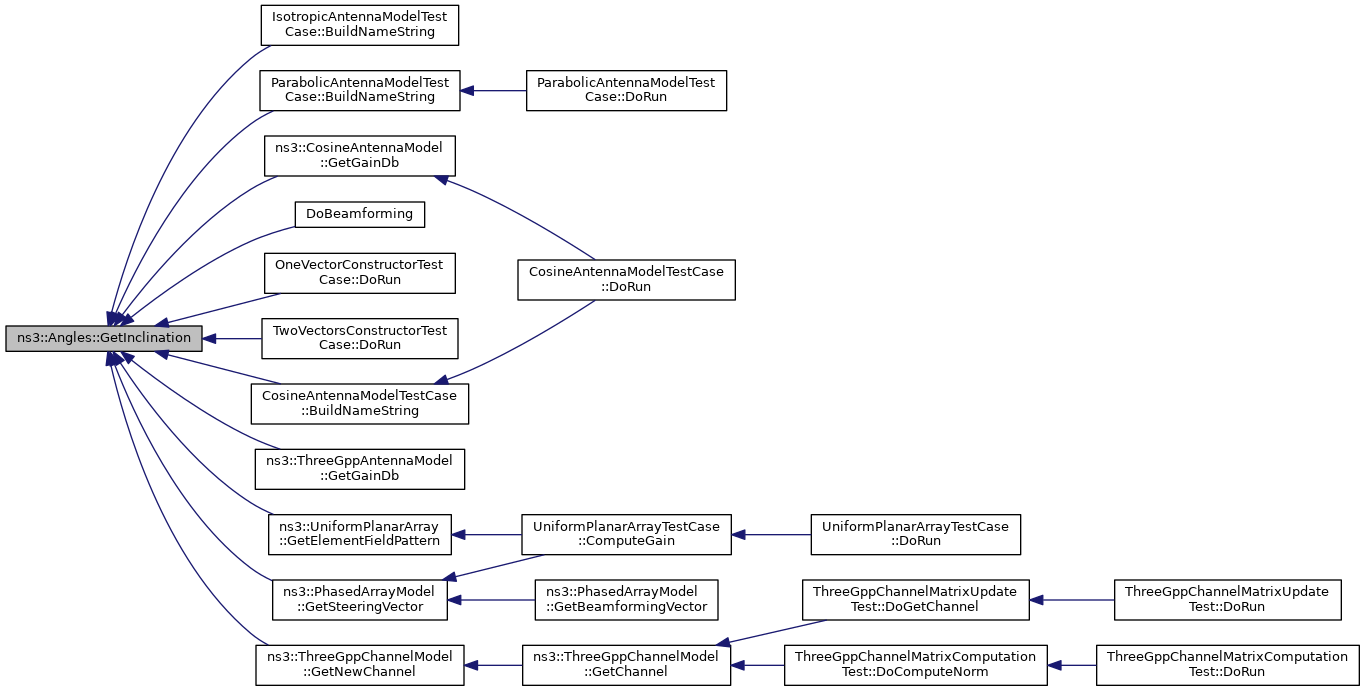

References m_inclination. Here is the caller graph for this function:

## ◆ NormalizeAngles()

 void ns3::Angles::NormalizeAngles ( void )
private

Normalize the angle azimuth angle range between in [-M_PI, M_PI) while checking if the angle is valid, i.e., finite and within the bounds.

Note: while an arbitrary value for the azimuth angle is valid and can be wrapped in [-M_PI, M_PI), an inclination angle outside the [0, M_PI] range can be ambiguos and is thus not valid.

Definition at line 236 of file angles.cc.

References CheckIfValid(), m_azimuth, and ns3::WrapToPi().

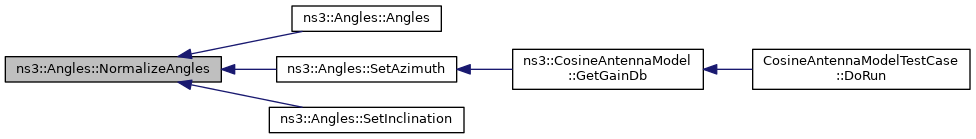

Referenced by Angles(), SetAzimuth(), and SetInclination(). Here is the call graph for this function: Here is the caller graph for this function:

## ◆ SetAzimuth()

 void ns3::Angles::SetAzimuth ( double azimuth )

Setter for azimuth angle.

Parameters

Definition at line 206 of file angles.cc.

References m_azimuth, and NormalizeAngles().

Referenced by ns3::CosineAntennaModel::GetGainDb(). Here is the call graph for this function: Here is the caller graph for this function:

## ◆ SetInclination()

 void ns3::Angles::SetInclination ( double inclination )

Setter for inclination angle.

Parameters
 inclination angle in radians. Must be in [0, M_PI]

Definition at line 214 of file angles.cc.

References m_inclination, and NormalizeAngles(). Here is the call graph for this function:

## ◆ operator<<

 std::ostream& operator<< ( std::ostream & os, const Angles & a )
friend

Definition at line 137 of file angles.cc.

## ◆ operator>>

 std::istream& operator>> ( std::istream & is, Angles & a )
friend

Definition at line 160 of file angles.cc.

## ◆ m_azimuth

 double ns3::Angles::m_azimuth
private

Definition at line 211 of file angles.h.

## ◆ m_inclination

 double ns3::Angles::m_inclination
private

Definition at line 212 of file angles.h.

Referenced by Angles(), CheckIfValid(), GetInclination(), ns3::operator<<(), ns3::operator>>(), and SetInclination().

## ◆ m_printDeg

 bool ns3::Angles::m_printDeg = false
static

flag for printing in radians or degrees units

Definition at line 184 of file angles.h.

Referenced by ns3::operator<<().
