Interface to network animator. More...

#include "animation-interface.h"

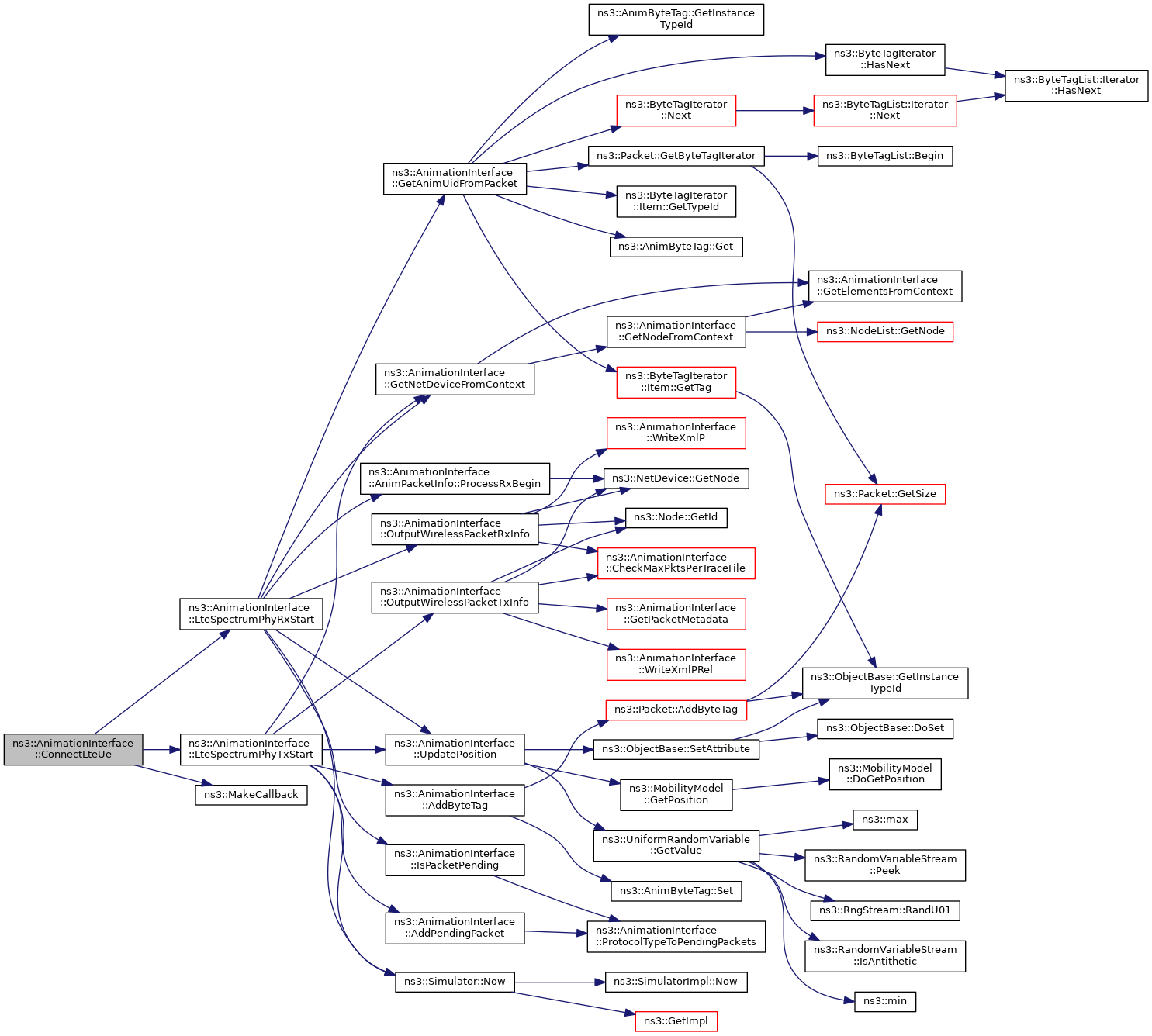

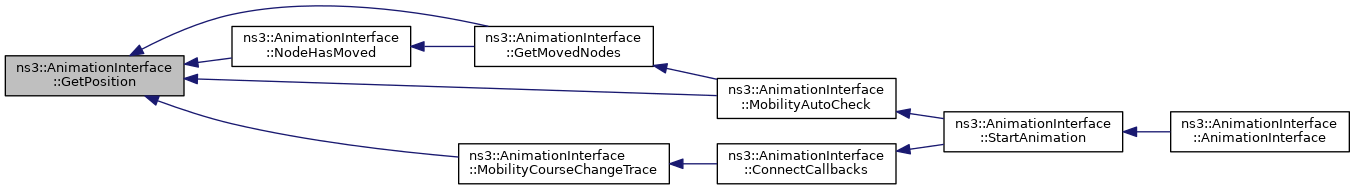

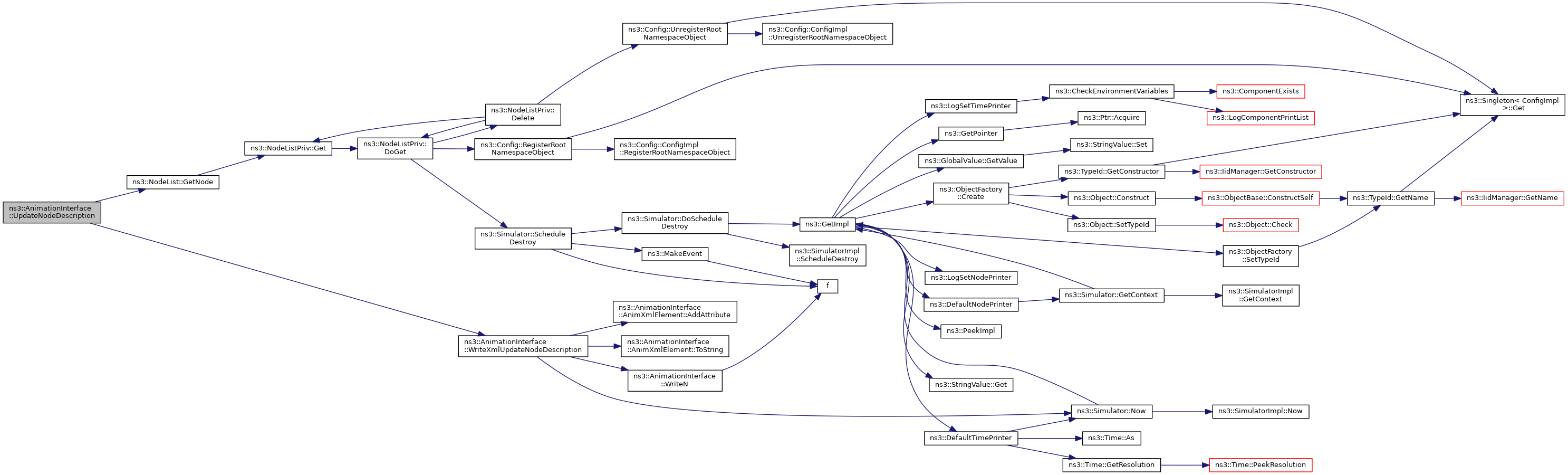

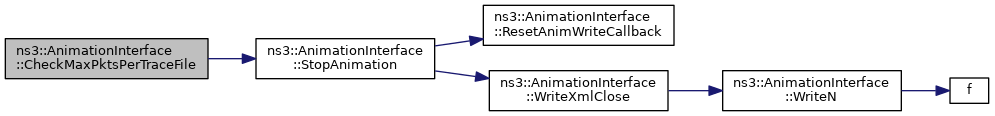

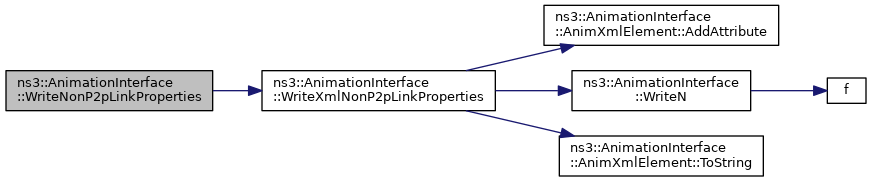

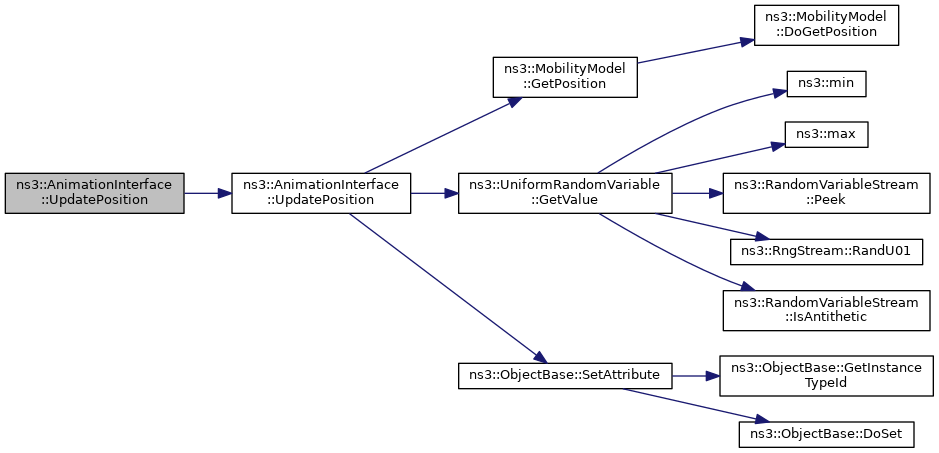

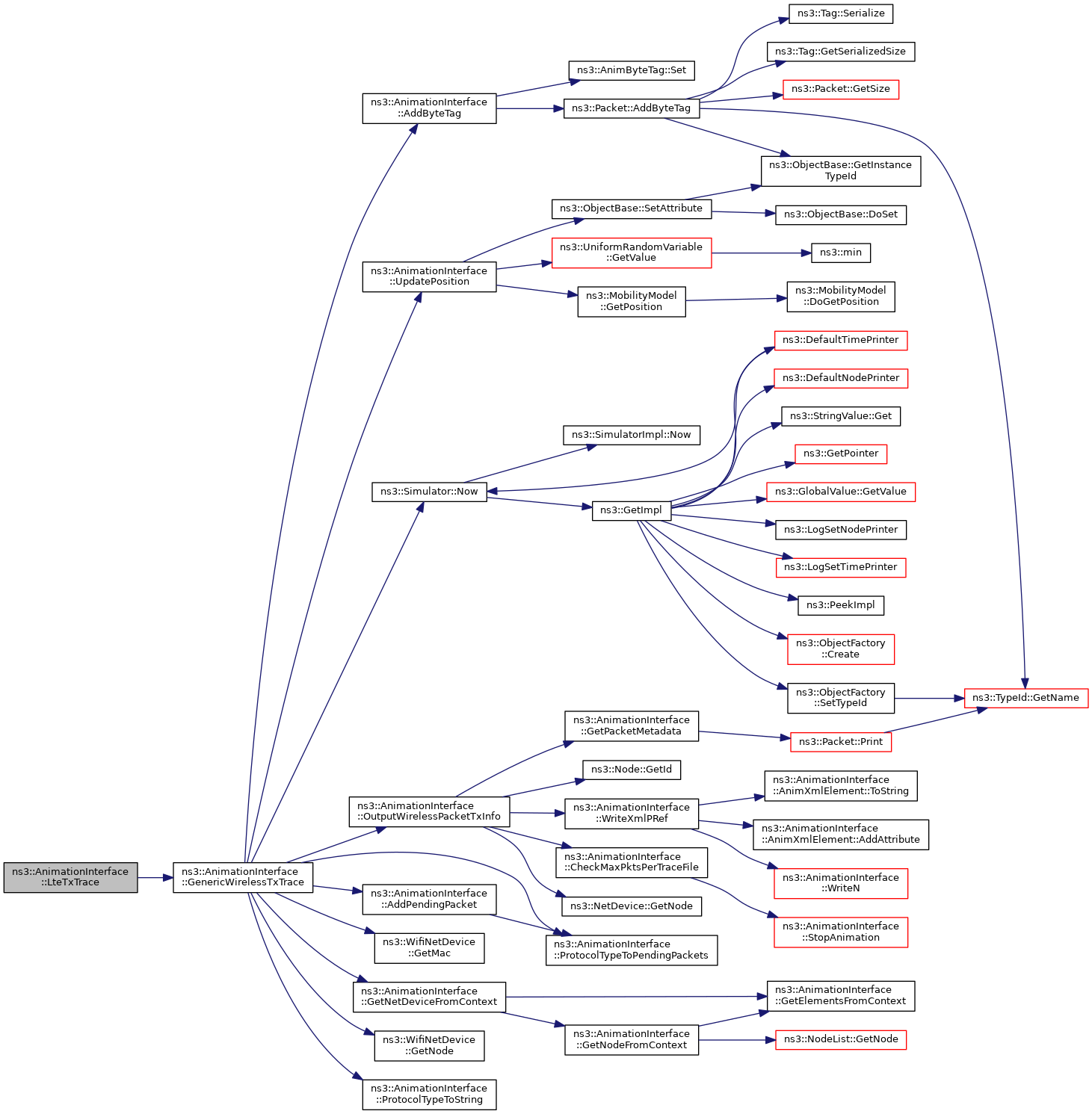

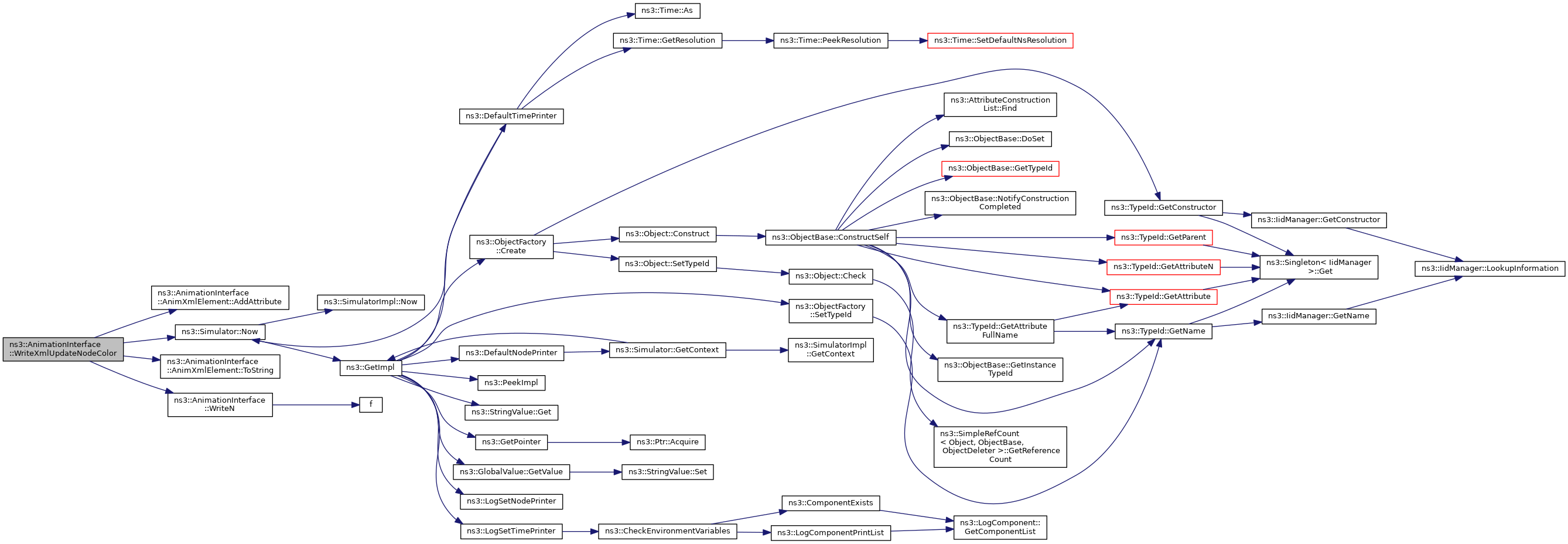

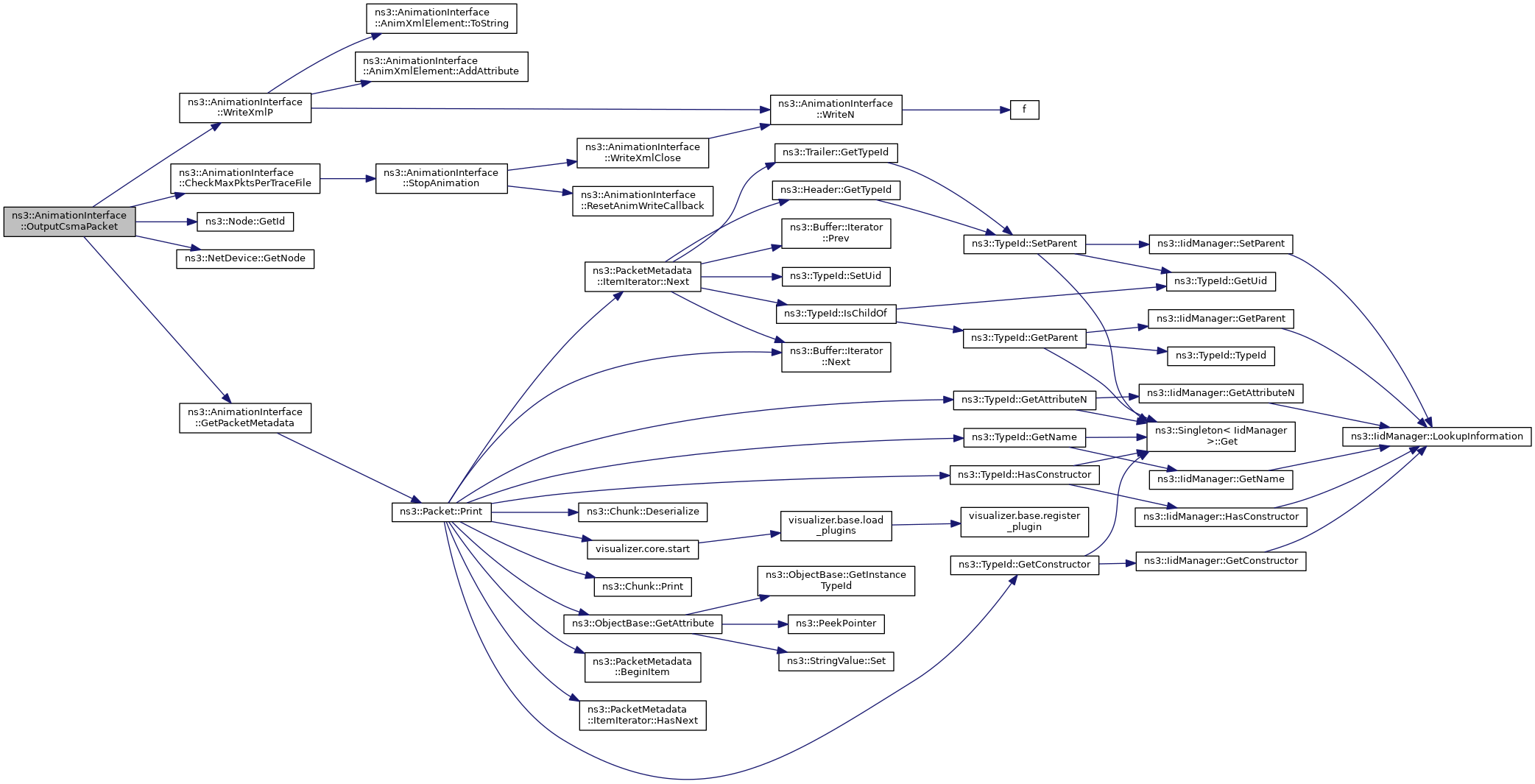

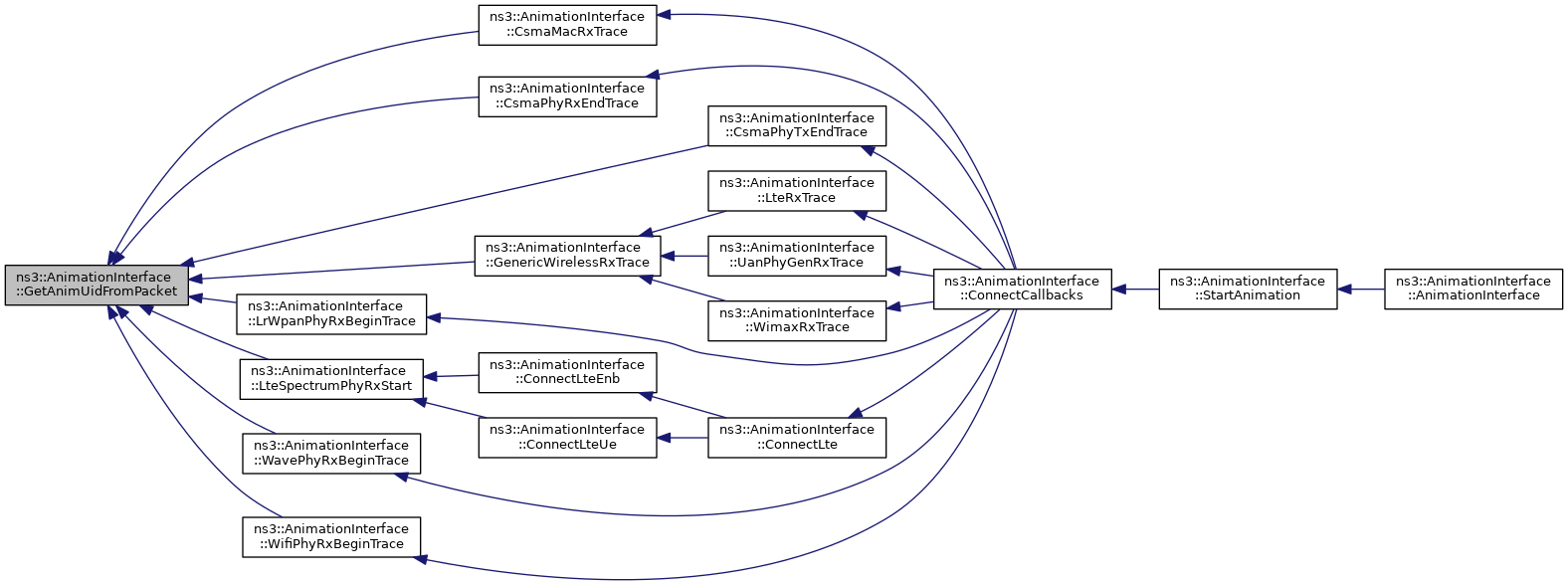

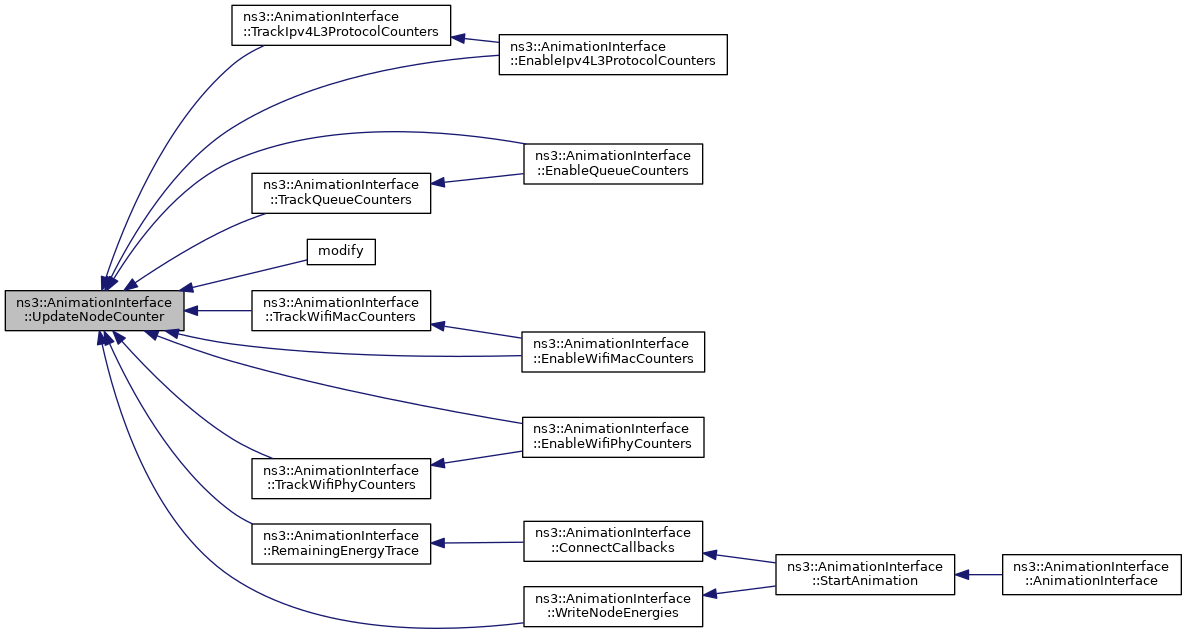

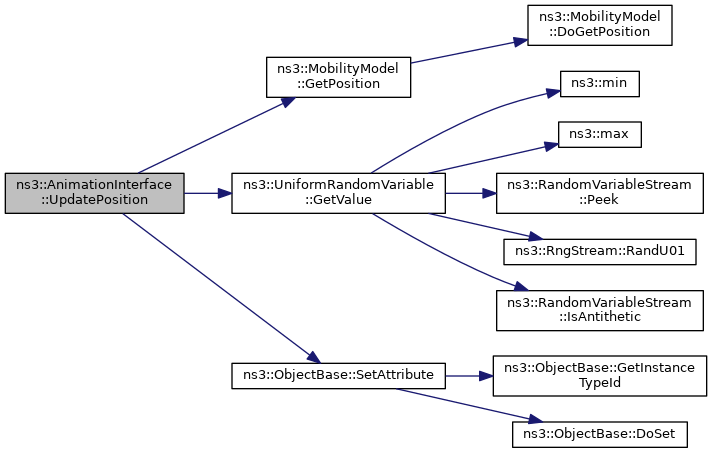

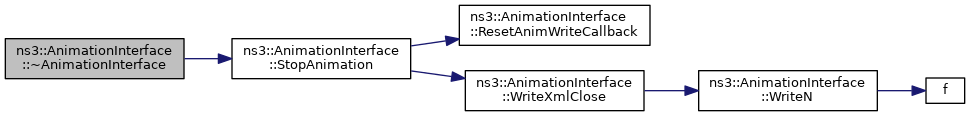

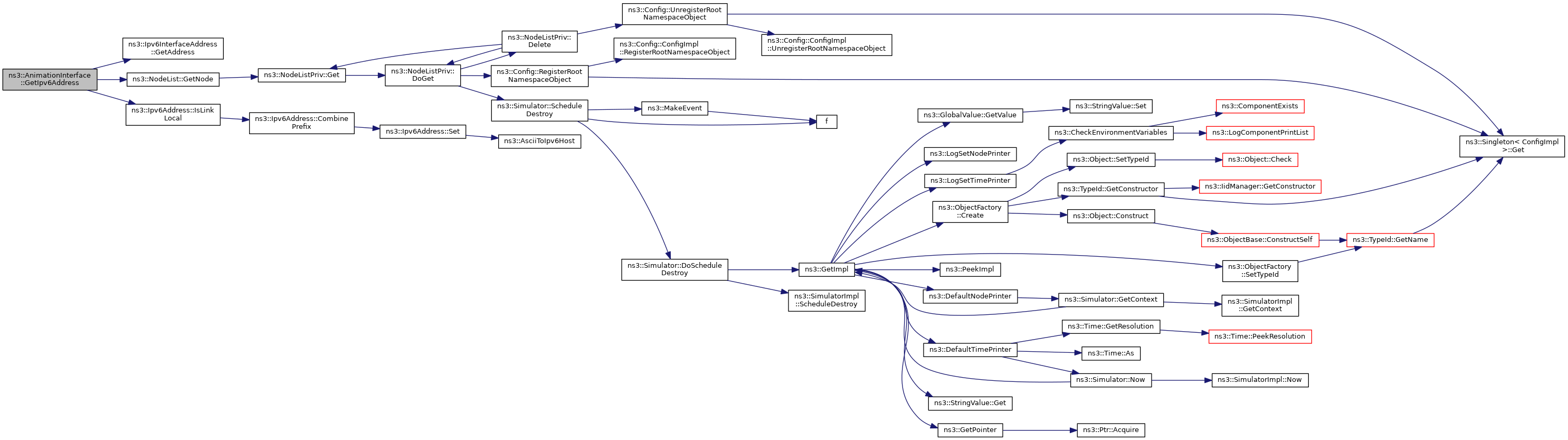

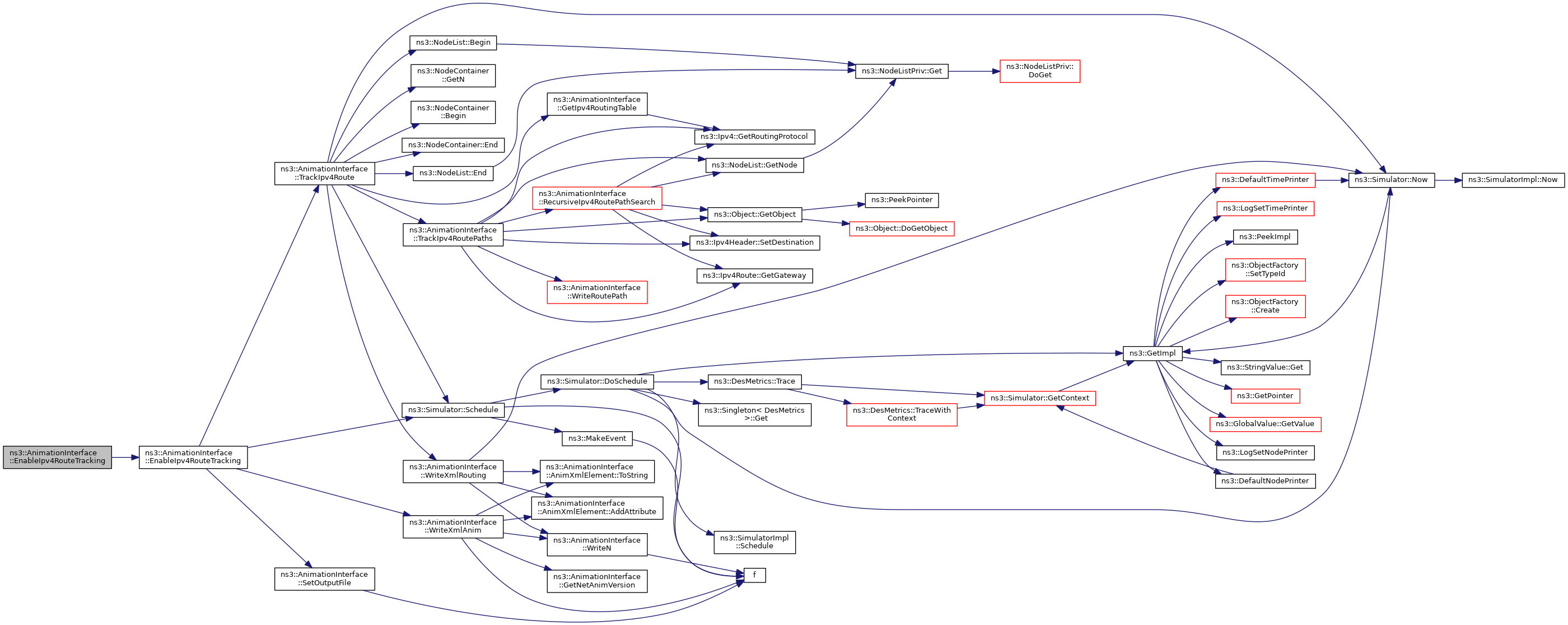

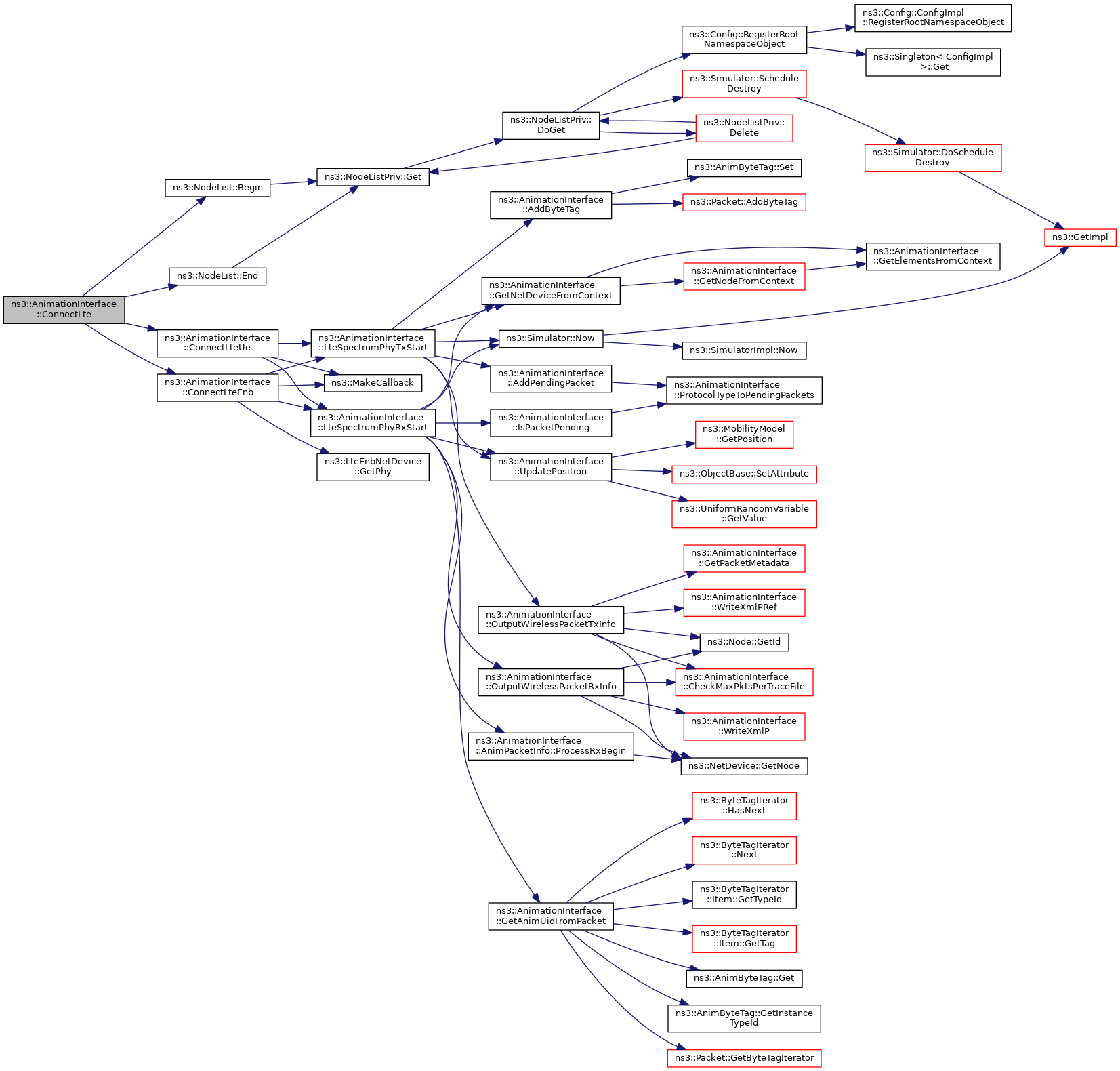

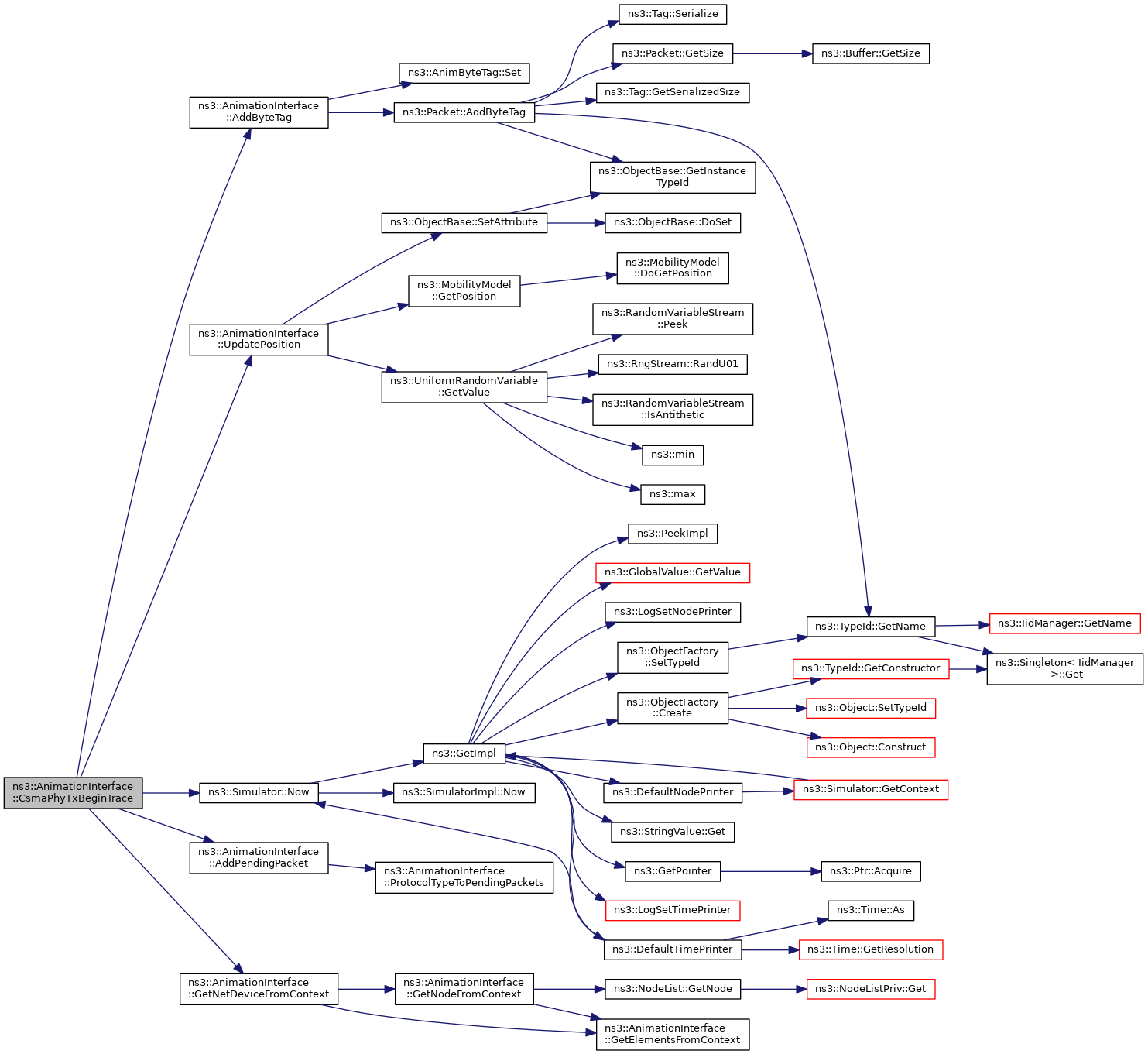

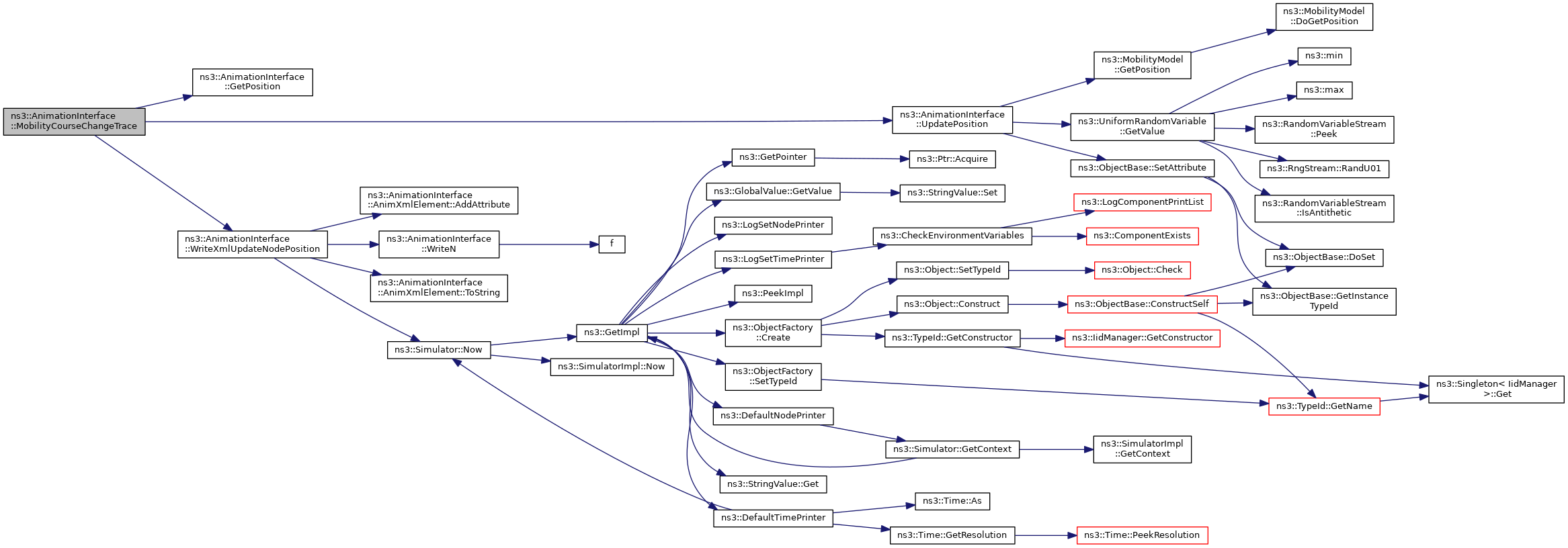

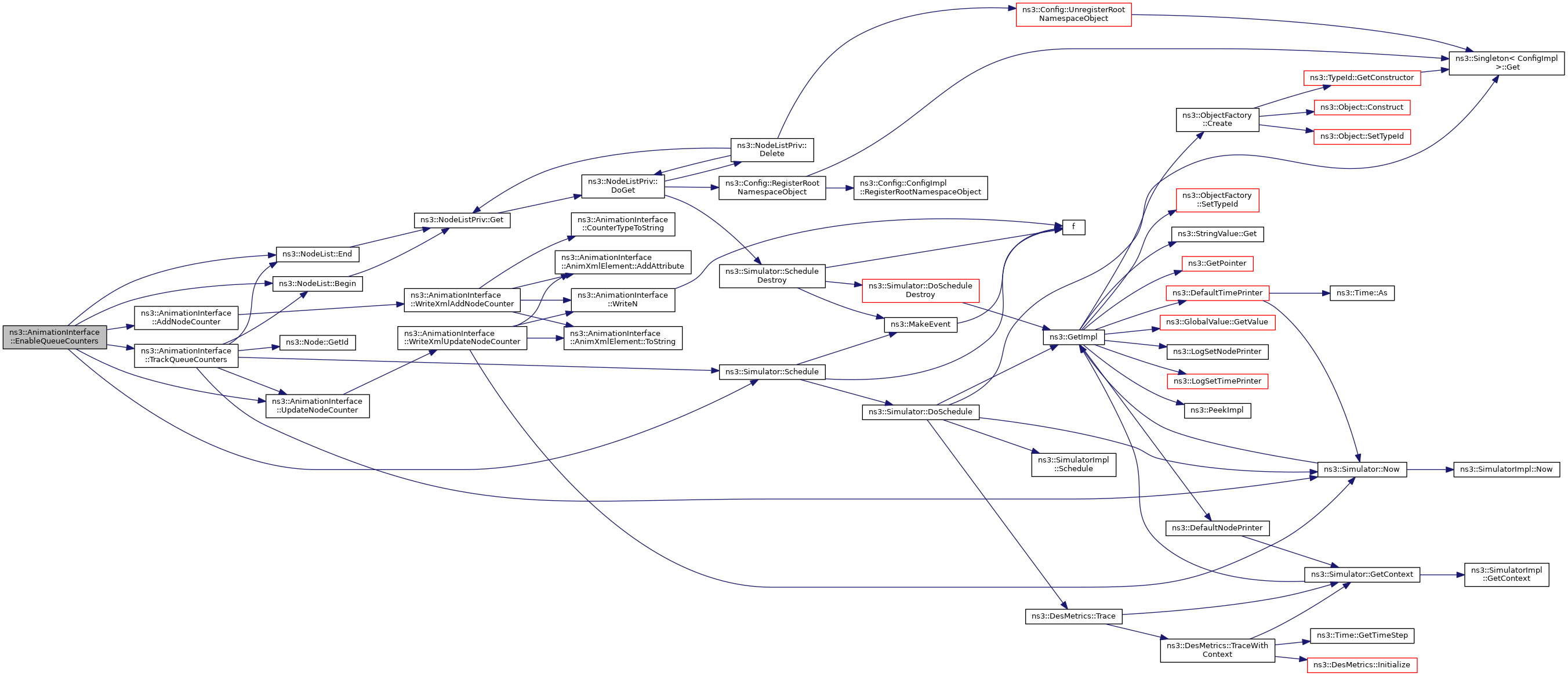

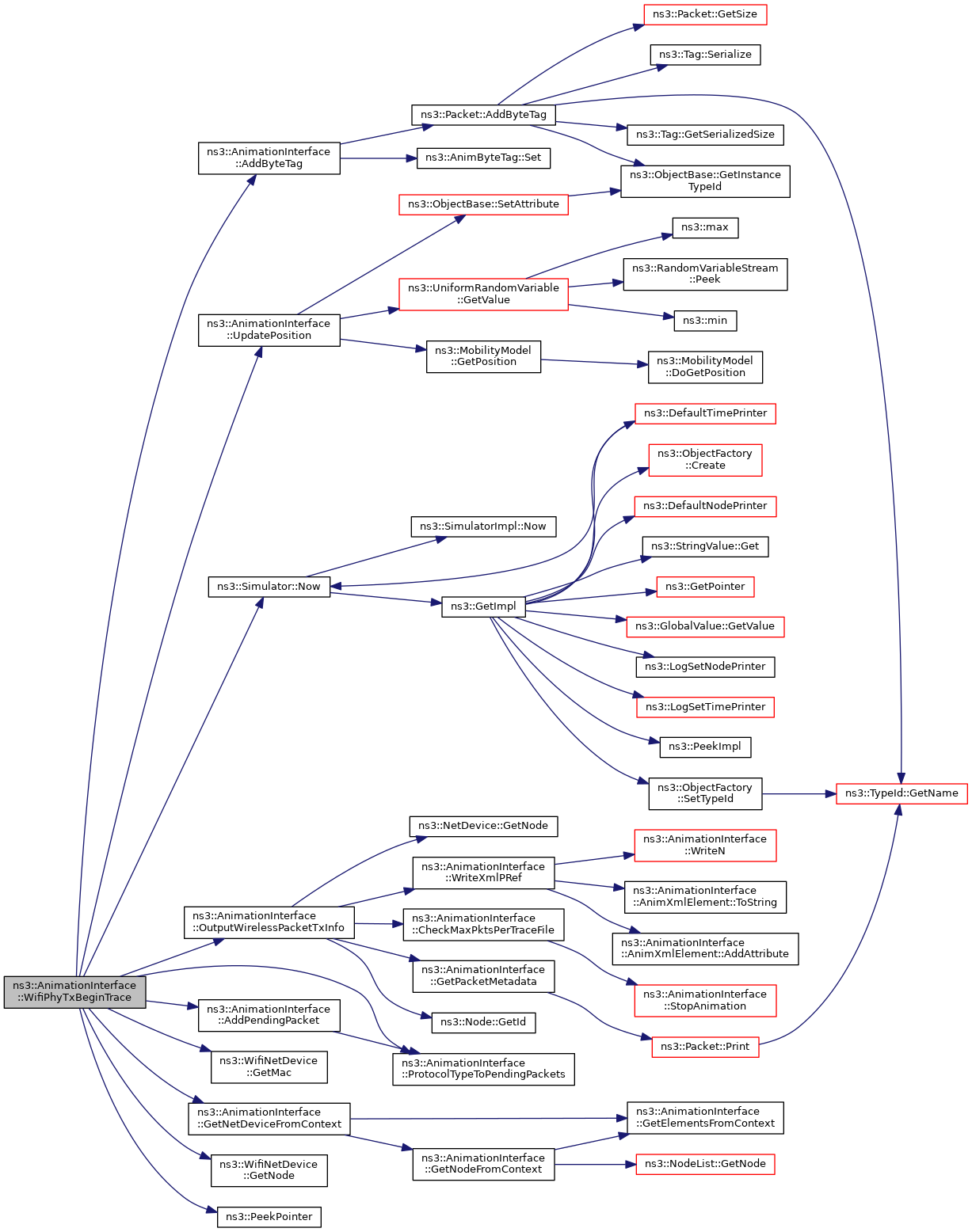

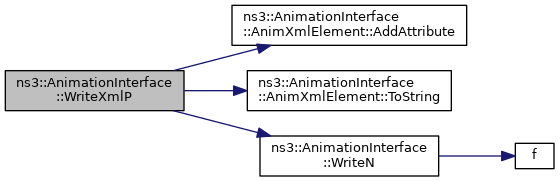

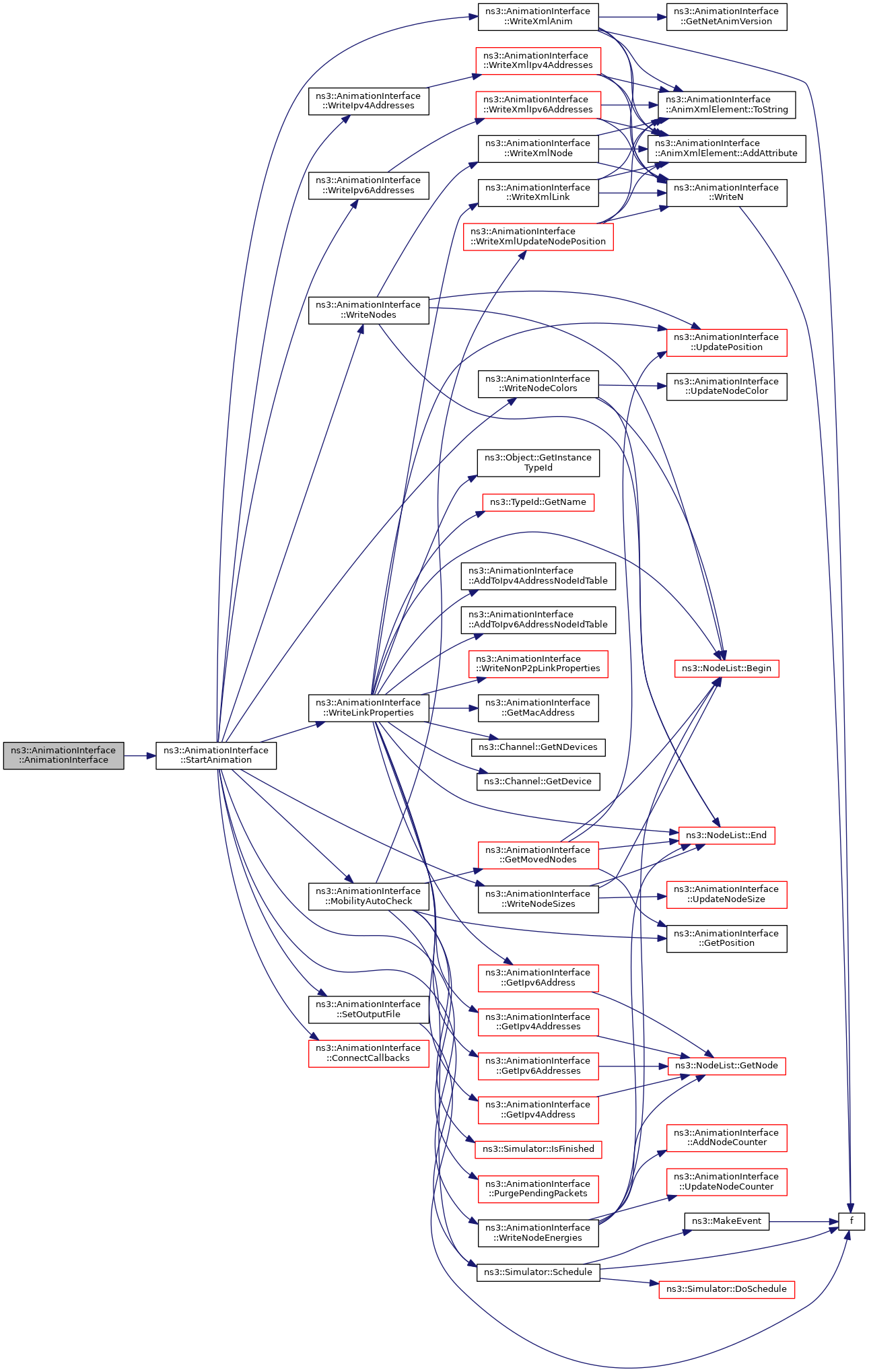

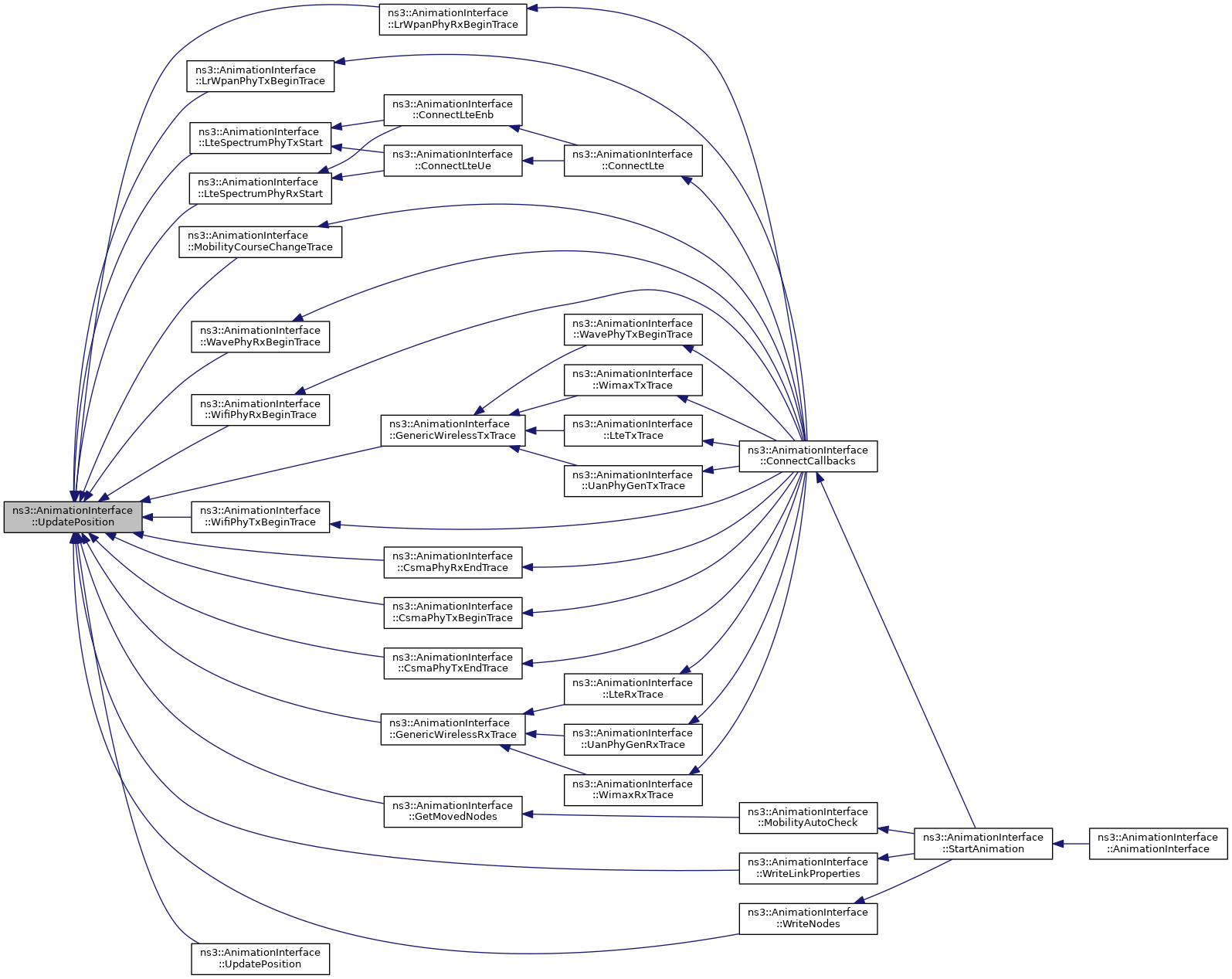

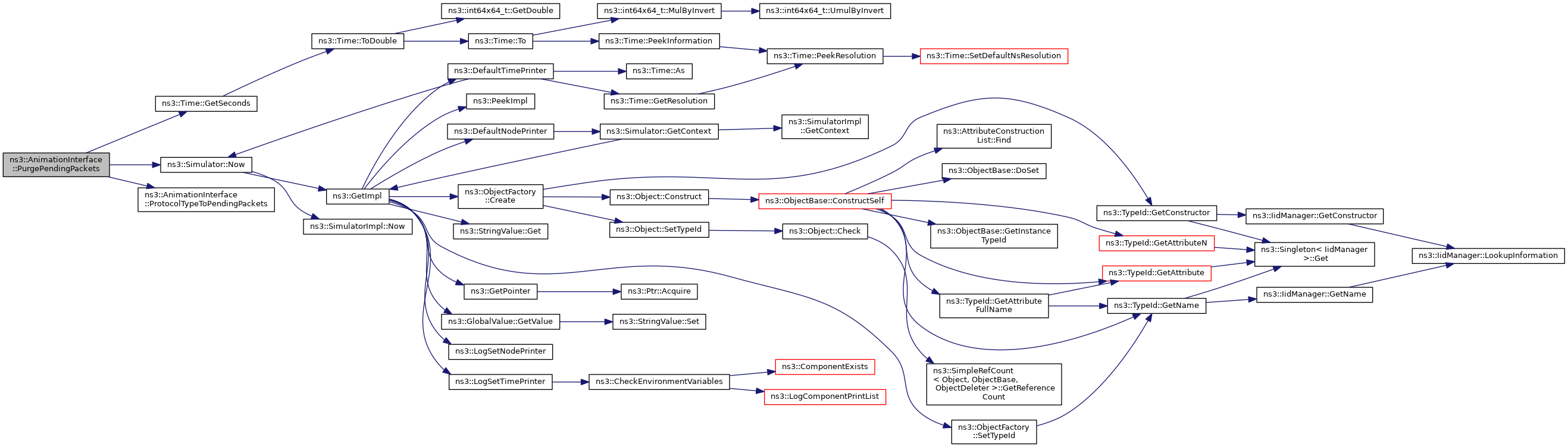

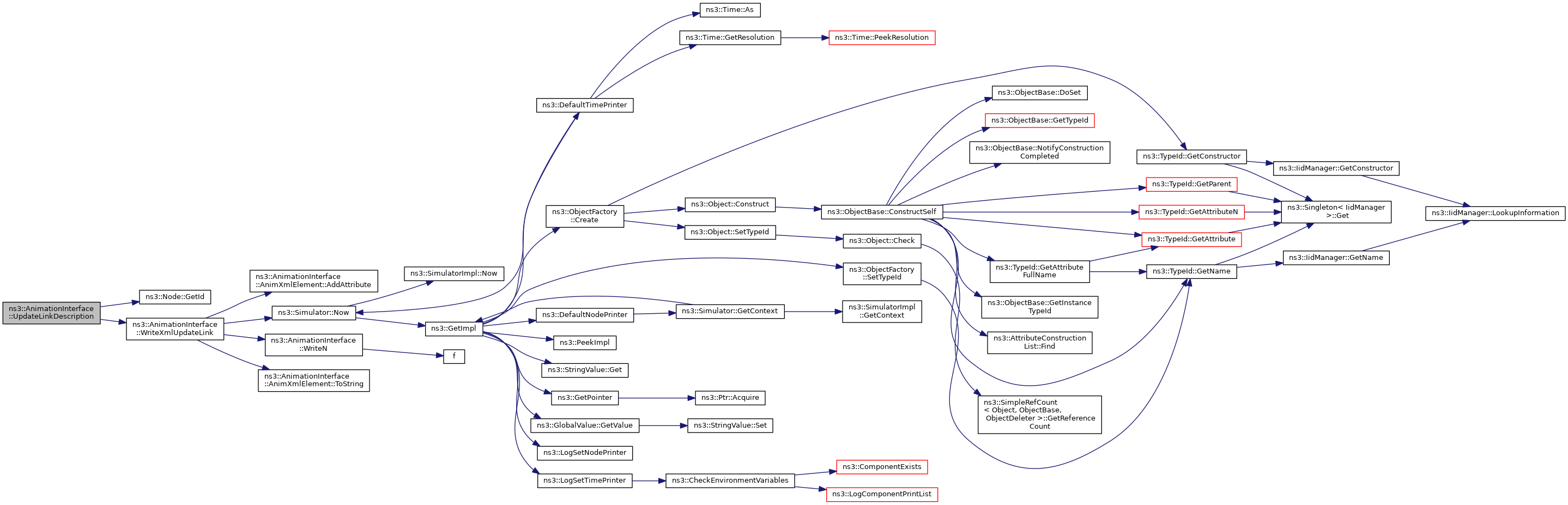

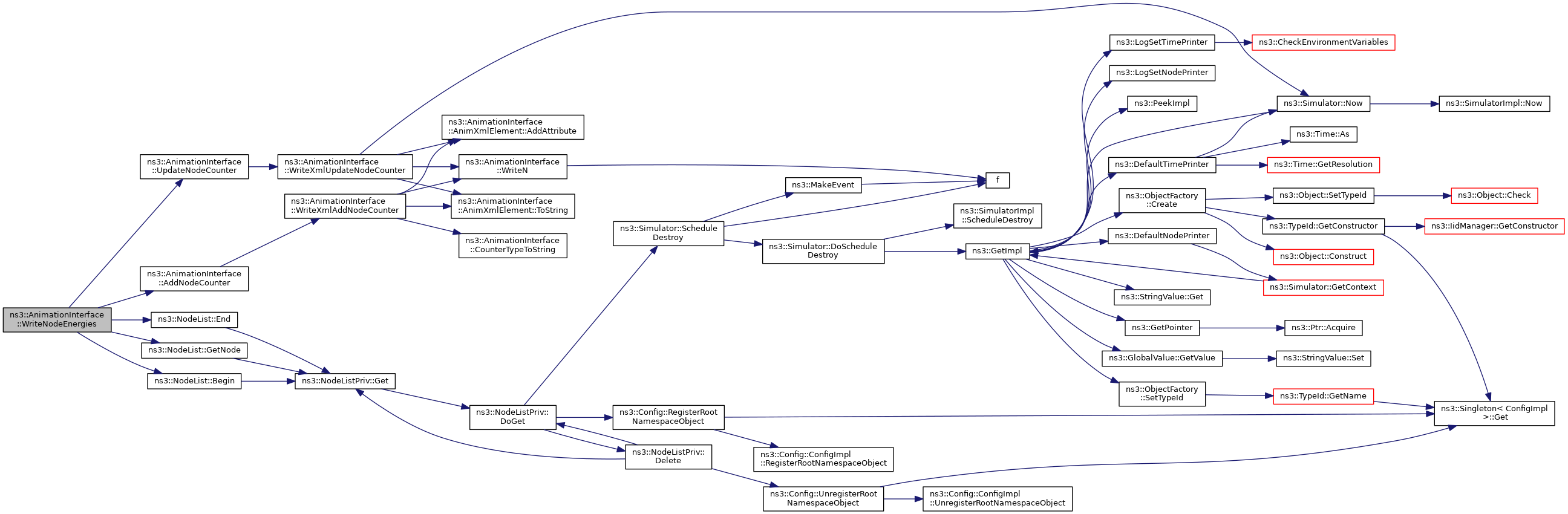

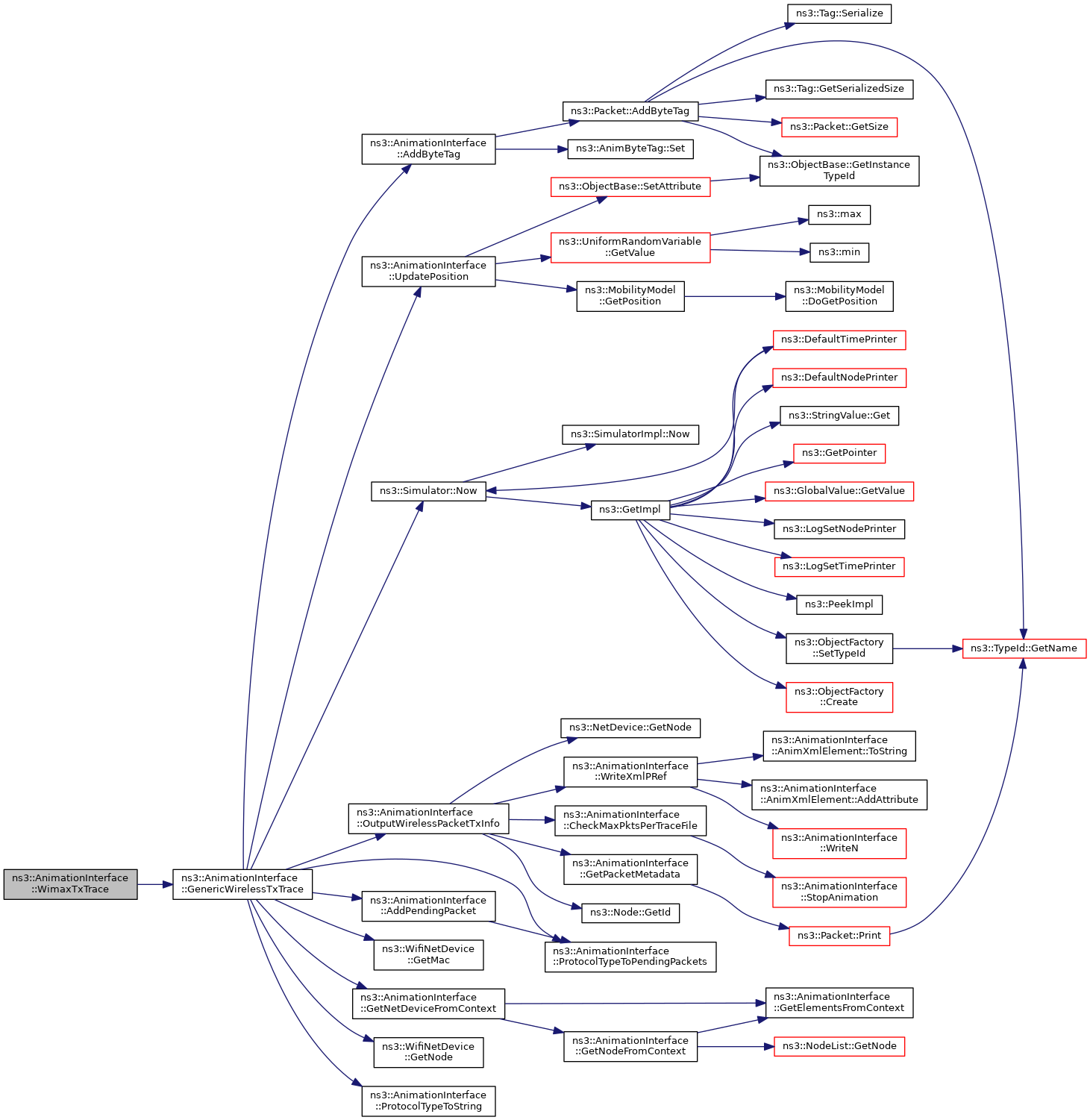

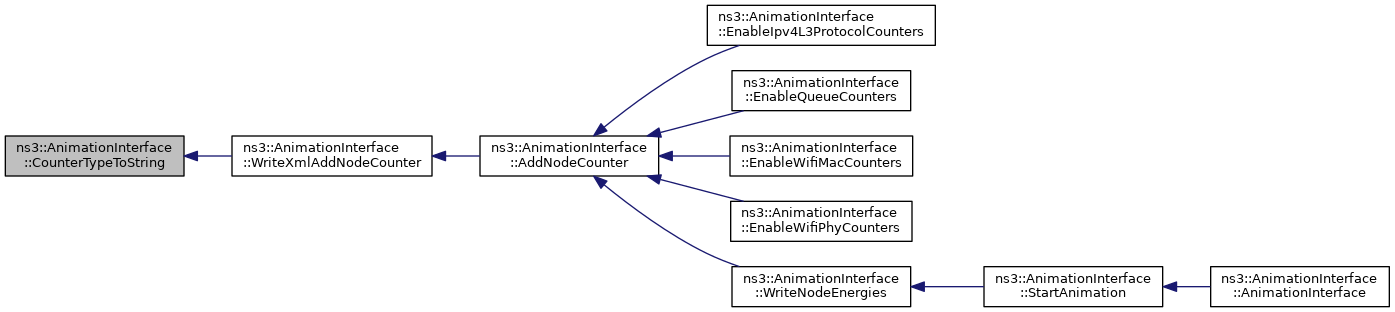

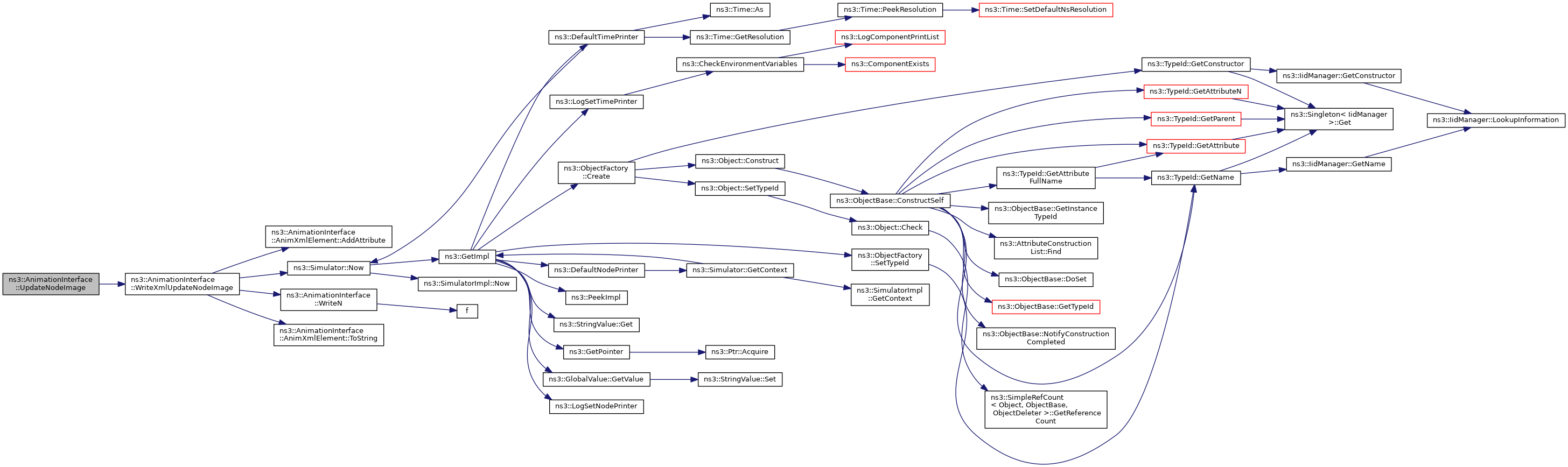

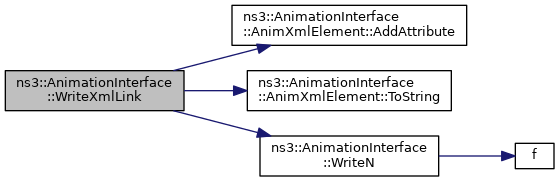

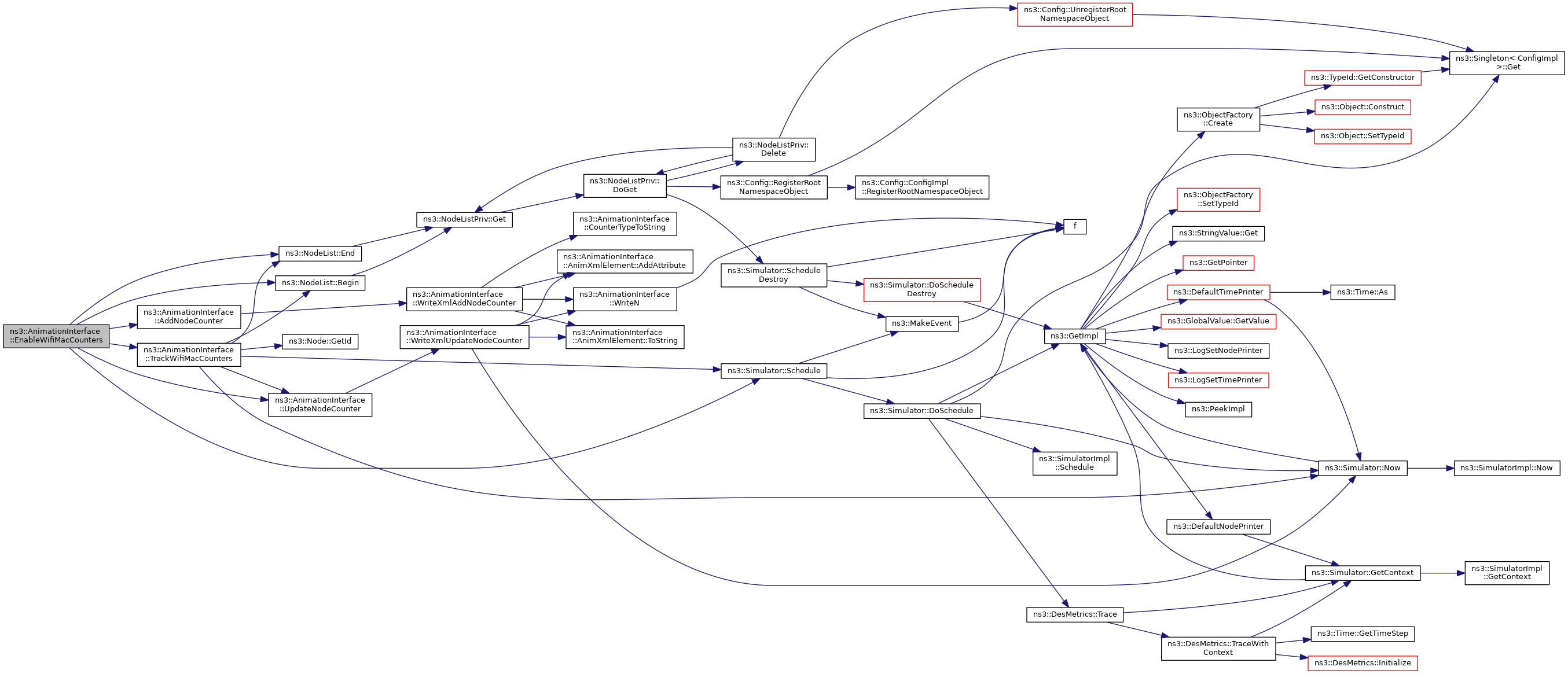

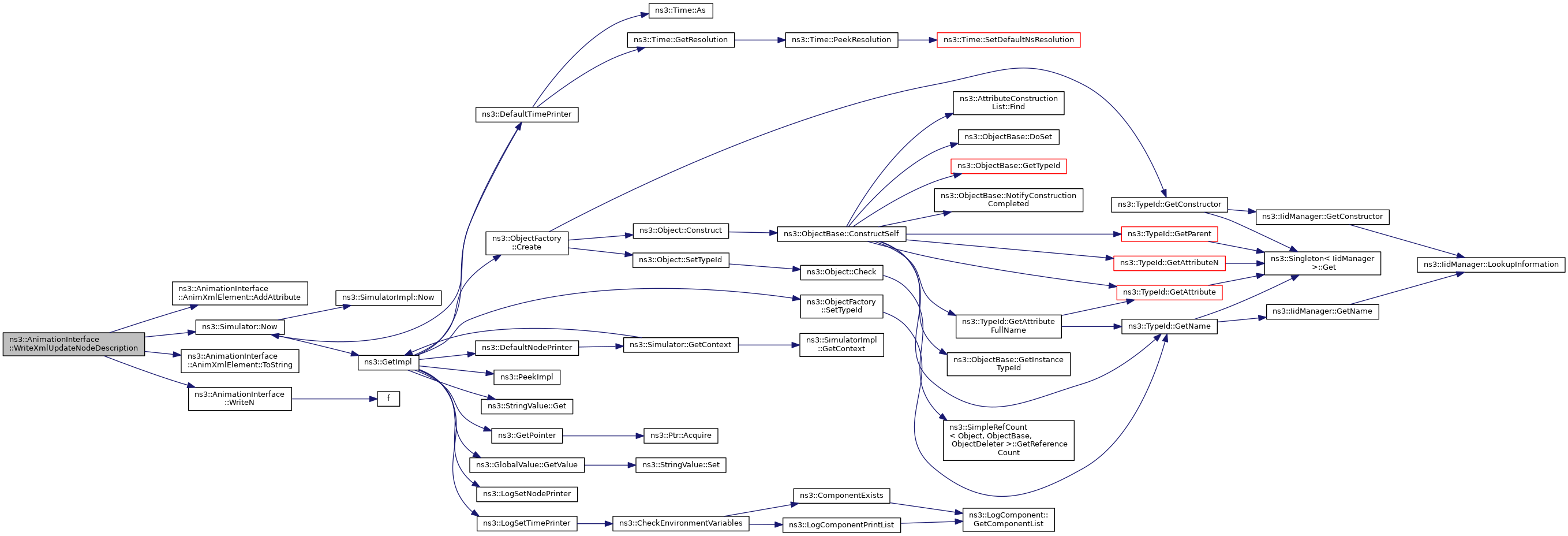

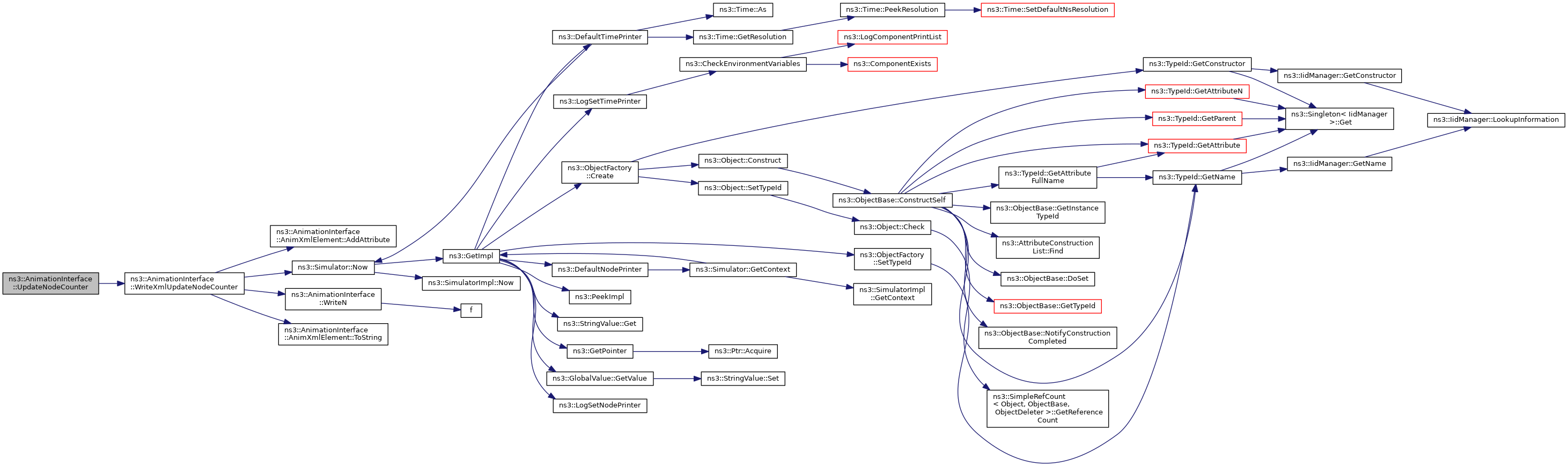

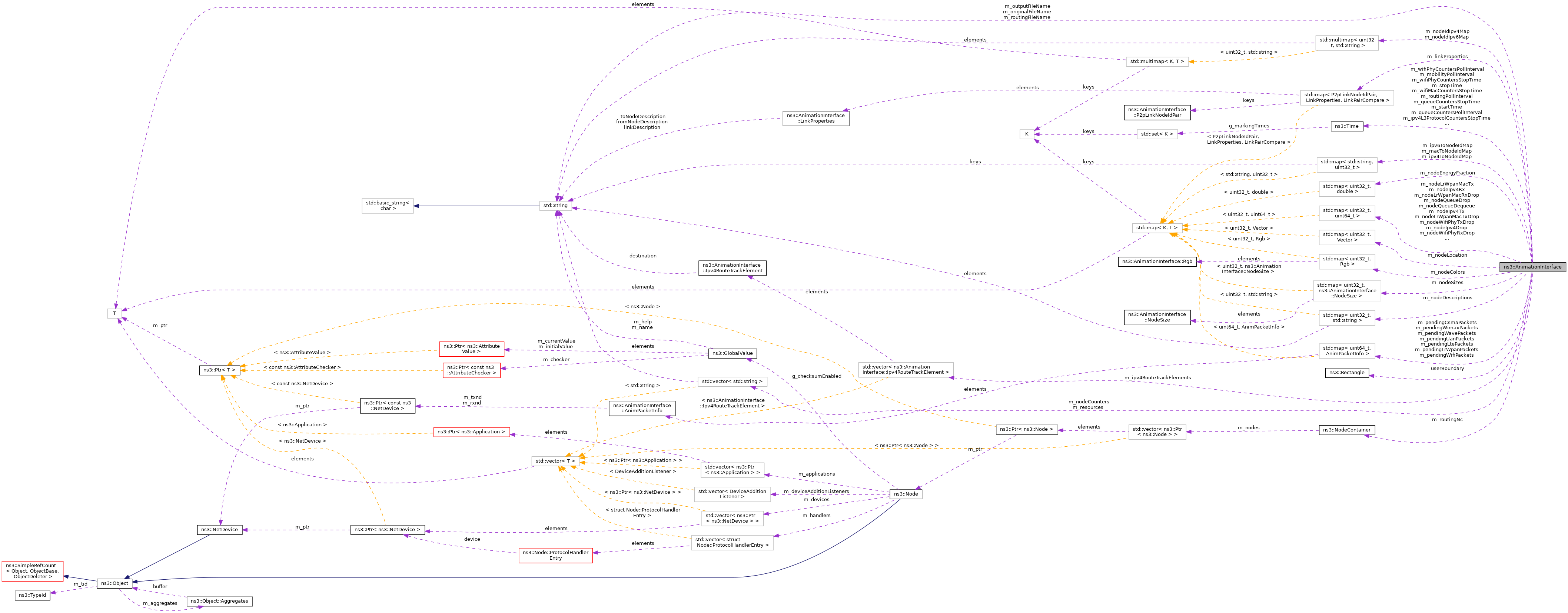

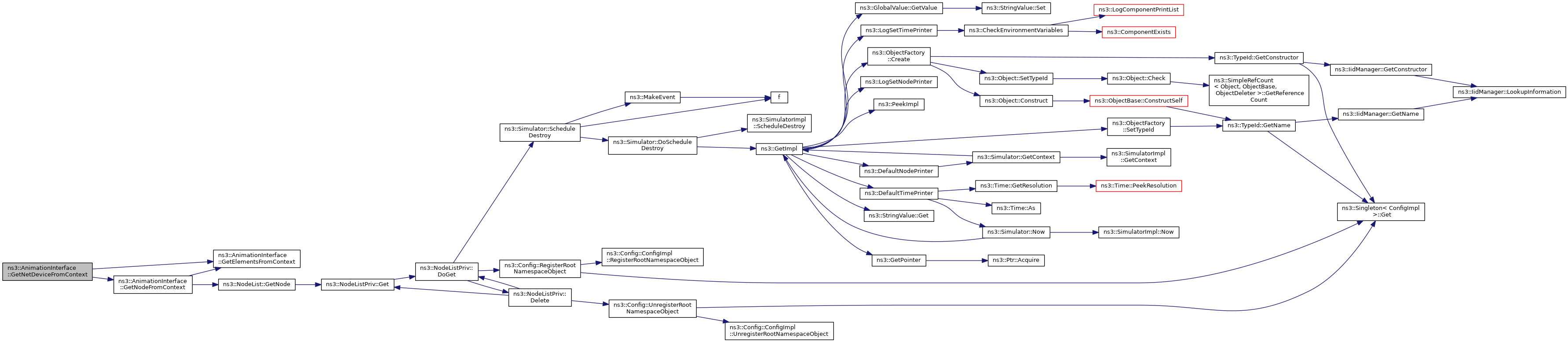

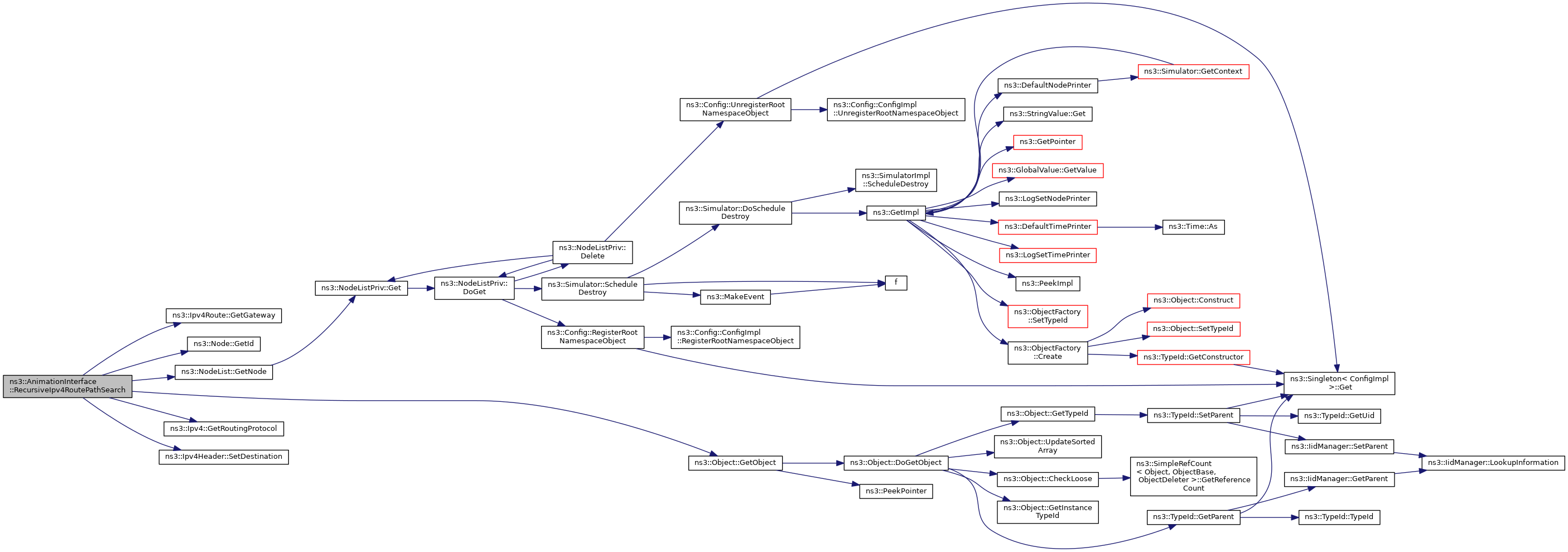

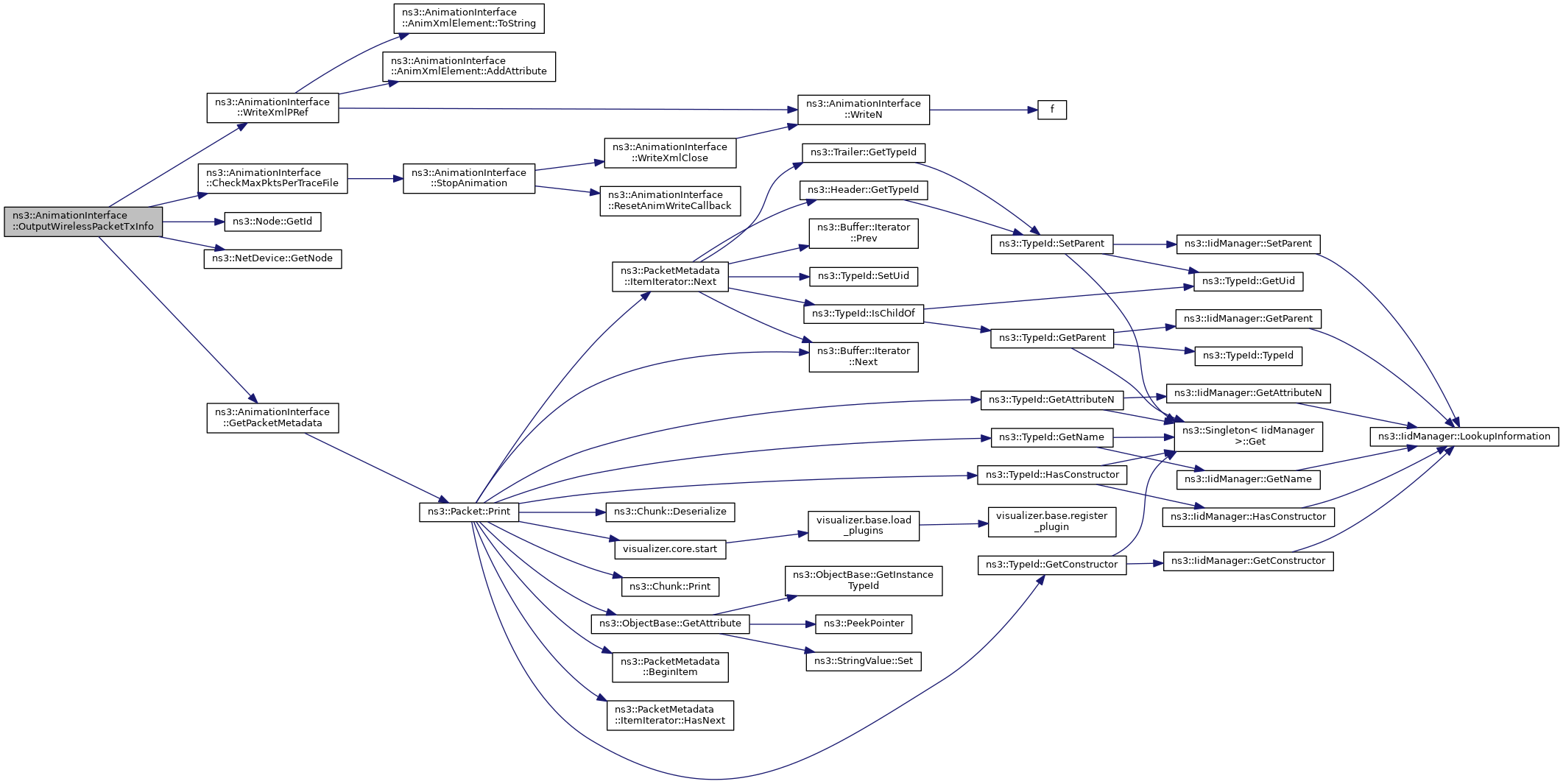

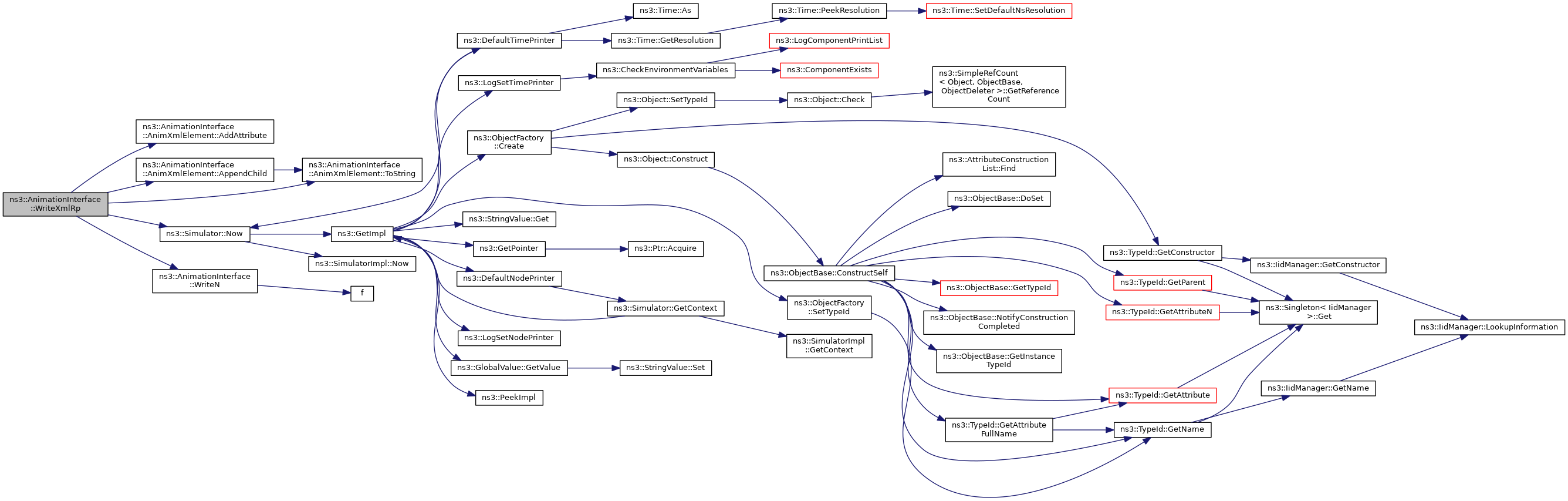

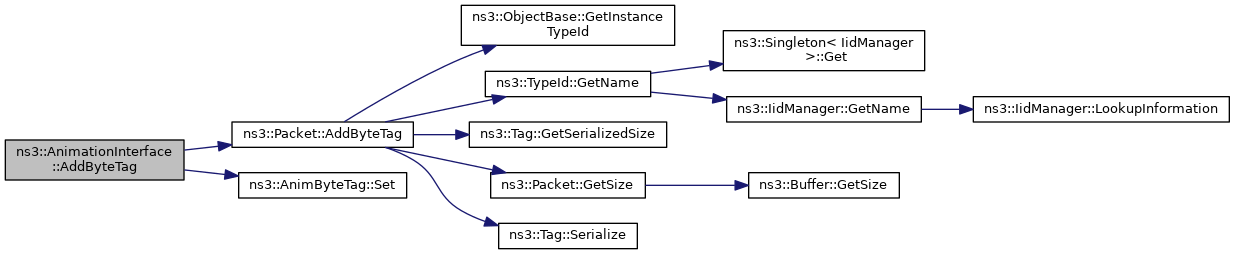

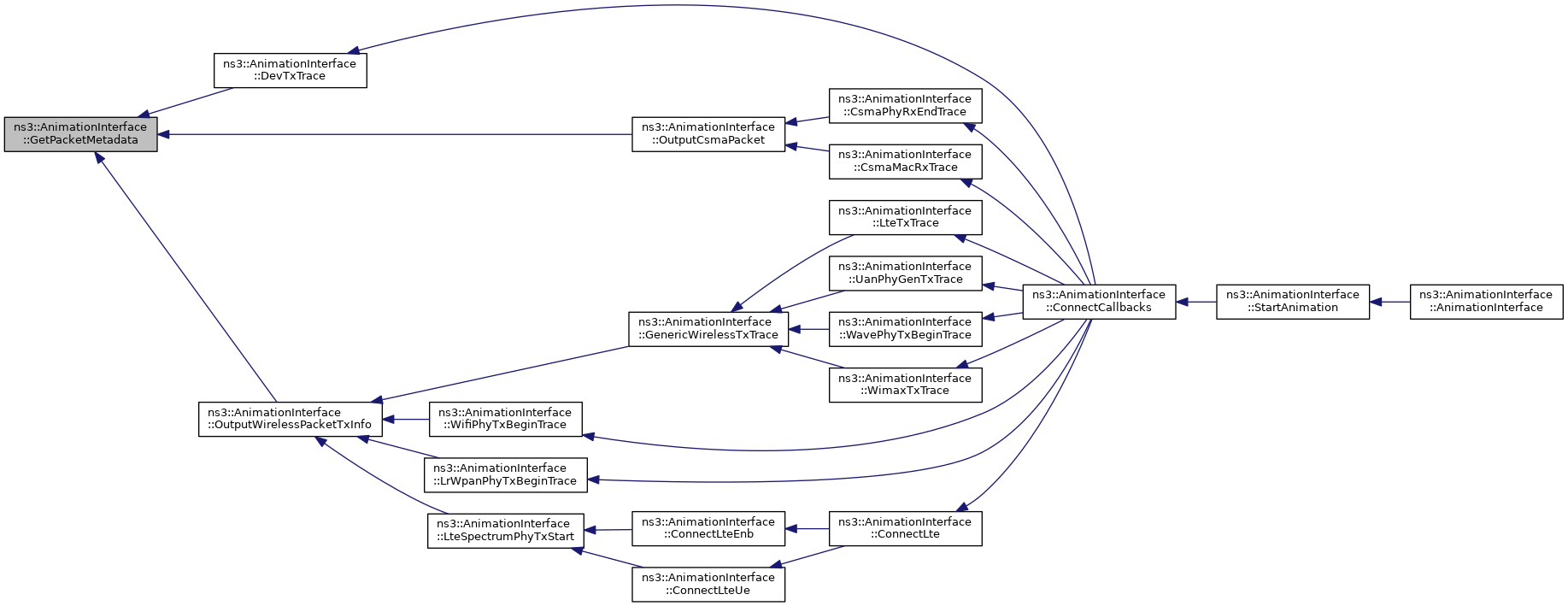

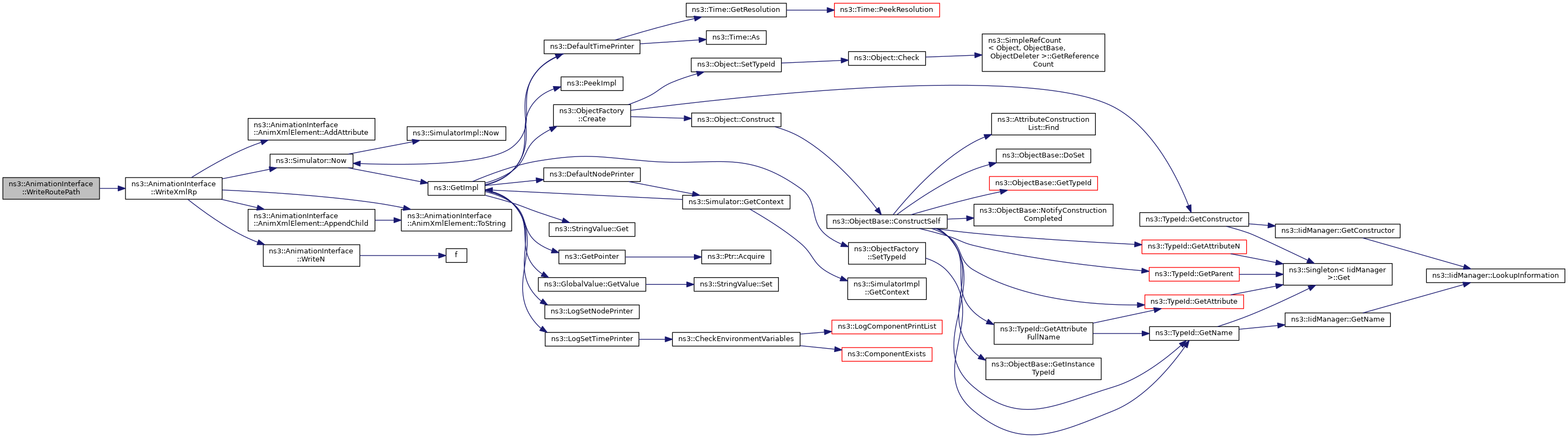

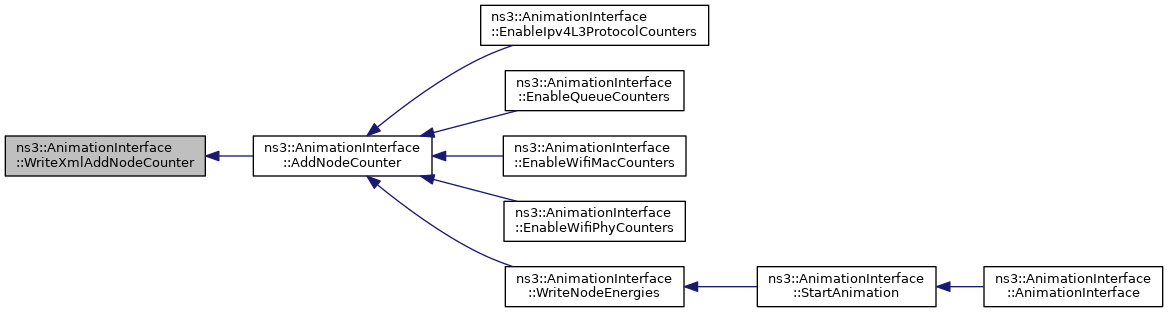

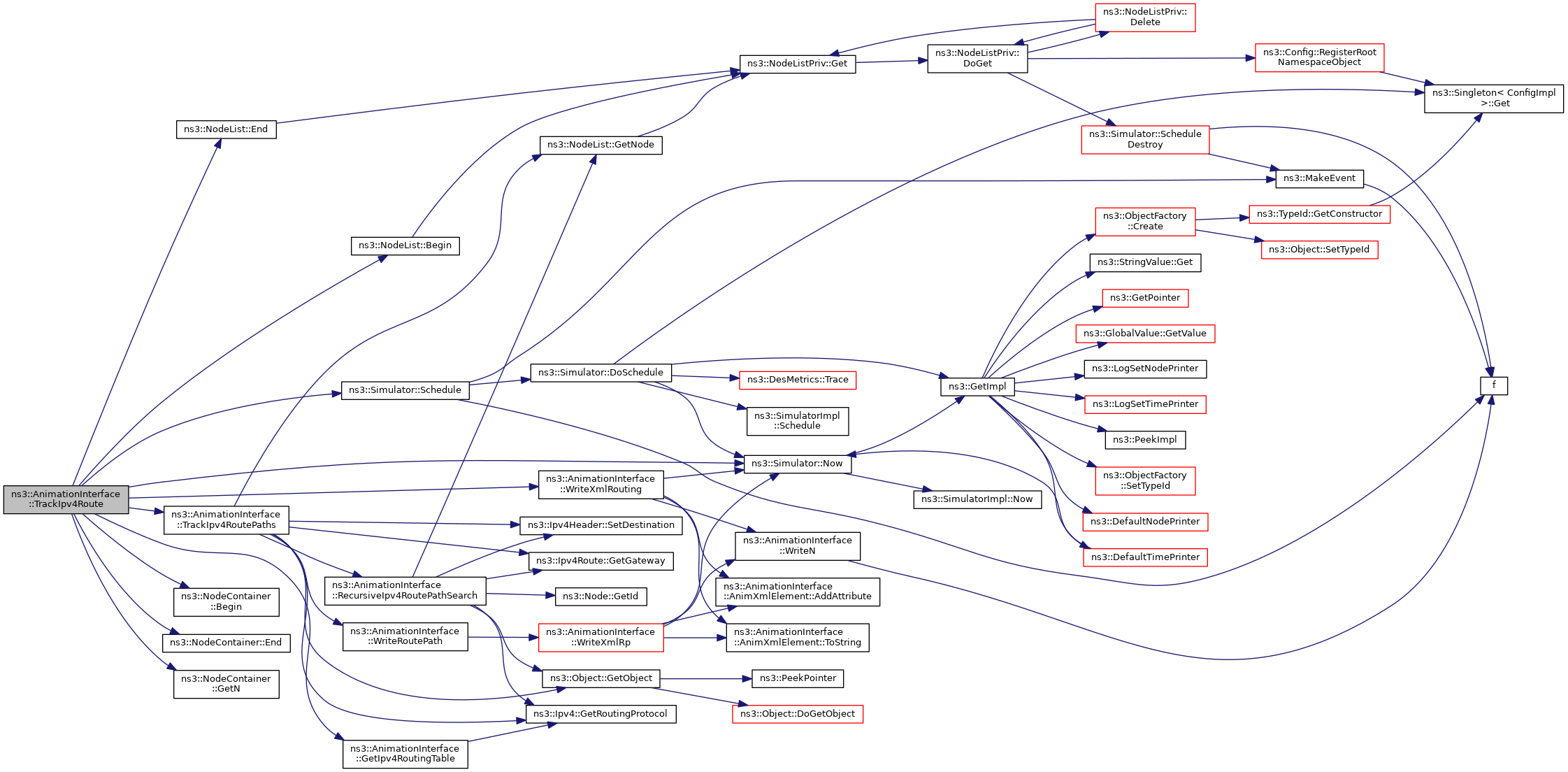

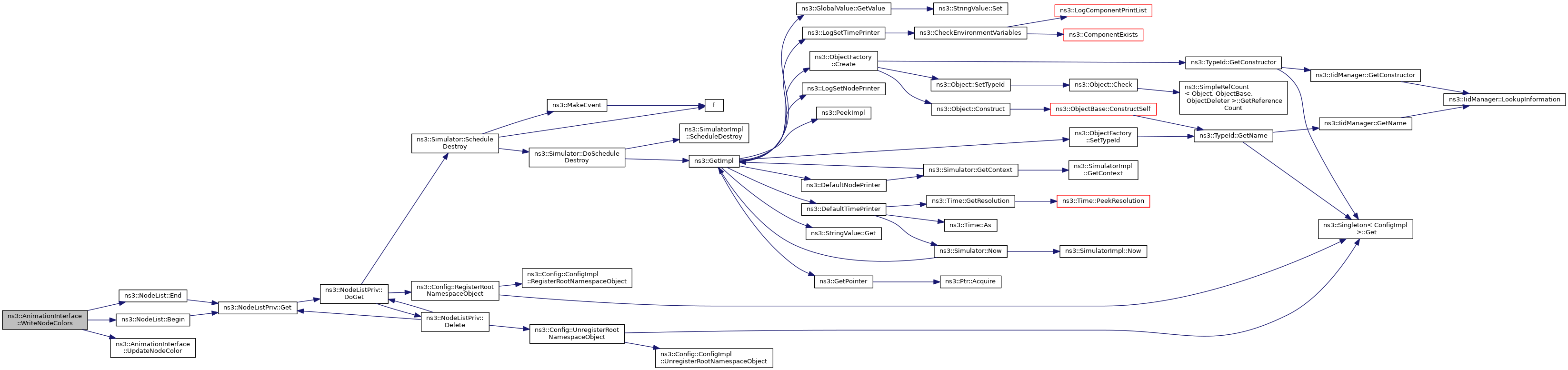

Collaboration diagram for ns3::AnimationInterface:

Classes
class	AnimPacketInfo
	AnimPacketInfo class. More...

class	AnimXmlElement
	AnimXmlElement class. More...

struct	Ipv4RoutePathElement
	Ipv4RoutePathElement structure. More...

struct	Ipv4RouteTrackElement
	Ipv4RouteTrackElement structure. More...

struct	LinkPairCompare
	LinkPairCompare structure. More...

struct	LinkProperties
	LinkProperties structure. More...

struct	NodeSize
	NodeSize structure. More...

struct	P2pLinkNodeIdPair
	P2pLinkNodeIdPair structure. More...

struct	Rgb
	RGB structure. More...

Public Types
typedef void(*	AnimWriteCallback) (const char *str)
	typedef for WriteCallBack used for listening to AnimationInterface write messages More...

enum	CounterType { UINT32_COUNTER, DOUBLE_COUNTER }
	Counter Types. More...

Public Member Functions
	AnimationInterface (const std::string filename)
	Constructor. More...

	~AnimationInterface ()
	Destructor for the animator interface. More...

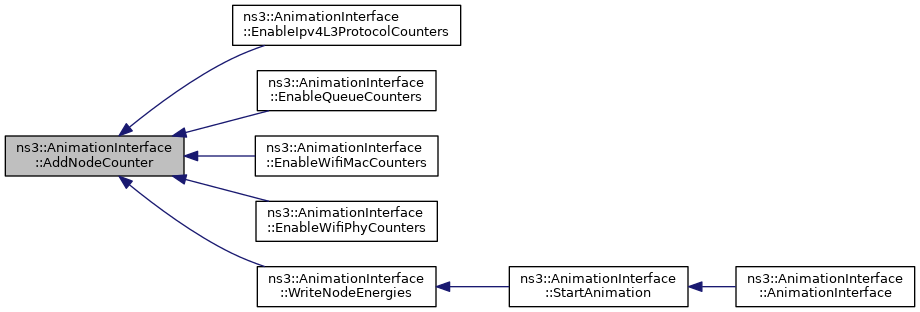

uint32_t	AddNodeCounter (std::string counterName, CounterType counterType)
	Setup a node counter. More...

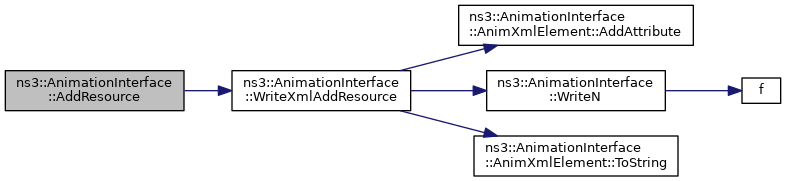

uint32_t	AddResource (std::string resourcePath)
	Add a resource such as the path to an image file. More...

AnimationInterface &	AddSourceDestination (uint32_t fromNodeId, std::string destinationIpv4Address)
	Helper function to print the routing path from a source node to destination IP. More...

void	EnableIpv4L3ProtocolCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop. More...

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for all Nodes. More...

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, NodeContainer nc, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for a set of Nodes. More...

void	EnablePacketMetadata (bool enable=true)
	Enable Packet metadata. More...

void	EnableQueueCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops. More...

void	EnableWifiMacCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop. More...

void	EnableWifiPhyCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop. More...

double	GetNodeEnergyFraction (Ptr< const Node > node) const
	Get node's energy fraction (This used only for testing) More...

uint64_t	GetTracePktCount ()
	Get trace file packet count (This used only for testing) More...

bool	IsStarted (void)
	Is AnimationInterface started. More...

void	ResetAnimWriteCallback ()
	Reset the write callback function. More...

void	SetAnimWriteCallback (AnimWriteCallback cb)
	Set a callback function to listen to AnimationInterface write events. More...

void	SetBackgroundImage (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
	Helper function to set the background image. More...

void	SetMaxPktsPerTraceFile (uint64_t maxPktsPerFile)
	Set Max packets per trace file. More...

void	SetMobilityPollInterval (Time t)
	Set mobility poll interval:WARNING: setting a low interval can cause slowness. More...

void	SetStartTime (Time t)
	Specify the time at which capture should start. More...

void	SetStopTime (Time t)
	Specify the time at which capture should stop. More...

void	SkipPacketTracing ()
	Do not trace packets. More...

void	UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

void	UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

void	UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

void	UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

void	UpdateNodeCounter (uint32_t nodeCounterId, uint32_t nodeId, double counter)
	Helper function to update a node's counter referenced by the nodeCounterId. More...

void	UpdateNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to update the description for a given node. More...

void	UpdateNodeDescription (uint32_t nodeId, std::string descr)
	Helper function to update the description for a given node. More...

void	UpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
	Helper function to update the image of a node. More...

void	UpdateNodeSize (uint32_t nodeId, double width, double height)
	Helper function to update the size of a node. More...

Static Public Member Functions
static bool	IsInitialized (void)
	Check if AnimationInterface is initialized. More...

static void	SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
	Helper function to set Constant Position for a given node. More...

Private Types
typedef std::map< uint64_t, AnimPacketInfo >	AnimUidPacketInfoMap
	AnimUidPacketInfoMap typedef. More...

typedef std::map< uint32_t, double >	EnergyFractionMap
	EnergyFractionMap typedef. More...

typedef std::vector< Ipv4RoutePathElement >	Ipv4RoutePathElements
	Ipv4RoutePathElements typedef. More...

typedef std::map< P2pLinkNodeIdPair, LinkProperties, LinkPairCompare >	LinkPropertiesMap
	LinkPropertiesMap typedef. More...

typedef std::map< uint32_t, Rgb >	NodeColorsMap
	NodeColorsMap typedef. More...

typedef std::map< uint32_t, uint64_t >	NodeCounterMap64
	NodeCounterMap64 typedef. More...

typedef std::map< uint32_t, std::string >	NodeDescriptionsMap
	NodeDescriptionsMap typedef. More...

typedef std::multimap< uint32_t, std::string >	NodeIdIpv4Map
	NodeIdIpv4Map typedef. More...

typedef std::pair< uint32_t, std::string >	NodeIdIpv4Pair
	NodeIdIpv4Pair typedef. More...

typedef std::multimap< uint32_t, std::string >	NodeIdIpv6Map
	NodeIdIpv6Map typedef. More...

typedef std::pair< uint32_t, std::string >	NodeIdIpv6Pair
	NodeIdIpv6Pair typedef. More...

enum	ProtocolType { UAN, LTE, WIFI, WIMAX, CSMA, LRWPAN, WAVE }
	ProtocolType enumeration. More...

Private Member Functions

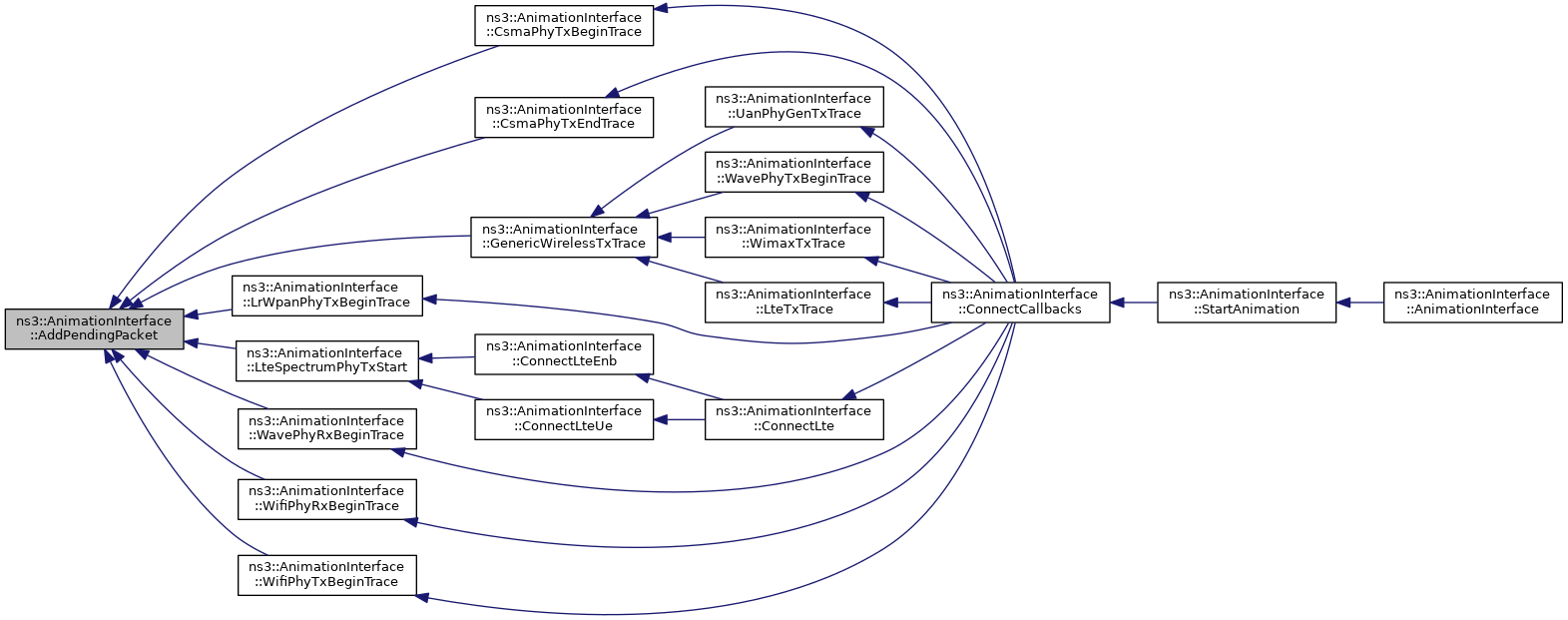

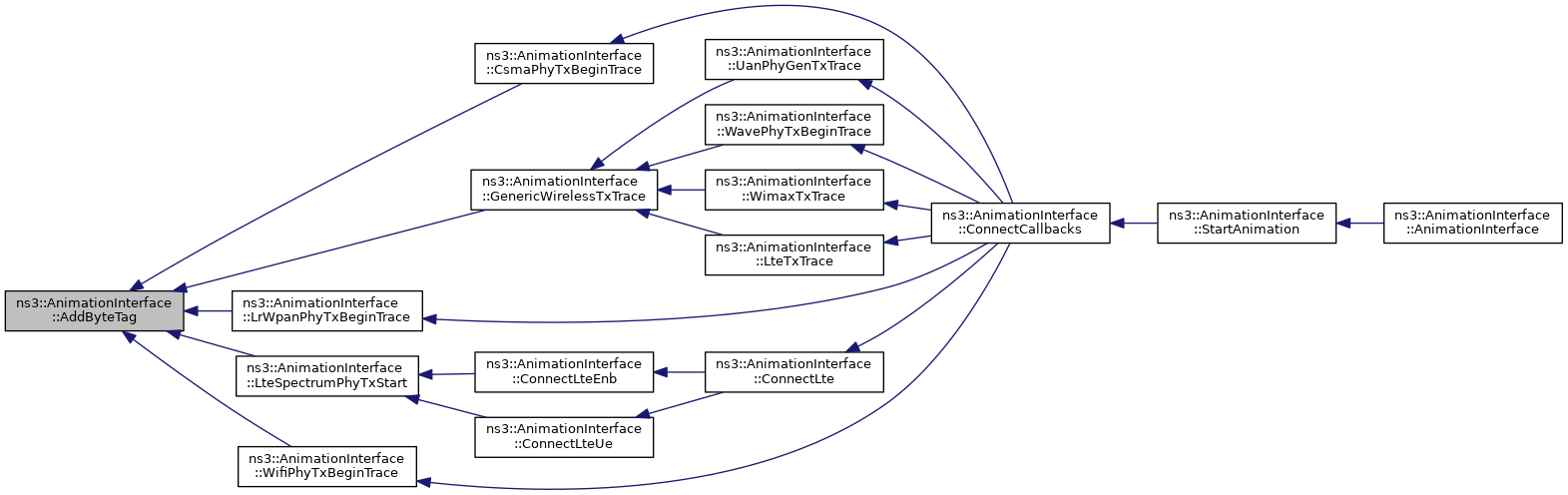

void	AddByteTag (uint64_t animUid, Ptr< const Packet > p)
	Add byte tag function. More...

void	AddPendingPacket (ProtocolType protocolType, uint64_t animUid, AnimPacketInfo pktInfo)
	Add pending packet function. More...

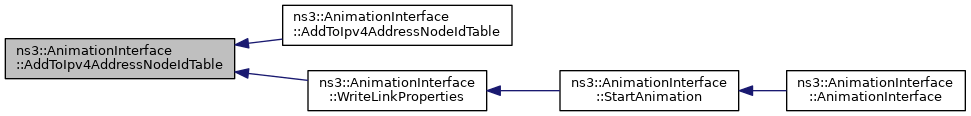

void	AddToIpv4AddressNodeIdTable (std::string ipv4Address, uint32_t nodeId)
	Add to IPv4 address node ID table function. More...

void	AddToIpv4AddressNodeIdTable (std::vector< std::string > ipv4Addresses, uint32_t nodeId)
	Add to IPv4 address node ID table function. More...

void	AddToIpv6AddressNodeIdTable (std::string ipv6Address, uint32_t nodeId)
	Add to IPv6 address node ID table function. More...

void	AddToIpv6AddressNodeIdTable (std::vector< std::string > ipv6Addresses, uint32_t nodeId)
	Add to IPv6 address node ID table function. More...

void	CheckMaxPktsPerTraceFile ()
	Check maximum packets per trace file function. More...

void	ConnectCallbacks ()
	Connect callbacks function. More...

void	ConnectLte ()
	Connect LTE function. More...

void	ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)
	Connect LTE ENB function. More...

void	ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)
	Connect LTE ue function. More...

std::string	CounterTypeToString (CounterType counterType)
	Counter type to string function. More...

void	CsmaMacRxTrace (std::string context, Ptr< const Packet > p)
	CSMA MAC receive trace function. More...

void	CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)
	CSMA Phy receive end trace function. More...

void	CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
	CSMA Phy transmit begin trace function. More...

void	CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)
	CSMA Phy transmit end trace function. More...

void	DequeueTrace (std::string context, Ptr< const Packet >)
	Dequeue trace function. More...

void	DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)
	Device transmit trace function. More...

void	EnqueueTrace (std::string context, Ptr< const Packet >)
	Enqueue trace function. More...

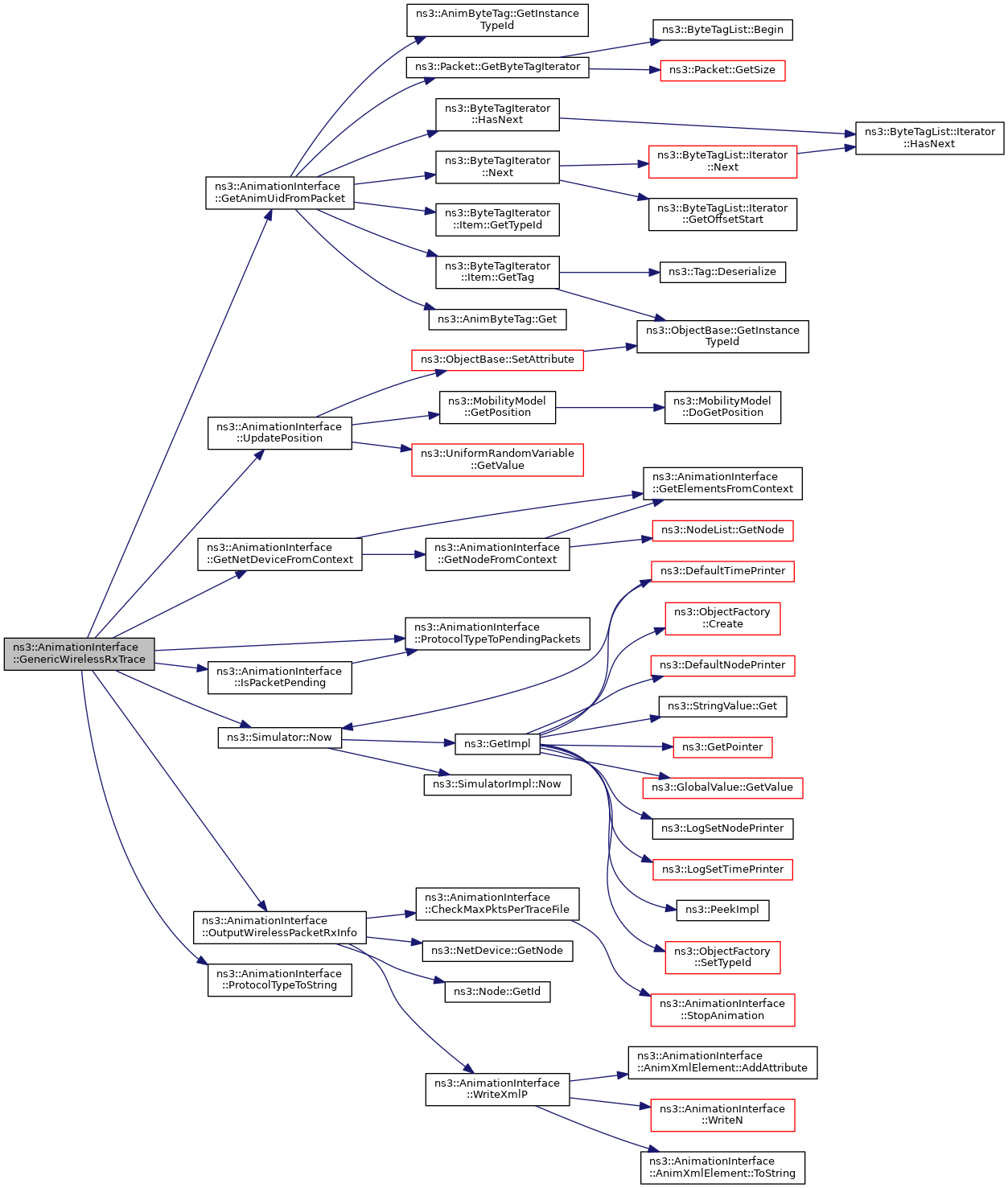

void	GenericWirelessRxTrace (std::string context, Ptr< const Packet > p, ProtocolType protocolType)
	Generic wireless receive trace function. More...

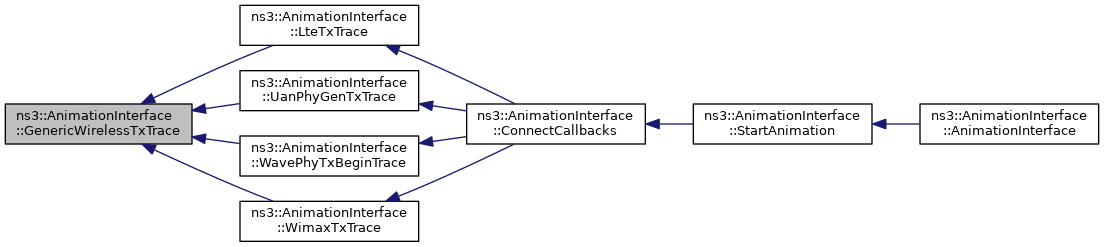

void	GenericWirelessTxTrace (std::string context, Ptr< const Packet > p, ProtocolType protocolType)
	Generic wireless transmit trace function. More...

uint64_t	GetAnimUidFromPacket (Ptr< const Packet >)
	Get anim UID from packet function. More...

const std::vector< std::string >	GetElementsFromContext (const std::string &context) const
	Get elements from context. More...

std::string	GetIpv4Address (Ptr< NetDevice > nd)
	Get IPv4 address. More...

std::vector< std::string >	GetIpv4Addresses (Ptr< NetDevice > nd)
	Get IPv4 addresses. More...

std::string	GetIpv4RoutingTable (Ptr< Node > n)
	Get IPv4 routing table function. More...

std::string	GetIpv6Address (Ptr< NetDevice > nd)
	Get IPv6 address. More...

std::vector< std::string >	GetIpv6Addresses (Ptr< NetDevice > nd)
	Get IPv6 addresses. More...

std::string	GetMacAddress (Ptr< NetDevice > nd)
	Get MAC address function. More...

std::vector< Ptr< Node > >	GetMovedNodes ()
	Get moved nodes function. More...

std::string	GetNetAnimVersion ()
	Get netanim version function. More...

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)
	Get net device from context. More...

Ptr< Node >	GetNodeFromContext (const std::string &context) const
	Get node from context. More...

std::string	GetPacketMetadata (Ptr< const Packet > p)
	Get packet metadata function. More...

Vector	GetPosition (Ptr< Node > n)
	Get position function. More...

void	Ipv4DropTrace (std::string context, const Ipv4Header &ipv4Header, Ptr< const Packet > p, Ipv4L3Protocol::DropReason dropReason, Ptr< Ipv4 > ipv4, uint32_t interfaceIndex)
	IPv4 drop trace function. More...

void	Ipv4RxTrace (std::string context, Ptr< const Packet > p, Ptr< Ipv4 > ipv4, uint32_t interfaceIndex)
	IPv4 receive trace function. More...

void	Ipv4TxTrace (std::string context, Ptr< const Packet > p, Ptr< Ipv4 > ipv4, uint32_t interfaceIndex)
	IPv4 transmit trace function. More...

bool	IsInTimeWindow ()
	Is in time window function. More...

bool	IsPacketPending (uint64_t animUid, ProtocolType protocolType)
	Is packet pending function. More...

void	LrWpanMacRxDropTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC receive drop trace function. More...

void	LrWpanMacRxTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC receive trace function. More...

void	LrWpanMacTxDropTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC transmit drop trace function. More...

void	LrWpanMacTxTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC transmit trace function. More...

void	LrWpanPhyRxBeginTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN Phy receive begin trace function. More...

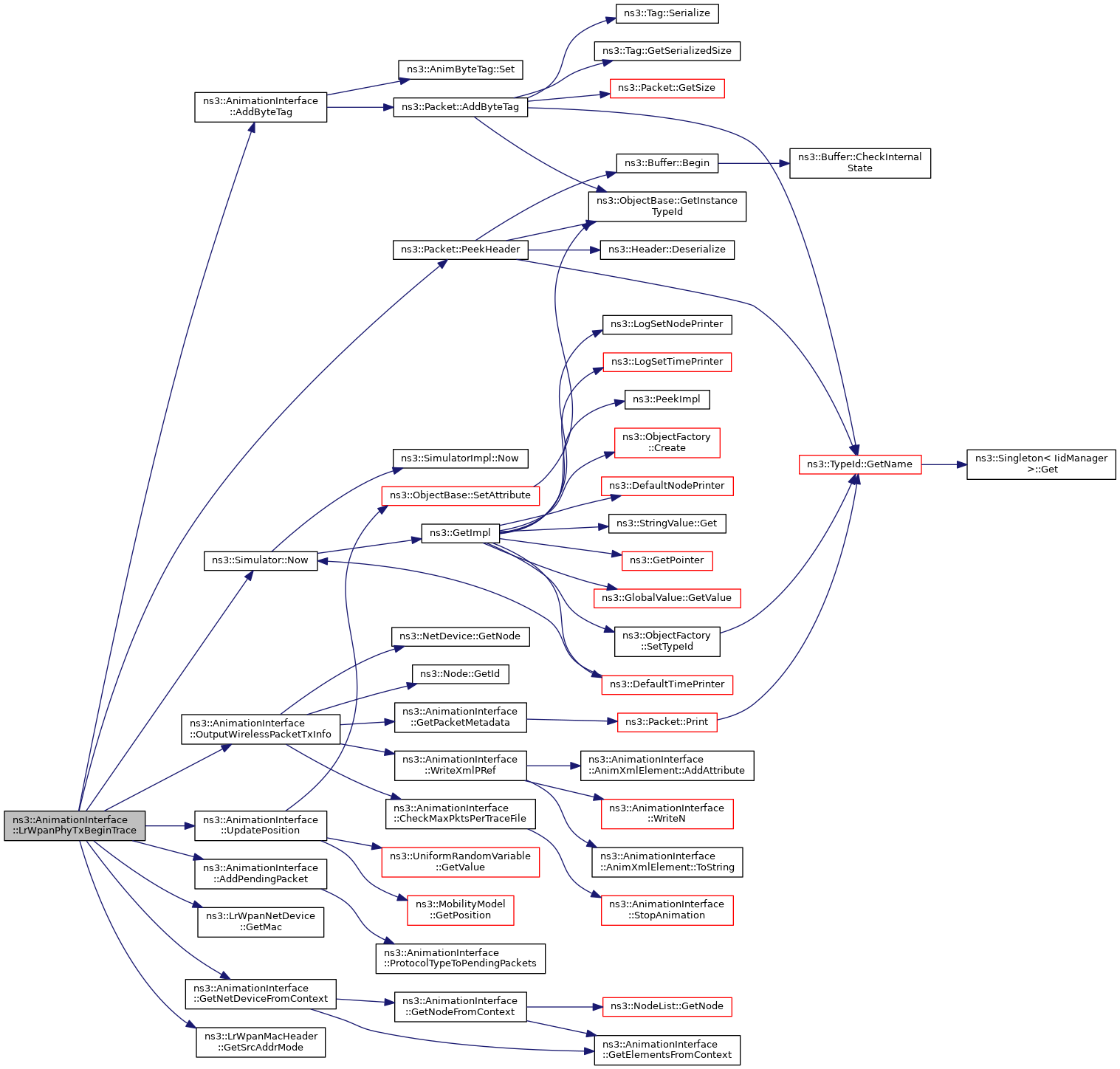

void	LrWpanPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN Phy receive begin trace function. More...

void	LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	LTE receive trace function. More...

void	LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)
	LTE Spectrum Phy receive start function. More...

void	LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)
	LTE Spectrum Phy transmit start function. More...

void	LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	LTE transmit trace function. More...

void	MobilityAutoCheck ()
	Mobility auto check function. More...

void	MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)
	Mobility course change trace function. More...

bool	NodeHasMoved (Ptr< Node > n, Vector newLocation)
	Node has moved function. More...

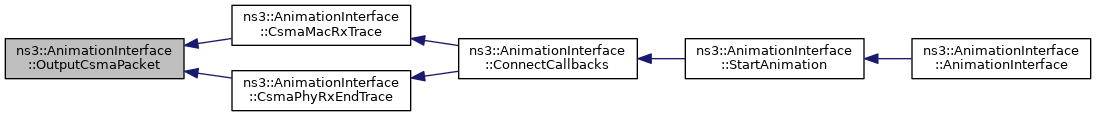

void	OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo)
	Output CSMA packet function. More...

void	OutputWirelessPacketRxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)
	Output wireless packet receive info. More...

void	OutputWirelessPacketTxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)
	Output wireless packet transmit info. More...

AnimUidPacketInfoMap *	ProtocolTypeToPendingPackets (ProtocolType protocolType)
	Protocol type to pending packets function. More...

std::string	ProtocolTypeToString (ProtocolType protocolType)
	Protocol type to string function. More...

void	PurgePendingPackets (ProtocolType protocolType)
	Purge pending packets function. More...

void	QueueDropTrace (std::string context, Ptr< const Packet >)
	Queue trace function. More...

void	RecursiveIpv4RoutePathSearch (std::string from, std::string to, Ipv4RoutePathElements &rpElements)
	Recursive IPv4 route path search function. More...

void	RemainingEnergyTrace (std::string context, double previousEnergy, double currentEnergy)
	Remaining energy trace function. More...

void	SetOutputFile (const std::string &fn, bool routing=false)
	Set output file function. More...

void	StartAnimation (bool restart=false)
	Start animation function. More...

void	StopAnimation (bool onlyAnimation=false)
	Stop animation function. More...

void	TrackIpv4L3ProtocolCounters ()
	Track IPv4 L3 protocol counters function. More...

void	TrackIpv4Route ()
	Track IPv4 router function. More...

void	TrackIpv4RoutePaths ()
	Track IPv4 route paths function. More...

void	TrackQueueCounters ()
	Track queue counters function. More...

void	TrackWifiMacCounters ()
	Track wifi MAC counters function. More...

void	TrackWifiPhyCounters ()
	Track wifi phy counters function. More...

void	UanPhyGenRxTrace (std::string context, Ptr< const Packet >)
	UAN Phy gen receive trace function. More...

void	UanPhyGenTxTrace (std::string context, Ptr< const Packet >)
	UAN Phy gen transmit trace function. More...

Vector	UpdatePosition (Ptr< Node > n)
	Update position function. More...

Vector	UpdatePosition (Ptr< Node > n, Vector v)
	Update position function. More...

Vector	UpdatePosition (Ptr< NetDevice > ndev)
	Update position function. More...

void	WavePhyRxBeginTrace (std::string context, Ptr< const Packet > p)
	WAVE Phy receive begin trace function. More...

void	WavePhyTxBeginTrace (std::string context, Ptr< const Packet > p)
	WAVE Phy transmit begin trace function. More...

void	WifiMacRxDropTrace (std::string context, Ptr< const Packet > p)
	wifi MAC receive drop trace function More...

void	WifiMacRxTrace (std::string context, Ptr< const Packet > p)
	wifi MAC receive trace function More...

void	WifiMacTxDropTrace (std::string context, Ptr< const Packet > p)
	wifi MAC transmit drop trace function More...

void	WifiMacTxTrace (std::string context, Ptr< const Packet > p)
	wifi MAC transmit trace function More...

void	WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p, RxPowerWattPerChannelBand rxPowersW)
	wifi Phy receive begin trace function More...

void	WifiPhyRxDropTrace (std::string context, Ptr< const Packet > p, WifiPhyRxfailureReason reason)
	wifi Phy receive drop trace function More...

void	WifiPhyTxBeginTrace (std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	wifi Phy transmit PSDU begin trace function More...

void	WifiPhyTxDropTrace (std::string context, Ptr< const Packet > p)
	wifi Phy transmit drop trace function More...

void	WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	WIMax receive trace function. More...

void	WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	WIMax transmit trace function. More...

void	WriteIpv4Addresses ()
	Write IPv4 Addresses function. More...

void	WriteIpv6Addresses ()
	Write IPv6 Addresses function. More...

void	WriteLinkProperties ()
	Write link properties function. More...

int	WriteN (const char data, uint32_t count, FILE f)
	WriteN function. More...

int	WriteN (const std::string &st, FILE *f)
	WriteN function. More...

void	WriteNodeColors ()
	Write node colors function. More...

void	WriteNodeEnergies ()
	Write node energies function. More...

void	WriteNodes ()
	Write nodes function. More...

void	WriteNodeSizes ()
	Write node sizes function. More...

void	WriteNodeUpdate (uint32_t nodeId)
	Write node update function. More...

void	WriteNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)
	Write non P2P link properties function. More...

void	WriteRoutePath (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)
	Write route path function. More...

void	WriteXmlAddNodeCounter (uint32_t counterId, std::string counterName, CounterType counterType)
	Write XML add node counter function. More...

void	WriteXmlAddResource (uint32_t resourceId, std::string resourcePath)
	Write XML add resource function. More...

void	WriteXmlAnim (bool routing=false)
	Write XML anim function. More...

void	WriteXmlClose (std::string name, bool routing=false)
	Write XML close function. More...

void	WriteXmlIpv4Addresses (uint32_t nodeId, std::vector< std::string > ipv4Addresses)
	Write XML Ipv4 addresses function. More...

void	WriteXmlIpv6Addresses (uint32_t nodeId, std::vector< std::string > ipv6Addresses)
	Write XML Ipv6 addresses function. More...

void	WriteXmlLink (uint32_t fromId, uint32_t toLp, uint32_t toId)
	Write XML link counter function. More...

void	WriteXmlNode (uint32_t id, uint32_t sysId, double locX, double locY)
	Write XML node function. More...

void	WriteXmlNonP2pLinkProperties (uint32_t id, std::string ipAddress, std::string channelType)
	Write XML non P2P link properties function. More...

void	WriteXmlP (std::string pktType, uint32_t fId, double fbTx, double lbTx, uint32_t tId, double fbRx, double lbRx, std::string metaInfo="")
	Write XMLP function. More...

void	WriteXmlP (uint64_t animUid, std::string pktType, uint32_t fId, double fbTx, double lbTx)
	Write XMLP function. More...

void	WriteXmlPRef (uint64_t animUid, uint32_t fId, double fbTx, std::string metaInfo="")
	Write XMLP Ref function. More...

void	WriteXmlRouting (uint32_t id, std::string routingInfo)
	Write XML routing function. More...

void	WriteXmlRp (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)
	Write XMLRP function. More...

void	WriteXmlUpdateBackground (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
	Write XML update background function. More...

void	WriteXmlUpdateLink (uint32_t fromId, uint32_t toId, std::string linkDescription)
	Write XML update link counter function. More...

void	WriteXmlUpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Write XML update node color function. More...

void	WriteXmlUpdateNodeCounter (uint32_t counterId, uint32_t nodeId, double value)
	Write XML update node counter function. More...

void	WriteXmlUpdateNodeDescription (uint32_t nodeId)
	Write XML update node description function. More...

void	WriteXmlUpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
	Write XML update node image function. More...

void	WriteXmlUpdateNodePosition (uint32_t nodeId, double x, double y)
	Write XML update node position function. More...

void	WriteXmlUpdateNodeSize (uint32_t nodeId, double width, double height)
	Write XML update node size function. More...

Private Attributes
uint64_t	gAnimUid
	Packet unique identifier used by AnimationInterface. More...

uint64_t	m_currentPktCount
	current packet count More...

bool	m_enablePacketMetadata
	enable packet metadata More...

FILE *	m_f
	File handle for output (0 if none) More...

Time	m_ipv4L3ProtocolCountersPollInterval
	IPv4 L3 protocol counters poll interval. More...

Time	m_ipv4L3ProtocolCountersStopTime
	IPv4 L3 protocol counters stop time. More...

uint32_t	m_ipv4L3ProtocolDropCounterId
	IPv4 protocol drop counter ID. More...

uint32_t	m_ipv4L3ProtocolRxCounterId
	IPv4 L3 protocol receive counter ID. More...

uint32_t	m_ipv4L3ProtocolTxCounterId
	IPv4 L3 protocol transmit counter ID. More...

std::vector< Ipv4RouteTrackElement >	m_ipv4RouteTrackElements
	IPv route track elements. More...

std::map< std::string, uint32_t >	m_ipv4ToNodeIdMap
	IPv4 to node ID map. More...

std::map< std::string, uint32_t >	m_ipv6ToNodeIdMap
	IPv6 to node ID map. More...

LinkPropertiesMap	m_linkProperties
	link properties More...

std::map< std::string, uint32_t >	m_macToNodeIdMap
	MAC to node ID map. More...

uint64_t	m_maxPktsPerFile
	maximum pakets per file More...

Time	m_mobilityPollInterval
	mobility poll interval More...

NodeColorsMap	m_nodeColors
	node colors More...

std::vector< std::string >	m_nodeCounters
	node counters More...

NodeDescriptionsMap	m_nodeDescriptions
	node description More...

EnergyFractionMap	m_nodeEnergyFraction
	node energy fraction More...

NodeIdIpv4Map	m_nodeIdIpv4Map
	node ID to IPv4 map More...

NodeIdIpv6Map	m_nodeIdIpv6Map
	node ID to IPv6 map More...

NodeCounterMap64	m_nodeIpv4Drop
	node IPv4 drop More...

NodeCounterMap64	m_nodeIpv4Rx
	node IPv4 receive More...

NodeCounterMap64	m_nodeIpv4Tx
	node IPv4 transmit More...

std::map< uint32_t, Vector >	m_nodeLocation
	node location More...

NodeCounterMap64	m_nodeLrWpanMacRx
	node LR-WPAN MAC receive More...

NodeCounterMap64	m_nodeLrWpanMacRxDrop
	node LR-WPAN MAC receive drop More...

NodeCounterMap64	m_nodeLrWpanMacTx
	node LR-WPAN MAC transmit More...

NodeCounterMap64	m_nodeLrWpanMacTxDrop
	node LR-WPAN MAC transmit drop More...

NodeCounterMap64	m_nodeQueueDequeue
	node queue dequeue More...

NodeCounterMap64	m_nodeQueueDrop
	node queue drop More...

NodeCounterMap64	m_nodeQueueEnqueue
	node queue enqueue More...

std::map< uint32_t, NodeSize >	m_nodeSizes
	node sizes More...

NodeCounterMap64	m_nodeWifiMacRx
	node wifi MAC receive More...

NodeCounterMap64	m_nodeWifiMacRxDrop
	node wifi MAC receive drop More...

NodeCounterMap64	m_nodeWifiMacTx
	node wifi MAC transmit More...

NodeCounterMap64	m_nodeWifiMacTxDrop
	node wifi MAC transmit drop More...

NodeCounterMap64	m_nodeWifiPhyRxDrop
	node wifi Phy receive drop More...

NodeCounterMap64	m_nodeWifiPhyTxDrop
	node wifi Phy transmit drop More...

std::string	m_originalFileName
	original file name More...

std::string	m_outputFileName
	output file name More...

AnimUidPacketInfoMap	m_pendingCsmaPackets
	pending CSMA packets More...

AnimUidPacketInfoMap	m_pendingLrWpanPackets
	pending LR-WPAN packets More...

AnimUidPacketInfoMap	m_pendingLtePackets
	pending LTE packets More...

AnimUidPacketInfoMap	m_pendingUanPackets
	pending UAN packets More...

AnimUidPacketInfoMap	m_pendingWavePackets
	pending WAVE packets More...

AnimUidPacketInfoMap	m_pendingWifiPackets
	pending wifi packets More...

AnimUidPacketInfoMap	m_pendingWimaxPackets
	pending wimax packets More...

Time	m_queueCountersPollInterval
	queue counters poll interval More...

Time	m_queueCountersStopTime
	queue counters stop time More...

uint32_t	m_queueDequeueCounterId
	queue dequeue counter ID More...

uint32_t	m_queueDropCounterId
	queue drop counter ID More...

uint32_t	m_queueEnqueueCounterId
	queue enqueue counter ID More...

uint32_t	m_remainingEnergyCounterId
	remaining energy counter ID More...

std::vector< std::string >	m_resources
	resources More...

FILE *	m_routingF
	File handle for routing table output (0 if None);. More...

std::string	m_routingFileName
	routing file name More...

NodeContainer	m_routingNc
	routing node container More...

Time	m_routingPollInterval
	routing poll interval More...

Time	m_routingStopTime
	routing stop time More...

bool	m_started
	started More...

Time	m_startTime
	start time More...

Time	m_stopTime
	stop time More...

bool	m_trackPackets
	track packets More...

Time	m_wifiMacCountersPollInterval
	wifi MAC counters poll interval More...

Time	m_wifiMacCountersStopTime
	wifi MAC counters stop time More...

uint32_t	m_wifiMacRxCounterId
	wifi MAC receive counter ID More...

uint32_t	m_wifiMacRxDropCounterId
	wifi MAC receive drop counter ID More...

uint32_t	m_wifiMacTxCounterId
	wifi MAC transmit counter ID More...

uint32_t	m_wifiMacTxDropCounterId
	wifi MAC transmit drop counter ID More...

Time	m_wifiPhyCountersPollInterval
	wifi Phy counters poll interval More...

Time	m_wifiPhyCountersStopTime
	wifi Phy counters stop time More...

uint32_t	m_wifiPhyRxDropCounterId
	wifi Phy receive drop counter ID More...

uint32_t	m_wifiPhyTxDropCounterId
	wifi Phy transmit drop counter ID More...

AnimWriteCallback	m_writeCallback
	write callback More...

Static Private Attributes
static Rectangle *	userBoundary
	user boundary More...

Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 75 of file animation-interface.h.

Member Typedef Documentation

◆ AnimUidPacketInfoMap

typedef std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::AnimUidPacketInfoMap

private

AnimUidPacketInfoMap typedef.

Definition at line 550 of file animation-interface.h.

◆ AnimWriteCallback

typedef void(* ns3::AnimationInterface::AnimWriteCallback) (const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 99 of file animation-interface.h.

◆ EnergyFractionMap

typedef std::map<uint32_t, double> ns3::AnimationInterface::EnergyFractionMap

private

EnergyFractionMap typedef.

Definition at line 551 of file animation-interface.h.

◆ Ipv4RoutePathElements

typedef std::vector<Ipv4RoutePathElement> ns3::AnimationInterface::Ipv4RoutePathElements

private

Ipv4RoutePathElements typedef.

Definition at line 552 of file animation-interface.h.

◆ LinkPropertiesMap

typedef std::map<P2pLinkNodeIdPair, LinkProperties, LinkPairCompare> ns3::AnimationInterface::LinkPropertiesMap

private

LinkPropertiesMap typedef.

Definition at line 547 of file animation-interface.h.

◆ NodeColorsMap

typedef std::map<uint32_t, Rgb> ns3::AnimationInterface::NodeColorsMap

private

NodeColorsMap typedef.

Definition at line 549 of file animation-interface.h.

◆ NodeCounterMap64

typedef std::map<uint32_t, uint64_t> ns3::AnimationInterface::NodeCounterMap64

private

NodeCounterMap64 typedef.

Definition at line 560 of file animation-interface.h.

◆ NodeDescriptionsMap

typedef std::map<uint32_t, std::string> ns3::AnimationInterface::NodeDescriptionsMap

private

NodeDescriptionsMap typedef.

Definition at line 548 of file animation-interface.h.

◆ NodeIdIpv4Map

typedef std::multimap<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv4Map

private

NodeIdIpv4Map typedef.

Definition at line 553 of file animation-interface.h.

◆ NodeIdIpv4Pair

typedef std::pair<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv4Pair

private

NodeIdIpv4Pair typedef.

Definition at line 555 of file animation-interface.h.

◆ NodeIdIpv6Map

typedef std::multimap<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv6Map

private

NodeIdIpv6Map typedef.

Definition at line 554 of file animation-interface.h.

◆ NodeIdIpv6Pair

typedef std::pair<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv6Pair

private

NodeIdIpv6Pair typedef.

Definition at line 556 of file animation-interface.h.

Member Enumeration Documentation

◆ CounterType

enum ns3::AnimationInterface::CounterType

Counter Types.

Enumerator
UINT32_COUNTER
DOUBLE_COUNTER

Definition at line 88 of file animation-interface.h.

◆ ProtocolType

enum ns3::AnimationInterface::ProtocolType

private

ProtocolType enumeration.

Enumerator
UAN
LTE
WIFI
WIMAX
CSMA
LRWPAN
WAVE

Definition at line 530 of file animation-interface.h.

Constructor & Destructor Documentation

◆ AnimationInterface()

ns3::AnimationInterface::AnimationInterface ( const std::string filename )

Constructor.

Parameters

filename The Filename for the trace file used by the Animator

Definition at line 75 of file animation-interface.cc.

References ns3::initialized, and StartAnimation().

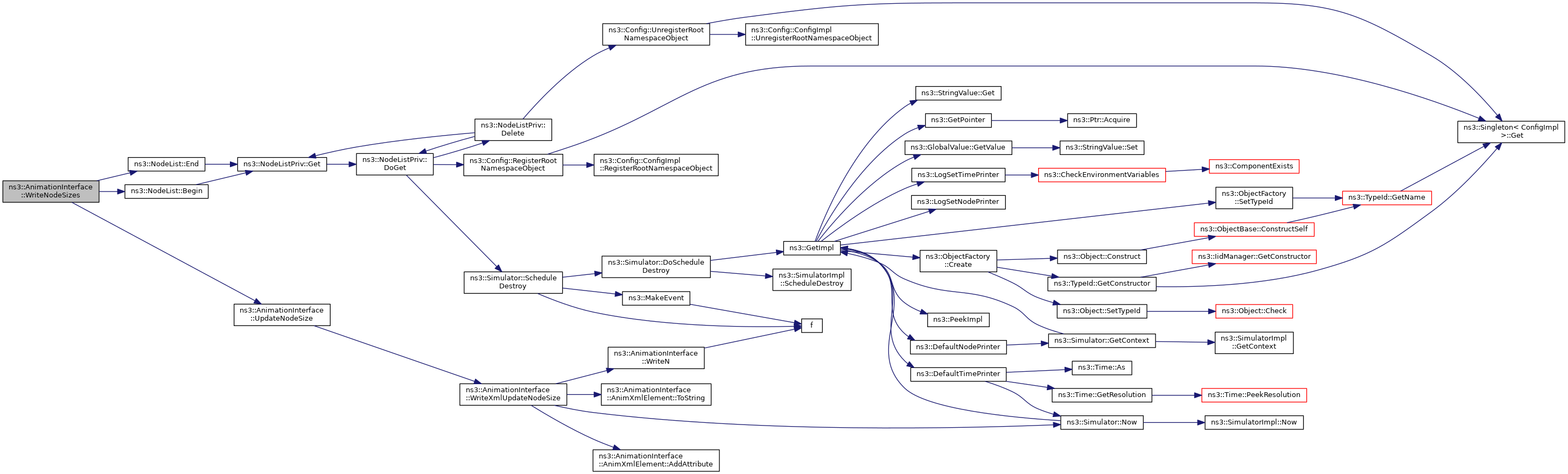

Here is the call graph for this function:

◆ ~AnimationInterface()

ns3::AnimationInterface::~AnimationInterface ( )

Destructor for the animator interface.

Definition at line 97 of file animation-interface.cc.

References StopAnimation().

Here is the call graph for this function:

Member Function Documentation

◆ AddByteTag()

void ns3::AnimationInterface::AddByteTag	(	uint64_t	animUid,
		Ptr< const Packet >	p
	)

private

Add byte tag function.

Parameters

animUid	the UID
p	the packet

Definition at line 630 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), and ns3::AnimByteTag::Set().

Referenced by CsmaPhyTxBeginTrace(), GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyTxStart(), and WifiPhyTxBeginTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddNodeCounter()

uint32_t ns3::AnimationInterface::AddNodeCounter	(	std::string	counterName,
		CounterType	counterType
	)

Setup a node counter.

Parameters

counterName	A string to identify the counter
counterType	The type of the counter, such as uint32, double etc

Returns: The id of the counter to be used as a reference for future

Definition at line 238 of file animation-interface.cc.

References m_nodeCounters, and WriteXmlAddNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), and WriteNodeEnergies().

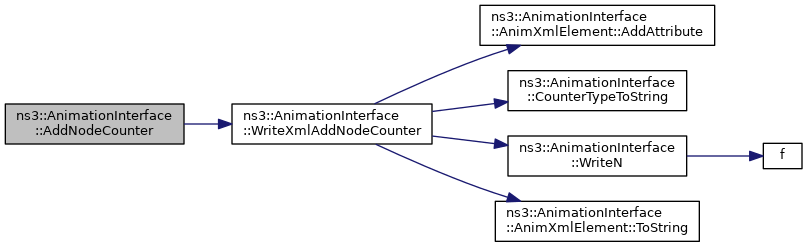

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddPendingPacket()

void ns3::AnimationInterface::AddPendingPacket	(	ProtocolType	protocolType,
		uint64_t	animUid,
		AnimPacketInfo	pktInfo
	)

private

Add pending packet function.

Parameters

protocolType	the protocol type
animUid	the UID
pktInfo	the packet info

Definition at line 1293 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyTxStart(), WavePhyRxBeginTrace(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddResource()

uint32_t ns3::AnimationInterface::AddResource ( std::string resourcePath )

Add a resource such as the path to an image file.

Parameters

resourcePath Absolute Path to an image/resource

Returns: a number identifying the resource

Definition at line 247 of file animation-interface.cc.

References m_resources, and WriteXmlAddResource().

Here is the call graph for this function:

◆ AddSourceDestination()

AnimationInterface & ns3::AnimationInterface::AddSourceDestination	(	uint32_t	fromNodeId,
		std::string	destinationIpv4Address
	)

Helper function to print the routing path from a source node to destination IP.

Parameters

fromNodeId	The source node
destinationIpv4Address	The destination Ipv4 Address

Returns: reference to this AnimationInterface object

Definition at line 212 of file animation-interface.cc.

References m_ipv4RouteTrackElements.

◆ AddToIpv4AddressNodeIdTable() [1/2]

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable	(	std::string	ipv4Address,
		uint32_t	nodeId
	)

private

Add to IPv4 address node ID table function.

Parameters

ipv4Address	the IPv4 address
nodeId	the node ID

Definition at line 1514 of file animation-interface.cc.

References m_ipv4ToNodeIdMap, and m_nodeIdIpv4Map.

Referenced by AddToIpv4AddressNodeIdTable(), and WriteLinkProperties().

Here is the caller graph for this function:

◆ AddToIpv4AddressNodeIdTable() [2/2]

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable	(	std::vector< std::string >	ipv4Addresses,
		uint32_t	nodeId
	)

private

Add to IPv4 address node ID table function.

Parameters

ipv4Addresses	the list of IPv4 addresses
nodeId	the node ID

Definition at line 1521 of file animation-interface.cc.

References AddToIpv4AddressNodeIdTable().

Here is the call graph for this function:

◆ AddToIpv6AddressNodeIdTable() [1/2]

void ns3::AnimationInterface::AddToIpv6AddressNodeIdTable	(	std::string	ipv6Address,
		uint32_t	nodeId
	)

private

Add to IPv6 address node ID table function.

Parameters

ipv6Address	the IPv6 address
nodeId	the node ID

Definition at line 1532 of file animation-interface.cc.

References m_ipv6ToNodeIdMap, and m_nodeIdIpv6Map.

Referenced by AddToIpv6AddressNodeIdTable(), and WriteLinkProperties().

Here is the caller graph for this function:

◆ AddToIpv6AddressNodeIdTable() [2/2]

void ns3::AnimationInterface::AddToIpv6AddressNodeIdTable	(	std::vector< std::string >	ipv6Addresses,
		uint32_t	nodeId
	)

private

Add to IPv6 address node ID table function.

Parameters

ipv6Addresses	the list of IPv6 addresses
nodeId	the node ID

Definition at line 1539 of file animation-interface.cc.

References AddToIpv6AddressNodeIdTable().

Here is the call graph for this function:

◆ CheckMaxPktsPerTraceFile()

void ns3::AnimationInterface::CheckMaxPktsPerTraceFile ( )

private

Check maximum packets per trace file function.

Definition at line 2140 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, NS_LOG_UNCOND, and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacketRxInfo(), and OutputWirelessPacketTxInfo().

Here is the call graph for this function:

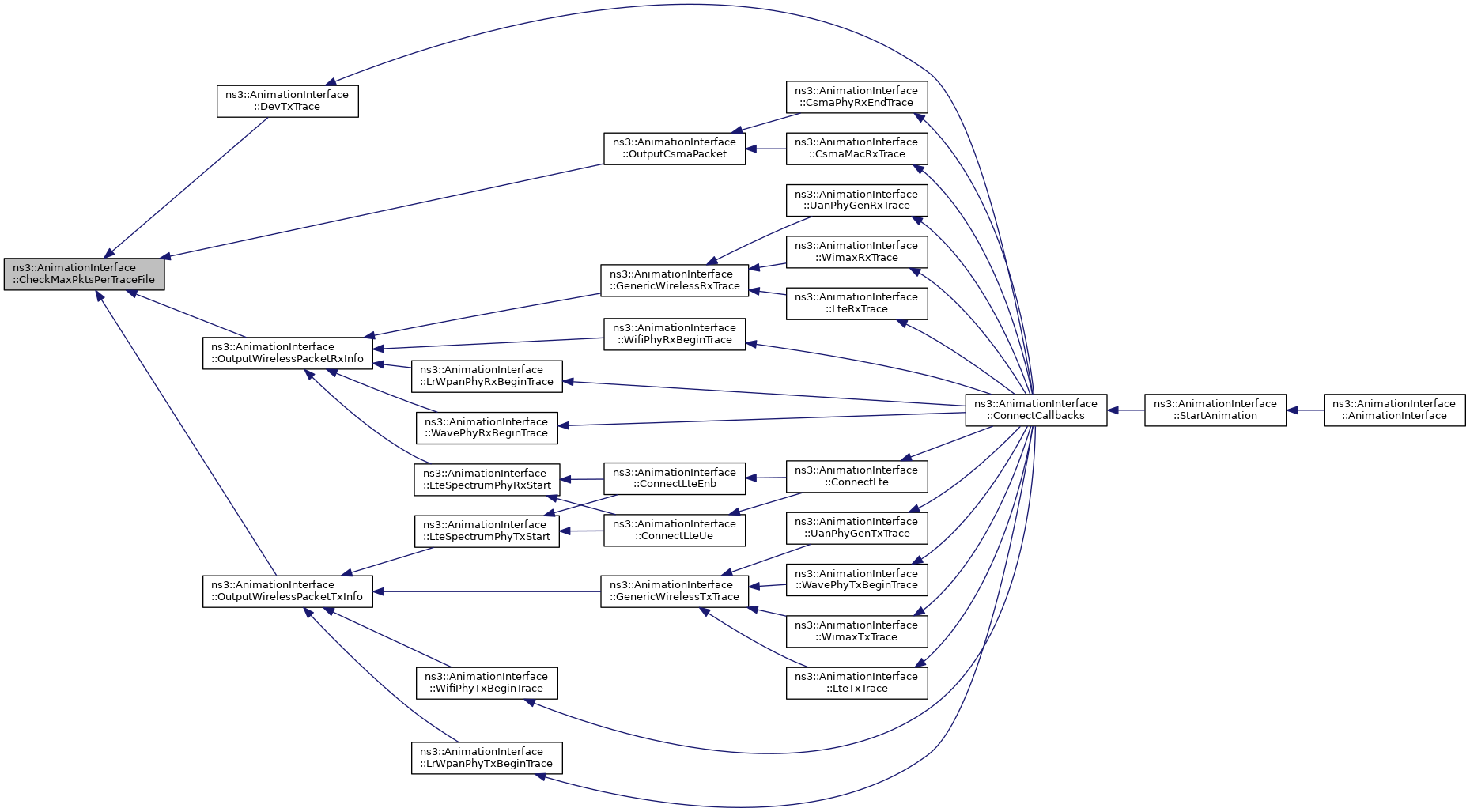

Here is the caller graph for this function:

◆ ConnectCallbacks()

void ns3::AnimationInterface::ConnectCallbacks ( )

private

Connect callbacks function.

Definition at line 1629 of file animation-interface.cc.

References ns3::Config::ConnectFailSafe(), ConnectLte(), ns3::Config::ConnectWithoutContextFailSafe(), CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DequeueTrace(), DevTxTrace(), EnqueueTrace(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), LrWpanMacRxDropTrace(), LrWpanMacRxTrace(), LrWpanMacTxDropTrace(), LrWpanMacTxTrace(), LrWpanPhyRxBeginTrace(), LrWpanPhyTxBeginTrace(), LteRxTrace(), LteTxTrace(), ns3::MakeCallback(), MobilityCourseChangeTrace(), QueueDropTrace(), RemainingEnergyTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WavePhyRxBeginTrace(), WavePhyTxBeginTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxDropTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Referenced by StartAnimation().

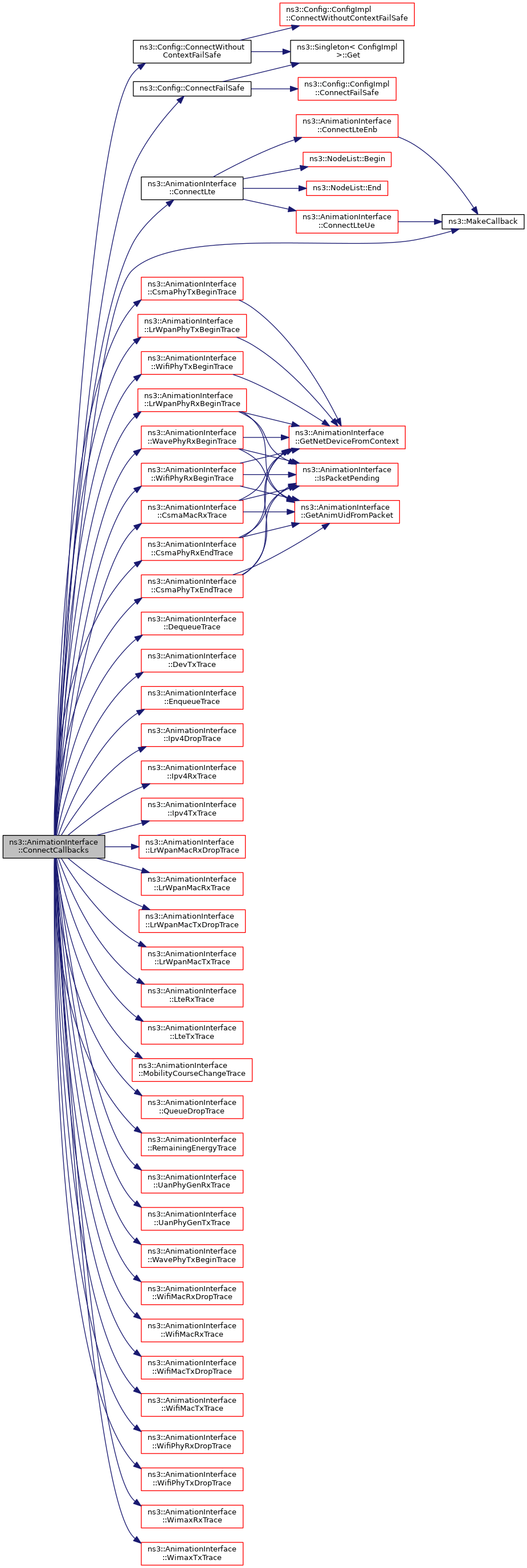

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectLte()

void ns3::AnimationInterface::ConnectLte ( )

private

Connect LTE function.

Definition at line 1597 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), sample-rng-plot::n, and NS_ASSERT.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectLteEnb()

void ns3::AnimationInterface::ConnectLteEnb	(	Ptr< Node >	n,
		Ptr< LteEnbNetDevice >	nd,
		uint32_t	devIndex
	)

private

Connect LTE ENB function.

Parameters

n	the node
nd	the device
devIndex	the device index

Definition at line 1551 of file animation-interface.cc.

References ns3::LteEnbNetDevice::GetPhy(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), ns3::MakeCallback(), and sample-rng-plot::n.

Referenced by ConnectLte().

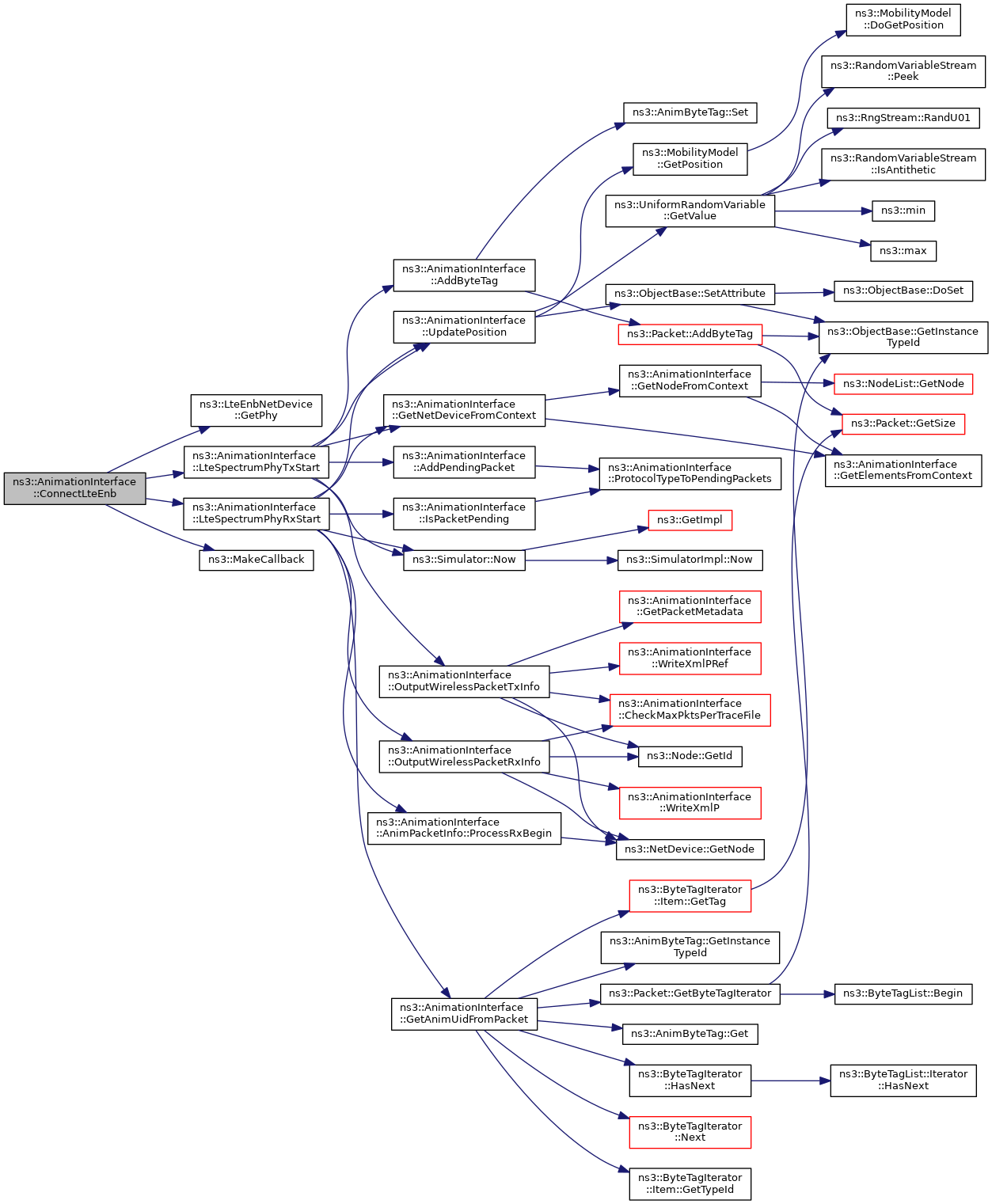

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectLteUe()

void ns3::AnimationInterface::ConnectLteUe	(	Ptr< Node >	n,
		Ptr< LteUeNetDevice >	nd,
		uint32_t	devIndex
	)

private

Connect LTE ue function.

Parameters

n	the node
nd	the device
devIndex	the device index

Definition at line 1575 of file animation-interface.cc.

References LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), ns3::MakeCallback(), and sample-rng-plot::n.

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CounterTypeToString()

std::string ns3::AnimationInterface::CounterTypeToString ( CounterType counterType )

private

Counter type to string function.

Parameters

counterType the counter type

Returns: the string

Definition at line 1432 of file animation-interface.cc.

References DOUBLE_COUNTER, and UINT32_COUNTER.

Referenced by WriteXmlAddNodeCounter().

Here is the caller graph for this function:

◆ CsmaMacRxTrace()

void ns3::AnimationInterface::CsmaMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA MAC receive trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1231 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), m_pendingCsmaPackets, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

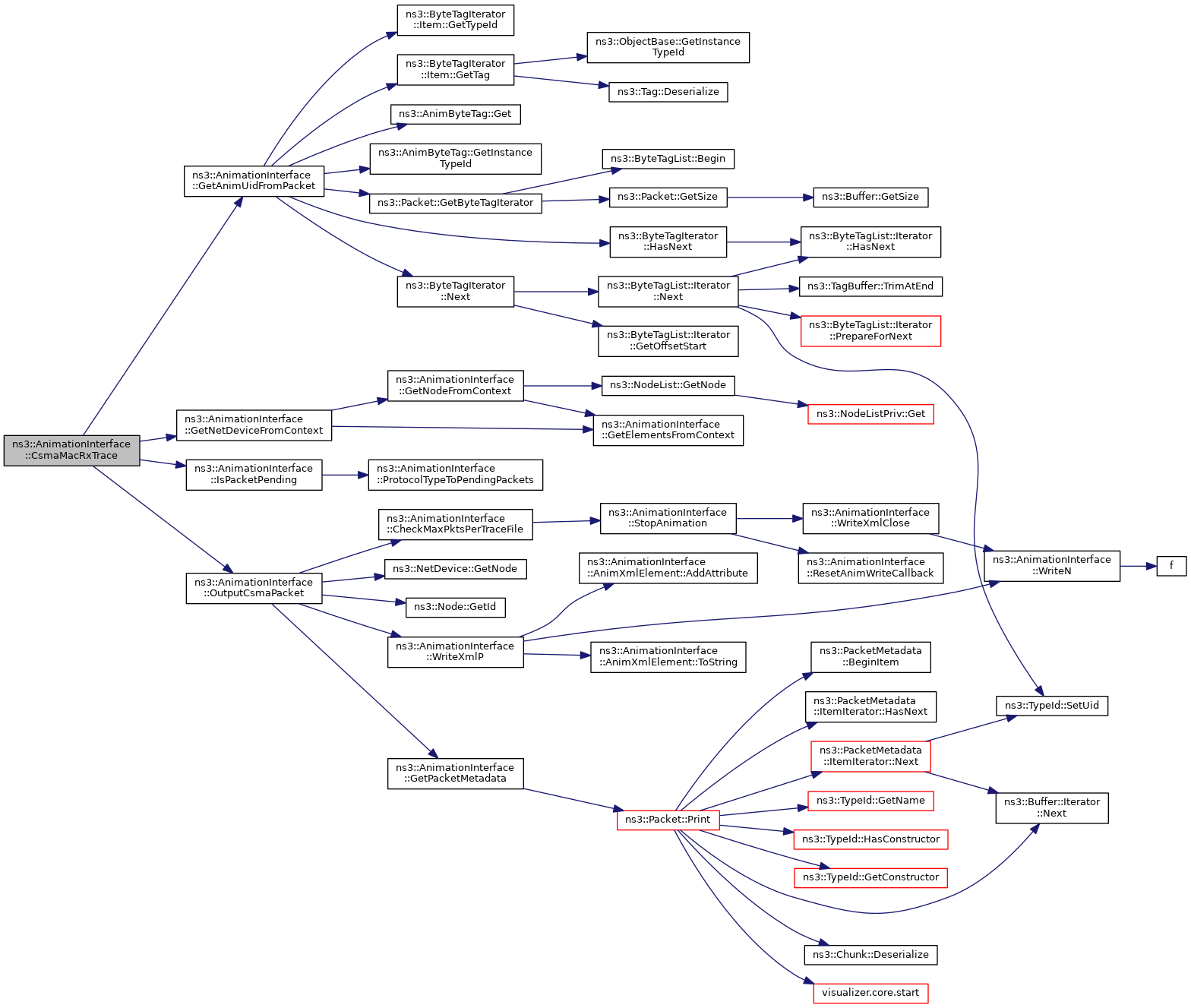

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CsmaPhyRxEndTrace()

void ns3::AnimationInterface::CsmaPhyRxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA Phy receive end trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1209 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), m_pendingCsmaPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputCsmaPacket(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), and UpdatePosition().

Referenced by ConnectCallbacks().

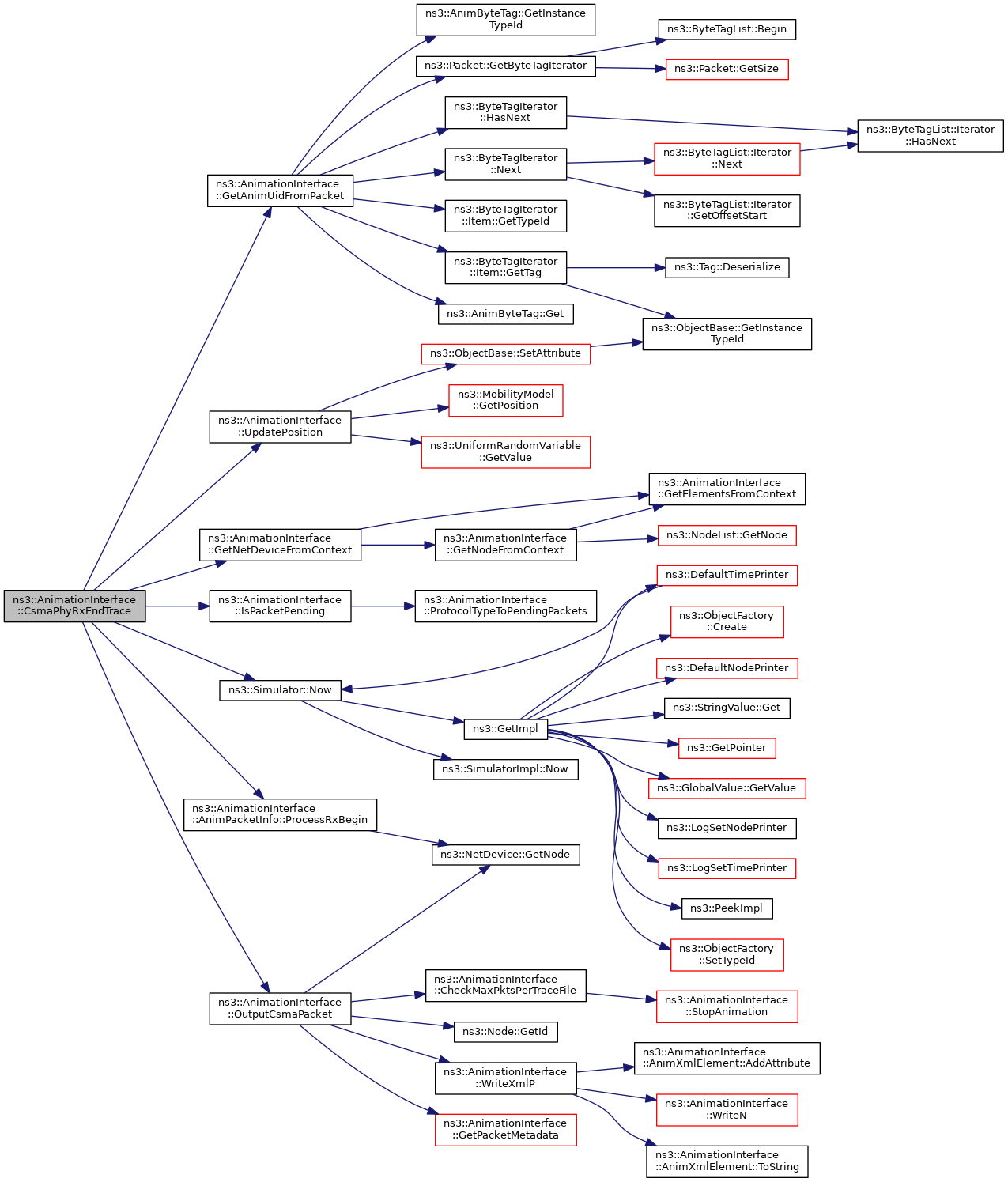

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CsmaPhyTxBeginTrace()

void ns3::AnimationInterface::CsmaPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA Phy transmit begin trace function.

Parameters

context	the context
p	the packet

Definition at line 1168 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, gAnimUid, GetNetDeviceFromContext(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CsmaPhyTxEndTrace()

void ns3::AnimationInterface::CsmaPhyTxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA Phy transmit end trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (IsPacketPending (AnimUid) == true);

Definition at line 1186 of file animation-interface.cc.

References AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::Time::GetSeconds(), IsPacketPending(), ns3::AnimationInterface::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

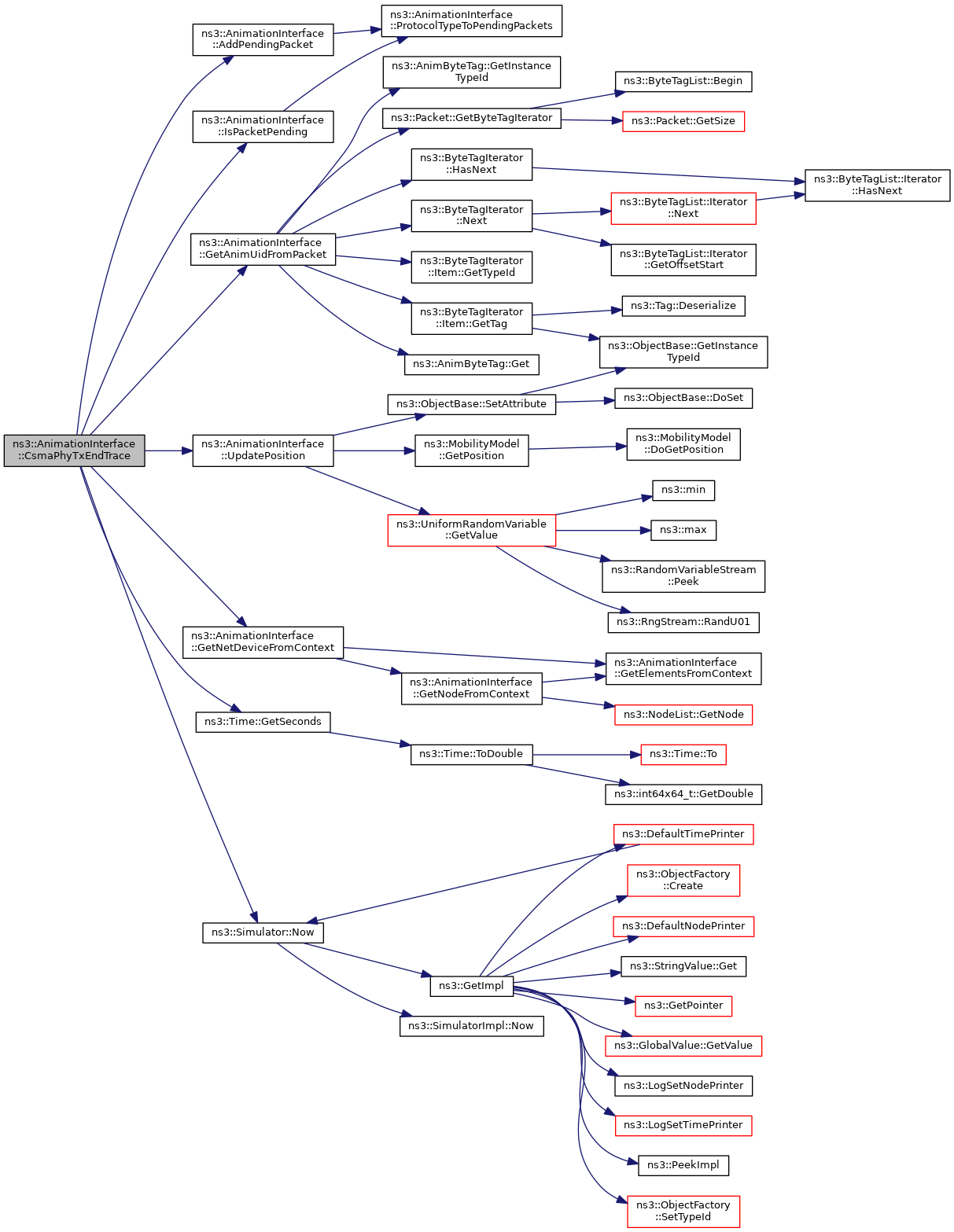

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DequeueTrace()

void ns3::AnimationInterface::DequeueTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Dequeue trace function.

Parameters

context	the context
p	the packet

Definition at line 763 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDequeue.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DevTxTrace()

void ns3::AnimationInterface::DevTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< NetDevice >	tx,
		Ptr< NetDevice >	rx,
		Time	txTime,
		Time	rxTime
	)

private

Device transmit trace function.

Parameters

context	the context
p	the packet
tx	the transmit device
rx	the receive device
txTime	the transmit time
rxTime	the reeive time

Definition at line 779 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CheckMaxPktsPerTraceFile(), GetPacketMetadata(), ns3::Time::GetSeconds(), m_enablePacketMetadata, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and WriteXmlP().

Referenced by ConnectCallbacks().

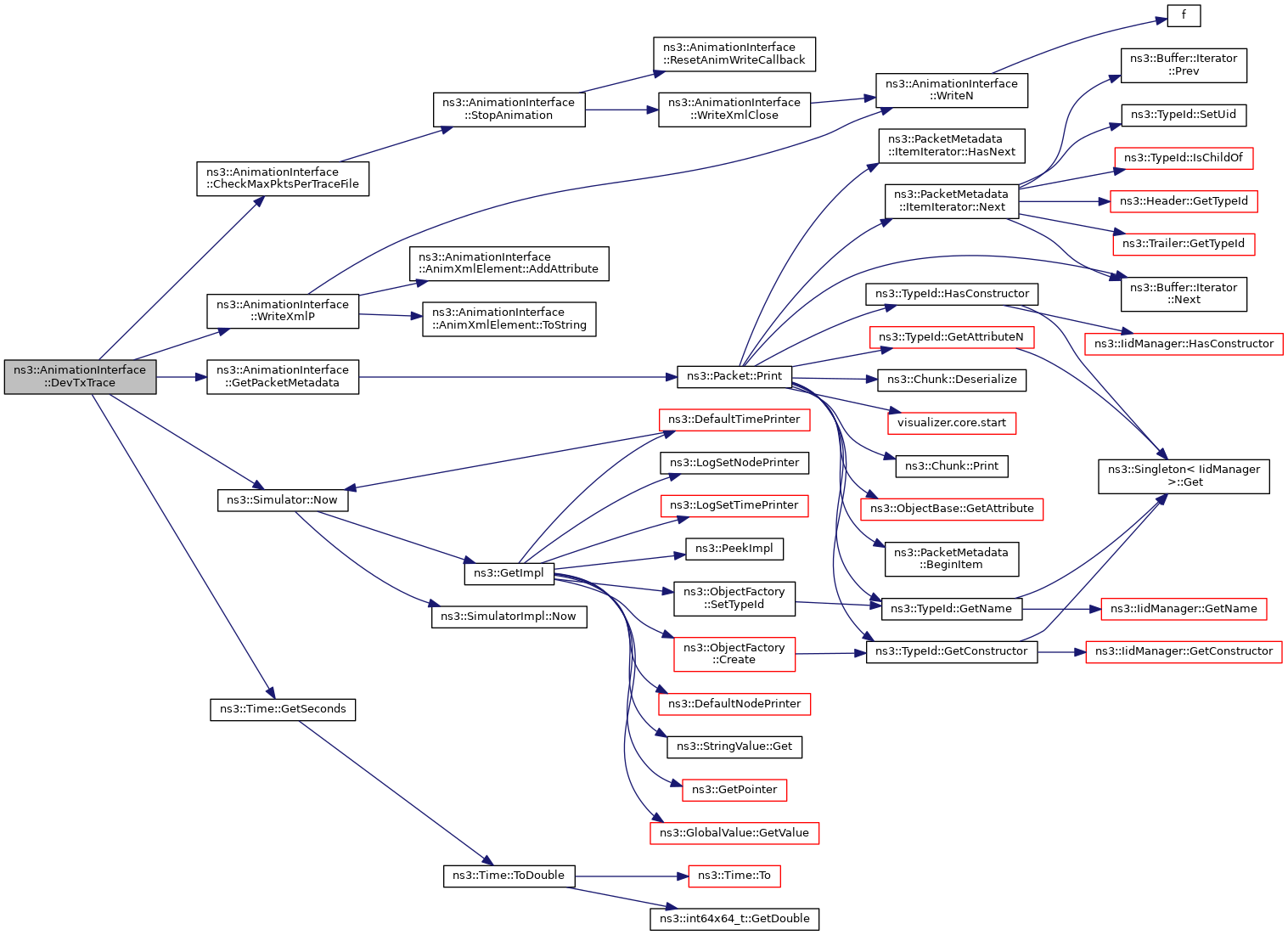

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableIpv4L3ProtocolCounters()

void ns3::AnimationInterface::EnableIpv4L3ProtocolCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 173 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, sample-rng-plot::n, ns3::Simulator::Schedule(), startTime, stopTime, TrackIpv4L3ProtocolCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

◆ EnableIpv4RouteTracking() [1/2]

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (5)`
	)

Enable tracking of the Ipv4 routing table for all Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 194 of file animation-interface.cc.

References m_routingPollInterval, m_routingStopTime, ns3::Simulator::Schedule(), SetOutputFile(), startTime, stopTime, TrackIpv4Route(), and WriteXmlAnim().

Referenced by EnableIpv4RouteTracking().

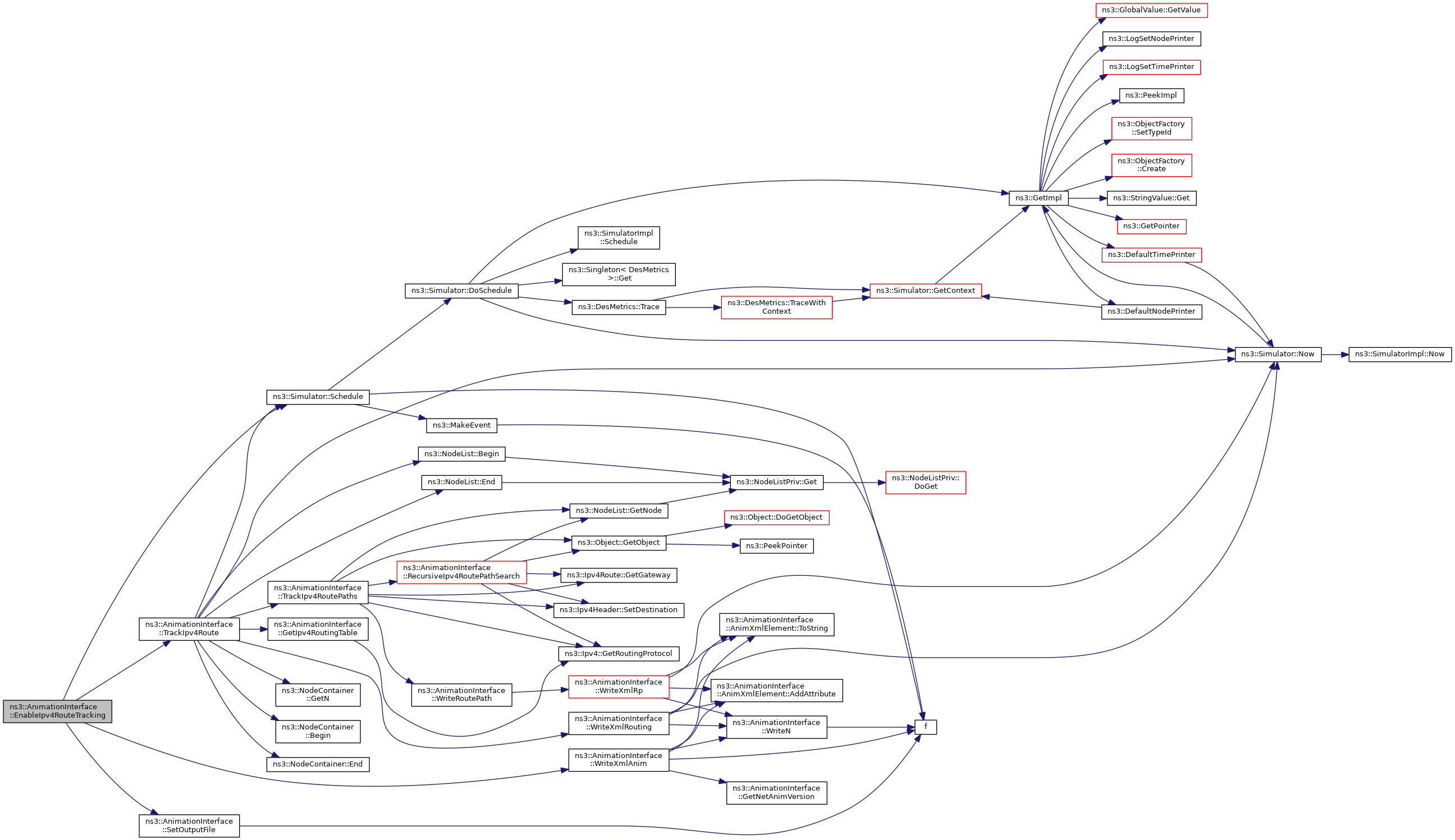

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableIpv4RouteTracking() [2/2]

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		NodeContainer	nc,
		Time	pollInterval = `Seconds (5)`
	)

Enable tracking of the Ipv4 routing table for a set of Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
nc	A NodeContainer containing nodes for which Routing table has to be tracked
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 205 of file animation-interface.cc.

References EnableIpv4RouteTracking(), m_routingNc, startTime, and stopTime.

Here is the call graph for this function:

◆ EnablePacketMetadata()

void ns3::AnimationInterface::EnablePacketMetadata ( bool enable = true )

Enable Packet metadata.

Parameters

enable if true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Returns: none

Definition at line 256 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

Here is the call graph for this function:

◆ EnableQueueCounters()

void ns3::AnimationInterface::EnableQueueCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 152 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, sample-rng-plot::n, ns3::Simulator::Schedule(), startTime, stopTime, TrackQueueCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

◆ EnableWifiMacCounters()

void ns3::AnimationInterface::EnableWifiMacCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 128 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, sample-rng-plot::n, ns3::Simulator::Schedule(), startTime, stopTime, TrackWifiMacCounters(), and UpdateNodeCounter().

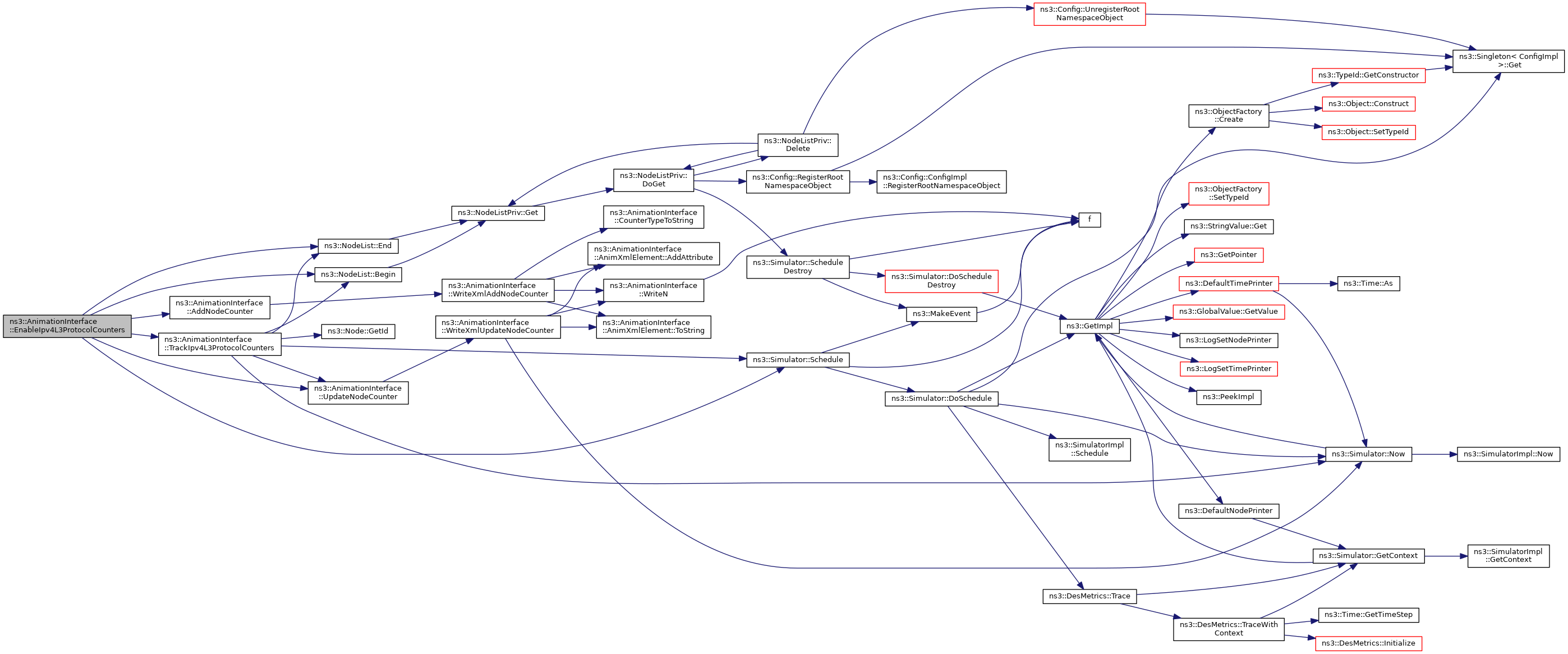

Here is the call graph for this function:

◆ EnableWifiPhyCounters()

void ns3::AnimationInterface::EnableWifiPhyCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds (1)`
	)

Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns: none

Definition at line 109 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, sample-rng-plot::n, ns3::Simulator::Schedule(), startTime, stopTime, TrackWifiPhyCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

◆ EnqueueTrace()

void ns3::AnimationInterface::EnqueueTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Enqueue trace function.

Parameters

context	the context
p	the packet

Definition at line 755 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueEnqueue.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GenericWirelessRxTrace()

void ns3::AnimationInterface::GenericWirelessRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		ProtocolType	protocolType
	)

private

Generic wireless receive trace function.

Parameters

context	the context
p	the packet
protocolType	the protocol type

Definition at line 837 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ProtocolTypeToPendingPackets(), ProtocolTypeToString(), and UpdatePosition().

Referenced by LteRxTrace(), UanPhyGenRxTrace(), and WimaxRxTrace().

Here is the call graph for this function:

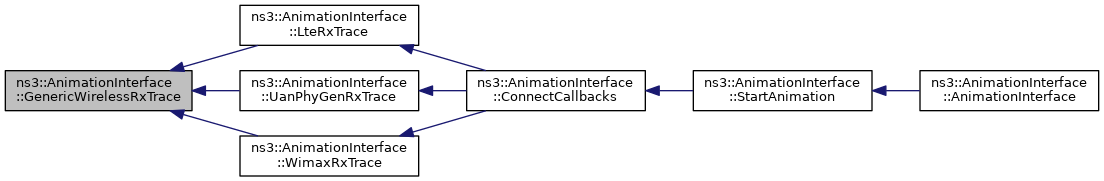

Here is the caller graph for this function:

◆ GenericWirelessTxTrace()

void ns3::AnimationInterface::GenericWirelessTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		ProtocolType	protocolType
	)

private

Generic wireless transmit trace function.

Parameters

context	the context
p	the packet
protocolType	the protocol type

Definition at line 807 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, gAnimUid, ns3::WifiNetDevice::GetMac(), GetNetDeviceFromContext(), ns3::WifiNetDevice::GetNode(), m_macToNodeIdMap, sample-rng-plot::n, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, OutputWirelessPacketTxInfo(), ProtocolTypeToPendingPackets(), ProtocolTypeToString(), and UpdatePosition().

Referenced by LteTxTrace(), UanPhyGenTxTrace(), WavePhyTxBeginTrace(), and WimaxTxTrace().

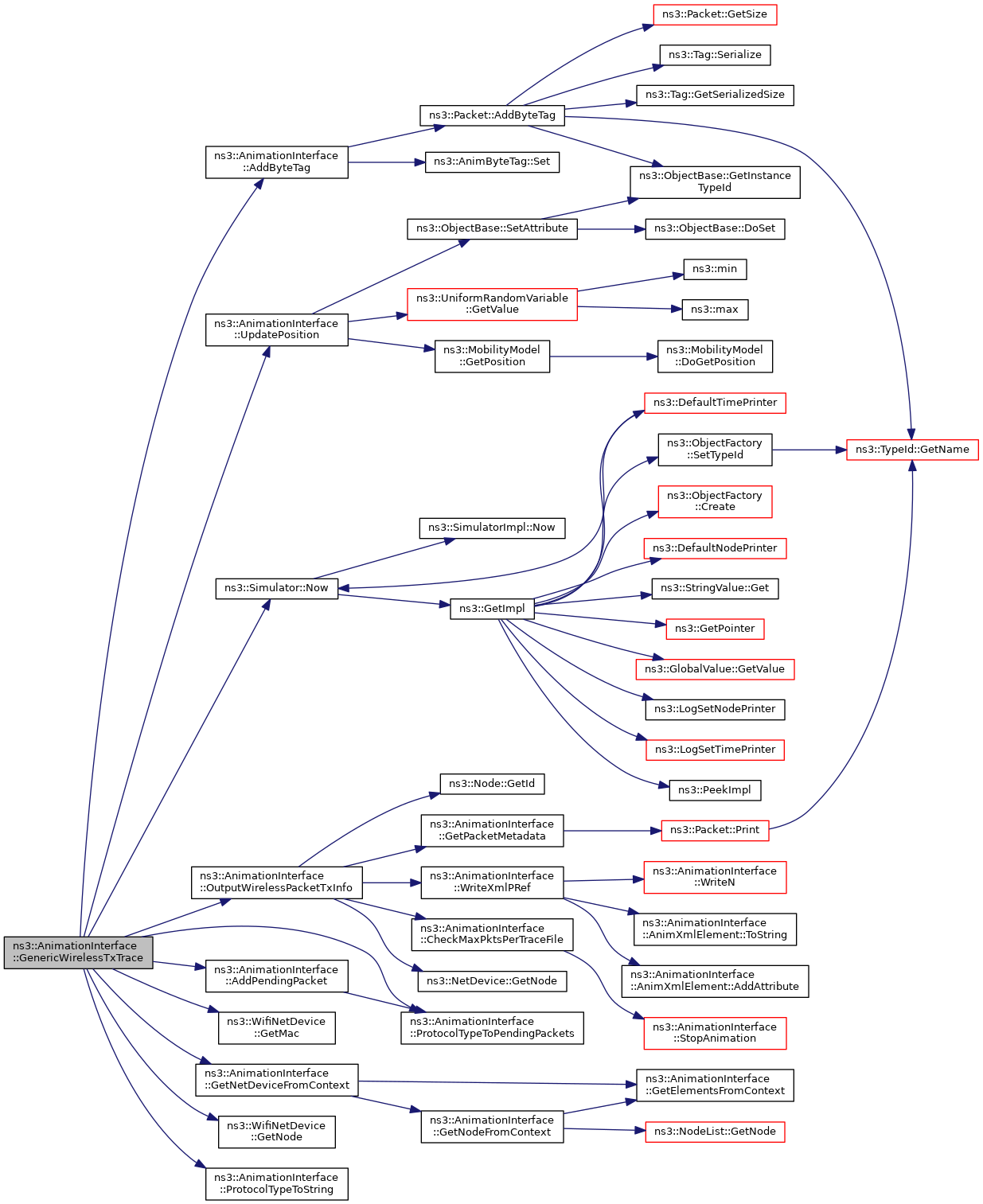

Here is the call graph for this function:

Here is the caller graph for this function:

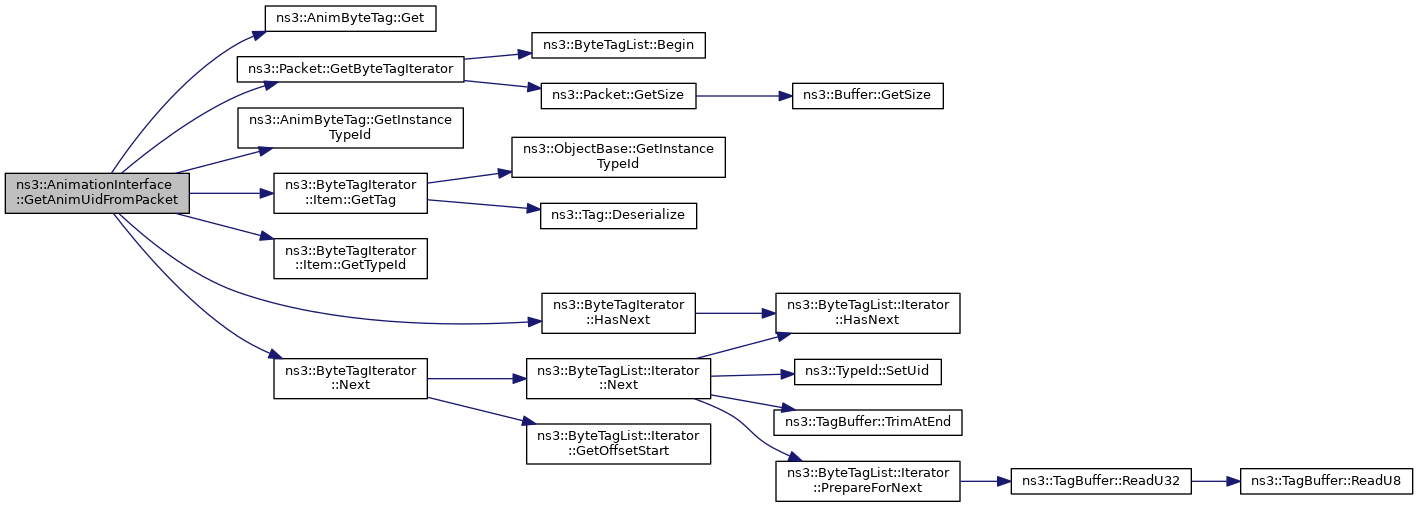

◆ GetAnimUidFromPacket()

uint64_t ns3::AnimationInterface::GetAnimUidFromPacket ( Ptr< const Packet > p )

private

Get anim UID from packet function.

Parameters

p	the packet

Returns: the UID

Definition at line 604 of file animation-interface.cc.

References ns3::AnimByteTag::Get(), ns3::Packet::GetByteTagIterator(), ns3::AnimByteTag::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), GenericWirelessRxTrace(), LrWpanPhyRxBeginTrace(), LteSpectrumPhyRxStart(), WavePhyRxBeginTrace(), and WifiPhyRxBeginTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetElementsFromContext()

const std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( const std::string & context ) const

private

Get elements from context.

Parameters

context the context string

Returns: the elements

Definition at line 562 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext(), and GetNodeFromContext().

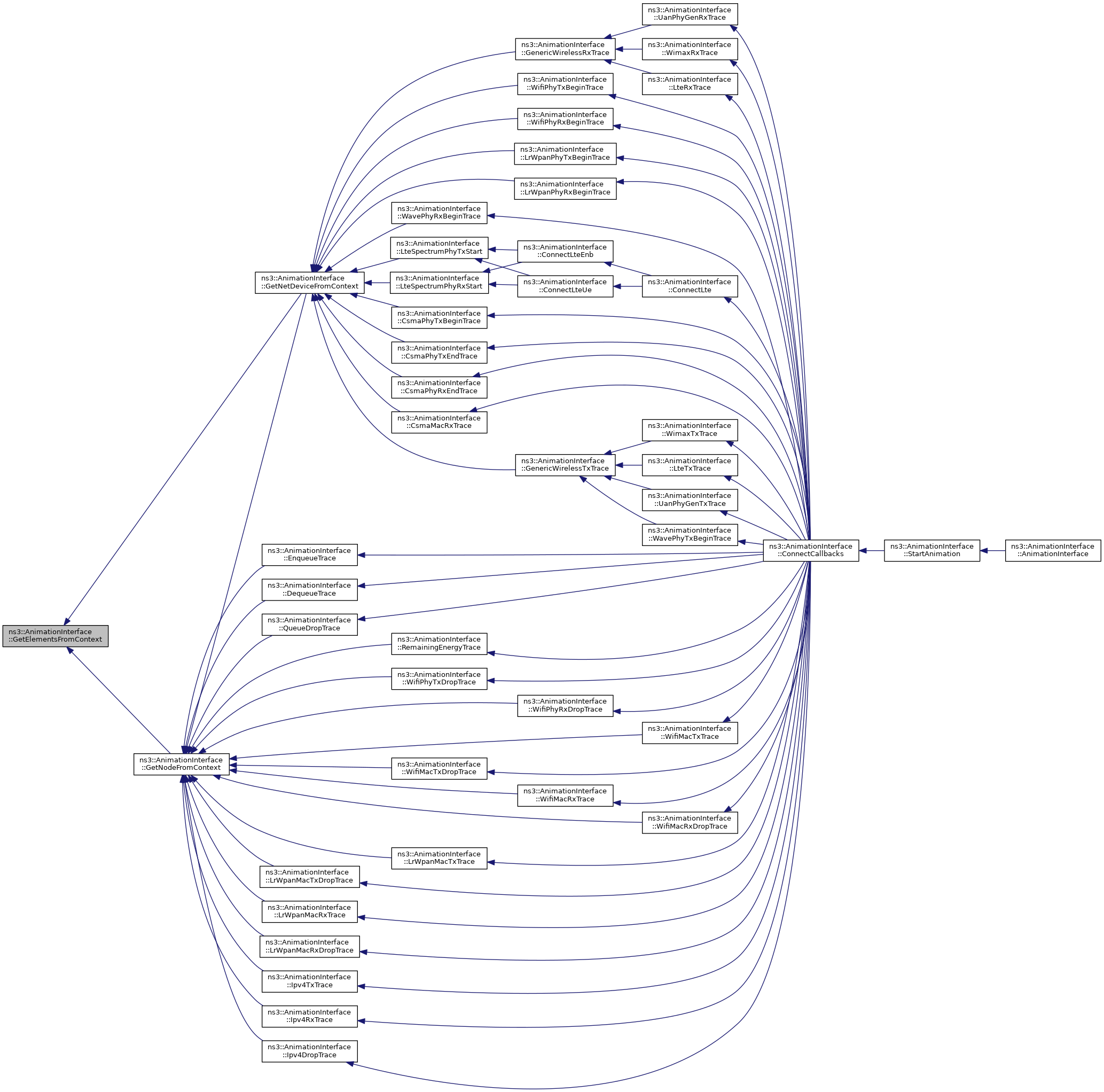

Here is the caller graph for this function:

◆ GetIpv4Address()

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice > nd )

private

Get IPv4 address.

Parameters

nd	the device

Returns: the IPv4 address

Definition at line 1795 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv4Addresses()

std::vector< std::string > ns3::AnimationInterface::GetIpv4Addresses ( Ptr< NetDevice > nd )

private

Get IPv4 addresses.

Parameters

nd	the device

Returns: the IPv4 address list

Definition at line 1854 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv4RoutingTable()

std::string ns3::AnimationInterface::GetIpv4RoutingTable ( Ptr< Node > n )

private

Get IPv4 routing table function.

Parameters

n the node

Returns: the IPv4 routing table

Definition at line 2340 of file animation-interface.cc.

References ns3::Ipv4::GetRoutingProtocol(), sample-rng-plot::n, NS_ASSERT, and NS_LOG_WARN.

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv6Address()

std::string ns3::AnimationInterface::GetIpv6Address ( Ptr< NetDevice > nd )

private

Get IPv6 address.

Parameters

nd	the device

Returns: the IPv6 address

Definition at line 1816 of file animation-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::NodeList::GetNode(), ns3::Ipv6Address::IsLinkLocal(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv6Addresses()

std::vector< std::string > ns3::AnimationInterface::GetIpv6Addresses ( Ptr< NetDevice > nd )

private

Get IPv6 addresses.

Parameters

nd	the device

Returns: the IPv6 address list

Definition at line 1880 of file animation-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMacAddress()

std::string ns3::AnimationInterface::GetMacAddress ( Ptr< NetDevice > nd )

private

Get MAC address function.

Parameters

nd	the device

Returns: the MAC address

Definition at line 1786 of file animation-interface.cc.

Referenced by WriteLinkProperties().

Here is the caller graph for this function:

◆ GetMovedNodes()

std::vector< Ptr< Node > > ns3::AnimationInterface::GetMovedNodes ( )

private

Get moved nodes function.

Returns: the list of moved nodes

Definition at line 469 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), GetPosition(), third::mobility, sample-rng-plot::n, NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck().

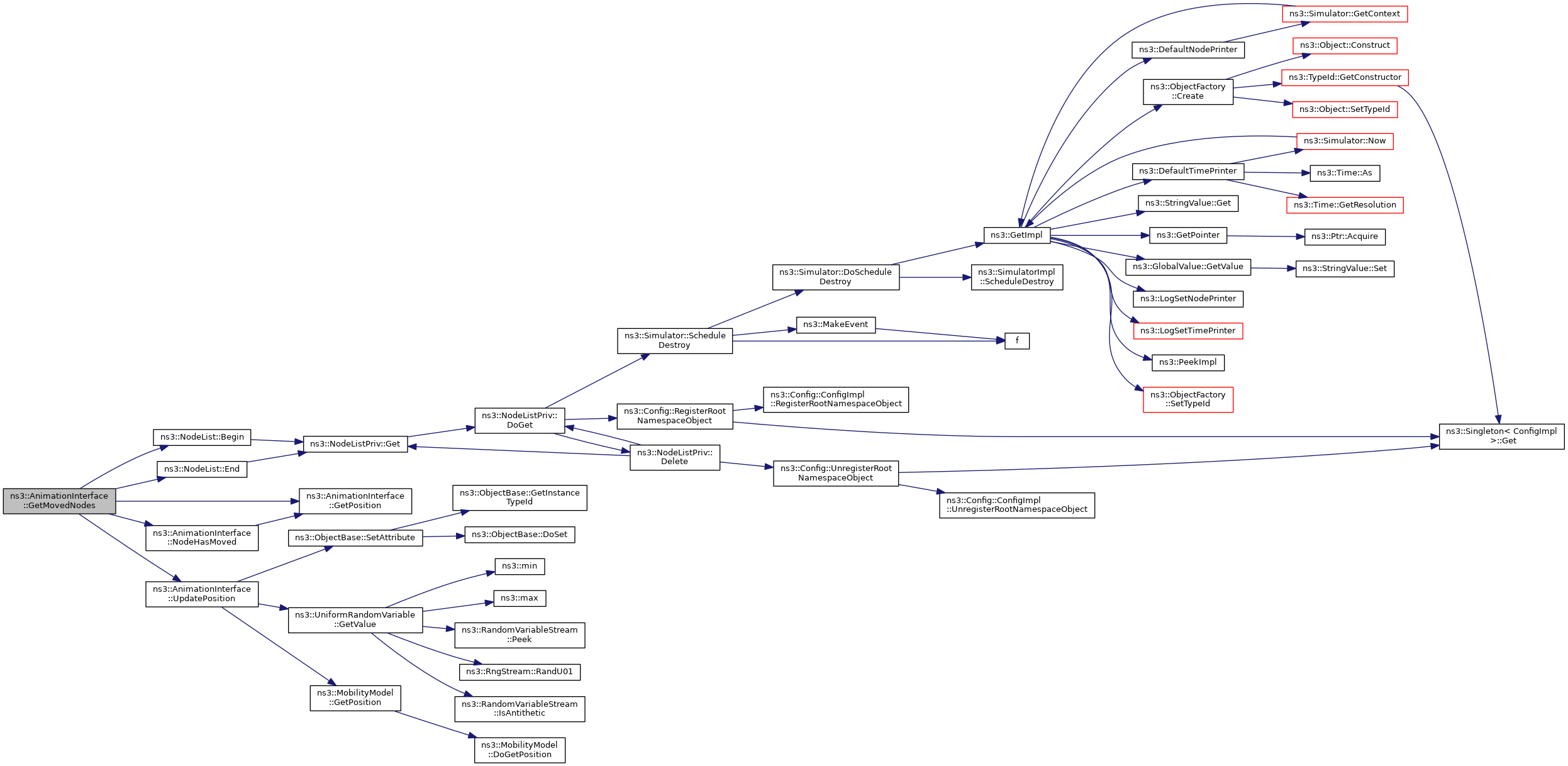

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNetAnimVersion()

std::string ns3::AnimationInterface::GetNetAnimVersion ( )

private

Get netanim version function.

Returns: the net anim version string

Definition at line 2153 of file animation-interface.cc.

References NETANIM_VERSION.

Referenced by WriteXmlAnim().

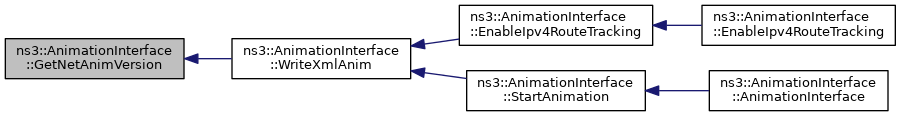

Here is the caller graph for this function:

◆ GetNetDeviceFromContext()

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string context )

private

Get net device from context.

Parameters

context the context string

Returns: the device

Definition at line 591 of file animation-interface.cc.

References GetElementsFromContext(), GetNodeFromContext(), and sample-rng-plot::n.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GenericWirelessRxTrace(), GenericWirelessTxTrace(), LrWpanPhyRxBeginTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), WavePhyRxBeginTrace(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

Here is the call graph for this function:

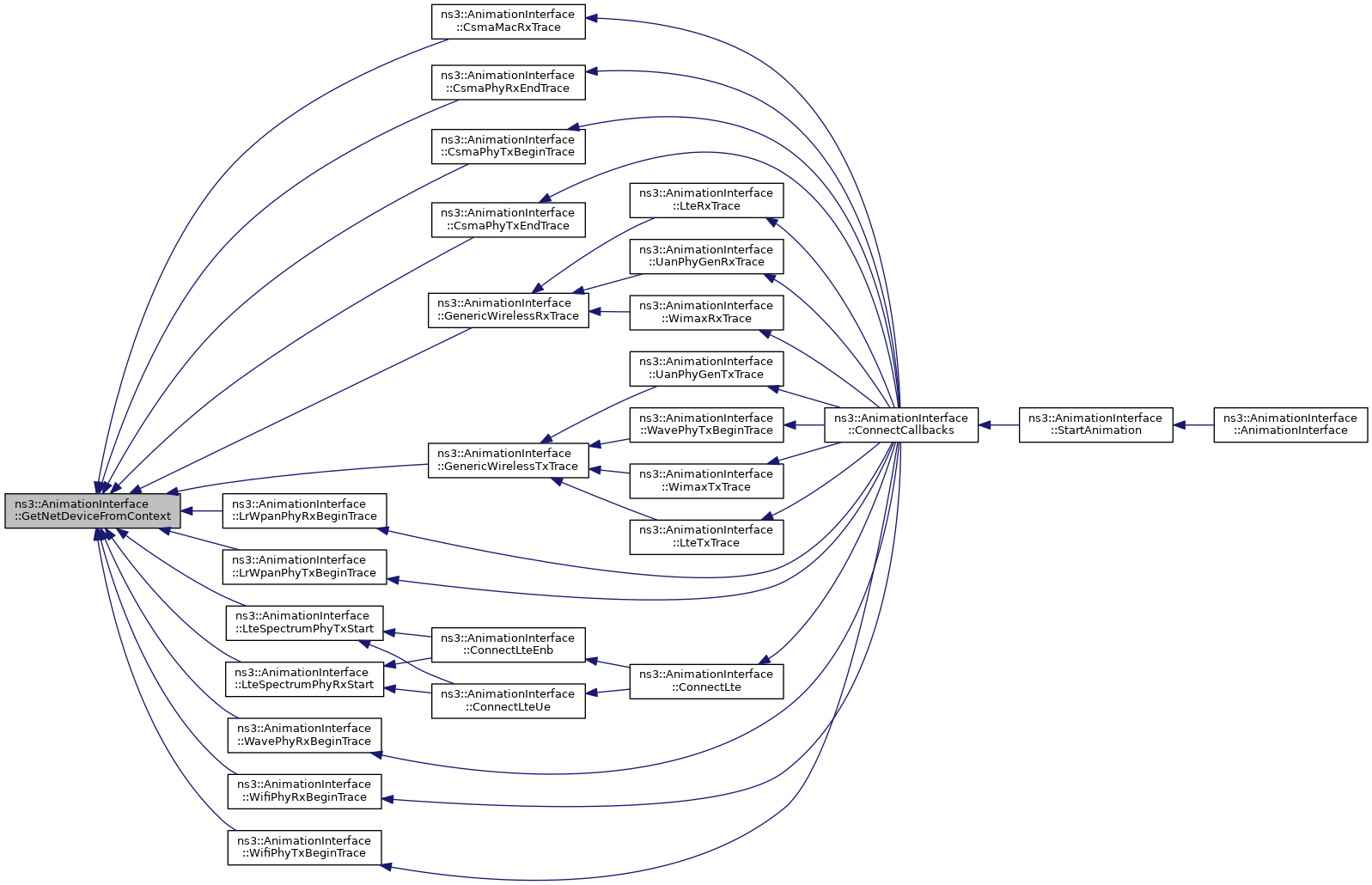

Here is the caller graph for this function:

◆ GetNodeEnergyFraction()

double ns3::AnimationInterface::GetNodeEnergyFraction ( Ptr< const Node > node ) const

Get node's energy fraction (This used only for testing)

Parameters

node

Returns: current node's remaining energy (between [0, 1])

Definition at line 401 of file animation-interface.cc.

References m_nodeEnergyFraction, and NS_ASSERT.

Referenced by AnimationRemainingEnergyTestCase::CheckLogic().

Here is the caller graph for this function:

◆ GetNodeFromContext()

Ptr< Node > ns3::AnimationInterface::GetNodeFromContext ( const std::string & context ) const

private

Get node from context.

Parameters

context the context string

Returns: the node

Definition at line 578 of file animation-interface.cc.

References GetElementsFromContext(), ns3::NodeList::GetNode(), sample-rng-plot::n, and NS_ASSERT.

Referenced by DequeueTrace(), EnqueueTrace(), GetNetDeviceFromContext(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), LrWpanMacRxDropTrace(), LrWpanMacRxTrace(), LrWpanMacTxDropTrace(), LrWpanMacTxTrace(), QueueDropTrace(), RemainingEnergyTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxDropTrace(), and WifiPhyTxDropTrace().

Here is the call graph for this function:

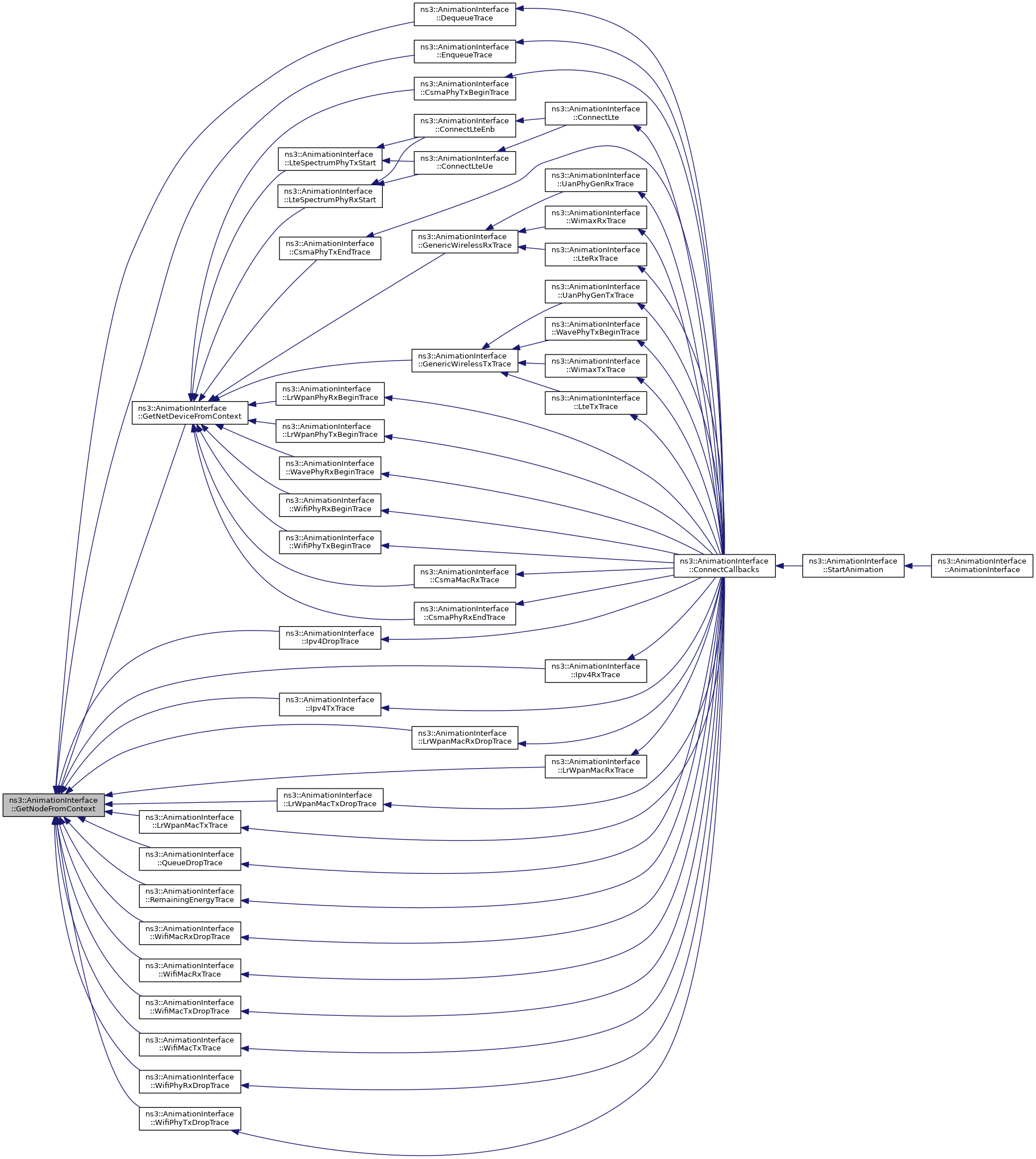

Here is the caller graph for this function:

◆ GetPacketMetadata()

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet > p )

private

Get packet metadata function.

Parameters

p	the packet

Returns: the meta data

Definition at line 1454 of file animation-interface.cc.

References ns3::Packet::Print().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

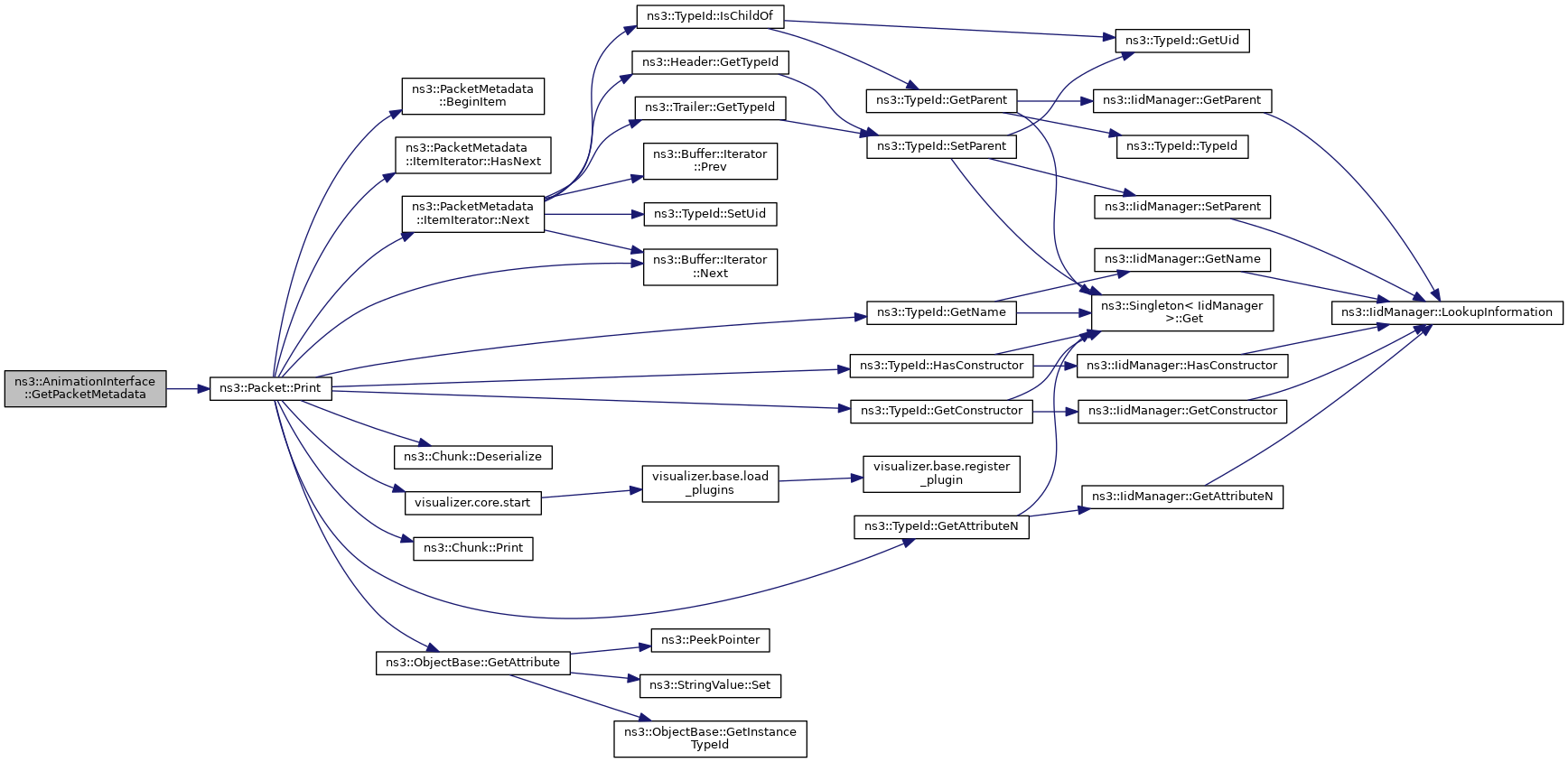

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPosition()

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node > n )

private

Get position function.

Parameters

n the node

Returns: the position vector

Definition at line 1775 of file animation-interface.cc.

References m_nodeLocation, sample-rng-plot::n, and NS_FATAL_ERROR.

Referenced by GetMovedNodes(), MobilityAutoCheck(), MobilityCourseChangeTrace(), and NodeHasMoved().

Here is the caller graph for this function:

◆ GetTracePktCount()

uint64_t ns3::AnimationInterface::GetTracePktCount ( )

Get trace file packet count (This used only for testing)

Returns: Number of packets recorded in the current trace file

Definition at line 1462 of file animation-interface.cc.

References m_currentPktCount.

Referenced by AnimationInterfaceTestCase::CheckLogic().

Here is the caller graph for this function:

◆ Ipv4DropTrace()

void ns3::AnimationInterface::Ipv4DropTrace	(	std::string	context,
		const Ipv4Header &	ipv4Header,
		Ptr< const Packet >	p,
		Ipv4L3Protocol::DropReason	dropReason,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interfaceIndex
	)

private

IPv4 drop trace function.

Parameters

context	the context
ipv4Header	the IPv4 header
p	the packet
dropReason	the reason for the drop
ipv4	the IP
interfaceIndex	the interface index

Definition at line 743 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Drop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Ipv4RxTrace()

void ns3::AnimationInterface::Ipv4RxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interfaceIndex
	)

private

IPv4 receive trace function.

Parameters

context	the context
p	the packet
ipv4	the IP
interfaceIndex	the interface index

Definition at line 736 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Rx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Ipv4TxTrace()

void ns3::AnimationInterface::Ipv4TxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interfaceIndex
	)

private

IPv4 transmit trace function.

Parameters

context	the context
p	the packet
ipv4	the IP
interfaceIndex	the interface index

Definition at line 729 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Tx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsInitialized()

bool ns3::AnimationInterface::IsInitialized ( void )

static

Check if AnimationInterface is initialized.

Returns: true if AnimationInterface was already initialized

Definition at line 266 of file animation-interface.cc.

References ns3::initialized.

◆ IsInTimeWindow()

bool ns3::AnimationInterface::IsInTimeWindow ( )

private

Is in time window function.

Returns: true if in the time window

Definition at line 2092 of file animation-interface.cc.

References m_startTime, m_stopTime, and ns3::Simulator::Now().

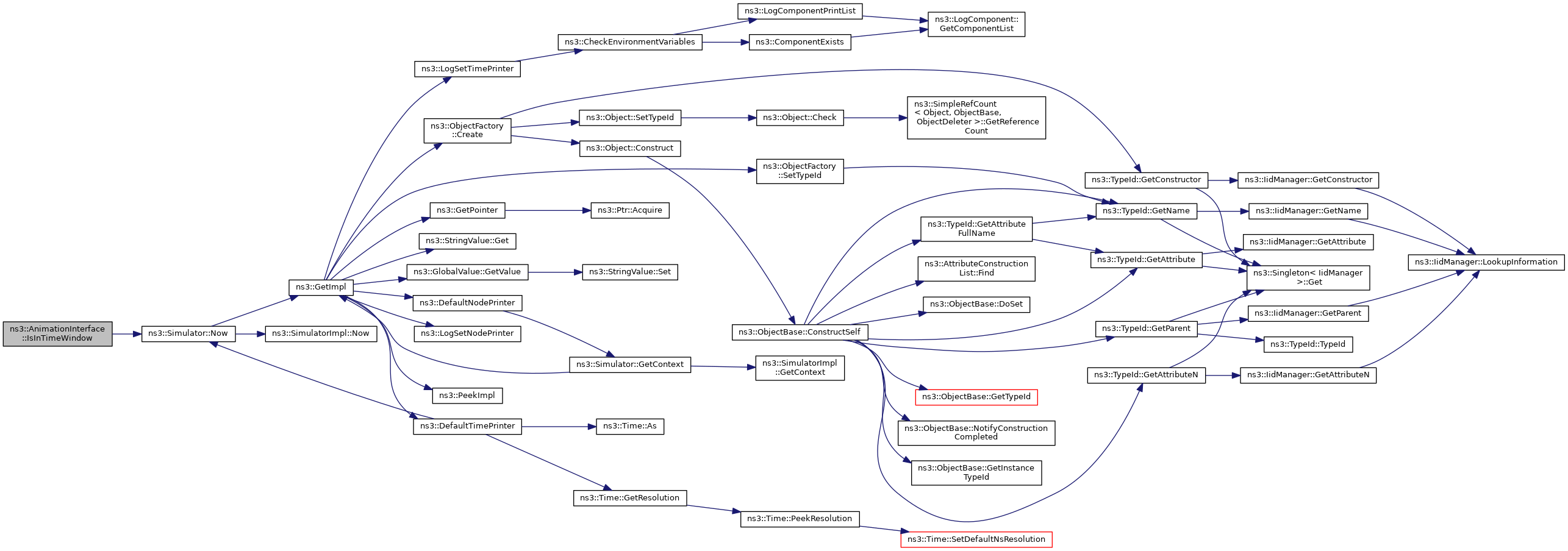

Here is the call graph for this function:

◆ IsPacketPending()

bool ns3::AnimationInterface::IsPacketPending	(	uint64_t	animUid,
		AnimationInterface::ProtocolType	protocolType
	)

private

Is packet pending function.

Parameters

animUid	the UID
protocolType	the protocol type

Returns: true if a packet is pending

Definition at line 1301 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), GenericWirelessRxTrace(), LrWpanPhyRxBeginTrace(), LteSpectrumPhyRxStart(), WavePhyRxBeginTrace(), and WifiPhyRxBeginTrace().

Here is the call graph for this function:

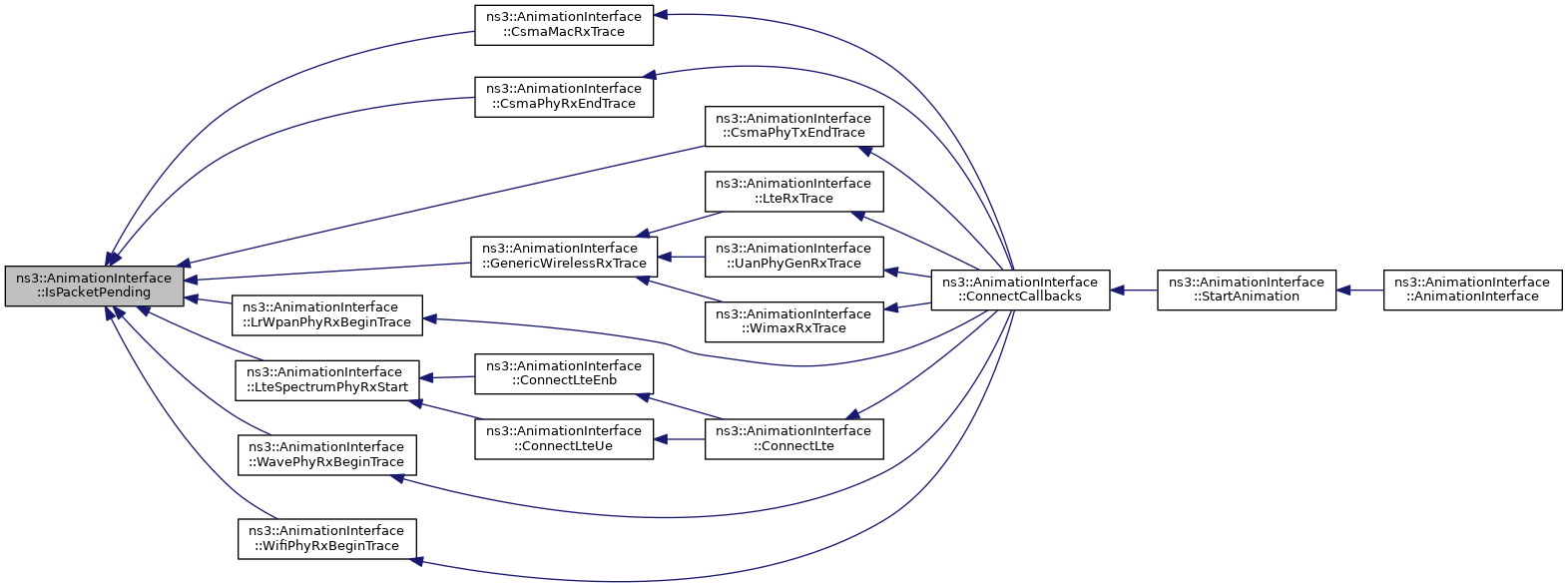

Here is the caller graph for this function:

◆ IsStarted()

bool ns3::AnimationInterface::IsStarted ( void )

Is AnimationInterface started.

Returns: true if AnimationInterface was started

Definition at line 272 of file animation-interface.cc.

References m_started.

◆ LrWpanMacRxDropTrace()

void ns3::AnimationInterface::LrWpanMacRxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

LR-WPAN MAC receive drop trace function.

Parameters

context	the context
p	the packet

Definition at line 722 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeLrWpanMacRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LrWpanMacRxTrace()

void ns3::AnimationInterface::LrWpanMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

LR-WPAN MAC receive trace function.

Parameters

context	the context
p	the packet

Definition at line 715 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeLrWpanMacRx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LrWpanMacTxDropTrace()

void ns3::AnimationInterface::LrWpanMacTxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

LR-WPAN MAC transmit drop trace function.

Parameters

context	the context
p	the packet

Definition at line 708 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeLrWpanMacTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LrWpanMacTxTrace()

void ns3::AnimationInterface::LrWpanMacTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

LR-WPAN MAC transmit trace function.

Parameters

context	the context
p	the packet

Definition at line 701 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeLrWpanMacTx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LrWpanPhyRxBeginTrace()

void ns3::AnimationInterface::LrWpanPhyRxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

LR-WPAN Phy receive begin trace function.

Parameters

context	the context
p	the packet

Definition at line 1001 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, ns3::Packet::FindFirstMatchingByteTag(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), LRWPAN, m_pendingLrWpanPackets, sample-rng-plot::n, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), and UpdatePosition().

Referenced by ConnectCallbacks().

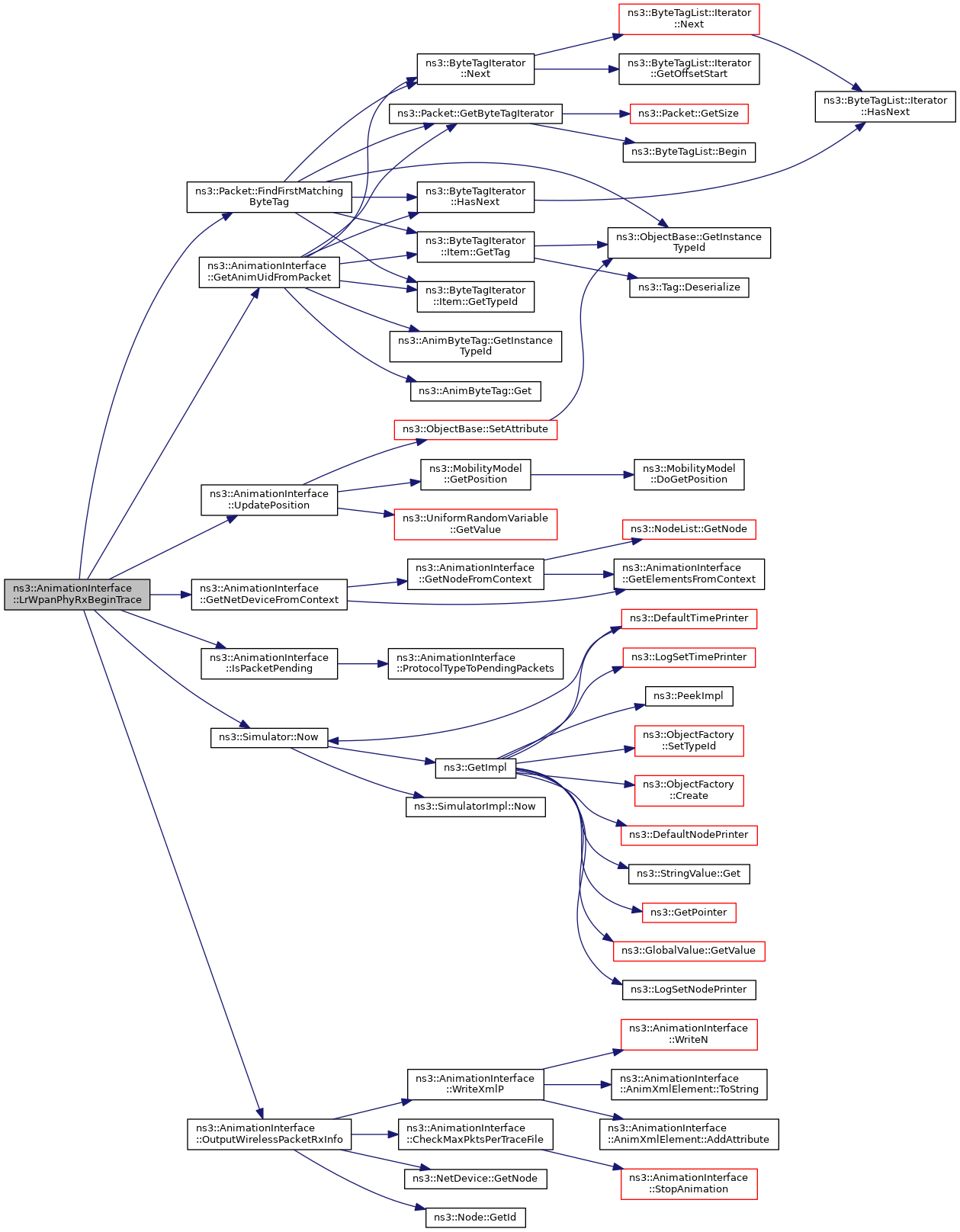

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LrWpanPhyTxBeginTrace()

void ns3::AnimationInterface::LrWpanPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

LR-WPAN Phy receive begin trace function.

Parameters

context	the context
p	the packet

Definition at line 949 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, gAnimUid, ns3::LrWpanNetDevice::GetMac(), GetNetDeviceFromContext(), ns3::LrWpanMacHeader::GetSrcAddrMode(), LRWPAN, m_macToNodeIdMap, m_pendingLrWpanPackets, sample-rng-plot::n, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketTxInfo(), ns3::Packet::PeekHeader(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LteRxTrace()

void ns3::AnimationInterface::LteRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

LTE receive trace function.

Parameters

context	the context
p	the packet
m	the MAC address

Definition at line 1097 of file animation-interface.cc.

References GenericWirelessRxTrace(), LTE, and NS_LOG_FUNCTION.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LteSpectrumPhyRxStart()

void ns3::AnimationInterface::LteSpectrumPhyRxStart	(	std::string	context,
		Ptr< const PacketBurst >	pb
	)

private

LTE Spectrum Phy receive start function.

Parameters

context	the context
pb	the packet burst

Definition at line 1134 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), list, LTE, m_pendingLtePackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

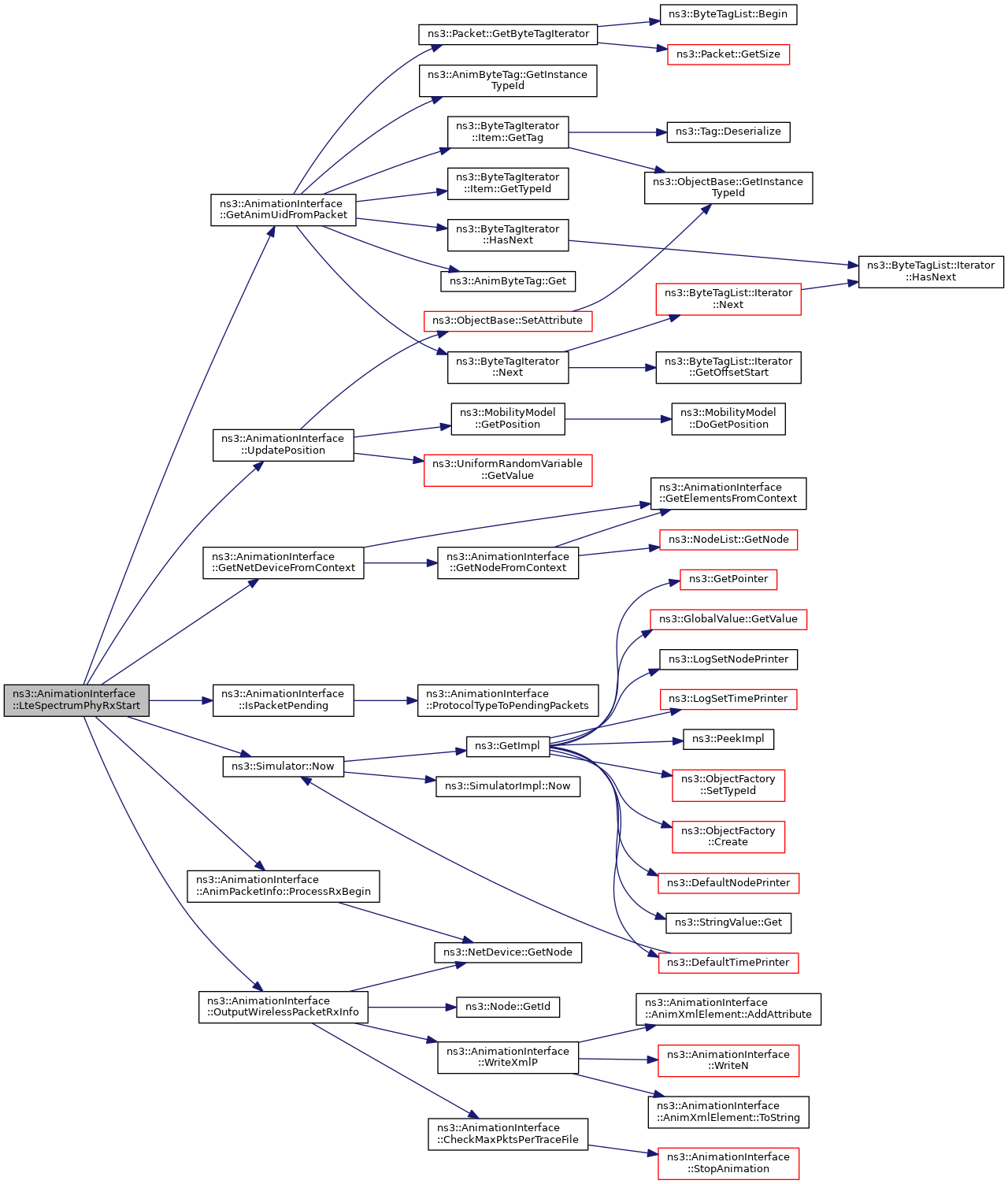

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LteSpectrumPhyTxStart()

void ns3::AnimationInterface::LteSpectrumPhyTxStart	(	std::string	context,
		Ptr< const PacketBurst >	pb
	)

private

LTE Spectrum Phy transmit start function.

Parameters

context	the context
pb	the packet burst

Definition at line 1104 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, gAnimUid, GetNetDeviceFromContext(), list, LTE, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketTxInfo(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

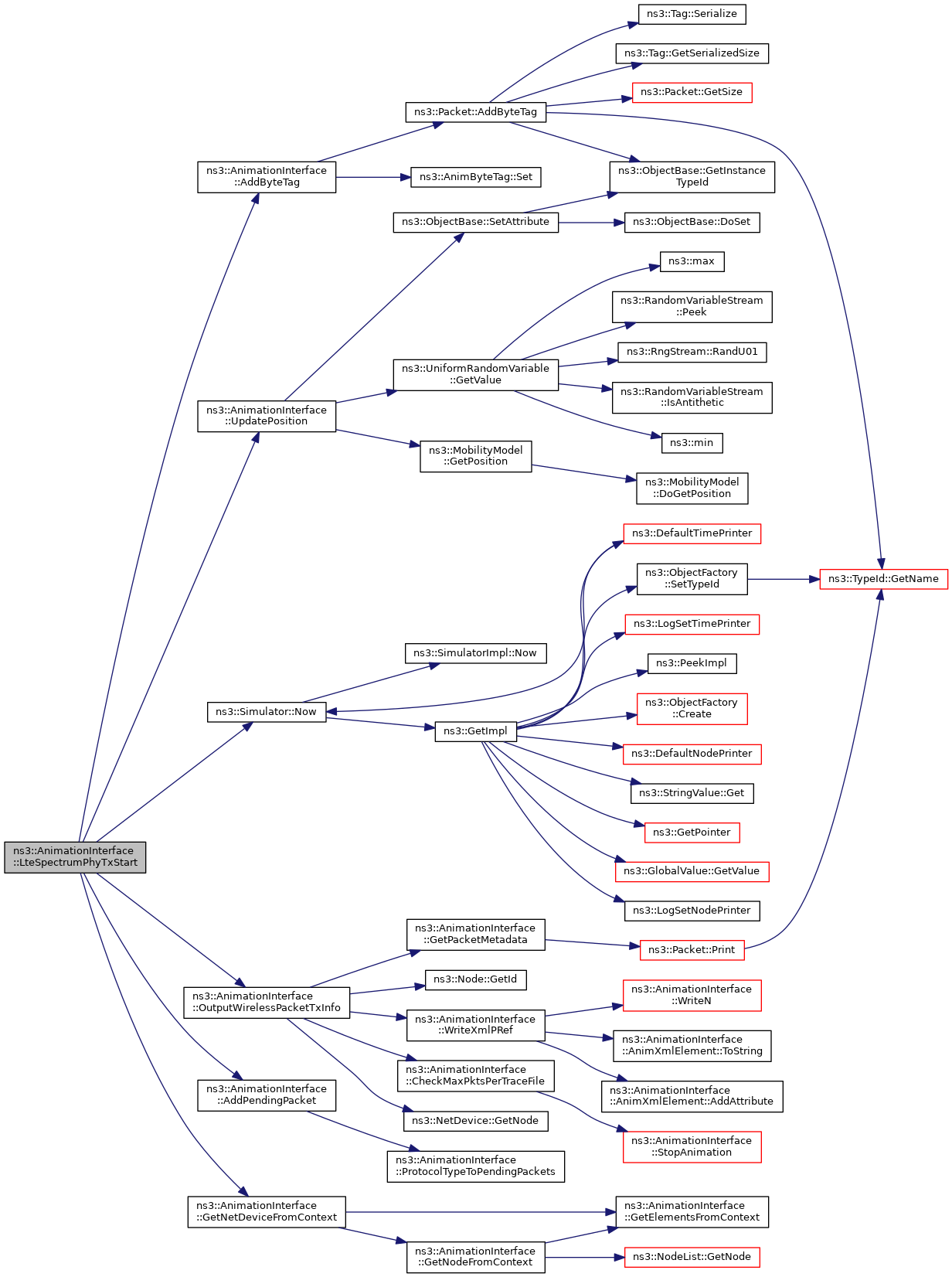

Here is the call graph for this function:

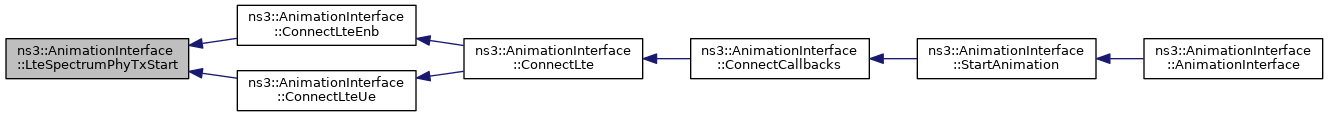

Here is the caller graph for this function:

◆ LteTxTrace()

void ns3::AnimationInterface::LteTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

LTE transmit trace function.

Parameters

context	the context
p	the packet
m	the MAC address

Definition at line 1090 of file animation-interface.cc.

References GenericWirelessTxTrace(), LTE, and NS_LOG_FUNCTION.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MobilityAutoCheck()

void ns3::AnimationInterface::MobilityAutoCheck ( )

private

Mobility auto check function.

Definition at line 445 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW, CSMA, GetMovedNodes(), GetPosition(), ns3::Simulator::IsFinished(), LRWPAN, LTE, m_mobilityPollInterval, sample-rng-plot::n, NS_ASSERT, PurgePendingPackets(), ns3::Simulator::Schedule(), WAVE, WIFI, WIMAX, and WriteXmlUpdateNodePosition().

Referenced by StartAnimation().

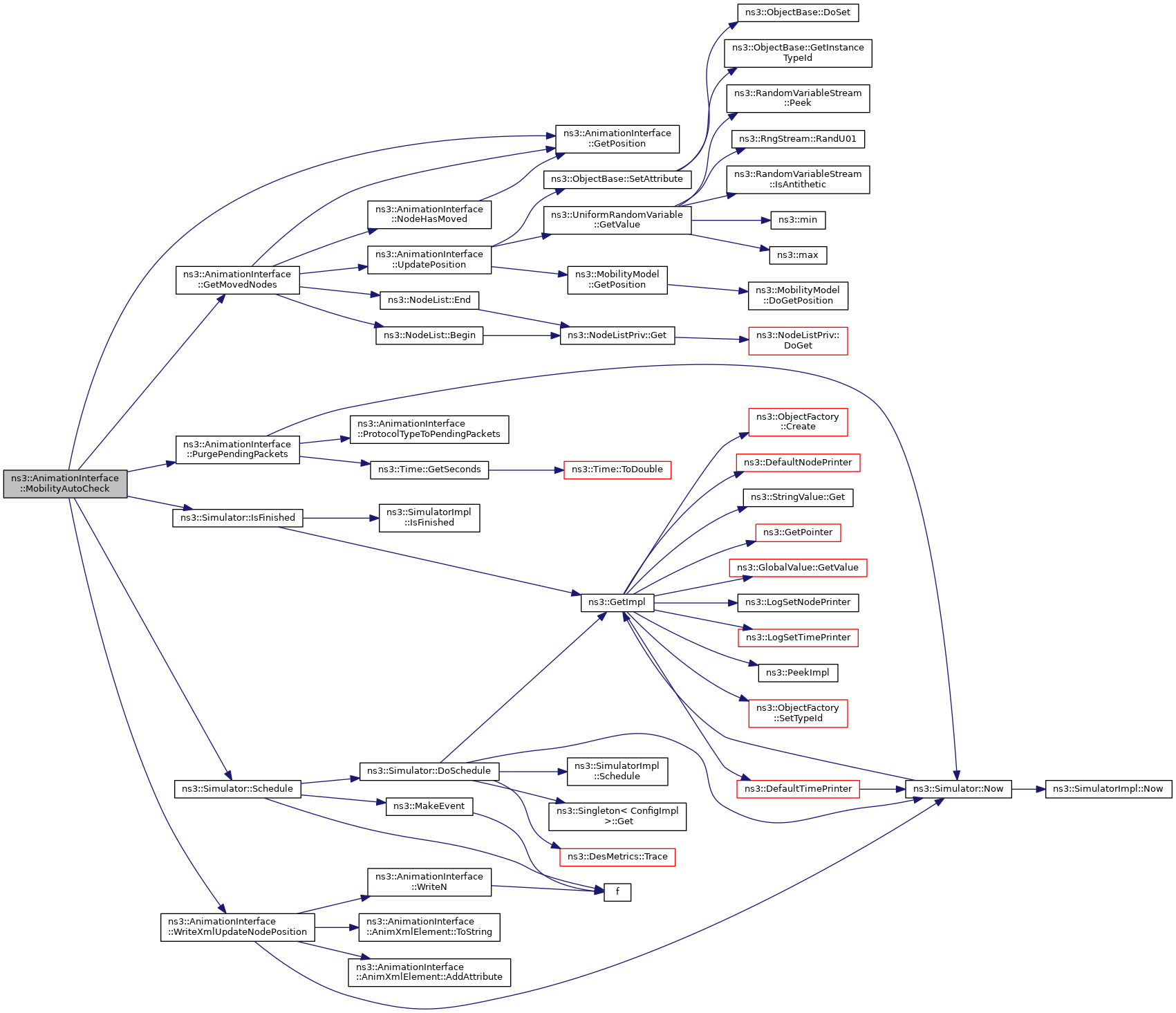

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MobilityCourseChangeTrace()

void ns3::AnimationInterface::MobilityCourseChangeTrace ( Ptr< const MobilityModel > mob )

private

Mobility course change trace function.

Parameters

mob	the mobility model

Definition at line 409 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW, GetPosition(), third::mobility, sample-rng-plot::n, NS_ASSERT, UpdatePosition(), and WriteXmlUpdateNodePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NodeHasMoved()

bool ns3::AnimationInterface::NodeHasMoved	(	Ptr< Node >	n,
		Vector	newLocation
	)

private

Node has moved function.

Parameters

n	the node
newLocation	the new location vector

Returns: true if the node has moved

Definition at line 428 of file animation-interface.cc.

References GetPosition(), and sample-rng-plot::n.

Referenced by GetMovedNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OutputCsmaPacket()

void ns3::AnimationInterface::OutputCsmaPacket	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo
	)

private

Output CSMA packet function.

Parameters

p	the packet
pktInfo	the packet info

Definition at line 1275 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), ns3::Node::GetId(), ns3::NetDevice::GetNode(), GetPacketMetadata(), m_enablePacketMetadata, ns3::AnimationInterface::AnimPacketInfo::m_fbRx, ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::AnimationInterface::AnimPacketInfo::m_lbRx, ns3::AnimationInterface::AnimPacketInfo::m_lbTx, ns3::AnimationInterface::AnimPacketInfo::m_rxnd, ns3::AnimationInterface::AnimPacketInfo::m_txnd, NS_ASSERT, and WriteXmlP().

Referenced by CsmaMacRxTrace(), and CsmaPhyRxEndTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OutputWirelessPacketRxInfo()

void ns3::AnimationInterface::OutputWirelessPacketRxInfo	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo,
		uint64_t	animUid
	)

private

Output wireless packet receive info.

Parameters

p	the packet
pktInfo	the packet info
animUid	the UID

Definition at line 1267 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), ns3::Node::GetId(), ns3::NetDevice::GetNode(), ns3::AnimationInterface::AnimPacketInfo::m_fbRx, ns3::AnimationInterface::AnimPacketInfo::m_lbRx, ns3::AnimationInterface::AnimPacketInfo::m_rxnd, and WriteXmlP().

Referenced by GenericWirelessRxTrace(), LrWpanPhyRxBeginTrace(), LteSpectrumPhyRxStart(), WavePhyRxBeginTrace(), and WifiPhyRxBeginTrace().

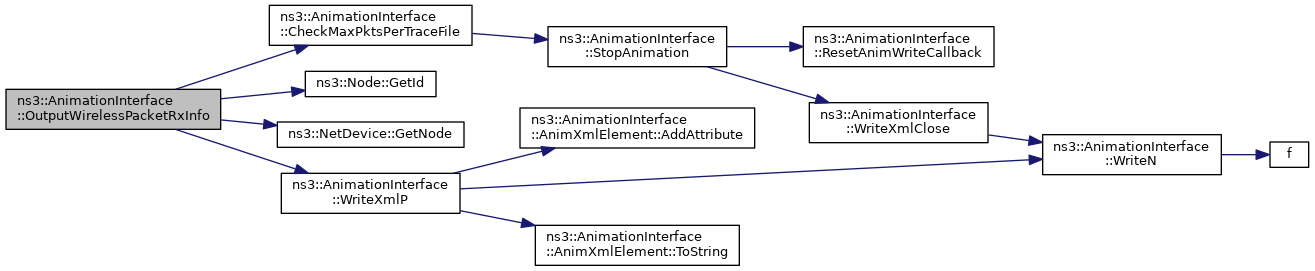

Here is the call graph for this function:

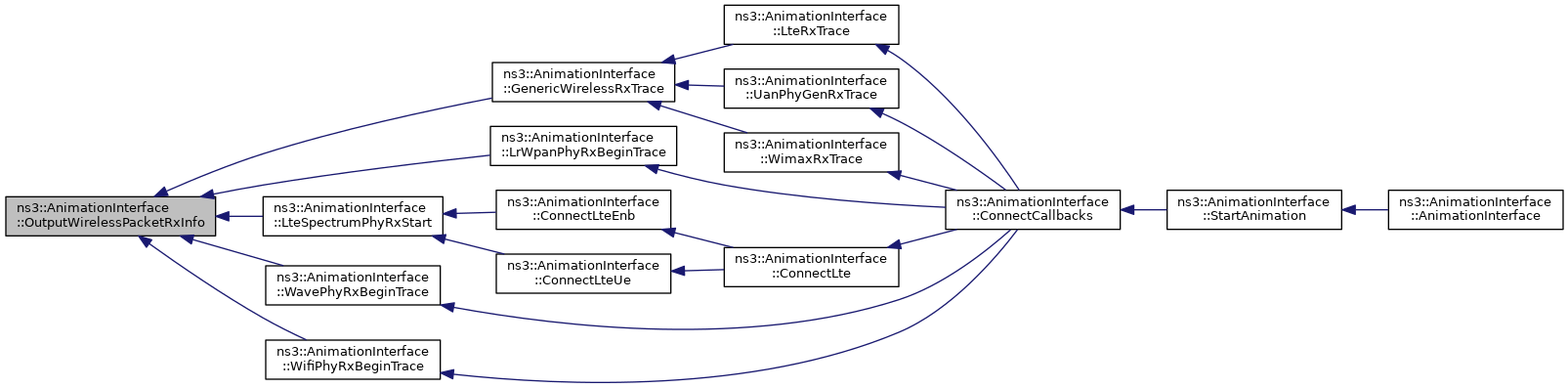

Here is the caller graph for this function:

◆ OutputWirelessPacketTxInfo()

void ns3::AnimationInterface::OutputWirelessPacketTxInfo	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo,
		uint64_t	animUid
	)

private

Output wireless packet transmit info.

Parameters

p	the packet
pktInfo	the packet info
animUid	the UID

Definition at line 1251 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), ns3::Node::GetId(), ns3::NetDevice::GetNode(), GetPacketMetadata(), m_enablePacketMetadata, ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::AnimationInterface::AnimPacketInfo::m_txnd, ns3::AnimationInterface::AnimPacketInfo::m_txNodeId, and WriteXmlPRef().

Referenced by GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyTxStart(), and WifiPhyTxBeginTrace().

Here is the call graph for this function:

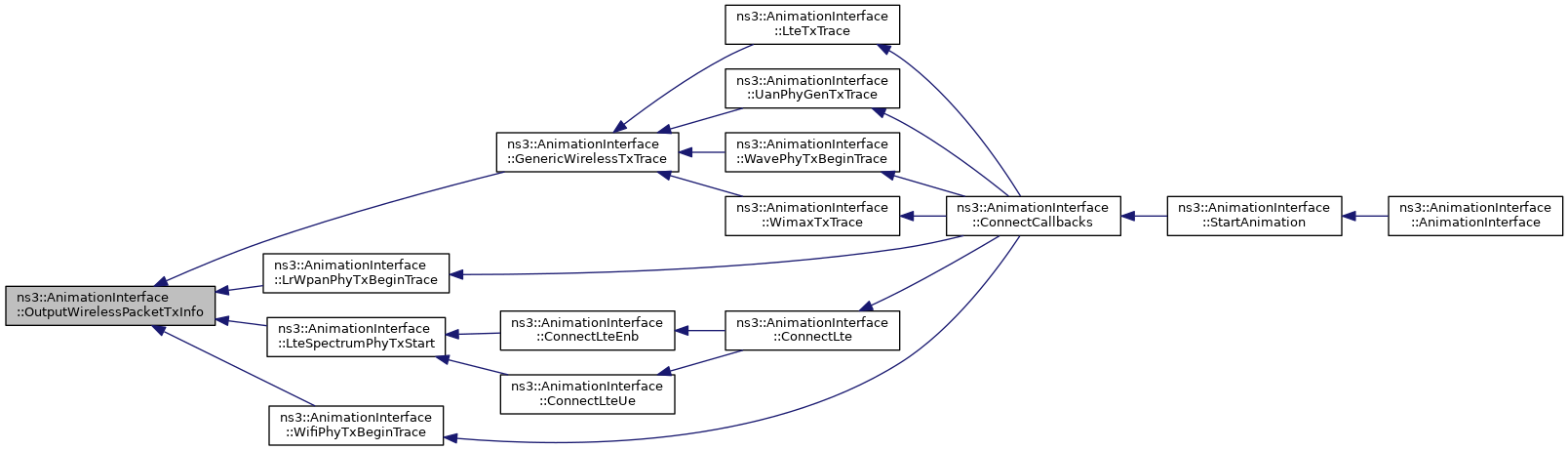

Here is the caller graph for this function:

◆ ProtocolTypeToPendingPackets()

AnimationInterface::AnimUidPacketInfoMap * ns3::AnimationInterface::ProtocolTypeToPendingPackets ( AnimationInterface::ProtocolType protocolType )

private

Protocol type to pending packets function.

Parameters

protocolType the protocol type

Returns: AnimUidPacketInfoMap *

Definition at line 1339 of file animation-interface.cc.

References CSMA, LRWPAN, LTE, m_pendingCsmaPackets, m_pendingLrWpanPackets, m_pendingLtePackets, m_pendingUanPackets, m_pendingWavePackets, m_pendingWifiPackets, m_pendingWimaxPackets, UAN, WAVE, WIFI, and WIMAX.

Referenced by AddPendingPacket(), GenericWirelessRxTrace(), GenericWirelessTxTrace(), IsPacketPending(), PurgePendingPackets(), and WifiPhyTxBeginTrace().

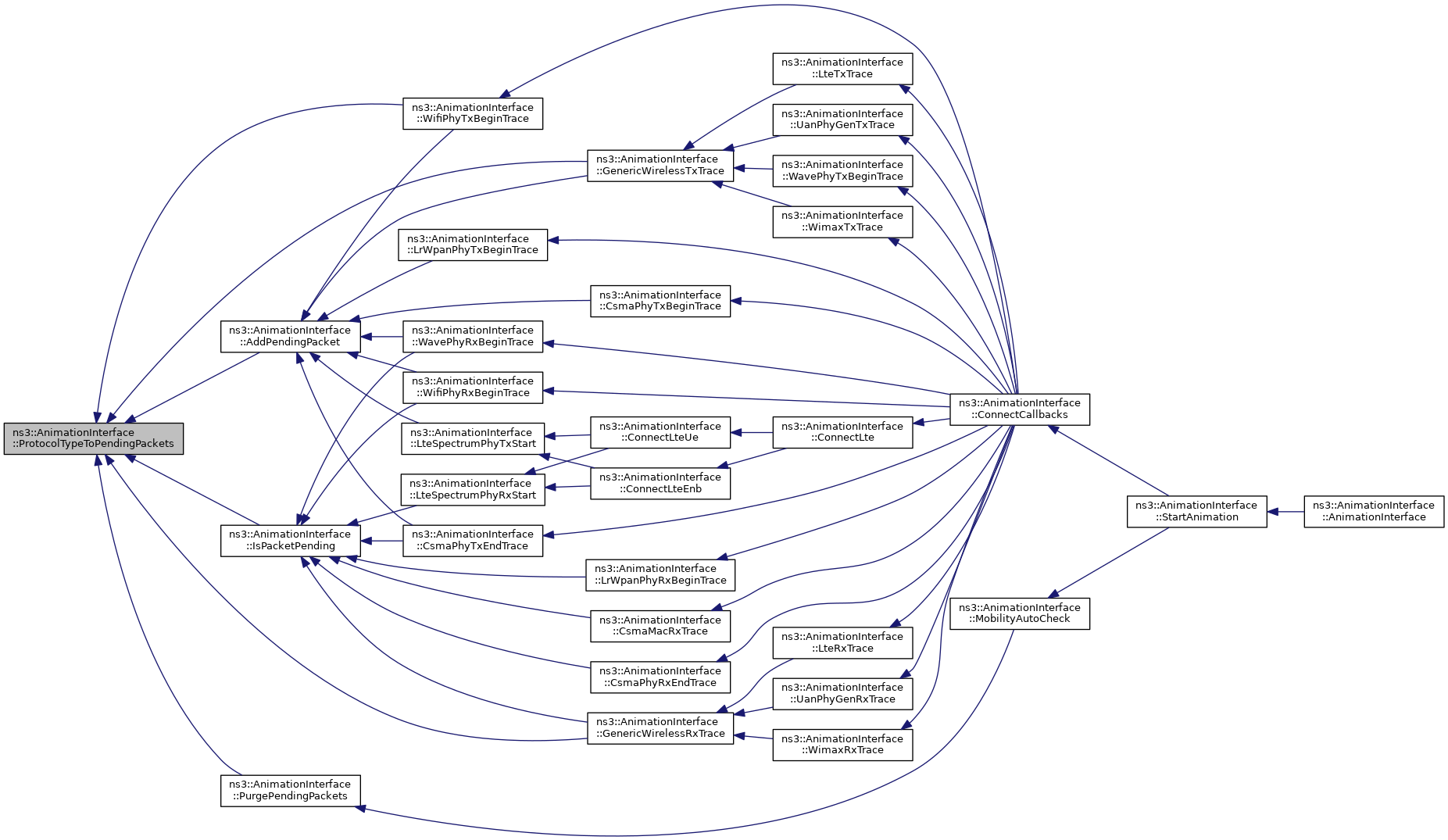

Here is the caller graph for this function:

◆ ProtocolTypeToString()

std::string ns3::AnimationInterface::ProtocolTypeToString ( AnimationInterface::ProtocolType protocolType )

private

Protocol type to string function.

Parameters

protocolType the protocol type

Returns: the protocol type string

Definition at line 1385 of file animation-interface.cc.

References CSMA, LRWPAN, LTE, UAN, WAVE, WIFI, and WIMAX.

Referenced by GenericWirelessRxTrace(), and GenericWirelessTxTrace().

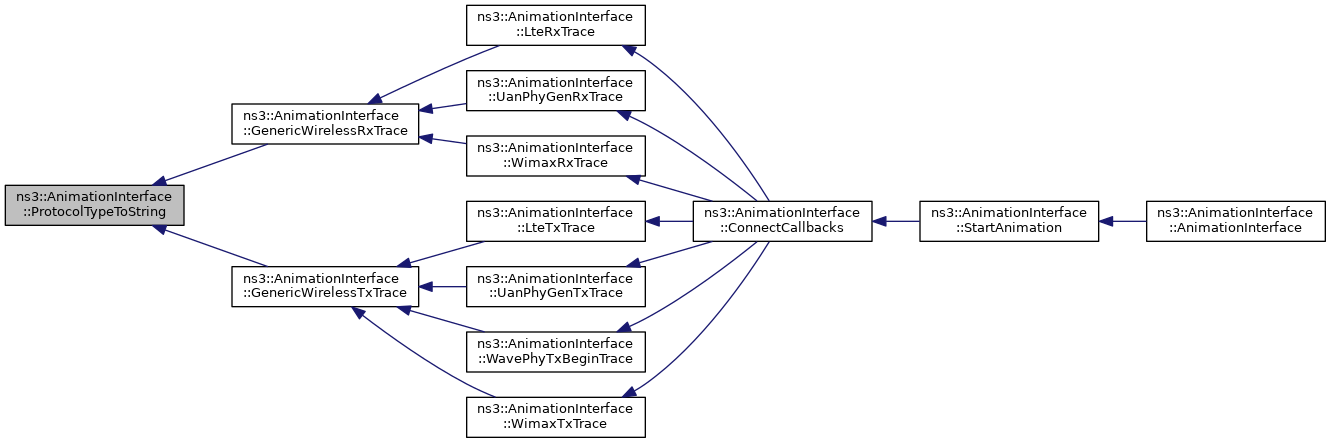

Here is the caller graph for this function:

◆ PurgePendingPackets()

void ns3::AnimationInterface::PurgePendingPackets ( AnimationInterface::ProtocolType protocolType )

private

Purge pending packets function.

Parameters

protocolType the protocol type

Definition at line 1309 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::Simulator::Now(), NS_ASSERT, ProtocolTypeToPendingPackets(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ QueueDropTrace()

void ns3::AnimationInterface::QueueDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Queue trace function.

Parameters

context	the context
p	the packet

Definition at line 771 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecursiveIpv4RoutePathSearch()

void ns3::AnimationInterface::RecursiveIpv4RoutePathSearch	(	std::string	from,
		std::string	to,
		Ipv4RoutePathElements &	rpElements
	)

private

Recursive IPv4 route path search function.

Parameters

from	the source node
to	the destination node
rpElements	the IPv4 routing path elements

Definition at line 2358 of file animation-interface.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Route::GetGateway(), ns3::Node::GetId(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_INFO, NS_LOG_WARN, and ns3::Ipv4Header::SetDestination().

Referenced by TrackIpv4RoutePaths().

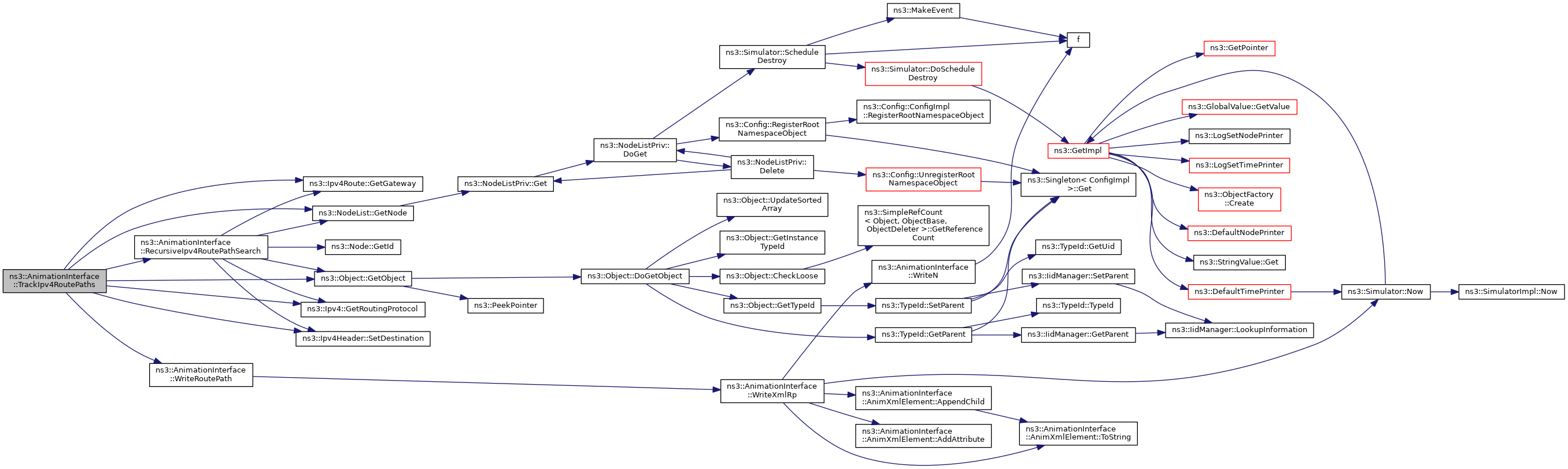

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemainingEnergyTrace()

void ns3::AnimationInterface::RemainingEnergyTrace	(	std::string	context,
		double	previousEnergy,
		double	currentEnergy
	)

private

Remaining energy trace function.

Parameters

context	the context
previousEnergy	The previous energy
currentEnergy	The current energy

Definition at line 638 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW, GetNodeFromContext(), m_nodeEnergyFraction, m_remainingEnergyCounterId, NS_ASSERT, NS_LOG_INFO, and UpdateNodeCounter().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetAnimWriteCallback()

void ns3::AnimationInterface::ResetAnimWriteCallback ( )

Reset the write callback function.

Returns: none

Definition at line 284 of file animation-interface.cc.

References m_writeCallback.

Referenced by StopAnimation().

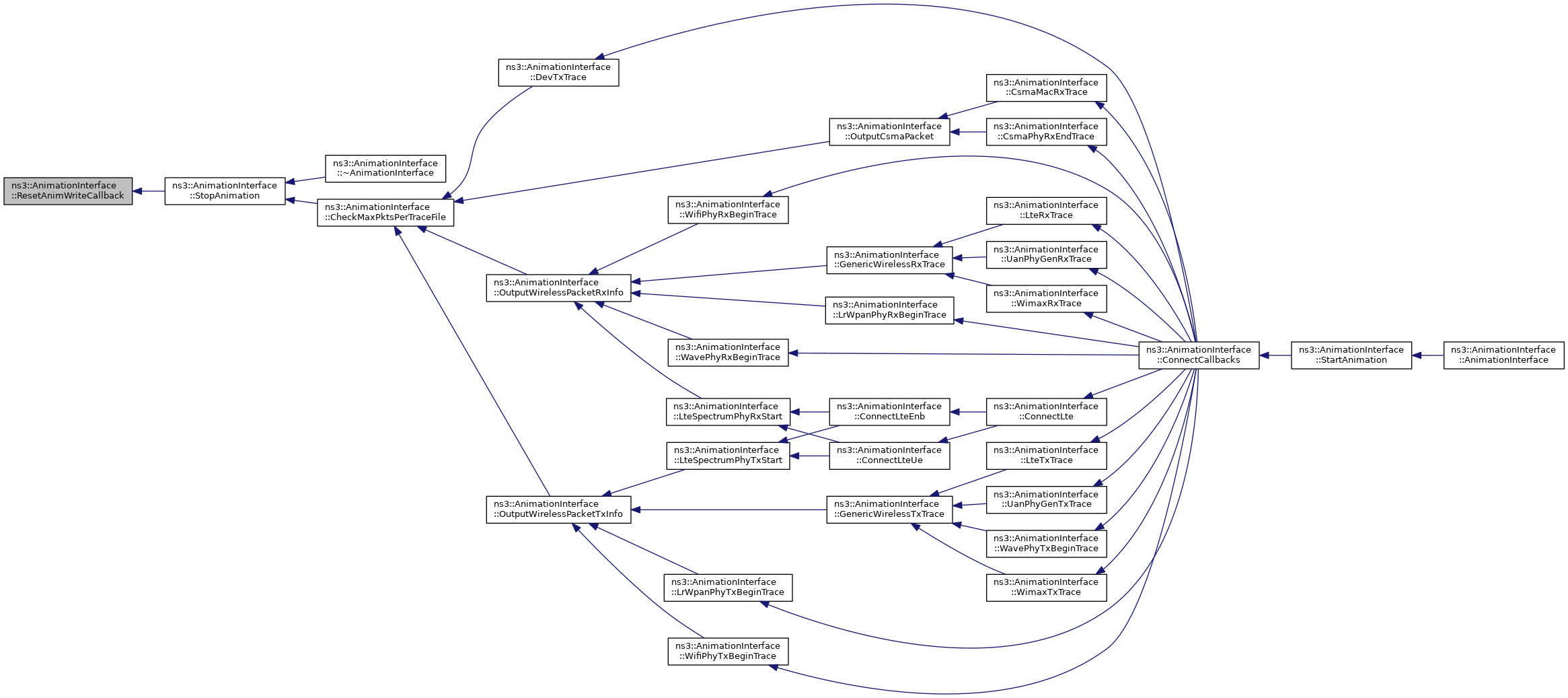

Here is the caller graph for this function:

◆ SetAnimWriteCallback()

void ns3::AnimationInterface::SetAnimWriteCallback ( AnimWriteCallback cb )

Set a callback function to listen to AnimationInterface write events.

Parameters

cb	Address of callback function

Returns: none

Definition at line 278 of file animation-interface.cc.

References m_writeCallback.

◆ SetBackgroundImage()

void ns3::AnimationInterface::SetBackgroundImage	(	std::string	fileName,
		double	x,
		double	y,
		double	scaleX,
		double	scaleY,
		double	opacity
	)

Helper function to set the background image.

Parameters

fileName	File name of the background image
x	X co-ordinate of the image
y	Y co-ordinate of the image
scaleX	X scale of the image
scaleY	Y scale of the image
opacity	Opacity of the background: A value between 0.0 and 1.0. 0.0 is transparent, 1.0 is opaque

Returns: none

Definition at line 334 of file animation-interface.cc.

References NS_FATAL_ERROR, WriteXmlUpdateBackground(), and sample-rng-plot::x.

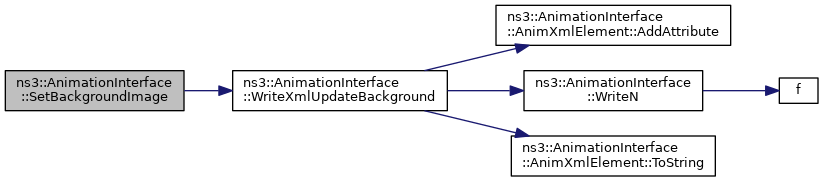

Here is the call graph for this function:

◆ SetConstantPosition()

void ns3::AnimationInterface::SetConstantPosition	(	Ptr< Node >	n,
		double	x,
		double	y,
		double	z = `0`
	)

static

Helper function to set Constant Position for a given node.

Parameters

n	Ptr to the node
x	X co-ordinate of the node
y	Y co-ordinate of the node
z	Z co-ordinate of the node

Returns: none

Definition at line 297 of file animation-interface.cc.

References sample-rng-plot::n, NS_ASSERT, NS_LOG_INFO, and sample-rng-plot::x.

◆ SetMaxPktsPerTraceFile()

void ns3::AnimationInterface::SetMaxPktsPerTraceFile ( uint64_t maxPktsPerFile )

Set Max packets per trace file.

Parameters

maxPktsPerFile The maximum number of packets per trace file. AnimationInterface will create trace files with the following filenames : filename, filename-1, filename-2..., filename-N where each file contains packet info for 'maxPktsPerFile' number of packets

Returns: none

Definition at line 232 of file animation-interface.cc.

References m_maxPktsPerFile.

◆ SetMobilityPollInterval()

void ns3::AnimationInterface::SetMobilityPollInterval ( Time t )

Set mobility poll interval:WARNING: setting a low interval can cause slowness.

Parameters

t	Time interval between fetching mobility/position information Default: 0.25s

Returns: none

Definition at line 290 of file animation-interface.cc.

References m_mobilityPollInterval.

◆ SetOutputFile()

void ns3::AnimationInterface::SetOutputFile	(	const std::string &	fn,
		bool	routing = `false`
	)

private

Set output file function.

Parameters

fn	the file name
routing

Definition at line 2106 of file animation-interface.cc.

References f(), m_f, m_outputFileName, m_routingF, m_routingFileName, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

Here is the call graph for this function:

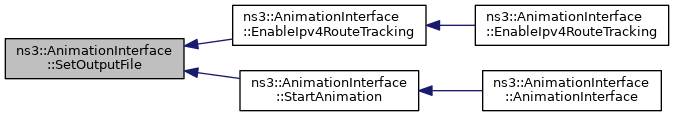

Here is the caller graph for this function:

◆ SetStartTime()

void ns3::AnimationInterface::SetStartTime ( Time t )

Specify the time at which capture should start.

Parameters

t	The time at which AnimationInterface should begin capture of traffic info

Returns: none

Definition at line 220 of file animation-interface.cc.

References m_startTime.

◆ SetStopTime()

void ns3::AnimationInterface::SetStopTime ( Time t )

Specify the time at which capture should stop.

Parameters

t	The time at which AnimationInterface should stop capture of traffic info

Returns: none

Definition at line 226 of file animation-interface.cc.

References m_stopTime.

◆ SkipPacketTracing()

void ns3::AnimationInterface::SkipPacketTracing ( )

Do not trace packets.

This helps reduce the trace file size if AnimationInterface is solely used for tracking mobility, routing paths and counters

Returns: none

Definition at line 103 of file animation-interface.cc.

References m_trackPackets.

◆ StartAnimation()

void ns3::AnimationInterface::StartAnimation ( bool restart = false )

private

Start animation function.

Parameters

restart

Definition at line 1493 of file animation-interface.cc.

References ConnectCallbacks(), m_currentPktCount, m_mobilityPollInterval, m_outputFileName, m_started, MobilityAutoCheck(), ns3::Simulator::Schedule(), SetOutputFile(), WriteIpv4Addresses(), WriteIpv6Addresses(), WriteLinkProperties(), WriteNodeColors(), WriteNodeEnergies(), WriteNodes(), WriteNodeSizes(), and WriteXmlAnim().

Referenced by AnimationInterface().

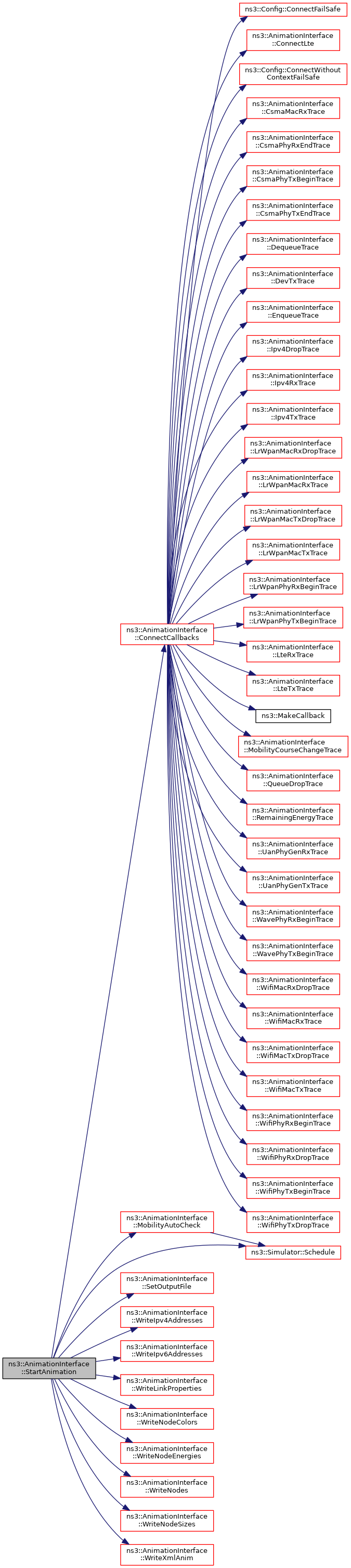

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StopAnimation()

void ns3::AnimationInterface::StopAnimation ( bool onlyAnimation = false )

private

Stop animation function.

Parameters

onlyAnimation

Definition at line 1468 of file animation-interface.cc.

References m_f, m_routingF, m_started, NS_LOG_INFO, ResetAnimWriteCallback(), and WriteXmlClose().

Referenced by CheckMaxPktsPerTraceFile(), and ~AnimationInterface().

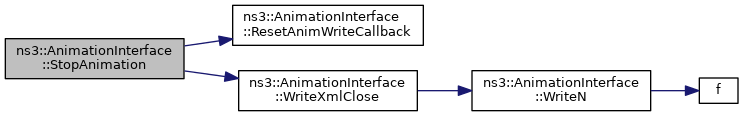

Here is the call graph for this function:

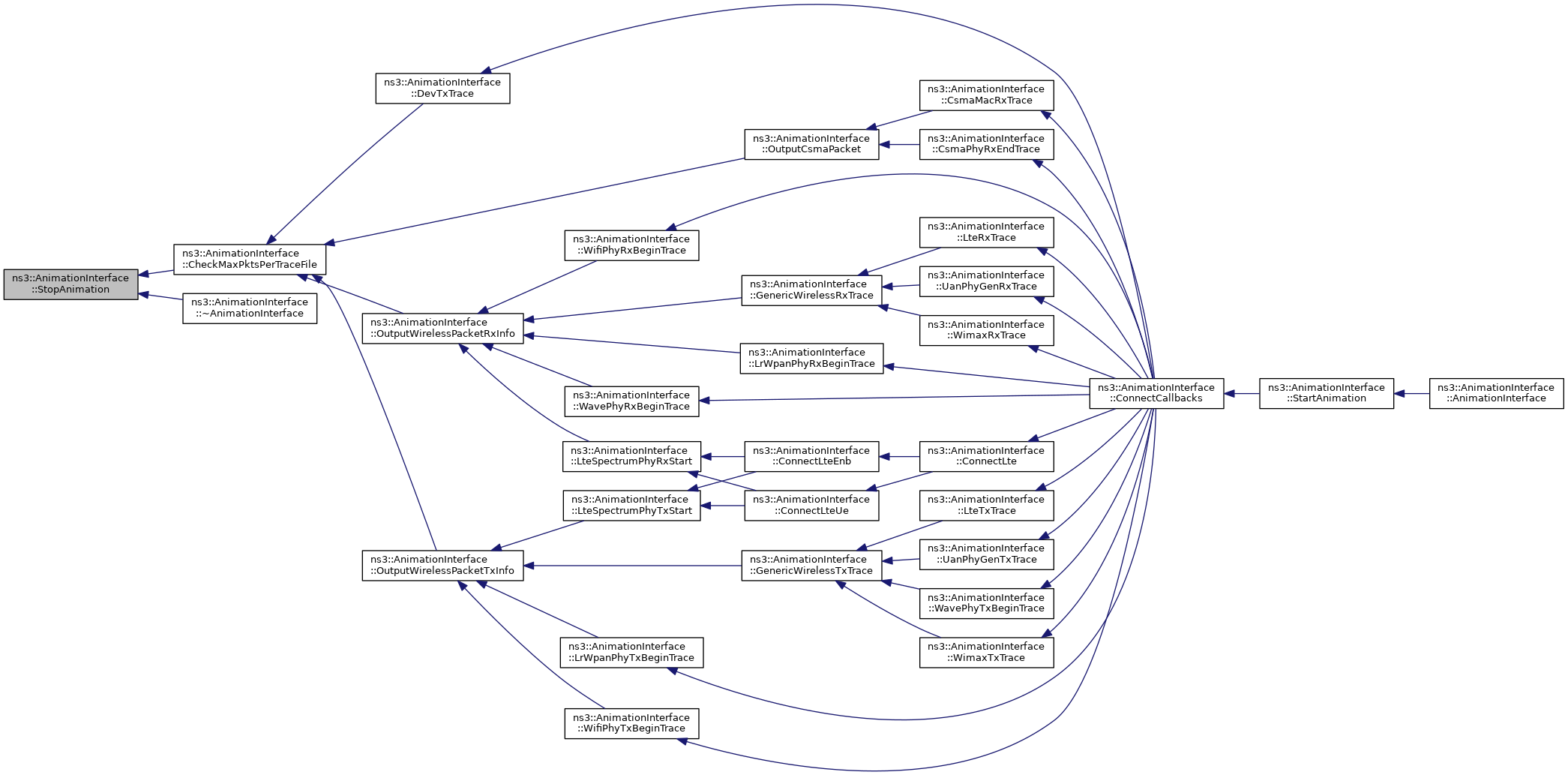

Here is the caller graph for this function:

◆ TrackIpv4L3ProtocolCounters()

void ns3::AnimationInterface::TrackIpv4L3ProtocolCounters ( )

private

Track IPv4 L3 protocol counters function.

Definition at line 2214 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters().

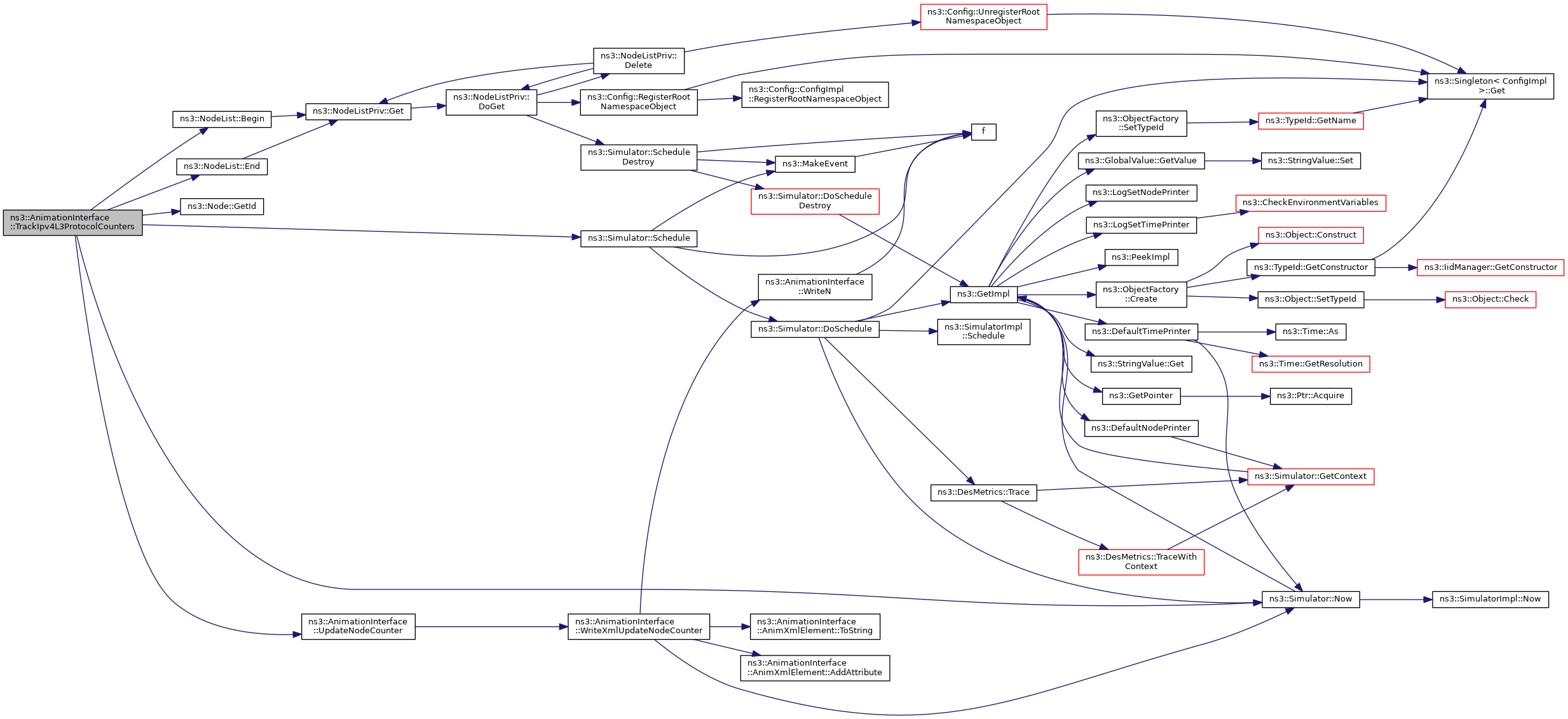

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrackIpv4Route()

void ns3::AnimationInterface::TrackIpv4Route ( )

private

Track IPv4 router function.

Definition at line 2312 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeContainer::Begin(), ns3::NodeList::End(), ns3::NodeContainer::End(), GetIpv4RoutingTable(), ns3::NodeContainer::GetN(), m_routingNc, m_routingPollInterval, m_routingStopTime, sample-rng-plot::n, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), TrackIpv4RoutePaths(), and WriteXmlRouting().

Referenced by EnableIpv4RouteTracking().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrackIpv4RoutePaths()

void ns3::AnimationInterface::TrackIpv4RoutePaths ( )

private

Track IPv4 route paths function.

Definition at line 2238 of file animation-interface.cc.

References ns3::AnimationInterface::Ipv4RouteTrackElement::destination, ns3::AnimationInterface::Ipv4RouteTrackElement::fromNodeId, ns3::Ipv4Route::GetGateway(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4RouteTrackElements, m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_INFO, NS_LOG_WARN, RecursiveIpv4RoutePathSearch(), ns3::Ipv4Header::SetDestination(), and WriteRoutePath().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrackQueueCounters()

void ns3::AnimationInterface::TrackQueueCounters ( )

private

Track queue counters function.

Definition at line 2160 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableQueueCounters().

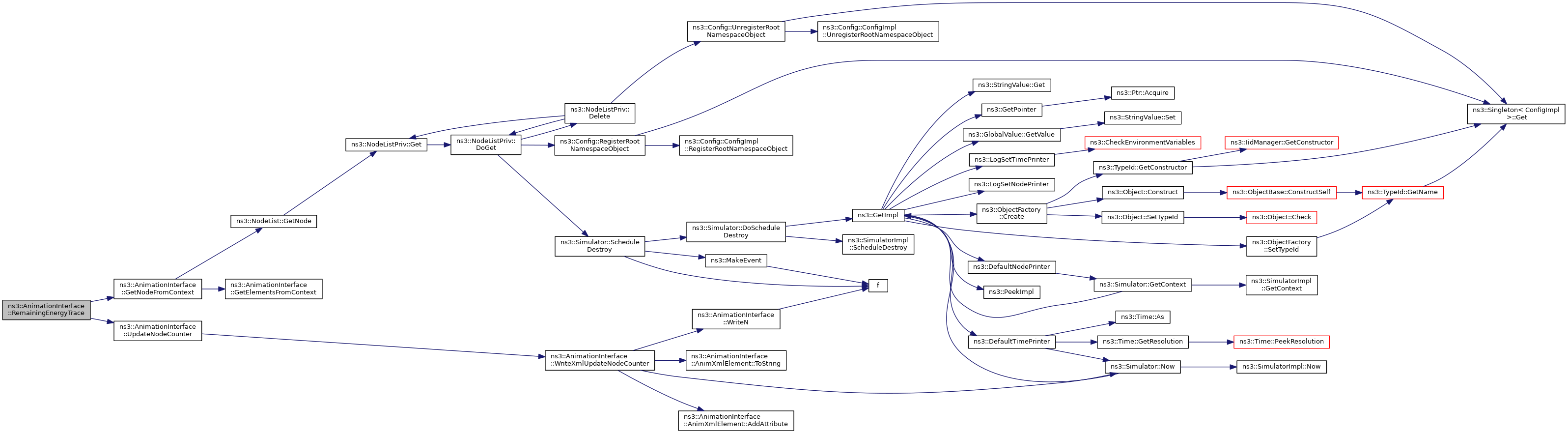

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrackWifiMacCounters()

void ns3::AnimationInterface::TrackWifiMacCounters ( )

private

Track wifi MAC counters function.

Definition at line 2178 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableWifiMacCounters().

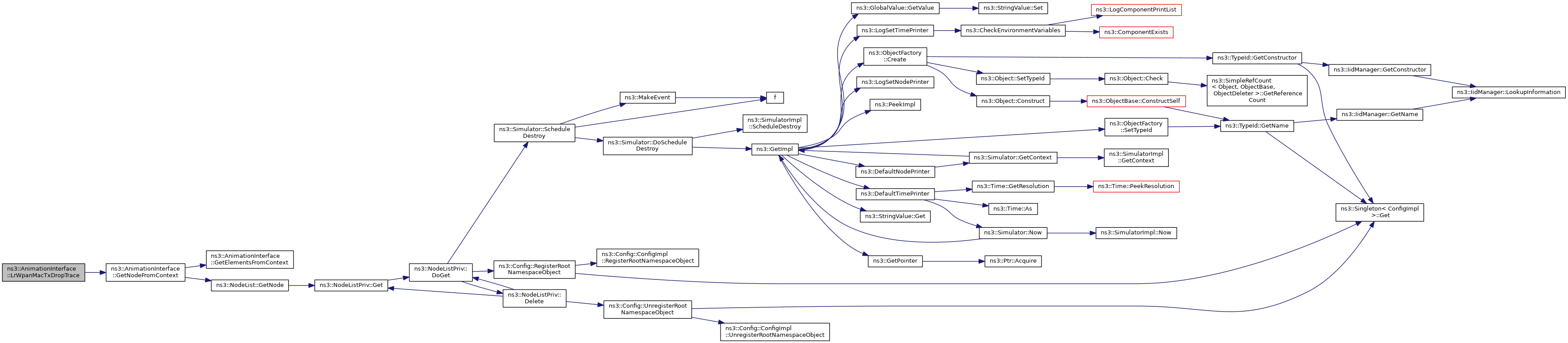

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrackWifiPhyCounters()

void ns3::AnimationInterface::TrackWifiPhyCounters ( )

private

Track wifi phy counters function.

Definition at line 2197 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableWifiPhyCounters().

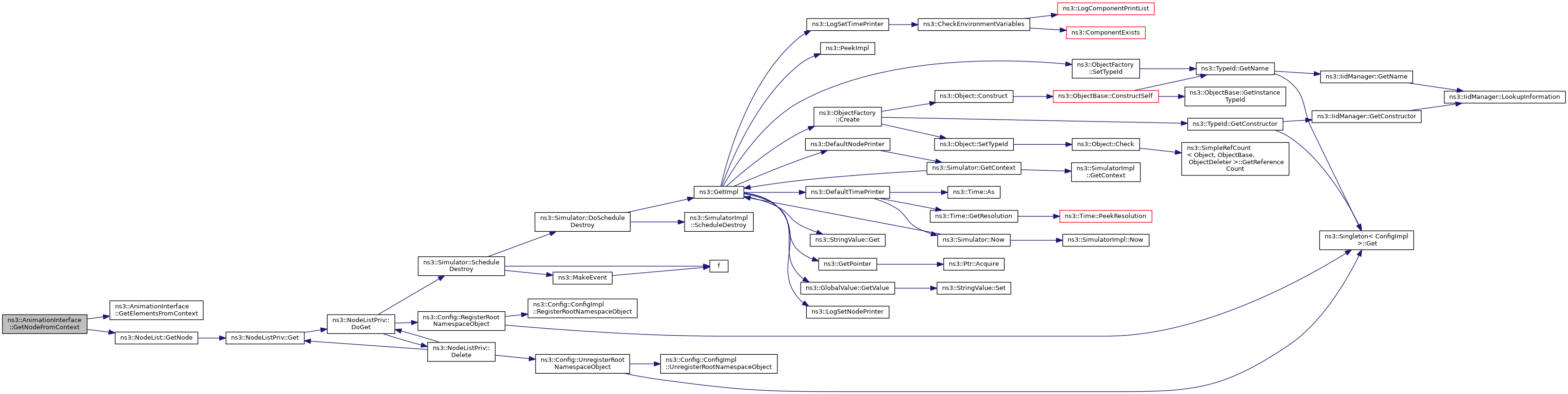

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UanPhyGenRxTrace()

void ns3::AnimationInterface::UanPhyGenRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

UAN Phy gen receive trace function.

Parameters

context	the context
p	the packet

Definition at line 864 of file animation-interface.cc.

References GenericWirelessRxTrace(), NS_LOG_FUNCTION, and UAN.

Referenced by ConnectCallbacks().

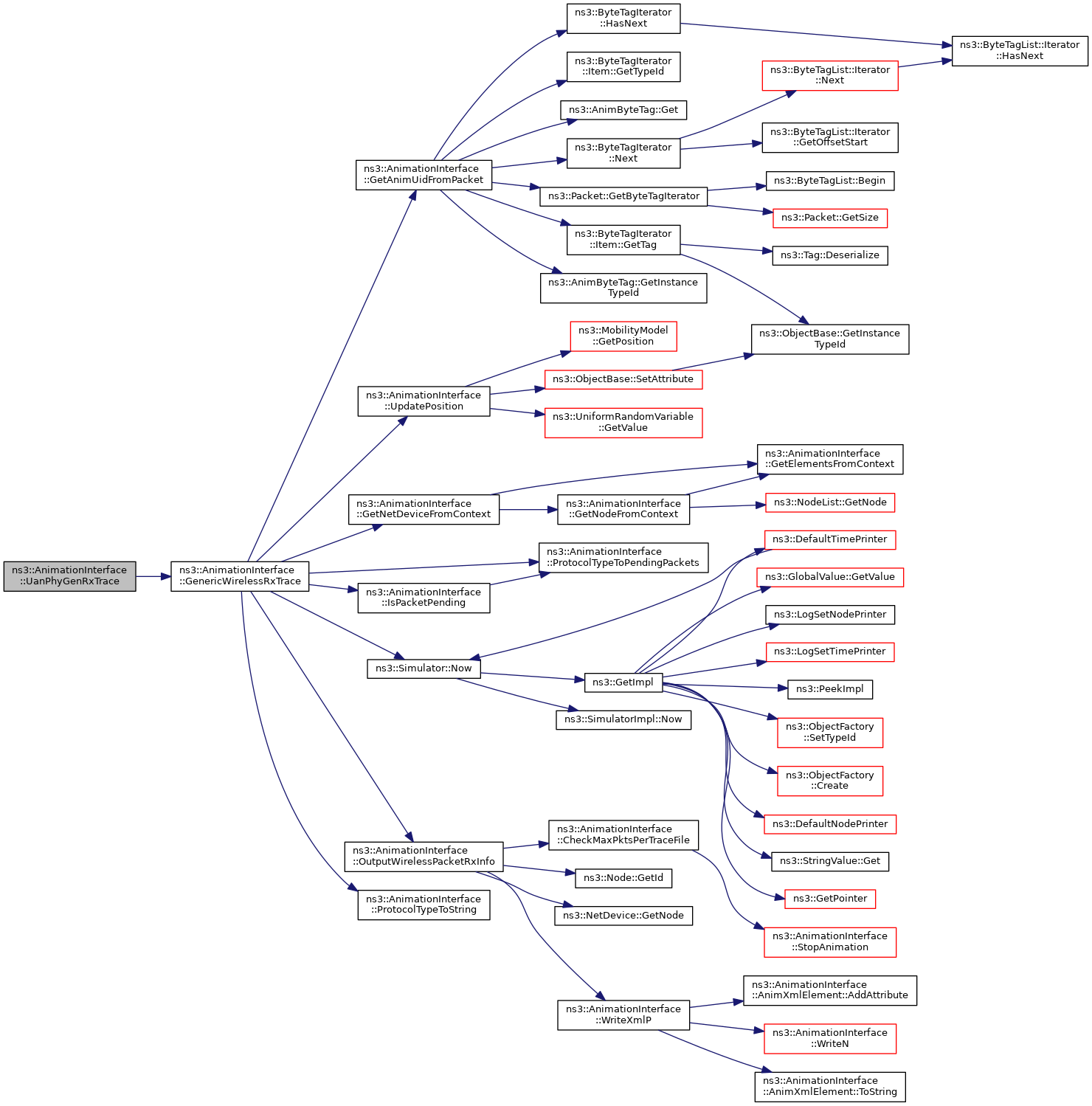

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UanPhyGenTxTrace()

void ns3::AnimationInterface::UanPhyGenTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

UAN Phy gen transmit trace function.

Parameters

context	the context
p	the packet

Definition at line 857 of file animation-interface.cc.

References GenericWirelessTxTrace(), NS_LOG_FUNCTION, and UAN.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateLinkDescription() [1/2]

void ns3::AnimationInterface::UpdateLinkDescription	(	uint32_t	fromNode,
		uint32_t	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Returns: none

Definition at line 368 of file animation-interface.cc.

References WriteXmlUpdateLink().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateLinkDescription() [2/2]

void ns3::AnimationInterface::UpdateLinkDescription	(	Ptr< Node >	fromNode,
		Ptr< Node >	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr to the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Returns: none

Definition at line 375 of file animation-interface.cc.

References ns3::Node::GetId(), NS_ASSERT, and WriteXmlUpdateLink().

Here is the call graph for this function:

◆ UpdateNodeColor() [1/2]

void ns3::AnimationInterface::UpdateNodeColor	(	Ptr< Node >	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Returns: none

Definition at line 352 of file animation-interface.cc.

References sample-rng-plot::n.

Referenced by modify(), and WriteNodeColors().

Here is the caller graph for this function:

◆ UpdateNodeColor() [2/2]

void ns3::AnimationInterface::UpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

nodeId	Id of the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Returns: none

Definition at line 358 of file animation-interface.cc.

References ns3::NodeList::GetNode(), m_nodeColors, NS_ASSERT, NS_LOG_INFO, and WriteXmlUpdateNodeColor().

Here is the call graph for this function:

◆ UpdateNodeCounter()

void ns3::AnimationInterface::UpdateNodeCounter	(	uint32_t	nodeCounterId,
		uint32_t	nodeId,
		double	counter
	)

Helper function to update a node's counter referenced by the nodeCounterId.

Parameters

nodeCounterId	The counter Id obtained from AddNodeCounter
nodeId	Node Id of the node
counter	Current value of the counter

Returns: none

Definition at line 324 of file animation-interface.cc.

References m_nodeCounters, NS_FATAL_ERROR, and WriteXmlUpdateNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), modify(), RemainingEnergyTrace(), TrackIpv4L3ProtocolCounters(), TrackQueueCounters(), TrackWifiMacCounters(), TrackWifiPhyCounters(), and WriteNodeEnergies().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateNodeDescription() [1/2]

void ns3::AnimationInterface::UpdateNodeDescription	(	Ptr< Node >	n,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Returns: none

Definition at line 384 of file animation-interface.cc.

References sample-rng-plot::n.

Referenced by modify().

Here is the caller graph for this function:

◆ UpdateNodeDescription() [2/2]

void ns3::AnimationInterface::UpdateNodeDescription	(	uint32_t	nodeId,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

nodeId	Id of the node
descr	A string to briefly describe the node

Returns: none

Definition at line 390 of file animation-interface.cc.

References ns3::NodeList::GetNode(), m_nodeDescriptions, NS_ASSERT, and WriteXmlUpdateNodeDescription().

Here is the call graph for this function:

◆ UpdateNodeImage()

void ns3::AnimationInterface::UpdateNodeImage	(	uint32_t	nodeId,
		uint32_t	resourceId
	)

Helper function to update the image of a node.

Parameters

nodeId	Id of the node
resourceId	Id of the image resource that was previously added

Returns: none

Definition at line 313 of file animation-interface.cc.

References m_resources, NS_FATAL_ERROR, NS_LOG_INFO, and WriteXmlUpdateNodeImage().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateNodeSize()

void ns3::AnimationInterface::UpdateNodeSize	(	uint32_t	nodeId,
		double	width,
		double	height
	)

Helper function to update the size of a node.

Parameters

nodeId	Id of the node
width	Width of the node
height	Height of the node

Returns: none

Definition at line 344 of file animation-interface.cc.

References ns3::AnimationInterface::NodeSize::height, m_nodeSizes, ns3::AnimationInterface::NodeSize::width, and WriteXmlUpdateNodeSize().

Referenced by modify(), and WriteNodeSizes().

Here is the call graph for this function:

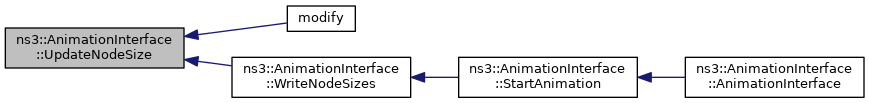

Here is the caller graph for this function:

◆ UpdatePosition() [1/3]

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node > n )

private

Update position function.

Parameters

n the node

Returns: the position vector

Definition at line 1738 of file animation-interface.cc.

References ns3::MobilityModel::GetPosition(), ns3::UniformRandomVariable::GetValue(), m_nodeLocation, sample-rng-plot::n, NS_LOG_UNCOND, ns3::ObjectBase::SetAttribute(), and sample-rng-plot::x.

Referenced by CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GenericWirelessRxTrace(), GenericWirelessTxTrace(), GetMovedNodes(), LrWpanPhyRxBeginTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), MobilityCourseChangeTrace(), UpdatePosition(), WavePhyRxBeginTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WriteLinkProperties(), and WriteNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdatePosition() [2/3]

Vector ns3::AnimationInterface::UpdatePosition	(	Ptr< Node >	n,
		Vector	v
	)

private

Update position function.

Parameters

n	the node
v	the vector

Returns: the position vector

Definition at line 1760 of file animation-interface.cc.

References m_nodeLocation, and sample-rng-plot::n.

◆ UpdatePosition() [3/3]

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< NetDevice > ndev )

private

Update position function.

Parameters

ndev	the device

Returns: the position vector

Definition at line 1767 of file animation-interface.cc.

References sample-rng-plot::n, NS_ASSERT, and UpdatePosition().

Here is the call graph for this function:

◆ WavePhyRxBeginTrace()

void ns3::AnimationInterface::WavePhyRxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

WAVE Phy receive begin trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (WavePacketIsPending (animUid) == true);

Definition at line 1037 of file animation-interface.cc.

References AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, ns3::WifiMacHeader::GetAddr2(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NodeList::GetNode(), IsPacketPending(), m_macToNodeIdMap, m_pendingWavePackets, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::Packet::PeekHeader(), UpdatePosition(), and WAVE.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WavePhyTxBeginTrace()

void ns3::AnimationInterface::WavePhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

WAVE Phy transmit begin trace function.

Parameters

context	the context
p	the packet

Definition at line 1030 of file animation-interface.cc.

References GenericWirelessTxTrace(), NS_LOG_FUNCTION, and WAVE.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiMacRxDropTrace()

void ns3::AnimationInterface::WifiMacRxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

wifi MAC receive drop trace function

Parameters

context	the context
p	the packet

Definition at line 694 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiMacRxTrace()

void ns3::AnimationInterface::WifiMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

wifi MAC receive trace function

Parameters

context	the context
p	the packet

Definition at line 687 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacRx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiMacTxDropTrace()

void ns3::AnimationInterface::WifiMacTxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

wifi MAC transmit drop trace function

Parameters

context	the context
p	the packet

Definition at line 680 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiMacTxTrace()

void ns3::AnimationInterface::WifiMacTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

wifi MAC transmit trace function

Parameters

context	the context
p	the packet

Definition at line 673 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacTx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiPhyRxBeginTrace()

void ns3::AnimationInterface::WifiPhyRxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p,
		RxPowerWattPerChannelBand	rxPowersW
	)

private

wifi Phy receive begin trace function

Parameters

context	the context
p	the packet
rxPowersW	the receive power per channel band in Watts

Todo:: NS_ASSERT (WifiPacketIsPending (animUid) == true);

Definition at line 912 of file animation-interface.cc.

References AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, ns3::WifiMacHeader::GetAddr2(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NodeList::GetNode(), IsPacketPending(), m_macToNodeIdMap, m_pendingWifiPackets, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::Packet::PeekHeader(), UpdatePosition(), and WIFI.

Referenced by ConnectCallbacks().

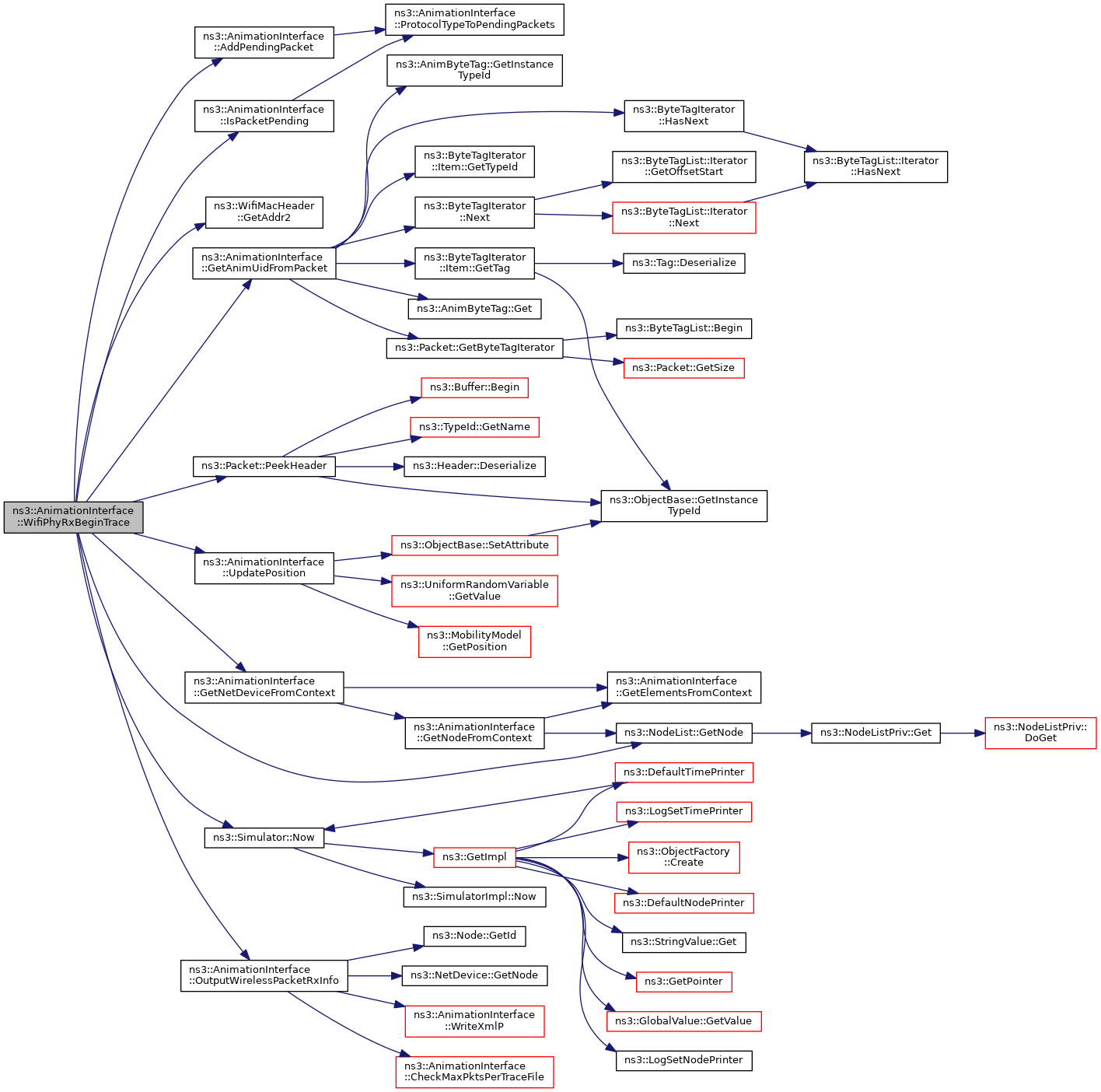

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiPhyRxDropTrace()

void ns3::AnimationInterface::WifiPhyRxDropTrace	(	std::string	context,
		Ptr< const Packet >	p,
		WifiPhyRxfailureReason	reason
	)

private

wifi Phy receive drop trace function

Parameters

context	the context
p	the packet
reason	the reason

Definition at line 666 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiPhyRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiPhyTxBeginTrace()

void ns3::AnimationInterface::WifiPhyTxBeginTrace	(	std::string	context,
		WifiConstPsduMap	psduMap,
		WifiTxVector	txVector,
		double	txPowerW
	)

private

wifi Phy transmit PSDU begin trace function

Parameters

context	the context
psduMap	the PSDU map
txVector	the TXVECTOR
txPowerW	the tx power in Watts

Definition at line 871 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, gAnimUid, ns3::WifiNetDevice::GetMac(), GetNetDeviceFromContext(), ns3::WifiNetDevice::GetNode(), m_macToNodeIdMap, sample-rng-plot::n, ns3::Simulator::Now(), NS_ABORT_MSG, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_UNUSED, OutputWirelessPacketTxInfo(), ns3::PeekPointer(), ProtocolTypeToPendingPackets(), UpdatePosition(), and WIFI.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiPhyTxDropTrace()

void ns3::AnimationInterface::WifiPhyTxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

wifi Phy transmit drop trace function

Parameters

context	the context
p	the packet

Definition at line 659 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiPhyTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WimaxRxTrace()

void ns3::AnimationInterface::WimaxRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

WIMax receive trace function.

Parameters

context	the context
p	the packet
m	the MAC address

Definition at line 1083 of file animation-interface.cc.

References GenericWirelessRxTrace(), NS_LOG_FUNCTION, and WIMAX.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WimaxTxTrace()

void ns3::AnimationInterface::WimaxTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

WIMax transmit trace function.

Parameters

context	the context
p	the packet
m	the MAC address

Definition at line 1075 of file animation-interface.cc.

References GenericWirelessTxTrace(), NS_LOG_FUNCTION, and WIMAX.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteIpv4Addresses()

void ns3::AnimationInterface::WriteIpv4Addresses ( )

private

Write IPv4 Addresses function.

Definition at line 1907 of file animation-interface.cc.

References m_nodeIdIpv4Map, and WriteXmlIpv4Addresses().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteIpv6Addresses()

void ns3::AnimationInterface::WriteIpv6Addresses ( )

private

Write IPv6 Addresses function.

Definition at line 1926 of file animation-interface.cc.

References m_nodeIdIpv6Map, and WriteXmlIpv6Addresses().

Referenced by StartAnimation().

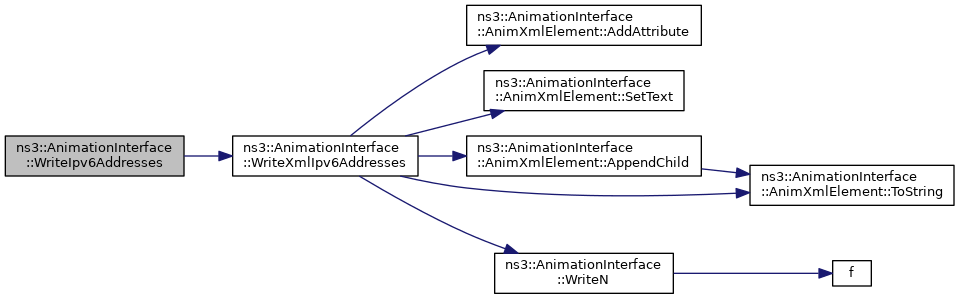

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteLinkProperties()

void ns3::AnimationInterface::WriteLinkProperties ( )

private

Write link properties function.

Definition at line 1945 of file animation-interface.cc.

References AddToIpv4AddressNodeIdTable(), AddToIpv6AddressNodeIdTable(), ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::AnimationInterface::P2pLinkNodeIdPair::fromNode, ns3::Channel::GetDevice(), ns3::Object::GetInstanceTypeId(), GetIpv4Address(), GetIpv4Addresses(), GetIpv6Address(), GetIpv6Addresses(), GetMacAddress(), ns3::TypeId::GetName(), ns3::Channel::GetNDevices(), m_linkProperties, sample-rng-plot::n, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, ns3::AnimationInterface::P2pLinkNodeIdPair::toNode, UpdatePosition(), WriteNonP2pLinkProperties(), and WriteXmlLink().

Referenced by StartAnimation().

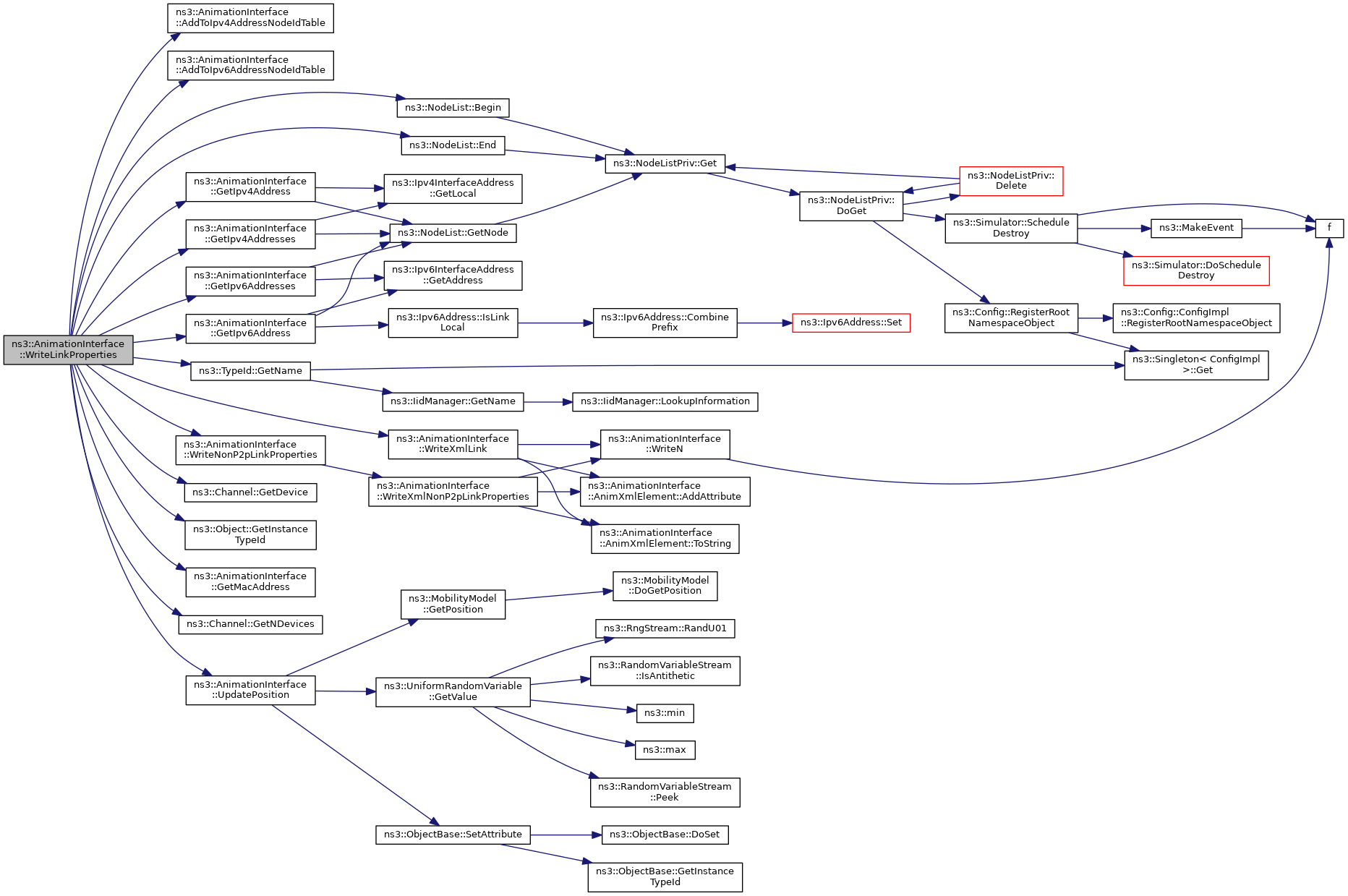

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteN() [1/2]

int ns3::AnimationInterface::WriteN	(	const char *	data,
		uint32_t	count,
		FILE *	f
	)

private

WriteN function.

Parameters

data	the data t write
count	the number of bytes to write
f	the file to write to

Returns: the number of bytes written

Definition at line 514 of file animation-interface.cc.

References data, f(), and sample-rng-plot::n.

Referenced by WriteN(), WriteXmlAddNodeCounter(), WriteXmlAddResource(), WriteXmlAnim(), WriteXmlClose(), WriteXmlIpv4Addresses(), WriteXmlIpv6Addresses(), WriteXmlLink(), WriteXmlNode(), WriteXmlNonP2pLinkProperties(), WriteXmlP(), WriteXmlPRef(), WriteXmlRouting(), WriteXmlRp(), WriteXmlUpdateBackground(), WriteXmlUpdateLink(), WriteXmlUpdateNodeColor(), WriteXmlUpdateNodeCounter(), WriteXmlUpdateNodeDescription(), WriteXmlUpdateNodeImage(), WriteXmlUpdateNodePosition(), and WriteXmlUpdateNodeSize().

Here is the call graph for this function:

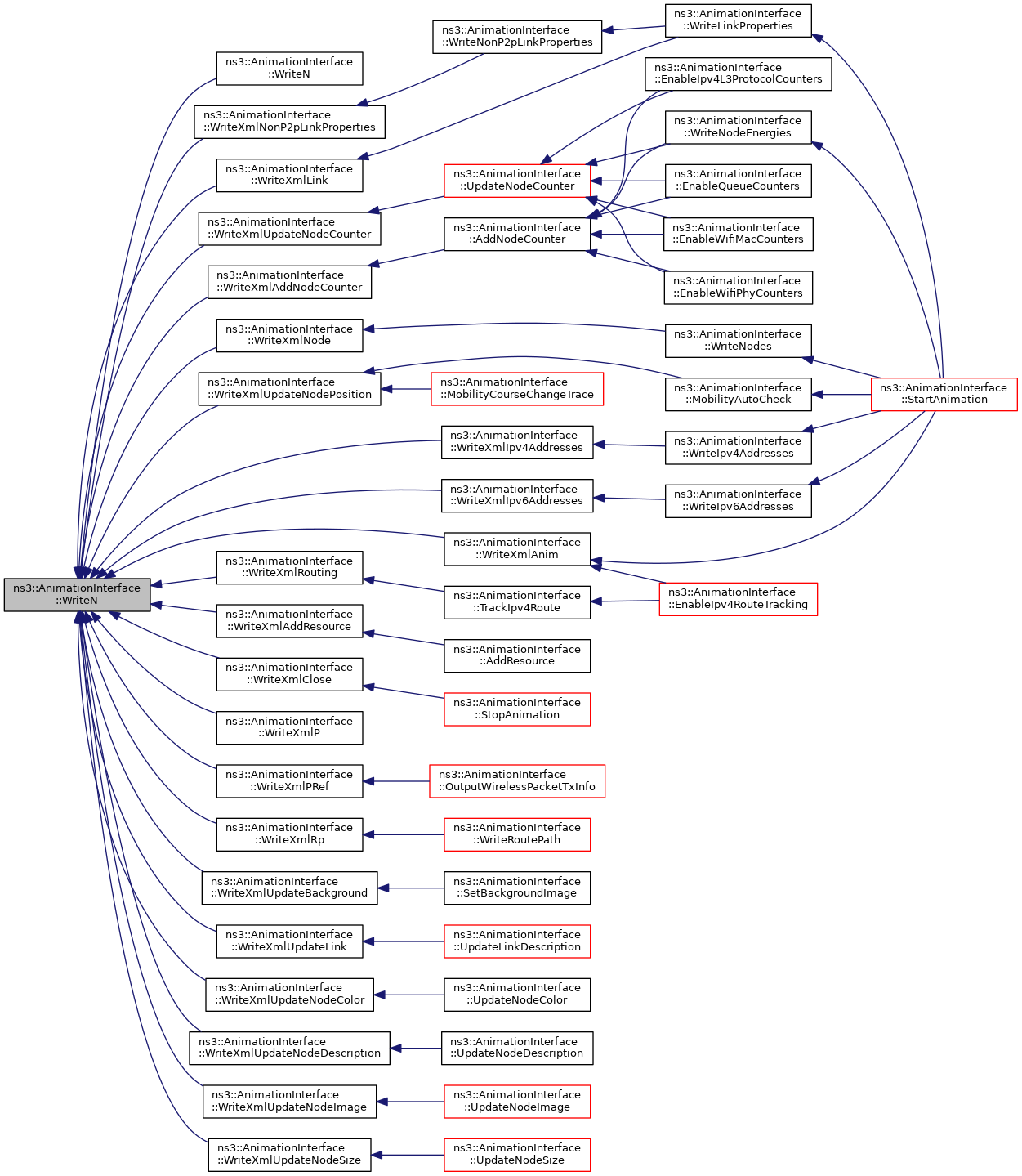

Here is the caller graph for this function:

◆ WriteN() [2/2]

int ns3::AnimationInterface::WriteN	(	const std::string &	st,
		FILE *	f
	)

private

WriteN function.

Parameters

st	the string to output
f	the file to write to

Returns: the number of bytes written

Definition at line 500 of file animation-interface.cc.

References f(), m_writeCallback, and WriteN().

Here is the call graph for this function:

◆ WriteNodeColors()

void ns3::AnimationInterface::WriteNodeColors ( )

private

Write node colors function.

Definition at line 2050 of file animation-interface.cc.

References rgb::b, ns3::NodeList::Begin(), ns3::NodeList::End(), rgb::g, m_nodeColors, sample-rng-plot::n, rgb::r, and UpdateNodeColor().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteNodeEnergies()

void ns3::AnimationInterface::WriteNodeEnergies ( )

private

Write node energies function.

Definition at line 2078 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::NodeList::GetNode(), m_remainingEnergyCounterId, sample-rng-plot::n, and UpdateNodeCounter().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteNodes()

void ns3::AnimationInterface::WriteNodes ( )

private

Write nodes function.

Definition at line 2038 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), sample-rng-plot::n, NS_LOG_INFO, UpdatePosition(), and WriteXmlNode().

Referenced by StartAnimation().

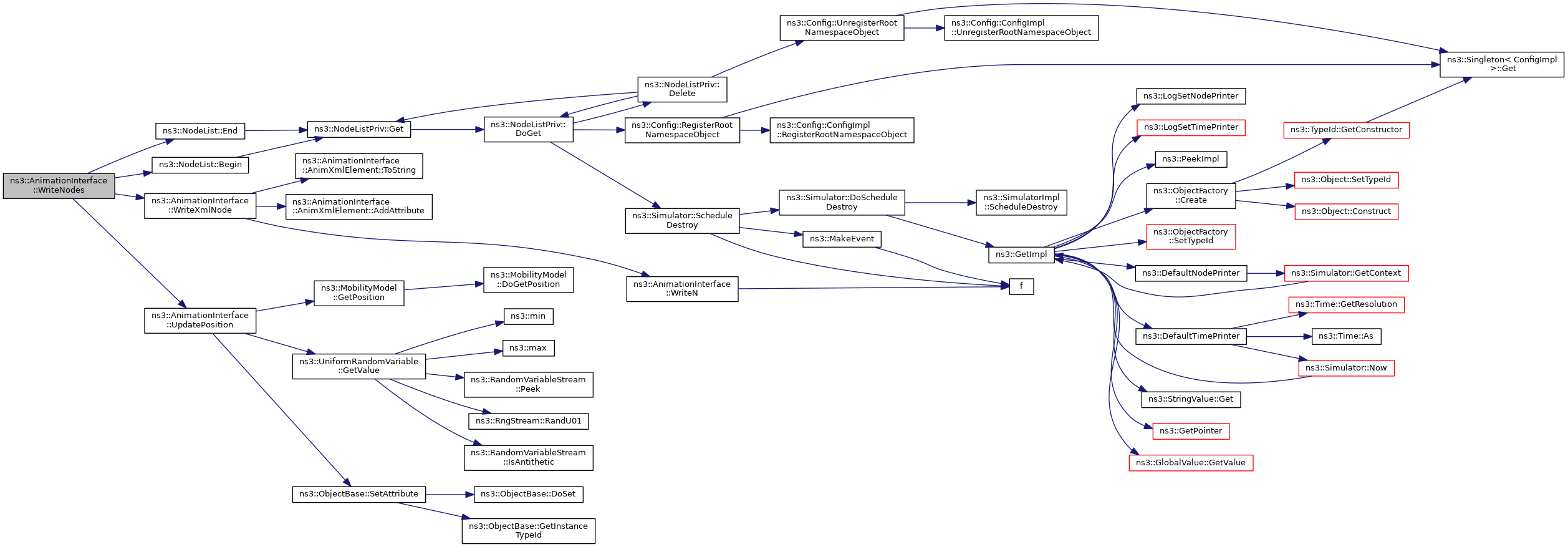

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteNodeSizes()

void ns3::AnimationInterface::WriteNodeSizes ( )

private

Write node sizes function.

Definition at line 2065 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), m_nodeSizes, sample-rng-plot::n, NS_LOG_INFO, and UpdateNodeSize().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteNodeUpdate()

void ns3::AnimationInterface::WriteNodeUpdate ( uint32_t nodeId )

private

Write node update function.

Parameters

nodeId the node ID

◆ WriteNonP2pLinkProperties()

void ns3::AnimationInterface::WriteNonP2pLinkProperties	(	uint32_t	id,
		std::string	ipv4Address,
		std::string	channelType
	)

private

Write non P2P link properties function.

Parameters

id	the ID
ipv4Address	the IP address
channelType	the channel type

Definition at line 556 of file animation-interface.cc.

References WriteXmlNonP2pLinkProperties().

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteRoutePath()

void ns3::AnimationInterface::WriteRoutePath	(	uint32_t	nodeId,
		std::string	destination,
		Ipv4RoutePathElements	rpElements
	)

private

Write route path function.

Parameters

nodeId	the node ID
destination	the destination
rpElements	the IPv4 routing path elements

Definition at line 539 of file animation-interface.cc.

References NS_LOG_INFO, and WriteXmlRp().

Referenced by TrackIpv4RoutePaths().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlAddNodeCounter()

void ns3::AnimationInterface::WriteXmlAddNodeCounter	(	uint32_t	counterId,
		std::string	counterName,
		CounterType	counterType
	)

private

Write XML add node counter function.

Parameters

counterId	the counter ID
counterName	the counter name
counterType	the counter type

Definition at line 2623 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), CounterTypeToString(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by AddNodeCounter().

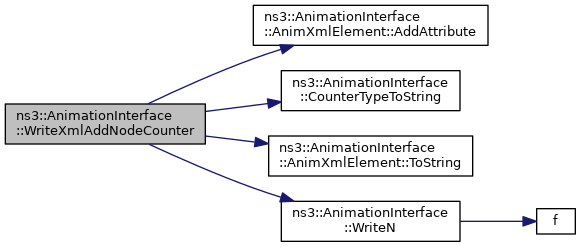

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlAddResource()

void ns3::AnimationInterface::WriteXmlAddResource	(	uint32_t	resourceId,
		std::string	resourcePath
	)

private

Write XML add resource function.

Parameters

resourceId	the resource ID
resourcePath	the resource path

Definition at line 2633 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by AddResource().

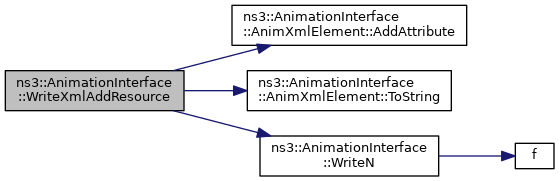

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlAnim()

void ns3::AnimationInterface::WriteXmlAnim ( bool routing = false )

private

Write XML anim function.

Parameters

routing the routing

Definition at line 2432 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), f(), GetNetAnimVersion(), m_f, m_routingF, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

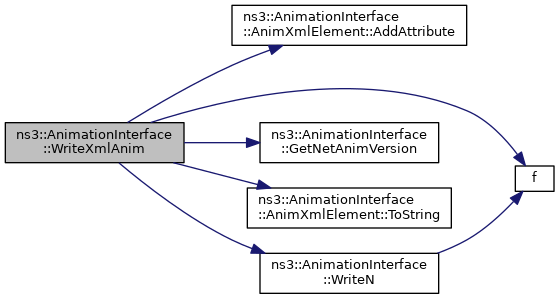

Here is the call graph for this function:

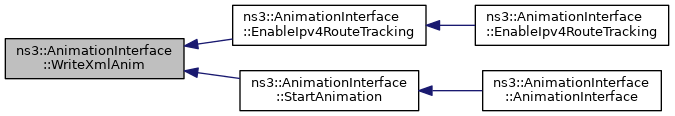

Here is the caller graph for this function:

◆ WriteXmlClose()

void ns3::AnimationInterface::WriteXmlClose	(	std::string	name,
		bool	routing = `false`
	)

private

Write XML close function.

Parameters

name	the name
routing	true if routing

Definition at line 2450 of file animation-interface.cc.

References m_f, m_routingF, and WriteN().

Referenced by StopAnimation().

Here is the call graph for this function:

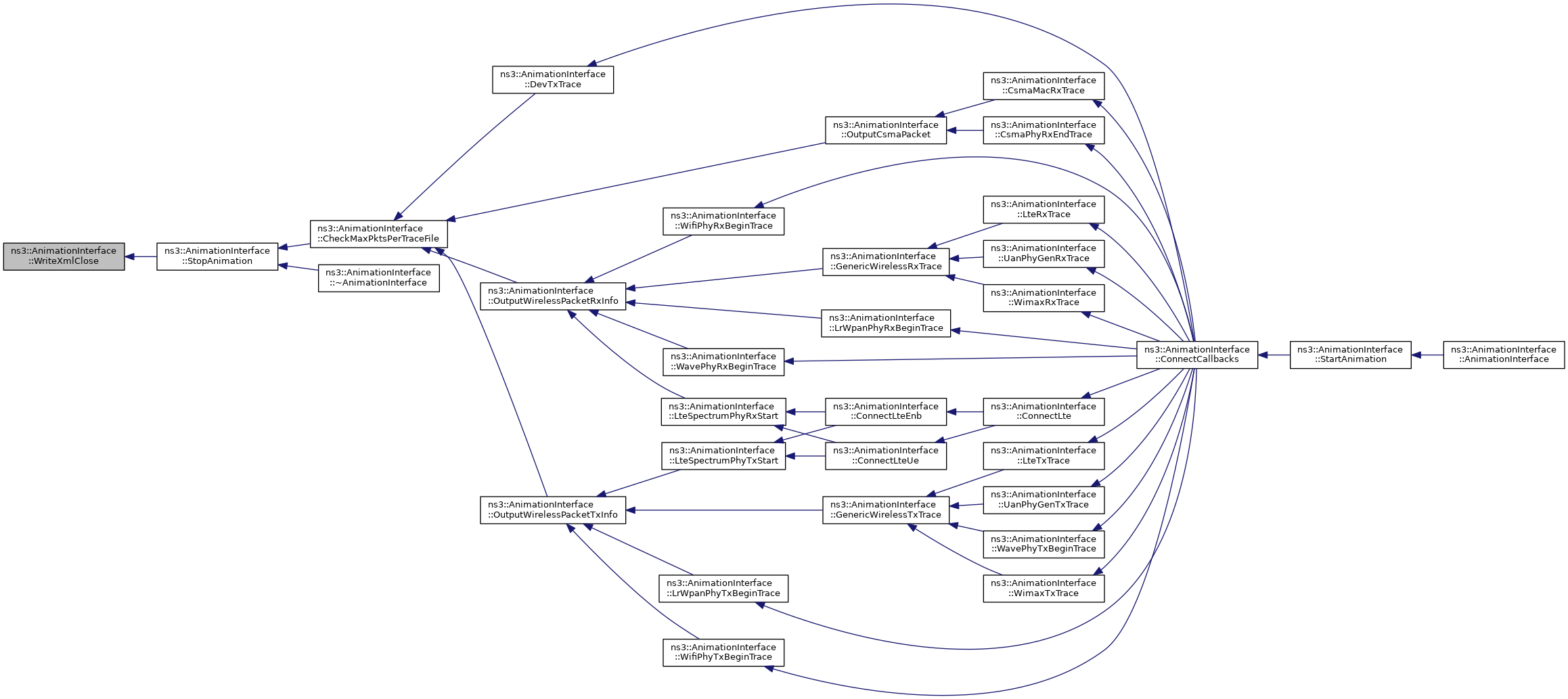

Here is the caller graph for this function:

◆ WriteXmlIpv4Addresses()

void ns3::AnimationInterface::WriteXmlIpv4Addresses	(	uint32_t	nodeId,
		std::vector< std::string >	ipv4Addresses
	)

private

Write XML Ipv4 addresses function.

Parameters

nodeId	the node ID
ipv4Addresses	the list of Ipv4 addresses

Definition at line 2515 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::AppendChild(), m_f, ns3::AnimationInterface::AnimXmlElement::SetText(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by WriteIpv4Addresses().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlIpv6Addresses()

void ns3::AnimationInterface::WriteXmlIpv6Addresses	(	uint32_t	nodeId,
		std::vector< std::string >	ipv6Addresses
	)

private

Write XML Ipv6 addresses function.

Parameters

nodeId	the node ID
ipv6Addresses	the list of Ipv6 addresses

Definition at line 2531 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::AppendChild(), m_f, ns3::AnimationInterface::AnimXmlElement::SetText(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by WriteIpv6Addresses().

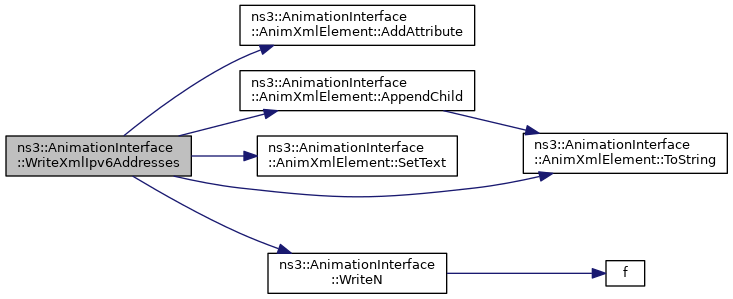

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlLink()

void ns3::AnimationInterface::WriteXmlLink	(	uint32_t	fromId,
		uint32_t	toLp,
		uint32_t	toId
	)

private

Write XML link counter function.

Parameters

fromId	the from device
toLp	the to device
toId	the to ID

Definition at line 2486 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::LinkProperties::fromNodeDescription, ns3::AnimationInterface::LinkProperties::linkDescription, m_f, m_linkProperties, ns3::AnimationInterface::LinkProperties::toNodeDescription, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlNode()

void ns3::AnimationInterface::WriteXmlNode	(	uint32_t	id,
		uint32_t	sysId,
		double	locX,
		double	locY
	)

private

Write XML node function.

Parameters

id	the ID
sysId	the system ID
locX	the x location
locY	the y location

Definition at line 2464 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by WriteNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlNonP2pLinkProperties()

void ns3::AnimationInterface::WriteXmlNonP2pLinkProperties	(	uint32_t	id,
		std::string	ipAddress,
		std::string	channelType
	)

private

Write XML non P2P link properties function.

Parameters

id	the ID
ipAddress	the IP address
channelType	the channel type

Definition at line 2729 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by WriteNonP2pLinkProperties().

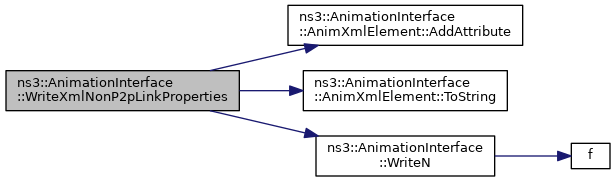

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlP() [1/2]

void ns3::AnimationInterface::WriteXmlP	(	std::string	pktType,
		uint32_t	fId,
		double	fbTx,
		double	lbTx,
		uint32_t	tId,
		double	fbRx,
		double	lbRx,
		std::string	metaInfo = `""`
	)

private

Write XMLP function.

Parameters

pktType	the packet type
fId	the FID
fbTx	the FB transmit
lbTx	the LB transmit
tId	the TID
fbRx	the FB receive
lbRx	the LB receive
metaInfo	the meta info

Definition at line 2605 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketRxInfo().

Here is the call graph for this function:

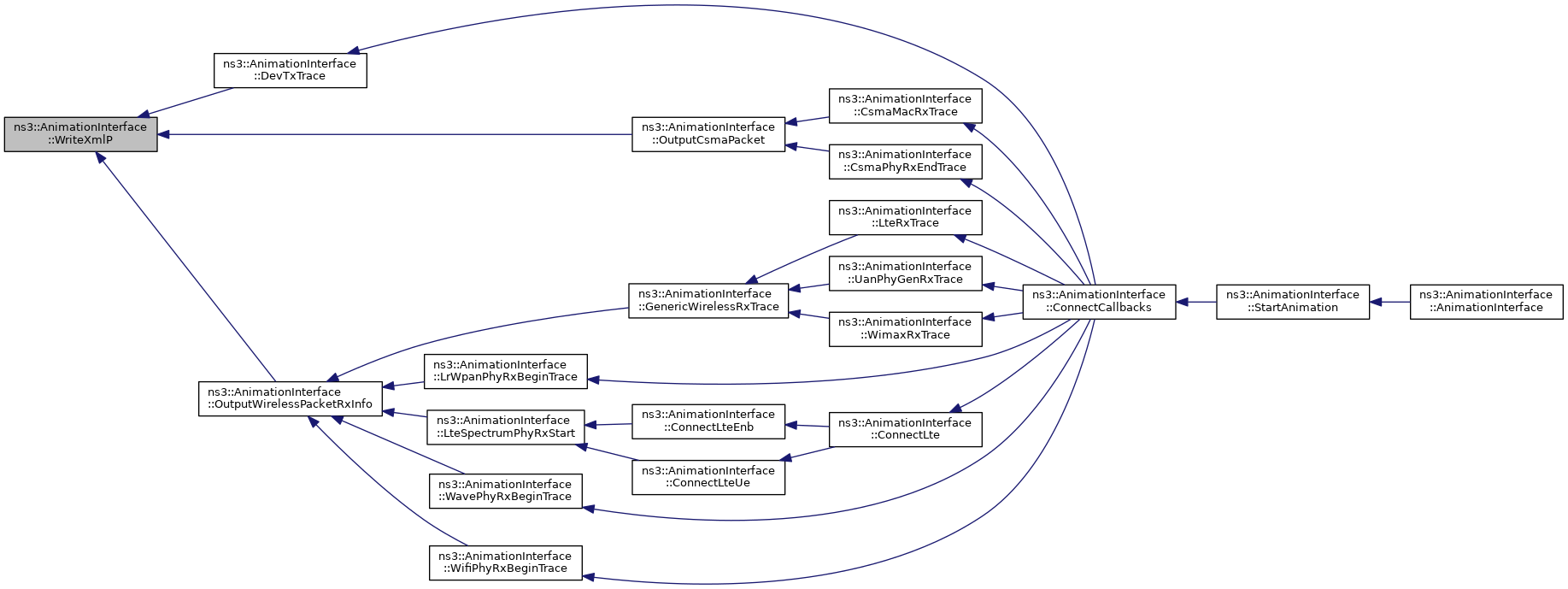

Here is the caller graph for this function:

◆ WriteXmlP() [2/2]

void ns3::AnimationInterface::WriteXmlP	(	uint64_t	animUid,
		std::string	pktType,
		uint32_t	fId,
		double	fbTx,
		double	lbTx
	)

private

Write XMLP function.

Parameters

animUid	the UID
pktType	the packet type
fId	the FID
fbTx	the FB transmit
lbTx	the LB transmit

Definition at line 2594 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Here is the call graph for this function:

◆ WriteXmlPRef()

void ns3::AnimationInterface::WriteXmlPRef	(	uint64_t	animUid,
		uint32_t	fId,
		double	fbTx,
		std::string	metaInfo = `""`
	)

private

Write XMLP Ref function.

Parameters

animUid	the UID
fId	the FID
fbTx	the FB transmit
metaInfo	the meta info

Definition at line 2580 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by OutputWirelessPacketTxInfo().

Here is the call graph for this function:

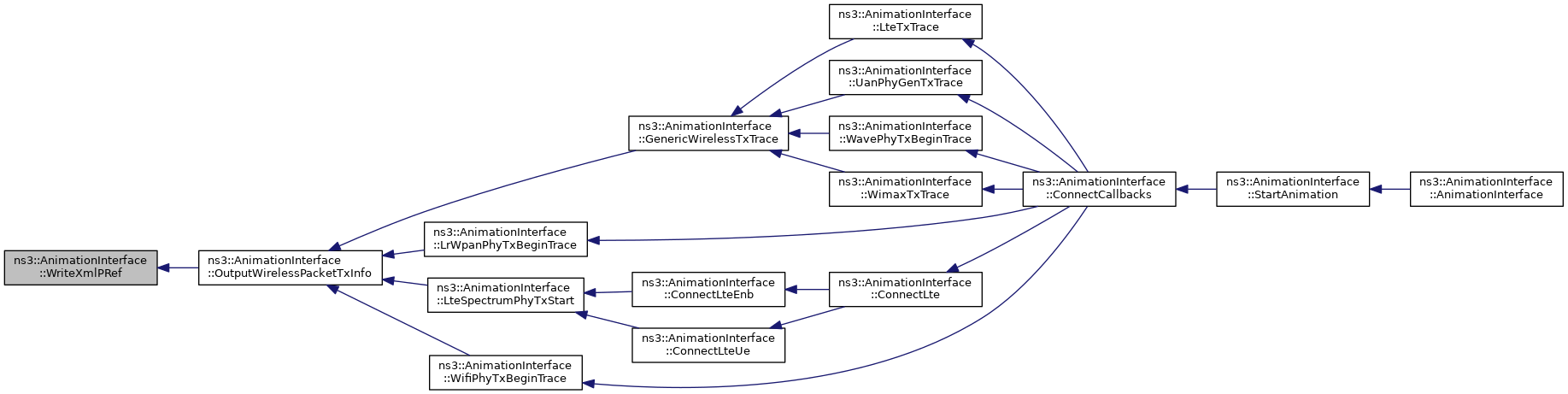

Here is the caller graph for this function:

◆ WriteXmlRouting()

void ns3::AnimationInterface::WriteXmlRouting	(	uint32_t	id,
		std::string	routingInfo
	)

private

Write XML routing function.

Parameters

id	the ID
routingInfo	the routing info

Definition at line 2547 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_routingF, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlRp()

void ns3::AnimationInterface::WriteXmlRp	(	uint32_t	nodeId,
		std::string	destination,
		Ipv4RoutePathElements	rpElements
	)

private

Write XMLRP function.

Parameters

nodeId	the node ID
destination	the destination
rpElements	the route path elements

Definition at line 2557 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::AppendChild(), m_routingF, ns3::AnimationInterface::Ipv4RoutePathElement::nextHop, ns3::AnimationInterface::Ipv4RoutePathElement::nodeId, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by WriteRoutePath().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlUpdateBackground()

void ns3::AnimationInterface::WriteXmlUpdateBackground	(	std::string	fileName,
		double	x,
		double	y,
		double	scaleX,
		double	scaleY,
		double	opacity
	)

private

Write XML update background function.

Parameters

fileName	the file name
x	the X value
y	the Y value
scaleX	the X scale
scaleY	the Y scale
opacity	the opacity

Definition at line 2716 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::AnimationInterface::AnimXmlElement::ToString(), WriteN(), and sample-rng-plot::x.

Referenced by SetBackgroundImage().

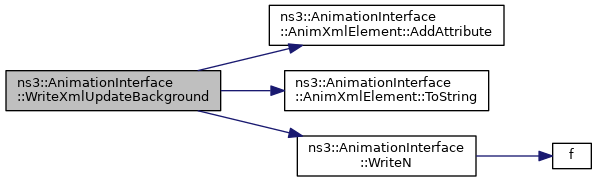

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlUpdateLink()

void ns3::AnimationInterface::WriteXmlUpdateLink	(	uint32_t	fromId,
		uint32_t	toId,
		std::string	linkDescription
	)

private

Write XML update link counter function.

Parameters

fromId	the from device
toId	the to device
linkDescription	the link description

Definition at line 2475 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by UpdateLinkDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlUpdateNodeColor()

void ns3::AnimationInterface::WriteXmlUpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

private

Write XML update node color function.

Parameters

nodeId	the node ID
r	the red color
g	the green color
b	the blue color

Definition at line 2677 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by UpdateNodeColor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlUpdateNodeCounter()

void ns3::AnimationInterface::WriteXmlUpdateNodeCounter	(	uint32_t	counterId,
		uint32_t	nodeId,
		double	value
	)

private

Write XML update node counter function.

Parameters

counterId	the counter ID
nodeId	the node ID
value	the node counter value

Definition at line 2705 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by UpdateNodeCounter().

Here is the call graph for this function:

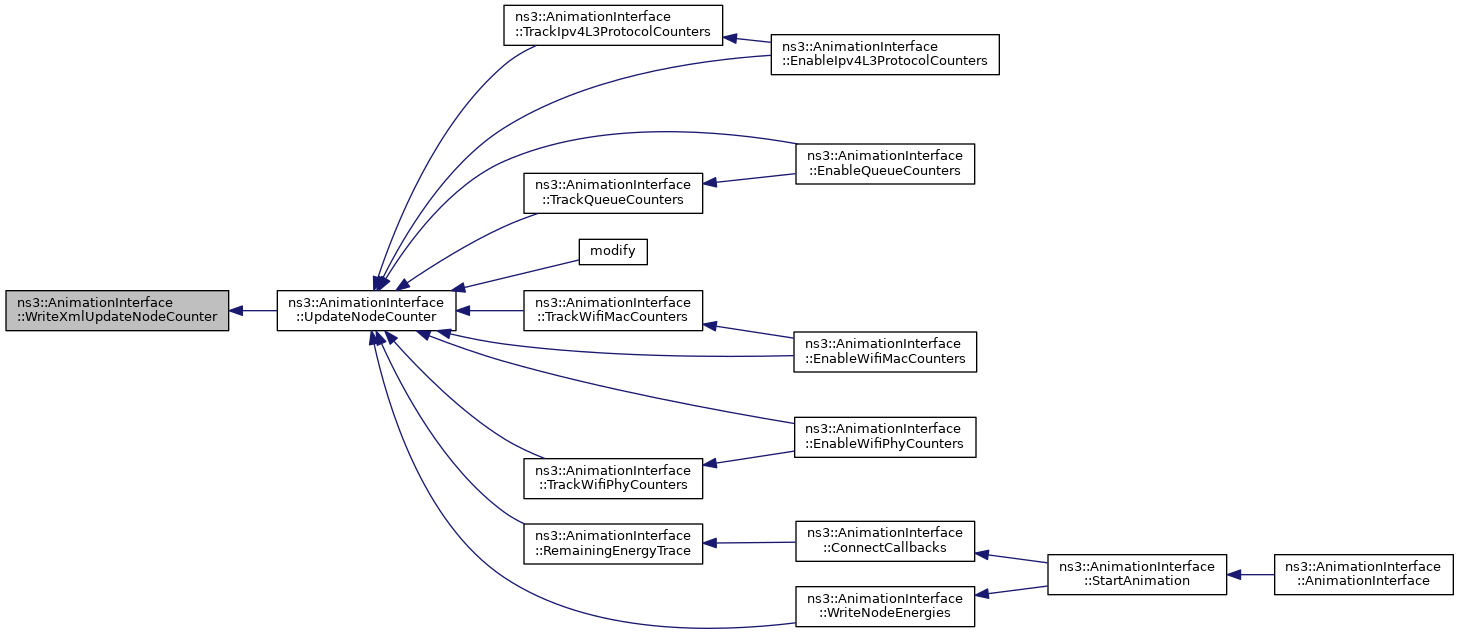

Here is the caller graph for this function:

◆ WriteXmlUpdateNodeDescription()

void ns3::AnimationInterface::WriteXmlUpdateNodeDescription ( uint32_t nodeId )

private

Write XML update node description function.

Parameters

nodeId the node ID

Definition at line 2690 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, m_nodeDescriptions, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by UpdateNodeDescription().

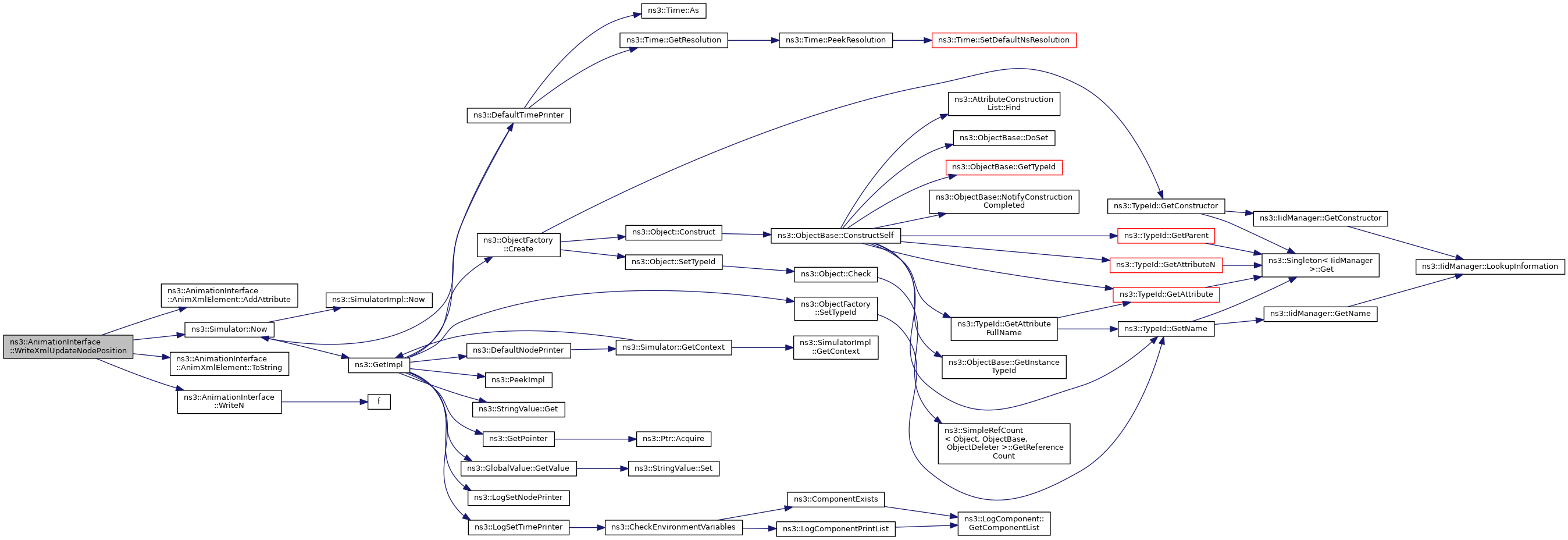

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlUpdateNodeImage()

void ns3::AnimationInterface::WriteXmlUpdateNodeImage	(	uint32_t	nodeId,
		uint32_t	resourceId
	)

private

Write XML update node image function.

Parameters

nodeId	the node ID
resourceId	the resource ID

Definition at line 2642 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by UpdateNodeImage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteXmlUpdateNodePosition()

void ns3::AnimationInterface::WriteXmlUpdateNodePosition	(	uint32_t	nodeId,
		double	x,
		double	y
	)

private

Write XML update node position function.

Parameters

nodeId	the node ID
x	the X position
y	the Y position

Definition at line 2665 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), WriteN(), and sample-rng-plot::x.

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

Here is the call graph for this function:

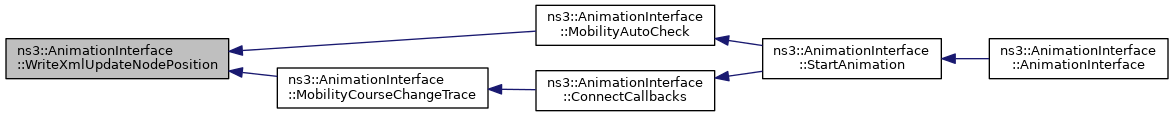

Here is the caller graph for this function:

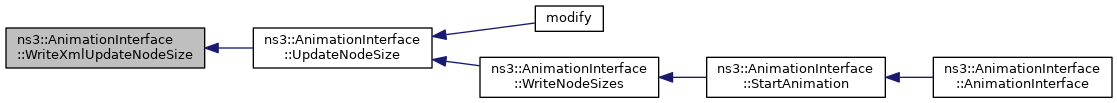

◆ WriteXmlUpdateNodeSize()

void ns3::AnimationInterface::WriteXmlUpdateNodeSize	(	uint32_t	nodeId,
		double	width,
		double	height
	)

private

Write XML update node size function.

Parameters

nodeId	the node ID
width	the width
height	the height

Definition at line 2653 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), m_f, ns3::Simulator::Now(), ns3::AnimationInterface::AnimXmlElement::ToString(), and WriteN().

Referenced by UpdateNodeSize().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ gAnimUid

uint64_t ns3::AnimationInterface::gAnimUid

private

Packet unique identifier used by AnimationInterface.

Definition at line 615 of file animation-interface.h.

Referenced by CsmaPhyTxBeginTrace(), GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and WifiPhyTxBeginTrace().

◆ m_currentPktCount

uint64_t ns3::AnimationInterface::m_currentPktCount

private

current packet count

Definition at line 676 of file animation-interface.h.

Referenced by CheckMaxPktsPerTraceFile(), GetTracePktCount(), and StartAnimation().

◆ m_enablePacketMetadata

bool ns3::AnimationInterface::m_enablePacketMetadata

private

enable packet metadata

Definition at line 618 of file animation-interface.h.

Referenced by DevTxTrace(), EnablePacketMetadata(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

◆ m_f

FILE* ns3::AnimationInterface::m_f

private

File handle for output (0 if none)

Definition at line 611 of file animation-interface.h.

Referenced by SetOutputFile(), StopAnimation(), WriteXmlAddNodeCounter(), WriteXmlAddResource(), WriteXmlAnim(), WriteXmlClose(), WriteXmlIpv4Addresses(), WriteXmlIpv6Addresses(), WriteXmlLink(), WriteXmlNode(), WriteXmlNonP2pLinkProperties(), WriteXmlP(), WriteXmlPRef(), WriteXmlUpdateBackground(), WriteXmlUpdateLink(), WriteXmlUpdateNodeColor(), WriteXmlUpdateNodeCounter(), WriteXmlUpdateNodeDescription(), WriteXmlUpdateNodeImage(), WriteXmlUpdateNodePosition(), and WriteXmlUpdateNodeSize().

◆ m_ipv4L3ProtocolCountersPollInterval

Time ns3::AnimationInterface::m_ipv4L3ProtocolCountersPollInterval

private

IPv4 L3 protocol counters poll interval.

Definition at line 628 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

◆ m_ipv4L3ProtocolCountersStopTime

Time ns3::AnimationInterface::m_ipv4L3ProtocolCountersStopTime

private

IPv4 L3 protocol counters stop time.

Definition at line 627 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

◆ m_ipv4L3ProtocolDropCounterId

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolDropCounterId

private

IPv4 protocol drop counter ID.

Definition at line 643 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

◆ m_ipv4L3ProtocolRxCounterId

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolRxCounterId

private

IPv4 L3 protocol receive counter ID.

Definition at line 642 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

◆ m_ipv4L3ProtocolTxCounterId

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolTxCounterId

private

IPv4 L3 protocol transmit counter ID.

Definition at line 641 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

◆ m_ipv4RouteTrackElements

std::vector<Ipv4RouteTrackElement> ns3::AnimationInterface::m_ipv4RouteTrackElements

private

IPv route track elements.

Definition at line 677 of file animation-interface.h.

Referenced by AddSourceDestination(), and TrackIpv4RoutePaths().

◆ m_ipv4ToNodeIdMap

std::map<std::string, uint32_t> ns3::AnimationInterface::m_ipv4ToNodeIdMap

private

IPv4 to node ID map.

Definition at line 667 of file animation-interface.h.

Referenced by AddToIpv4AddressNodeIdTable(), RecursiveIpv4RoutePathSearch(), and TrackIpv4RoutePaths().

◆ m_ipv6ToNodeIdMap

std::map<std::string, uint32_t> ns3::AnimationInterface::m_ipv6ToNodeIdMap

private

IPv6 to node ID map.

Definition at line 668 of file animation-interface.h.

Referenced by AddToIpv6AddressNodeIdTable().

◆ m_linkProperties

LinkPropertiesMap ns3::AnimationInterface::m_linkProperties

private

link properties

Definition at line 674 of file animation-interface.h.

Referenced by WriteLinkProperties(), and WriteXmlLink().

◆ m_macToNodeIdMap

std::map<std::string, uint32_t> ns3::AnimationInterface::m_macToNodeIdMap

private

MAC to node ID map.

Definition at line 666 of file animation-interface.h.

Referenced by GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), WavePhyRxBeginTrace(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

◆ m_maxPktsPerFile

uint64_t ns3::AnimationInterface::m_maxPktsPerFile

private

maximum pakets per file

Definition at line 621 of file animation-interface.h.

Referenced by CheckMaxPktsPerTraceFile(), and SetMaxPktsPerTraceFile().

◆ m_mobilityPollInterval

Time ns3::AnimationInterface::m_mobilityPollInterval

private

mobility poll interval

Definition at line 613 of file animation-interface.h.

Referenced by MobilityAutoCheck(), SetMobilityPollInterval(), and StartAnimation().

◆ m_nodeColors

NodeColorsMap ns3::AnimationInterface::m_nodeColors

private

node colors

Definition at line 672 of file animation-interface.h.

Referenced by UpdateNodeColor(), and WriteNodeColors().

◆ m_nodeCounters

std::vector<std::string> ns3::AnimationInterface::m_nodeCounters

private

node counters

Definition at line 680 of file animation-interface.h.

Referenced by AddNodeCounter(), and UpdateNodeCounter().

◆ m_nodeDescriptions

NodeDescriptionsMap ns3::AnimationInterface::m_nodeDescriptions

private

node description

Definition at line 673 of file animation-interface.h.

Referenced by UpdateNodeDescription(), and WriteXmlUpdateNodeDescription().

◆ m_nodeEnergyFraction

EnergyFractionMap ns3::AnimationInterface::m_nodeEnergyFraction

private

node energy fraction

Definition at line 675 of file animation-interface.h.

Referenced by GetNodeEnergyFraction(), and RemainingEnergyTrace().

◆ m_nodeIdIpv4Map

NodeIdIpv4Map ns3::AnimationInterface::m_nodeIdIpv4Map

private

node ID to IPv4 map

Definition at line 669 of file animation-interface.h.

Referenced by AddToIpv4AddressNodeIdTable(), and WriteIpv4Addresses().

◆ m_nodeIdIpv6Map

NodeIdIpv6Map ns3::AnimationInterface::m_nodeIdIpv6Map

private

node ID to IPv6 map

Definition at line 670 of file animation-interface.h.

Referenced by AddToIpv6AddressNodeIdTable(), and WriteIpv6Addresses().

◆ m_nodeIpv4Drop

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Drop

private

node IPv4 drop

Definition at line 683 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4DropTrace(), and TrackIpv4L3ProtocolCounters().

◆ m_nodeIpv4Rx

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Rx

private

node IPv4 receive

Definition at line 685 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4RxTrace(), and TrackIpv4L3ProtocolCounters().

◆ m_nodeIpv4Tx

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Tx

private

node IPv4 transmit

Definition at line 684 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4TxTrace(), and TrackIpv4L3ProtocolCounters().

◆ m_nodeLocation

std::map<uint32_t, Vector> ns3::AnimationInterface::m_nodeLocation

private

node location

Definition at line 665 of file animation-interface.h.

Referenced by GetPosition(), and UpdatePosition().

◆ m_nodeLrWpanMacRx

NodeCounterMap64 ns3::AnimationInterface::m_nodeLrWpanMacRx

private

node LR-WPAN MAC receive

Definition at line 697 of file animation-interface.h.

Referenced by LrWpanMacRxTrace().

◆ m_nodeLrWpanMacRxDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeLrWpanMacRxDrop

private

node LR-WPAN MAC receive drop

Definition at line 698 of file animation-interface.h.

Referenced by LrWpanMacRxDropTrace().

◆ m_nodeLrWpanMacTx

NodeCounterMap64 ns3::AnimationInterface::m_nodeLrWpanMacTx

private

node LR-WPAN MAC transmit

Definition at line 695 of file animation-interface.h.

Referenced by LrWpanMacTxTrace().

◆ m_nodeLrWpanMacTxDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeLrWpanMacTxDrop

private

node LR-WPAN MAC transmit drop

Definition at line 696 of file animation-interface.h.

Referenced by LrWpanMacTxDropTrace().

◆ m_nodeQueueDequeue

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueDequeue

private

node queue dequeue

Definition at line 687 of file animation-interface.h.

Referenced by DequeueTrace(), EnableQueueCounters(), and TrackQueueCounters().

◆ m_nodeQueueDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueDrop

private

node queue drop

Definition at line 688 of file animation-interface.h.

Referenced by EnableQueueCounters(), QueueDropTrace(), and TrackQueueCounters().

◆ m_nodeQueueEnqueue

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueEnqueue

private

node queue enqueue

Definition at line 686 of file animation-interface.h.

Referenced by EnableQueueCounters(), EnqueueTrace(), and TrackQueueCounters().

◆ m_nodeSizes

std::map<uint32_t, NodeSize> ns3::AnimationInterface::m_nodeSizes

private

node sizes

Definition at line 678 of file animation-interface.h.

Referenced by UpdateNodeSize(), and WriteNodeSizes().

◆ m_nodeWifiMacRx

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacRx

private

node wifi MAC receive

Definition at line 691 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacRxTrace().

◆ m_nodeWifiMacRxDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacRxDrop

private

node wifi MAC receive drop

Definition at line 692 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacRxDropTrace().

◆ m_nodeWifiMacTx

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacTx

private

node wifi MAC transmit

Definition at line 689 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacTxTrace().

◆ m_nodeWifiMacTxDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacTxDrop

private

node wifi MAC transmit drop

Definition at line 690 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacTxDropTrace().

◆ m_nodeWifiPhyRxDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiPhyRxDrop

private

node wifi Phy receive drop

Definition at line 694 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), TrackWifiPhyCounters(), and WifiPhyRxDropTrace().

◆ m_nodeWifiPhyTxDrop

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiPhyTxDrop

private

node wifi Phy transmit drop

Definition at line 693 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), TrackWifiPhyCounters(), and WifiPhyTxDropTrace().

◆ m_originalFileName

std::string ns3::AnimationInterface::m_originalFileName

private

original file name

Definition at line 622 of file animation-interface.h.

◆ m_outputFileName

std::string ns3::AnimationInterface::m_outputFileName

private

output file name

Definition at line 614 of file animation-interface.h.

Referenced by SetOutputFile(), and StartAnimation().

◆ m_pendingCsmaPackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingCsmaPackets

private

pending CSMA packets

Definition at line 661 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), and ProtocolTypeToPendingPackets().

◆ m_pendingLrWpanPackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingLrWpanPackets

private

pending LR-WPAN packets

Definition at line 659 of file animation-interface.h.

Referenced by LrWpanPhyRxBeginTrace(), LrWpanPhyTxBeginTrace(), and ProtocolTypeToPendingPackets().

◆ m_pendingLtePackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingLtePackets

private

pending LTE packets

Definition at line 660 of file animation-interface.h.

Referenced by LteSpectrumPhyRxStart(), and ProtocolTypeToPendingPackets().

◆ m_pendingUanPackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingUanPackets

private

pending UAN packets

Definition at line 662 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets().

◆ m_pendingWavePackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWavePackets

private

pending WAVE packets

Definition at line 663 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), and WavePhyRxBeginTrace().

◆ m_pendingWifiPackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWifiPackets

private

pending wifi packets

Definition at line 657 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), and WifiPhyRxBeginTrace().

◆ m_pendingWimaxPackets

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWimaxPackets

private

pending wimax packets

Definition at line 658 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets().

◆ m_queueCountersPollInterval

Time ns3::AnimationInterface::m_queueCountersPollInterval

private

queue counters poll interval

Definition at line 630 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

◆ m_queueCountersStopTime

Time ns3::AnimationInterface::m_queueCountersStopTime

private

queue counters stop time

Definition at line 629 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

◆ m_queueDequeueCounterId

uint32_t ns3::AnimationInterface::m_queueDequeueCounterId

private

queue dequeue counter ID

Definition at line 646 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

◆ m_queueDropCounterId

uint32_t ns3::AnimationInterface::m_queueDropCounterId

private

queue drop counter ID

Definition at line 647 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

◆ m_queueEnqueueCounterId

uint32_t ns3::AnimationInterface::m_queueEnqueueCounterId

private

queue enqueue counter ID

Definition at line 645 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

◆ m_remainingEnergyCounterId

uint32_t ns3::AnimationInterface::m_remainingEnergyCounterId

private

remaining energy counter ID

Definition at line 639 of file animation-interface.h.

Referenced by RemainingEnergyTrace(), and WriteNodeEnergies().

◆ m_resources

std::vector<std::string> ns3::AnimationInterface::m_resources

private

resources

Definition at line 679 of file animation-interface.h.

Referenced by AddResource(), and UpdateNodeImage().

◆ m_routingF

FILE* ns3::AnimationInterface::m_routingF

private

File handle for routing table output (0 if None);.

Definition at line 612 of file animation-interface.h.

Referenced by SetOutputFile(), StopAnimation(), WriteXmlAnim(), WriteXmlClose(), WriteXmlRouting(), and WriteXmlRp().

◆ m_routingFileName

std::string ns3::AnimationInterface::m_routingFileName

private

routing file name

Definition at line 624 of file animation-interface.h.

Referenced by SetOutputFile().

◆ m_routingNc

NodeContainer ns3::AnimationInterface::m_routingNc

private

routing node container

Definition at line 626 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

◆ m_routingPollInterval

Time ns3::AnimationInterface::m_routingPollInterval

private

routing poll interval

Definition at line 625 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

◆ m_routingStopTime

Time ns3::AnimationInterface::m_routingStopTime

private

routing stop time

Definition at line 623 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

◆ m_started

bool ns3::AnimationInterface::m_started

private

started

Definition at line 617 of file animation-interface.h.

Referenced by IsStarted(), StartAnimation(), and StopAnimation().

◆ m_startTime

Time ns3::AnimationInterface::m_startTime

private

start time

Definition at line 619 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStartTime().

◆ m_stopTime

Time ns3::AnimationInterface::m_stopTime

private

stop time

Definition at line 620 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStopTime().

◆ m_trackPackets

bool ns3::AnimationInterface::m_trackPackets

private

track packets

Definition at line 636 of file animation-interface.h.

Referenced by SkipPacketTracing().

◆ m_wifiMacCountersPollInterval

Time ns3::AnimationInterface::m_wifiMacCountersPollInterval

private

wifi MAC counters poll interval

Definition at line 632 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

◆ m_wifiMacCountersStopTime

Time ns3::AnimationInterface::m_wifiMacCountersStopTime

private

wifi MAC counters stop time

Definition at line 631 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

◆ m_wifiMacRxCounterId

uint32_t ns3::AnimationInterface::m_wifiMacRxCounterId

private

wifi MAC receive counter ID

Definition at line 651 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

◆ m_wifiMacRxDropCounterId

uint32_t ns3::AnimationInterface::m_wifiMacRxDropCounterId

private

wifi MAC receive drop counter ID

Definition at line 652 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

◆ m_wifiMacTxCounterId

uint32_t ns3::AnimationInterface::m_wifiMacTxCounterId

private

wifi MAC transmit counter ID

Definition at line 649 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

◆ m_wifiMacTxDropCounterId

uint32_t ns3::AnimationInterface::m_wifiMacTxDropCounterId

private

wifi MAC transmit drop counter ID

Definition at line 650 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

◆ m_wifiPhyCountersPollInterval

Time ns3::AnimationInterface::m_wifiPhyCountersPollInterval

private

wifi Phy counters poll interval

Definition at line 634 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

◆ m_wifiPhyCountersStopTime

Time ns3::AnimationInterface::m_wifiPhyCountersStopTime

private

wifi Phy counters stop time

Definition at line 633 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

◆ m_wifiPhyRxDropCounterId

uint32_t ns3::AnimationInterface::m_wifiPhyRxDropCounterId

private

wifi Phy receive drop counter ID

Definition at line 655 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

◆ m_wifiPhyTxDropCounterId

uint32_t ns3::AnimationInterface::m_wifiPhyTxDropCounterId

private

wifi Phy transmit drop counter ID

Definition at line 654 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

◆ m_writeCallback

AnimWriteCallback ns3::AnimationInterface::m_writeCallback

private

write callback

Definition at line 616 of file animation-interface.h.

Referenced by ResetAnimWriteCallback(), SetAnimWriteCallback(), and WriteN().

◆ userBoundary

Rectangle* ns3::AnimationInterface::userBoundary

staticprivate

user boundary

Definition at line 635 of file animation-interface.h.

The documentation for this class was generated from the following files:

src/netanim/model/animation-interface.h
src/netanim/model/animation-interface.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ AnimUidPacketInfoMap

◆ AnimWriteCallback

◆ EnergyFractionMap

◆ Ipv4RoutePathElements

◆ LinkPropertiesMap

◆ NodeColorsMap

◆ NodeCounterMap64

◆ NodeDescriptionsMap

◆ NodeIdIpv4Map

◆ NodeIdIpv4Pair

◆ NodeIdIpv6Map

◆ NodeIdIpv6Pair

Member Enumeration Documentation

◆ CounterType

◆ ProtocolType

Constructor & Destructor Documentation

◆ AnimationInterface()

◆ ~AnimationInterface()

Member Function Documentation

◆ AddByteTag()

◆ AddNodeCounter()

◆ AddPendingPacket()

◆ AddResource()

◆ AddSourceDestination()

◆ AddToIpv4AddressNodeIdTable() [1/2]

◆ AddToIpv4AddressNodeIdTable() [2/2]

◆ AddToIpv6AddressNodeIdTable() [1/2]

◆ AddToIpv6AddressNodeIdTable() [2/2]

◆ CheckMaxPktsPerTraceFile()

◆ ConnectCallbacks()

◆ ConnectLte()

◆ ConnectLteEnb()

◆ ConnectLteUe()

◆ CounterTypeToString()

◆ CsmaMacRxTrace()

◆ CsmaPhyRxEndTrace()

◆ CsmaPhyTxBeginTrace()

◆ CsmaPhyTxEndTrace()

◆ DequeueTrace()

◆ DevTxTrace()

◆ EnableIpv4L3ProtocolCounters()

◆ EnableIpv4RouteTracking() [1/2]

◆ EnableIpv4RouteTracking() [2/2]

◆ EnablePacketMetadata()

◆ EnableQueueCounters()

◆ EnableWifiMacCounters()

◆ EnableWifiPhyCounters()

◆ EnqueueTrace()

◆ GenericWirelessRxTrace()

◆ GenericWirelessTxTrace()

◆ GetAnimUidFromPacket()

◆ GetElementsFromContext()

◆ GetIpv4Address()

◆ GetIpv4Addresses()

◆ GetIpv4RoutingTable()

◆ GetIpv6Address()

◆ GetIpv6Addresses()

◆ GetMacAddress()

◆ GetMovedNodes()

◆ GetNetAnimVersion()

◆ GetNetDeviceFromContext()

◆ GetNodeEnergyFraction()

◆ GetNodeFromContext()

◆ GetPacketMetadata()

◆ GetPosition()

◆ GetTracePktCount()

◆ Ipv4DropTrace()

◆ Ipv4RxTrace()

◆ Ipv4TxTrace()

◆ IsInitialized()
