ns3::DataOutputCallback Class Reference

Callback class for the DataOutput classes. More...

#include "data-output-interface.h"

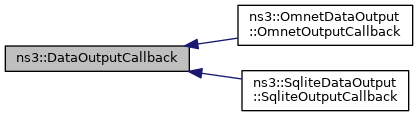

Inheritance diagram for ns3::DataOutputCallback:

Public Member Functions
virtual	~DataOutputCallback ()
	Destructor. More...
virtual void	OutputSingleton (std::string key, std::string variable, int val)=0
	Associates the integer value with the variable name for a specific output format. More...
virtual void	OutputSingleton (std::string key, std::string variable, uint32_t val)=0
	Associates the uint32_t value with the variable name for a specific output format. More...
virtual void	OutputSingleton (std::string key, std::string variable, double val)=0
	Associates the double value with the variable name for a specific output format. More...
virtual void	OutputSingleton (std::string key, std::string variable, std::string val)=0
	Associates the string value with the variable name for a specific output format. More...
virtual void	OutputSingleton (std::string key, std::string variable, Time val)=0
	Associates the Time value with the variable name for a specific output format. More...
virtual void	OutputStatistic (std::string key, std::string variable, const StatisticalSummary *statSum)=0
	Outputs the data from the specified StatisticalSummary. More...

Detailed Description

Callback class for the DataOutput classes.

Definition at line 81 of file data-output-interface.h.

Constructor & Destructor Documentation

~DataOutputCallback()

virtual ns3::DataOutputCallback::~DataOutputCallback ( )

inlinevirtual

Destructor.

Definition at line 86 of file data-output-interface.h.

Member Function Documentation

OutputSingleton() [1/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key, std::string  variable, int  val  )

pure virtual

Associates the integer value with the variable name for a specific output format.

Parameters

key	Key value of a DataCalculator
variable	Name of the variable for which statistics are being provided
val	Value to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

Referenced by ns3::TimeMinMaxAvgTotalCalculator::Output(), and ns3::CounterCalculator<>::Output().

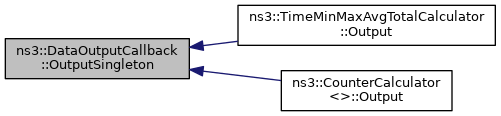

Here is the caller graph for this function:

OutputSingleton() [2/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key, std::string  variable, uint32_t  val  )

pure virtual

Associates the uint32_t value with the variable name for a specific output format.

Parameters

key	Key value of a DataCalculator
variable	Name of the variable for which statistics are being provided
val	Value to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

OutputSingleton() [3/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key, std::string  variable, double  val  )

pure virtual

Associates the double value with the variable name for a specific output format.

Parameters

key	Key value of a DataCalculator
variable	Name of the variable for which statistics are being provided
val	Value to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

OutputSingleton() [4/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key, std::string  variable, std::string  val  )

pure virtual

Associates the string value with the variable name for a specific output format.

Parameters

key	Key value of a DataCalculator
variable	Name of the variable for which statistics are being provided
val	Value to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

OutputSingleton() [5/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key, std::string  variable, Time  val  )

pure virtual

Associates the Time value with the variable name for a specific output format.

Parameters

key	Key value of a DataCalculator
variable	Name of the variable for which statistics are being provided
val	Value to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

OutputStatistic()

virtual void ns3::DataOutputCallback::OutputStatistic ( std::string  key, std::string  variable, const StatisticalSummary *  statSum  )

pure virtual

Outputs the data from the specified StatisticalSummary.

Parameters

key	Key value of a DataCalculator
variable	Name of the variable for which statistics are being provided
statSum	Pointer to a StatisticalSummary object

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::Output().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/stats/model/data-output-interface.h
