A Discrete-Event Network Simulator
API
ns3::DataRateValue Class Reference


AttributeValue implementation for DataRate. More...

#include "data-rate.h"

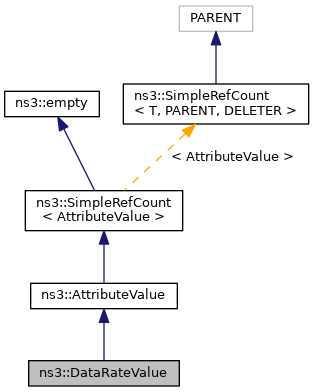

+ Inheritance diagram for ns3::DataRateValue:

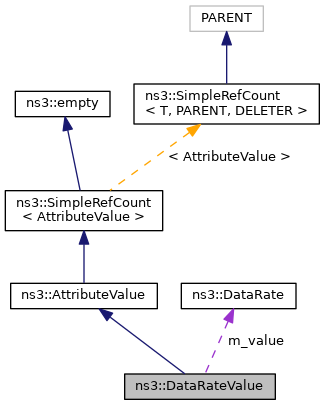

+ Collaboration diagram for ns3::DataRateValue:

Public Member Functions

 DataRateValue ()

 DataRateValue (const DataRate &value)

Copy constructor. More...

virtual Ptr< AttributeValueCopy (void) const

virtual bool DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)

DataRate Get (void) const

More...

template<typename T >
bool GetAccessor (T &value) const

Access the DataRate value as type T. More...

virtual std::string SerializeToString (Ptr< const AttributeChecker > checker) const

void Set (const DataRate &value)

Set the value. More...

- Public Member Functions inherited from ns3::AttributeValue
 AttributeValue ()

virtual ~AttributeValue ()

- Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

DataRate m_value

The stored DataRate instance. More...


Detailed Description


AttributeValue implementation for DataRate.

See also
AttributeValue

Definition at line 298 of file data-rate.h.

Constructor & Destructor Documentation

◆ DataRateValue() [1/2]

ns3::DataRateValue::DataRateValue ( )

Definition at line 30 of file data-rate.cc.

◆ DataRateValue() [2/2]

DataRate ns3::DataRateValue::DataRateValue ( const DataRate value)


Copy constructor.

Parameters
[in]valueThe DataRate value to copy.

Definition at line 30 of file data-rate.cc.

Member Function Documentation

◆ Copy()

Ptr< AttributeValue > ns3::DataRateValue::Copy ( void  ) const
virtual
Returns
a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 30 of file data-rate.cc.

◆ DeserializeFromString()

bool ns3::DataRateValue::DeserializeFromString ( std::string  value,
Ptr< const AttributeChecker checker
)
virtual
Parameters
[in]valueA string representation of the value
[in]checkerA pointer to the checker associated to the attribute.
Returns
true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 30 of file data-rate.cc.

◆ Get()

DataRate ns3::DataRateValue::Get ( void  ) const


Returns
The DataRate value.

Definition at line 30 of file data-rate.cc.

Referenced by LteRadioLinkFailureTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetAccessor()

template<typename T >
bool ns3::DataRateValue::GetAccessor ( T &  value) const
inline


Access the DataRate value as type T.

Template Parameters
T[explicit] The type to cast to.
Parameters
[out]valueThe DataRate value, as type T.
Returns
true.

Definition at line 298 of file data-rate.h.

◆ SerializeToString()

std::string ns3::DataRateValue::SerializeToString ( Ptr< const AttributeChecker checker) const
virtual
Parameters
[in]checkerThe checker associated to the attribute
Returns
A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 30 of file data-rate.cc.

◆ Set()

void ns3::DataRateValue::Set ( const DataRate value)


Set the value.

Parameters
[in]valueThe value to adopt.

Definition at line 30 of file data-rate.cc.

Member Data Documentation

◆ m_value

DataRate ns3::DataRateValue::m_value
private


The stored DataRate instance.

Definition at line 298 of file data-rate.h.


The documentation for this class was generated from the following files:
