DSSS (HR/DSSS) PPDU (11b)DsssPpdu stores a preamble, PHY headers and a PSDU of a PPDU with DSSS modulation. More...

#include "dsss-ppdu.h"

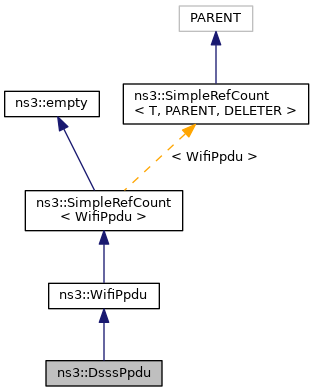

Inheritance diagram for ns3::DsssPpdu:

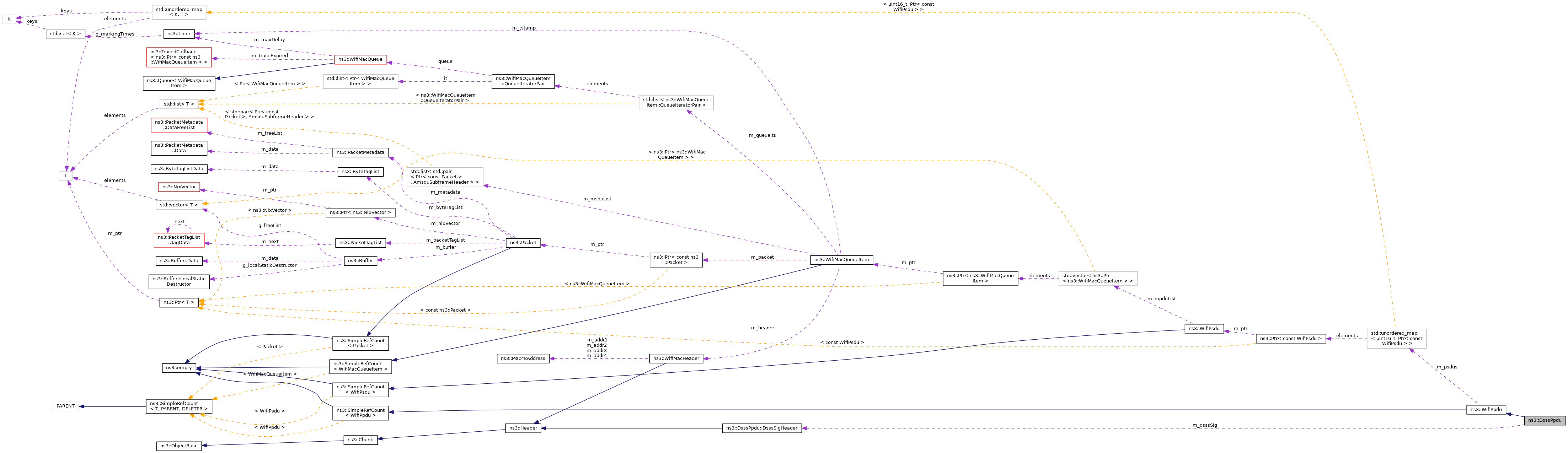

Collaboration diagram for ns3::DsssPpdu:

Classes
class	DsssSigHeader
	DSSS SIG PHY header. More...

Public Member Functions
	DsssPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, Time ppduDuration, uint64_t uid)
	Create a DSSS (HR/DSSS) PPDU. More...

virtual	~DsssPpdu ()
	Destructor for DsssPpdu. More...

Ptr< WifiPpdu >	Copy (void) const override
	Copy this instance. More...

Time	GetTxDuration (void) const override
	Get the total transmission duration of the PPDU. More...

Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...

	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...

virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...

virtual bool	CanBeReceived (uint16_t txCenterFreq, uint16_t p20MinFreq, uint16_t p20MaxFreq) const
	Check whether the given PPDU can be received on the specified primary channel. More...

WifiModulationClass	GetModulation (void) const
	Get the modulation used for the PPDU. More...

WifiPreamble	GetPreamble (void) const
	Get the preamble of the PPDU. More...

Ptr< const WifiPsdu >	GetPsdu (void) const
	Get the payload of the PPDU. More...

virtual uint16_t	GetStaId (void) const
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...

virtual uint16_t	GetTransmissionChannelWidth (void) const
	Get the channel width over which the PPDU will effectively be transmitted. More...

WifiTxVector	GetTxVector (void) const
	Get the TXVECTOR used to send the PPDU. More...

virtual WifiPpduType	GetType (void) const
	Return the PPDU type (. More...

uint64_t	GetUid (void) const
	Get the UID of the PPDU. More...

bool	IsTruncatedTx (void) const

void	Print (std::ostream &os) const
	Print the PPDU contents. More...

void	SetTruncatedTx (void)
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
WifiTxVector	DoGetTxVector (void) const override
	Get the TXVECTOR used to send the PPDU. More...

Private Attributes
DsssSigHeader	m_dsssSig
	the DSSS SIG PHY header More...

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiPpdu
virtual std::string	PrintPayload (void) const
	Print the payload of the PPDU. More...

Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...

WifiPreamble	m_preamble
	the PHY preamble More...

WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...

uint64_t	m_uid
	the unique ID of this PPDU More...

Detailed Description

DSSS (HR/DSSS) PPDU (11b)

DsssPpdu stores a preamble, PHY headers and a PSDU of a PPDU with DSSS modulation.

Definition at line 45 of file dsss-ppdu.h.

Constructor & Destructor Documentation

◆ DsssPpdu()

ns3::DsssPpdu::DsssPpdu	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		Time	ppduDuration,
		uint64_t	uid
	)

Create a DSSS (HR/DSSS) PPDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
uid	the unique ID of this PPDU

Definition at line 33 of file dsss-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiMode::GetDataRate(), ns3::Time::GetMicroSeconds(), ns3::WifiTxVector::GetMode(), m_dsssSig, NS_LOG_FUNCTION, ns3::DsssPpdu::DsssSigHeader::SetLength(), and ns3::DsssPpdu::DsssSigHeader::SetRate().

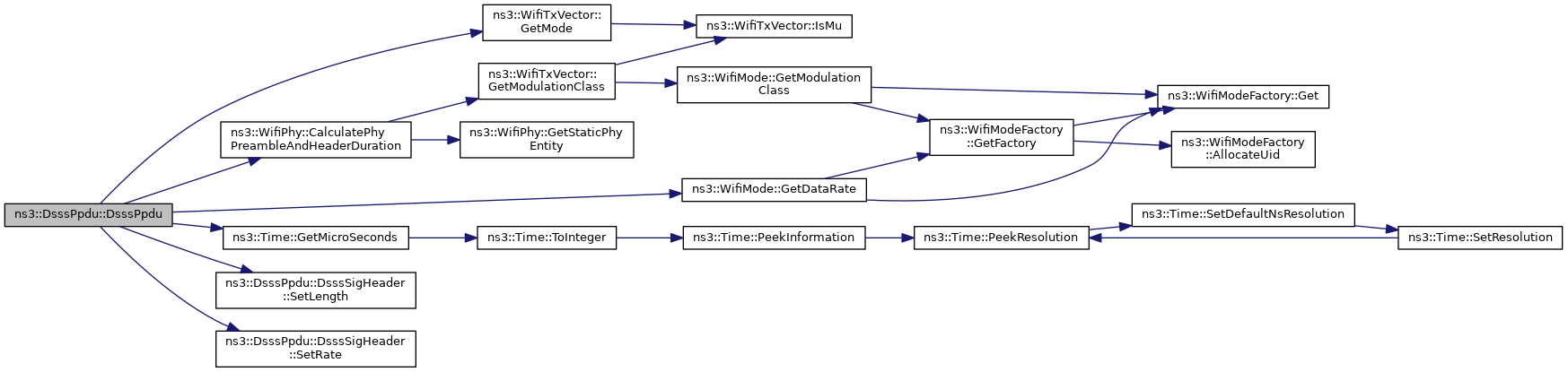

Here is the call graph for this function:

◆ ~DsssPpdu()

ns3::DsssPpdu::~DsssPpdu ( )

virtual

Destructor for DsssPpdu.

Definition at line 42 of file dsss-ppdu.cc.

Member Function Documentation

◆ Copy()

Ptr< WifiPpdu > ns3::DsssPpdu::Copy ( void ) const

overridevirtual

Copy this instance.

Returns: a Ptr to a copy of this instance.

Reimplemented from ns3::WifiPpdu.

Definition at line 66 of file dsss-ppdu.cc.

References ns3::WifiPpdu::GetPsdu(), GetTxDuration(), ns3::WifiPpdu::GetTxVector(), and ns3::WifiPpdu::m_uid.

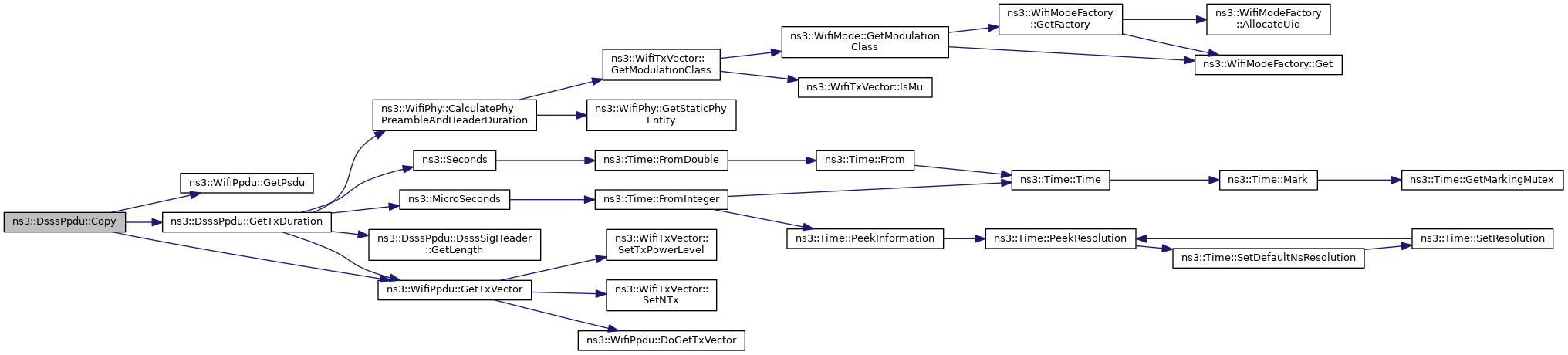

Here is the call graph for this function:

◆ DoGetTxVector()

WifiTxVector ns3::DsssPpdu::DoGetTxVector ( void ) const

overrideprivatevirtual

Get the TXVECTOR used to send the PPDU.

Returns: the TXVECTOR of the PPDU.

Reimplemented from ns3::WifiPpdu.

Definition at line 47 of file dsss-ppdu.cc.

References ns3::DsssPhy::GetDsssRate(), ns3::DsssPpdu::DsssSigHeader::GetRate(), m_dsssSig, ns3::WifiPpdu::m_preamble, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetMode(), and ns3::WifiTxVector::SetPreambleType().

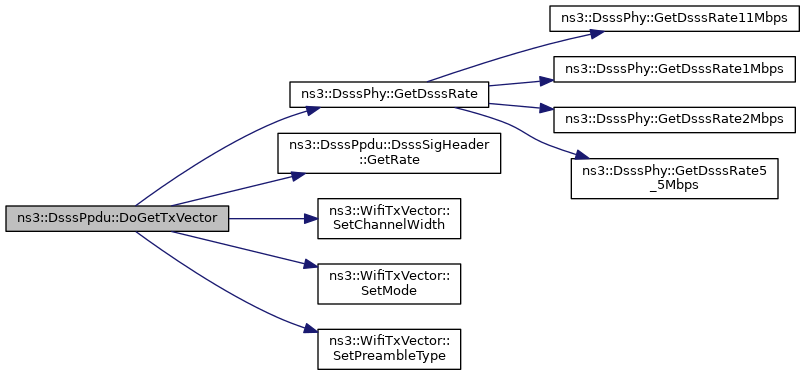

Here is the call graph for this function:

◆ GetTxDuration()

Time ns3::DsssPpdu::GetTxDuration ( void ) const

overridevirtual

Get the total transmission duration of the PPDU.

Returns: the transmission duration of the PPDU

Reimplemented from ns3::WifiPpdu.

Definition at line 57 of file dsss-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::DsssPpdu::DsssSigHeader::GetLength(), ns3::WifiPpdu::GetTxVector(), m_dsssSig, ns3::MicroSeconds(), and ns3::Seconds().

Referenced by Copy().

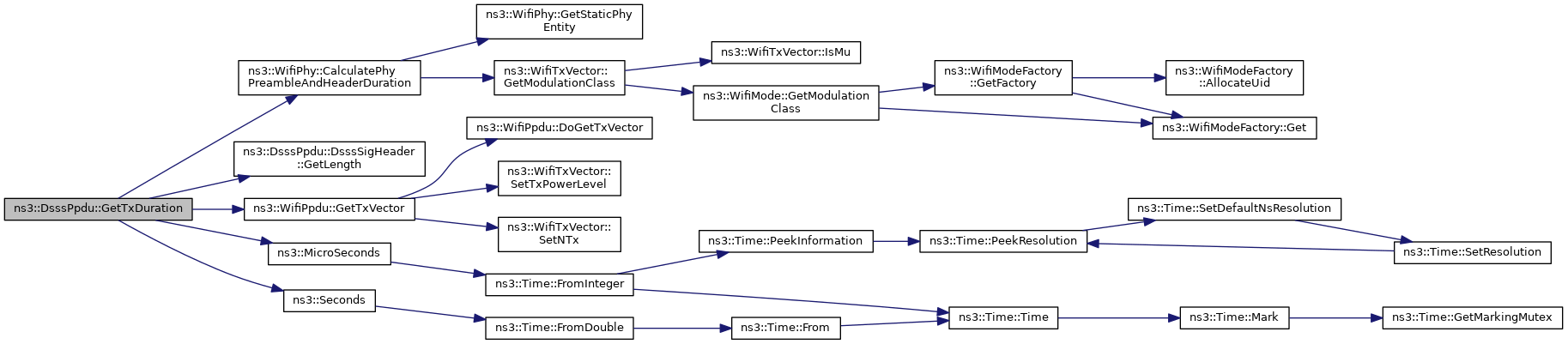

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_dsssSig

DsssSigHeader ns3::DsssPpdu::m_dsssSig

private

the DSSS SIG PHY header

Definition at line 121 of file dsss-ppdu.h.

Referenced by DoGetTxVector(), DsssPpdu(), and GetTxDuration().

The documentation for this class was generated from the following files:

src/wifi/model/non-ht/dsss-ppdu.h
src/wifi/model/non-ht/dsss-ppdu.cc
