IPv6 address associated with an interface. More...

#include "ipv6-interface-address.h"

Collaboration diagram for ns3::Ipv6InterfaceAddress:

Public Types
enum	Scope_e { HOST, LINKLOCAL, GLOBAL }
	Address scope. More...

enum	State_e { TENTATIVE, DEPRECATED, PREFERRED, PERMANENT, HOMEADDRESS, TENTATIVE_OPTIMISTIC, INVALID }
	State of an address associated with an interface. More...

Public Member Functions
	Ipv6InterfaceAddress ()
	Default constructor. More...

	Ipv6InterfaceAddress (Ipv6Address address)
	Constructor. More...

	Ipv6InterfaceAddress (Ipv6Address address, Ipv6Prefix prefix)
	Constructor. More...

	Ipv6InterfaceAddress (Ipv6Address address, Ipv6Prefix prefix, bool onLink)
	Constructor. More...

	Ipv6InterfaceAddress (const Ipv6InterfaceAddress &o)
	Copy constructor. More...

	~Ipv6InterfaceAddress ()
	Destructor. More...

Ipv6Address	GetAddress () const
	Get the IPv6 address. More...

uint32_t	GetNsDadUid () const
	Get the latest DAD probe packet UID. More...

bool	GetOnLink () const
	Get the on-link property. More...

Ipv6Prefix	GetPrefix () const
	Get the IPv6 prefix. More...

Ipv6InterfaceAddress::Scope_e	GetScope () const
	Get address scope. More...

Ipv6InterfaceAddress::State_e	GetState () const
	Get the address state. More...

bool	IsInSameSubnet (Ipv6Address b) const
	Checks if the address is in the same subnet. More...

void	SetAddress (Ipv6Address address)
	Set IPv6 address (and scope). More...

void	SetNsDadUid (uint32_t uid)
	Set the latest DAD probe packet UID. More...

void	SetOnLink (bool onLink)
	Get the on-link property. More...

void	SetScope (Ipv6InterfaceAddress::Scope_e scope)
	Set the scope. More...

void	SetState (Ipv6InterfaceAddress::State_e state)
	Set the state. More...

Private Attributes
Ipv6Address	m_address
	The IPv6 address. More...

uint32_t	m_nsDadUid
	Last DAD probe packet UID. More...

bool	m_onLink
	The address belongs to an on-link network. More...

Ipv6Prefix	m_prefix
	The IPv6 prefix. More...

Scope_e	m_scope
	Scope of the address. More...

State_e	m_state
	State of the address. More...

Friends
bool	operator!= (Ipv6InterfaceAddress const &a, Ipv6InterfaceAddress const &b)
	Not equal to operator. More...

bool	operator== (Ipv6InterfaceAddress const &a, Ipv6InterfaceAddress const &b)
	Equal to operator. More...

Detailed Description

IPv6 address associated with an interface.

Definition at line 37 of file ipv6-interface-address.h.

Member Enumeration Documentation

◆ Scope_e

enum ns3::Ipv6InterfaceAddress::Scope_e

Address scope.

Enumerator
HOST	Localhost (::1/128)
LINKLOCAL	Link-local address (fe80::/64)
GLOBAL	Global address (2000::/3)

Definition at line 59 of file ipv6-interface-address.h.

◆ State_e

enum ns3::Ipv6InterfaceAddress::State_e

State of an address associated with an interface.

Enumerator
TENTATIVE	Address is tentative, no packet can be sent unless DAD finished.
DEPRECATED	Address is deprecated and should not be used.
PREFERRED	Preferred address.
PERMANENT	Permanent address.
HOMEADDRESS	Address is a HomeAddress.
TENTATIVE_OPTIMISTIC	Address is tentative but we are optimistic so we can send packet even if DAD is not yet finished.
INVALID	Invalid state (after a DAD failed)

Definition at line 44 of file ipv6-interface-address.h.

Constructor & Destructor Documentation

◆ Ipv6InterfaceAddress() [1/5]

ns3::Ipv6InterfaceAddress::Ipv6InterfaceAddress ( )

Default constructor.

Definition at line 33 of file ipv6-interface-address.cc.

References NS_LOG_FUNCTION.

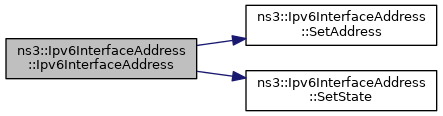

◆ Ipv6InterfaceAddress() [2/5]

ns3::Ipv6InterfaceAddress::Ipv6InterfaceAddress ( Ipv6Address address )

Constructor.

Prefix is 64 by default.

Parameters

address the IPv6 address to set

Definition at line 44 of file ipv6-interface-address.cc.

References first::address, m_nsDadUid, m_onLink, m_prefix, NS_LOG_FUNCTION, SetAddress(), SetState(), and TENTATIVE_OPTIMISTIC.

Here is the call graph for this function:

◆ Ipv6InterfaceAddress() [3/5]

ns3::Ipv6InterfaceAddress::Ipv6InterfaceAddress	(	Ipv6Address	address,
		Ipv6Prefix	prefix
	)

Constructor.

Parameters

address	IPv6 address to set
prefix	IPv6 prefix

Definition at line 54 of file ipv6-interface-address.cc.

References first::address, m_nsDadUid, m_onLink, m_prefix, NS_LOG_FUNCTION, SetAddress(), SetState(), and TENTATIVE_OPTIMISTIC.

Here is the call graph for this function:

◆ Ipv6InterfaceAddress() [4/5]

ns3::Ipv6InterfaceAddress::Ipv6InterfaceAddress	(	Ipv6Address	address,
		Ipv6Prefix	prefix,
		bool	onLink
	)

Constructor.

Parameters

address	IPv6 address to set
prefix	IPv6 prefix
onLink	on-link property

Definition at line 64 of file ipv6-interface-address.cc.

References first::address, m_nsDadUid, m_onLink, m_prefix, NS_LOG_FUNCTION, SetAddress(), SetState(), and TENTATIVE_OPTIMISTIC.

Here is the call graph for this function:

◆ Ipv6InterfaceAddress() [5/5]

ns3::Ipv6InterfaceAddress::Ipv6InterfaceAddress ( const Ipv6InterfaceAddress & o )

Copy constructor.

Parameters

o	object to copy

Definition at line 74 of file ipv6-interface-address.cc.

◆ ~Ipv6InterfaceAddress()

ns3::Ipv6InterfaceAddress::~Ipv6InterfaceAddress ( )

Destructor.

Definition at line 84 of file ipv6-interface-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

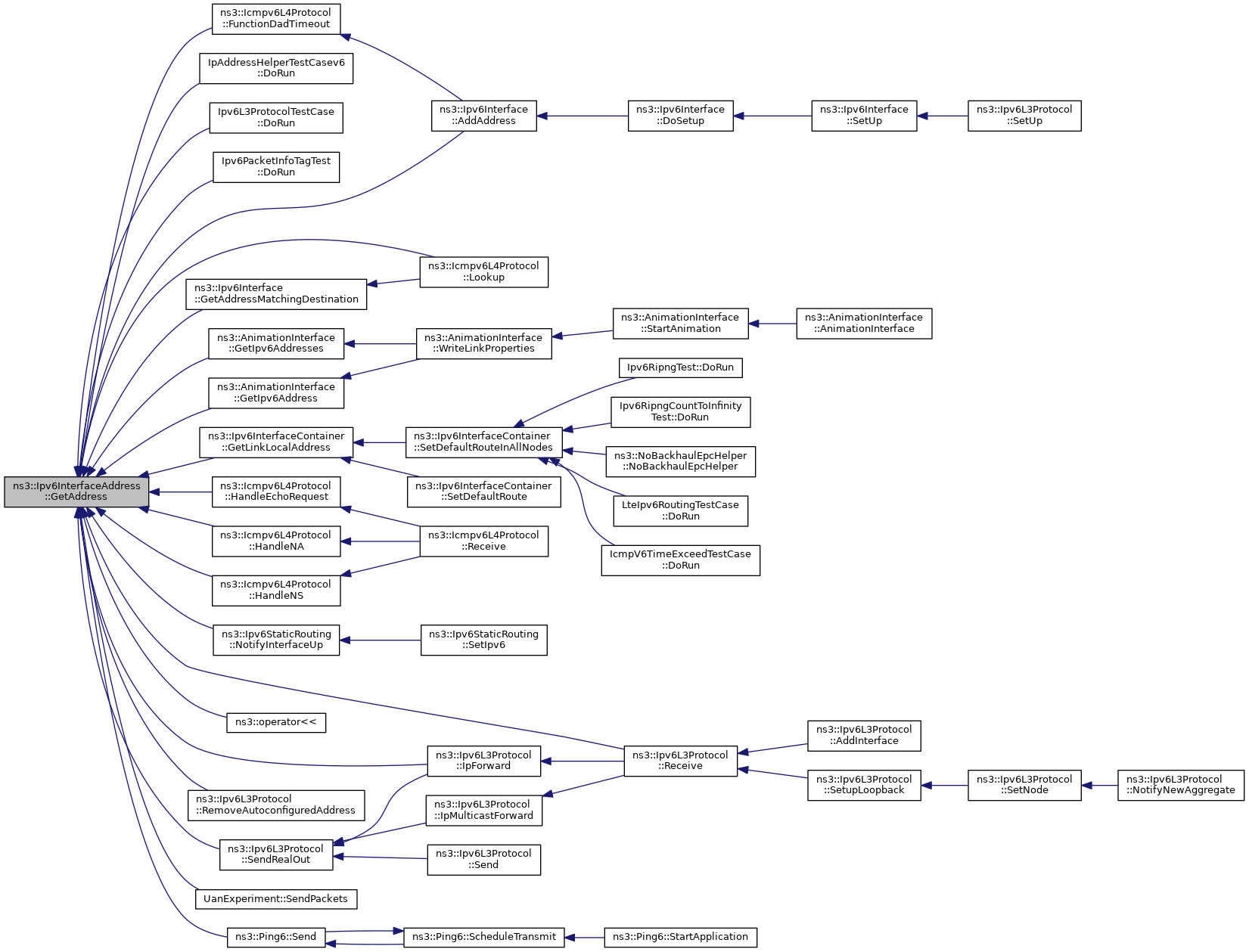

◆ GetAddress()

Ipv6Address ns3::Ipv6InterfaceAddress::GetAddress ( void ) const

Get the IPv6 address.

Returns: IPv6 address

Definition at line 89 of file ipv6-interface-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Interface::AddAddress(), IpAddressHelperTestCasev6::DoRun(), Ipv6L3ProtocolTestCase::DoRun(), Ipv6PacketInfoTagTest::DoRun(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6Interface::GetAddressMatchingDestination(), ns3::AnimationInterface::GetIpv6Address(), ns3::AnimationInterface::GetIpv6Addresses(), ns3::Ipv6InterfaceContainer::GetLinkLocalAddress(), ns3::Icmpv6L4Protocol::HandleEchoRequest(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Ipv6L3Protocol::IpForward(), ns3::Icmpv6L4Protocol::Lookup(), ns3::Ipv6StaticRouting::NotifyInterfaceUp(), ns3::operator<<(), ns3::Ipv6L3Protocol::Receive(), ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress(), ns3::Ping6::Send(), UanExperiment::SendPackets(), and ns3::Ipv6L3Protocol::SendRealOut().

Here is the caller graph for this function:

◆ GetNsDadUid()

uint32_t ns3::Ipv6InterfaceAddress::GetNsDadUid ( ) const

Get the latest DAD probe packet UID.

Returns: uid

Definition at line 198 of file ipv6-interface-address.cc.

References m_nsDadUid, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNS().

Here is the caller graph for this function:

◆ GetOnLink()

bool ns3::Ipv6InterfaceAddress::GetOnLink ( ) const

Get the on-link property.

Returns: on-link flag

Definition at line 210 of file ipv6-interface-address.cc.

References m_onLink, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6StaticRouting::NotifyInterfaceUp().

Here is the caller graph for this function:

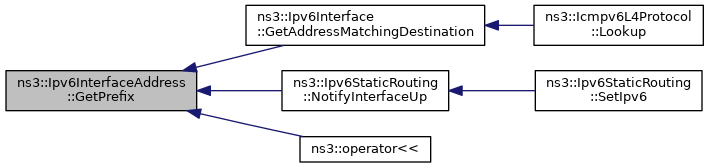

◆ GetPrefix()

Ipv6Prefix ns3::Ipv6InterfaceAddress::GetPrefix ( ) const

Get the IPv6 prefix.

Returns: IPv6 prefix

Definition at line 124 of file ipv6-interface-address.cc.

References m_prefix, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Interface::GetAddressMatchingDestination(), ns3::Ipv6StaticRouting::NotifyInterfaceUp(), and ns3::operator<<().

Here is the caller graph for this function:

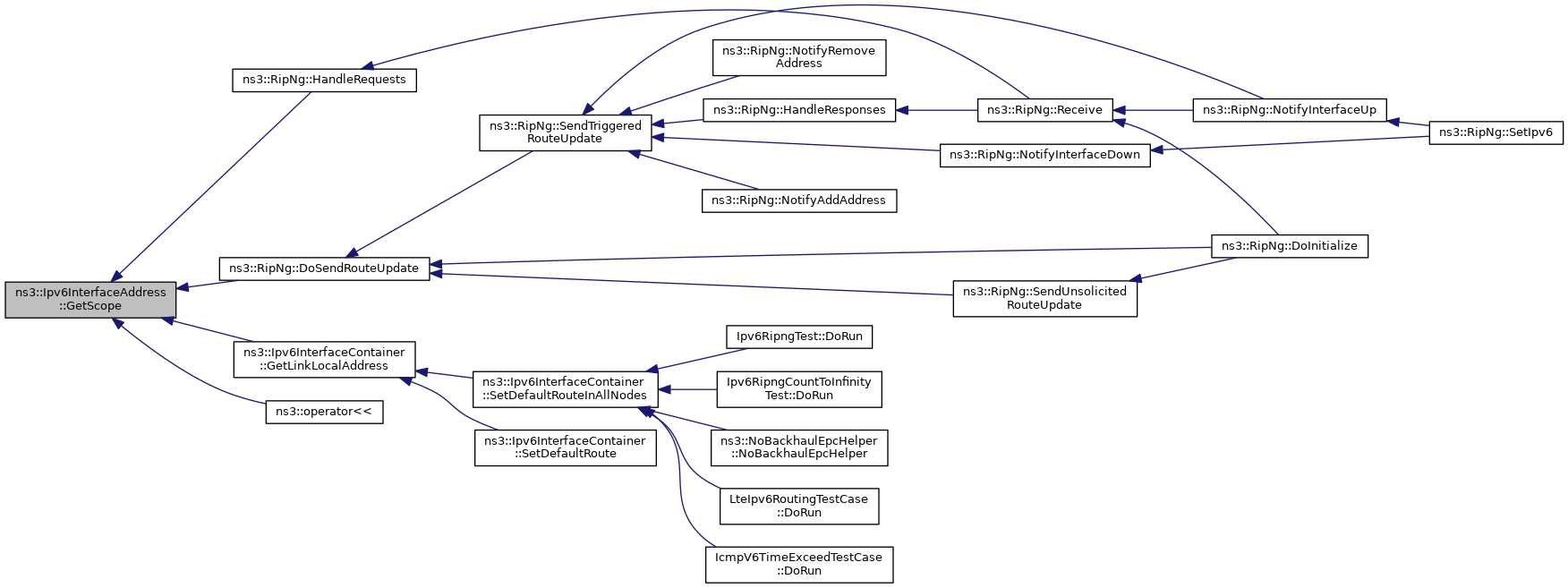

◆ GetScope()

Ipv6InterfaceAddress::Scope_e ns3::Ipv6InterfaceAddress::GetScope ( void ) const

Get address scope.

Returns: scope

Definition at line 148 of file ipv6-interface-address.cc.

References m_scope, and NS_LOG_FUNCTION.

Referenced by ns3::RipNg::DoSendRouteUpdate(), ns3::Ipv6InterfaceContainer::GetLinkLocalAddress(), ns3::RipNg::HandleRequests(), and ns3::operator<<().

Here is the caller graph for this function:

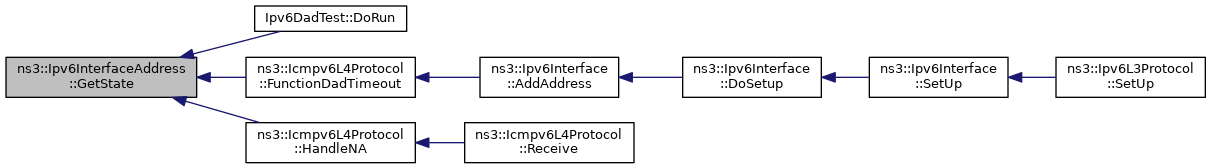

◆ GetState()

Ipv6InterfaceAddress::State_e ns3::Ipv6InterfaceAddress::GetState ( void ) const

Get the address state.

Returns: address state

Definition at line 136 of file ipv6-interface-address.cc.

References m_state, and NS_LOG_FUNCTION.

Referenced by Ipv6DadTest::DoRun(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), and ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

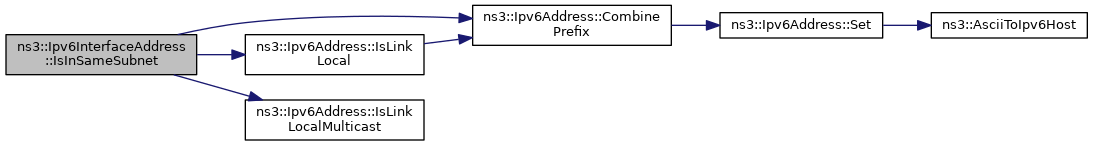

◆ IsInSameSubnet()

bool ns3::Ipv6InterfaceAddress::IsInSameSubnet ( Ipv6Address b ) const

Checks if the address is in the same subnet.

Parameters

b	the address to check

Returns: true if the address is in the same subnet.

Definition at line 154 of file ipv6-interface-address.cc.

References ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6Address::IsLinkLocal(), ns3::Ipv6Address::IsLinkLocalMulticast(), m_address, m_prefix, and NS_LOG_FUNCTION.

Referenced by ns3::Ping6::Send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAddress()

void ns3::Ipv6InterfaceAddress::SetAddress ( Ipv6Address address )

Set IPv6 address (and scope).

Parameters

address IPv6 address to set

Definition at line 95 of file ipv6-interface-address.cc.

References first::address, GLOBAL, HOST, LINKLOCAL, m_address, m_prefix, m_scope, and NS_LOG_FUNCTION.

Referenced by Ipv6InterfaceAddress().

Here is the caller graph for this function:

◆ SetNsDadUid()

void ns3::Ipv6InterfaceAddress::SetNsDadUid ( uint32_t uid )

Set the latest DAD probe packet UID.

Parameters

uid	packet uid

Definition at line 204 of file ipv6-interface-address.cc.

References m_nsDadUid, and NS_LOG_FUNCTION.

◆ SetOnLink()

void ns3::Ipv6InterfaceAddress::SetOnLink ( bool onLink )

Get the on-link property.

Parameters

onLink the on-link property

Definition at line 216 of file ipv6-interface-address.cc.

References m_onLink, and NS_LOG_FUNCTION.

◆ SetScope()

void ns3::Ipv6InterfaceAddress::SetScope ( Ipv6InterfaceAddress::Scope_e scope )

Set the scope.

Parameters

scope the scope of address

Definition at line 142 of file ipv6-interface-address.cc.

References m_scope, and NS_LOG_FUNCTION.

◆ SetState()

void ns3::Ipv6InterfaceAddress::SetState ( Ipv6InterfaceAddress::State_e state )

Set the state.

Parameters

state the state

Definition at line 130 of file ipv6-interface-address.cc.

References m_state, and NS_LOG_FUNCTION.

Referenced by Ipv6InterfaceAddress().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator!=

bool operator!=	(	Ipv6InterfaceAddress const &	a,
		Ipv6InterfaceAddress const &	b
	)

friend

Not equal to operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operands are not equal

Definition at line 255 of file ipv6-interface-address.h.

◆ operator==

bool operator==	(	Ipv6InterfaceAddress const &	a,
		Ipv6InterfaceAddress const &	b
	)

friend

Equal to operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operands are equal

Definition at line 249 of file ipv6-interface-address.h.

Member Data Documentation

◆ m_address

Ipv6Address ns3::Ipv6InterfaceAddress::m_address

private

The IPv6 address.

Definition at line 193 of file ipv6-interface-address.h.

Referenced by GetAddress(), IsInSameSubnet(), ns3::operator!=(), ns3::operator==(), and SetAddress().

◆ m_nsDadUid

uint32_t ns3::Ipv6InterfaceAddress::m_nsDadUid

private

Last DAD probe packet UID.

Definition at line 236 of file ipv6-interface-address.h.

Referenced by GetNsDadUid(), Ipv6InterfaceAddress(), and SetNsDadUid().

◆ m_onLink

bool ns3::Ipv6InterfaceAddress::m_onLink

private

The address belongs to an on-link network.

Definition at line 213 of file ipv6-interface-address.h.

Referenced by GetOnLink(), Ipv6InterfaceAddress(), and SetOnLink().

◆ m_prefix

Ipv6Prefix ns3::Ipv6InterfaceAddress::m_prefix

private

The IPv6 prefix.

Definition at line 198 of file ipv6-interface-address.h.

Referenced by GetPrefix(), Ipv6InterfaceAddress(), IsInSameSubnet(), ns3::operator!=(), ns3::operator==(), and SetAddress().

◆ m_scope

Scope_e ns3::Ipv6InterfaceAddress::m_scope

private

Scope of the address.

Definition at line 208 of file ipv6-interface-address.h.

Referenced by GetScope(), ns3::operator!=(), ns3::operator==(), SetAddress(), and SetScope().

◆ m_state

State_e ns3::Ipv6InterfaceAddress::m_state

private

State of the address.

Definition at line 203 of file ipv6-interface-address.h.

Referenced by GetState(), ns3::operator!=(), ns3::operator==(), and SetState().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-interface-address.h
src/internet/model/ipv6-interface-address.cc

Public Types

Public Member Functions

Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ Scope_e

◆ State_e

Constructor & Destructor Documentation

◆ Ipv6InterfaceAddress() [1/5]

◆ Ipv6InterfaceAddress() [2/5]

◆ Ipv6InterfaceAddress() [3/5]

◆ Ipv6InterfaceAddress() [4/5]

◆ Ipv6InterfaceAddress() [5/5]

◆ ~Ipv6InterfaceAddress()

Member Function Documentation

◆ GetAddress()

◆ GetNsDadUid()

◆ GetOnLink()

◆ GetPrefix()

◆ GetScope()

◆ GetState()

◆ IsInSameSubnet()

◆ SetAddress()

◆ SetNsDadUid()

◆ SetOnLink()

◆ SetScope()

◆ SetState()

Friends And Related Function Documentation

◆ operator!=

◆ operator==

Member Data Documentation

◆ m_address

◆ m_nsDadUid

◆ m_onLink

◆ m_prefix

◆ m_scope

◆ m_state
