A single log component configuration. More...

#include "log.h"

Collaboration diagram for ns3::LogComponent:

Public Types
typedef std::map< std::string, LogComponent * >	ComponentList
	LogComponent name map. More...

Public Member Functions
	LogComponent (const std::string &name, const std::string &file, const enum LogLevel mask=LOG_NONE)
	Constructor. More...

void	Disable (const enum LogLevel level)
	Disable logging at `level` for this LogComponent. More...

void	Enable (const enum LogLevel level)
	Enable this LogComponent at `level`. More...

std::string	File (void) const
	Get the compilation unit defining this LogComponent. More...

bool	IsEnabled (const enum LogLevel level) const
	Check if this LogComponent is enabled for `level`. More...

bool	IsNoneEnabled (void) const
	Check if all levels are disabled. More...

char const *	Name (void) const
	Get the name of this LogComponent. More...

void	SetMask (const enum LogLevel level)
	Prevent the enabling of a specific LogLevel. More...

Static Public Member Functions
static ComponentList *	GetComponentList (void)
	Get the list of LogComponnents. More...

static std::string	GetLevelLabel (const enum LogLevel level)
	Get the string label for the given LogLevel. More...

Private Member Functions
void	EnvVarCheck (void)
	Parse the `NS_LOG` environment variable for options relating to this LogComponent. More...

Private Attributes
std::string	m_file
	File defining this LogComponent. More...

int32_t	m_levels
	Enabled LogLevels. More...

int32_t	m_mask
	Blocked LogLevels. More...

std::string	m_name
	LogComponent name. More...

Detailed Description

A single log component configuration.

Definition at line 336 of file log.h.

Member Typedef Documentation

◆ ComponentList

typedef std::map<std::string, LogComponent *> ns3::LogComponent::ComponentList

LogComponent name map.

Internal:: This should really be considered an internal API. It is exposed here to allow print-introspected-doxygen.cc to generate a list of all LogComponents.

Definition at line 409 of file log.h.

Constructor & Destructor Documentation

◆ LogComponent()

ns3::LogComponent::LogComponent	(	const std::string &	name,
		const std::string &	file,
		const enum LogLevel	mask = `LOG_NONE`
	)

Constructor.

Parameters

[in]	name	The user-visible name for this component.
[in]	file	The source code file which defined this LogComponent.
[in]	mask	LogLevels blocked for this LogComponent. Blocking a log level helps prevent recursion by logging in functions which help implement the logging facility.

Definition at line 107 of file log.cc.

References EnvVarCheck(), GetComponentList(), and NS_FATAL_ERROR.

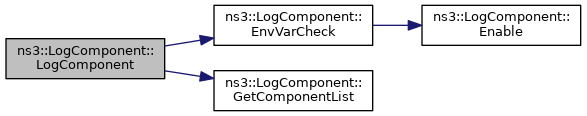

Here is the call graph for this function:

Member Function Documentation

◆ Disable()

void ns3::LogComponent::Disable ( const enum LogLevel level )

Disable logging at level for this LogComponent.

Parameters

[in] level The LogLevel to disable.

Definition at line 307 of file log.cc.

References m_levels.

◆ Enable()

void ns3::LogComponent::Enable ( const enum LogLevel level )

Enable this LogComponent at level.

Parameters

[in] level The LogLevel to enable.

Definition at line 301 of file log.cc.

References m_levels, and m_mask.

Referenced by EnvVarCheck().

Here is the caller graph for this function:

◆ EnvVarCheck()

void ns3::LogComponent::EnvVarCheck ( void )

private

Parse the NS_LOG environment variable for options relating to this LogComponent.

Definition at line 145 of file log.cc.

References Enable(), ns3::LOG_DEBUG, ns3::LOG_ERROR, ns3::LOG_FUNCTION, ns3::LOG_INFO, ns3::LOG_LEVEL_ALL, ns3::LOG_LEVEL_DEBUG, ns3::LOG_LEVEL_ERROR, ns3::LOG_LEVEL_FUNCTION, ns3::LOG_LEVEL_INFO, ns3::LOG_LEVEL_LOGIC, ns3::LOG_LEVEL_WARN, ns3::LOG_LOGIC, ns3::LOG_PREFIX_ALL, ns3::LOG_PREFIX_FUNC, ns3::LOG_PREFIX_LEVEL, ns3::LOG_PREFIX_NODE, ns3::LOG_PREFIX_TIME, ns3::LOG_WARN, and m_name.

Referenced by LogComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ File()

std::string ns3::LogComponent::File ( void ) const

Get the compilation unit defining this LogComponent.

Returns: The file name.

Definition at line 319 of file log.cc.

References m_file.

◆ GetComponentList()

LogComponent::ComponentList * ns3::LogComponent::GetComponentList ( void )

static

Get the list of LogComponnents.

Internal:: This should really be considered an internal API. It is exposed here to allow print-introspected-doxygen.cc to generate a list of all LogComponents.

Returns: The list of LogComponents.

Definition at line 75 of file log.cc.

Referenced by ns3::ComponentExists(), ns3::GetLogComponent(), LogComponent(), ns3::LogComponentDisable(), ns3::LogComponentDisableAll(), ns3::LogComponentEnable(), ns3::LogComponentEnableAll(), ns3::LogComponentPrintList(), and PrintAllLogComponents().

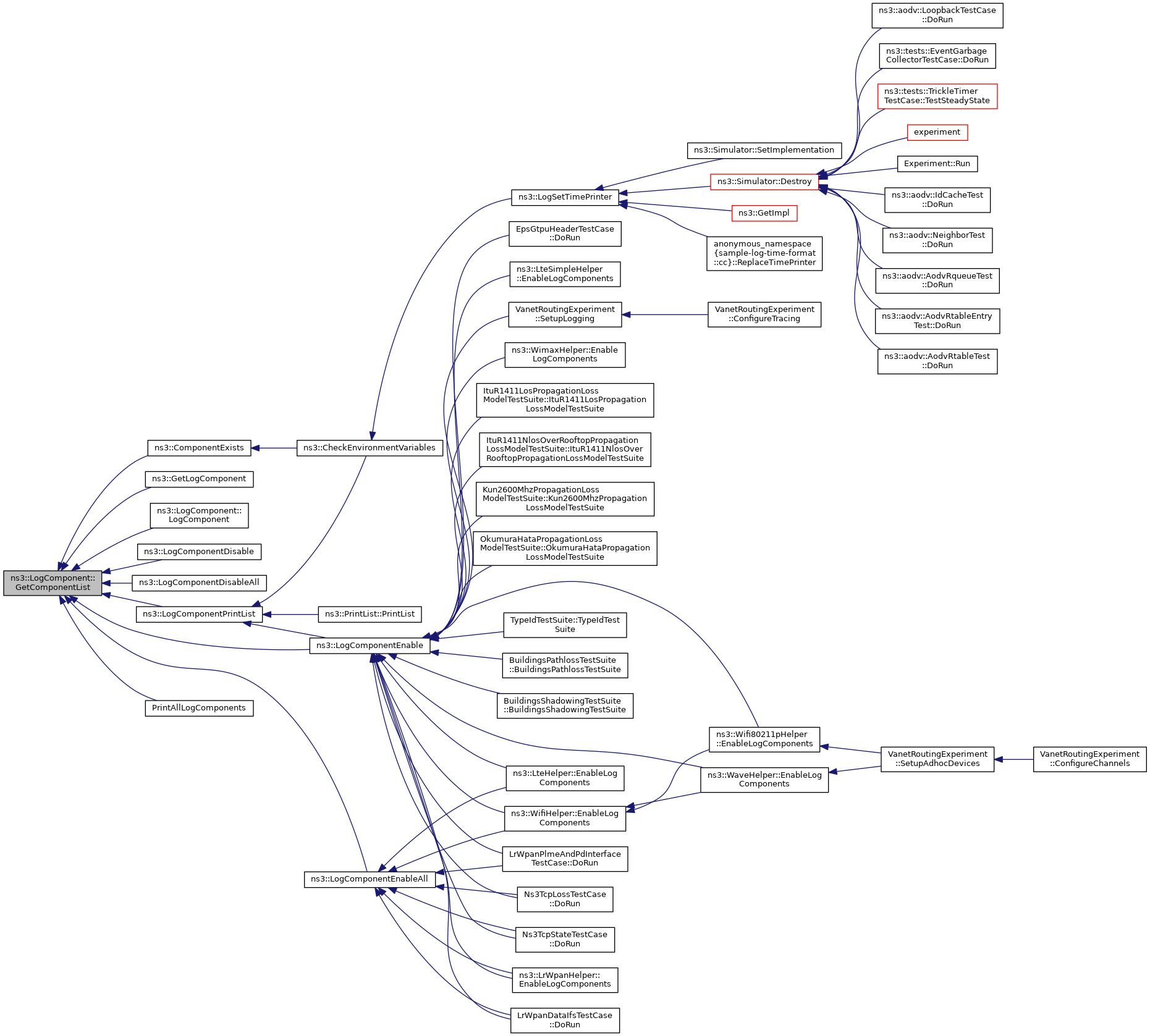

Here is the caller graph for this function:

◆ GetLevelLabel()

std::string ns3::LogComponent::GetLevelLabel ( const enum LogLevel level )

static

Get the string label for the given LogLevel.

Parameters

[in] level The LogLevel to get the label for.

Returns: The string label for level.

Definition at line 326 of file log.cc.

References ns3::LOG_DEBUG, ns3::LOG_ERROR, ns3::LOG_FUNCTION, ns3::LOG_INFO, ns3::LOG_LOGIC, and ns3::LOG_WARN.

◆ IsEnabled()

bool ns3::LogComponent::IsEnabled ( const enum LogLevel level ) const

Check if this LogComponent is enabled for level.

Parameters

[in] level The level to check for.

Returns: true if we are enabled at level.

Definition at line 282 of file log.cc.

References m_levels.

◆ IsNoneEnabled()

bool ns3::LogComponent::IsNoneEnabled ( void ) const

Check if all levels are disabled.

Returns: true if all levels are disabled.

Definition at line 289 of file log.cc.

References m_levels.

◆ Name()

char const * ns3::LogComponent::Name ( void ) const

Get the name of this LogComponent.

Returns: The name of this LogComponent.

Definition at line 313 of file log.cc.

References m_name.

◆ SetMask()

void ns3::LogComponent::SetMask ( const enum LogLevel level )

Prevent the enabling of a specific LogLevel.

Parameters

[in] level The LogLevel to block.

Definition at line 295 of file log.cc.

References m_mask.

Member Data Documentation

◆ m_file

std::string ns3::LogComponent::m_file

private

File defining this LogComponent.

Definition at line 433 of file log.h.

Referenced by File().

◆ m_levels

int32_t ns3::LogComponent::m_levels

private

Enabled LogLevels.

Definition at line 430 of file log.h.

Referenced by Disable(), Enable(), IsEnabled(), and IsNoneEnabled().

◆ m_mask

int32_t ns3::LogComponent::m_mask

private

Blocked LogLevels.

Definition at line 431 of file log.h.

Referenced by Enable(), and SetMask().

◆ m_name

std::string ns3::LogComponent::m_name

private

LogComponent name.

Definition at line 432 of file log.h.

Referenced by EnvVarCheck(), and Name().

The documentation for this class was generated from the following files:

src/core/model/log.h
src/core/model/log.cc
