ns3::LteRlcSapProvider Class Reference

Service Access Point (SAP) offered by the UM-RLC and AM-RLC entities to the PDCP entity See 3GPP 36.322 Radio Link Control (RLC) protocol specification. More...

#include "lte-rlc-sap.h"

Inheritance diagram for ns3::LteRlcSapProvider:

Classes
struct	TransmitPdcpPduParameters
	Parameters for LteRlcSapProvider::TransmitPdcpPdu. More...

Public Member Functions
virtual	~LteRlcSapProvider ()
virtual void	TransmitPdcpPdu (TransmitPdcpPduParameters params)=0
	Send a PDCP PDU to the RLC for transmission This method is to be called when upper PDCP entity has a PDCP PDU ready to send. More...

Detailed Description

Service Access Point (SAP) offered by the UM-RLC and AM-RLC entities to the PDCP entity See 3GPP 36.322 Radio Link Control (RLC) protocol specification.

This is the RLC SAP Provider (i.e. the part of the SAP that contains the RLC methods called by the PDCP)

Definition at line 35 of file lte-rlc-sap.h.

Constructor & Destructor Documentation

~LteRlcSapProvider()

ns3::LteRlcSapProvider::~LteRlcSapProvider ( )

virtual

Definition at line 25 of file lte-rlc-sap.cc.

Member Function Documentation

TransmitPdcpPdu()

virtual void ns3::LteRlcSapProvider::TransmitPdcpPdu ( TransmitPdcpPduParameters  params )

pure virtual

Send a PDCP PDU to the RLC for transmission This method is to be called when upper PDCP entity has a PDCP PDU ready to send.

Parameters

params

the TransmitPdcpPduParameters

Implemented in ns3::LteRlcSpecificLteRlcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentRequest(), ns3::LteUeRrcProtocolReal::DoSendRrcConnectionRequest(), ns3::LtePdcp::DoTransmitPdcpSdu(), and ns3::LteTestPdcp::SendData().

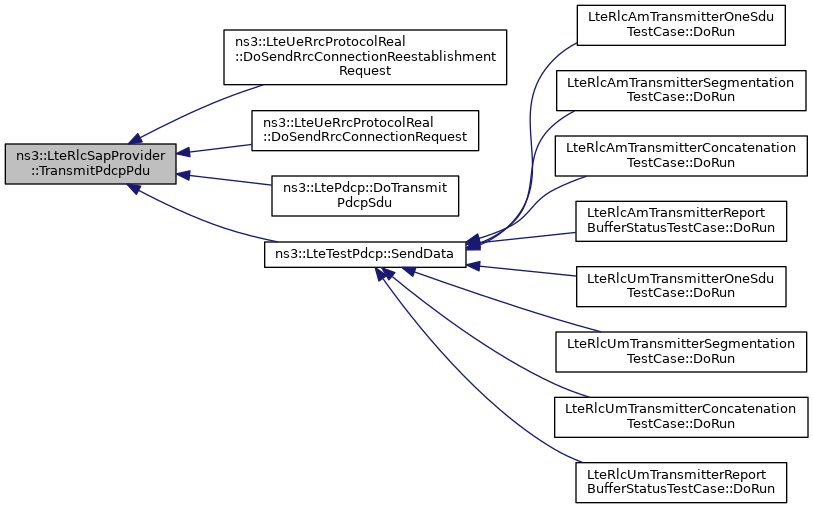

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rlc-sap.h
• src/lte/model/lte-rlc-sap.cc
