ns3::MemberLteUeCphySapProvider< C > Class Template Reference

Template for the implementation of the LteUeCphySapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-ue-cphy-sap.h"

+ Inheritance diagram for ns3::MemberLteUeCphySapProvider< C >:

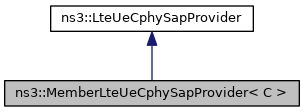

+ Collaboration diagram for ns3::MemberLteUeCphySapProvider< C >:

Public Member Functions

 MemberLteUeCphySapProvider (C *owner)
 Constructor. More...

virtual void ConfigureReferenceSignalPower (int8_t referenceSignalPower)
 Configure referenceSignalPower. More...

virtual void ConfigureUplink (uint32_t ulEarfcn, uint16_t ulBandwidth)
 Configure uplink (normally done after reception of SIB2) More...

virtual void Reset ()
 reset the PHY More...

virtual void ResetPhyAfterRlf ()
 Reset the PHY after radio link failure function It resets the physical layer parameters of the UE after RLF. More...

virtual void ResetRlfParams ()
 Reset radio link failure parameters. More...

virtual void SetDlBandwidth (uint16_t dlBandwidth)

virtual void SetImsi (uint64_t imsi)
 A method call by UE RRC to communicate the IMSI to the UE PHY. More...

virtual void SetPa (double pa)
 Set P_A value for UE power control. More...

virtual void SetRnti (uint16_t rnti)
 Set Rnti function. More...

virtual void SetRsrpFilterCoefficient (uint8_t rsrpFilterCoefficient)
 Set RSRP filter coefficient. More...

virtual void SetSrsConfigurationIndex (uint16_t srcCi)
 Set SRS configuration index. More...

virtual void SetTransmissionMode (uint8_t txMode)
 Set transmission mode. More...

virtual void StartCellSearch (uint32_t dlEarfcn)
 Tell the PHY entity to listen to PSS from surrounding cells and measure the RSRP. More...

virtual void StartInSnycDetection ()
 Start in-sync detection function When T310 timer is started, it indicates that physical layer problems are detected at the UE and the recovery process is started by checking if the radio frames are in-sync for N311 consecutive times. More...

virtual void SynchronizeWithEnb (uint16_t cellId)
 Tell the PHY entity to synchronize with a given eNodeB over the currently active EARFCN for communication purposes. More...

virtual void SynchronizeWithEnb (uint16_t cellId, uint32_t dlEarfcn)
 Tell the PHY entity to align to the given EARFCN and synchronize with a given eNodeB for communication purposes. More...

- Public Member Functions inherited from ns3::LteUeCphySapProvider
virtual ~LteUeCphySapProvider ()
 destructor More...


Private Member Functions

 MemberLteUeCphySapProvider ()


Private Attributes

C * m_owner
 the owner class More...


Detailed Description

template<class C>
class ns3::MemberLteUeCphySapProvider< C >

Template for the implementation of the LteUeCphySapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 304 of file lte-ue-cphy-sap.h.

Constructor & Destructor Documentation

◆ MemberLteUeCphySapProvider() [1/2]

template<class C >
ns3::MemberLteUeCphySapProvider< C >::MemberLteUeCphySapProvider ( C *  owner)

Constructor.

Parameters
ownerthe owner class

Definition at line 338 of file lte-ue-cphy-sap.h.

◆ MemberLteUeCphySapProvider() [2/2]

template<class C >
ns3::MemberLteUeCphySapProvider< C >::MemberLteUeCphySapProvider ( )
private

Definition at line 344 of file lte-ue-cphy-sap.h.

Member Function Documentation

◆ ConfigureReferenceSignalPower()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::ConfigureReferenceSignalPower ( int8_t  referenceSignalPower)
virtual

Configure referenceSignalPower.

Parameters
referenceSignalPowerreceived from eNB in SIB2

Implements ns3::LteUeCphySapProvider.

Definition at line 392 of file lte-ue-cphy-sap.h.

◆ ConfigureUplink()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::ConfigureUplink ( uint32_t  ulEarfcn,
uint16_t  ulBandwidth
)
virtual

Configure uplink (normally done after reception of SIB2)

Parameters
ulEarfcnthe uplink carrier frequency (EARFCN)
ulBandwidththe UL bandwidth in number of PRBs

Implements ns3::LteUeCphySapProvider.

Definition at line 385 of file lte-ue-cphy-sap.h.

◆ Reset()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::Reset ( )
virtual

reset the PHY

Implements ns3::LteUeCphySapProvider.

Definition at line 350 of file lte-ue-cphy-sap.h.

◆ ResetPhyAfterRlf()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::ResetPhyAfterRlf ( )
virtual

Reset the PHY after radio link failure function It resets the physical layer parameters of the UE after RLF.

Implements ns3::LteUeCphySapProvider.

Definition at line 434 of file lte-ue-cphy-sap.h.

◆ ResetRlfParams()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::ResetRlfParams ( )
virtual

Reset radio link failure parameters.

Upon receiving N311 in-sync indications from the UE PHY the UE RRC instructs the UE PHY to reset the RLF parameters so, it can start RLF detection again.

Implements ns3::LteUeCphySapProvider.

Definition at line 440 of file lte-ue-cphy-sap.h.

◆ SetDlBandwidth()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetDlBandwidth ( uint16_t  dlBandwidth)
virtual
Parameters
dlBandwidththe DL bandwidth in number of PRBs

Implements ns3::LteUeCphySapProvider.

Definition at line 378 of file lte-ue-cphy-sap.h.

◆ SetImsi()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetImsi ( uint64_t  imsi)
virtual

A method call by UE RRC to communicate the IMSI to the UE PHY.

Parameters
imsithe IMSI of the UE

Implements ns3::LteUeCphySapProvider.

Definition at line 452 of file lte-ue-cphy-sap.h.

◆ SetPa()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetPa ( double  pa)
virtual

Set P_A value for UE power control.

Parameters
pathe P_A value

Implements ns3::LteUeCphySapProvider.

Definition at line 420 of file lte-ue-cphy-sap.h.

◆ SetRnti()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetRnti ( uint16_t  rnti)
virtual

Set Rnti function.

Parameters
rntithe cell-specific UE identifier

Implements ns3::LteUeCphySapProvider.

Definition at line 399 of file lte-ue-cphy-sap.h.

◆ SetRsrpFilterCoefficient()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetRsrpFilterCoefficient ( uint8_t  rsrpFilterCoefficient)
virtual

Set RSRP filter coefficient.

Determines the strength of smoothing effect induced by layer 3 filtering of RSRP used for uplink power control in all attached UE. If equals to 0, no layer 3 filtering is applicable.

Parameters
rsrpFilterCoefficientvalue.

Implements ns3::LteUeCphySapProvider.

Definition at line 427 of file lte-ue-cphy-sap.h.

◆ SetSrsConfigurationIndex()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetSrsConfigurationIndex ( uint16_t  srcCi)
virtual

Set SRS configuration index.

Parameters
srcCithe SRS configuration index

Implements ns3::LteUeCphySapProvider.

Definition at line 413 of file lte-ue-cphy-sap.h.

◆ SetTransmissionMode()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SetTransmissionMode ( uint8_t  txMode)
virtual

Set transmission mode.

Parameters
txModethe transmissionMode of the user

Implements ns3::LteUeCphySapProvider.

Definition at line 406 of file lte-ue-cphy-sap.h.

◆ StartCellSearch()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::StartCellSearch ( uint32_t  dlEarfcn)
virtual

Tell the PHY entity to listen to PSS from surrounding cells and measure the RSRP.

Parameters
dlEarfcnthe downlink carrier frequency (EARFCN) to listen to

This function will instruct this PHY instance to listen to the DL channel over the bandwidth of 6 RB at the frequency associated with the given EARFCN.

After this, it will start receiving Primary Synchronization Signal (PSS) and periodically returning measurement reports to RRC via LteUeCphySapUser::ReportUeMeasurements function.

Implements ns3::LteUeCphySapProvider.

Definition at line 357 of file lte-ue-cphy-sap.h.

◆ StartInSnycDetection()

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::StartInSnycDetection ( )
virtual

Start in-sync detection function When T310 timer is started, it indicates that physical layer problems are detected at the UE and the recovery process is started by checking if the radio frames are in-sync for N311 consecutive times.

Implements ns3::LteUeCphySapProvider.

Definition at line 446 of file lte-ue-cphy-sap.h.

◆ SynchronizeWithEnb() [1/2]

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SynchronizeWithEnb ( uint16_t  cellId)
virtual

Tell the PHY entity to synchronize with a given eNodeB over the currently active EARFCN for communication purposes.

Parameters
cellIdthe ID of the eNodeB to synchronize with

By synchronizing, the PHY will start receiving various information transmitted by the eNodeB. For instance, when receiving system information, the message will be relayed to RRC via LteUeCphySapUser::RecvMasterInformationBlock and LteUeCphySapUser::RecvSystemInformationBlockType1 functions.

Initially, the PHY will be configured to listen to 6 RBs of BCH. LteUeCphySapProvider::SetDlBandwidth can be called afterwards to increase the bandwidth.

Implements ns3::LteUeCphySapProvider.

Definition at line 364 of file lte-ue-cphy-sap.h.

◆ SynchronizeWithEnb() [2/2]

template<class C >
void ns3::MemberLteUeCphySapProvider< C >::SynchronizeWithEnb ( uint16_t  cellId,
uint32_t  dlEarfcn
)
virtual

Tell the PHY entity to align to the given EARFCN and synchronize with a given eNodeB for communication purposes.

Parameters
cellIdthe ID of the eNodeB to synchronize with
dlEarfcnthe downlink carrier frequency (EARFCN)

By synchronizing, the PHY will start receiving various information transmitted by the eNodeB. For instance, when receiving system information, the message will be relayed to RRC via LteUeCphySapUser::RecvMasterInformationBlock and LteUeCphySapUser::RecvSystemInformationBlockType1 functions.

Initially, the PHY will be configured to listen to 6 RBs of BCH. LteUeCphySapProvider::SetDlBandwidth can be called afterwards to increase the bandwidth.

Implements ns3::LteUeCphySapProvider.

Definition at line 371 of file lte-ue-cphy-sap.h.

Member Data Documentation

◆ m_owner

template<class C>
C* ns3::MemberLteUeCphySapProvider< C >::m_owner
private

the owner class

Definition at line 334 of file lte-ue-cphy-sap.h.
