Hold objects of type std::pair<A, B>. More...

#include "pair.h"

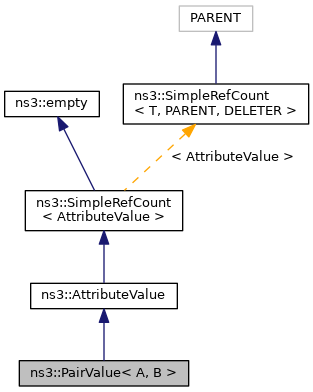

Inheritance diagram for ns3::PairValue< A, B >:

Collaboration diagram for ns3::PairValue< A, B >:

Public Types
typedef std::result_of< decltype(&A::Get)(A)>::type	first_type
	Type of abscissa (first entry of pair). More...

typedef std::pair< first_type, second_type >	result_type
	Type returned by Get or passed in Set. More...

typedef std::result_of< decltype(&B::Get)(B)>::type	second_type
	Type of ordinal (second entry of pair). More...

typedef std::pair< Ptr< A >, Ptr< B > >	value_type
	Type of value stored in the PairValue. More...

Public Member Functions
	PairValue ()

	PairValue (const result_type &value)
	Construct this PairValue from a std::pair. More...

Ptr< AttributeValue >	Copy (void) const

bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)

result_type	Get (void) const
	Get the stored value as a std::pair. More...

template<typename T >
bool	GetAccessor (T &value) const
	Access the Pair value as type `T`. More...

std::string	SerializeToString (Ptr< const AttributeChecker > checker) const

void	Set (const result_type &value)
	Set the stored value. More...

Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()

virtual	~AttributeValue ()

Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
value_type	m_value
	The stored Pair instance. More...

Detailed Description

template<class A, class B>
class ns3::PairValue< A, B >

Hold objects of type std::pair<A, B>.

AttributeValue implementation for Pair.

See also: AttributeValue

Definition at line 47 of file pair.h.

Member Typedef Documentation

◆ first_type

template<class A, class B>

typedef std::result_of<decltype(&A::Get)(A)>::type ns3::PairValue< A, B >::first_type

Type of abscissa (first entry of pair).

Definition at line 53 of file pair.h.

◆ result_type

template<class A, class B>

typedef std::pair<first_type, second_type> ns3::PairValue< A, B >::result_type

Type returned by Get or passed in Set.

Definition at line 57 of file pair.h.

◆ second_type

template<class A, class B>

typedef std::result_of<decltype(&B::Get)(B)>::type ns3::PairValue< A, B >::second_type

Type of ordinal (second entry of pair).

Definition at line 55 of file pair.h.

◆ value_type

template<class A, class B>

typedef std::pair<Ptr<A>, Ptr<B> > ns3::PairValue< A, B >::value_type

Type of value stored in the PairValue.

Definition at line 51 of file pair.h.

Constructor & Destructor Documentation

◆ PairValue() [1/2]

template<class A , class B >

ns3::PairValue< A, B >::PairValue ( )

Definition at line 254 of file pair.h.

◆ PairValue() [2/2]

template<class A, class B>

ns3::PairValue< A, B >::PairValue ( const result_type & value )

Construct this PairValue from a std::pair.

Parameters

[in] value Value with which to construct.

Member Function Documentation

◆ Copy()

template<class A , class B >

Ptr< AttributeValue > ns3::PairValue< A, B >::Copy ( void ) const

virtual

Returns: a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 266 of file pair.h.

◆ DeserializeFromString()

template<class A , class B >

bool ns3::PairValue< A, B >::DeserializeFromString	(	std::string	value,
		Ptr< const AttributeChecker >	checker
	)

virtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns: true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 278 of file pair.h.

◆ Get()

template<class A , class B >

std::pair< A, B > ns3::PairValue< A, B >::Get ( void ) const

Get the stored value as a std::pair.

This differs from the actual value stored in the object which is a pair of Ptr<AV> where AV is a class derived from AttributeValue.

Returns: stored value as std::pair<A, B>.; The Pair value.

Definition at line 316 of file pair.h.

Referenced by PairValueTestCase::DoRun().

Here is the caller graph for this function:

◆ GetAccessor()

template<class A , class B >

template<typename T >

bool ns3::PairValue< A, B >::GetAccessor ( T & value ) const

Access the Pair value as type T.

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out] value The Pair value, as type T.

Returns: true.

Definition at line 331 of file pair.h.

◆ SerializeToString()

template<class A , class B >

std::string ns3::PairValue< A, B >::SerializeToString ( Ptr< const AttributeChecker > checker ) const

virtual

Parameters

[in] checker The checker associated to the attribute

Returns: A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 304 of file pair.h.

◆ Set()

template<class A, class B>

void ns3::PairValue< A, B >::Set ( const result_type & value )

Set the stored value.

Set the value.

Parameters

[in]	value	std::pair<A, B> to be stored.
[in]	value	The value to adopt.

Definition at line 323 of file pair.h.

Referenced by PairValueTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_value

template<class A, class B>

std::pair< A, B > ns3::PairValue< A, B >::m_value

private

The stored Pair instance.

Definition at line 91 of file pair.h.

The documentation for this class was generated from the following files:

src/core/model/pair.h
doc/introspected-doxygen.h
