Base class providing common user-level pcap operations for helpers representing IPv6 protocols . More...

#include "internet-trace-helper.h"

Inheritance diagram for ns3::PcapHelperForIpv6:

Public Member Functions
	PcapHelperForIpv6 ()
	Construct a PcapHelperForIpv6. More...

virtual	~PcapHelperForIpv6 ()
	Destroy a PcapHelperForIpv6. More...

void	EnablePcapIpv6 (std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename=false)
	Enable pcap output the indicated Ipv6 and interface pair. More...

void	EnablePcapIpv6 (std::string prefix, std::string ipv6Name, uint32_t interface, bool explicitFilename=false)
	Enable pcap output the indicated Ipv6 and interface pair using a Ptr<Ipv6> previously named using the ns-3 object name service. More...

void	EnablePcapIpv6 (std::string prefix, Ipv6InterfaceContainer c)
	Enable pcap output on each Ipv6 and interface pair in the container. More...

void	EnablePcapIpv6 (std::string prefix, NodeContainer n)
	Enable pcap output on all Ipv6 and interface pairs existing in the nodes provided in the container. More...

void	EnablePcapIpv6 (std::string prefix, uint32_t nodeid, uint32_t interface, bool explicitFilename)
	Enable pcap output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnablePcapIpv6All (std::string prefix)
	Enable pcap output on all Ipv6 and interface pairs existing in the set of all nodes created in the simulation. More...

virtual void	EnablePcapIpv6Internal (std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename)=0
	Enable pcap output the indicated Ipv6 and interface pair. More...

Detailed Description

Base class providing common user-level pcap operations for helpers representing IPv6 protocols .

Definition at line 397 of file internet-trace-helper.h.

Constructor & Destructor Documentation

◆ PcapHelperForIpv6()

ns3::PcapHelperForIpv6::PcapHelperForIpv6 ( )

inline

Construct a PcapHelperForIpv6.

Definition at line 403 of file internet-trace-helper.h.

◆ ~PcapHelperForIpv6()

virtual ns3::PcapHelperForIpv6::~PcapHelperForIpv6 ( )

inlinevirtual

Destroy a PcapHelperForIpv6.

Definition at line 408 of file internet-trace-helper.h.

Member Function Documentation

◆ EnablePcapIpv6() [1/5]

void ns3::PcapHelperForIpv6::EnablePcapIpv6	(	std::string	prefix,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface,
		bool	explicitFilename = `false`
	)

Enable pcap output the indicated Ipv6 and interface pair.

Parameters

prefix	Filename prefix to use for pcap files.
ipv6	Ptr<Ipv6> on which you want to enable tracing.
interface	Interface on ipv6 on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 302 of file internet-trace-helper.cc.

References EnablePcapIpv6Internal().

Referenced by EnablePcapIpv6(), and EnablePcapIpv6All().

Here is the call graph for this function:

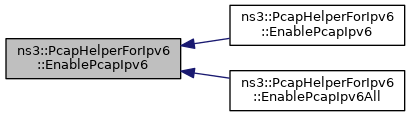

Here is the caller graph for this function:

◆ EnablePcapIpv6() [2/5]

void ns3::PcapHelperForIpv6::EnablePcapIpv6	(	std::string	prefix,
		std::string	ipv6Name,
		uint32_t	interface,
		bool	explicitFilename = `false`
	)

Enable pcap output the indicated Ipv6 and interface pair using a Ptr<Ipv6> previously named using the ns-3 object name service.

Parameters

prefix	filename prefix to use for pcap files.
ipv6Name	Name of the Ptr<Ipv6> on which you want to enable tracing.
interface	Interface on ipv6 on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 308 of file internet-trace-helper.cc.

References EnablePcapIpv6().

Here is the call graph for this function:

◆ EnablePcapIpv6() [3/5]

void ns3::PcapHelperForIpv6::EnablePcapIpv6	(	std::string	prefix,
		Ipv6InterfaceContainer	c
	)

Enable pcap output on each Ipv6 and interface pair in the container.

Parameters

prefix	Filename prefix to use for pcap files.
c	Ipv6InterfaceContainer of Ipv6 and interface pairs

Definition at line 315 of file internet-trace-helper.cc.

References ns3::Ipv6InterfaceContainer::Begin(), EnablePcapIpv6(), and ns3::Ipv6InterfaceContainer::End().

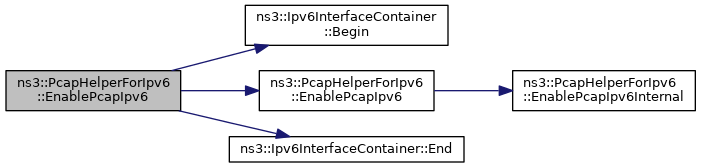

Here is the call graph for this function:

◆ EnablePcapIpv6() [4/5]

void ns3::PcapHelperForIpv6::EnablePcapIpv6	(	std::string	prefix,
		NodeContainer	n
	)

Enable pcap output on all Ipv6 and interface pairs existing in the nodes provided in the container.

Parameters

prefix	Filename prefix to use for pcap files.
n	container of nodes.

Definition at line 325 of file internet-trace-helper.cc.

References EnablePcapIpv6(), ns3::Object::GetObject(), and sample-rng-plot::n.

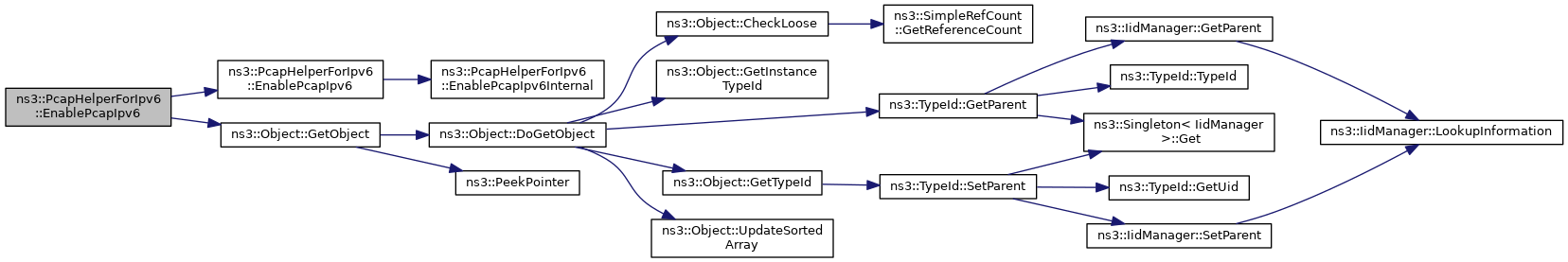

Here is the call graph for this function:

◆ EnablePcapIpv6() [5/5]

void ns3::PcapHelperForIpv6::EnablePcapIpv6	(	std::string	prefix,
		uint32_t	nodeid,
		uint32_t	interface,
		bool	explicitFilename
	)

Enable pcap output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

prefix	Filename prefix to use for pcap files.
nodeid	The node identifier/number of the node on which to enable tracing.
interface	Interface on ipv6 on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Definition at line 348 of file internet-trace-helper.cc.

References EnablePcapIpv6(), ns3::NodeContainer::GetGlobal(), ns3::Node::GetId(), ns3::Object::GetObject(), and sample-rng-plot::n.

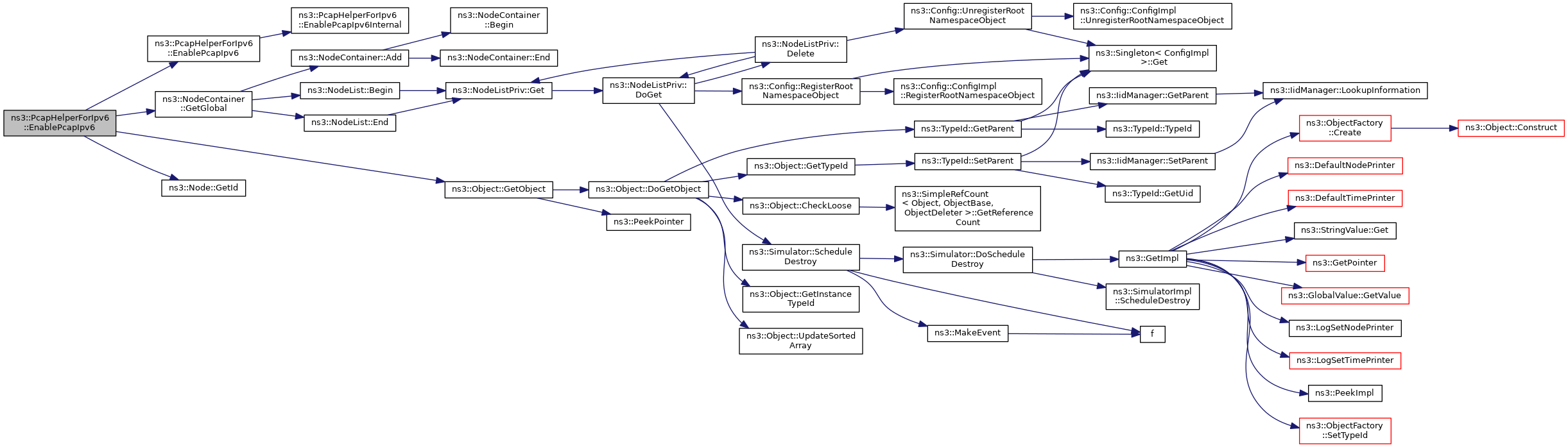

Here is the call graph for this function:

◆ EnablePcapIpv6All()

void ns3::PcapHelperForIpv6::EnablePcapIpv6All ( std::string prefix )

Enable pcap output on all Ipv6 and interface pairs existing in the set of all nodes created in the simulation.

Parameters

prefix Filename prefix to use for pcap files.

Definition at line 342 of file internet-trace-helper.cc.

References EnablePcapIpv6(), and ns3::NodeContainer::GetGlobal().

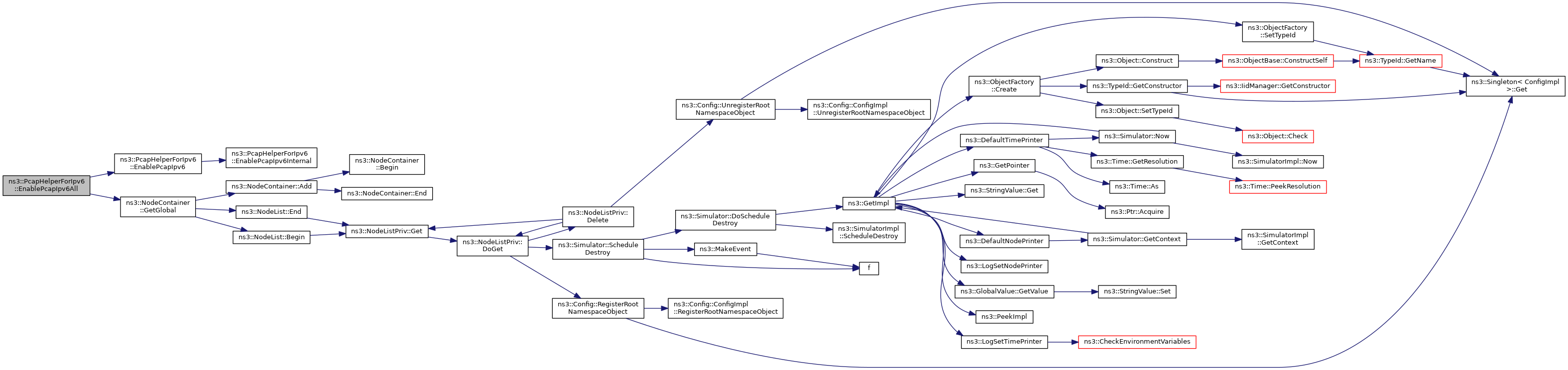

Here is the call graph for this function:

◆ EnablePcapIpv6Internal()

virtual void ns3::PcapHelperForIpv6::EnablePcapIpv6Internal	(	std::string	prefix,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface,
		bool	explicitFilename
	)

pure virtual

Enable pcap output the indicated Ipv6 and interface pair.

Parameters

prefix	Filename prefix to use for pcap files.
ipv6	Ptr<Ipv6> on which you want to enable tracing.
interface	Interface on ipv6 on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true.

Implemented in ns3::InternetStackHelper.

Referenced by EnablePcapIpv6().

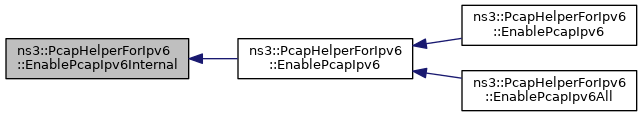

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/internet/helper/internet-trace-helper.h
src/internet/helper/internet-trace-helper.cc
