ns3::RemoteChannelBundleManager Class Reference

Singleton for managing the RemoteChannelBundles for each process. More...

#include "remote-channel-bundle-manager.h"

Collaboration diagram for ns3::RemoteChannelBundleManager:

Static Public Member Functions
static Ptr< RemoteChannelBundle >	Add (uint32_t systemId)
	Add RemoteChannelBundle from this task to MPI task on other side of the link. More...
static void	Destroy (void)
	Destroy the singleton. More...
static Ptr< RemoteChannelBundle >	Find (uint32_t systemId)
	Get the bundle corresponding to a remote rank. More...
static Time	GetSafeTime (void)
	Get the safe time across all channels in this bundle. More...
static void	InitializeNullMessageEvents (void)
	Setup initial Null Message events for every RemoteChannelBundle. More...
static std::size_t	Size (void)
	Get the number of ns-3 channels in this bundle. More...

Private Types
typedef std::unordered_map< uint32_t, Ptr< RemoteChannelBundle > >	RemoteChannelMap
	Container for all remote channel bundles for this task. More...

Private Member Functions
	RemoteChannelBundleManager ()
	Private ctor to prevent creation outside of singleton pattern. More...
	~RemoteChannelBundleManager ()
	Private dtor to prevent destruction outside of singleton pattern. More...

Static Private Attributes
static bool	g_initialized = false
	Protect manager class from being initialized twice or incorrect ordering of method calls. More...
static RemoteChannelMap	g_remoteChannelBundles
	The remote channel bundles. More...

Detailed Description

Singleton for managing the RemoteChannelBundles for each process.

Manages collective tasks associated with the bundle collection.

Definition at line 46 of file remote-channel-bundle-manager.h.

Member Typedef Documentation

RemoteChannelMap

typedef std::unordered_map<uint32_t, Ptr<RemoteChannelBundle> > ns3::RemoteChannelBundleManager::RemoteChannelMap

private

Container for all remote channel bundles for this task.

Definition at line 109 of file remote-channel-bundle-manager.h.

Constructor & Destructor Documentation

RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::RemoteChannelBundleManager ( )

inlineprivate

Private ctor to prevent creation outside of singleton pattern.

Definition at line 94 of file remote-channel-bundle-manager.h.

~RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::~RemoteChannelBundleManager ( )

inlineprivate

Private dtor to prevent destruction outside of singleton pattern.

Definition at line 101 of file remote-channel-bundle-manager.h.

Member Function Documentation

Add()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Add ( uint32_t  systemId )

static

Add RemoteChannelBundle from this task to MPI task on other side of the link.

Can not be invoked after InitializeNullMessageEvents has been invoked.

Parameters

[in]

systemId

The remote system id.

Returns

The newly added bundle.

Definition at line 56 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateLookAhead().

Here is the caller graph for this function:

Destroy()

void ns3::RemoteChannelBundleManager::Destroy ( void  )

static

Destroy the singleton.

Definition at line 110 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::Destroy().

Here is the caller graph for this function:

Find()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Find ( uint32_t  systemId )

static

Get the bundle corresponding to a remote rank.

Parameters

[in]

systemId

The remote system id.

Returns

The bundle for the specified system id.

Definition at line 41 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageSimulatorImpl::CalculateGuaranteeTime(), ns3::NullMessageSimulatorImpl::CalculateLookAhead(), ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers(), ns3::NullMessageMpiInterface::ReceiveMessages(), and ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent().

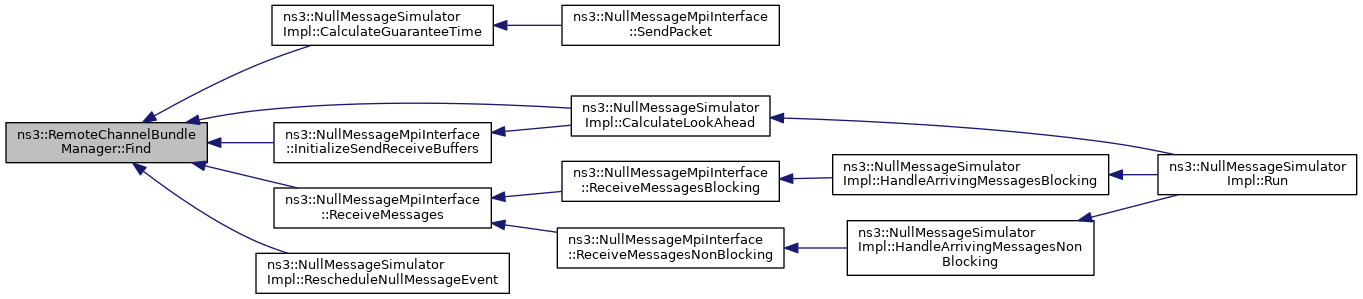

Here is the caller graph for this function:

GetSafeTime()

Time ns3::RemoteChannelBundleManager::GetSafeTime ( void  )

static

Get the safe time across all channels in this bundle.

Returns

The safe time.

Definition at line 93 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::Simulator::GetMaximumSimulationTime(), ns3::Min(), and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateSafeTime().

Here is the call graph for this function:

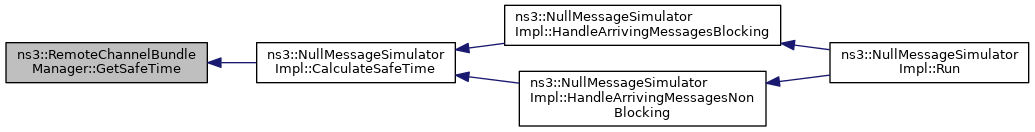

Here is the caller graph for this function:

InitializeNullMessageEvents()

void ns3::RemoteChannelBundleManager::InitializeNullMessageEvents ( void  )

static

Setup initial Null Message events for every RemoteChannelBundle.

All RemoteChannelBundles should be added before this method is invoked.

Definition at line 75 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::NullMessageSimulatorImpl::GetInstance(), NS_ASSERT, and ns3::NullMessageSimulatorImpl::ScheduleNullMessageEvent().

Referenced by ns3::NullMessageSimulatorImpl::Run().

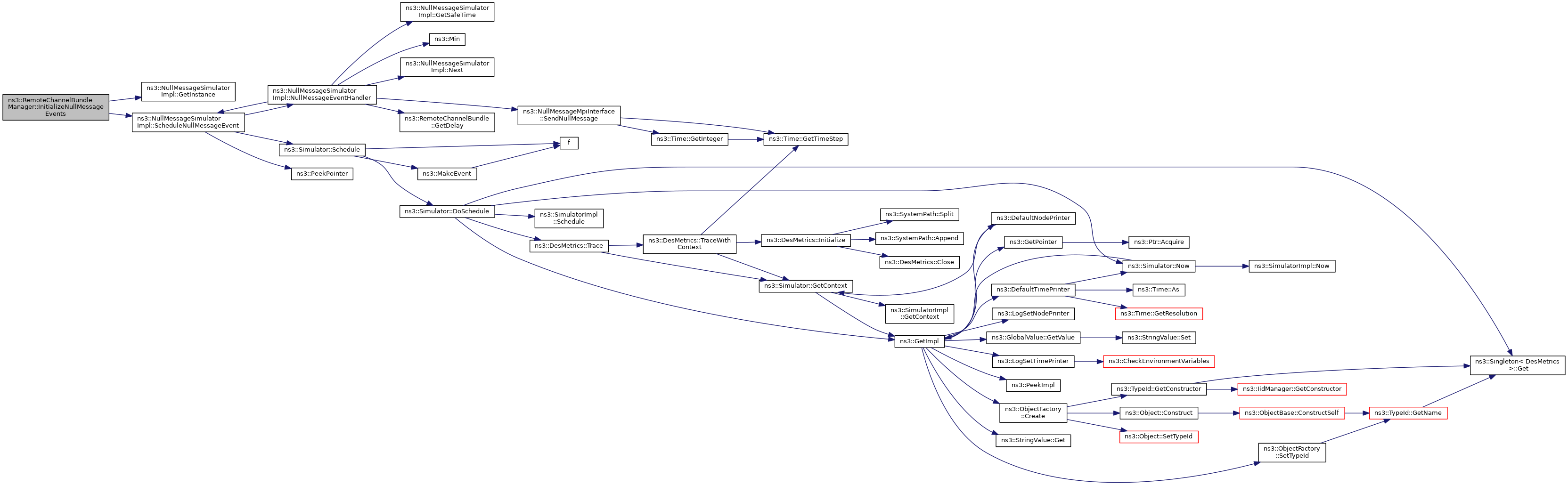

Here is the call graph for this function:

Here is the caller graph for this function:

Size()

std::size_t ns3::RemoteChannelBundleManager::Size ( void  )

static

Get the number of ns-3 channels in this bundle.

Returns

The number of channels.

Definition at line 69 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers().

Here is the caller graph for this function:

Member Data Documentation

g_initialized

bool ns3::RemoteChannelBundleManager::g_initialized = false

staticprivate

Protect manager class from being initialized twice or incorrect ordering of method calls.

Definition at line 117 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), GetSafeTime(), and InitializeNullMessageEvents().

g_remoteChannelBundles

ns3::RemoteChannelBundleManager::RemoteChannelMap ns3::RemoteChannelBundleManager::g_remoteChannelBundles

staticprivate

The remote channel bundles.

Definition at line 111 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), Find(), GetSafeTime(), InitializeNullMessageEvents(), and Size().

---

The documentation for this class was generated from the following files:

• src/mpi/model/remote-channel-bundle-manager.h
• src/mpi/model/remote-channel-bundle-manager.cc
