build a set of SimpleNetDevice objects More...

#include "simple-net-device-helper.h"

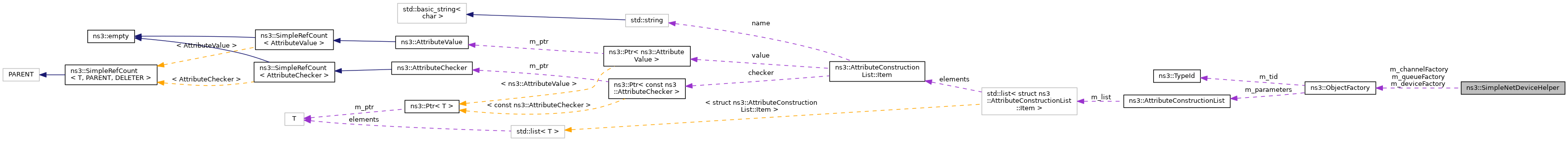

Collaboration diagram for ns3::SimpleNetDeviceHelper:

Public Member Functions
	SimpleNetDeviceHelper ()
	Construct a SimpleNetDeviceHelper. More...

virtual	~SimpleNetDeviceHelper ()

NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute, an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device. More...

NetDeviceContainer	Install (Ptr< Node > node, Ptr< SimpleChannel > channel) const
	This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

NetDeviceContainer	Install (const NodeContainer &c) const
	This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute. More...

NetDeviceContainer	Install (const NodeContainer &c, Ptr< SimpleChannel > channel) const
	For each Ptr<node> in the provided container, this method creates an ns3::SimpleNetDevice (with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device. More...

void	SetChannel (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue())
	Each net device must have a channel to pass packets through. More...

void	SetChannelAttribute (std::string n1, const AttributeValue &v1)

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)

void	SetNetDevicePointToPointMode (bool pointToPointMode)
	SimpleNetDevice is Broadcast capable and ARP needing. More...

void	SetQueue (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue())
	Each net device must have a queue to pass packets through. More...

Private Member Functions
Ptr< NetDevice >	InstallPriv (Ptr< Node > node, Ptr< SimpleChannel > channel) const
	This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

Private Attributes
ObjectFactory	m_channelFactory
	Channel factory. More...

ObjectFactory	m_deviceFactory
	NetDevice factory. More...

bool	m_pointToPointMode
	Install PointToPoint SimpleNetDevice or Broadcast ones. More...

ObjectFactory	m_queueFactory
	Queue factory. More...

Detailed Description

build a set of SimpleNetDevice objects

Definition at line 36 of file simple-net-device-helper.h.

Constructor & Destructor Documentation

◆ SimpleNetDeviceHelper()

ns3::SimpleNetDeviceHelper::SimpleNetDeviceHelper ( )

Construct a SimpleNetDeviceHelper.

Definition at line 43 of file simple-net-device-helper.cc.

References m_channelFactory, m_deviceFactory, m_pointToPointMode, m_queueFactory, and ns3::ObjectFactory::SetTypeId().

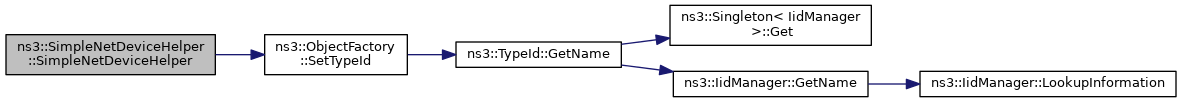

Here is the call graph for this function:

◆ ~SimpleNetDeviceHelper()

virtual ns3::SimpleNetDeviceHelper::~SimpleNetDeviceHelper ( )

inlinevirtual

Definition at line 43 of file simple-net-device-helper.h.

Member Function Documentation

◆ Install() [1/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install ( Ptr< Node > node ) const

This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute, an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.

Parameters

node	The node to install the device in

Returns: A container holding the added net device.

Definition at line 100 of file simple-net-device-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), and m_channelFactory.

Referenced by ns3::olsr::Bug780Test::CreateNodes(), ns3::olsr::HelloRegressionTest::CreateNodes(), ns3::olsr::TcRegressionTest::CreateNodes(), RadvdTestCase::DoRun(), BulkSendBasicTestCase::DoRun(), Ipv6DadTest::DoRun(), DhcpTestCase::DoRun(), Ipv6ForwardingTest::DoRun(), Ipv4StaticRoutingSlash32TestCase::DoRun(), Ipv6RawSocketImplTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), TcFlowControlTestCase::DoRun(), Ipv4FragmentationTest::DoRun(), BulkSendSeqTsSizeTestCase::DoRun(), UdpSocketImplTest::DoRun(), IcmpTimeExceedTestCase::DoRun(), ns3::TcpGeneralTest::DoRun(), Udp6SocketImplTest::DoRun(), IcmpV6TimeExceedTestCase::DoRun(), Ipv4DeduplicationPerformanceTest::DoRun(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), Ipv4GlobalRoutingSlash32TestCase::DoRun(), and Install().

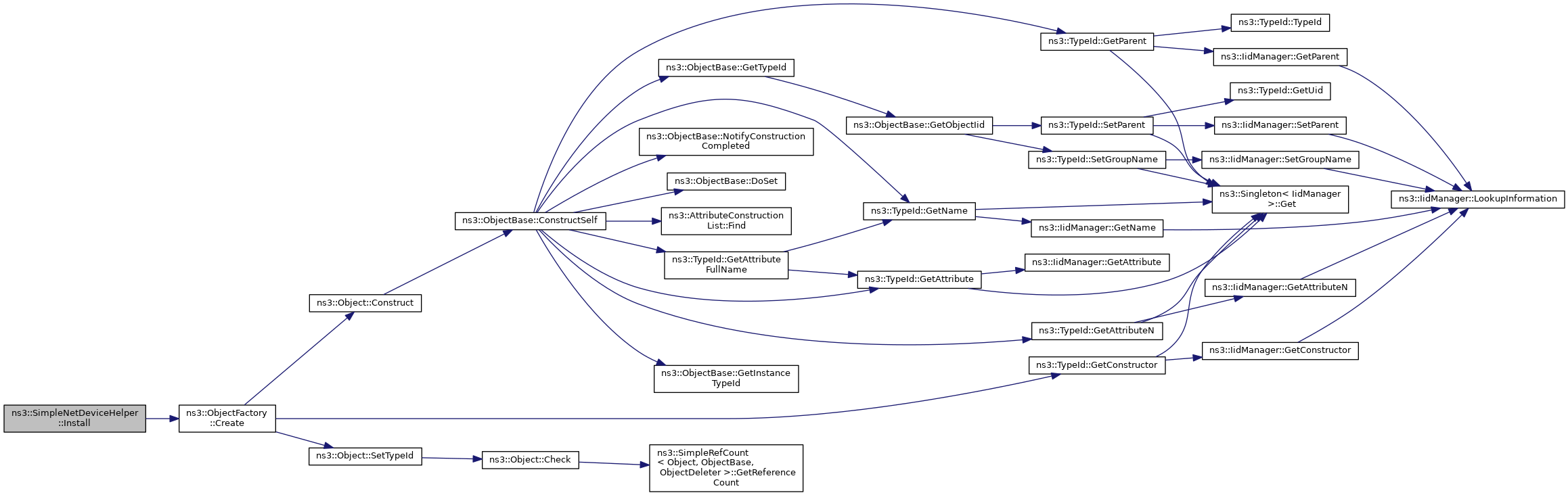

Here is the call graph for this function:

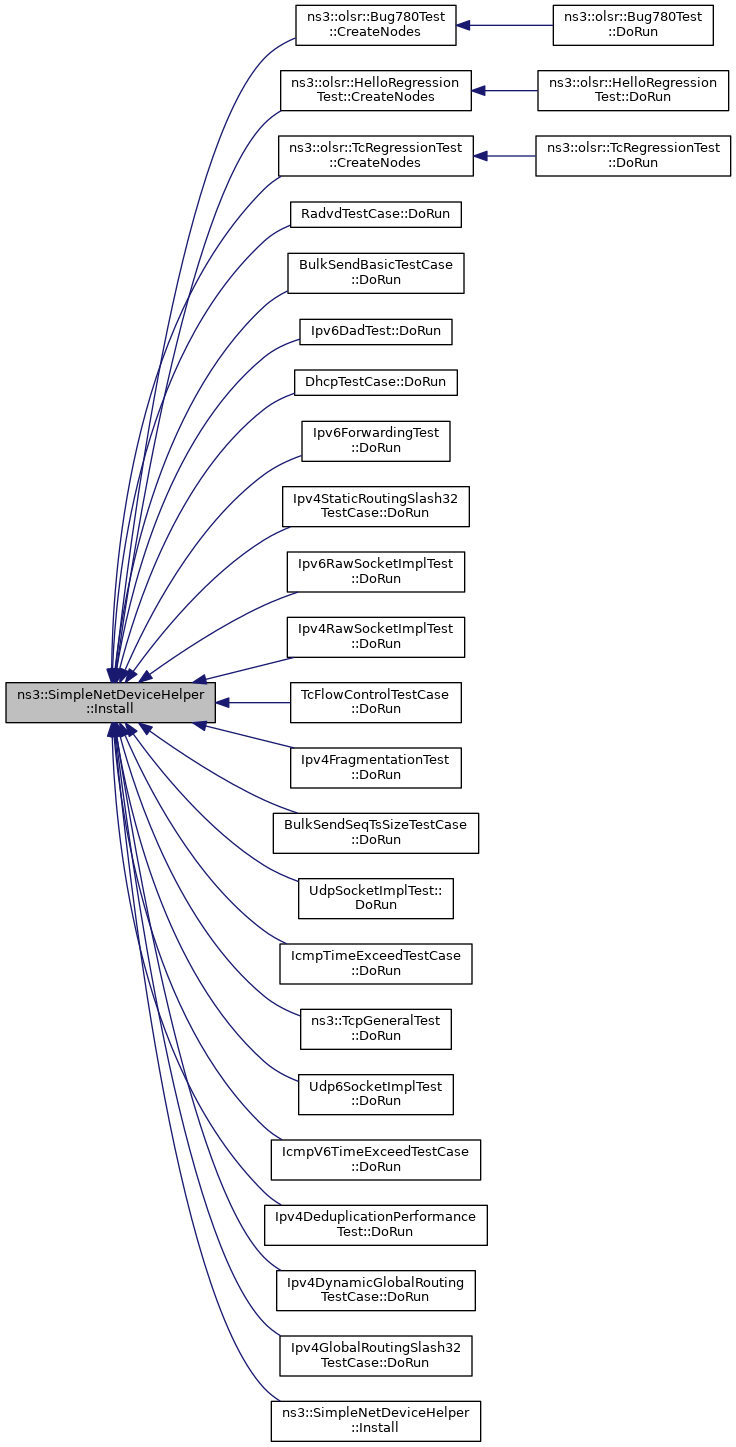

Here is the caller graph for this function:

◆ Install() [2/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install	(	Ptr< Node >	node,
		Ptr< SimpleChannel >	channel
	)		const

This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

node	The node to install the device in
channel	The channel to attach to the device.

Returns: A container holding the added net device.

Definition at line 107 of file simple-net-device-helper.cc.

References third::channel, and InstallPriv().

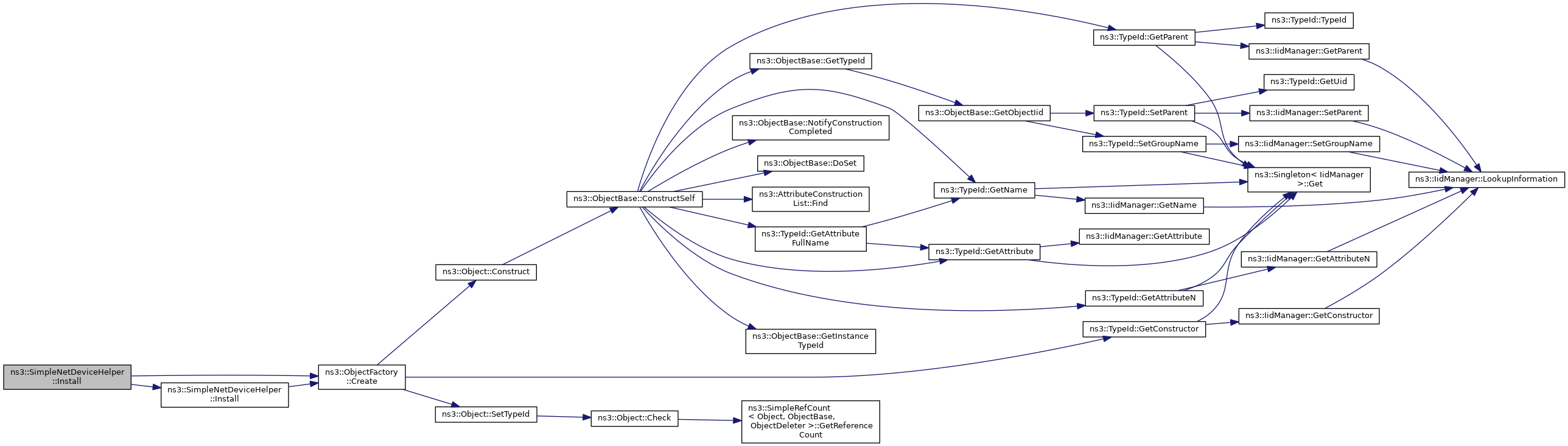

Here is the call graph for this function:

◆ Install() [3/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install ( const NodeContainer & c ) const

This method creates an ns3::SimpleChannel with the attributes configured by SimpleNetDeviceHelper::SetChannelAttribute.

For each Ptr<node> in the provided container: it creates an ns3::SimpleNetDevice (with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.

Returns: A container holding the added net devices.

Definition at line 113 of file simple-net-device-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), Install(), and m_channelFactory.

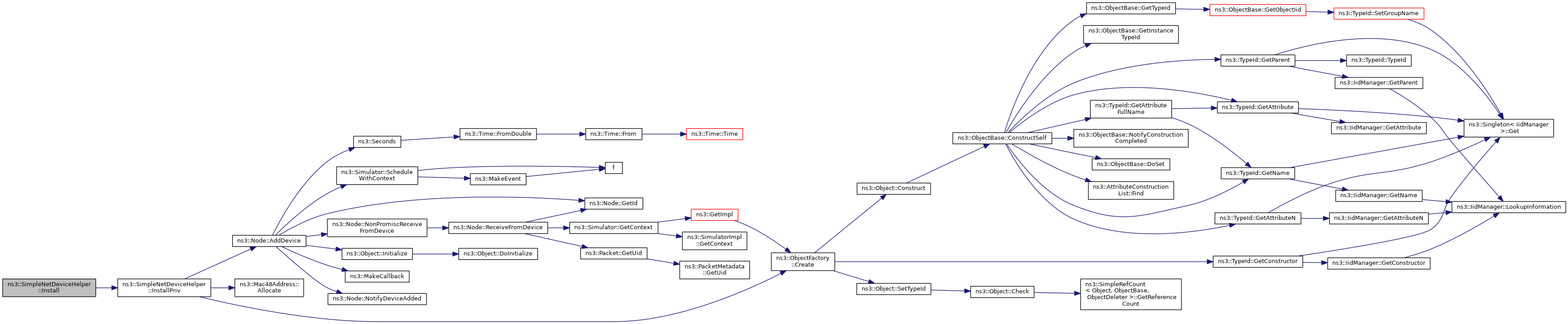

Here is the call graph for this function:

◆ Install() [4/4]

NetDeviceContainer ns3::SimpleNetDeviceHelper::Install	(	const NodeContainer &	c,
		Ptr< SimpleChannel >	channel
	)		const

For each Ptr<node> in the provided container, this method creates an ns3::SimpleNetDevice (with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.
channel	The channel to attach to the devices.

Returns: A container holding the added net devices.

Definition at line 121 of file simple-net-device-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), third::channel, ns3::NodeContainer::End(), and InstallPriv().

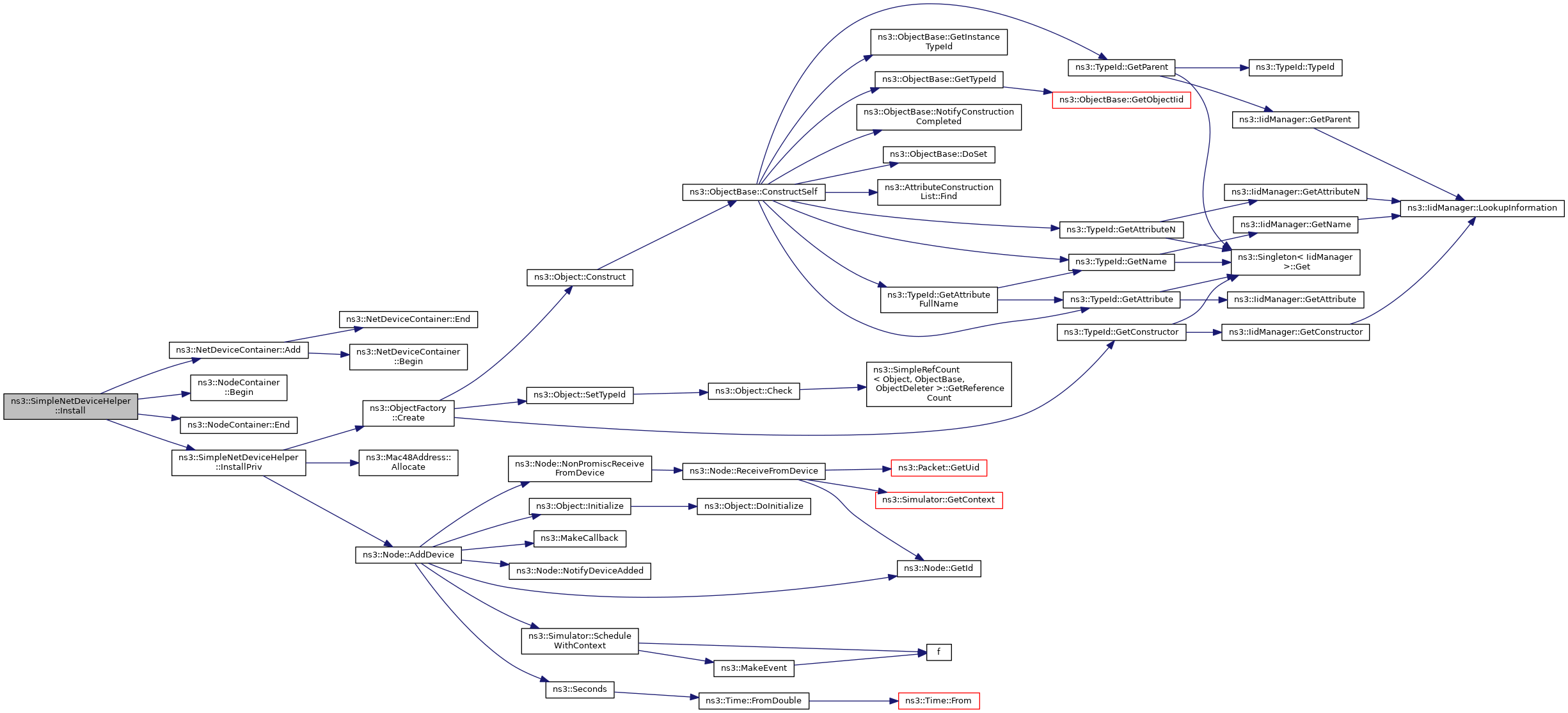

Here is the call graph for this function:

◆ InstallPriv()

Ptr< NetDevice > ns3::SimpleNetDeviceHelper::InstallPriv	(	Ptr< Node >	node,
		Ptr< SimpleChannel >	channel
	)		const

private

This method creates an ns3::SimpleNetDevice with the attributes configured by SimpleNetDeviceHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

node	The node to install the device in
channel	The channel to attach to the device.

Returns: The new net device.

Definition at line 134 of file simple-net-device-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), third::channel, ns3::ObjectFactory::Create(), m_deviceFactory, m_pointToPointMode, m_queueFactory, and NS_ASSERT_MSG.

Referenced by Install().

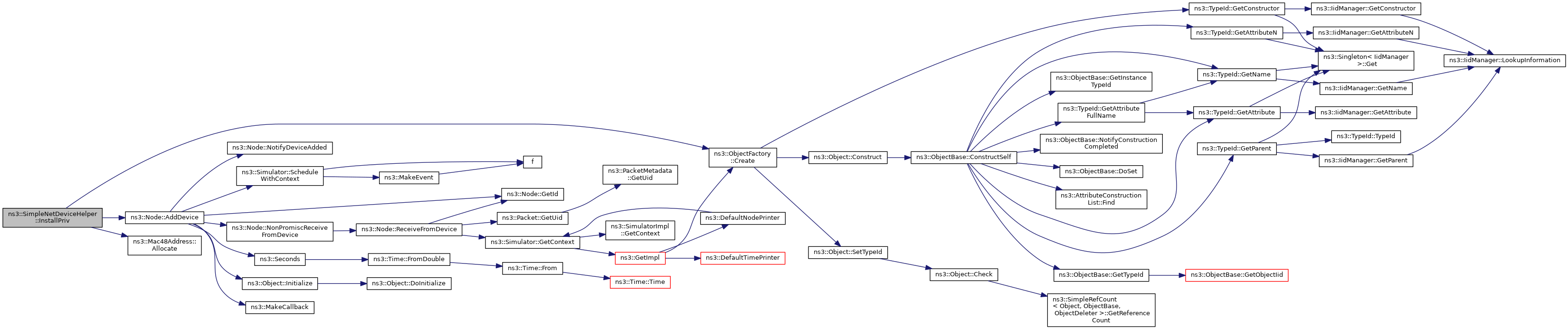

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetChannel()

void ns3::SimpleNetDeviceHelper::SetChannel	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`
	)

Each net device must have a channel to pass packets through.

This method allows one to set the type of the channel that is automatically created when the device is created and attached to a node.

Parameters

type	the type of queue
n1	the name of the attribute to set on the queue
v1	the value of the attribute to set on the queue
n2	the name of the attribute to set on the queue
v2	the value of the attribute to set on the queue
n3	the name of the attribute to set on the queue
v3	the value of the attribute to set on the queue
n4	the name of the attribute to set on the queue
v4	the value of the attribute to set on the queue

Set the type of channel to create and associated to each SimpleNetDevice created through SimpleNetDeviceHelper::Install.

Definition at line 68 of file simple-net-device-helper.cc.

References m_channelFactory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

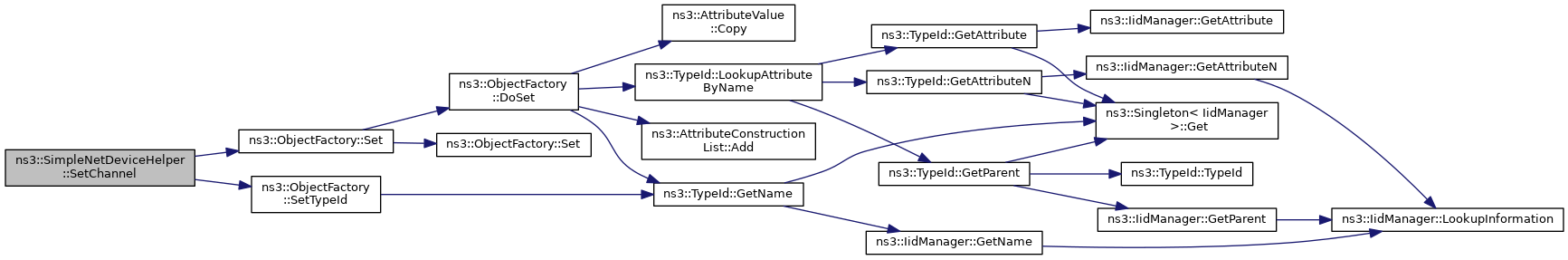

Here is the call graph for this function:

◆ SetChannelAttribute()

void ns3::SimpleNetDeviceHelper::SetChannelAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each ns3::CsmaChannel created by SimpleNetDeviceHelper::Install

Definition at line 88 of file simple-net-device-helper.cc.

References m_channelFactory, and ns3::ObjectFactory::Set().

Referenced by ns3::olsr::Bug780Test::CreateNodes(), ns3::olsr::HelloRegressionTest::CreateNodes(), ns3::olsr::TcRegressionTest::CreateNodes(), RadvdTestCase::DoRun(), BulkSendBasicTestCase::DoRun(), DhcpTestCase::DoRun(), and BulkSendSeqTsSizeTestCase::DoRun().

Here is the call graph for this function:

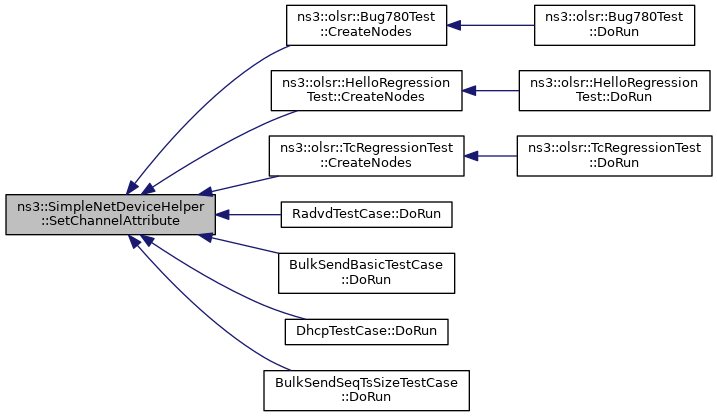

Here is the caller graph for this function:

◆ SetDeviceAttribute()

void ns3::SimpleNetDeviceHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each ns3::SimpleNetDevice created by SimpleNetDeviceHelper::Install

Definition at line 82 of file simple-net-device-helper.cc.

References m_deviceFactory, and ns3::ObjectFactory::Set().

Referenced by ns3::olsr::Bug780Test::CreateNodes(), ns3::olsr::HelloRegressionTest::CreateNodes(), ns3::olsr::TcRegressionTest::CreateNodes(), RadvdTestCase::DoRun(), BulkSendBasicTestCase::DoRun(), DhcpTestCase::DoRun(), TcFlowControlTestCase::DoRun(), and BulkSendSeqTsSizeTestCase::DoRun().

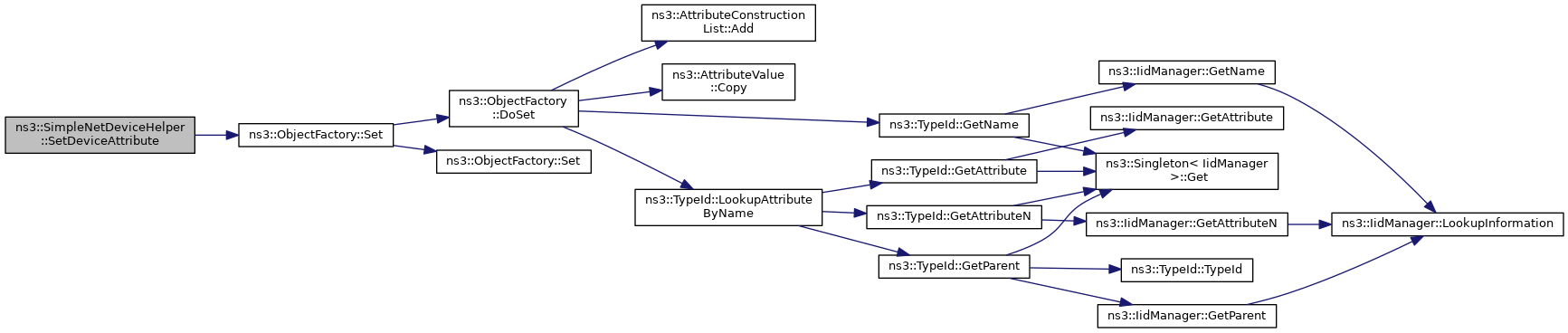

Here is the call graph for this function:

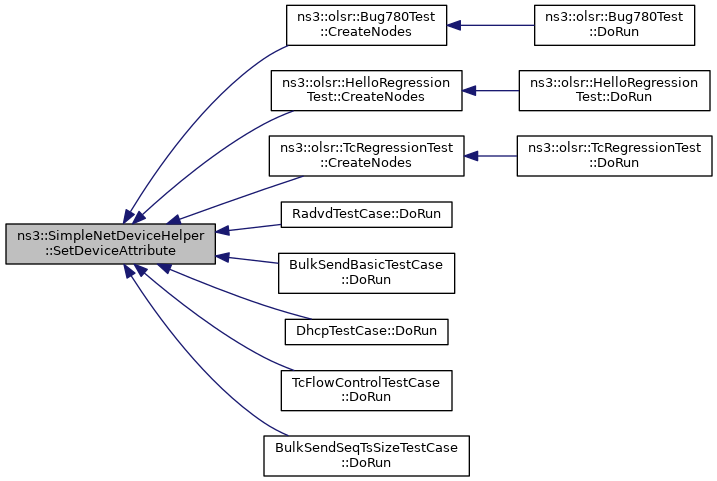

Here is the caller graph for this function:

◆ SetNetDevicePointToPointMode()

void ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode ( bool pointToPointMode )

SimpleNetDevice is Broadcast capable and ARP needing.

This function limits the number of SimpleNetDevices on one channel to two, disables Broadcast and ARP and enables PointToPoint mode.

Warning: It must be used before installing a NetDevice on a node.

Parameters

pointToPointMode True for PointToPoint SimpleNetDevice

Definition at line 94 of file simple-net-device-helper.cc.

References m_pointToPointMode.

Referenced by Ipv6DadTest::DoRun(), Ipv6ForwardingTest::DoRun(), Ipv6RawSocketImplTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), Ipv4FragmentationTest::DoRun(), UdpSocketImplTest::DoRun(), IcmpTimeExceedTestCase::DoRun(), ns3::TcpGeneralTest::DoRun(), Udp6SocketImplTest::DoRun(), IcmpV6TimeExceedTestCase::DoRun(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), LinkTest::DoSetup(), and TwoLinkTest::DoSetup().

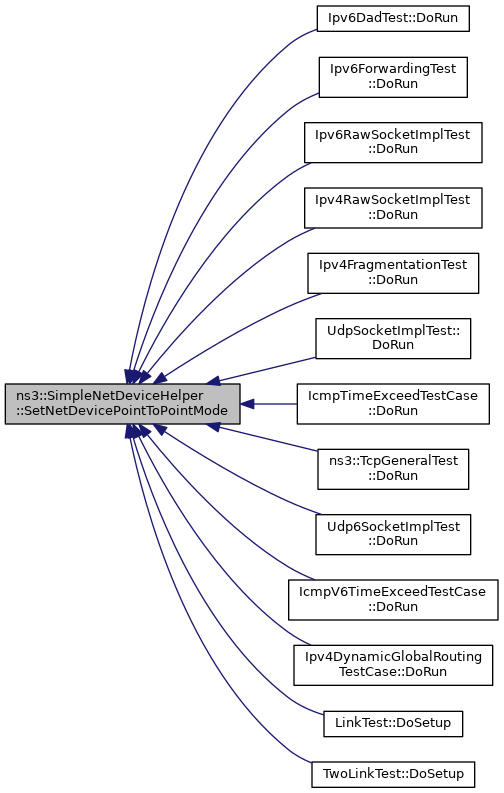

Here is the caller graph for this function:

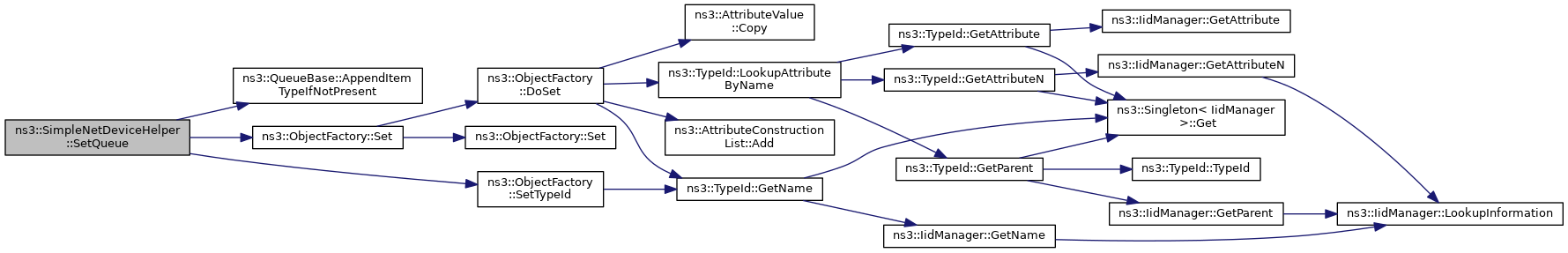

◆ SetQueue()

void ns3::SimpleNetDeviceHelper::SetQueue	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`
	)

Each net device must have a queue to pass packets through.

This method allows one to set the type of the queue that is automatically created when the device is created and attached to a node.

Parameters

type	the type of queue
n1	the name of the attribute to set on the queue
v1	the value of the attribute to set on the queue
n2	the name of the attribute to set on the queue
v2	the value of the attribute to set on the queue
n3	the name of the attribute to set on the queue
v3	the value of the attribute to set on the queue
n4	the name of the attribute to set on the queue
v4	the value of the attribute to set on the queue
