ns3::UanTxMode Class Reference

Abstraction of packet modulation information. More...

#include "uan-tx-mode.h"

Public Types
enum	ModulationType { PSK, QAM, FSK, OTHER }
	Modulation type. More...

Public Member Functions
	UanTxMode ()
	Constructor. More...
	~UanTxMode ()
	Destructor. More...
uint32_t	GetBandwidthHz (void) const
	Get the transmission signal bandwidth. More...
uint32_t	GetCenterFreqHz (void) const
	Get the transmission center frequency. More...
uint32_t	GetConstellationSize (void) const
	Get the number of constellation points in the modulation scheme. More...
uint32_t	GetDataRateBps (void) const
	Get the data rate of the transmit mode. More...
ModulationType	GetModType (void) const
	Get the modulation type of the mode. More...
std::string	GetName (void) const
	Get the mode name. More...
uint32_t	GetPhyRateSps (void) const
	Get the physical signaling rate. More...
uint32_t	GetUid (void) const
	Get a unique id for the mode. More...

Private Attributes
uint32_t	m_uid
	Mode id. More...

Friends
std::ostream &	operator<< (std::ostream &os, const UanTxMode &mode)
	Writes tx mode entry to stream os. More...
std::istream &	operator>> (std::istream &is, UanTxMode &mode)
	Reads tx mode entry from stream is. More...
class	UanTxModeFactory

Detailed Description

Abstraction of packet modulation information.

This contains a lightweight globally unique id for the mode. Mode details are held in the UanTxModeFactory. Attributes are set in by the UanTxModeFactory constructor.

Definition at line 41 of file uan-tx-mode.h.

Member Enumeration Documentation

ModulationType

enum ns3::UanTxMode::ModulationType

Modulation type.

Enumerator
PSK	Phase shift keying.
QAM	Quadrature amplitude modulation.
FSK	Frequency shift keying.
OTHER	Unspecified/undefined.

Definition at line 50 of file uan-tx-mode.h.

Constructor & Destructor Documentation

UanTxMode()

ns3::UanTxMode::UanTxMode

(

)

Constructor.

Definition at line 29 of file uan-tx-mode.cc.

~UanTxMode()

ns3::UanTxMode::~UanTxMode

(

)

Destructor.

Definition at line 33 of file uan-tx-mode.cc.

Member Function Documentation

GetBandwidthHz()

uint32_t ns3::UanTxMode::GetBandwidthHz

(

void

)

const

Get the transmission signal bandwidth.

Returns

Bandwidth in Hz.

Definition at line 63 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_bwHz, and m_uid.

Referenced by ns3::UanPhyPerCommonModes::CalcPer(), ns3::UanPhyCalcSinrDual::CalcSinrDb(), and ns3::UanPhyGen::CalculateSinrDb().

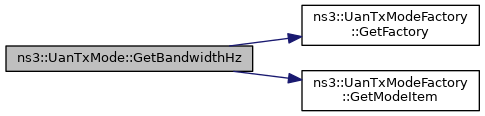

Here is the call graph for this function:

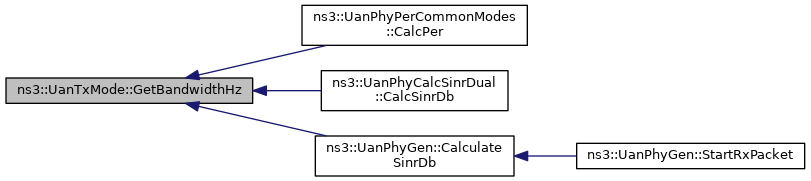

Here is the caller graph for this function:

GetCenterFreqHz()

uint32_t ns3::UanTxMode::GetCenterFreqHz

(

void

)

const

Get the transmission center frequency.

Returns

Center frequency, in Hz.

Definition at line 57 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_cfHz, and m_uid.

Referenced by ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::UanPhyGen::CalculateSinrDb(), and ns3::UanPropModelThorp::GetPathLossDb().

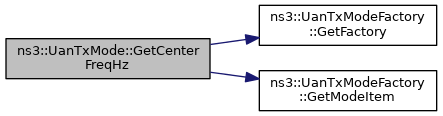

Here is the call graph for this function:

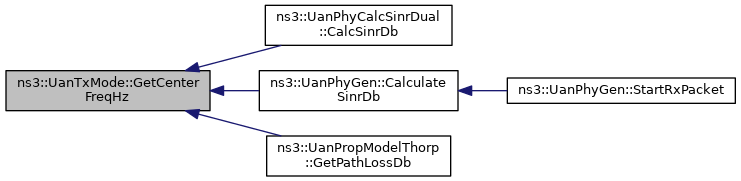

Here is the caller graph for this function:

GetConstellationSize()

uint32_t ns3::UanTxMode::GetConstellationSize

(

void

)

const

Get the number of constellation points in the modulation scheme.

Returns

Number of constellation points.

Definition at line 69 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_constSize, and m_uid.

Referenced by ns3::UanPhyPerUmodem::CalcPer(), ns3::UanPhyPerCommonModes::CalcPer(), and ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

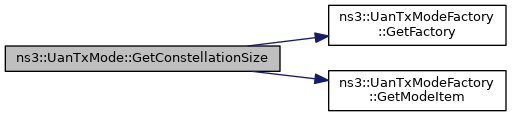

Here is the call graph for this function:

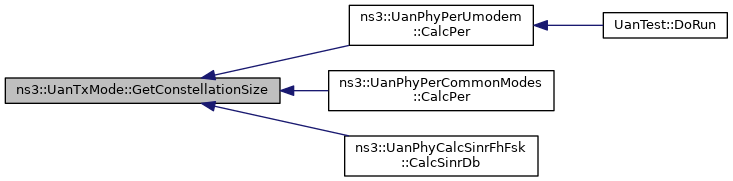

Here is the caller graph for this function:

GetDataRateBps()

uint32_t ns3::UanTxMode::GetDataRateBps

(

void

)

const

Get the data rate of the transmit mode.

Returns

Data rate of the TX mode, in bits per second.

Definition at line 45 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_dataRateBps, and m_uid.

Referenced by ns3::UanPhyPerCommonModes::CalcPer(), ns3::UanTransducerHd::Receive(), ns3::UanPhyGen::SendPacket(), ns3::UanPhyGen::StartRxPacket(), and ns3::UanTransducerHd::Transmit().

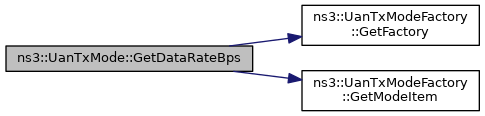

Here is the call graph for this function:

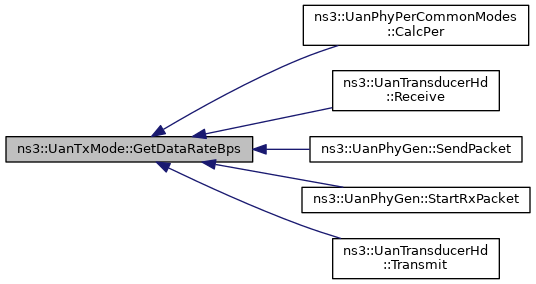

Here is the caller graph for this function:

GetModType()

UanTxMode::ModulationType ns3::UanTxMode::GetModType

(

void

)

const

Get the modulation type of the mode.

Returns

The modulation type.

Definition at line 39 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_type, and m_uid.

Referenced by ns3::UanPhyPerUmodem::CalcPer(), ns3::UanPhyPerCommonModes::CalcPer(), ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::UanPhyCalcSinrDefault::CalcSinrDb(), and ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

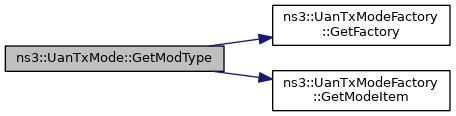

Here is the call graph for this function:

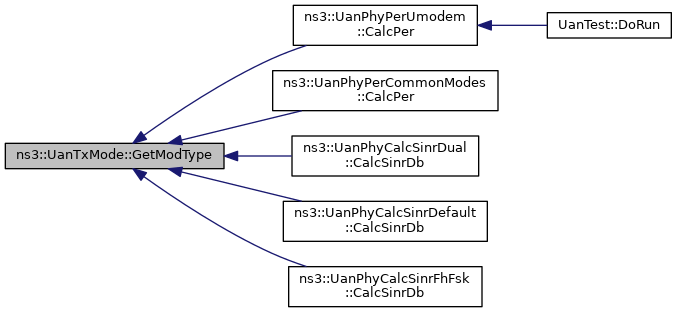

Here is the caller graph for this function:

GetName()

std::string ns3::UanTxMode::GetName

(

void

)

const

Get the mode name.

Returns

Name

Definition at line 75 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_name, and m_uid.

Referenced by ns3::UanPhyCalcSinrDual::CalcSinrDb().

Here is the call graph for this function:

Here is the caller graph for this function:

GetPhyRateSps()

uint32_t ns3::UanTxMode::GetPhyRateSps

(

void

)

const

Get the physical signaling rate.

Returns

PHY rate in symbols per second.

Definition at line 51 of file uan-tx-mode.cc.

References ns3::UanTxModeFactory::GetFactory(), ns3::UanTxModeFactory::GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_phyRateSps, and m_uid.

Referenced by ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

Here is the call graph for this function:

Here is the caller graph for this function:

GetUid()

uint32_t ns3::UanTxMode::GetUid

(

void

)

const

Get a unique id for the mode.

Returns

Unique ID.

Definition at line 81 of file uan-tx-mode.cc.

References m_uid.

Referenced by ns3::UanPhyGen::StartRxPacket().

Here is the caller graph for this function:

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  os, const UanTxMode &  mode  )

friend

Writes tx mode entry to stream os.

Parameters

os	The output stream.
mode	The mode.

Returns

The stream.

Definition at line 87 of file uan-tx-mode.cc.

operator>>

std::istream& operator>> ( std::istream &  is, UanTxMode &  mode  )

friend

Reads tx mode entry from stream is.

Parameters

is	The input stream.
mode	The mode.

Returns

The stream.

Definition at line 94 of file uan-tx-mode.cc.

UanTxModeFactory

friend class UanTxModeFactory

friend

Definition at line 106 of file uan-tx-mode.h.

Member Data Documentation

m_uid

uint32_t ns3::UanTxMode::m_uid

private

Mode id.

Definition at line 111 of file uan-tx-mode.h.

Referenced by GetBandwidthHz(), GetCenterFreqHz(), GetConstellationSize(), GetDataRateBps(), GetModType(), GetName(), GetPhyRateSps(), GetUid(), ns3::UanTxModeFactory::MakeModeFromItem(), ns3::operator<<(), and ns3::operator>>().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-tx-mode.h
• src/uan/model/uan-tx-mode.cc
