ns3::UeMemberLteMacSapProvider Class Reference

UeMemberLteMacSapProvider class. More...

Inheritance diagram for ns3::UeMemberLteMacSapProvider:

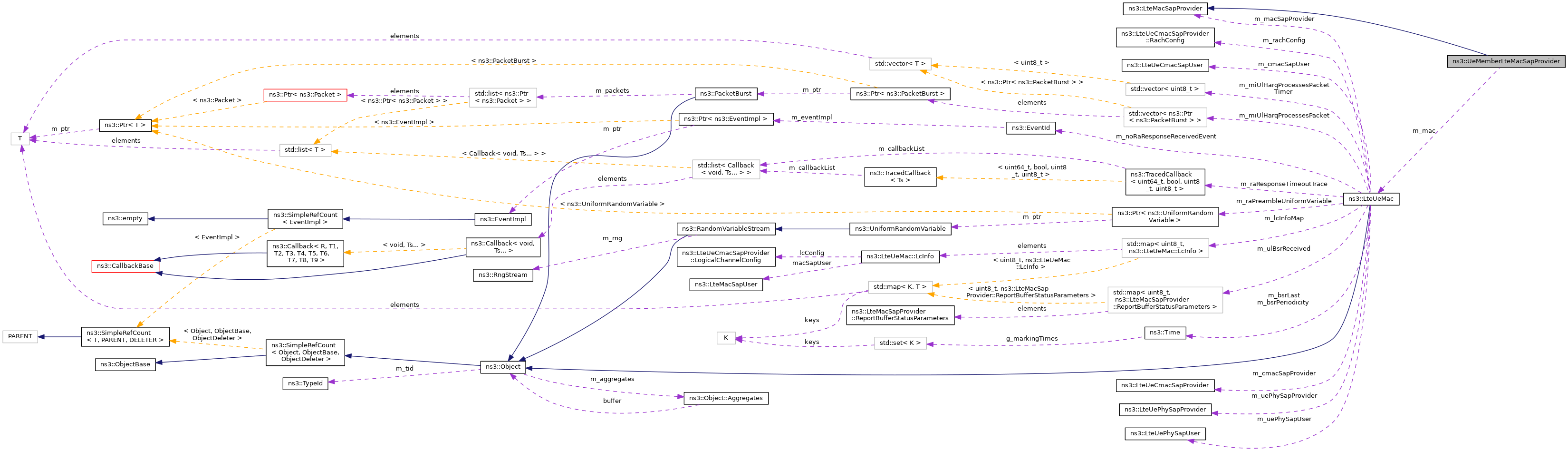

Collaboration diagram for ns3::UeMemberLteMacSapProvider:

Public Member Functions
	UeMemberLteMacSapProvider (LteUeMac *mac)
	Constructor. More...
virtual void	ReportBufferStatus (ReportBufferStatusParameters params)
	Report the RLC buffer status to the MAC. More...
virtual void	TransmitPdu (TransmitPduParameters params)
	send an RLC PDU to the MAC for transmission. More...
Public Member Functions inherited from ns3::LteMacSapProvider
virtual	~LteMacSapProvider ()

Private Attributes
LteUeMac *	m_mac
	the UE MAC More...

Detailed Description

UeMemberLteMacSapProvider class.

Definition at line 139 of file lte-ue-mac.cc.

Constructor & Destructor Documentation

UeMemberLteMacSapProvider()

ns3::UeMemberLteMacSapProvider::UeMemberLteMacSapProvider

(

LteUeMac *

mac

)

Constructor.

Parameters

mac	the UE MAC

Definition at line 158 of file lte-ue-mac.cc.

Member Function Documentation

ReportBufferStatus()

void ns3::UeMemberLteMacSapProvider::ReportBufferStatus ( ReportBufferStatusParameters  params )

virtual

Report the RLC buffer status to the MAC.

Parameters

params

ReportBufferStatusParameters

Implements ns3::LteMacSapProvider.

Definition at line 171 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoReportBufferStatus(), and m_mac.

Here is the call graph for this function:

TransmitPdu()

void ns3::UeMemberLteMacSapProvider::TransmitPdu ( TransmitPduParameters  params )

virtual

send an RLC PDU to the MAC for transmission.

This method is to be called as a response to LteMacSapUser::NotifyTxOpportunity

Parameters

params

TransmitPduParameters

Implements ns3::LteMacSapProvider.

Definition at line 164 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoTransmitPdu(), and m_mac.

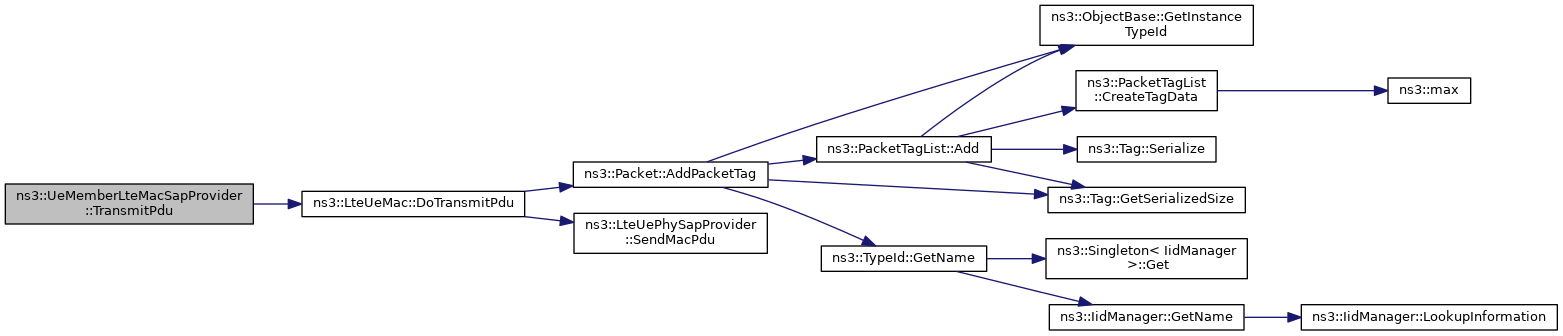

Here is the call graph for this function:

Member Data Documentation

m_mac

LteUeMac* ns3::UeMemberLteMacSapProvider::m_mac

private

the UE MAC

Definition at line 154 of file lte-ue-mac.cc.

Referenced by ReportBufferStatus(), and TransmitPdu().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-mac.cc
