ns3::VhtPpdu Class Reference

VHT PPDU (11ac)VhtPpdu stores a preamble, PHY headers and a PSDU of a PPDU with VHT header. More...

#include "vht-ppdu.h"

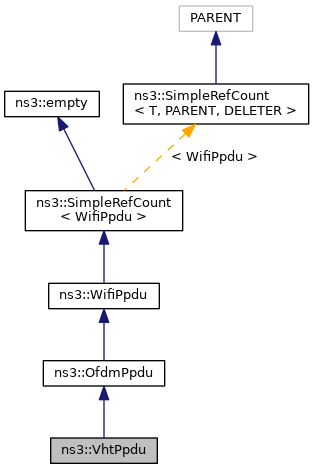

Inheritance diagram for ns3::VhtPpdu:

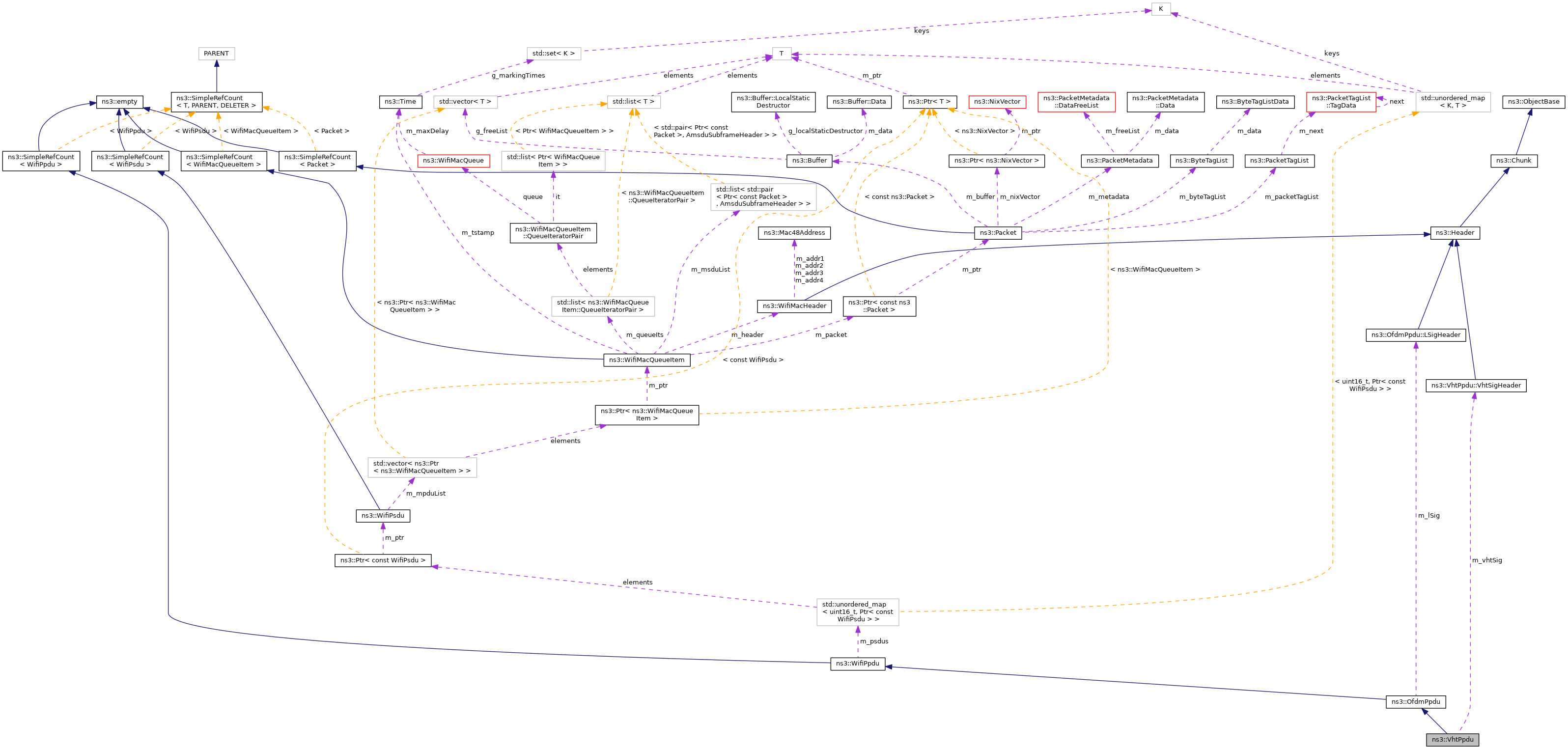

Collaboration diagram for ns3::VhtPpdu:

Classes
class	VhtSigHeader
	VHT PHY header (VHT-SIG-A1/A2/B). More...

Public Member Functions
	VhtPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, Time ppduDuration, WifiPhyBand band, uint64_t uid)
	Create a VHT PPDU. More...
virtual	~VhtPpdu ()
	Destructor for VhtPpdu. More...
Ptr< WifiPpdu >	Copy (void) const override
	Copy this instance. More...
Time	GetTxDuration (void) const override
	Get the total transmission duration of the PPDU. More...
WifiPpduType	GetType (void) const override
	Return the PPDU type (. More...
Public Member Functions inherited from ns3::OfdmPpdu
	OfdmPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, WifiPhyBand band, uint64_t uid, bool instantiateLSig=true)
	Create an OFDM PPDU. More...
virtual	~OfdmPpdu ()
	Destructor for OfdmPpdu. More...
Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...
	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...
virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...
virtual bool	CanBeReceived (uint16_t txCenterFreq, uint16_t p20MinFreq, uint16_t p20MaxFreq) const
	Check whether the given PPDU can be received on the specified primary channel. More...
WifiModulationClass	GetModulation (void) const
	Get the modulation used for the PPDU. More...
WifiPreamble	GetPreamble (void) const
	Get the preamble of the PPDU. More...
Ptr< const WifiPsdu >	GetPsdu (void) const
	Get the payload of the PPDU. More...
virtual uint16_t	GetStaId (void) const
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...
virtual uint16_t	GetTransmissionChannelWidth (void) const
	Get the channel width over which the PPDU will effectively be transmitted. More...
WifiTxVector	GetTxVector (void) const
	Get the TXVECTOR used to send the PPDU. More...
uint64_t	GetUid (void) const
	Get the UID of the PPDU. More...
bool	IsTruncatedTx (void) const
void	Print (std::ostream &os) const
	Print the PPDU contents. More...
void	SetTruncatedTx (void)
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...
Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
WifiTxVector	DoGetTxVector (void) const override
	Get the TXVECTOR used to send the PPDU. More...

Private Attributes
VhtSigHeader	m_vhtSig
	the VHT-SIG PHY header More...

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiPpdu
virtual std::string	PrintPayload (void) const
	Print the payload of the PPDU. More...
Protected Attributes inherited from ns3::OfdmPpdu
WifiPhyBand	m_band
	the WifiPhyBand used to transmit that PPDU More...
uint16_t	m_channelWidth
	the channel width used to transmit that PPDU in MHz More...
LSigHeader	m_lSig
	the L-SIG PHY header More...
Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...
WifiPreamble	m_preamble
	the PHY preamble More...
WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...
uint64_t	m_uid
	the unique ID of this PPDU More...

Detailed Description

VHT PPDU (11ac)

VhtPpdu stores a preamble, PHY headers and a PSDU of a PPDU with VHT header.

Definition at line 44 of file vht-ppdu.h.

Constructor & Destructor Documentation

VhtPpdu()

ns3::VhtPpdu::VhtPpdu	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		Time	ppduDuration,
		WifiPhyBand	band,
		uint64_t	uid
	)

Create a VHT PPDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
band	the WifiPhyBand used for the transmission of this PPDU
uid	the unique ID of this PPDU

Definition at line 33 of file vht-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::Time::GetNanoSeconds(), ns3::WifiTxVector::GetNss(), ns3::OfdmPpdu::m_channelWidth, ns3::OfdmPpdu::m_lSig, ns3::WifiPpdu::m_preamble, m_vhtSig, NS_LOG_FUNCTION, ns3::VhtPpdu::VhtSigHeader::SetChannelWidth(), ns3::OfdmPpdu::LSigHeader::SetLength(), ns3::VhtPpdu::VhtSigHeader::SetMuFlag(), ns3::VhtPpdu::VhtSigHeader::SetNStreams(), ns3::VhtPpdu::VhtSigHeader::SetShortGuardInterval(), ns3::VhtPpdu::VhtSigHeader::SetShortGuardIntervalDisambiguation(), ns3::VhtPpdu::VhtSigHeader::SetSuMcs(), and ns3::WIFI_PREAMBLE_VHT_MU.

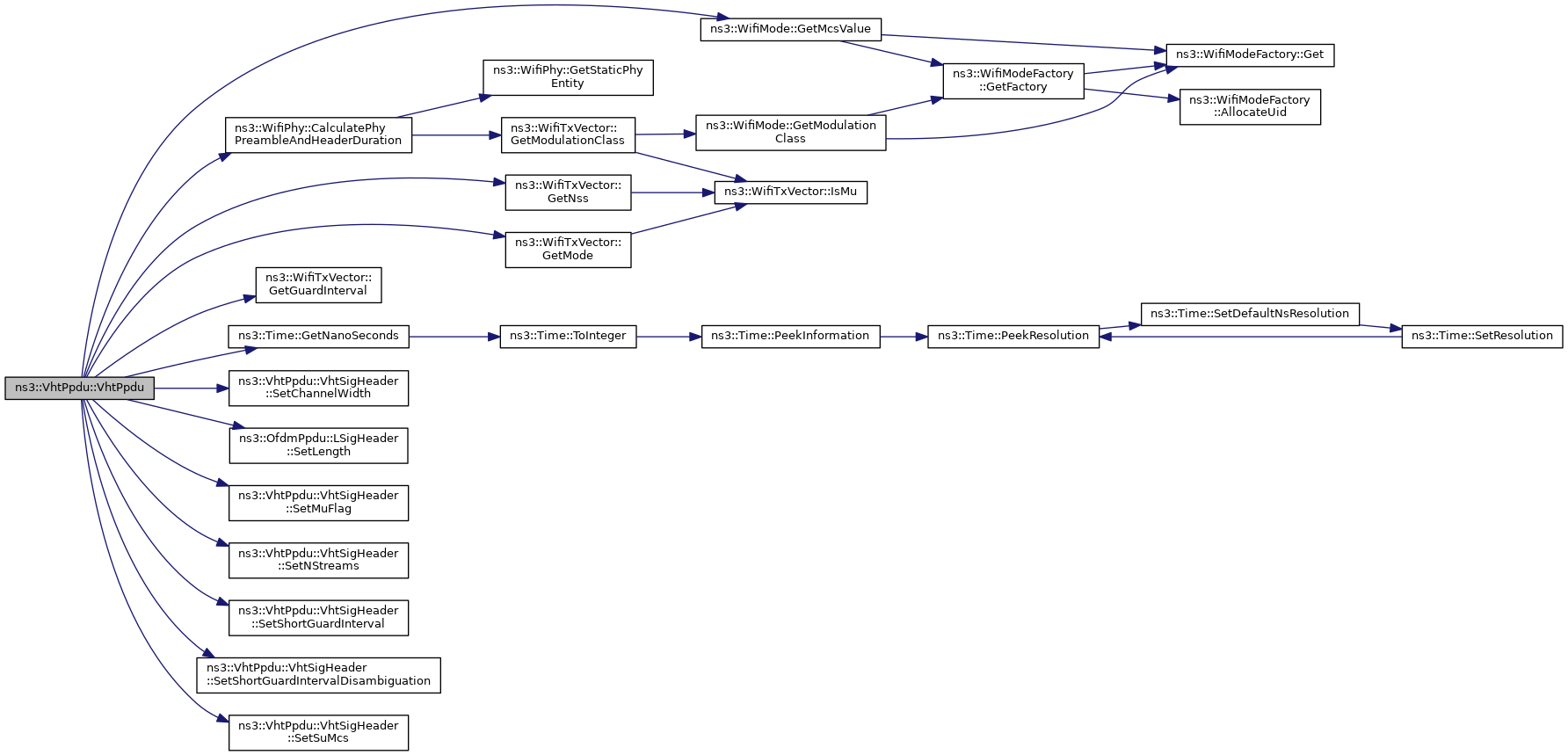

Here is the call graph for this function:

~VhtPpdu()

ns3::VhtPpdu::~VhtPpdu ( )

virtual

Destructor for VhtPpdu.

Definition at line 52 of file vht-ppdu.cc.

Member Function Documentation

Copy()

Ptr< WifiPpdu > ns3::VhtPpdu::Copy ( void  ) const

overridevirtual

Copy this instance.

Returns

a Ptr to a copy of this instance.

Reimplemented from ns3::OfdmPpdu.

Definition at line 87 of file vht-ppdu.cc.

References ns3::WifiPpdu::GetPsdu(), GetTxDuration(), ns3::WifiPpdu::GetTxVector(), ns3::OfdmPpdu::m_band, and ns3::WifiPpdu::m_uid.

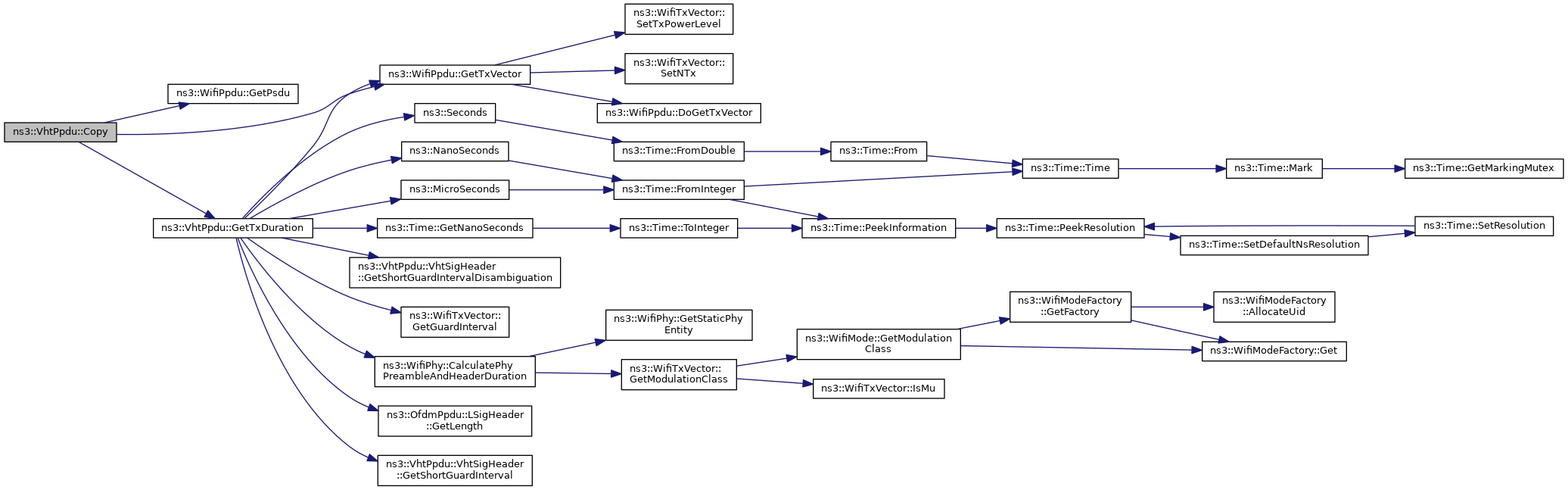

Here is the call graph for this function:

DoGetTxVector()

WifiTxVector ns3::VhtPpdu::DoGetTxVector ( void  ) const

overrideprivatevirtual

Get the TXVECTOR used to send the PPDU.

Returns

the TXVECTOR of the PPDU.

Reimplemented from ns3::OfdmPpdu.

Definition at line 57 of file vht-ppdu.cc.

References ns3::VhtPpdu::VhtSigHeader::GetChannelWidth(), ns3::VhtPpdu::VhtSigHeader::GetNStreams(), ns3::WifiPpdu::GetPsdu(), ns3::VhtPpdu::VhtSigHeader::GetShortGuardInterval(), ns3::VhtPpdu::VhtSigHeader::GetSuMcs(), ns3::VhtPhy::GetVhtMcs(), ns3::WifiPpdu::m_preamble, m_vhtSig, ns3::WifiTxVector::SetAggregation(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), and ns3::WifiTxVector::SetPreambleType().

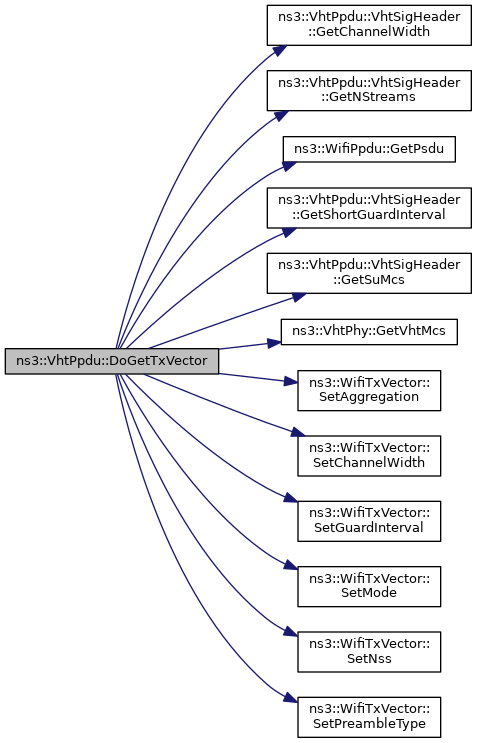

Here is the call graph for this function:

GetTxDuration()

Time ns3::VhtPpdu::GetTxDuration ( void  ) const

overridevirtual

Get the total transmission duration of the PPDU.

Returns

the transmission duration of the PPDU

Reimplemented from ns3::OfdmPpdu.

Definition at line 70 of file vht-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiTxVector::GetGuardInterval(), ns3::OfdmPpdu::LSigHeader::GetLength(), ns3::Time::GetNanoSeconds(), ns3::VhtPpdu::VhtSigHeader::GetShortGuardInterval(), ns3::VhtPpdu::VhtSigHeader::GetShortGuardIntervalDisambiguation(), ns3::WifiPpdu::GetTxVector(), ns3::OfdmPpdu::m_lSig, m_vhtSig, ns3::MicroSeconds(), ns3::NanoSeconds(), and ns3::Seconds().

Referenced by Copy().

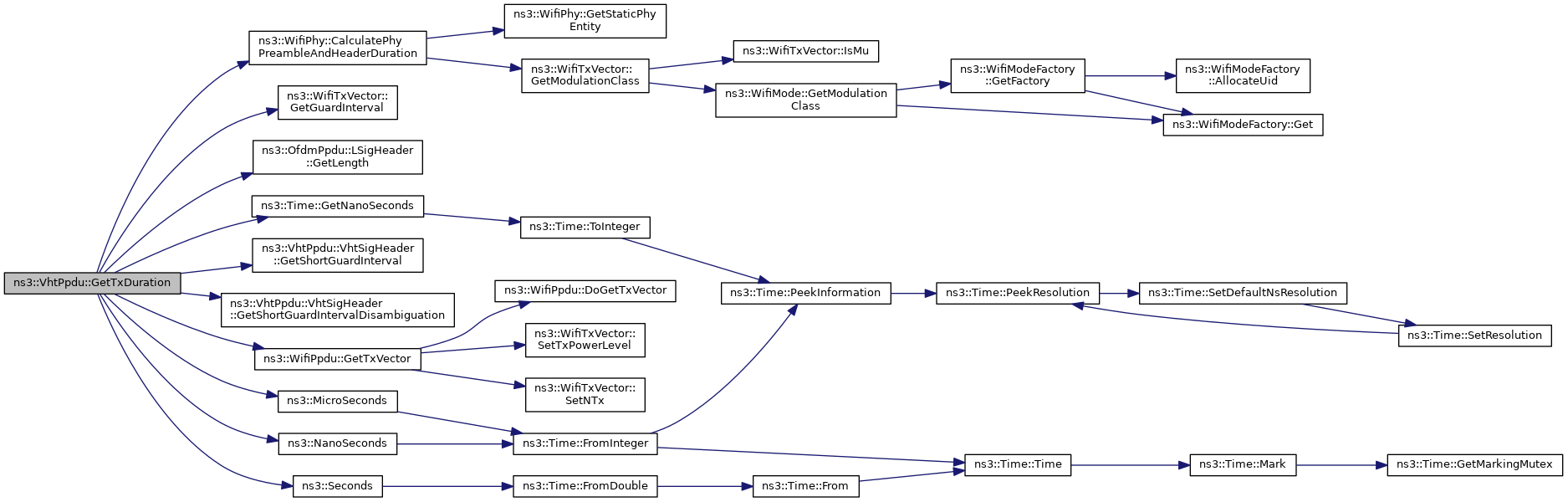

Here is the call graph for this function:

Here is the caller graph for this function:

GetType()

WifiPpduType ns3::VhtPpdu::GetType ( void  ) const

overridevirtual

Return the PPDU type (.

See also

WifiPpduType)

Returns

the PPDU type

Reimplemented from ns3::WifiPpdu.

Definition at line 93 of file vht-ppdu.cc.

References ns3::WifiPpdu::m_preamble, ns3::WIFI_PPDU_TYPE_DL_MU, ns3::WIFI_PPDU_TYPE_SU, and ns3::WIFI_PREAMBLE_VHT_MU.

Member Data Documentation

m_vhtSig

VhtSigHeader ns3::VhtPpdu::m_vhtSig

private

the VHT-SIG PHY header

Definition at line 176 of file vht-ppdu.h.

Referenced by DoGetTxVector(), GetTxDuration(), and VhtPpdu().

---

The documentation for this class was generated from the following files:

• src/wifi/model/vht/vht-ppdu.h
• src/wifi/model/vht/vht-ppdu.cc
