create WifiMode class instances and keep track of them. More...

#include "wifi-mode.h"

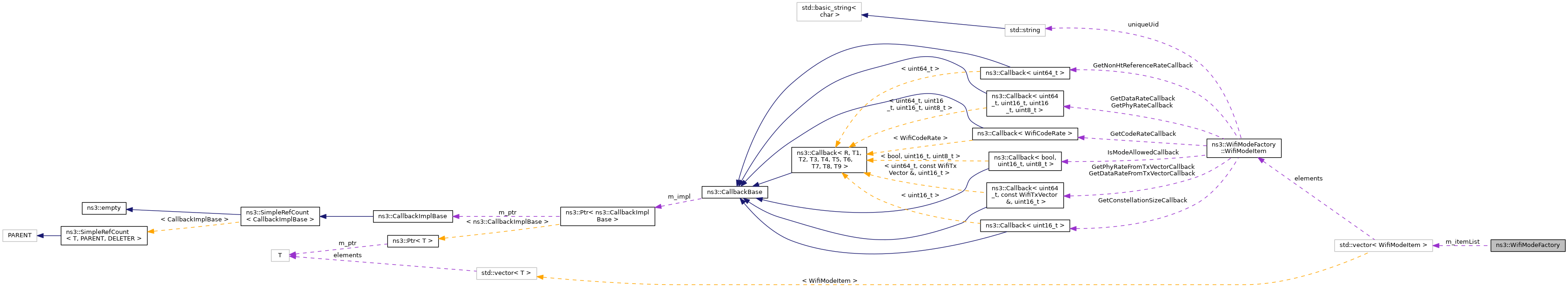

Collaboration diagram for ns3::WifiModeFactory:

Classes
struct	WifiModeItem
	This is the data associated to a unique WifiMode. More...

Public Types
typedef Callback< WifiCodeRate >	CodeRateCallback
	Typedef for callback used to retrieve code rate of a WifiMode. More...

typedef Callback< uint16_t >	ConstellationSizeCallback
	Typedef for callback used to retrieve constellation size of a WifiMode. More...

typedef Callback< uint64_t, uint16_t, uint16_t, uint8_t >	DataRateCallback
	Typedef for callback used to calculate data rate of a WifiMode. More...

typedef Callback< uint64_t, const WifiTxVector &, uint16_t >	DataRateFromTxVectorCallback
	Typedef for callback used to calculate data rate of a WifiMode from a TXVECTOR. More...

typedef Callback< bool, uint16_t, uint8_t >	ModeAllowedCallback
	Typedef for callback used to check whether the combination of <current WifiMode, channel width (in MHz), number of stream> is allowed. More...

typedef Callback< uint64_t >	NonHtReferenceRateCallback
	Typedef for callback used to calculate Non-HT Reference Rate of an MCS defined in HT or later amendment. More...

typedef Callback< uint64_t, uint16_t, uint16_t, uint8_t >	PhyRateCallback
	Typedef for callback used to calculate PHY rate of a WifiMode. More...

typedef Callback< uint64_t, const WifiTxVector &, uint16_t >	PhyRateFromTxVectorCallback
	Typedef for callback used to calculate PHY rate of a WifiMode from a TXVECTOR. More...

Static Public Member Functions
static WifiMode	CreateWifiMcs (std::string uniqueName, uint8_t mcsValue, WifiModulationClass modClass, CodeRateCallback codeRateCallback, ConstellationSizeCallback constellationSizeCallback, PhyRateCallback phyRateCallback, PhyRateFromTxVectorCallback phyRateFromTxVectorCallback, DataRateCallback dataRateCallback, DataRateFromTxVectorCallback dataRateFromTxVectorCallback, NonHtReferenceRateCallback nonHtReferenceRateCallback, ModeAllowedCallback isModeAllowedCallback)

static WifiMode	CreateWifiMode (std::string uniqueName, WifiModulationClass modClass, bool isMandatory, CodeRateCallback codeRateCallback, ConstellationSizeCallback constellationSizeCallback, PhyRateCallback phyRateCallback, PhyRateFromTxVectorCallback phyRateFromTxVectorCallback, DataRateCallback dataRateCallback, DataRateFromTxVectorCallback dataRateFromTxVectorCallback, ModeAllowedCallback isModeAllowedCallback)

Private Types
typedef std::vector< WifiModeItem >	WifiModeItemList
	typedef for a vector of WifiModeItem. More...

Private Member Functions
	WifiModeFactory ()

uint32_t	AllocateUid (std::string uniqueUid)
	Allocate a WifiModeItem from a given uniqueUid. More...

WifiModeItem *	Get (uint32_t uid)
	Return a WifiModeItem at the given UID index. More...

WifiMode	Search (std::string name) const
	Search and return WifiMode from a given name. More...

Static Private Member Functions
static WifiModeFactory *	GetFactory ()
	Return a WifiModeFactory. More...

Private Attributes
WifiModeItemList	m_itemList
	item list More...

Friends
std::istream &	operator>> (std::istream &is, WifiMode &mode)
	Serialize WifiMode from istream (human-readable). More...

class	WifiMode
	allow WifiMode class access More...

Detailed Description

create WifiMode class instances and keep track of them.

This factory ensures that each WifiMode created has a unique name and assigns to each of them a unique integer.

Definition at line 266 of file wifi-mode.h.

Member Typedef Documentation

◆ CodeRateCallback

typedef Callback<WifiCodeRate> ns3::WifiModeFactory::CodeRateCallback

Typedef for callback used to retrieve code rate of a WifiMode.

Returns: the code rate of the WifiMode.

Definition at line 274 of file wifi-mode.h.

◆ ConstellationSizeCallback

typedef Callback<uint16_t> ns3::WifiModeFactory::ConstellationSizeCallback

Typedef for callback used to retrieve constellation size of a WifiMode.

Returns: the size of modulation constellation of the WifiMode.

Definition at line 279 of file wifi-mode.h.

◆ DataRateCallback

typedef Callback<uint64_t, uint16_t , uint16_t , uint8_t > ns3::WifiModeFactory::DataRateCallback

Typedef for callback used to calculate data rate of a WifiMode.

Parameters

channelWidth	the channel width in MHz
guardInterval	the guard interval duration in nanoseconds
nss	the number of streams

Returns: the data rate of the signal in bps.

Definition at line 307 of file wifi-mode.h.

◆ DataRateFromTxVectorCallback

typedef Callback<uint64_t, const WifiTxVector& , uint16_t > ns3::WifiModeFactory::DataRateFromTxVectorCallback

Typedef for callback used to calculate data rate of a WifiMode from a TXVECTOR.

This is mostly useful in HE or later amendments. For the others it's a simple wrapper of

See also: DataRateCallback.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID

Returns: the data rate of the signal in bps.

Definition at line 317 of file wifi-mode.h.

◆ ModeAllowedCallback

typedef Callback<bool, uint16_t , uint8_t > ns3::WifiModeFactory::ModeAllowedCallback

Typedef for callback used to check whether the combination of <current WifiMode, channel width (in MHz), number of stream> is allowed.

Parameters

channelWidth	the channel width in MHz
nss	the number of streams

Returns: true if combination of current WifiMode and supplied parameters is allowed.

Definition at line 334 of file wifi-mode.h.

◆ NonHtReferenceRateCallback

typedef Callback<uint64_t> ns3::WifiModeFactory::NonHtReferenceRateCallback

Typedef for callback used to calculate Non-HT Reference Rate of an MCS defined in HT or later amendment.

For Non-HT modes (DSSS, OFDM, etc) this should be defined as null.

Returns: the rate (in bps) of the non-HT Reference Rate.

Definition at line 325 of file wifi-mode.h.

◆ PhyRateCallback

typedef Callback<uint64_t, uint16_t , uint16_t , uint8_t > ns3::WifiModeFactory::PhyRateCallback

Typedef for callback used to calculate PHY rate of a WifiMode.

Parameters

channelWidth	the channel width in MHz
guardInterval	the guard interval duration in nanoseconds
nss	the number of streams

Returns: the physical bit rate of the signal in bps.

Definition at line 288 of file wifi-mode.h.

◆ PhyRateFromTxVectorCallback

typedef Callback<uint64_t, const WifiTxVector& , uint16_t > ns3::WifiModeFactory::PhyRateFromTxVectorCallback

Typedef for callback used to calculate PHY rate of a WifiMode from a TXVECTOR.

This is mostly useful in HE or later amendments. For the others it's a simple wrapper of

See also: PhyRateCallback.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID

Returns: the physical bit rate of the signal in bps.

Definition at line 298 of file wifi-mode.h.

◆ WifiModeItemList

typedef std::vector<WifiModeItem> ns3::WifiModeFactory::WifiModeItemList

private

typedef for a vector of WifiModeItem.

Definition at line 477 of file wifi-mode.h.

Constructor & Destructor Documentation

◆ WifiModeFactory()

ns3::WifiModeFactory::WifiModeFactory ( )

private

Definition at line 237 of file wifi-mode.cc.

Member Function Documentation

◆ AllocateUid()

uint32_t ns3::WifiModeFactory::AllocateUid ( std::string uniqueUid )

private

Allocate a WifiModeItem from a given uniqueUid.

Parameters

uniqueUid the unique UID

Returns: the allocated UID index

Definition at line 363 of file wifi-mode.cc.

References m_itemList.

Referenced by CreateWifiMcs(), CreateWifiMode(), and GetFactory().

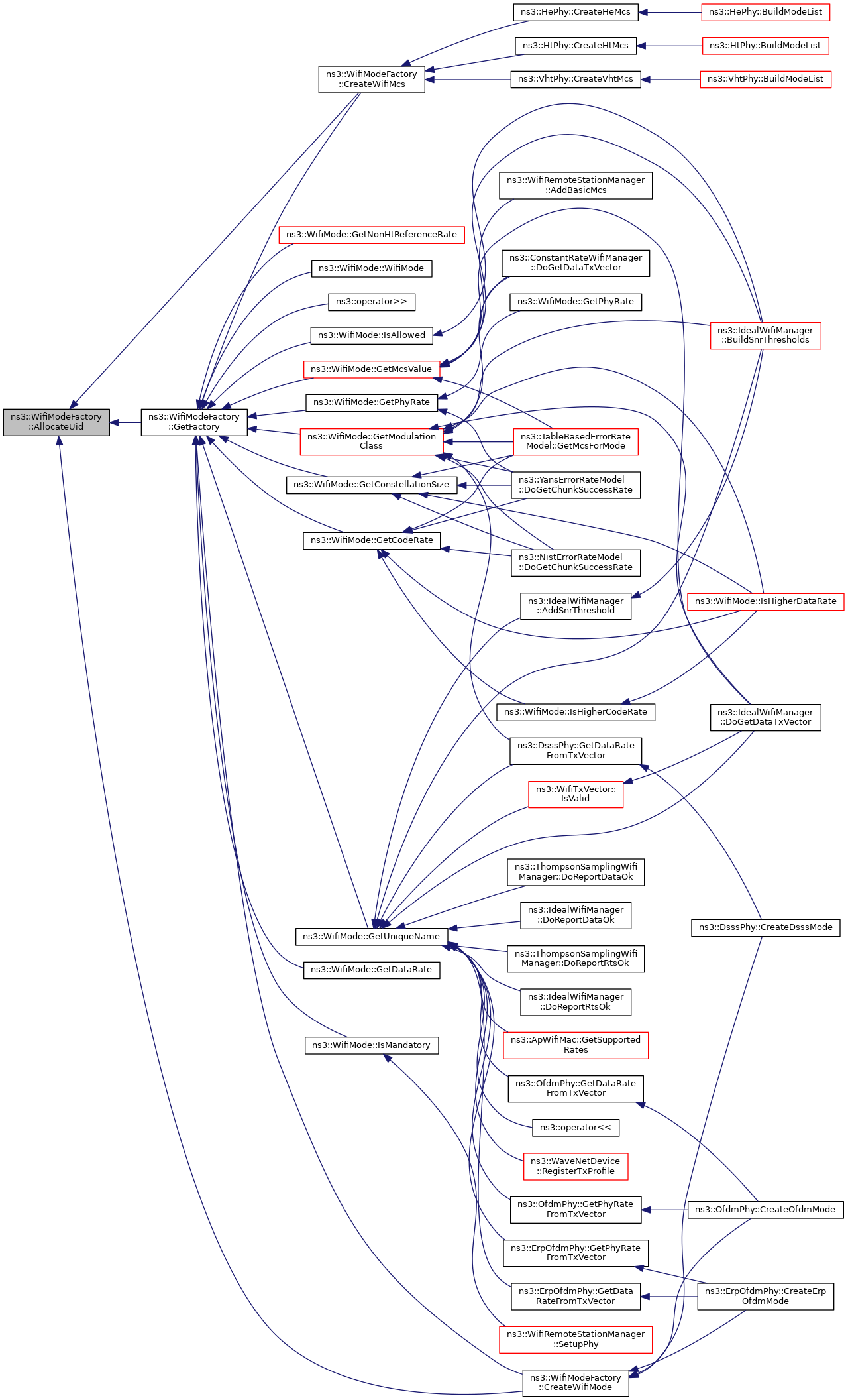

Here is the caller graph for this function:

◆ CreateWifiMcs()

WifiMode ns3::WifiModeFactory::CreateWifiMcs	(	std::string	uniqueName,
		uint8_t	mcsValue,
		WifiModulationClass	modClass,
		CodeRateCallback	codeRateCallback,
		ConstellationSizeCallback	constellationSizeCallback,
		PhyRateCallback	phyRateCallback,
		PhyRateFromTxVectorCallback	phyRateFromTxVectorCallback,
		DataRateCallback	dataRateCallback,
		DataRateFromTxVectorCallback	dataRateFromTxVectorCallback,
		NonHtReferenceRateCallback	nonHtReferenceRateCallback,
		ModeAllowedCallback	isModeAllowedCallback
	)

static

Parameters

uniqueName	the name of the associated WifiMode. This name must be unique across all instances.
mcsValue	the MCS value
modClass	the class of modulation
codeRateCallback	a callback function that returns the coding rate of this WifiMode.
constellationSizeCallback	a callback function that returns the size of modulation constellation of this WifiMode.
phyRateCallback	a callback function to calculate the PHY rate (in bps) of this WifiMode.
phyRateFromTxVectorCallback	a callback function to calculate the PHY rate (in bps) of this WifiMode using a TXVECTOR as input.
dataRateCallback	a callback function to calculate the data rate (in bps) of this WifiMode.
dataRateFromTxVectorCallback	a callback function to calculate the data rate (in bps) of this WifiMode using a TXVECTOR as input.
nonHtReferenceRateCallback	a callback function to calculate the rate (in bps) of the non-HT Reference Rate of this WifiMode.
isModeAllowedCallback	a callback function to calculate whether a combination of <MCS index, channel width (MHz), number of spatial stream> is allowed for this WifiMode.

Returns: WifiMode

Create a HT or later WifiMode.

Definition at line 291 of file wifi-mode.cc.

Referenced by ns3::HePhy::CreateHeMcs(), ns3::HtPhy::CreateHtMcs(), and ns3::VhtPhy::CreateVhtMcs().

Here is the call graph for this function:

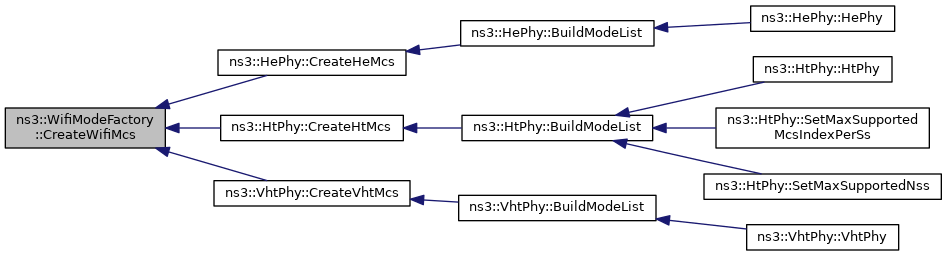

Here is the caller graph for this function:

◆ CreateWifiMode()

WifiMode ns3::WifiModeFactory::CreateWifiMode	(	std::string	uniqueName,
		WifiModulationClass	modClass,
		bool	isMandatory,
		CodeRateCallback	codeRateCallback,
		ConstellationSizeCallback	constellationSizeCallback,
		PhyRateCallback	phyRateCallback,
		PhyRateFromTxVectorCallback	phyRateFromTxVectorCallback,
		DataRateCallback	dataRateCallback,
		DataRateFromTxVectorCallback	dataRateFromTxVectorCallback,
		ModeAllowedCallback	isModeAllowedCallback
	)

static

Parameters

uniqueName	the name of the associated WifiMode. This name must be unique across all instances.
modClass	the class of modulation
isMandatory	true if this WifiMode is mandatory, false otherwise.
codeRateCallback	a callback function to retrieve coding rate of this WifiMode. If convolutional coding is used for this rate then the callback returns the convolutional coding rate used. If there is no explicit convolutional coding step (e.g., for DSSS rates) then the callback should returns WIFI_CODE_RATE_UNDEFINED.
constellationSizeCallback	a callback function that returns the order of the constellation used.
phyRateCallback	a callback function to calculate the PHY rate (in bps) of this WifiMode.
phyRateFromTxVectorCallback	a callback function to calculate the PHY rate (in bps) of this WifiMode using a TXVECTOR as input.
dataRateCallback	a callback function to calculate the data rate (in bps) of this WifiMode.
dataRateFromTxVectorCallback	a callback function to calculate the data rate (in bps) of this WifiMode using a TXVECTOR as input.
isModeAllowedCallback	a callback function to check whether a specific combination of this WifiMode, channel width (MHz), and NSS are allowed.
