Construct a windowed filter. More...

#include "windowed-filter.h"

Inheritance diagram for ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >:

Collaboration diagram for ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >:

Classes
struct	Sample
	sample. More...

Public Member Functions
	WindowedFilter ()
	contructor More...

	WindowedFilter (TimeDeltaT windowLength, T zeroValue, TimeT zeroTime)
	contructor More...

T	GetBest () const
	Returns Max/Min value so far among the windowed samples. More...

T	GetSecondBest () const
	Returns second Max/Min value so far among the windowed samples. More...

T	GetThirdBest () const
	Returns third Max/Min value so far among the windowed samples. More...

void	Reset (T new_sample, TimeT new_time)
	Resets all estimates to new sample. More...

void	SetWindowLength (TimeDeltaT windowLength)
	Changes the window length. More...

void	Update (T new_sample, TimeT new_time)
	Updates best estimates with \|sample\|, and expires and updates best estimates as necessary. More...

Public Attributes
Sample	m_samples [3]
	Best estimate is element 0. More...

TimeDeltaT	m_windowLength
	Time length of window. More...

T	m_zeroValue
	Uninitialized value of T. More...

Detailed Description

template<class T, class Compare, typename TimeT, typename TimeDeltaT>
class ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >

Construct a windowed filter.

Use the following to construct a windowed filter object of type T. For example, a min filter using QuicTime as the time type: WindowedFilter<T, MinFilter<T>, QuicTime, QuicTime::Delta> ObjectName; max filter using 64-bit integers as the time type: WindowedFilter<T, MaxFilter<T>, uint64_t, int64_t> ObjectName;

Parameters

T	– type of the measurement that is being filtered.
Compare	– MinFilter<T> or MaxFilter<T>, depending on the type of filter desired.
TimeT	– the type used to represent timestamps.
TimeDeltaT	– the type used to represent continuous time intervals between two timestamps. Has to be the type of (a - b) if both \|a\| and \|b\| are of type TimeT.

Definition at line 133 of file windowed-filter.h.

Constructor & Destructor Documentation

◆ WindowedFilter() [1/2]

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::WindowedFilter ( )

inline

contructor

Definition at line 139 of file windowed-filter.h.

◆ WindowedFilter() [2/2]

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::WindowedFilter	(	TimeDeltaT	windowLength,
		T	zeroValue,
		TimeT	zeroTime
	)

inline

contructor

Parameters

windowLength	is the period after which a best estimate expires.
zeroValue	is used as the uninitialized value for objects of T. Importantly, zeroValue should be an invalid value for a true sample.
zeroTime	is the time of instance record time.

Definition at line 150 of file windowed-filter.h.

Member Function Documentation

◆ GetBest()

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetBest ( ) const

inline

Returns Max/Min value so far among the windowed samples.

Returns: returns Best (max/min) value so far among the windowed samples.

Definition at line 244 of file windowed-filter.h.

Referenced by ns3::TcpBbr::AckAggregationCwnd(), ns3::TcpBbr::CheckFullPipe(), ns3::TcpBbr::InFlight(), ns3::TcpBbr::SetPacingRate(), ns3::TcpBbr::UpdateAckAggregation(), and ns3::TcpBbr::UpdateBtlBw().

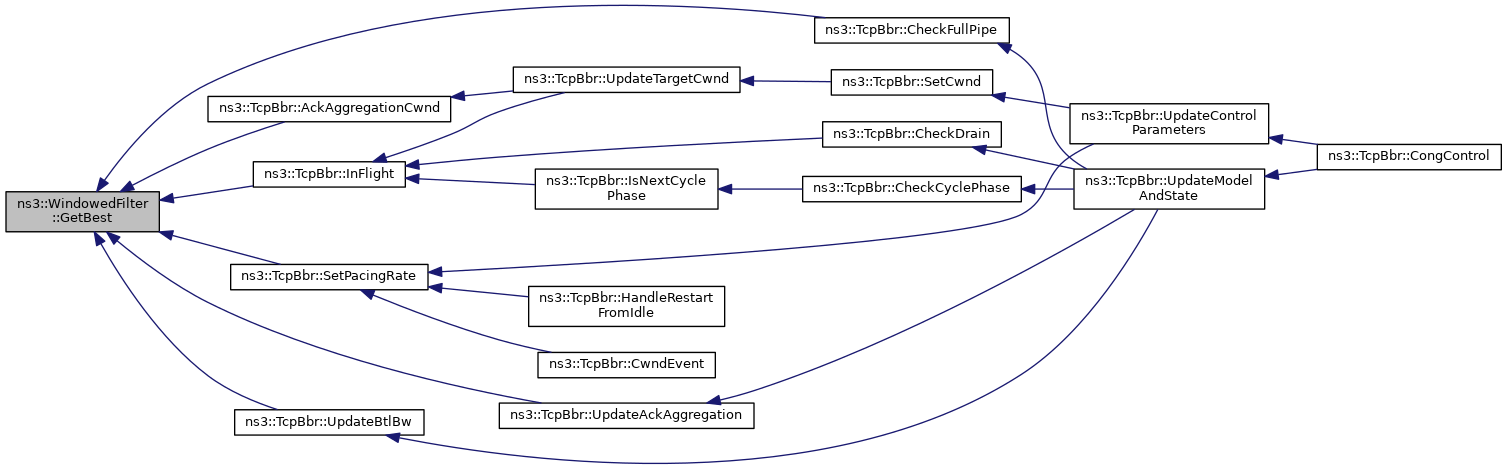

Here is the caller graph for this function:

◆ GetSecondBest()

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetSecondBest ( ) const

inline

Returns second Max/Min value so far among the windowed samples.

Returns: returns second Best (max/min) value so far among the windowed samples.

Definition at line 253 of file windowed-filter.h.

◆ GetThirdBest()

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetThirdBest ( ) const

inline

Returns third Max/Min value so far among the windowed samples.

Returns: returns third Best (max/min) value so far among the windowed samples.

Definition at line 262 of file windowed-filter.h.

◆ Reset()

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

void ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Reset	(	T	new_sample,
		TimeT	new_time
	)

inline

Resets all estimates to new sample.

Parameters

new_sample	update new sample.
new_time	record time of the new sample.

Definition at line 235 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::Update().

Here is the caller graph for this function:

◆ SetWindowLength()

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

void ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::SetWindowLength ( TimeDeltaT windowLength )

inline

Changes the window length.

Does not update any current samples.

Parameters

windowLength is the period after which a best estimate expires.

Definition at line 163 of file windowed-filter.h.

◆ Update()

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

void ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Update	(	T	new_sample,
		TimeT	new_time
	)

inline

Updates best estimates with |sample|, and expires and updates best estimates as necessary.

Parameters

new_sample	update new sample.
new_time	record time of the new sample.

Definition at line 174 of file windowed-filter.h.

Referenced by ns3::TcpBbr::UpdateBtlBw().

Here is the caller graph for this function:

Member Data Documentation

◆ m_samples

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

Sample ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples[3]

Best estimate is element 0.

Definition at line 295 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::GetBest(), ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::GetSecondBest(), ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::GetThirdBest(), ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::Reset(), and ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::Update().

◆ m_windowLength

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

TimeDeltaT ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_windowLength

Time length of window.

Definition at line 293 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::SetWindowLength(), and ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::Update().

◆ m_zeroValue

template<class T, class Compare, typename TimeT, typename TimeDeltaT>

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_zeroValue

Uninitialized value of T.

Definition at line 294 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::Update(), and ns3::WindowedFilter< DataRate, MaxFilter< DataRate >, uint32_t, uint32_t >::WindowedFilter().

The documentation for this class was generated from the following file:

src/internet/model/windowed-filter.h
