ns3::dot11s::IeBeaconTimingUnit Class Reference

Information element describing one unit of beacon timing element. More...

#include "ie-dot11s-beacon-timing.h"

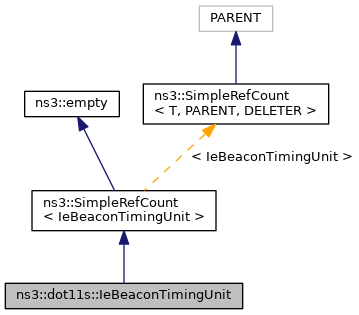

Inheritance diagram for ns3::dot11s::IeBeaconTimingUnit:

Collaboration diagram for ns3::dot11s::IeBeaconTimingUnit:

Public Member Functions
	IeBeaconTimingUnit ()
uint8_t	GetAid () const
	Get AID value. More...
uint16_t	GetBeaconInterval () const
	Get beacon interval. More...
uint16_t	GetLastBeacon () const
	Get last beacon value. More...
void	SetAid (uint8_t aid)
	Set AID value. More...
void	SetBeaconInterval (uint16_t beaconInterval)
	Set beacon interval value. More...
void	SetLastBeacon (uint16_t lastBeacon)
	Set last beacon value. More...
Public Member Functions inherited from ns3::SimpleRefCount< IeBeaconTimingUnit >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_aid
	Least significant octet of AID: More...
uint16_t	m_beaconInterval
	Beacon interval of remote mesh point. More...
uint16_t	m_lastBeacon
	Last time we received a beacon in accordance with a local TSF measured in 256 microseconds unit. More...

Friends
bool	operator== (const IeBeaconTimingUnit &a, const IeBeaconTimingUnit &b)
	equality operator More...

Detailed Description

Information element describing one unit of beacon timing element.

Definition at line 34 of file ie-dot11s-beacon-timing.h.

Constructor & Destructor Documentation

IeBeaconTimingUnit()

ns3::dot11s::IeBeaconTimingUnit::IeBeaconTimingUnit

(

)

Definition at line 28 of file ie-dot11s-beacon-timing.cc.

Member Function Documentation

GetAid()

uint8_t ns3::dot11s::IeBeaconTimingUnit::GetAid

(

)

const

Get AID value.

Returns

the AID

Definition at line 48 of file ie-dot11s-beacon-timing.cc.

References m_aid.

Referenced by ns3::dot11s::operator==().

Here is the caller graph for this function:

GetBeaconInterval()

uint16_t ns3::dot11s::IeBeaconTimingUnit::GetBeaconInterval

(

)

const

Get beacon interval.

Returns

the beacon interval

Definition at line 58 of file ie-dot11s-beacon-timing.cc.

References m_beaconInterval.

Referenced by ns3::dot11s::operator==().

Here is the caller graph for this function:

GetLastBeacon()

uint16_t ns3::dot11s::IeBeaconTimingUnit::GetLastBeacon

(

)

const

Get last beacon value.

Returns

the last beacon

Definition at line 53 of file ie-dot11s-beacon-timing.cc.

References m_lastBeacon.

Referenced by ns3::dot11s::operator==().

Here is the caller graph for this function:

SetAid()

void ns3::dot11s::IeBeaconTimingUnit::SetAid

(

uint8_t

aid

)

Set AID value.

Parameters

aid

the AID

Definition at line 33 of file ie-dot11s-beacon-timing.cc.

References m_aid.

Referenced by ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit(), and ns3::dot11s::IeBeaconTiming::DeserializeInformationField().

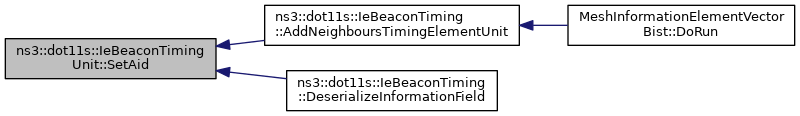

Here is the caller graph for this function:

SetBeaconInterval()

void ns3::dot11s::IeBeaconTimingUnit::SetBeaconInterval

(

uint16_t

beaconInterval

)

Set beacon interval value.

Parameters

beaconInterval

the beacon interval

Definition at line 43 of file ie-dot11s-beacon-timing.cc.

References m_beaconInterval.

Referenced by ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit(), and ns3::dot11s::IeBeaconTiming::DeserializeInformationField().

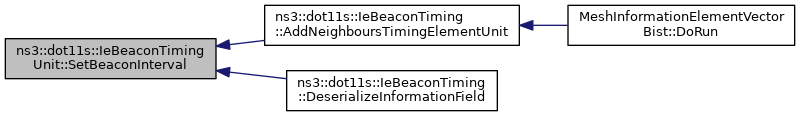

Here is the caller graph for this function:

SetLastBeacon()

void ns3::dot11s::IeBeaconTimingUnit::SetLastBeacon

(

uint16_t

lastBeacon

)

Set last beacon value.

Parameters

lastBeacon

the last beacon

Definition at line 38 of file ie-dot11s-beacon-timing.cc.

References m_lastBeacon.

Referenced by ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit(), and ns3::dot11s::IeBeaconTiming::DeserializeInformationField().

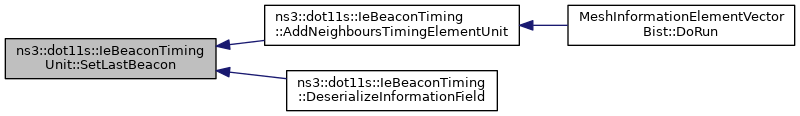

Here is the caller graph for this function:

Friends And Related Function Documentation

operator==

bool operator== ( const IeBeaconTimingUnit &  a, const IeBeaconTimingUnit &  b  )

friend

equality operator

Parameters

a	lhs
b	rhs

Returns

true if equal

Definition at line 185 of file ie-dot11s-beacon-timing.cc.

Member Data Documentation

m_aid

uint8_t ns3::dot11s::IeBeaconTimingUnit::m_aid

private

Least significant octet of AID:

Definition at line 72 of file ie-dot11s-beacon-timing.h.

Referenced by GetAid(), and SetAid().

m_beaconInterval

uint16_t ns3::dot11s::IeBeaconTimingUnit::m_beaconInterval

private

Beacon interval of remote mesh point.

Definition at line 76 of file ie-dot11s-beacon-timing.h.

Referenced by GetBeaconInterval(), and SetBeaconInterval().

m_lastBeacon

uint16_t ns3::dot11s::IeBeaconTimingUnit::m_lastBeacon

private

Last time we received a beacon in accordance with a local TSF measured in 256 microseconds unit.

Definition at line 74 of file ie-dot11s-beacon-timing.h.

Referenced by GetLastBeacon(), and SetLastBeacon().

---

The documentation for this class was generated from the following files:

• src/mesh/model/dot11s/ie-dot11s-beacon-timing.h
• src/mesh/model/dot11s/ie-dot11s-beacon-timing.cc
