#include "dsr-errorbuff.h"

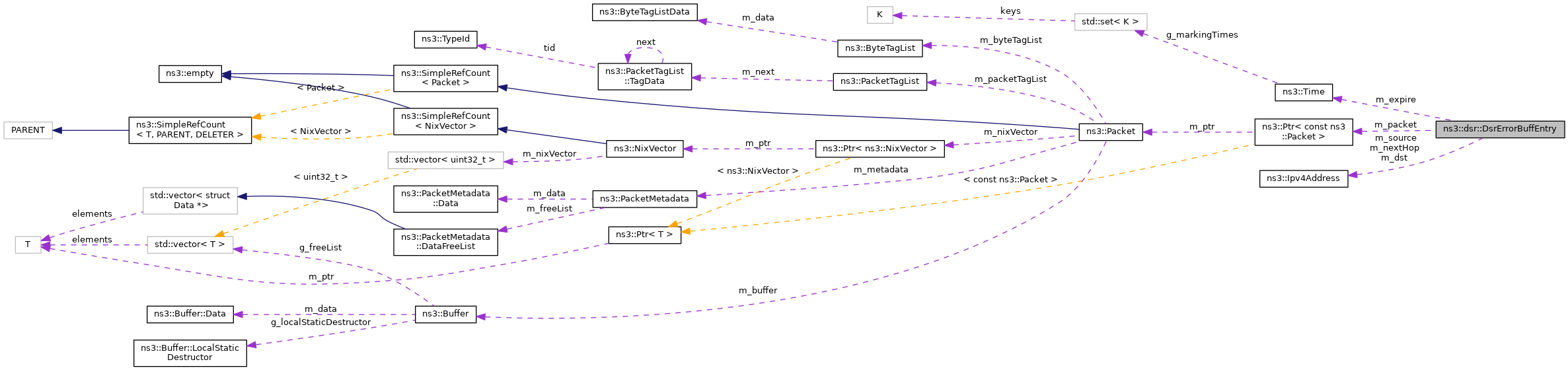

Collaboration diagram for ns3::dsr::DsrErrorBuffEntry:

Public Member Functions
	DsrErrorBuffEntry (Ptr< const Packet > pa=0, Ipv4Address d=Ipv4Address(), Ipv4Address s=Ipv4Address(), Ipv4Address n=Ipv4Address(), Time exp=Simulator::Now(), uint8_t p=0)
	Create an DsrErrorBuffEntry with the given parameters. More...

Ipv4Address	GetDestination () const
	Get destination address. More...

Time	GetExpireTime () const
	Get expire time. More...

Ipv4Address	GetNextHop () const
	Get next hop. More...

Ptr< const Packet >	GetPacket () const
	Get packet from entry. More...

uint8_t	GetProtocol () const
	Get protocol number. More...

Ipv4Address	GetSource () const
	Get source address. More...

bool	operator== (DsrErrorBuffEntry const &o) const
	Compare send buffer entries. More...

void	SetDestination (Ipv4Address d)
	Set destination address. More...

void	SetExpireTime (Time exp)
	Set expire time. More...

void	SetNextHop (Ipv4Address n)
	Set next hop. More...

void	SetPacket (Ptr< const Packet > p)
	Set packet for entry. More...

void	SetProtocol (uint8_t p)
	Set protocol number. More...

void	SetSource (Ipv4Address s)
	Set source address. More...

Private Attributes
Ipv4Address	m_dst
	Destination address. More...

Time	m_expire
	Expire time for queue entry. More...

Ipv4Address	m_nextHop
	Nexthop address. More...

Ptr< const Packet >	m_packet
	Data packet. More...

uint8_t	m_protocol
	The protocol number. More...

Ipv4Address	m_source
	Source address. More...

Detailed Description

DSR Error Buffer Entry.

Definition at line 45 of file dsr-errorbuff.h.

Constructor & Destructor Documentation

◆ DsrErrorBuffEntry()

ns3::dsr::DsrErrorBuffEntry::DsrErrorBuffEntry	(	Ptr< const Packet >	pa = `0`,
		Ipv4Address	d = `Ipv4Address ()`,
		Ipv4Address	s = `Ipv4Address ()`,
		Ipv4Address	n = `Ipv4Address ()`,
		Time	exp = `Simulator::Now ()`,
		uint8_t	p = `0`
	)

inline

Create an DsrErrorBuffEntry with the given parameters.

Parameters

pa	packet
d	IPv4 address of the destination
s	IPv4 address of the source
n	IPv4 address of the next hop
exp	expiration time
p	protocol number

Definition at line 58 of file dsr-errorbuff.h.

Member Function Documentation

◆ GetDestination()

Ipv4Address ns3::dsr::DsrErrorBuffEntry::GetDestination ( ) const

inline

Get destination address.

Returns: the destination IPv4 address

Definition at line 99 of file dsr-errorbuff.h.

References m_dst.

Referenced by ns3::dsr::DsrErrorBuffer::Drop(), and ns3::dsr::DsrErrorBuffer::Enqueue().

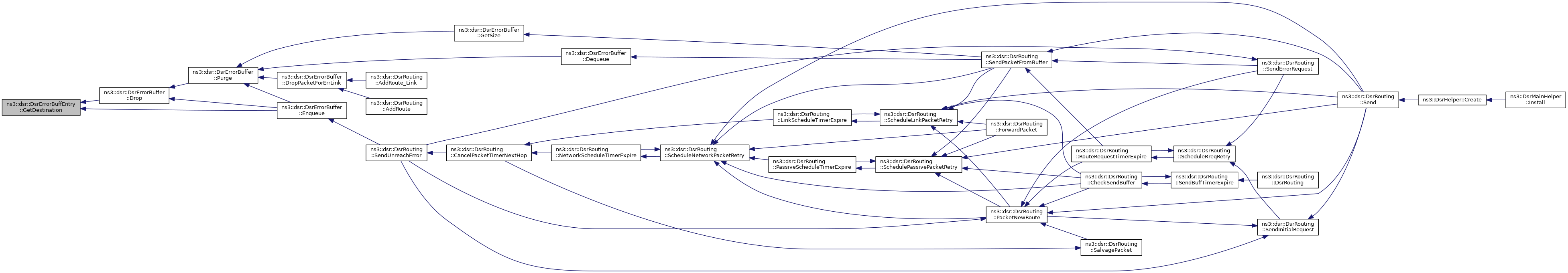

Here is the caller graph for this function:

◆ GetExpireTime()

Time ns3::dsr::DsrErrorBuffEntry::GetExpireTime ( ) const

inline

Get expire time.

Returns: the expire time

Definition at line 155 of file dsr-errorbuff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::IsExpired::operator()().

Here is the call graph for this function:

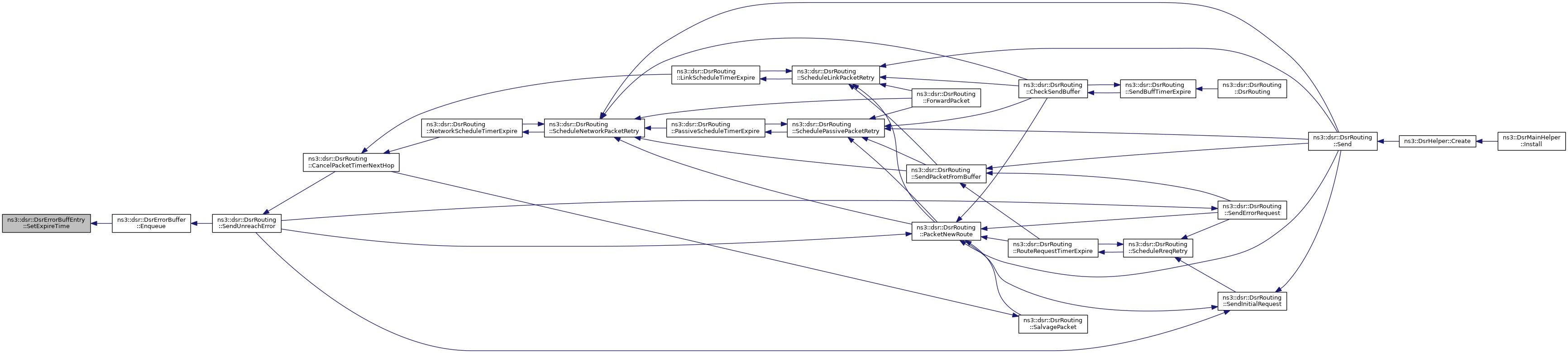

Here is the caller graph for this function:

◆ GetNextHop()

Ipv4Address ns3::dsr::DsrErrorBuffEntry::GetNextHop ( ) const

inline

Get next hop.

Returns: the next hop address

Definition at line 131 of file dsr-errorbuff.h.

References m_nextHop.

Referenced by ns3::dsr::DsrErrorBuffer::DropLink(), and ns3::dsr::DsrErrorBuffer::Enqueue().

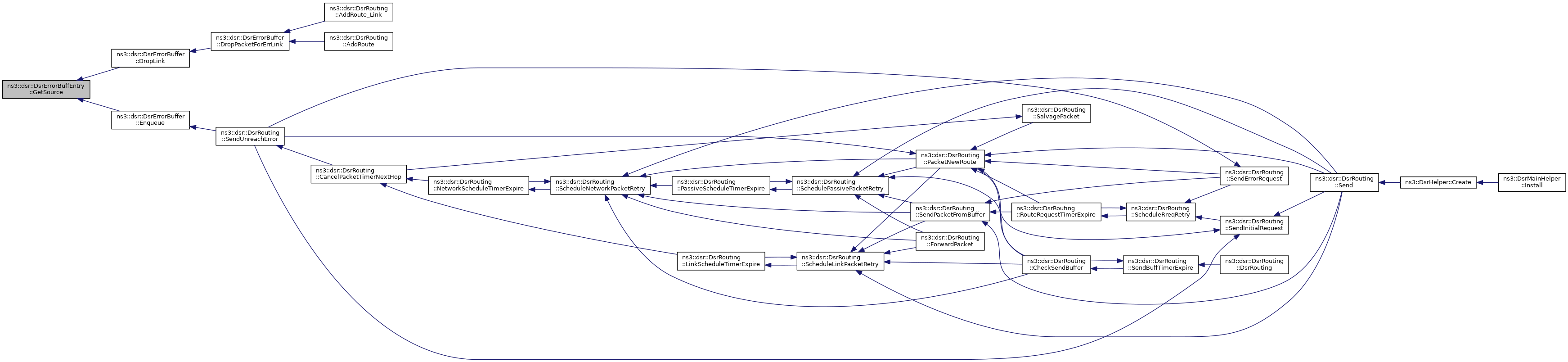

Here is the caller graph for this function:

◆ GetPacket()

Ptr<const Packet> ns3::dsr::DsrErrorBuffEntry::GetPacket ( ) const

inline

Get packet from entry.

Returns: the packet

Definition at line 83 of file dsr-errorbuff.h.

References m_packet.

Referenced by ns3::dsr::DsrErrorBuffer::Dequeue(), ns3::dsr::DsrErrorBuffer::Drop(), ns3::dsr::DsrErrorBuffer::DropLink(), ns3::dsr::DsrErrorBuffer::Enqueue(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

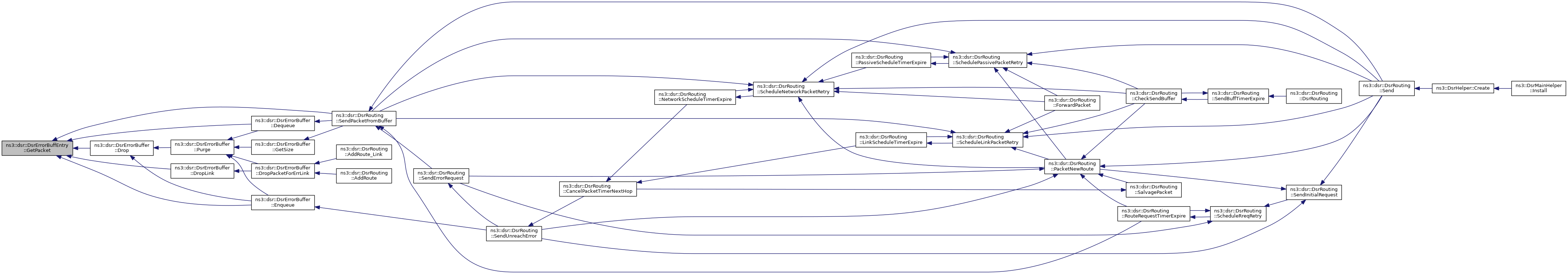

Here is the caller graph for this function:

◆ GetProtocol()

uint8_t ns3::dsr::DsrErrorBuffEntry::GetProtocol ( ) const

inline

Get protocol number.

Returns: the protocol number

Definition at line 171 of file dsr-errorbuff.h.

References m_protocol.

◆ GetSource()

Ipv4Address ns3::dsr::DsrErrorBuffEntry::GetSource ( ) const

inline

Get source address.

Returns: the source IPv4 address

Definition at line 115 of file dsr-errorbuff.h.

References m_source.

Referenced by ns3::dsr::DsrErrorBuffer::DropLink(), and ns3::dsr::DsrErrorBuffer::Enqueue().

Here is the caller graph for this function:

◆ operator==()

bool ns3::dsr::DsrErrorBuffEntry::operator== ( DsrErrorBuffEntry const & o ) const

inline

Compare send buffer entries.

Parameters

o	another DsrErrorBuffEntry

Returns: true if equal

Definition at line 73 of file dsr-errorbuff.h.

References m_dst, m_expire, m_nextHop, m_packet, and m_source.

◆ SetDestination()

void ns3::dsr::DsrErrorBuffEntry::SetDestination ( Ipv4Address d )

inline

Set destination address.

Parameters

d	the destination IPv4 address

Definition at line 107 of file dsr-errorbuff.h.

References m_dst.

◆ SetExpireTime()

void ns3::dsr::DsrErrorBuffEntry::SetExpireTime ( Time exp )

inline

Set expire time.

Parameters

exp	the expire time

Definition at line 147 of file dsr-errorbuff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::DsrErrorBuffer::Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetNextHop()

void ns3::dsr::DsrErrorBuffEntry::SetNextHop ( Ipv4Address n )

inline

Set next hop.

Parameters

n	the next hop IPv4 address

Definition at line 139 of file dsr-errorbuff.h.

References m_nextHop, and sample-rng-plot::n.

◆ SetPacket()

void ns3::dsr::DsrErrorBuffEntry::SetPacket ( Ptr< const Packet > p )

inline

Set packet for entry.

Parameters

p	the packet

Definition at line 91 of file dsr-errorbuff.h.

References m_packet.

◆ SetProtocol()

void ns3::dsr::DsrErrorBuffEntry::SetProtocol ( uint8_t p )

inline

Set protocol number.

Parameters

p	the protocol number

Definition at line 163 of file dsr-errorbuff.h.

References m_protocol.

◆ SetSource()

void ns3::dsr::DsrErrorBuffEntry::SetSource ( Ipv4Address s )

inline

Set source address.

Parameters

s	the source IPv4 address

Definition at line 123 of file dsr-errorbuff.h.

References m_source.

Member Data Documentation

◆ m_dst

Ipv4Address ns3::dsr::DsrErrorBuffEntry::m_dst

private

Destination address.

destination address

Definition at line 180 of file dsr-errorbuff.h.

Referenced by GetDestination(), operator==(), and SetDestination().

◆ m_expire

Time ns3::dsr::DsrErrorBuffEntry::m_expire

private

Expire time for queue entry.

expiration time

Definition at line 186 of file dsr-errorbuff.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

◆ m_nextHop

Ipv4Address ns3::dsr::DsrErrorBuffEntry::m_nextHop

private

Nexthop address.

next hop

Definition at line 184 of file dsr-errorbuff.h.

Referenced by GetNextHop(), operator==(), and SetNextHop().

◆ m_packet

Ptr<const Packet> ns3::dsr::DsrErrorBuffEntry::m_packet

private

Data packet.

the packet

Definition at line 178 of file dsr-errorbuff.h.

Referenced by GetPacket(), operator==(), and SetPacket().

◆ m_protocol

uint8_t ns3::dsr::DsrErrorBuffEntry::m_protocol

private

The protocol number.

Definition at line 188 of file dsr-errorbuff.h.

Referenced by GetProtocol(), and SetProtocol().

◆ m_source

Ipv4Address ns3::dsr::DsrErrorBuffEntry::m_source

private

Source address.

source address

Definition at line 182 of file dsr-errorbuff.h.

Referenced by GetSource(), operator==(), and SetSource().

The documentation for this class was generated from the following file:

src/dsr/model/dsr-errorbuff.h
