tcp-linux-reno.cc File Reference

#include <iostream>
#include <string>
#include <fstream>
#include <sys/stat.h>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/applications-module.h"
#include "ns3/traffic-control-module.h"

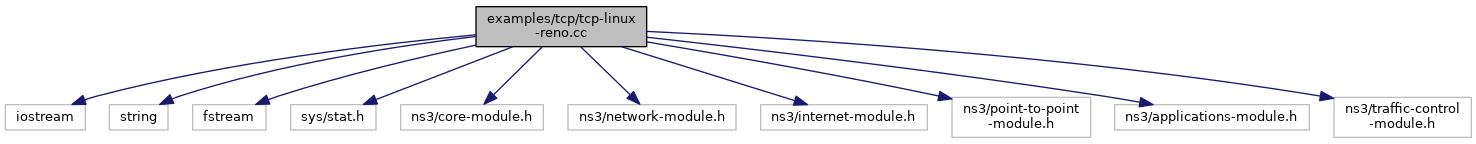

Include dependency graph for tcp-linux-reno.cc:

Go to the source code of this file.

Functions
void	CheckQueueSize (Ptr< QueueDisc > queue)
static void	CwndChange (uint32_t oldCwnd, uint32_t newCwnd)
static void	DropAtQueue (Ptr< OutputStreamWrapper > stream, Ptr< const QueueDiscItem > item)
void	InstallBulkSend (Ptr< Node > node, Ipv4Address address, uint16_t port, std::string socketFactory, uint32_t nodeId, uint32_t cwndWindow, Callback< void, uint32_t, uint32_t > CwndTrace)
void	InstallPacketSink (Ptr< Node > node, uint16_t port, std::string socketFactory)
void	TraceCwnd (uint32_t node, uint32_t cwndWindow, Callback< void, uint32_t, uint32_t > CwndTrace)

Variables
std::string	dir = "results/"
uint32_t	segmentSize = 524
Time	stopTime = Seconds (60)

Function Documentation

CheckQueueSize()

void CheckQueueSize

(

Ptr< QueueDisc >

queue

)

Definition at line 57 of file tcp-linux-reno.cc.

References dir, ns3::QueueDisc::GetCurrentSize(), ns3::Time::GetSeconds(), ns3::QueueSize::GetValue(), ns3::Simulator::Now(), ns3::Simulator::Schedule(), and ns3::Seconds().

Here is the call graph for this function:

CwndChange()

static void CwndChange ( uint32_t  oldCwnd, uint32_t  newCwnd  )

static

Definition at line 70 of file tcp-linux-reno.cc.

References dir, ns3::Time::GetSeconds(), ns3::Simulator::Now(), and segmentSize.

Here is the call graph for this function:

DropAtQueue()

static void DropAtQueue ( Ptr< OutputStreamWrapper >  stream, Ptr< const QueueDiscItem >  item  )

static

Definition at line 79 of file tcp-linux-reno.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), and ns3::Simulator::Now().

Here is the call graph for this function:

InstallBulkSend()

void InstallBulkSend	(	Ptr< Node >	node,
		Ipv4Address	address,
		uint16_t	port,
		std::string	socketFactory,
		uint32_t	nodeId,
		uint32_t	cwndWindow,
		Callback< void, uint32_t, uint32_t >	CwndTrace
	)

Definition at line 93 of file tcp-linux-reno.cc.

References first::address, CwndTrace(), ns3::BulkSendHelper::Install(), port, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::BulkSendHelper::SetAttribute(), ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), stopTime, and TraceCwnd().

Here is the call graph for this function:

InstallPacketSink()

void InstallPacketSink	(	Ptr< Node >	node,
		uint16_t	port,
		std::string	socketFactory
	)

Definition at line 106 of file tcp-linux-reno.cc.

References ns3::Ipv4Address::GetAny(), port, ns3::Seconds(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and stopTime.

Here is the call graph for this function:

TraceCwnd()

void TraceCwnd	(	uint32_t	node,
		uint32_t	cwndWindow,
		Callback< void, uint32_t, uint32_t >	CwndTrace
	)

Definition at line 86 of file tcp-linux-reno.cc.

References ns3::Config::ConnectWithoutContext(), and CwndTrace().

Referenced by InstallBulkSend().

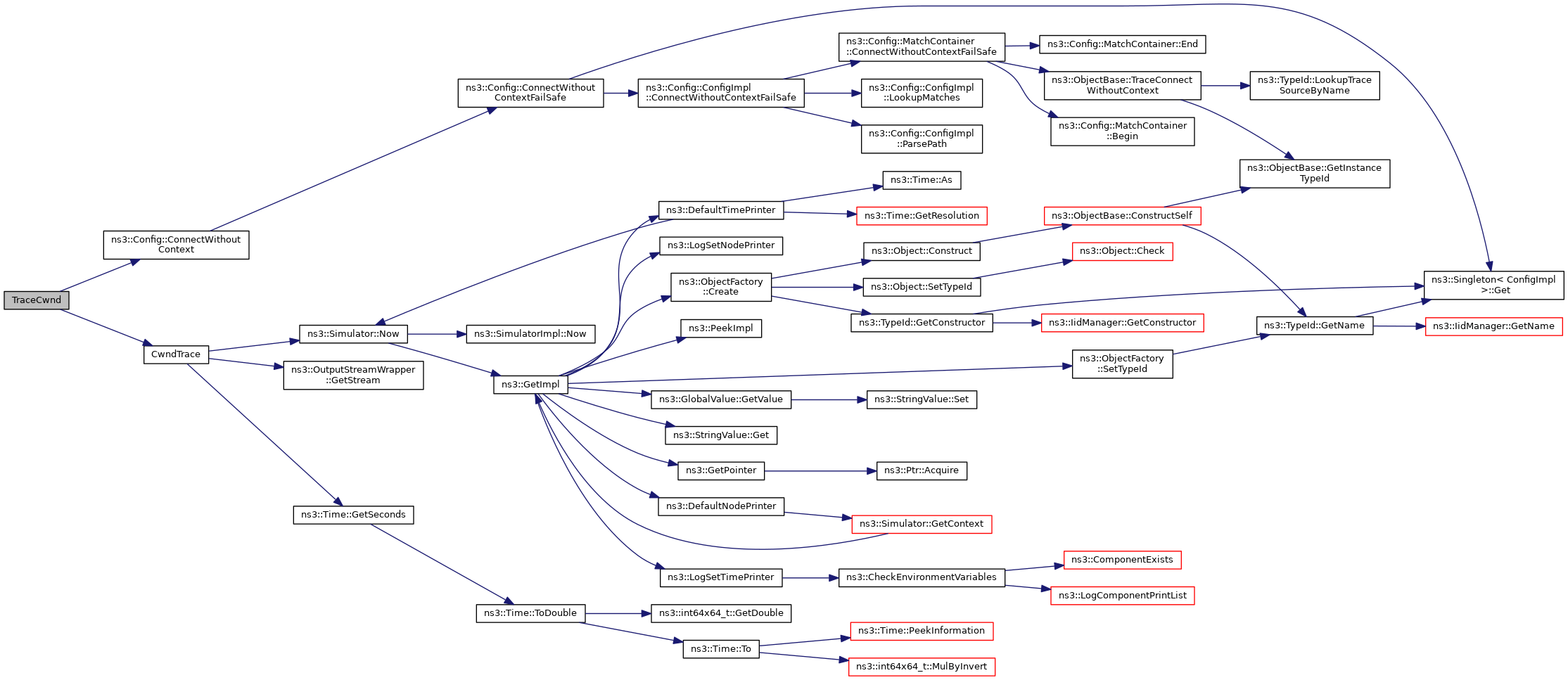

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

dir

std::string dir = "results/"

Definition at line 51 of file tcp-linux-reno.cc.

Referenced by CheckQueueSize(), and CwndChange().

segmentSize

uint32_t segmentSize = 524

Definition at line 53 of file tcp-linux-reno.cc.

Referenced by ns3::TcpRateLinux::CalculateAppLimited(), CwndChange(), ns3::TcpTxBuffer::SetSegmentSize(), ns3::TcpGeneralTest::SetSegmentSize(), TcpPacingTestSuite::TcpPacingTestSuite(), and TcpTxBufferTestCase::TestNextSeg().

stopTime

Time stopTime = Seconds (60)

Definition at line 52 of file tcp-linux-reno.cc.

Referenced by CreateBulkFlow(), CreateOnOffFlow(), LteRlcAmE2eTestCase::DoRun(), LteX2HandoverTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), ns3::AnimationInterface::EnableIpv4L3ProtocolCounters(), ns3::AnimationInterface::EnableIpv4RouteTracking(), ns3::AnimationInterface::EnableQueueCounters(), ns3::AnimationInterface::EnableWifiMacCounters(), ns3::AnimationInterface::EnableWifiPhyCounters(), experiment(), InstallBulkSend(), InstallPacketSink(), and ns3::DataCalculator::Stop().
