Create EventImpl instances from function pointers which take varying numbers of arguments. More...

Collaboration diagram for MakeEvent from Function Pointers.:

Functions
EventImpl *	ns3::MakeEvent (void(*f)(void))
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename T1 >
EventImpl *	ns3::MakeEvent (void(*f)(U1), T1 a1)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename T1 , typename T2 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2), T1 a1, T2 a2)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
EventImpl *	ns3::MakeEvent (void(*f)(U1, U2, U3, U4, U5, U6), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
	Make an EventImpl from a function pointer taking varying numbers of arguments. More...

Detailed Description

Create EventImpl instances from function pointers which take varying numbers of arguments.

Function Documentation

◆ MakeEvent() [1/7]

EventImpl * ns3::MakeEvent ( void(*)(void) f )

Make an EventImpl from a function pointer taking varying numbers of arguments.

Parameters

[in] f The function pointer.

Returns: The constructed EventImpl.

Definition at line 34 of file make-event.cc.

References f(), and NS_LOG_FUNCTION.

Referenced by ns3::TapBridge::ReadCallback(), ns3::FdNetDevice::ReceiveCallback(), ns3::Simulator::Schedule(), ns3::Simulator::ScheduleDestroy(), ns3::Simulator::ScheduleNow(), and ns3::Simulator::ScheduleWithContext().

Here is the call graph for this function:

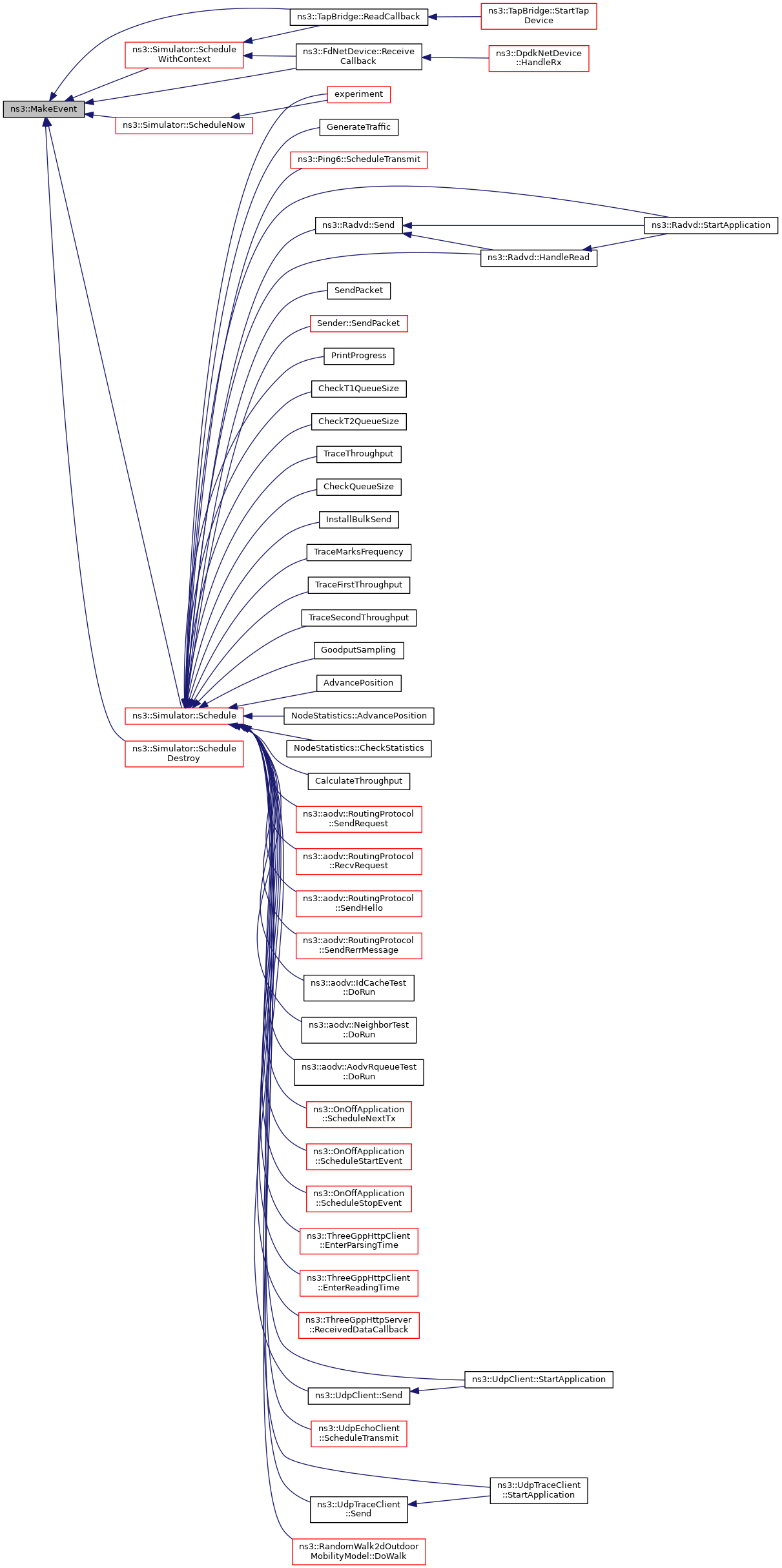

Here is the caller graph for this function:

◆ MakeEvent() [2/7]

template<typename U1 , typename T1 >

EventImpl * ns3::MakeEvent	(	void(*)(U1)	f,
		T1	a1
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the argument to the function.
T1	[deduced] Actual type of the argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	Argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 597 of file make-event.h.

References f().

Here is the call graph for this function:

◆ MakeEvent() [3/7]

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2)	f,
		T1	a1,
		T2	a2
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 626 of file make-event.h.

References f().

Here is the call graph for this function:

◆ MakeEvent() [4/7]

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3)	f,
		T1	a1,
		T2	a2,
		T3	a3
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.
T3	[deduced] Actual type of the third argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.
[in]	a3	Third argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 658 of file make-event.h.

References f().

Here is the call graph for this function:

◆ MakeEvent() [5/7]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3, U4)	f,
		T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.
T3	[deduced] Actual type of the third argument to the function.
T4	[deduced] Actual type of the fourth argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.
[in]	a3	Third argument to be bound to the function.
[in]	a4	Fourth argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 692 of file make-event.h.

References f().

Here is the call graph for this function:

◆ MakeEvent() [6/7]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3, U4, U5)	f,
		T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	[deduced] Formal type of the first argument to the function.
U2	[deduced] Formal type of the second argument to the function.
U3	[deduced] Formal type of the third argument to the function.
U4	[deduced] Formal type of the fourth argument to the function.
U5	[deduced] Formal type of the fifth argument to the function.
T1	[deduced] Actual type of the first argument to the function.
T2	[deduced] Actual type of the second argument to the function.
T3	[deduced] Actual type of the third argument to the function.
T4	[deduced] Actual type of the fourth argument to the function.
T5	[deduced] Actual type of the fifth argument to the function.

Parameters

[in]	f	The function pointer.
[in]	a1	First argument to be bound to the function.
[in]	a2	Second argument to be bound to the function.
[in]	a3	Third argument to be bound to the function.
[in]	a4	Fourth argument to be bound to the function.
[in]	a5	Fifth argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 728 of file make-event.h.

References f().

Here is the call graph for this function:

◆ MakeEvent() [7/7]

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename U6 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

EventImpl * ns3::MakeEvent	(	void(*)(U1, U2, U3, U4, U5, U6)	f,
		T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Make an EventImpl from a function pointer taking varying numbers of arguments.

Template Parameters

U1	Formal type of the first argument to the function.
U2	Formal type of the second argument to the function.
U3	Formal type of the third argument to the function.
U4	Formal type of the fourth argument to the function.
U5	Formal type of the fifth argument to the function.
U6	Formal type of the sixth argument to the function.
T1	Actual type of the first argument to the function.
T2	Actual type of the second argument to the function.
T3	Actual type of the third argument to the function.
T4	Actual type of the fourth argument to the function.
T5	Actual type of the fifth argument to the function.
T6	Actual type of the sixth argument to the function.

Parameters

f	The function pointer.
a1	First argument to be bound to the function.
a2	Second argument to be bound to the function.
a3	Third argument to be bound to the function.
a4	Fourth argument to be bound to the function.
a5	Fifth argument to be bound to the function.
a6	Sixth argument to be bound to the function.

Returns: The constructed EventImpl.

Definition at line 766 of file make-event.h.

References f().

Here is the call graph for this function:
