lr-wpan-mac.h File Reference

#include <ns3/object.h>
#include <ns3/traced-callback.h>
#include <ns3/traced-value.h>
#include <ns3/mac16-address.h>
#include <ns3/mac64-address.h>
#include <ns3/sequence-number.h>
#include <ns3/lr-wpan-phy.h>
#include <ns3/lr-wpan-fields.h>
#include <ns3/event-id.h>
#include <deque>

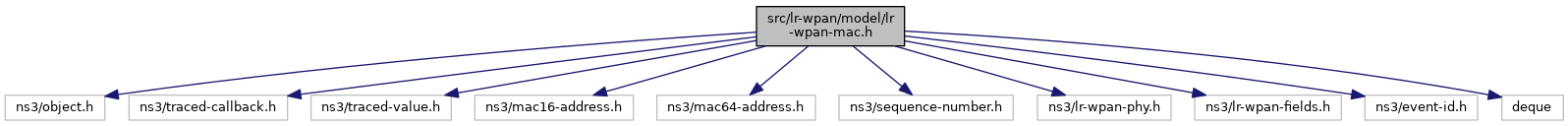

Include dependency graph for lr-wpan-mac.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::LrWpanMac::IndTxQueueElement
	Helper structure for managing indirect transmission queue elements. More...
class	ns3::LrWpanMac
	Class that implements the LR-WPAN MAC state machine. More...
struct	ns3::McpsDataConfirmParams
	MCPS-DATA.confirm params. More...
struct	ns3::McpsDataIndicationParams
	MCPS-DATA.indication params. More...
struct	ns3::McpsDataRequestParams
	MCPS-DATA.request params. More...
struct	ns3::MlmeBeaconNotifyIndicationParams
	MLME-BEACON-NOTIFY.indication params. More...
struct	ns3::MlmePollConfirmParams
	MLME-START.confirm params. More...
struct	ns3::MlmePollRequestParams
	MLME-POLL.request params. More...
struct	ns3::MlmeStartConfirmParams
	MLME-START.confirm params. More...
struct	ns3::MlmeStartRequestParams
	MLME-START.request params. More...
struct	ns3::MlmeSyncLossIndicationParams
	MLME-SYNC-LOSS.indication params. More...
struct	ns3::MlmeSyncRequestParams
	MLME-SYNC.request params. More...
struct	ns3::LrWpanMac::TxQueueElement
	Helper structure for managing transmission queue elements. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
	ns3::TracedValueCallback
	TracedValue Callback function types.

Typedefs
typedef void(*	ns3::TracedValueCallback::LrWpanMacState) (LrWpanMacState oldValue, LrWpanMacState newValue)
	TracedValue callback signature for LrWpanMacState. More...
typedef Callback< void, McpsDataConfirmParams >	ns3::McpsDataConfirmCallback
	This callback is called after a McpsDataRequest has been called from the higher layer. More...
typedef Callback< void, McpsDataIndicationParams, Ptr< Packet > >	ns3::McpsDataIndicationCallback
	This callback is called after a Mcps has successfully received a frame and wants to deliver it to the higher layer. More...
typedef Callback< void, MlmeBeaconNotifyIndicationParams, Ptr< Packet > >	ns3::MlmeBeaconNotifyIndicationCallback
	This callback is called after a Mlme has successfully received a beacon frame and wants to deliver it to the higher layer. More...
typedef Callback< void, MlmePollConfirmParams >	ns3::MlmePollConfirmCallback
	This callback is called after a Mlme-Poll.Request has been called from the higher layer. More...
typedef Callback< void, MlmeStartConfirmParams >	ns3::MlmeStartConfirmCallback
	This callback is called after a MlmeStartRequest has been called from the higher layer. More...
typedef Callback< void, MlmeSyncLossIndicationParams >	ns3::MlmeSyncLossIndicationCallback
	This callback is called to indicate the loss of synchronization with a coordinator. More...
typedef void(*	ns3::TracedValueCallback::SuperframeStatus) (SuperframeStatus oldValue, SuperframeStatus newValue)
	TracedValue callback signature for SuperframeStatus. More...

Enumerations
enum	ns3::LrWpanAddressMode { ns3::NO_PANID_ADDR = 0, ns3::ADDR_MODE_RESERVED = 1, ns3::SHORT_ADDR = 2, ns3::EXT_ADDR = 3 }
	table 80 of 802.15.4 More...
enum	ns3::LrWpanAssociationStatus {   ns3::ASSOCIATED = 0, ns3::PAN_AT_CAPACITY = 1, ns3::PAN_ACCESS_DENIED = 2, ns3::ASSOCIATED_WITHOUT_ADDRESS = 0xfe,   ns3::DISASSOCIATED = 0xff }
	table 83 of 802.15.4 More...
enum	ns3::LrWpanMacState {   ns3::MAC_IDLE, ns3::MAC_CSMA, ns3::MAC_SENDING, ns3::MAC_ACK_PENDING,   ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::SET_PHY_TX_ON, ns3::MAC_GTS,   ns3::MAC_INACTIVE, ns3::MAC_CSMA_DEFERRED }
	MAC states. More...
enum	ns3::LrWpanMcpsDataConfirmStatus {   ns3::IEEE_802_15_4_SUCCESS = 0, ns3::IEEE_802_15_4_TRANSACTION_OVERFLOW = 1, ns3::IEEE_802_15_4_TRANSACTION_EXPIRED = 2, ns3::IEEE_802_15_4_CHANNEL_ACCESS_FAILURE = 3,   ns3::IEEE_802_15_4_INVALID_ADDRESS = 4, ns3::IEEE_802_15_4_INVALID_GTS = 5, ns3::IEEE_802_15_4_NO_ACK = 6, ns3::IEEE_802_15_4_COUNTER_ERROR = 7,   ns3::IEEE_802_15_4_FRAME_TOO_LONG = 8, ns3::IEEE_802_15_4_UNAVAILABLE_KEY = 9, ns3::IEEE_802_15_4_UNSUPPORTED_SECURITY = 10, ns3::IEEE_802_15_4_INVALID_PARAMETER = 11 }
	Table 42 of 802.15.4-2006. More...
enum	ns3::LrWpanMlmePollConfirmStatus {   ns3::MLMEPOLL_SUCCESS = 0, ns3::MLMEPOLL_CHANNEL_ACCESS_FAILURE = 2, ns3::MLMEPOLL_NO_ACK = 3, ns3::MLMEPOLL_NO_DATA = 4,   ns3::MLMEPOLL_COUNTER_ERROR = 5, ns3::MLMEPOLL_FRAME_TOO_LONG = 6, ns3::MLMEPOLL_UNAVAILABLE_KEY = 7, ns3::MLMEPOLL_UNSUPPORTED_SECURITY = 8,   ns3::MLMEPOLL_INVALID_PARAMETER = 9 }
	Table 39 of IEEE 802.15.4-2011. More...
enum	ns3::LrWpanMlmeStartConfirmStatus {   ns3::MLMESTART_SUCCESS = 0, ns3::MLMESTART_NO_SHORT_ADDRESS = 1, ns3::MLMESTART_SUPERFRAME_OVERLAP = 2, ns3::MLMESTART_TRACKING_OFF = 3,   ns3::MLMESTART_INVALID_PARAMETER = 4, ns3::MLMESTART_COUNTER_ERROR = 5, ns3::MLMESTART_FRAME_TOO_LONG = 6, ns3::MLMESTART_UNAVAILABLE_KEY = 7,   ns3::MLMESTART_UNSUPPORTED_SECURITY = 8, ns3::MLMESTART_CHANNEL_ACCESS_FAILURE = 9 }
	Table 35 of IEEE 802.15.4-2011. More...
enum	ns3::LrWpanSyncLossReason { ns3::MLMESYNCLOSS_PAN_ID_CONFLICT = 0, ns3::MLMESYNCLOSS_REALIGMENT = 1, ns3::MLMESYNCLOSS_BEACON_LOST = 2, ns3::MLMESYNCLOSS_SUPERFRAME_OVERLAP = 3 }
	Table 37 of IEEE 802.15.4-2011. More...
enum	ns3::LrWpanTxOption { ns3::TX_OPTION_NONE = 0, ns3::TX_OPTION_ACK = 1, ns3::TX_OPTION_GTS = 2, ns3::TX_OPTION_INDIRECT = 4 }
	Tx options. More...
enum	ns3::SuperframeStatus { ns3::BEACON, ns3::CAP, ns3::CFP, ns3::INACTIVE }
	Superframe status. More...
enum	ns3::SuperframeType { ns3::OUTGOING = 0, ns3::INCOMING = 1 }
	Superframe type. More...
