#include "ns3/wifi-remote-station-manager.h"
#include "minstrel-wifi-manager.h"
#include "ns3/wifi-mpdu-type.h"

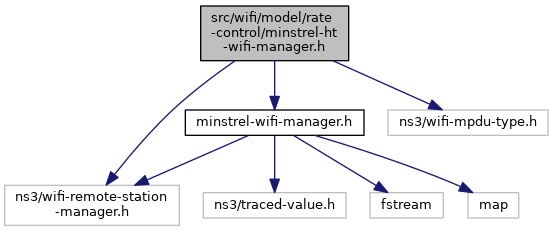

Include dependency graph for minstrel-ht-wifi-manager.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	ns3::GroupInfo
	A struct to contain information of a group. More...

struct	ns3::McsGroup
	Data structure to contain the information that defines a group. More...

struct	ns3::MinstrelHtRateInfo
	A struct to contain all statistics information related to a data rate. More...

class	ns3::MinstrelHtWifiManager
	Implementation of Minstrel-HT Rate Control AlgorithmMinstrel-HT is a rate adaptation mechanism for the 802.11n/ac/ax standards based on Minstrel, and is based on the approach of probing the channel to dynamically learn about working rates that can be supported. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
typedef std::vector< struct GroupInfo >	ns3::McsGroupData
	Data structure for a table of groups. More...

typedef std::vector< MinstrelHtRateInfo >	ns3::MinstrelHtRate
	Data structure for a Minstrel Rate table. More...

typedef std::vector< McsGroup >	ns3::MinstrelMcsGroups
	Data structure for a table of group definitions. More...

typedef std::map< WifiMode, Time >	ns3::TxTime
	Data structure to save transmission time calculations per rate. More...

Enumerations
enum	ns3::McsGroupType { ns3::GROUP_HT = 0, ns3::GROUP_VHT, ns3::GROUP_HE }
	Available MCS group types. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, McsGroupType type)
	Stream insertion operator. More...

Variables
static const uint8_t	ns3::MAX_HE_GROUP_RATES = 12
	Number of rates (or MCS) per HE group. More...

static const uint8_t	ns3::MAX_HE_STREAM_GROUPS = 12
	Maximal number of groups per stream in HE (4 possible channel widths and 3 possible GI configurations). More...

static const uint8_t	ns3::MAX_HE_SUPPORTED_STREAMS = 8
	Maximal number of streams supported by the HE PHY layer. More...

static const uint8_t	ns3::MAX_HE_WIDTH = 160
	Maximal channel width in MHz. More...

static const uint8_t	ns3::MAX_HT_GROUP_RATES = 8
	Number of rates (or MCS) per HT group. More...

static const uint8_t	ns3::MAX_HT_STREAM_GROUPS = 4
	Maximal number of groups per stream in HT (2 possible channel widths and 2 possible GI configurations). More...

static const uint8_t	ns3::MAX_HT_SUPPORTED_STREAMS = 4
	Constants for maximum values. More...

static const uint8_t	ns3::MAX_HT_WIDTH = 40
	Maximal channel width in MHz. More...

static const uint8_t	ns3::MAX_VHT_GROUP_RATES = 10
	Number of rates (or MCS) per VHT group. More...

static const uint8_t	ns3::MAX_VHT_STREAM_GROUPS = 8
	Maximal number of groups per stream in VHT (4 possible channel widths and 2 possible GI configurations). More...

static const uint8_t	ns3::MAX_VHT_SUPPORTED_STREAMS = 8
	Maximal number of streams supported by the VHT PHY layer. More...

static const uint8_t	ns3::MAX_VHT_WIDTH = 160
	Maximal channel width in MHz. More...
