ns3::ArfWifiRemoteStation Struct Reference

hold per-remote-station state for ARF Wifi manager. More...

Inheritance diagram for ns3::ArfWifiRemoteStation:

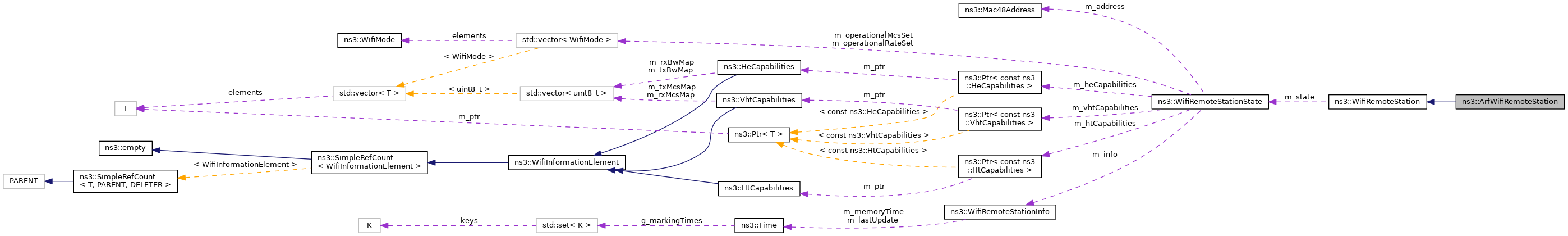

Collaboration diagram for ns3::ArfWifiRemoteStation:

Public Attributes
uint32_t	m_failed
	failed count More...
uint8_t	m_rate
	rate More...
bool	m_recovery
	recovery More...
uint32_t	m_success
	success count More...
uint32_t	m_successThreshold
	success threshold More...
uint32_t	m_timer
	timer value More...
uint32_t	m_timerTimeout
	timer timeout More...
Public Attributes inherited from ns3::WifiRemoteStation
std::pair< double, Time >	m_rssiAndUpdateTimePair
	RSSI (in dBm) of the most recent packet received from the remote station along with update time. More...
WifiRemoteStationState *	m_state
	Remote station state. More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

hold per-remote-station state for ARF Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the ARF Wifi manager

Definition at line 37 of file arf-wifi-manager.cc.

Member Data Documentation

m_failed

uint32_t ns3::ArfWifiRemoteStation::m_failed

failed count

Definition at line 41 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

m_rate

uint8_t ns3::ArfWifiRemoteStation::m_rate

rate

Definition at line 45 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

m_recovery

bool ns3::ArfWifiRemoteStation::m_recovery

recovery

Definition at line 42 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

m_success

uint32_t ns3::ArfWifiRemoteStation::m_success

success count

Definition at line 40 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

m_successThreshold

uint32_t ns3::ArfWifiRemoteStation::m_successThreshold

success threshold

Definition at line 44 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation().

m_timer

uint32_t ns3::ArfWifiRemoteStation::m_timer

timer value

Definition at line 39 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

m_timerTimeout

uint32_t ns3::ArfWifiRemoteStation::m_timerTimeout

timer timeout

Definition at line 43 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/arf-wifi-manager.cc
