Signal parameters for Lte Data Frame (PDSCH), and eventually after some control messages through other control channel embedded in PDSCH (i.e. More...

#include "lte-spectrum-signal-parameters.h"

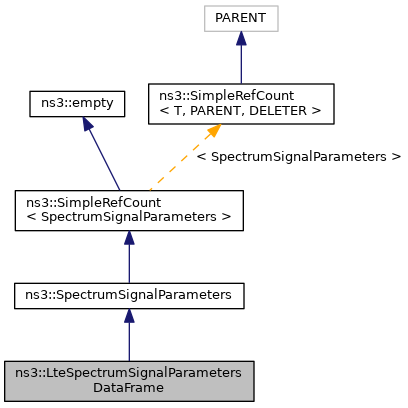

Inheritance diagram for ns3::LteSpectrumSignalParametersDataFrame:

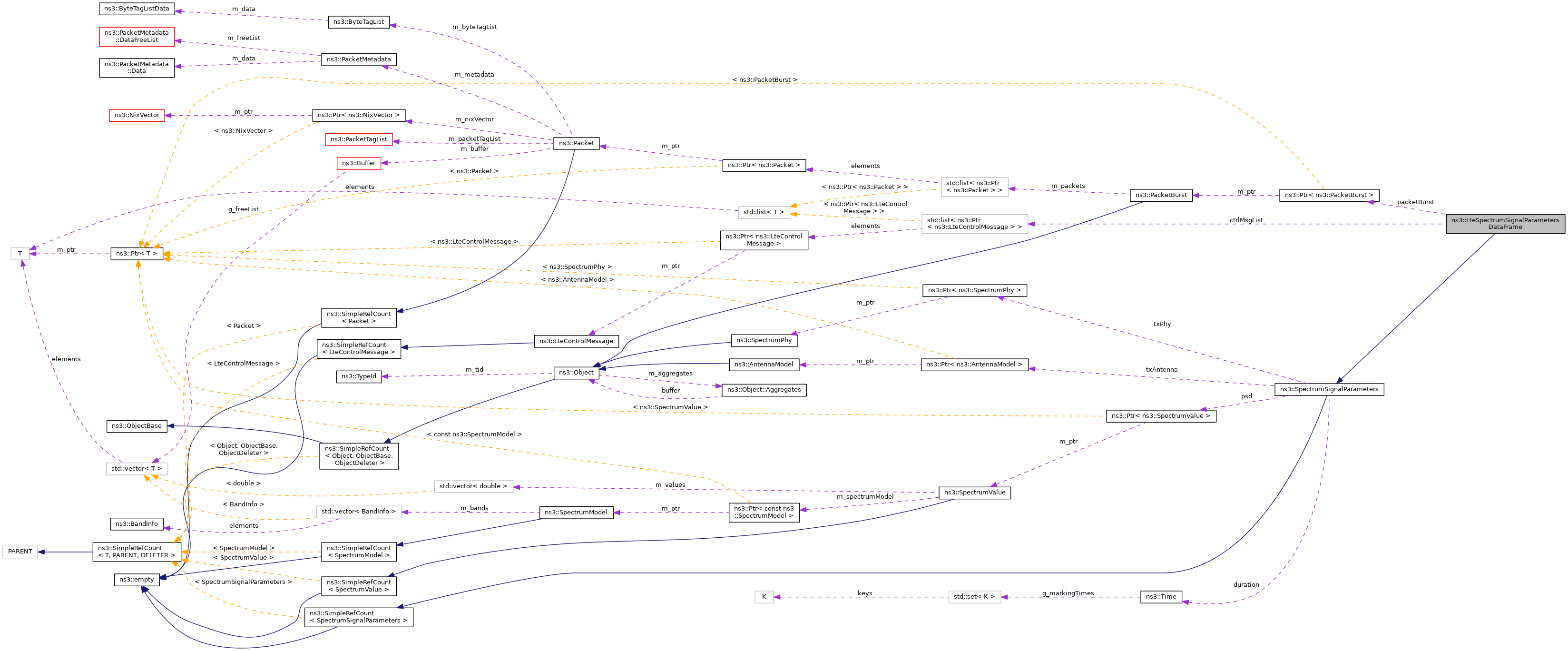

Collaboration diagram for ns3::LteSpectrumSignalParametersDataFrame:

Public Member Functions
	LteSpectrumSignalParametersDataFrame ()
	default constructor More...

	LteSpectrumSignalParametersDataFrame (const LteSpectrumSignalParametersDataFrame &p)
	copy constructor More...

virtual Ptr< SpectrumSignalParameters >	Copy ()
	make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. More...

Public Member Functions inherited from ns3::SpectrumSignalParameters
	SpectrumSignalParameters ()
	default constructor More...

	SpectrumSignalParameters (const SpectrumSignalParameters &p)
	copy constructor More...

virtual	~SpectrumSignalParameters ()
	destructor More...

Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Attributes
uint16_t	cellId
	cell ID More...

std::list< Ptr< LteControlMessage > >	ctrlMsgList
	the control message list More...

Ptr< PacketBurst >	packetBurst
	The packet burst being transmitted with this signal. More...

Public Attributes inherited from ns3::SpectrumSignalParameters
Time	duration
	The duration of the packet transmission. More...

Ptr< SpectrumValue >	psd
	The Power Spectral Density of the waveform, in linear units. More...

Ptr< AntennaModel >	txAntenna
	The AntennaModel instance that was used to transmit this signal. More...

Ptr< SpectrumPhy >	txPhy
	The SpectrumPhy instance that is making the transmission. More...

Detailed Description

Signal parameters for Lte Data Frame (PDSCH), and eventually after some control messages through other control channel embedded in PDSCH (i.e.

PBCH)

Definition at line 70 of file lte-spectrum-signal-parameters.h.

Constructor & Destructor Documentation

◆ LteSpectrumSignalParametersDataFrame() [1/2]

ns3::LteSpectrumSignalParametersDataFrame::LteSpectrumSignalParametersDataFrame ( )

default constructor

Definition at line 54 of file lte-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

◆ LteSpectrumSignalParametersDataFrame() [2/2]

ns3::LteSpectrumSignalParametersDataFrame::LteSpectrumSignalParametersDataFrame ( const LteSpectrumSignalParametersDataFrame & p )

copy constructor

Parameters

p	the LteSpectrumSignalParametersDataFrame to copy

Definition at line 59 of file lte-spectrum-signal-parameters.cc.

References cellId, ctrlMsgList, NS_LOG_FUNCTION, and packetBurst.

Member Function Documentation

◆ Copy()

Ptr< SpectrumSignalParameters > ns3::LteSpectrumSignalParametersDataFrame::Copy ( void )

virtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type.

Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.
