ns3::RateStats Struct Reference

A structure containing parameters of a single rate and its statistics. More...

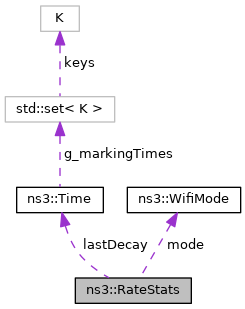

Collaboration diagram for ns3::RateStats:

Public Attributes
uint16_t	channelWidth
	channel width in MHz More...
double	fails {0.0}
	averaged number of failed transmissions More...
Time	lastDecay {0}
	last time exponential decay was applied to this rate More...
WifiMode	mode
	MCS. More...
uint8_t	nss
	Number of spatial streams. More...
double	success {0.0}
	averaged number of successful transmissions More...

Detailed Description

A structure containing parameters of a single rate and its statistics.

Definition at line 42 of file thompson-sampling-wifi-manager.cc.

Member Data Documentation

channelWidth

uint16_t ns3::RateStats::channelWidth

channel width in MHz

Definition at line 44 of file thompson-sampling-wifi-manager.cc.

Referenced by ns3::ThompsonSamplingWifiManager::InitializeStation().

fails

double ns3::RateStats::fails {0.0}

averaged number of failed transmissions

Definition at line 48 of file thompson-sampling-wifi-manager.cc.

lastDecay

Time ns3::RateStats::lastDecay {0}

last time exponential decay was applied to this rate

Definition at line 49 of file thompson-sampling-wifi-manager.cc.

mode

WifiMode ns3::RateStats::mode

MCS.

Definition at line 43 of file thompson-sampling-wifi-manager.cc.

Referenced by ns3::ThompsonSamplingWifiManager::InitializeStation().

nss

uint8_t ns3::RateStats::nss

Number of spatial streams.

Definition at line 45 of file thompson-sampling-wifi-manager.cc.

Referenced by ns3::ThompsonSamplingWifiManager::InitializeStation().

success

double ns3::RateStats::success {0.0}

averaged number of successful transmissions

Definition at line 47 of file thompson-sampling-wifi-manager.cc.

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/thompson-sampling-wifi-manager.cc
